Ledj STAR15, STAR16 User Manual

Page 1

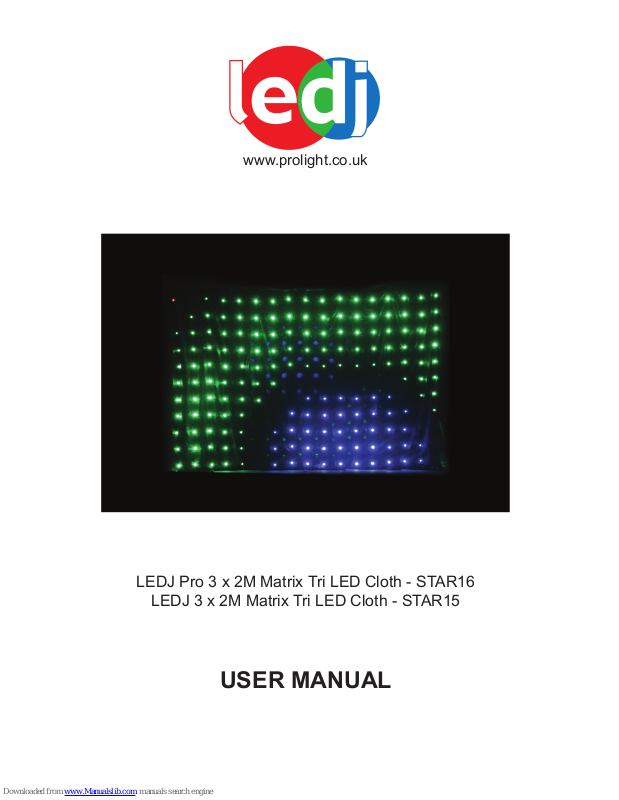

LEDJ Pro 3 x 2M Matrix Tri LED Cloth - STAR16
LEDJ 3 x 2M Matrix Tri LED Cloth - STAR15
USER MANUAL
www.prolight.co.uk
Page 2
WARNING
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during transportation. Should there be any, consult your dealer and do not use the equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modifications to this equipment are not subject to warranty.
LEDJ MATRIX STARCLOTHS SAFETY
Please note that damages caused by user modifications and damage to the wiring loom inside the cloth are not subject to warranty.
Page 3
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the system’s life.
• Only use the equipment indoors.
• Do not expose to flammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply imme diately. Have a qualified engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation might dam age the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Prolight dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualified technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks, lamp failure etc.
Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and property!
LEDJ MATRIX STARCLOTHS SAFETY
Page 4
You should find inside the carton the following items:
1, LED Matrix Starcloth 2, Instruction manual 3, Controller 4, SD card
Technical Specifications:
DMX channels: 2 DMX, sound active and auto run modes 187 Ultra Bright Tri colour LEDs - STAR15 726 Ultra Bright Tri colour LEDs - STAR16 Hanging tabs on 3 sides Fire retardent material Power consumption: 60W - STAR15 130W - STAR16 Power supply: 240V Dimensions: 3000 x 2000mm (3 x 2M) Weight: 8.5Kgs - STAR15
11.0Kgs - STAR16
Overview:
LEDJ MATRIX STARCLOTHS TECHNICAL SPECIFICATIONS
STAR15 Controller
STAR16 Controller

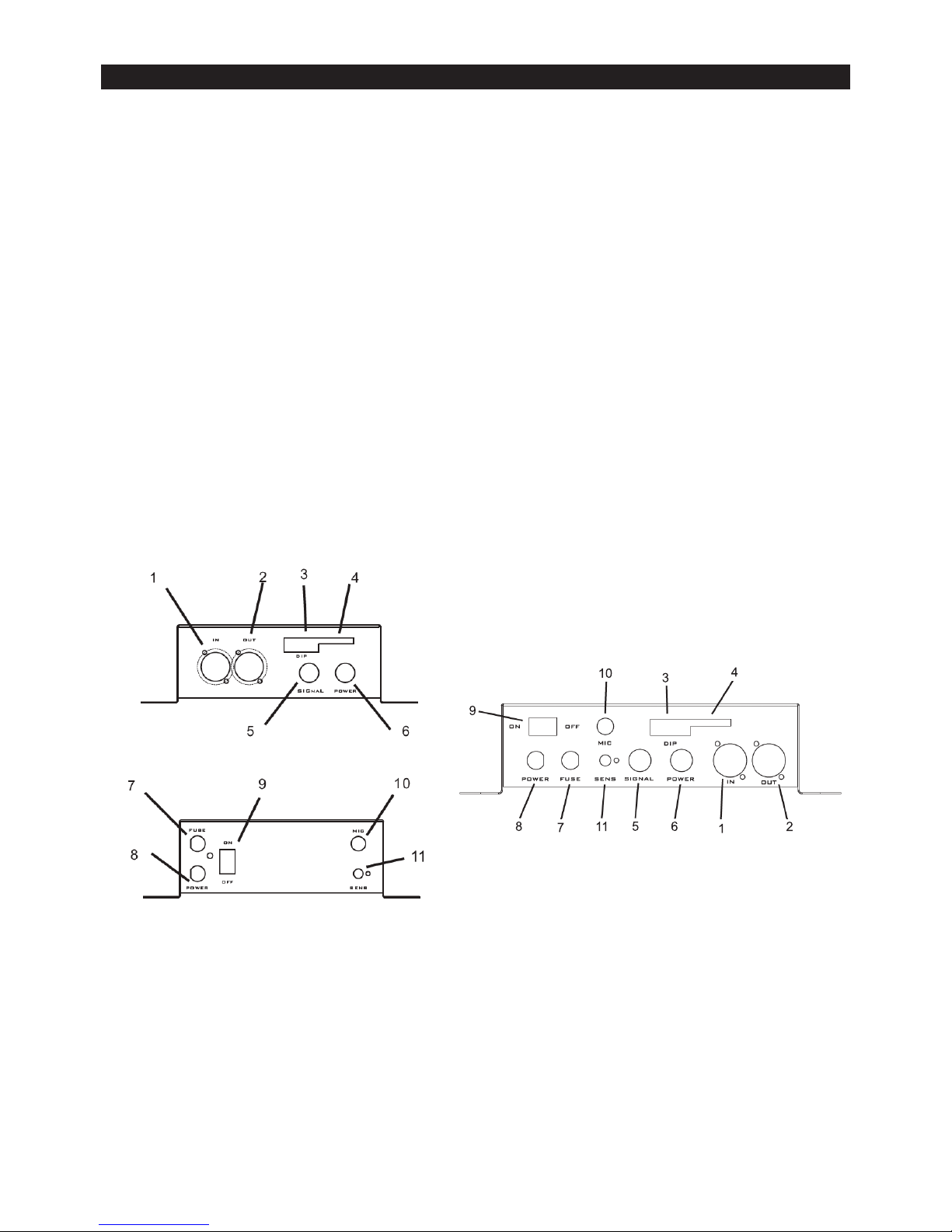

Identification:
1, DMX input 2, DMX output 3, Dip switches 4, SD card input 5, Signal output 6, Power output
7, Fuse 8, Power input 9, On/off switch 10, Microphone 11, Sensitivity/speed control
Page 5
Operations:
There are three operating modes to choose from;
1, Auto run 2, Sound Active 3, DMX
NOTE: Before use, please insert the supplied SD card and follow the instructions below.
Auto run mode
To set the Matrix cloth in auto run mode, set all dip switches to the off position and use the “SENSITIVITY/SPEED” control to set the desired running speed. The Matrix cloth will now run through all of its in-built programmes.
Sound active mode
To set the Matrix cloth into sound active mode, set dip switch “10” to the ON position and all others to the OFF position. Now use the “SENSITIVITY/SPEED” control to set the desired sensitivity level.
DMX mode
DMX Control Mode
Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the cloth and each cloth independently. The Matrix Cloths uses 2 channels of control.
Use dip switches 1 – 9 to address each cloth accordingly.
Setting the DMX address
The DMX mode enables the use of a universal DMX controller. Each cloth requires a “start address” from 1- 511. A cloth requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a cloth that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107.
DMX chart:
LEDJ MATRIX STARCLOTHS Operations
Channel
1
2
Value
0-9
10-255
10-255
Function
Blackout
Sound Active
Pattern group selector
0-9 Blackout
0-255 Speed (slow to fast)
Notes
CH1 0-9 Blackout
Page 6
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight dealers. Please quote: CABL10 – 2M CABL11 – 5M CABL12 – 10M
DMX Control Mode
Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
Setting the DMX address
The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107.
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):

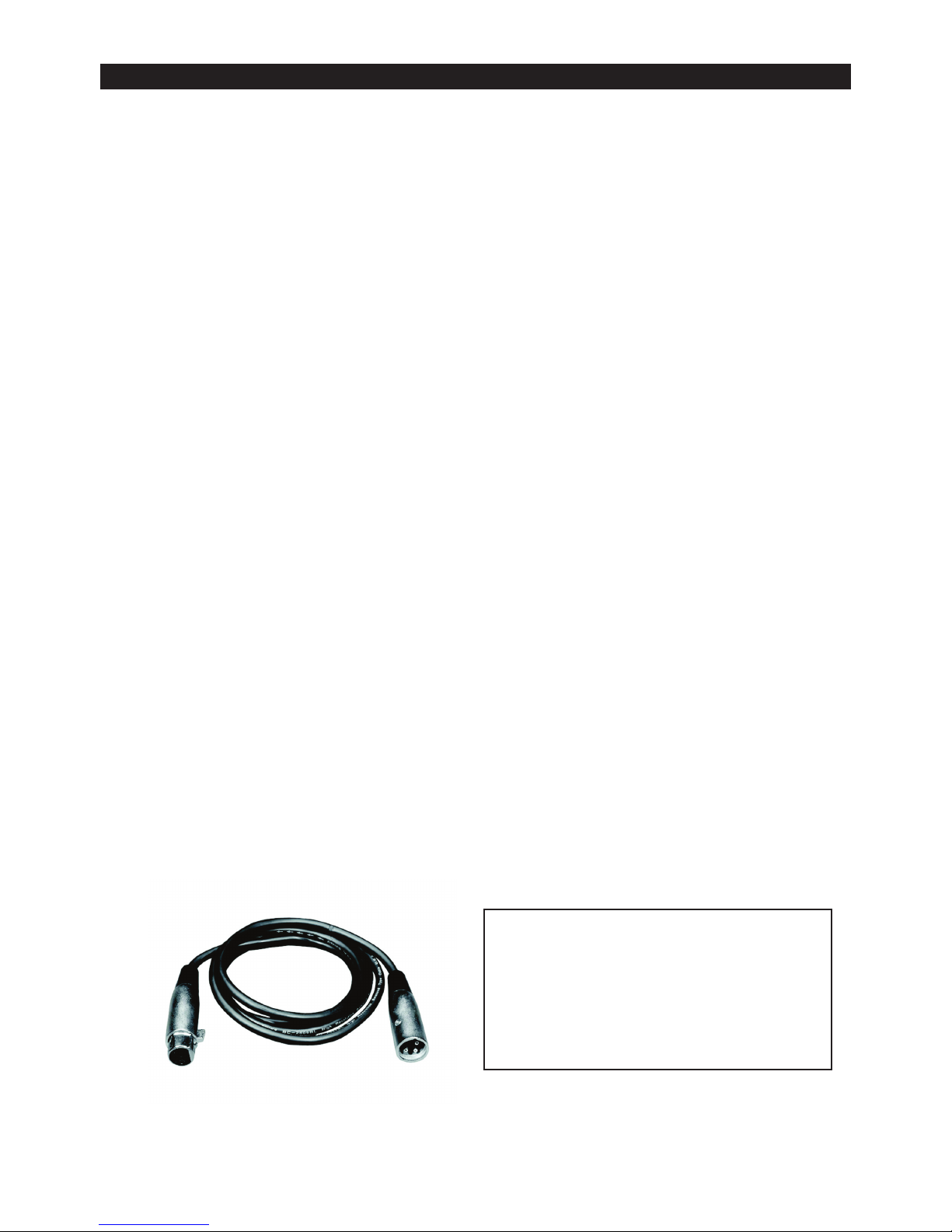

• The LEDJ Matrix cloths can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
LEDJ MATRIX STARCLOTHS DMX SET UP
Page 7
Notice:

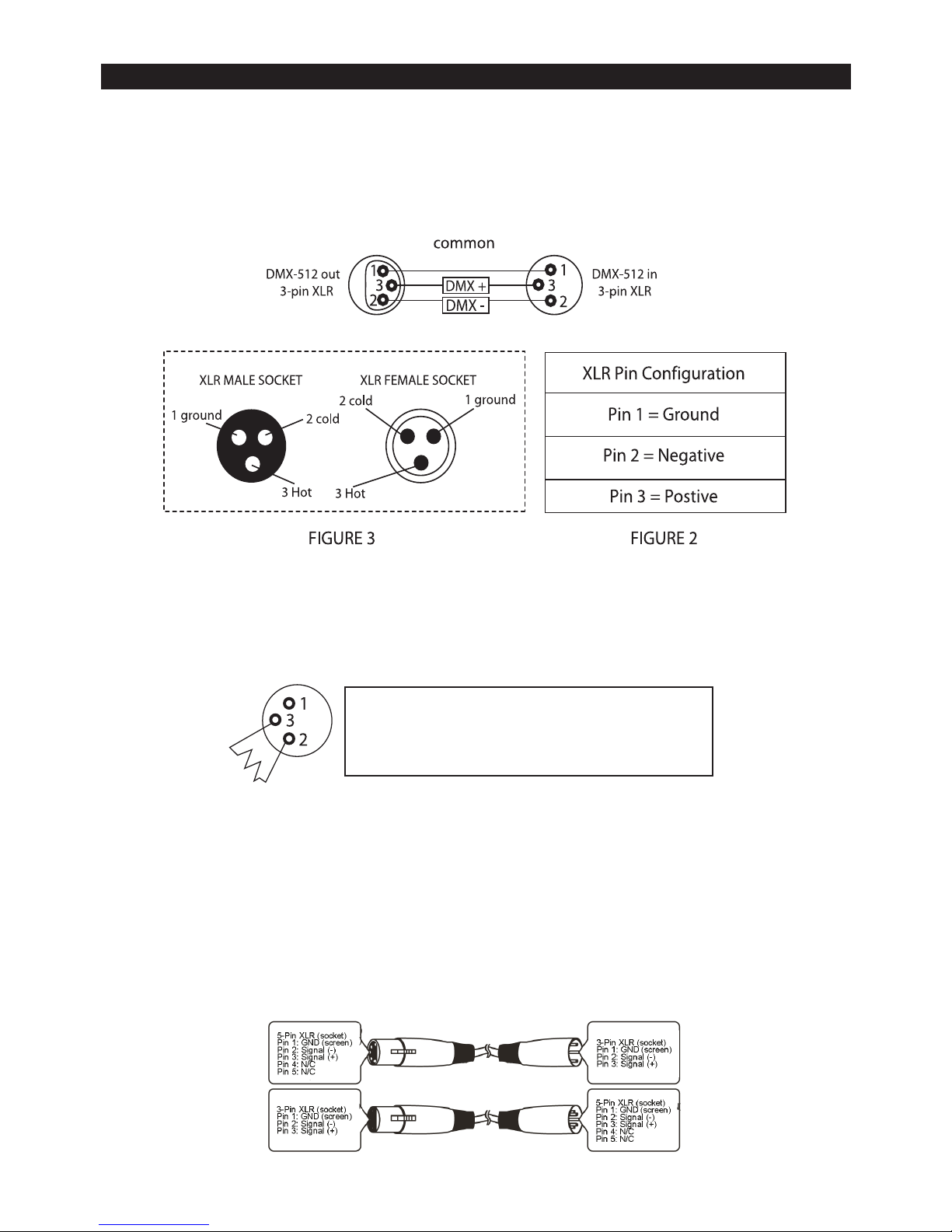

• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the correct cable conversion.
Termination reduces signal transmission problems and interferance. it is always advisable to connect a DMX terminal, (resistance 120 Ohm 1/4 W) between pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
LEDJ MATRIX STARCLOTHS DMX SET UP
Page 8
LEDJ MATRIX STARCLOTHS DIP SWITCH REFERENCE CHART

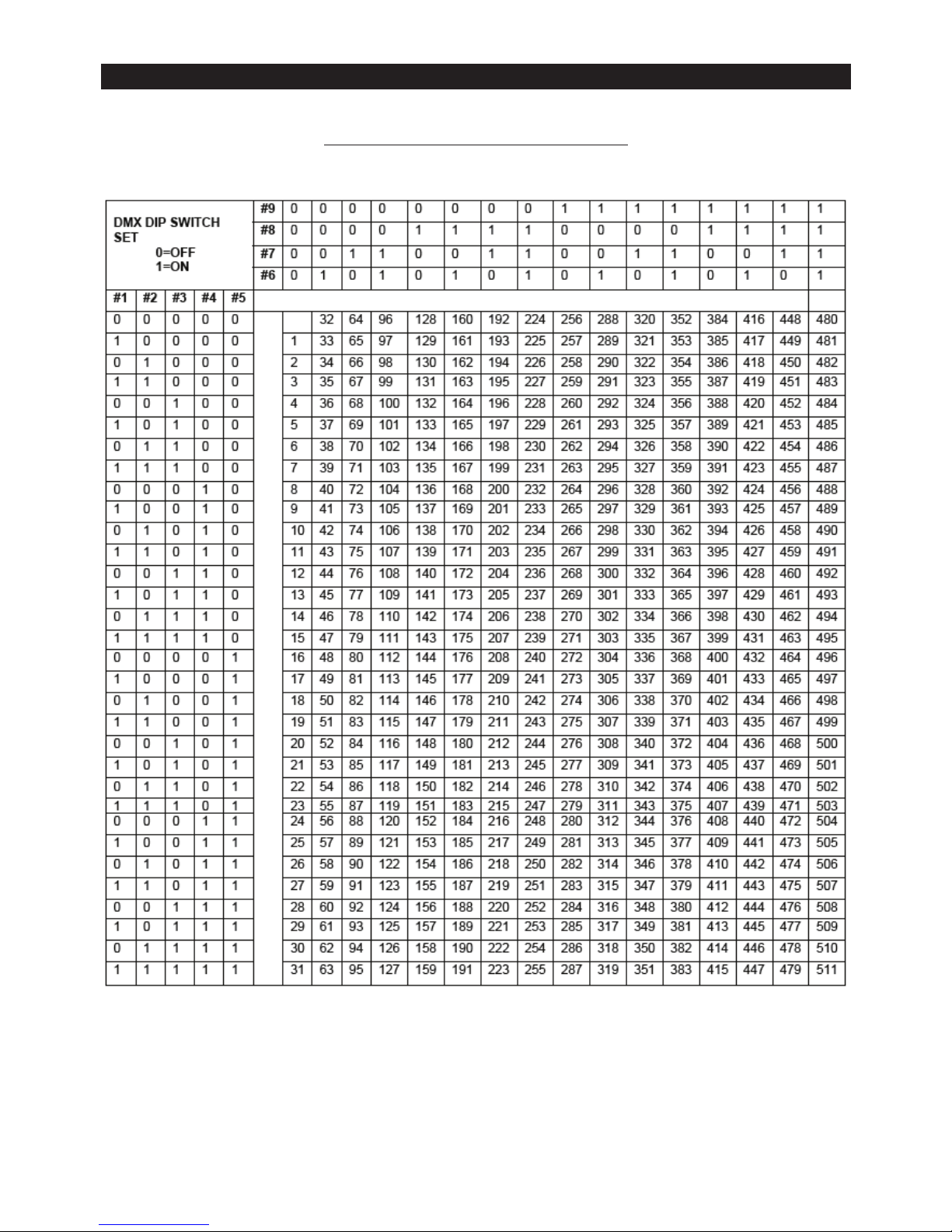

DMX Dip Switch Quick Reference Chart
Dip Switch Position
