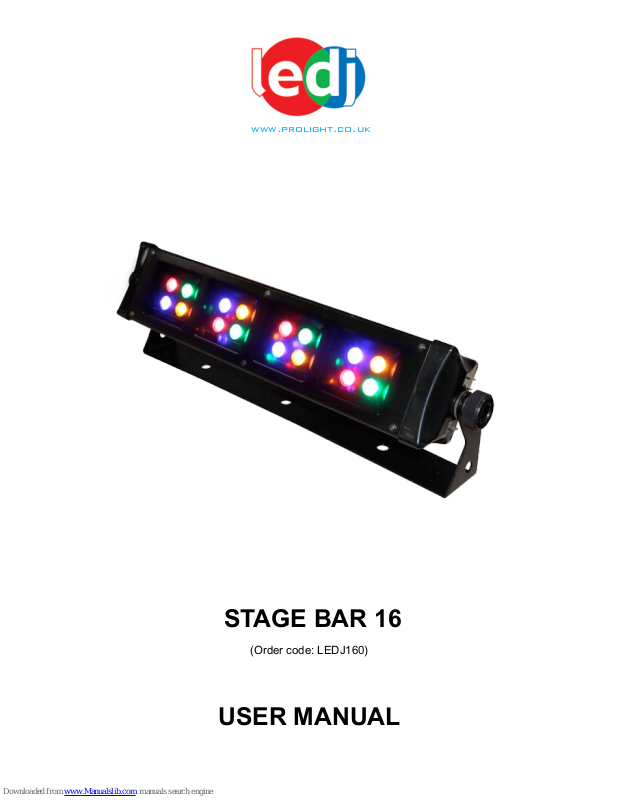

Page 1
www.prolight.co.uk

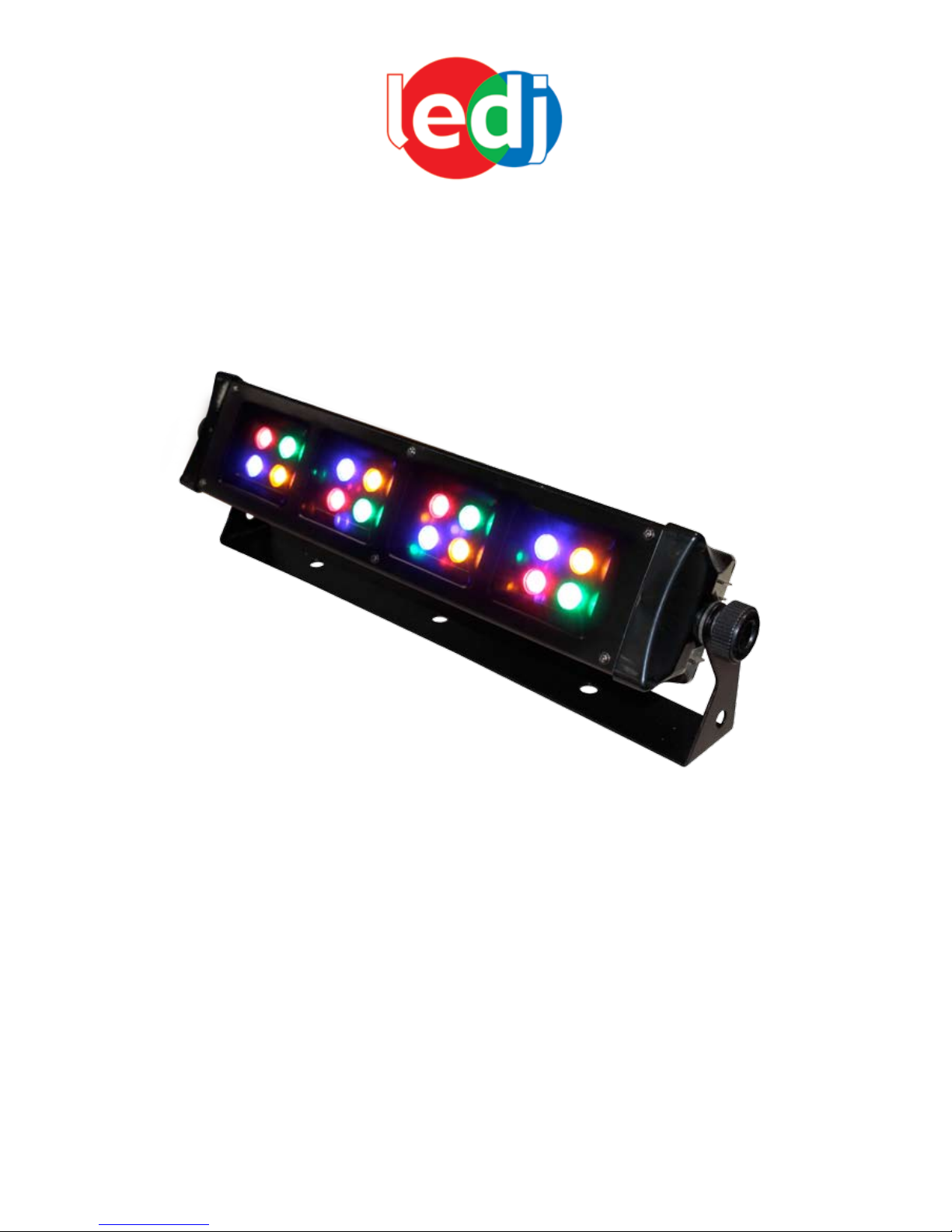

STAGE BAR 16
(Order code: LEDJ160)
USER MANUAL
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
STAGE BAR 16 SAFETY
1.
Page 3
STAGE BAR 16 SAFETY
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
2.
Page 4
Setup
Operating Instructions
The Stage Bar 16 is a DMX-512 controllable unit made up of high efciency and Ultra bright LEDs
and will operate in auto run, master/slave, sound activated or DMX control modes.
STAGE BAR 16 INTRODUCTION
Introduction
Features
• DMX channels: 19/6/4 selectable
• 16 Ultra Bright 3W LEDs (R: 4, G:4, B: 4, A: 4)
• Sound activated, Auto run, Master/slave and DMX modes
• Sound control via internal microphone
• 13 built-in programmes
• Consumption: 60W
• Beam 25 degrees
• Lamp life: 100,000 hours

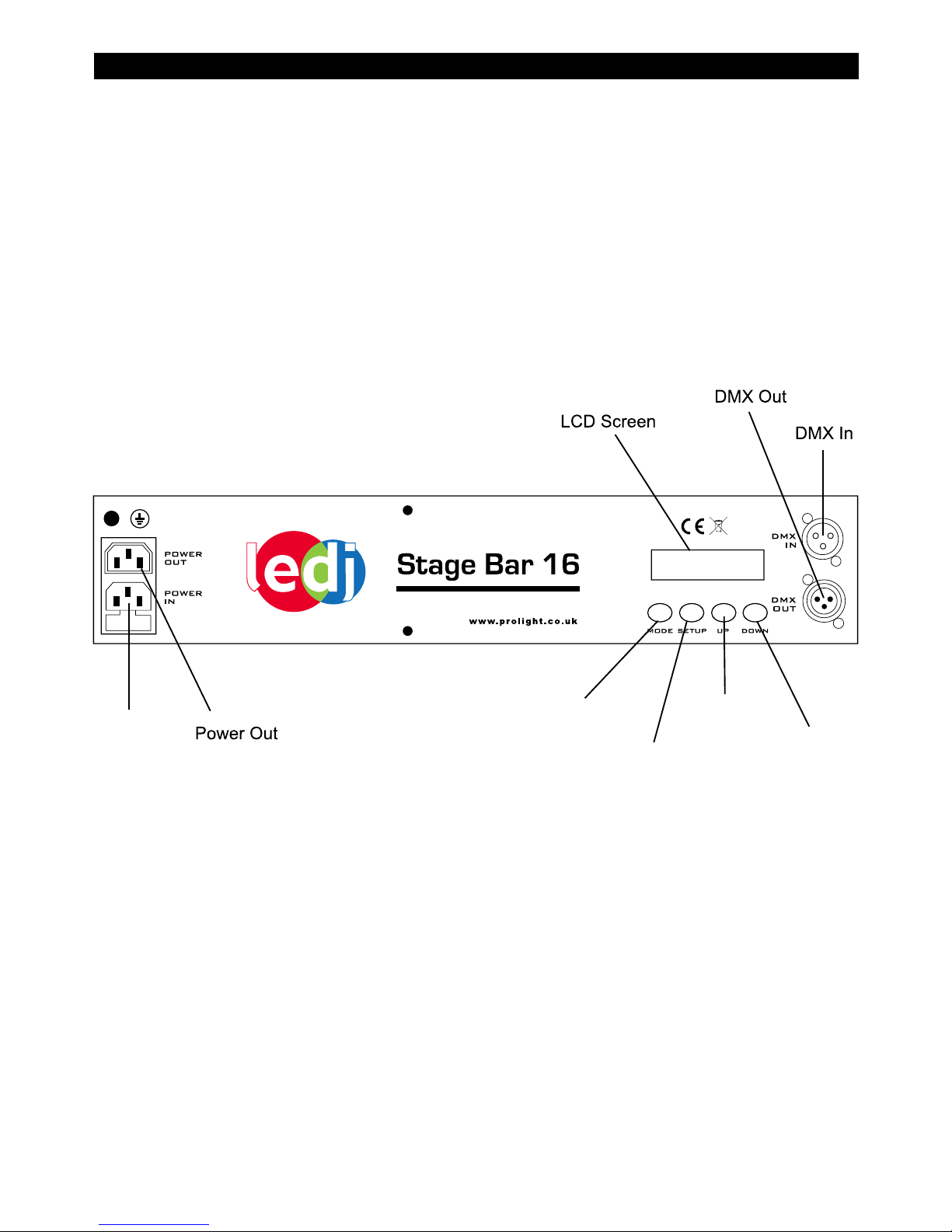

Over view
3.
Mode Button
Set Up Button
Up Button
Down Button
Power In
Page 5
STAGE BAR 16 OPERATION MODES
Operation modes
Sound Active mode:
To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”
on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using
the “UP” and “DOWN” buttons. Press the “SET UP” button again to select the frequency number
and adjust by using the “UP” and “DOWN” buttons.
“SENS” 00 - 31 (00 = low, 31 = high), “FQN” 01-99 (01 = low, 99 = high)
Auto run mode:
To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the
LCD screen. Now press the “SET UP” button to select the desired frequency number by using the
“UP” and “DOWN” buttons.
“FQN” 01-99 (01 = low, 99 = high)
Note: When the Stage Bar 16 is set to “SOUND” or “AUTO RUN” mode it will scroll through all
of its built-in programmes one after the other. The term “FQN” refers to the number of times it
displays the buit-in programmes: for example if you set the “FQN” to 3, it will then repeat each
programme 3 times before going on to the next one.
Slave mode:
To activate the unit in slave mode, rst you must link multiple units together and press the
“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the
“MODE” button to select the desired mode and the slave units will now run in sequence with the
master unit.
Built-in programmes:
To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the
LCD screen. Press the “SET UP” button to choose between the 13 built-in programmes by
using the “UP” and “DOWN” buttons. Now press the “SET UP” button to select the desired
speed and adjust by using the “UP” and “DOWN” buttons. Press the “SET UP” button once
more to select the desired ash value and adjust by using the “UP” and “DOWN” buttons.
Speed values: 00 - 99 (00 = slow, 99 = fast),Flash values: 00 - 99 (00 = slow, 99 = fast)
For the 13 built-in programmes please see page 5.
DMX mode:
To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD
screen. Press the “SET UP” button and select the desired DMX address setting by using the
“UP” and “DOWN” buttons. Then to select one of the 3 DMX modes 19, 6 or 4 channel,
press the “SET UP” button again to choose the desired DMX mode by using the “UP” and
“DOWN” buttons.
For the 19, 6 and 4 channel DMX address information please see page 6.
NOTE: Once the desired settings have been selected in all of the modes, ALWAYS
conrm the settings by pressing the “SET UP” button.
4.
Page 6
STAGE BAR 16 BUILT-IN PROGRAMME CHART
13 Built-in programme chart
Static colour selection:
To select a static colour press the “MODE” button to show “01.STATIC” on the LCD screen.
Now press the “SETUP” button to select the desired light output value of each individual colour,
for example for RED and AMBER on only set the values to R:99,G:00,B:00,A99.
Light output values: 00 = Off, 99 = On.
Flash speed values: 00 = Off, 99 = Fast
5.
01, Static colour
Blackout - RGBA
Flash: 00 - 99
02, Colour Jump
Speed: 00 - 99 Flash: 00 - 99
03, Colour Fade
Speed: 00 - 99 Flash: 00 - 99
04, Colour Dream
Speed: 00 - 99 Flash: 00 - 99
05, Colour Flow
Speed: 00 - 99 Flash: 00 - 99
06, Colour Overlap Flow
Speed: 00 - 99 Flash: 00 - 99
07, Colour Chase
Speed: 00 - 99 Flash: 00 - 99
08, Multi-Colour
Speed: 00 - 99 Flash: 00 - 99
09, Fade Flow
Speed: 00 - 99 Flash: 00 - 99
10, Two Flow
Speed: 00 - 99 Flash: 00 - 99
11, One Way
Speed: 00 - 99 Flash: 00 - 99
12, Two Way
Speed: 00 - 99 Flash: 00 - 99
13, Two Colour
Speed: 00 - 99 Flash: 00 - 99
Static colour selection.
R: 00 - 99, G: 00 - 99, B: 00 - 99, A: 00 - 99
NB: See static colour selection below.
Jumps through its built-in 15 colours one after the other.
Speed and ash adjustable.
15 colour fade in, fade out
Speed and ash adjustable.
15 colour fade
Speed and ash adjustable.
15 colour ow from left to right.
Speed and ash adjustable.
15 colour ow from left to right, right to left
Speed and ash adjustable.
15 colour chase from left to right, right to left
Speed and ash adjustable.
Multi-colour chase from left to right,
Speed and ash adjustable.
15 colour fade ow from left to right,
Speed and ash adjustable.
2 colour ow from left to right,
Speed and ash adjustable.
2 colour chase from left to right,
Speed and ash adjustable.
2 colour ow from left to right, right to left
Speed and ash adjustable.
2 colour chase from left to right, right to left
Speed and ash adjustable.
Page 7
STAGE BAR 16 DMX PROGRAMME CHARTS
4 channel mode DMX chart
6 channel mode DMX chart
19 channel mode DMX chart
6.
CH1
Red
0-255
CH2
Green
0-255
CH3
Blue
0-255
CH4
Amber
0-255
CH1
Red
0-255
CH2
Green
0-255
CH3
Blue
0-255
CH4
Amber
0-255
CH5
Master
dimmer
0-255
CH6
0 = On
1-5 = Sound
6-10 = On
11-255 = Flash
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
CH17
CH18
CH19
0-5: BLACKOUT
6-10
DIMMER
0-255
ALL
0-255
Flash
0-255R0-255G0-255B0-255
A
11-15
DIMMER
0-255
ALL
0-255
Flash
0-255R10-255G10-255B10-255A10-255R20-255G20-255B20-255A20-255R30-255G30-255B30-255A30-255R40-255G40-255B40-255
A4
16-20 R0-255
Speed
0-255
Flash
21-25 G0-255
Speed
0-255
Flash
26-30 B0-255
Speed
0-255
Flash
31-35 A0-255
Speed
0-255
Flash
36-40
RA
0-255
Speed
0-255
Flash
41-45
RG
0-255
Speed
0-255
Flash
46-50
RB
0-255
Speed
0-255
Flash
51-55
GB
0-255
Speed
0-255
Flash
56-60
AB
0-255
Speed
0-255
Flash
61-65
AG
0-255
Speed
0-255
Flash
66-70
RGB
0-255
Speed
0-255
Flash
71-75
RGA
0-255
Speed
0-255
Flash
76-80
RBA
0-255
Speed
0-255
Flash
81-85
GBA
0-255
Speed
0-255
Flash
86-90
RGBA
0-255
Speed
0-255
Flash
91-100
Colour
jump
0-255
Speed
0-255
Flash
101-110
Colour
fade
0-255
Speed
0-255
Flash
111-120
Dreaming
0-255
Speed
0-255
Flash
121-130
Colour
flow
0-255
Speed
0-255
Flash
131-140
Overlap
flow
0-255
Speed
0-255
Flash
141-150
Colour
chase
0-255
Speed
0-255
Flash
151-160
MultiColour
0-255
Speed
0-255
Flash
161-170
Fade flow
0-255
Speed
0-255
Flash
0-255
Colour
select
171-180
Two flow
0-255
Speed
0-255
Flash
0-255
Colour
select
0-255
Colour
select
181-190
One way
0-255
Speed
0-255
Flash
0-255
Colour
select
0-255
Colour
select
191-200
Two way
0-255
Speed
0-255
Flash
0-255
Colour
select
0-255
Colour
select
201-210
Two
Colour
0-255
Speed
0-255
Flash
0-255
Colour
select
0-255
Colour
select
211-255
SOUND
0-255
Sens
Page 8
STAGE BAR 16 DMX SET UP
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only
have a data “out” terminal).

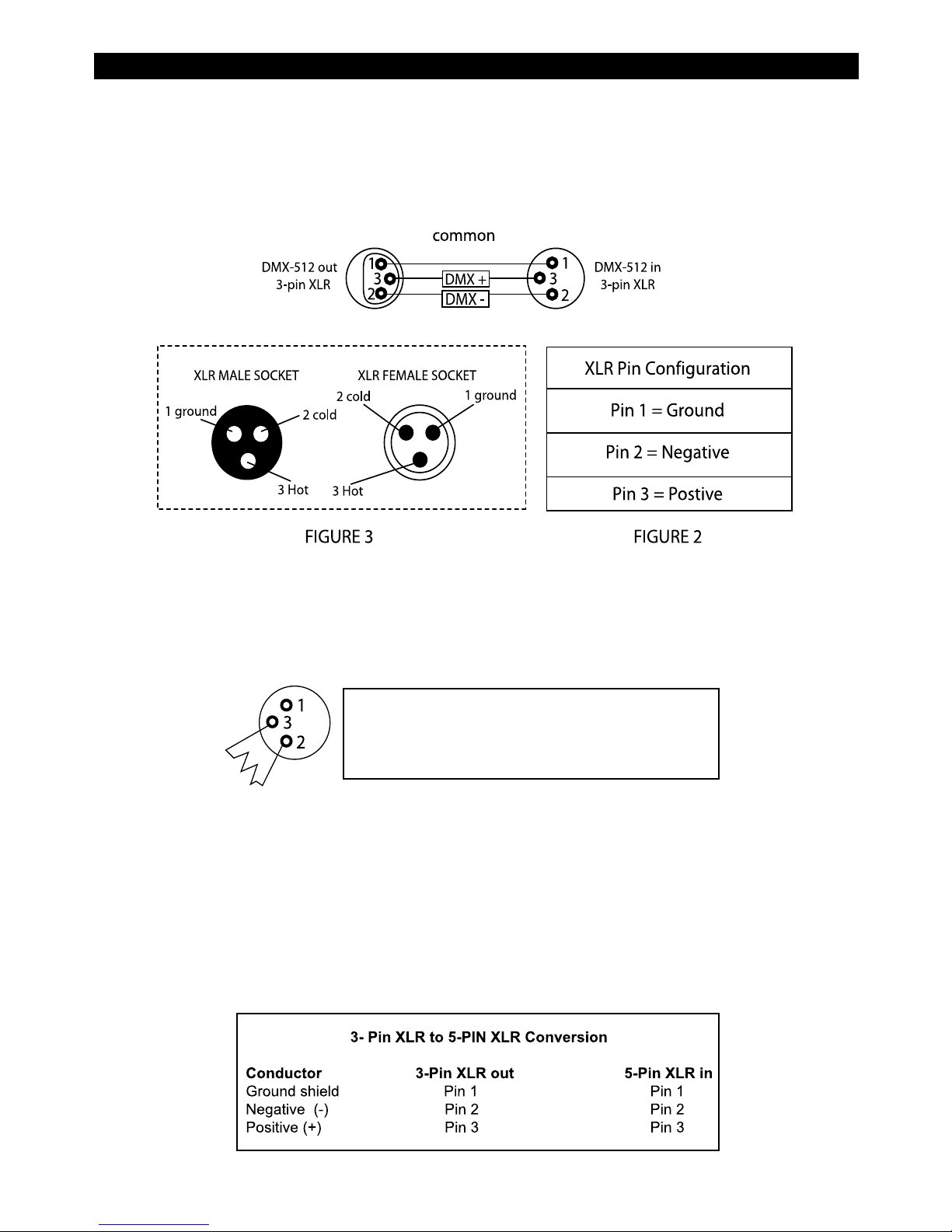

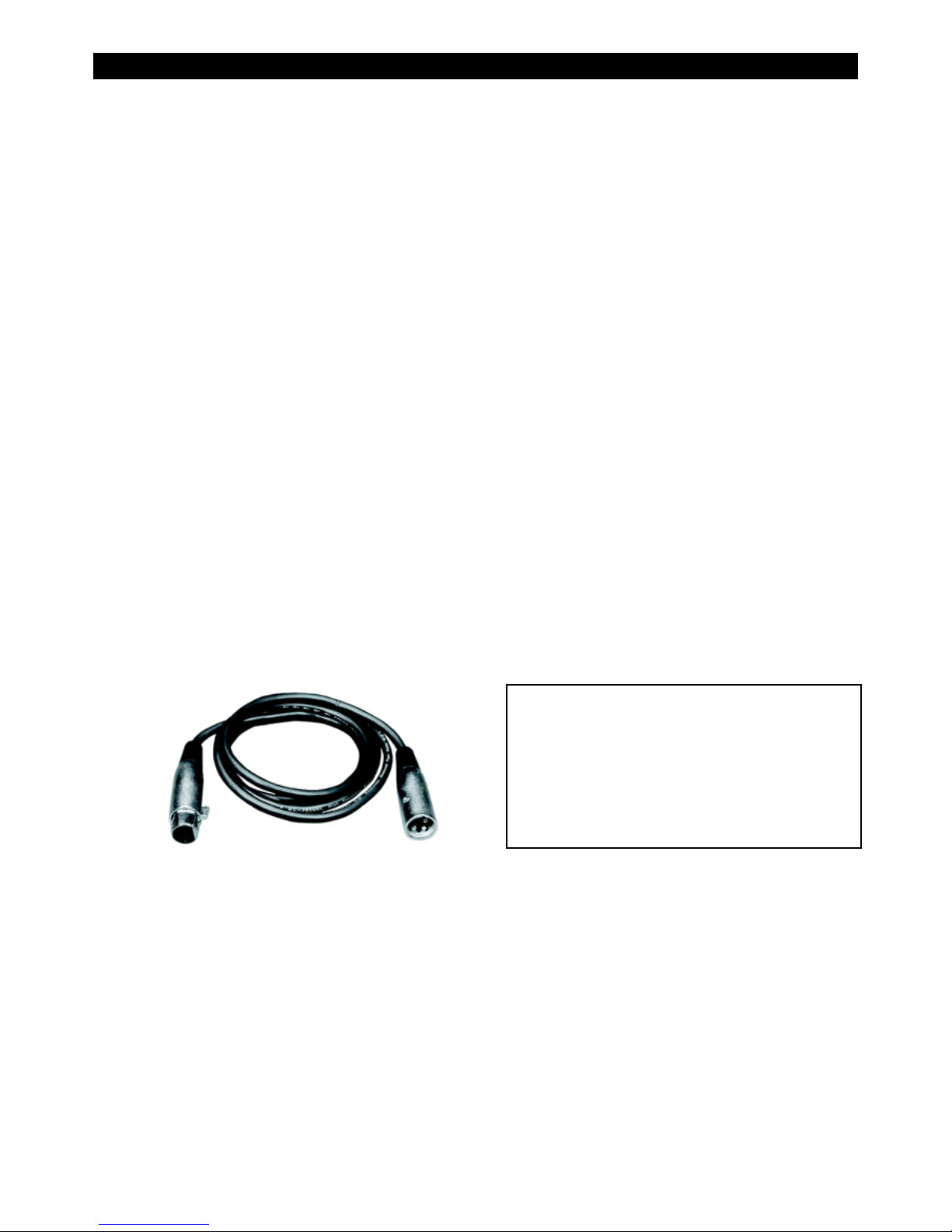

DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Stage Bar 16 can be controlled via DMX-512 protocol. The DMX address is set on the
back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
7.
Page 9
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
STAGE BAR 16 DMX SET UP
8.
Page 10
STAGE BAR 16 TECHNICAL SPECIFICATIONS
Technical Specications
Weight & Dimensions
• Length…...........................................................550mm
• Width.................................................................120mm
• Height……………………………………………..155mm
• Weight……………………………………….........3.6kgs
Power
• AC input……………………………………..........240V/50hz
• Power consumption.........................................60W
• Fuse
• Main……………………………………………….2A/240V
Control & Programming
• Data input………………………………………...Locking 3-pin XLR male socket
• Data output……………………………………….Locking 3-pin XLR female socket
• Protocols…………………………………………DMX-512 USITT
• DMX channels…………………………………...19, 6 and 4
9.
Page 11
Page 12
www.prolight.co.uk
Loading...
