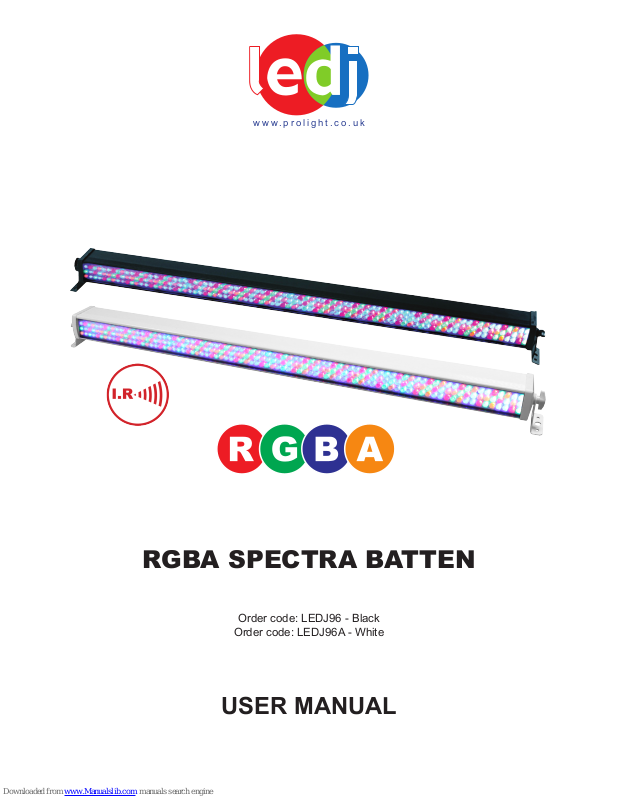

RGBA SPECTRA BATTEN
Order code: LEDJ96 - Black
Order code: LEDJ96A - White
USER MANUAL
Page 2
1
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
LEDJ RGBA Spectra Batten Safety
Page 3
2
LEDJ RGBA Spectra Batten Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Cleaning must be done at regular intervals.
• Before cleaning, wait until the unit has cooled.
• Use a vacuum or dry compressed air and a soft brush to remove the dust collected on the
external vents and accessible internal components.
• Clean the external surfaces with a mild solution of non-ammonia glass cleaner or
isopropyl alcohol and wipe with a soft, lint free cotton cloth or lense cleaning tissue.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 100V-240V.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
LED failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
3
You should nd inside the LEDJ carton the following items:
1, RGBA Spectra Batten Unit 2, Instruction manual 3, Power cable
Technical Specications:
DMX channels: 2, 3, 4, 6, 7 or 19 selectable
400Hz refresh rate
Power supply: 110-240V ~ 50/60Hz
252 x 10mm LEDs (R: 48, G: 72, B: 72, A: 60)
Optional I.R. remote (LEDJ90C)
Power consumption: 40W
Beam angle: 40 degrees
Dimensions: 1018 x 63 x 87mm
Weight: 2.5Kg
Operating modes: 1, Static colour mix mode
2, Built-in programmes
3, Slave mode
4, Sound active mode
5, DMX mode
6, DMX channel mode
Overview:
1, DMX input
2, DMX output
3, LCD display
4, Power input
5, Power output
6, Mode selection button
7, Enter button
8, Function up button
9, Function down button
10, Safety eye
11, Earthing screw
LEDJ RGBA Spectra Batten Technical specications
POWER IN 100-240V 50/60Hz
Fuse: F1A, 250V
POWER OUT 100-240V 50/60Hz
Fuse: F1A, 250V
DMX IN DMX INSAFETY EYE SAFETY EYE
www.prolight.co.uk
Page 5
4
LEDJ RGBA Spectra Batten Operation
Operation modes
Sound Active mode:
To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”
on the LCD screen. Now press the “ENTER” button to select the desired sensitivity level by using
the “UP” and “DOWN” buttons. Press the “ENTER” button again to select the frequency number
and adjust by using the “UP” and “DOWN” buttons.
“SENS” 00 - 31 (00 = low, 31 = high), “FQN” 01-99 (01 = low, 99 = high)
Auto run mode:
To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the
LCD screen. Now press the “ENTER” button to select the desired frequency number by using the
“UP” and “DOWN” buttons.
“FQN” 01-99 (01 = low, 99 = high)
Note: When the RGBA batten is set to “SOUND” or “AUTO RUN” mode it will scroll through all
of its built-in programmes one after the other. The term “FQN” refers to the number of times it
displays the buit-in programmes: for example if you set the “FQN” to 3, it will then repeat each
programme 3 times before going on to the next one.
Slave mode:
To activate the unit in slave mode, rst you must link multiple units together and press the
“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the
“MODE” button to select the desired mode and the slave units will now run in sequence with the
master unit.
Built-in programmes:
To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the
LCD screen. Press the “ENTER” button to choose between the 13 built-in programmes by
using the “UP” and “DOWN” buttons. Now press the “ENTER” button to select the desired speed
and adjust by using the “UP” and “DOWN” buttons. Press the “ENTER” button once more to
select the desired ash value and adjust by using the “UP” and “DOWN” buttons.
Speed values: 00 - 99 (00 = slow, 99 = fast),Flash values: 00 - 99 (00 = slow, 99 = fast)
For the 13 built-in programmes please see page 5.
DMX mode:
To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD
screen. Press the “ENTER” button and select the desired DMX address setting by using the “UP”
and “DOWN” buttons. Then to select one of the 6 DMX modes 2, 3, 4, 6, 7 or 19 channel,
press the “ENTER” button again to choose the desired DMX mode by using the “UP” and
“DOWN” buttons.
For the 2, 3, 4, 6, 7 or 19 channel DMX address information please see pages 7 and 8.
NOTE: Once the desired settings have been selected in all of the modes, ALWAYS
conrm the settings by pressing the “ENTER” button.
Page 6
5
Static colour selection:
To select a static colour press the “MODE” button to show “01.STATIC” on the LCD screen.
Now press the “ENTER” button to select the desired colour and use the “UP” and “DOWN”
buttons to increase or decrease the brightness of each individual colour,
for example for RED and AMBER on only ,set the values to R:99,G:00,B:00,A99.
Light output values: 00 = Off, 99 = On, Flash speed values: 00 = Off, 99 = Fast
13 Built-in programme chart
LEDJ RGBA Spectra Batten Operation
01, Static colour
Blackout - RGBA
Flash: 00 - 99
02, Colour Jump
Speed: 00 - 99 Flash: 00 - 99
03, Colour Fade
Speed: 00 - 99 Flash: 00 - 99
04, Colour Dream
Speed: 00 - 99 Flash: 00 - 99
05, Colour Flow
Speed: 00 - 99 Flash: 00 - 99
06, Colour Overlap Flow
Speed: 00 - 99 Flash: 00 - 99
07, Colour Chase
Speed: 00 - 99 Flash: 00 - 99
08, Multi-Colour
Speed: 00 - 99 Flash: 00 - 99
09, Fade Flow
Speed: 00 - 99 Flash: 00 - 99
10, Two Flow
Speed: 00 - 99 Flash: 00 - 99
11, One Way
Speed: 00 - 99 Flash: 00 - 99
12, Two Way
Speed: 00 - 99 Flash: 00 - 99
13, Two Colour
Speed: 00 - 99 Flash: 00 - 99
Static colour selection.
R: 00 - 99, G: 00 - 99, B: 00 - 99, A: 00 - 99
NB: See static colour selection below.
Jumps through its built-in 15 colours one after the other.
Speed and ash adjustable.
15 colour fade in, fade out
Speed and ash adjustable.
15 colour fade
Speed and ash adjustable.
15 colour ow from left to right.
Speed and ash adjustable.
15 colour ow from left to right, right to left
Speed and ash adjustable.
15 colour chase from left to right, right to left
Speed and ash adjustable.
Multi-colour chase from left to right,
Speed and ash adjustable.
15 colour fade ow from left to right,
Speed and ash adjustable.
2 colour ow from left to right,
Speed and ash adjustable.
2 colour chase from left to right,
Speed and ash adjustable.
2 colour ow from left to right, right to left
Speed and ash adjustable.
2 colour chase from left to right, right to left
Speed and ash adjustable.
Page 7
6
Optional I.R remote functions (LEDJ90C)
Button functions:
The “BLACKOUT” button is used to set the LEDs into the power on or off modes.
The “S PR” button is used to run the built-in programmes. To go though the built-in programmes,
press the “+” and “-” buttons.
The “FL” button is used to set the LEDs to ash on and off, to change the ash frequency use the
“+” and “-” buttons.
The “SP” button is used to set the run speed, this button is available only in the colour change or
colour fade modes. To change the speed use the “+” and “-” buttons.
The “D” button is used to set the LEDs into DMX mode.
The “SA” button is used to set the LEDs into sound activated mode.
The “SL” button is used to set the LEDs into slave mode.
The “S”, “0”, “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8” and “9” buttons are used to set the DMX
address for the LED’s. (see example below)
The “R”, “G”, “B” and “A/W” buttons are used to set the brightness for the Red, Green, Blue
and Amber/White LEDs, to change the brightness use the “+” and “-” buttons.
DMX Address Examples:
To set the DMX address “245”;
1) Press the “S” button, so the red LEDs come on, this means you can now start to set
the DMX address.
2) Press the “2” button, so the green LEDs come on, this means the rst digit “2”
(the hundreds place) setting is successful.
3) Now Press the “4” button, and the blue LEDs will come on, this now means that the second
digit “4” (tens place) setting is successful.
4) Now Press the “5” button, and all of the R, G, B, A LEDs will come on, this means
that the nal digit “5” (units place) setting is successful and the full DMX address setting
has been changed
5) Now press the “DMX MODE” button to save the new address into memory.
To set the DMX address “002”;
1) Press the “S” button, so the red LEDs come on, this means you can now start to set
the DMX address.
2) Press the “0” button, so the green LEDs come on, this means the rst digit “0”
(the hundreds place) setting is successful.
3) Now Press the “0” button, and the blue LEDs will come on, this now means that the second
digit “0” (tens place) setting is successful.
4) Now Press the “2” button, and all of the R, G, B, A LEDs will come on, this means
that the nal digit “2” (units place) setting is successful and the full DMX address setting
has been changed.
5) Now press the “DMX MODE” button to save the new address into memory.
Important notes:
• Set the DMX address on each xture before plugging into the DMX controller.
• The I.R Remote is not usable when the xture(s) are being controlled by a
DMX controller.
• The maximum transmitter distance is 10M. Please make sure that you have the
I.R remote aimed directly at each xture to be programmed.
• If you do not press the “DMX MODE” button after you have changed the DMX address,
when you power down the xture it will lose the address you have set.
LEDJ RGBA Spectra Batten I.R. Remote
Page 8
7

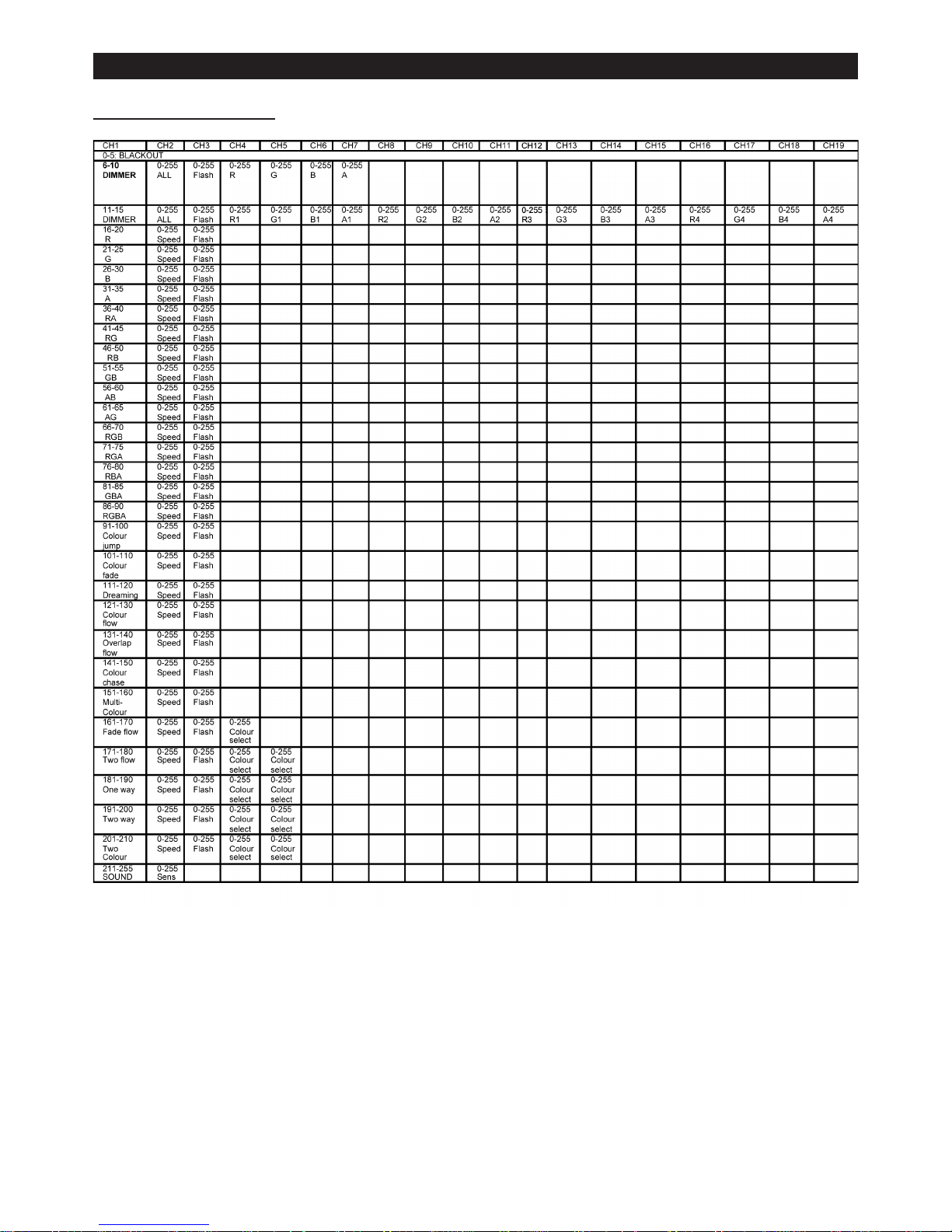

2 channel DMX chart
3 channel DMX chart
4 channel DMX chart
6 channel DMX chart
7 channel DMX chart
LEDJ RGBA Spectra Batten DMX Charts
CH1
Red
0-255
CH2
Green
0-255
CH3
Blue
0-255
CH4
Amber
0-255
CH5
Master
dimmer
0-255
CH6
0 = On
1-5 = Sound
6-10 = On
11-255 = Flash
Channel
Channel
Channel
1
1
1
2
2
3
3
4
2
0-240 Master dimmer
241-255
0-4
0-255
0-255
0-255
0-255
0-255
0-255
0-255
5-80
81-150
151-255
Strobe
Red 0-100%
Red 0-100%
Green 0-100%
Green 0-100%
Blue 0-100%
Blue 0-100%
Amber 0-100%
Blackout
Colour Macro
Colour Jump
Colour Fade
Value
Value
Value
Function
Function
Function
CH1 CH2 CH3 CH4 CH5 CH6 CH7
Master dimmer
0-255
Strobe
0-255
Red
0-255
Green
0-255
Blue
0-255
Amber
0-255
0-4 =
No function
5-80 =
Colour macros
81-150 =
Colour change
151-255 =
Colour fade
Page 9
8
19 channel DMX chart
LEDJ RGBA Spectra Batten DMX Charts
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
Page 10
9
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Slimline 229 can be controlled via DMX-512 protocol. The DMX address is set on the back of
the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/
output (gure 1).
Also remember that DMX cable must be daisy chained and cannot be split.
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90 3-pin, CAB89 5-pin) will decrease the possibilities of erratic behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
LEDJ RGBA Spectra Batten DMX Setup

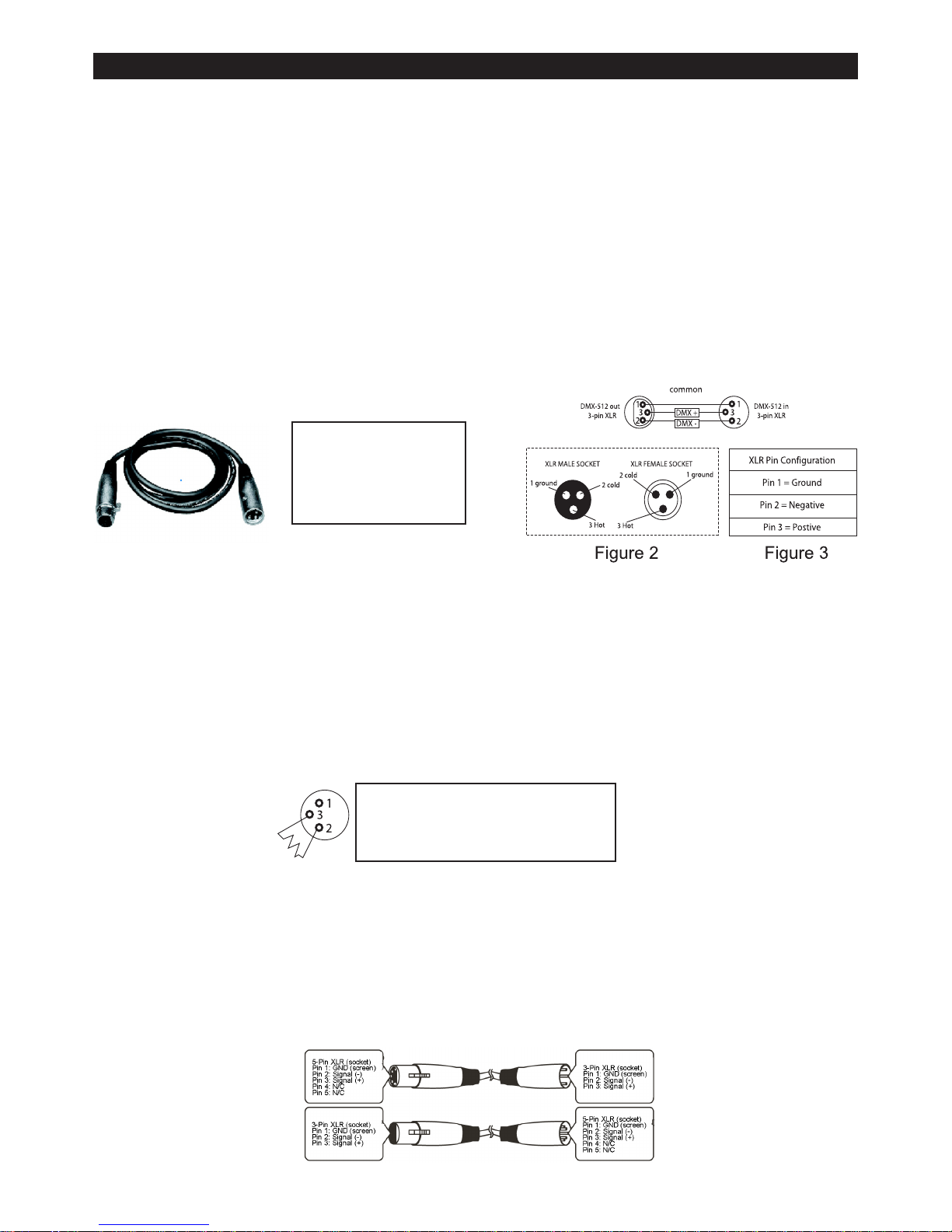

Figure 1
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or prolight dealers.
Please quote:
Black
CABL10 - 2m
CABL11 - 5m
CABL12 - 10m
CABL13 - 20m
White
LEDJ206 - 2m
LEDJ207 - 3m
LEDJ208 - 5m
LEDJ209 - 10m
Page 11
10

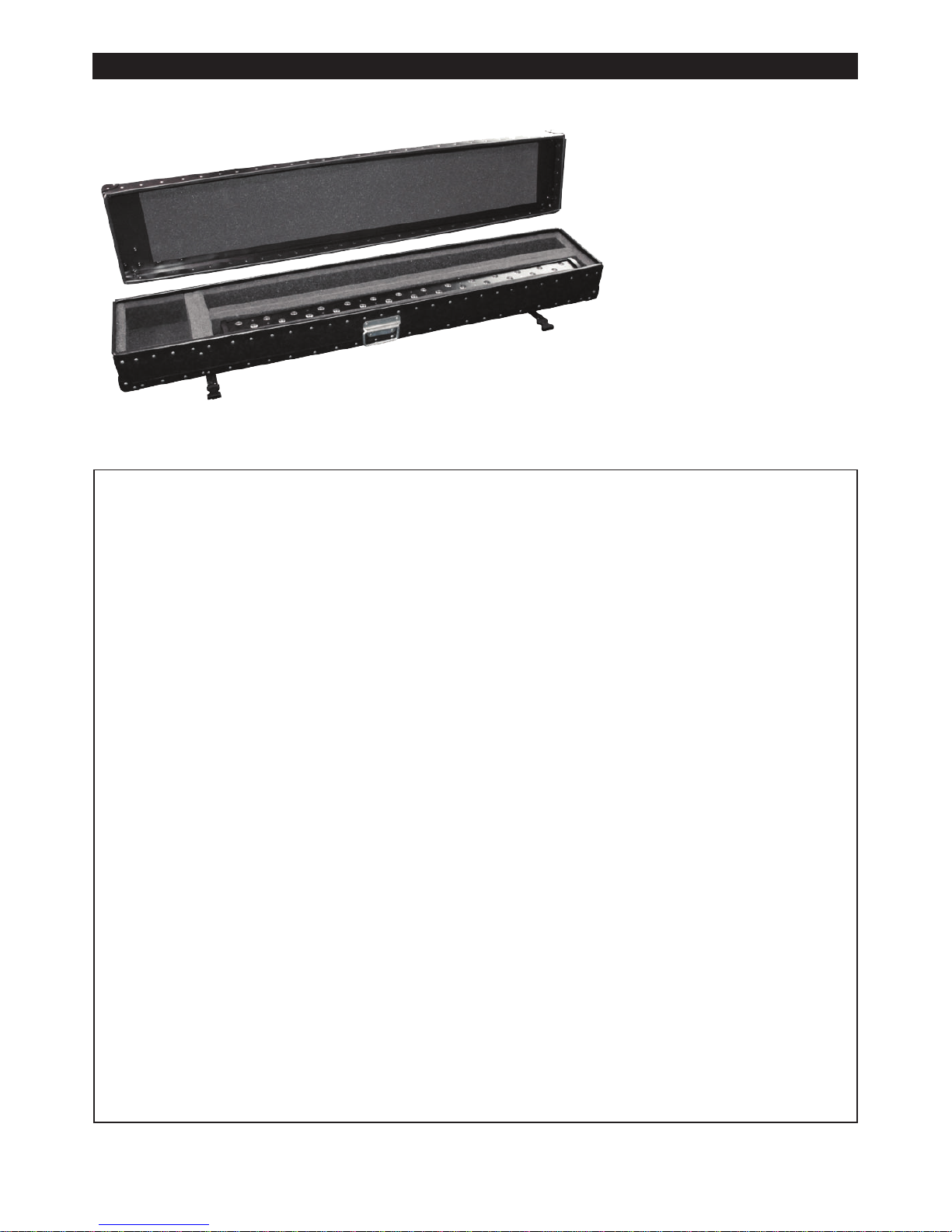

Optional case (CASE29):
Notes:
LEDJ RGBA Spectra Batten Optional Case
Page 12
11

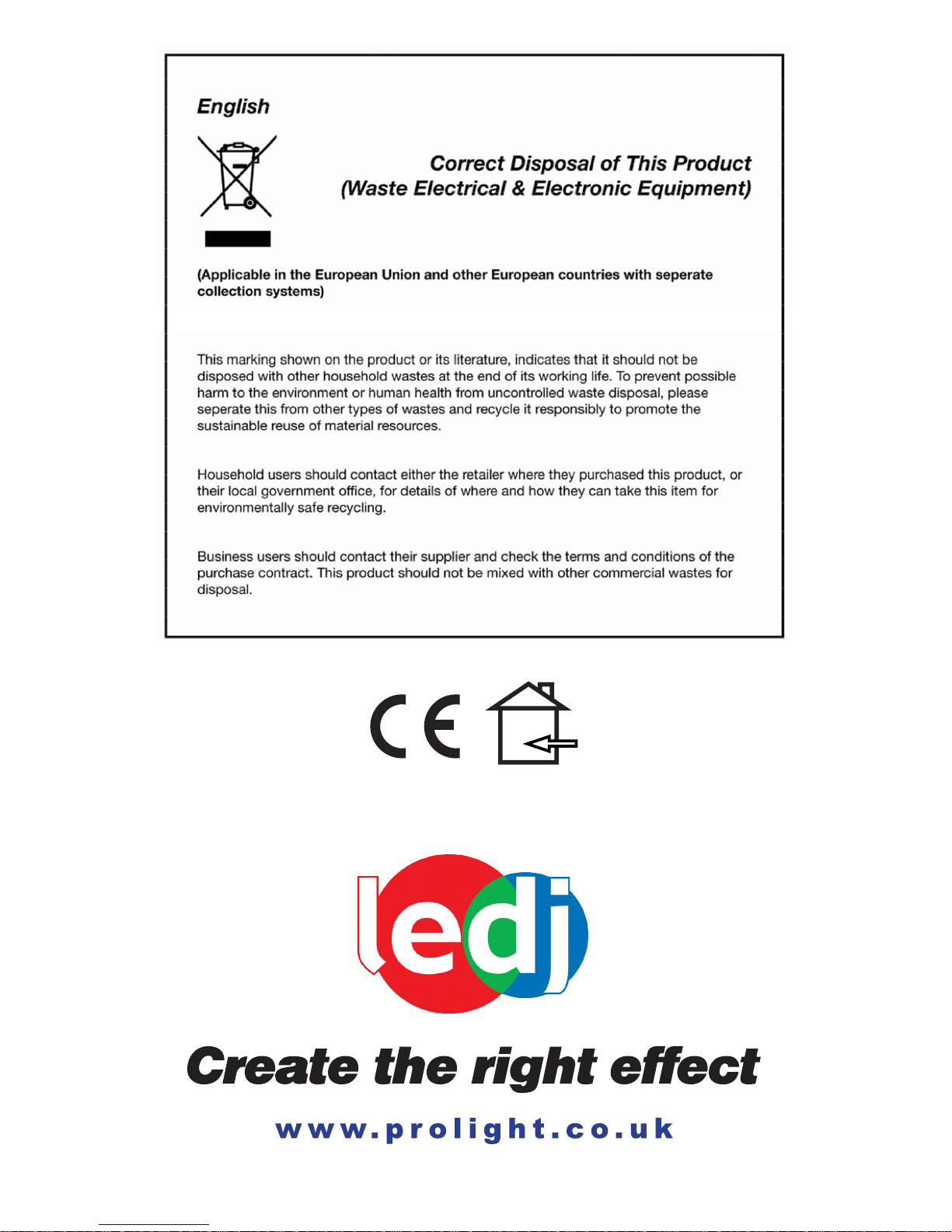

Loading...
