Page 1
USER MANUAL
PERFORMER 54 RGBW
PERFORMER 18 QUAD
Order code: LEDJ250
54 RGBW
18 QUAD
Order code: LEDJ252
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
Performer 54 RGBW/18 Quad Safety
Page 3
Performer 54 RGBW/18 Quad Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
You should nd inside the LEDJ carton the following items:
1, Performer 54 RGBW or 18 Quad unit 2, Instruction manual
Overview:

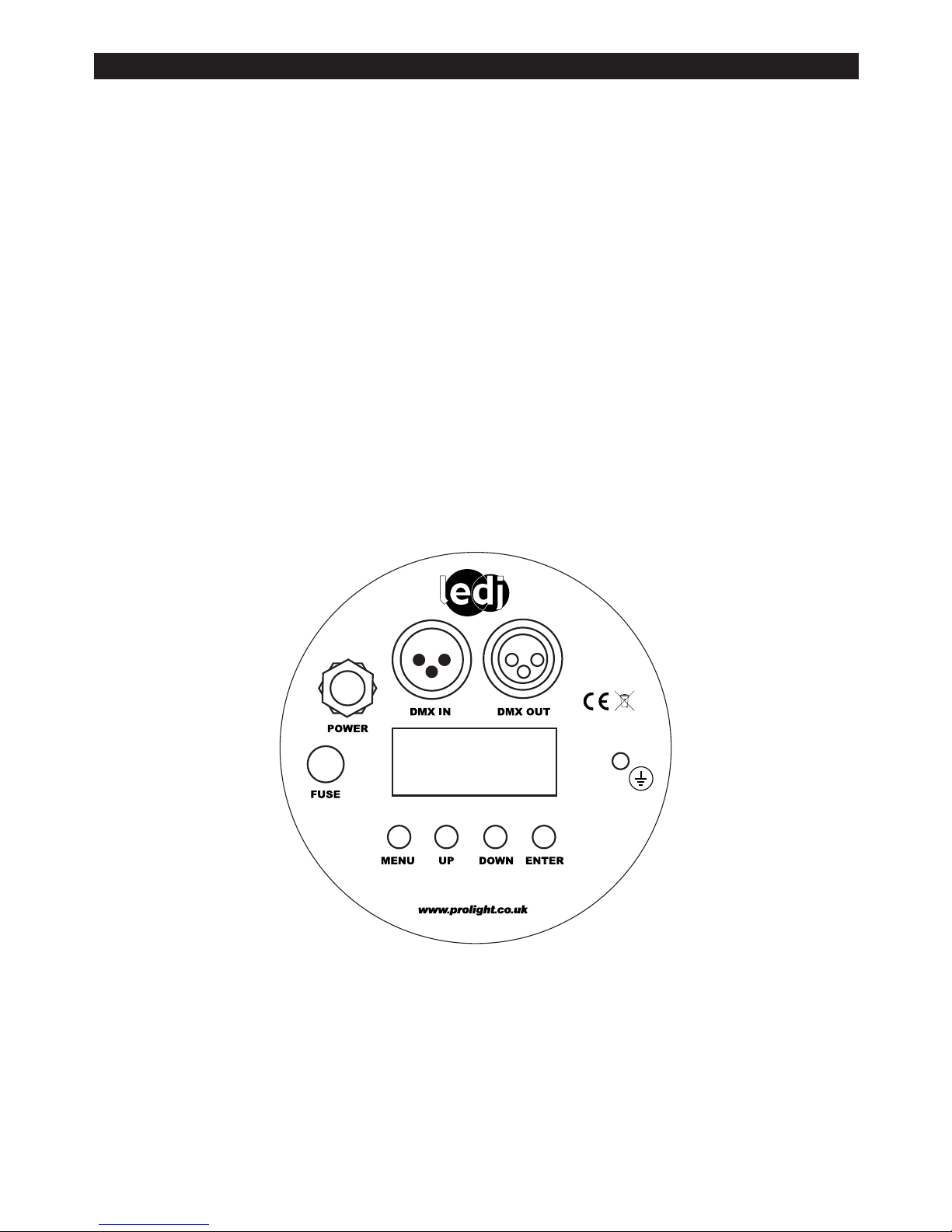

Setup
Operating Instructions
The Performer 54 RGBW and 18 Quad are a DMX-512 controllable, full RGB colour mixing Par
Can made up of high efciency LED’s. There are three colour groups (red, blue and green) whose
intensity can be controlled individually allowing the creation of an unlimited range of
colours.
The Performer 54 RGBW and 18 Quad will operate in Stand-alone, Master/Slave, Sound activated
and DMX-512 control modes.
Performer 54 RGBW/18 Quad Technical specications
Performer 18 Quad Specications
DMX Channels: 8
18 x 8W quad-colour LEDs
Static colour, change, fade, auto, sound active,
master/slave and DMX modes
3-Pin XLR in/out sockets
4 push button menu with LED display
Twin hanging / oor bracket
Fan cooled
Beam angle: 40 degrees
Power Consumption: 160W
Power supply: 100-240V ~ 50/60Hz
Dimensions: 255 x 297 x 325mm
Weight: 2.6Kgs
Performer 54 RGBW Specications
DMX Channels: 8
54 x 3W RGBW LEDs (R: 12, G: 18, B:18, W: 6)
Static colour, change, fade, auto, sound active,
master/slave and DMX modes
3-Pin XLR in/out sockets
4 push button menu with LED display
Twin hanging / oor bracket
Fan cooled
Beam angle: 25 degrees
Power Consumption: 176W
Power supply: 100-240V ~ 50/60Hz
Dimensions: 255 x 297 x 325mm
Weight: 2.8Kgs
Page 5
Performer 54 RGBW/18 Quad Operations
DMX mode:
To select DMX mode, press the “MENU” button to show “D001” on the display. Now press the
“ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512.
When you have nished setting the desired DMX address press the “ENTER” button.
Colour change mode
To select the colour change mode, press the “MENU” button to show “CC00” on the display. Now
press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust the speed of the
colour change. To conrm your choice, press the “ENTER” button.
Colour fade mode
To select the colour fade mode, press the “MENU” button to show “CP00” on the display. Now
press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust the speed of the
colour fade. To conrm your choice, press the “ENTER” button.
Please note that in this mode the unit will run through both static colour fade and colour
fade in/out modes. To access the modes individually, please set the unit into DMX mode
and see the DMX chart overleaf.
Auto built-in programmes mode
To select the Auto Built-in programme mode, press the “MENU” button to show “dE00” on the
display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust the
speed. To conrm your choice, press the “ENTER” button.
Please note that in this mode the unit will run through all of the colour change and colour
fade modes. To access the modes individually, please set the unit into DMX mode and see
the DMX chart overleaf.
Sound active mode
To select the Sound active mode, press the “MENU” button to show “bEbE” on the display. Now
press the “ENTER” and the unit will respond to the beat of the music.
Static colour mode
Red
To adjust the brightness of the red LEDs, press the “MENU” button to show “R255” on the
display. Now press use the “UP” and “DOWN” buttons to adjust the brightness from 000-255.
To conrm your choice, press the “ENTER” button. Note: 000 = off, 255 = full on.
Green
To adjust the brightness of the green LEDs, press the “MENU” button to show “G255” on the
display. Now press use the “UP” and “DOWN” buttons to adjust the brightness from 000-255.
To conrm your choice, press the “ENTER” button. Note: 000 = off, 255 = full on.
Blue
To adjust the brightness of the blue LEDs, press the “MENU” button to show “B255” on the
display. Now press use the “UP” and “DOWN” buttons to adjust the brightness from 000-255.
To conrm your choice, press the “ENTER” button. Note: 000 = off, 255 = full on.
White
To adjust the brightness of the white LEDs, press the “MENU” button to show “o255” on the
display. Now press use the “UP” and “DOWN” buttons to adjust the brightness from 000-255.
To conrm your choice, press the “ENTER” button. Note: 000 = off, 255 = full on.
Page 6
Master/slave mode
To set the unit as a master, simply select any of the above modes and set the slave units into DMX
mode, address 001. The slave units will now follow in sequence with the master unit.
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions from the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in the DMX line. When a xture is assigned a DMX address of 1, the DMX
controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in
the DMX chain.
Performer 54 RGBW/18 Quad Operations
8 Channel:
DMX chart:
CHANNEL
1
2
3
4
5
6
7
8
VALUE
000-255
000-255
000-049
050-99
100-150
150-199
200-255
000-255
000-255
000-255
000-255
000-255
FUNCTION
Master dimmer
Strobe (slow to fast)
Manual DMX
Colour change
Colour fade
Colour fade in/out
Sound active
Chase/fade Speed
Red
Green
Blue
White
Page 7
Performer 54 RGBW/18 Quad DMX setup

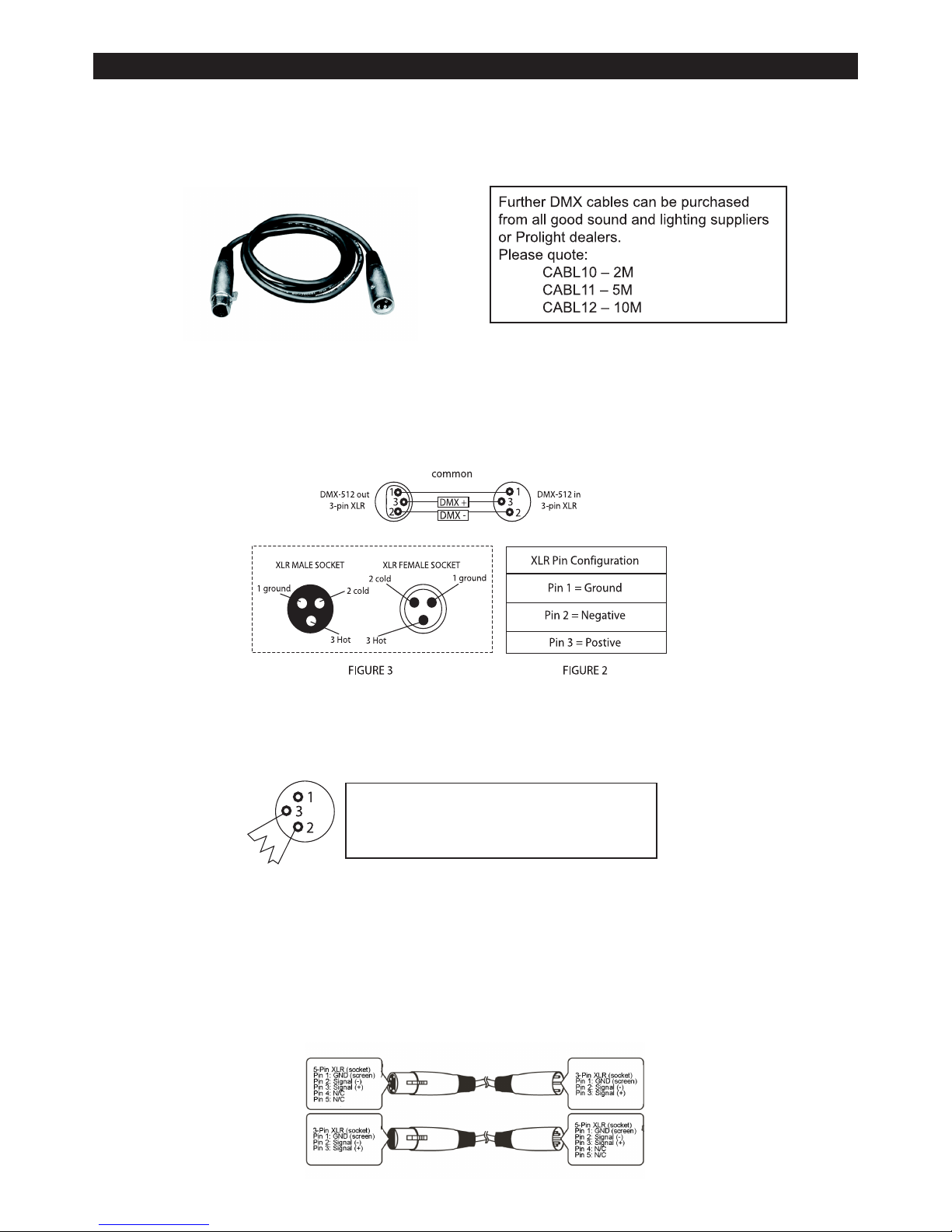

DATA Cable (DMX cable) requirements (for DMX operation):
• The Performer Series can be controlled via DMX-512 protocol. The DMX address can be set on
the back of the xture. Your xture and your DMX controller require a standard 3-pin XLR
connector for data input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
