Page 1
www.prolight.co.uk

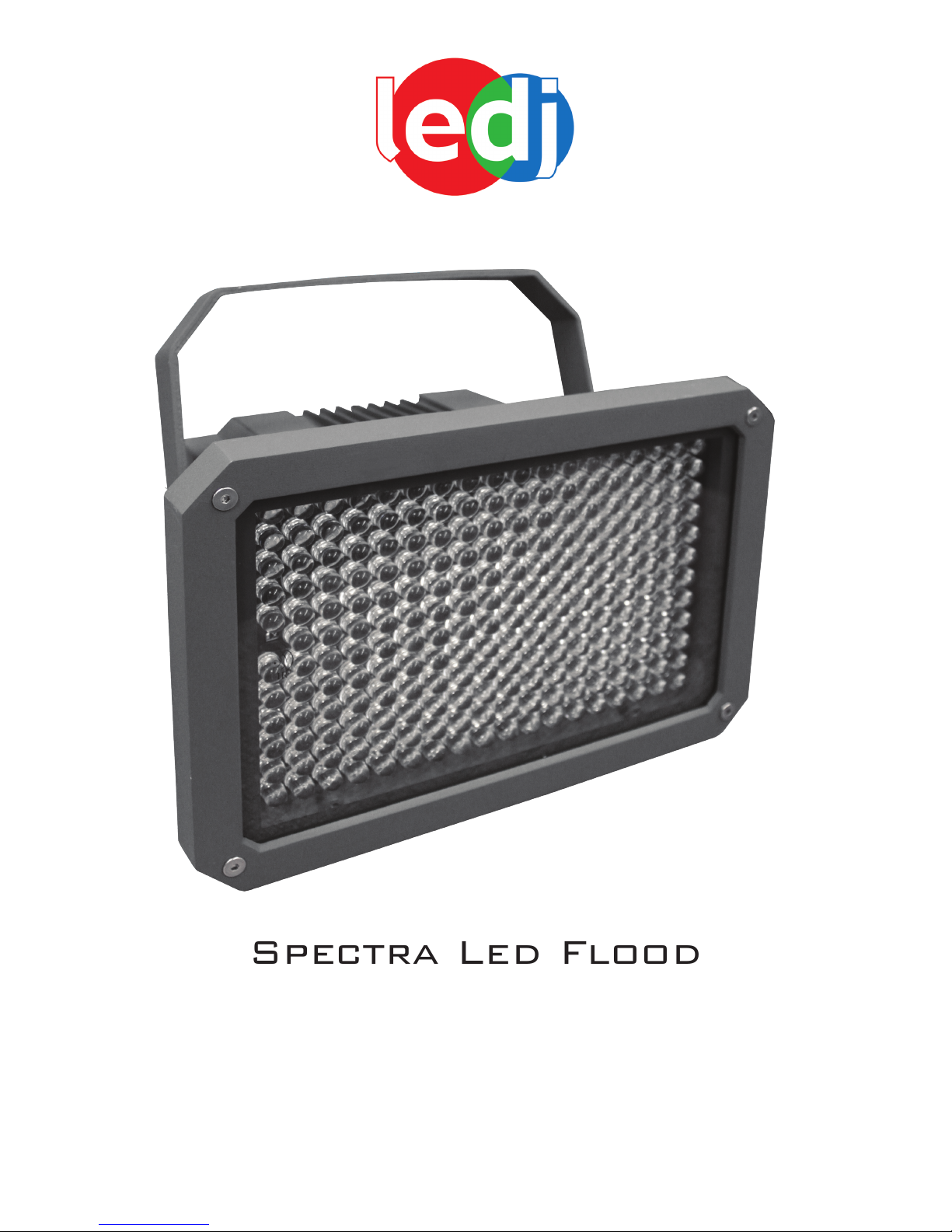

Spectra Led Flood
(Exterior)
Order code: LEDJ87
USER MANAUAL
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from
ammable sources, liquids or gases.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the
user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
LEDJ Exterior Spectra Led Flood Safety
Page 3
LEDJ Exterior Spectra Led Flood Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
The outdoor DMX Spectra LED Flood together with the IR remote control can produce colourful and
dynamic lighting effects. It can be used in a wide variety of venues and for outdoor building
illumination.

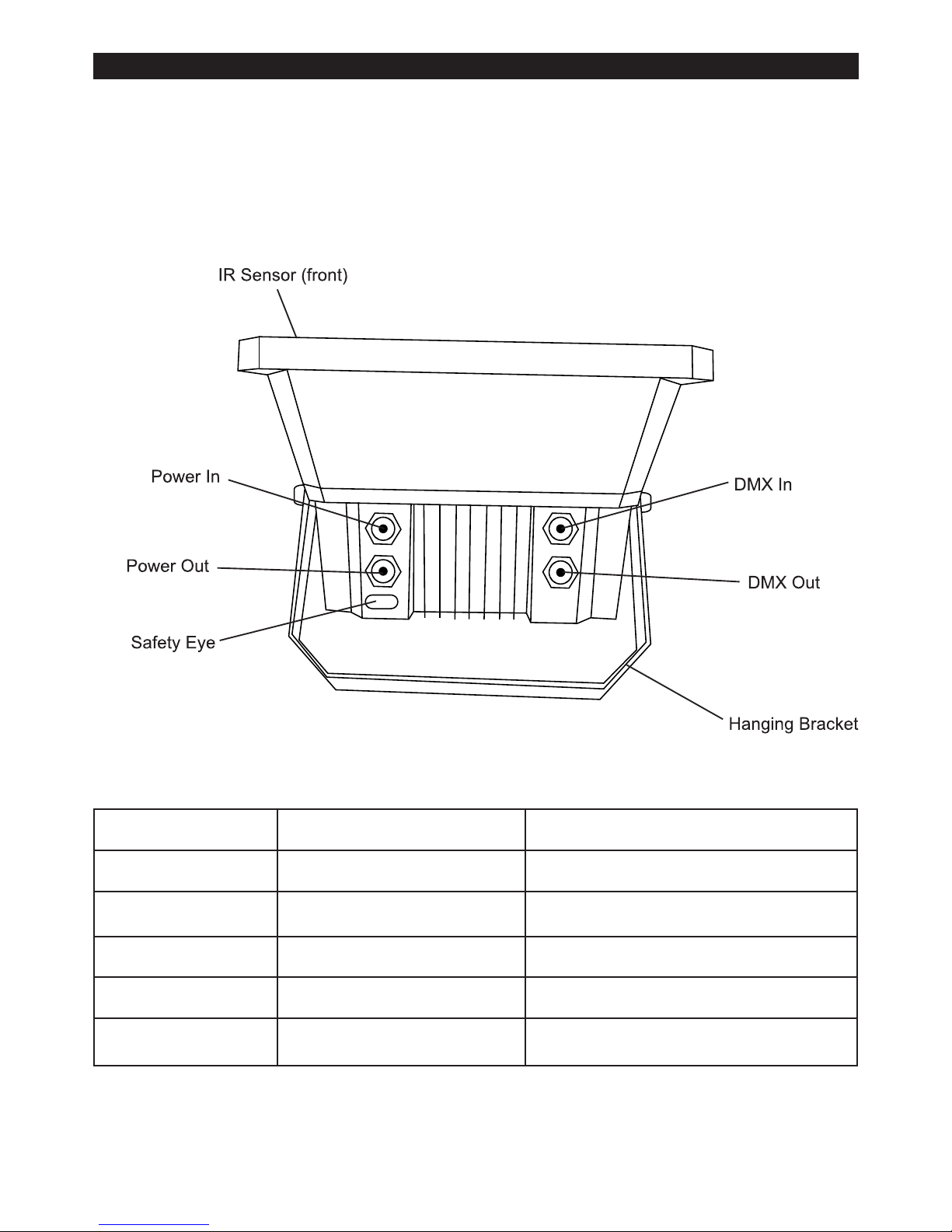

Over View:
DMX Values and Functions:
LEDJ Exterior Spectra Led Flood Over view
CHANNEL
CH1
CH2
CH3
CH4
CH5
VALUE
000-255
000-255
000-255
000-255
000-255
FUNCTION
DIMMER
RED
GREEN
BLUE
FLASH (000 = slowest to 255 = fastest)
Page 5
LEDJ Exterior Spectra Led Flood I.R. Remote
I.R Remote (purchased separately: LEDJ90B)
Functions:
The “BLACKOUT” button is used to set the LED’s into the power on or off modes.
The “AR” button is used to set the LED’s into the auto run mode.
The “S PR” button is used to set the LED’s to run the built-in programmes
Built-in programme selection: 7 colour selection, colour changing and colour fade.
Choose between the 9 built-in programmes by
pressing the “+” and “-” buttons.
The “FL” button is used to set the LED’s to ash on and off, to change the ash frequency use the “+”
and “-” buttons.
The “SP” button is used to set the run speed, this button is available only in the colour change or colour
fade modes. To change the speed use the “+” and “-” buttons.
The “D” button is used to set the LED’s into DMX mode. (See DMX value table)
The “SA” button is used to set the LED’s into sound activated mode. This function is
unavailable on the Exterior Spectra Series.
The “SL” button is used to set the LED’s into slave mode.
The “S”, “0”, “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8” and “9” buttons are used to set the DMX
address for the LED’s. (see example below)
The “R”, “G”, and “B” buttons are used to set the brightness for the LEDs, to change the
brightness use the “+” and “-” buttons.
DMX Address Examples:
To set the DMX address “245”;
1) Press the “S” button, so the red LED’s come on, this means you can now start
to set the DMX address.
2) Press the “2” button, so the green LED’s come on, this means the rst digit
“2” (the hundreds place) setting is successful.
3) Now Press the “4” button, and the blue LED’s will come on, this now means
that the second digit “4” (tens place) setting is successful.
4) Now Press the “5” button, and all of the R/G/B LED’s will come on, this
means that the nal digit “5” (units place) setting is successful and the full
DMX address setting has been changed.
5) Now press the “DMX MODE” button to save the new address into memory.
To set the DMX address “002”;
1) Press the “S” button, so the red LED’s come on, this means you can now start
to set the DMX address.
2) Press the “0” button, so the green LED’s come on, this means the rst digit
“0” (the hundreds place) setting is successful.
3) Now Press the “0” button, and the blue LED’s will come on, this now means
that the second digit “0” (tens place) setting is successful.
4) Now Press the “2” button, and all of the R/G/B LED’s will come on, this
means that the nal digit “2” (units place) setting is successful and the full
DMX address setting has been changed.
5) Now press the “DMX MODE” button to save the new address into memory.
Important notes:
• Set the DMX address on each xture before plugging into the DMX controller.
• The I.R Remote is not usable when the xture(s) are being controlled by a DMX controller.
• The maximum transmitter distance is 10M. Please make sure that you have the I.R remote aimed
directly at each xture to be programmed,
• If you do not press the “DMX MODE” button after you have changed the DMX address,
when you power down the xture it will lose the address you have set.
Page 6
Notice:

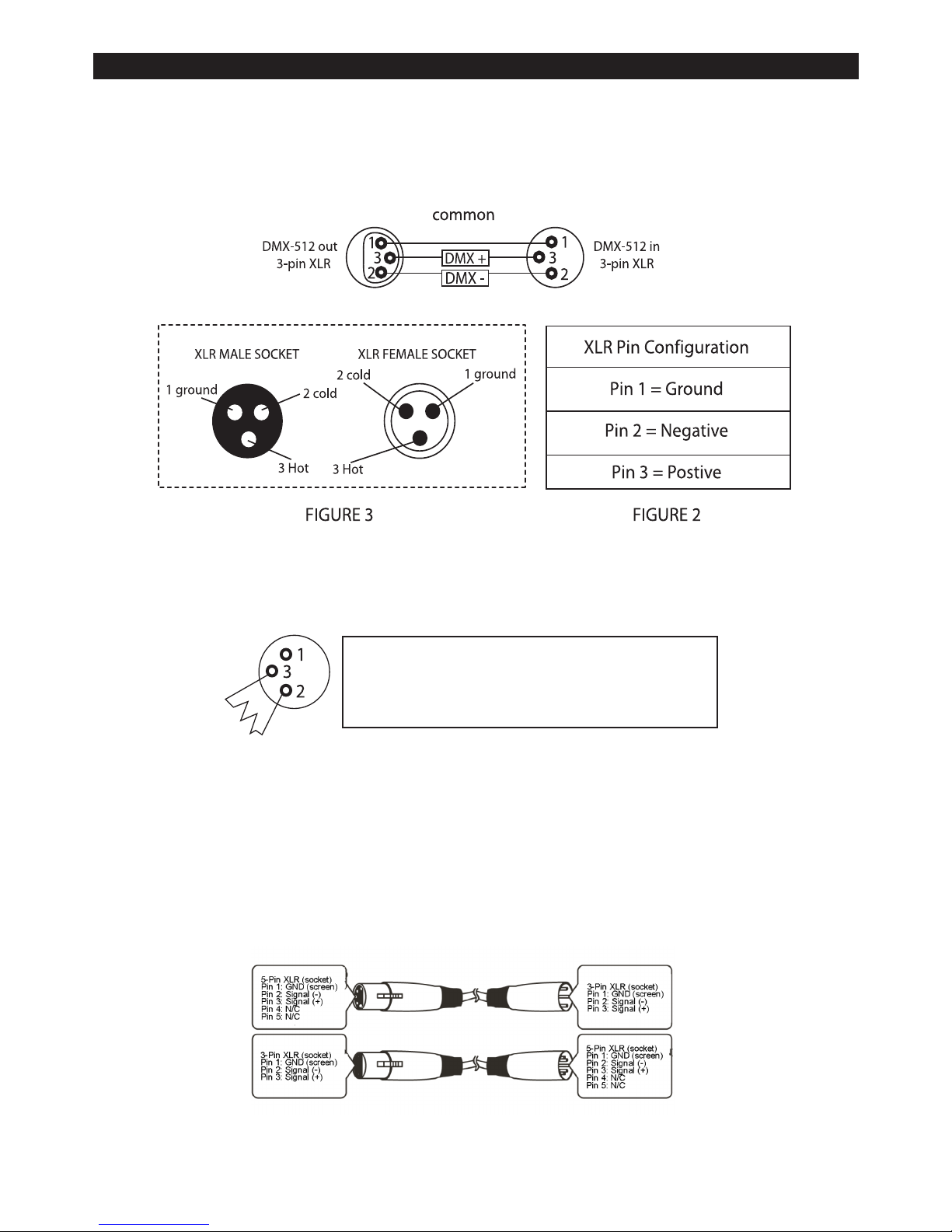

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor
to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
LEDJ Exterior Spectra Led Flood DMX Set Up
Page 7
Spectra Flood Specications:
• Input power: 240V ~ 50HZ
• Power consumption: 24W
• 215 x 10mm LEDs (R: 48, G: 84, B: 83)
• Beam angle: 40 degrees
• IR signal and DMX signal available.
• Selectable built-in programmes, Auto run, DMX mode, Master/Slave mode and Sound activated,
by IR remote (please read manual for IR remote controlling)
• IP rating: IP65
• Dimensions: 295 x 207 x 185mm
• Weight: 4.5Kgs
LEDJ Exterior Spectra Led Flood Specications
