Page 1
www.prolight.co.uk

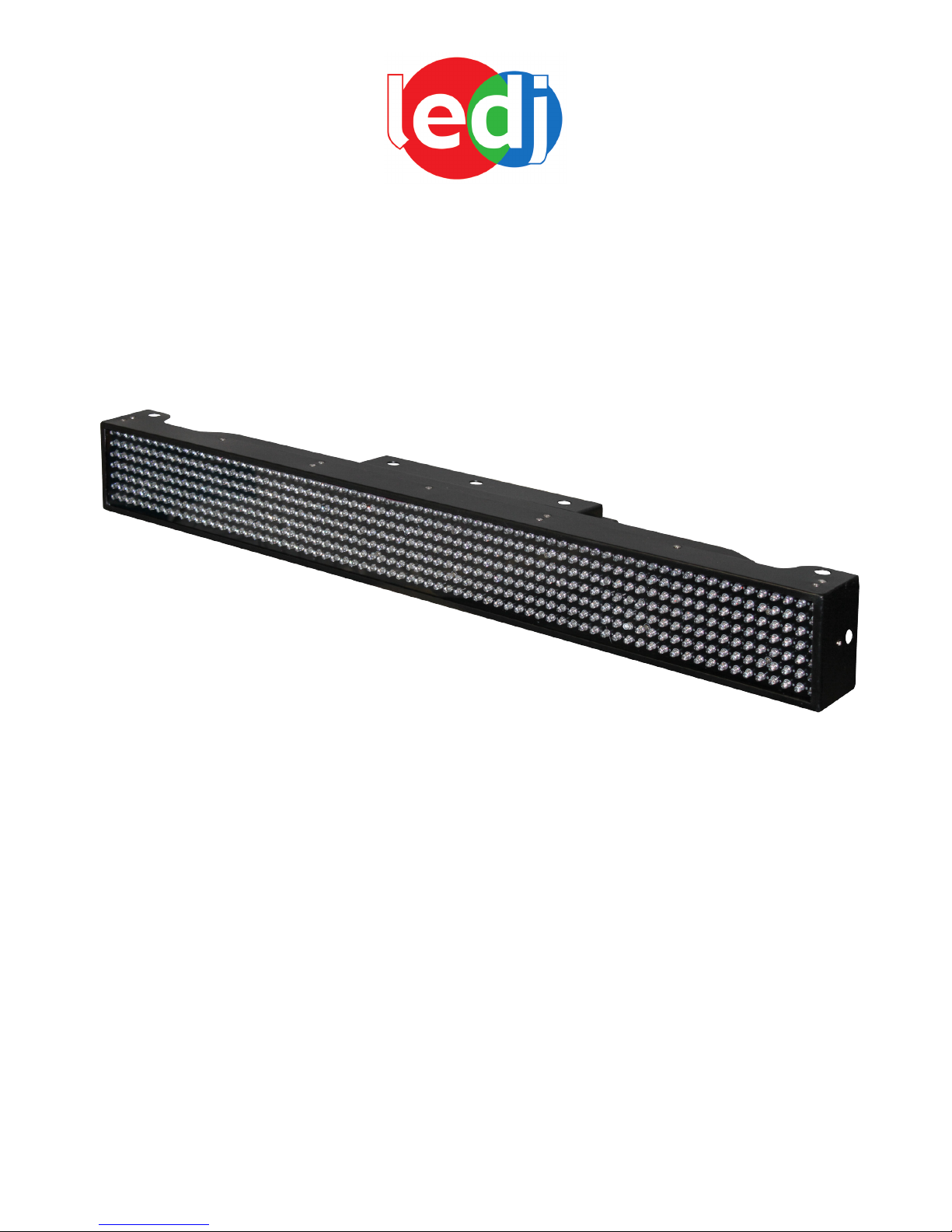

Pixel Bar
(Order code: LEDJ73A)
USER MANUAL
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
PIXEL BAR SAFETY
1.
Page 3
PIXEL BAR SAFETY
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
2.
Page 4
Setup
Operating Instructions
The LEDJ Pixel Bar is a DMX-512 controllable unit made up of high efciency and Ultra Bright
LEDs and will operate in stand alone, master/slave, sound activated or DMX control modes.
HBR-1D Operation (optional)
To operate the Pixel Bar via the (optional) LEDJ HBR-1D controller (LEDJ123), please
ensure that the Pixel Bar has been set into “SLAVE MODE” and connect the controller to the
3-pin XLR socket on the rear of the unit.
The HBR-1D can be used in conjunction with the MB-2 Footswitch (LEDJ124), by plugging the
5-pin XLR from the MB-2 into the HBR-1D controller.
Note: please follow the user manuals supplied with the optional MB-2 and HBR-1D
controllers for details of various operation modes.
PIXEL BAR INTRODUCTION
Introduction
Features
• DMX channels: 27/24/15/9 or 6 selectable
• 504 x 5mm LEDs (R: 168, G: 168, B: 168)
• Sound control via internal microphone
• 3-pin XLR In/Out for DMX linking
• Power IEC In/Out sockets
• 14 built-in programmes & 7 static colours
• 4 push button menu with LCD display
• Master/Slave functions
• Auto run mode
• Consumption: 51W
• Beam 25 degrees
• Fuse: 1A/240V

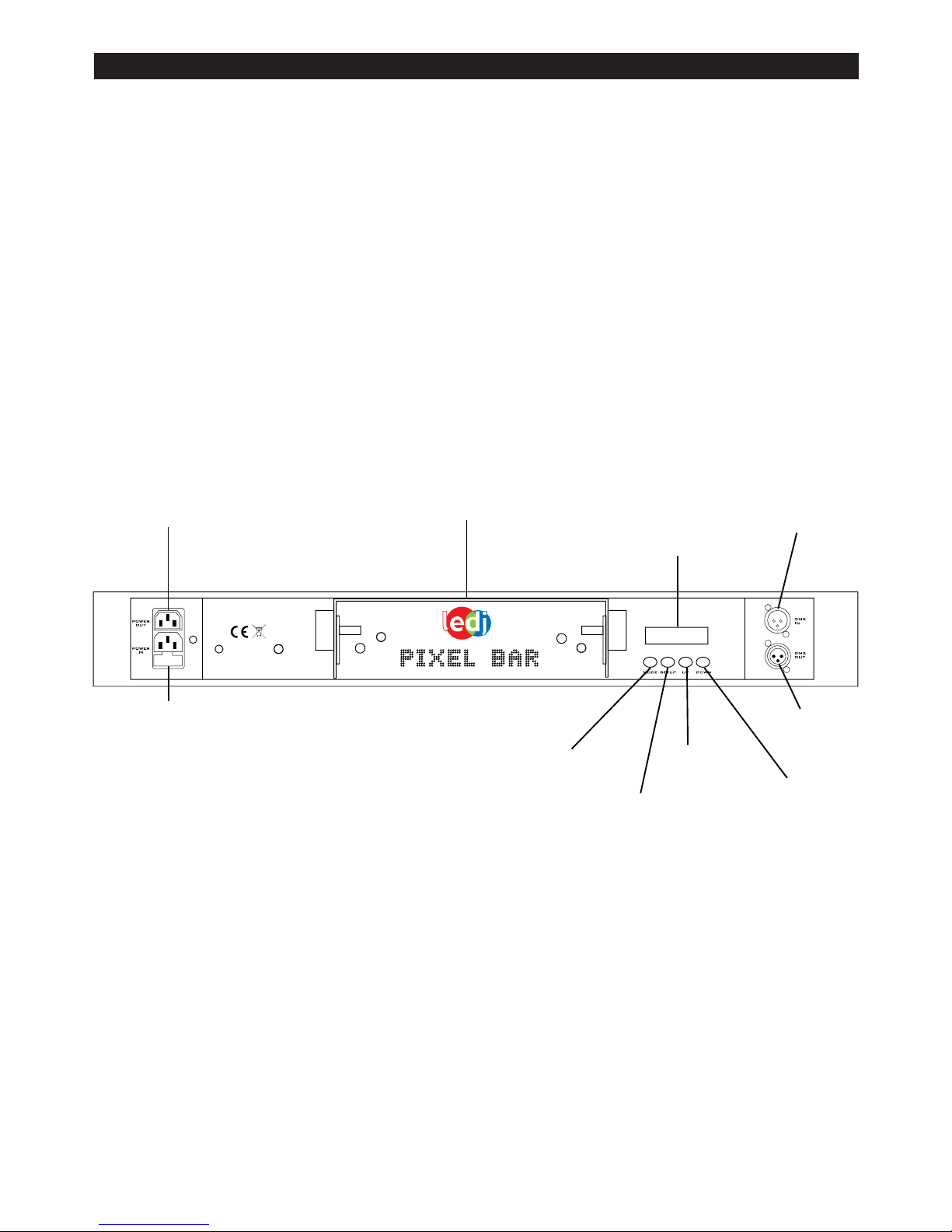

Over view
LCD Screen
Mode Button
Set Up Button
Up Button
Down Button
Power Input
DMX In
Hanging Bracket
3.
DMX Out
Power Output
Page 5
PIXEL BAR OPERATION MODES
Operation modes
Sound Active mode:
To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”
on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using
the “UP” and “DOWN” buttons. Press the “SET UP” button again to select the frequency number
and adjust by using the “UP” and “DOWN” buttons.
“SENS” 00 - 31 (00 = low, 31 = high)
“FQN” 01-99 (01 = low, 99 = high)
Auto run mode:
To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the
LCD screen. Now press the “SET UP” button to select the desired frequency number by using the
“UP” and “DOWN” buttons.
“FQN” 01-99 (01 = low, 99 = high)
Note: When the Pixel Bar is set to “sound” or “auto run” mode it will scroll through all of its built-in
programmes one after the other. The term “FQN’ refers to the number of times it displays the
buit-in programmes: for example if you set the “FQN” to 3, it will then repeat each programme 3
times before going on to the next one.
Slave mode:
To activate the unit in slave mode, rst you must link multiple units together and press the
“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the
“MODE” button to select the desired mode and the slave units will now run in sequence with the
master unit.
Built-in programmes:
To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the
LCD screen. Press the “SET UP” button to choose between the 14 built-in programmes by
using the “UP” and “DOWN” buttons. Now press the “SET UP” button to select the desired
speed and adjust by using the “UP” and “DOWN” buttons. Press the “SET UP” button once
more to select the desired ash value and adjust by using the “UP” and “DOWN” buttons.
Speed values: 00 - 99 (00 = slow, 99 = fast)
Flash values: 00 - 99 (00 = slow, 99 = fast)
For the 14 built-in programmes please see page 5.
DMX mode:
To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD
screen. Press the “SET UP” button and select the desired DMX address setting by using the
“UP” and “DOWN” buttons. Then to select one of the 5 DMX modes 27, 24, 15, 9 or 6 channel,
press the “SET UP” button again to choose the desired DMX mode by using the “UP” and
“DOWN” buttons.
For the 27, 24, 15, 9 and 6 channel DMX address information please see pages 6 & 7.
NOTE: Once the desired settings have been selected in each of the above modes, ALWAYS
conrm the settings by pressing the “SET UP” button.
4.
Page 6
PIXEL BAR BUILT-IN PROGRAMME CHART
14 Built-in programme chart
5.
STATIC COLOR
BLACKOUT - RGB
Flash00-99
BLA=Blackout, R=Red, RG=Yellow, G=Green,
GB=Cyan, B=Blue, BR=Purple, RGB=White
Flash speed adjustable.
DREAM
Speed 00-99 Flash 00-99
Seven colour fade
Speed & Flash adjustable
METEOR
Speed 00-99 Flash 00-99
Seven colour flow
Speed & Flash adjustable
FADE
Speed 00-99 Flash 00-99
Seven colour fade in, fade out
Speed & Flash adjustable
CHANGE
Speed 00-99 Flash 00-99
Seven colour change
Speed & Flash adjustable
FLOW 1
Speed 00-99 Flash 00-99
Seven colour chase (forward)
Speed & Flash adjustable
FLOW 2
Speed 00-99 Flash 00-99
Seven colour chase (forward & reverse)
Speed & Flash adjustable
FLOW 3
Speed 00-99 Flash 00-99
Seven colour fade chase in relay pattern (forward)
Speed & Flash adjustable
FLOW 4
Speed 00-99 Flash 00-99
Seven colour fade chase in relay pattern (forward &
reverse)
Speed & Flash adjustable
FLOW 5
Speed 00-99 Flash 00-99
Seven colour chase from sides to centre
Speed & Flash adjustable
FLOW 6
Speed 00-99 Flash 00-99
Seven colour chase from centre to sides
Speed & Flash adjustable
FLOW 7
Speed 00-99 Flash 00-99
Seven colour rotating chase
Speed & Flash adjustable
FLOW 8
Speed 00-99 Flash 00-99
1.BLA-RGB 2. BLA-RGB
Two colour chase (forward)
Speed & Flash adjustable
Blackout, Red, Yellow, Green, Cyan, Blue, Purple,
White
FLOW 9
Speed00-99 Flash 00-99
1.BLA-RGB 2. BLA-RGB
Two colour chase (forward & reverse)
Speed & Flash adjustable
BLA=Blackout, R=Red, RG=Yellow, G=Green,
GB=Cyan, B=Blue, BR=Purple, RGB=White
Page 7
PIXEL BAR DMX PROGRAMME CHARTS
6 channel mode DMX chart
6.
CH 1 CH 2 CH3 CH4 CH5 CH6
0-10 blackout blackout blackout blackout blackout
11-21 Master dimmer
(0-255)
Flash
(0-255)
Red
(0-255)
Green
(0-255)
Blue
(0-255)
22-32 Red Flash(0-255)
33-43 Yellow Flash (0-255)
44-54 Green Flash (0-255)
55-65 Cyan Flash (0-255)
66-76 Blue Flash (0-255)
77-87 Purple Flash (0-255)
88-98 White Flash (0-255)
99-109 Dream Speed (0-255) Flash (0-255)
110-120 Meteor Speed (0-255) Flash (0-255)
121-131 Fade Speed (0-255) Flash (0-255)
132-142 Change Speed (0-255) Flash (0-255)
143-153 Flow 1 Speed (0-255) Flash (0-255)
154-164 Flow 2 Speed (0-255) Flash (0-255)
165-175 Flow 3 Speed (0-255) Flash (0-255)
176-186 Flow 4 Speed (0-255) Flash (0-255)
187-197 Flow 5 Speed (0-255) Flash (0-255)
198-208 Flow 6 Speed (0-255) Flash (0-255)
209-219 Flow 7 Speed (0-255) Flash (0-255)
220-230 Flow 8 Speed (0-255) Flash (0-255 Color
select
231-241 Flow 9 Speed (0-255) Flash (0-255) Color
select
242-255
Sound active
Sensitivity
(0-255)
Flash (0-255)
Page 8
PIXEL BAR DMX PROGRAMME CHARTS
Note: For 9, 15 and 27 channel modes, please follow the 6 channel DMX chart for channels
1, 2 and 3.
9 channel mode DMX chart
15 channel mode DMX chart
24 channel mode DMX chart
27 channel mode DMX chart
CH1
11-21
CH2
Master
Dimmer
(0-255)
CH3
Flash
(0-255)
CH1
11-21
CH2
Master
Dimmer
(0-255)
CH3
Flash
(0-255)
CH4R1CH5G1CH6B1CH7R2CH8G2CH9B2CH10R3CH11G3CH12B3CH13R4CH14G4CH15
B4
7.
CH4R2CH5
G2
CH1
11-21
CH2
Master
Dimmer
(0-255)
CH3
Flash
(0-255)
CH4R1CH5G1CH6B1CH7R2CH8G2CH9
B2
CH7R3CH8G3CH9B3CH10R4CH11G4CH12B4CH13R5CH14G5CH15
B5
CH6
B2
CH16R6CH17G6CH18B6CH19R7CH20G7CH21B7CH22R8CH23G8CH24
B8
CH1R1CH2G1CH3
B1
CH4R1CH5G1CH6B1CH7R2CH8G2CH9B2CH10R3CH11G3CH12B3CH13R4CH14G4CH15
B4
CH16R5CH17G5CH18B5CH19R6CH20G6CH21B6CH22R7CH23G7CH24B7CH25R8CH26G8CH27
B8
Page 9
PIXEL BAR DMX SET UP
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only
have a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.

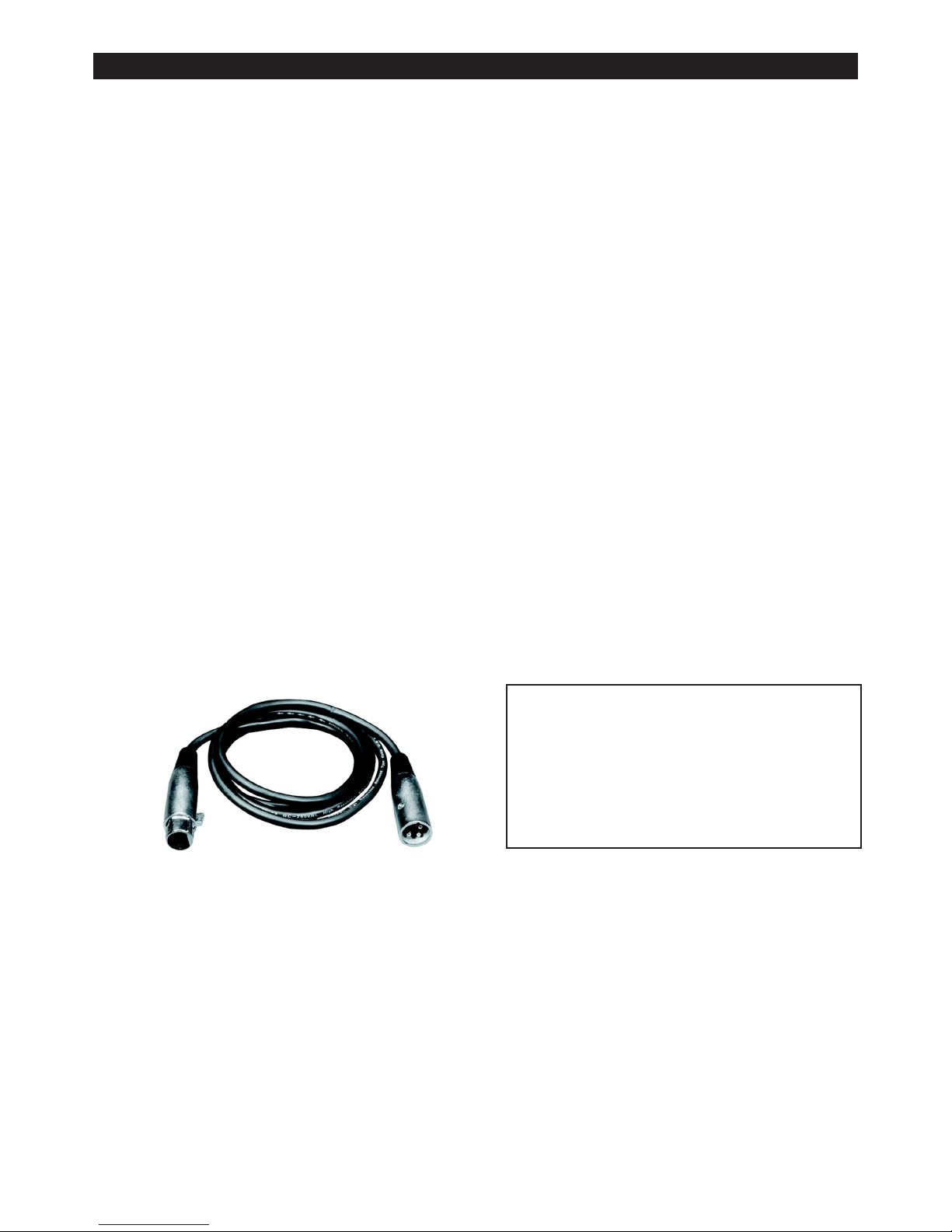

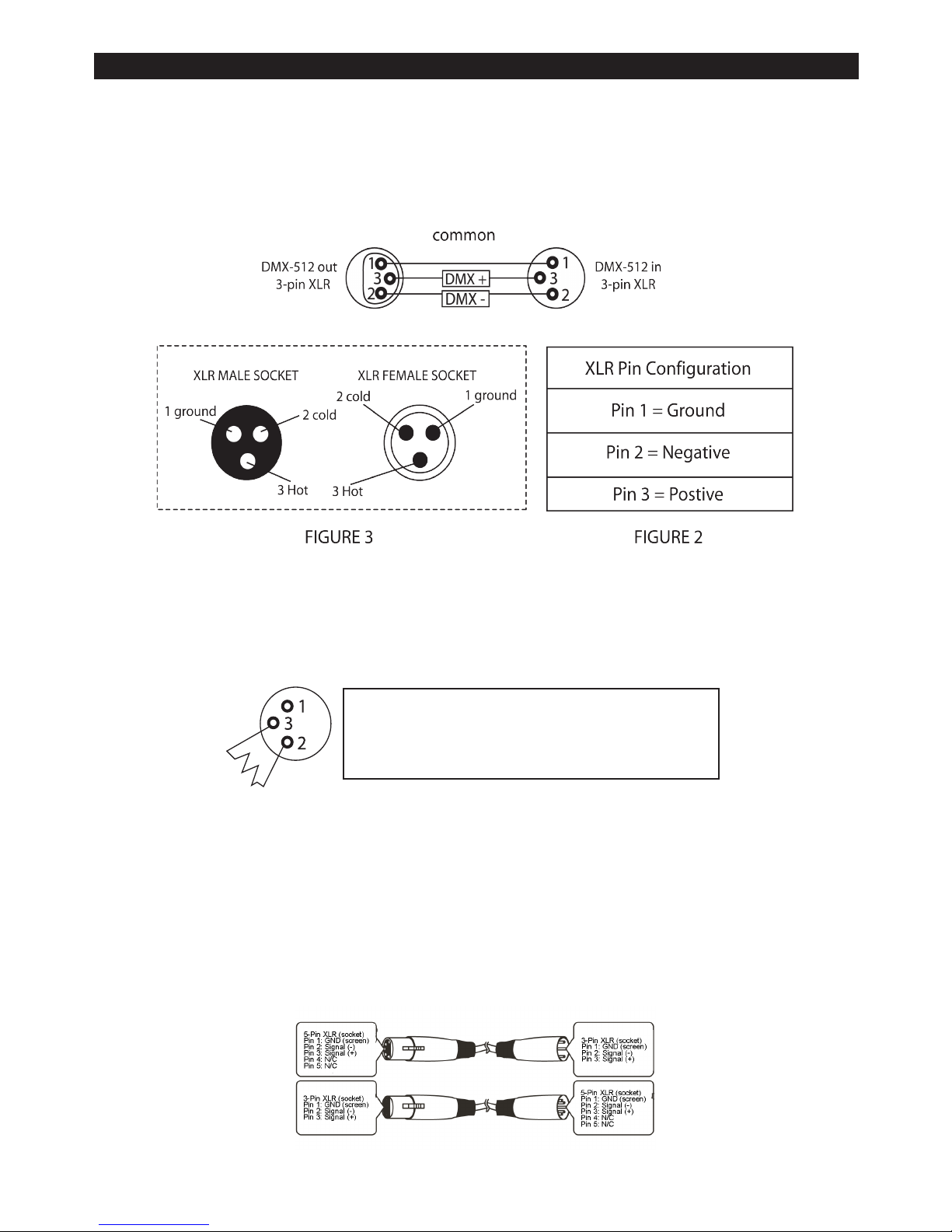

DATA Cable (DMX cable) requirements (for DMX operation):
• The Pixel Bar can be controlled via DMX-512 protocol. The DMX address is set on the
back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
8.
Page 10
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
PIXEL BAR DMX SET UP
9.
Page 11
PIXEL BAR TECHNICAL SPECIFICATIONS
Technical Specications
Weight & Dimensions
• Length…...........................................................809mm
• Width.................................................................100mm
• Height……………………………………………..135mm
• Weight……………………………………….........4.2kgs
Power
• AC input……………………………………..........240V/50hz
• AC output……………………………………........240V/50hz
• Power consumption.........................................51W
• Fuse
• Main……………………………………………….F1A/240V
Control & Programming
• Data input………………………………………...Locking 3-pin XLR male socket
• Data output……………………………………….Locking 3-pin XLR female socket
• Protocols…………………………………………DMX-512 USITT
• DMX channels…………………………………...27, 24, 15, 9 and 6
10.
Page 12
www.prolight.co.uk
Loading...
