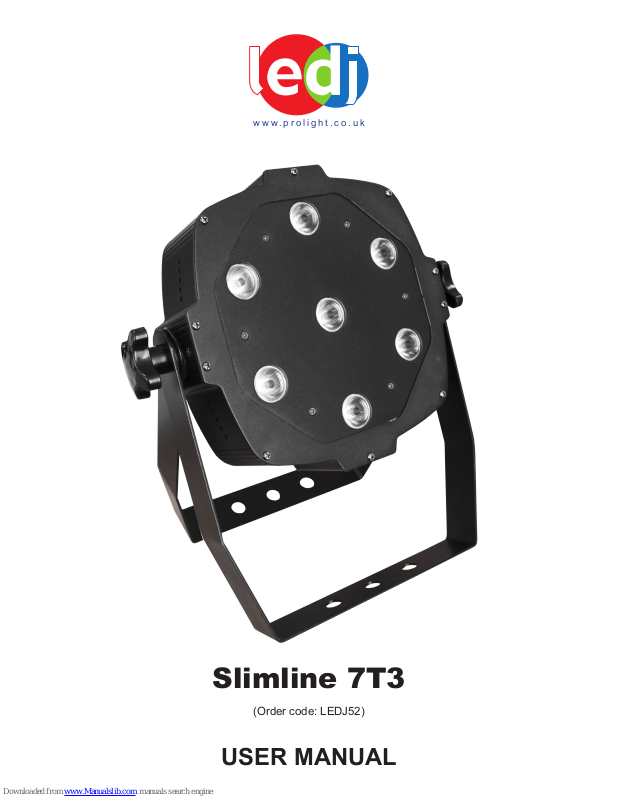

Slimline 7T3
(Order code: LEDJ52)
USER MANUAL
Page 2
LEDJ Slimline 7T3 Safety
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
Page 3
LEDJ Slimline 7T3 Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
You should nd inside the LEDJ carton the following items:
1, Slimline 7T3 Unit 2, Instruction manual
Technical Specications:
DMX channels: 6
400Hz icker free LEDs
Power supply: AC 100-240V ~ 50/60Hz
7 x 3W Ultra Bright tri-colour LEDs
Power Consumption: 29W
Beam angle: 25 degrees
Dimensions: 79 x 268 x 320mm
Weight: 3Kgs
Operating modes: 1, Static Colour mode
2, Auto Run mode
3, Colour Fade mode
4, Sound Active mode
5, Master/Slave mode
6, DMX channels: 6

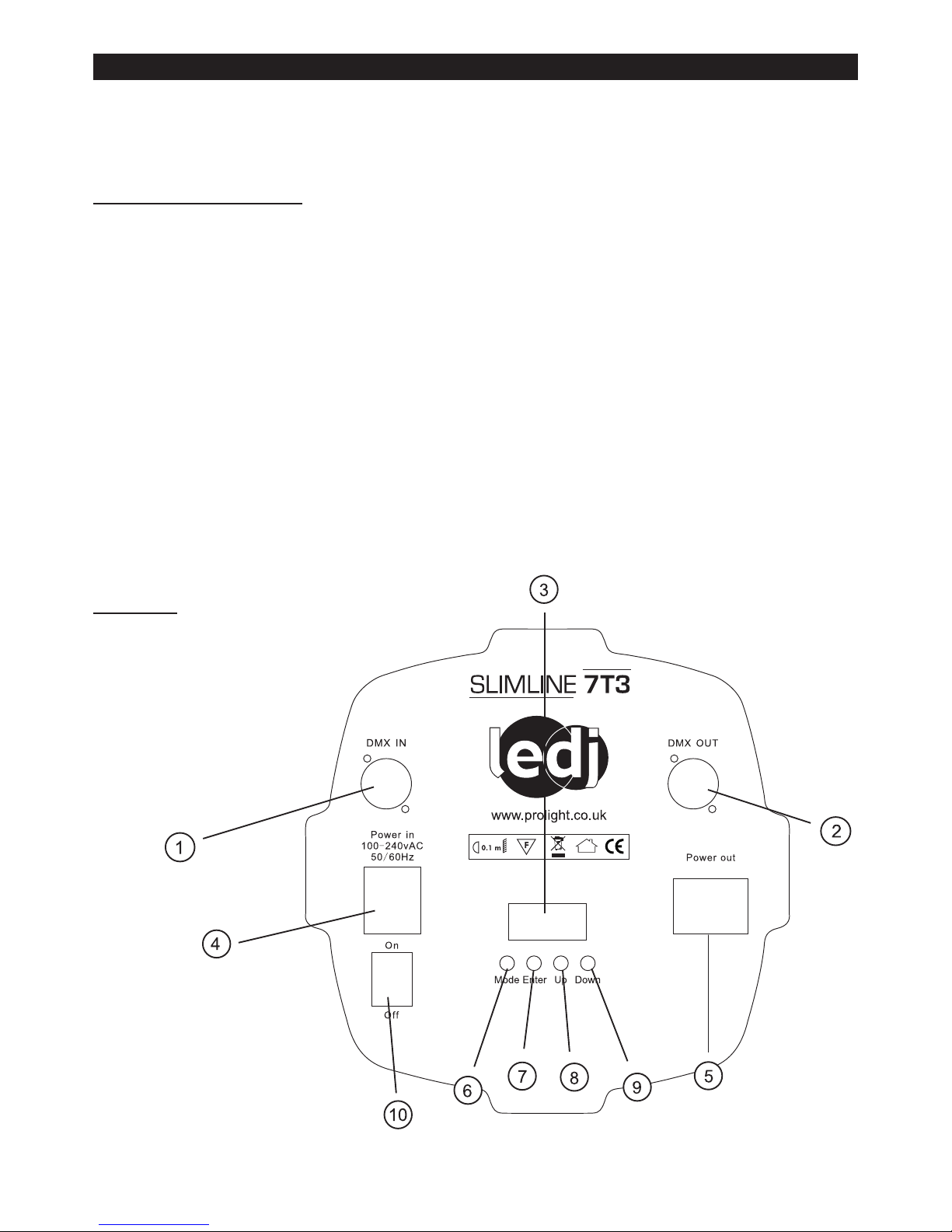

Overview:
1, DMX input
2, DMX output
3, LED display
4, Power input
5, Power output
6, Mode selection button
7, Set up button
8, Function up button
9, Function down button
10, On/Off switch
LEDJ Slimline 7T3 Technical specications
Page 5
Operation:
There are 6 different operation modes to choose from:
1) Static colour mode 2) Colour change mode 3) Colour fade mode
4) Sound active mode 5) DMX mode 6) Slave mode
1, Static colour mode
Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the
“ENTER” button to choose one of the static colours using the “UP” and “DOWN” buttons.
The “C1” represents Red, “C2” = Green, “C3” = Blue and “CF” = strobe.
The two digits after it are the brightness 00 to 99 or in “CF” they are the strobe speed.
Examples: If you set C1, C2 and C3 to zero, the 7T3 will have no LEDs on (blackout).
If you set C1 to 99 and C2 and C3 to zero, the 7T3 will be 100% Red.
NOTE: For static selection of Red, Green, and Blue, ensure that the unwanted
colours are set to “00”.
2, Colour change mode
Mode button - Press the MODE button until the LED display shows “J000”, then press the
“ENTER” button to choose one of the colour changing modes using the “UP” and “DOWN” buttons.
The colour change programmes are as follows:
1, “J300” = RGB, 2, “J700” = 7 colour, 3, “JF00” = Strobe,
Now press the “ENTER” button again and you can then select the colour change speed using the
“UP” and “DOWN” buttons. The speed settings are from 00-99 (00 = slow, 99 = fast)
3, Colour fade mode
Mode button - Press the MODE button until the LED display shows “F000”, then press the
“ENTER” button to choose one of the colour fading modes using the “UP” and “DOWN” buttons.
The colour fade programmes are as follows:
1, “F300” = RGB, 2, “F700” = 7 colour, 3, “FF00” = Strobe,
Now press the “ENTER” button again and you can then select the colour fade speed using the
“UP” and “DOWN” buttons. The speed settings are from 00-99 (00 = slow, 99 = fast)
4, Sound active
Mode button - Press the MODE button until the LED display shows “S000”, then press the
“ENTER” button to choose one of the sound active modes using the “UP” and “DOWN” buttons.
1, “S300” = RGB, 2, “S700” = 7 colour
The sensitivity levels range from 00-99 (00 = low, 99 = high)
LEDJ Slimline 7T3 Operation
Page 6
5, DMX Addressing mode
To access the DMX address mode, press the MODE button until the LED display shows “A001”,
then follow the DMX channel assignment and function table below.
6. Master/Slave mode
Link the units together using a 3-pin DMX cable, then press the MODE button to select one of the
above modes. On the Slave units press the mode button until the LED display shows “SLAV”. The
Slave units will then follow in sequence with the Master unit.
6 Channel DMX chart
LEDJ Slimline 7T3 Operation
Channel
1
2
3
4
5
6
Value
000-255
000-255
000-255
000-255
0-4
5-84
85-169
170-255
0-255
Function
Master dimmer
Red (0 - 100%)
Green (0 - 100%)
Blue (0-100%)
No function
Colour macro
Colour jump
Colour fade
Strobe
Page 7
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.

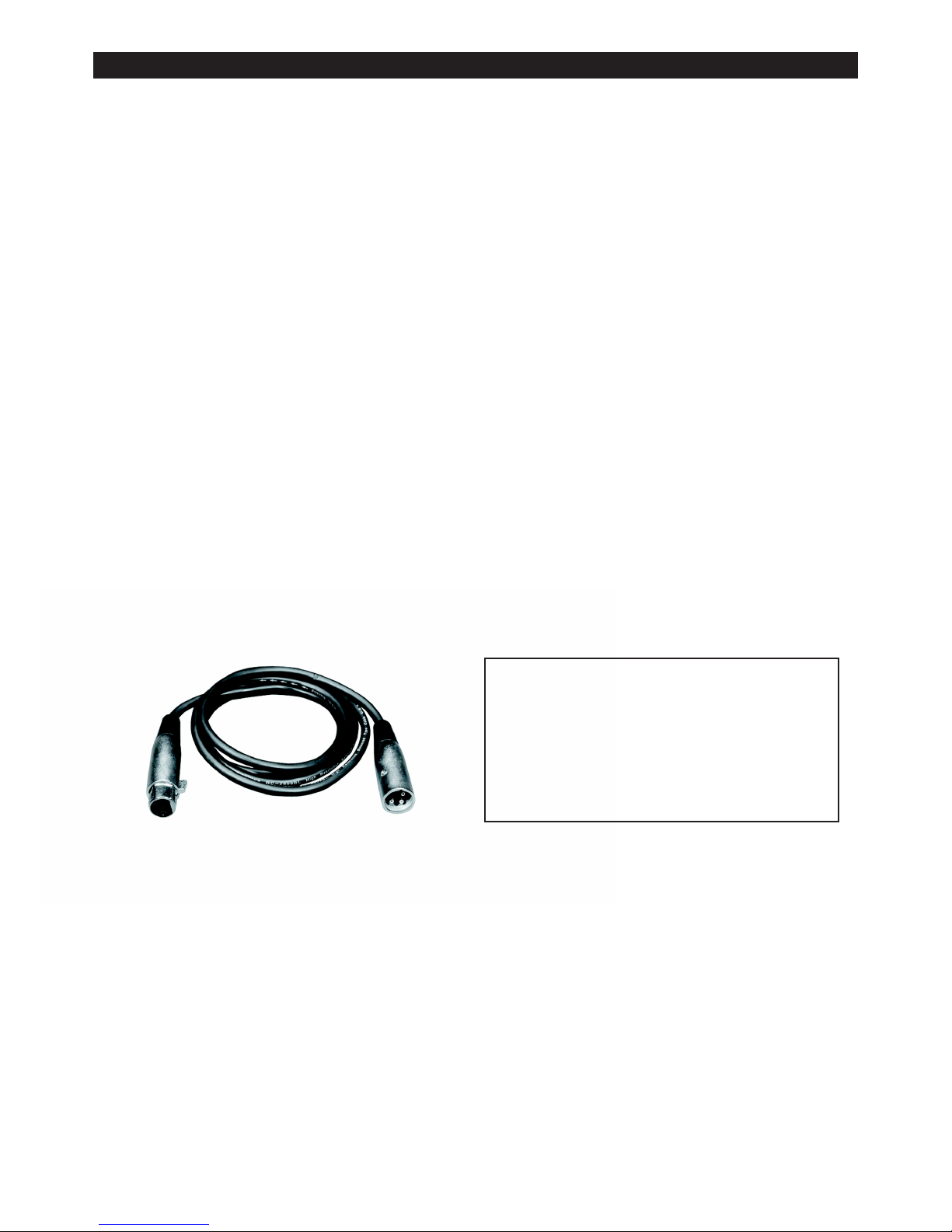

DATA Cable (DMX cable) requirements (for DMX operation):
• The Slimline 7T3 can be controlled via DMX-512 protocol. The DMX address is set on the back
of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data
input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
LEDJ Slimline 7T3 DMX Setup
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
Page 8
Notice:

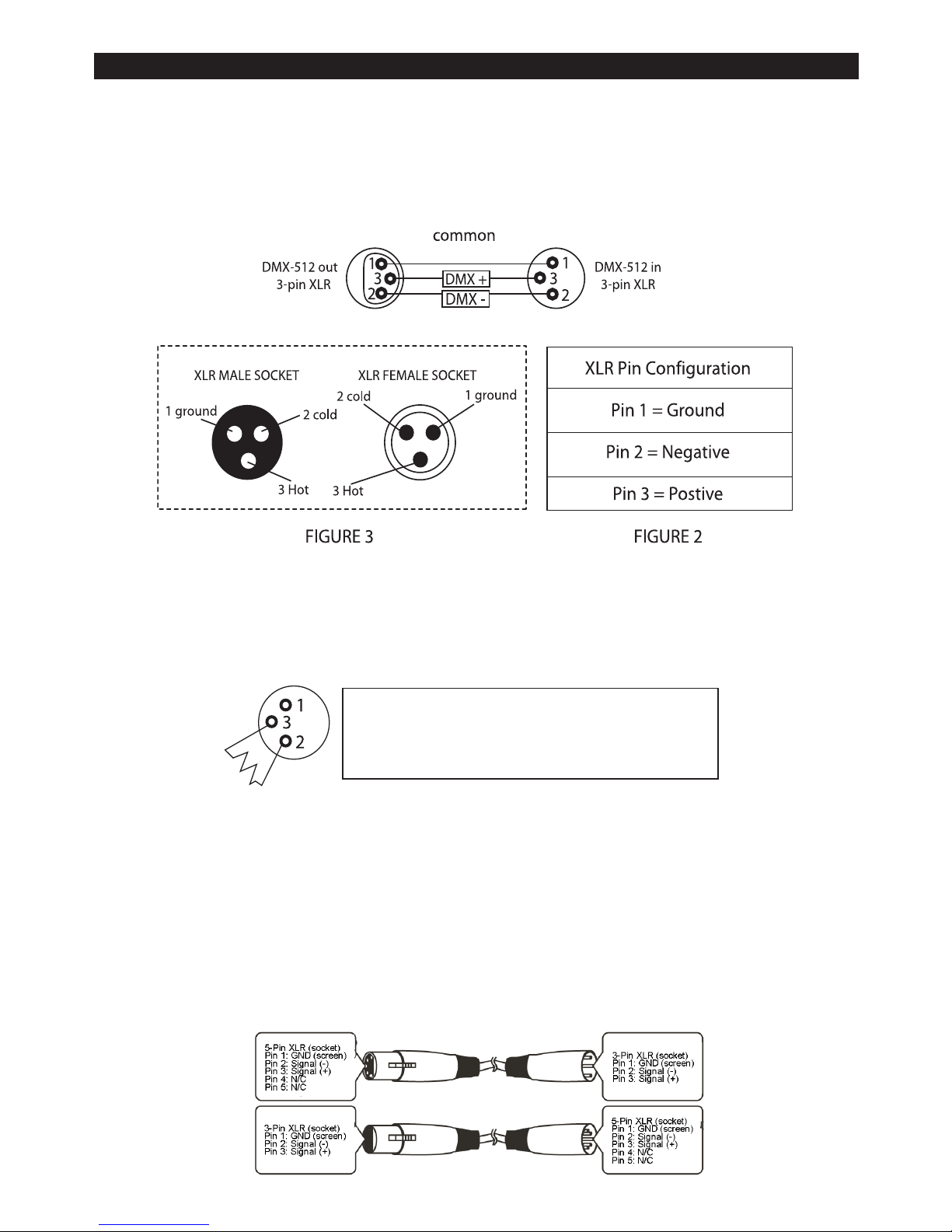

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
LEDJ Slimline 7T3 DMX Setup
