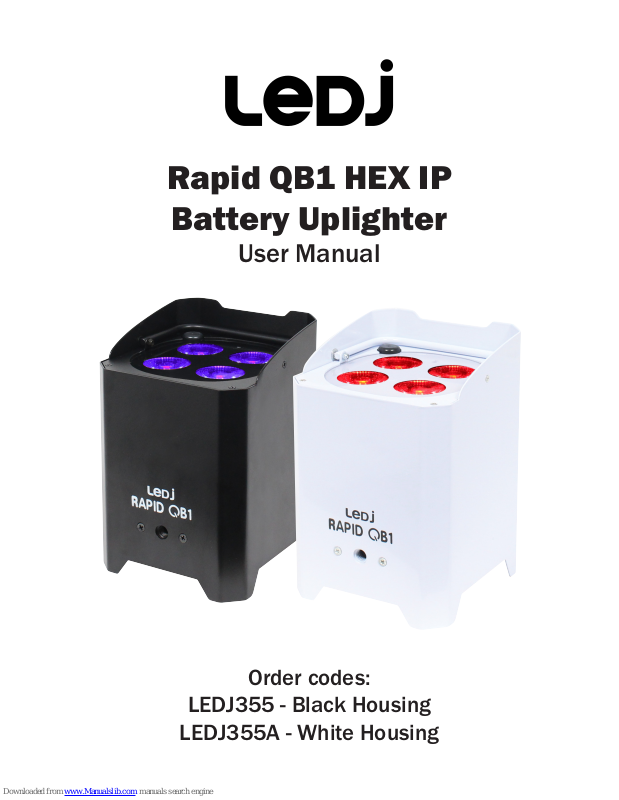

Order codes:
LEDJ355 - Black Housing
LEDJ355A - White Housing
Rapid QB1 HEX IP
Battery Uplighter
User Manual
Page 2
www.prolight.co.uk Rapid QB1 HEX IP User Manual
2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Before your initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and
the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and/or property.
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
• Never let the power cable come into contact with other
cables. Handle the power cable and all mains voltage
connections with particular caution!
• Never remove warning or informative labels from the unit.
• Do not open the equipment and do not modify the unit.
• Do not connect this equipment to a dimmer pack.
• Do not switch the equipment on and off in short intervals,
as this will reduce the system’s life.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when
equipment is not in use or before cleaning! Only handle
the power-cable by the plug. Never pull out the plug by
pulling the power-cable.
• Make sure that the available mains supply voltage is
between 100~240V AC, 50/60Hz.
• Please note: Battery fuse must be tted before use.
• Make sure that the power cable is never crimped or
damaged. Check the equipment and the power cable
periodically.
• If the equipment is dropped or damaged, disconnect the
mains power supply immediately and have a qualied
engineer inspect the equipment before operating again.
• If your product fails to function correctly, stop use
immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Prolight
dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• This lighting xture is for professional use only - it is
not designed for or suitable for household use. The
product must be installed by a qualied technician in
accordance with local territory regulations. The safety of
the installation is the responsibility of the installer. The
xture presents risks of severe injury or death due to re
hazards, electric shock and falls.
• Warning! Risk Group 2 LED product according to
EN 62471. Do not view the light output with optical
instruments or any device that may concentrate the beam.
• WARRANTY: One year from date of purchase.
• Please note: Batteries are classed as consumable items
which are covered for 90 days from date of purchase.
Page 3
www.prolight.co.uk Rapid QB1 HEX IP User Manual
3
IP rating information
IP Rating:
The IP (International Protection) rating classies and rates the degree of protection
provided against intrusion of foreign objects such as dust and water into housings
and electrical enclosures.
The rating consists of the letters IP followed by two digits (i.e. IP54) where the numbers
dene the level of protection. The rst digit (solids) stands for the level of protection the
enclosure provides against solid bodies, whilst the second digit (liquids) stands for the
degree of protection of the equipment inside the enclosure against water.
An IP54 rated xture is one which has been designed and tested to protect from limited
dust ingress (5) and water spray from any direction (4).
Marine/Coastal Installations:
Although this xture has an IP rating it is NOT suitable for installation in a coastal/
marine environment. Installing this xture in a coastal/marine environment could cause
corrosion and excessive wear to the internal and/or external components. Any damages,
faults or performance issues resulting from the installation in one of the environments
listed above will void the manufacturers warranty and will NOT be subject to any
warranty claims, parts or repairs.
Please ENSURE all connections are sealed with the rubber caps if provided and the
correct cables are used and connected correctly to prevent dust and/or water ingress,
condensation and/or corrosion.
IMPORTANT INFORMATION!
If this xture is installed in extreme outdoor and/or wet conditions, it MUST be powered
ON and operated for a minimum of 30 minutes every 1-2 weeks. Excessive usage in
extreme outdoor and/or wet conditions without a consistent usage cycle as described
above can lead to component damage and/or a reduced xture lifetime. Any damage to
the xture found to be a direct result of not following the above guidelines will void the
manufacturers warranty and will NOT be subject to any warranty claims, parts or repairs.
PLEASE READ THE BELOW CAREFULLY BEFORE USING
THE FIXTURE IN OUTDOOR/EXTREME ENVIRONMENTS
IP54
RATED
!
Page 4
www.prolight.co.uk Rapid QB1 HEX IP User Manual
4
Product overview & technical specications
Rapid QB1 HEX IP is a portable battery powered uplighter outputting ultra-smooth colours from rich
saturated hues to subtle pastel shades. The temporary outdoor rated compact and robust housing
repels water, snow and dirt for all-weather applications and is easily concealable. The internal lithium
battery has autonomy of up to 18 hours in single colour mode and up to 5.5 hours of colour fading and
chases, while the charging time is only 5 hours. The xture is IP54 rated (IP65 from the top),
has a powerCON TRUE1 input and features an extractable
foot that allows users to adjust the tilt angle.
The on-board wireless transceiver and W-DMX
compatibility make for a truly cable free operation.
Rapid QB1 HEX IP
NWODPURETNEUNEM
138mm 144mm
204mm
• 4 x 12W six-colour LEDs (RGBWAUV)
• Beam angle: 25° (eld angle: 45°)
• 1,230 Lux @ 2m
• 1.2kHz refresh rate
• DMX channels: 6/8 or 11 selectable
• Wireless control (W-DMX Sweden
compatible transceiver)
• Static colour, colour change, colour fade,
auto and master/slave modes
• 0-100% dimming and variable strobe
• M10 rigging point for clamp
• Adjustable foot for angled oor standing
applications (up to 25°)
• Safety bond/security chain point
• 4 button menu with OLED display
• Rechargeable battery for wireless applications
• Maximum run time: up to 18 hours (single colour),
5.5 hours (colour change/fade), 3 hours (full on)*
• Charging time: 5 hours (when unit powered off),
9 hours (when the unit is powered on)
• PowerCON TRUE1 input
• Supplied with IR remote
Specications Rapid QB1 HEX IP
Power consumption 55W
Power supply 100~240V, 50/60Hz
Fuse F3.15A 250V
Battery 14.8V 5200mAh
Battery fuse F5A 250V
Dimensions 204 x 138 x 144mm
Weight 3kg
Order codes LEDJ355 - Black Housing
LEDJ355A - White Housing
*battery life subject to usage and the temperature
where the xture is situated.
Please note: Battery fuse must be tted before use.
IP54
RATED
0m 1m 2m 3m 4m 5m
25° - Lux
FULL ON
R
G
B
W
A
UV
4920
988
1680
389
2260
788
N/A
1230
246.7
419.8
97.3
563.5
197.1
N/A
547
110
187
43.2
251
87.6
N/A
25°
308
61.8
105
24.3
141
49.3
N/A
197
39.5
67.2
15.6
90.2
31.5
N/A
Page 5
www.prolight.co.uk Rapid QB1 HEX IP User Manual
5
Technical specications
01 - Earth point
02 - OLED display
03 - Function buttons
04 - Wireless DMX indicator
05 - IR receiver
06 - M10 rigging point
07 - On/off switch
08 - Adjustable foot
09 - PowerCON TRUE 1 input
10 - Fuse F3.15A 250V
11 - Battery fuse F5A 250V
In the box: 1 x xture,
1 x IR remote, 1 x fuse,
1 x power cable
& 1 x user manual
07
11
08
09
01
10
NWODPURETNEUNEM
03 03
02
06
05
04
Page 6
www.prolight.co.uk Rapid QB1 HEX IP User Manual
6
Operating instructionsOperating instructions
Main Menu Sub Menu Options/Values Description
Address 001-512 DMX Address Setting
Channel
6 CH (6 channel mode)
DMX Channel Setting8 CH (8 channel mode)
11 CH (11 channel mode)
DMX Fail
Hold
Dimming Curve SettingBlackout
Auto
Frequency
600Hz
LED Refresh Rate
1200Hz
2000Hz
4000Hz
25kHz
Colour Mix
Red 000-255
Colour Mix Mode
Green 000-255
Blue 000-255
White 000-255
Amber 000-255
Uv 000-255
Program
Static
Colour: 1-27
Strobe: 0-10
Static Colour Mode
Fade
Fade: 1-5
Speed: 1-9
Fade Mode
Auto Speed: 1-9 Auto Mode
Wireless DMX
On
Off
Clear
Receive
Wireless DMX Setting
On
Off
Pair
ClearAll
Transmit
Information
Version V3.00 Software Version
Current Time __H__M__S Current Run Time
Total Time ____H__M Total Run Time
Temperature __C Fixture Temperature
Eco Mode
On
Eco Mode Setting
Off
IR
On
IR Control Setting
Off
Menu Lock
On
Menu Lock Setting
Off
Factory Reset
Yes
Reset Factory Settings
No
Page 7
www.prolight.co.uk Rapid QB1 HEX IP User Manual
7
Operating instructions
DMX mode:
Operating in a DMX control mode environment gives the user the greatest exibility when it comes
to customising or creating a show. In this mode you will be able to control each individual trait of
the xture and each xture independently.
To access the DMX address mode, press the “MENU” button to show “Address” on the OLED display.
Now use the “UP” and “DOWN” buttons to set the required DMX address.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
DMX channel mode:
To access the DMX channel mode,
press the “MENU” button to show “Channel”
on the OLED display. Now use the “UP” and
“DOWN” buttons to choose one of the
6/8 or 11 DMX channel modes.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options,
press the “MENU” button.
Channel Value Function
1 000-255 Red dimmer (0-100%)
2 000-255 Green dimmer (0-100%)
3 000-255 Blue dimmer (0-100%)
4 000-255 White dimmer (0-100%)
5 000-255 Amber dimmer (0-100%)
6 000-255 UV dimmer (0-100%)
6 channel mode:
Channel Value Function
1 000-255 Red dimmer (0-100%)
2 000-255 Green dimmer (0-100%)
3 000-255 Blue dimmer (0-100%)
4 000-255 White dimmer (0-100%)
5 000-255 Amber dimmer (0-100%)
6 000-255 UV dimmer (0-100%)
7 000-255 Master dimmer (0-100%)
8 000-010 No function
011-255 Strobe (slow-fast)
8 channel mode:
Channel Value Function
1 000-255 Red dimmer (0-100%)
2 000-255 Green dimmer (0-100%)
3 000-255 Blue dimmer (0-100%)
4 000-255 White dimmer (0-100%)
5 000-255 Amber dimmer (0-100%)
6 000-255 UV dimmer (0-100%)
7 000-255 Master dimmer (0-100%)
8 000-010 No function
011-255 Strobe (slow-fast)
9 000-010 No function
011-200 Colour macros
201-255 White macros
10 000-017 No function
018-034 3 colour fade (RGB)
035-051 3 colour fade (CMY)
052-068 4 colour fade (RGBW)
069-085 4 colour fade (RGBA)
086-102 5 colour fade (RGBWA)
103-119 6 colour fade (RGBWAUV)
120-136 9 colour fade (RGBWAUVCMY)
137-153 3 colour change (RGB)
154-170 3 colour change (CMY)
171-187 4 colour change (RGBW)
188-204 4 colour change (RGBA)
205-221 5 colour change (RGBWA)
222-238 6 colour change (RGBWAUV)
239-255 9 colour change (RGBWAUVCMY)
11 000-255 Program speed (slow-fast)
11 channel mode:
Page 8
www.prolight.co.uk Rapid QB1 HEX IP User Manual
8
Operating instructions
Wireless DMX operation:
To operate the xture in wireless DMX you will need to connect the xture to a W-DMX compatible
wireless DMX Transmitter. Firstly clear the xtures wireless DMX memory by following the instructions
below. To pair the xture and transmitter make sure the wireless DMX indicator is off.
To turn wireless DMX on, press the “MENU” button to show “Wireless DMX” on the OLED display. Now
use the “UP” and “DOWN” buttons to select “On”.
To put the unit into Wireless DMX receive mode, press the “ENTER” button again and use the “UP” and
“DOWN” buttons to select “Receive”. Press the “ENTER” button to conrm the setting.
Press the pair button on the transmitter. The wireless DMX indicator will start ashing fast. Once the pair
is successful the indicator will turn solid yellow.
To turn wireless DMX off, press the “MENU” button to show “Wireless DMX” on the OLED display. Now
use the “UP” and “DOWN” buttons to select “Off”. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
To link multiple Rapid QB1 via wireless master/slave see Wireless master/slave operation.
Clear wireless DMX memory:
To clear the wireless DMX memory, press the “MENU” button to show “Wireless DMX” on the OLED
display. Now use the “UP” and “DOWN” buttons to select “ClearAll” (Transmit mode) or “Clear”
(Receive mode). Press the “ENTER” button to erase the wireless DMX memory.
The Wireless DMX indicator will go off. To exit out of any of the above options, press the “MENU” button.
Please note: When the xture is in Wireless DMX transmit mode the wireless DMX memory of the
Transmitter unit and all receiving units will be cleared (ClearAll). When in Wireless DMX receive mode
the wireless DMX memory of that one receiving unit will be cleared (Clear).
Wireless DMX indicator information:
When the Wireless DMX indicator LED is illuminated, the xture is paired.
When the Wireless DMX indicator LED is ashing fast, the xtures settings from the last pair are saved
but the xture isn’t paired with the transmitter.
When the Wireless DMX indicator LED is ashing slow, the xtures is paired with the transmitter but isn’t
receiving signal.
When the Wireless DMX indicator LED is off, the xtures doesn’t have any remembered wireless DMX
settings and isn’t paired with a transmitter.
Page 9
www.prolight.co.uk Rapid QB1 HEX IP User Manual
9
Operating instructions
DMX signal fail:
To access the DMX signal fail setting, press the “MENU” button to show “DMX Fail” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose between “Hold”, “Blackout” or “Auto”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
LED refresh rate setting:
To access the LED refresh rate setting, press the “MENU” button to show “Frequency” on the OLED
display. Now use the “UP” and “DOWN” buttons to choose between “600Hz”, “1200Hz”, “2000Hz”,
“4000Hz” or “25kHz”. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Colour mix mode:
To access the colour mix mode, press the “MENU” button to show “Colour Mix” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose “Red”. Press the “ENTER” button and use the “UP”
and “DOWN” buttons to select the brightness of Red between “000-255”.
Value: 000 - 255 (000 = low, 255 = high).
Now press the “ENTER” button and repeat for “Green”, “Blue”, “White”, “Amber” and “Uv”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Built-in programs:
To access the built-in programs, press the “MENU” button to show “Program” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose between “Static”, “Fade” or “Auto”.
Static - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between
“Colour: 1 - Colour: 27”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select
between “Strobe: 0 - Strobe: 10”. Press the “ENTER” button to conrm the setting.
Fade - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between
“Fade: 1 - Fade: 5”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select
between “Speed: 1 - Speed: 9”. Press the “ENTER” button to conrm the setting.
(1 = slow speed, 9 = fast speed).
Auto - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between
“Speed: 1 - Speed: 9”. Press the “ENTER” button to conrm the setting.
(1 = slow speed, 9 = fast speed).
Colour 1 - Red
Colour 2 - Green
Colour 3 - Blue
Colour 4 - White
Colour 5 - Amber
Colour 6 - UV
Colour 7 - Cyan
Colour 8 - Magenta
Colour 9 - Yellow
Colour 10 - Purple
Colour 11 - Orange
Colour 12 - Lime Green
Colour 13 - Lavender
Colour 14 - Yellow/Orange
Colour 15 - Pink
Colour 16 - Light Blue
Colour 17 - Colour 27
- White colour
temperature macros
Page 10
www.prolight.co.uk Rapid QB1 HEX IP User Manual
10
Operating instructions
Master/slave operation:
To set the master unit, press the “MENU” button to show “Wireless DMX” on the OLED display.
Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Transmit”.
Press the “ENTER” button to conrm the setting. Then select your desired program.
To set the other units in slave mode, press the “MENU” button to show “Wireless DMX” on the OLED
display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Receive”.
Press the “ENTER” button to conrm the setting. The unit will now run in sequence with the master unit.
To exit out of any of the above options, press the “MENU” button.
Please ensure that all slave units are set to the same DMX channel mode as the master unit.
Wireless master/slave operation:
Firstly clear the xtures wireless DMX memory by following the instructions Clear wireless DMX memory.
To set the units into master/slave follow the instructions above (Master/slave operation).
To pair the master unit with the slave(s), press the “MENU” button to show “Wireless DMX” on the OLED
display. Now use the “UP” and “DOWN” buttons to select “Pair”. Press the “ENTER” button to pair.
The wireless DMX indicator will start ashing fast. Once the pair is successful the indicator will turn
solid yellow.
Software version:
To display the software version, press the “MENU” button to show “Information” on the OLED display.
Now use the “UP” and “DOWN” buttons to select “Version”. Press the “ENTER” button and the software
version will be displayed. To exit out of any of the above options, press the “MENU” button.
Current xture run time:
To display the current xture run time, press the “MENU” button to show “Information” on the
OLED display. Now use the “UP” and “DOWN” buttons to select “Current Time”.
Press the “ENTER” button and the current xture run time will be displayed.
To exit out of any of the above options, press the “MENU” button.
Total xture run time:
To display the total xture run time, press the “MENU” button to show “Information” on the
OLED display. Now use the “UP” and “DOWN” buttons to select “Total Time”.
Press the “ENTER” button and the total xture run time will be displayed.
To exit out of any of the above options, press the “MENU” button.
Fixture temperature:
To display the xture temperature, press the “MENU” button to show “Information” on the OLED display.
Now use the “UP” and “DOWN” buttons to select “Temperature”. Press the “ENTER” button and the
software version will be displayed. To exit out of any of the above options, press the “MENU” button.
Page 11
www.prolight.co.uk Rapid QB1 HEX IP User Manual
11
Operating instructionsOperating instructions
Battery reference information:
When the battery charge indicator LED is illuminated red, the xture is recharging.
When the battery charge indicator LED is illuminated yellow, the xture has less than 30% charge.
When the battery charge indicator LED is illuminated green, the battery is charged.
The recharging time for the battery is 5 hours when the unit is powered off and 9 hours when the unit
is powered on.
The battery usage time from fully charged is dependant on the mode and brightness of the xture.
For more information please see the features on page 3.
Remaining battery life:
The batteries remaining charge is displayed at the top right of the OLED screen throughout the menu.
Eco mode:
To access the eco mode setting, press the “MENU” button to show “Eco Mode” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose between “On” or “Off”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Please note: Eco mode allows the xture to run longer from a single charge when used in a 3 or more
colour program with a slight reduction in intensity.
IR remote:
To access the IR remote setting,, press the “MENU” button to show “IR” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose between “On” or “Off”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Please note: The xture must be set to Master for the IR function to work.
Menu lock:
The OLED display for this xture has a menu locking function where after 5 seconds ofinactivity
it will lock. To unlock the menu hold the “MENU” and “DOWN” buttons for 3 seconds.
To access the menu lock setting, press the “MENU” button to show “Menu Lock” on the OLED display.
Now use the “UP” and “DOWN” buttons to choose between “On” or “Off”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Reset factory settings:
To access the factory reset setting, press the “MENU” button to show “Factory Reset” on the OLED
display. Now use the “UP” and “DOWN” buttons to choose between “Yes” or “No”.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Page 12
www.prolight.co.uk Rapid QB1 HEX IP User Manual
12
Operating instructions
ON/OFF
Auto Sound Strob
M/S FadeSpeed
Full EcoAdd
Green BlueRed
White Amber
CyanOrg Pink
UV
01
03
06
09
04
10
02
05
12
11
07
08
A B C
D E F
G H I

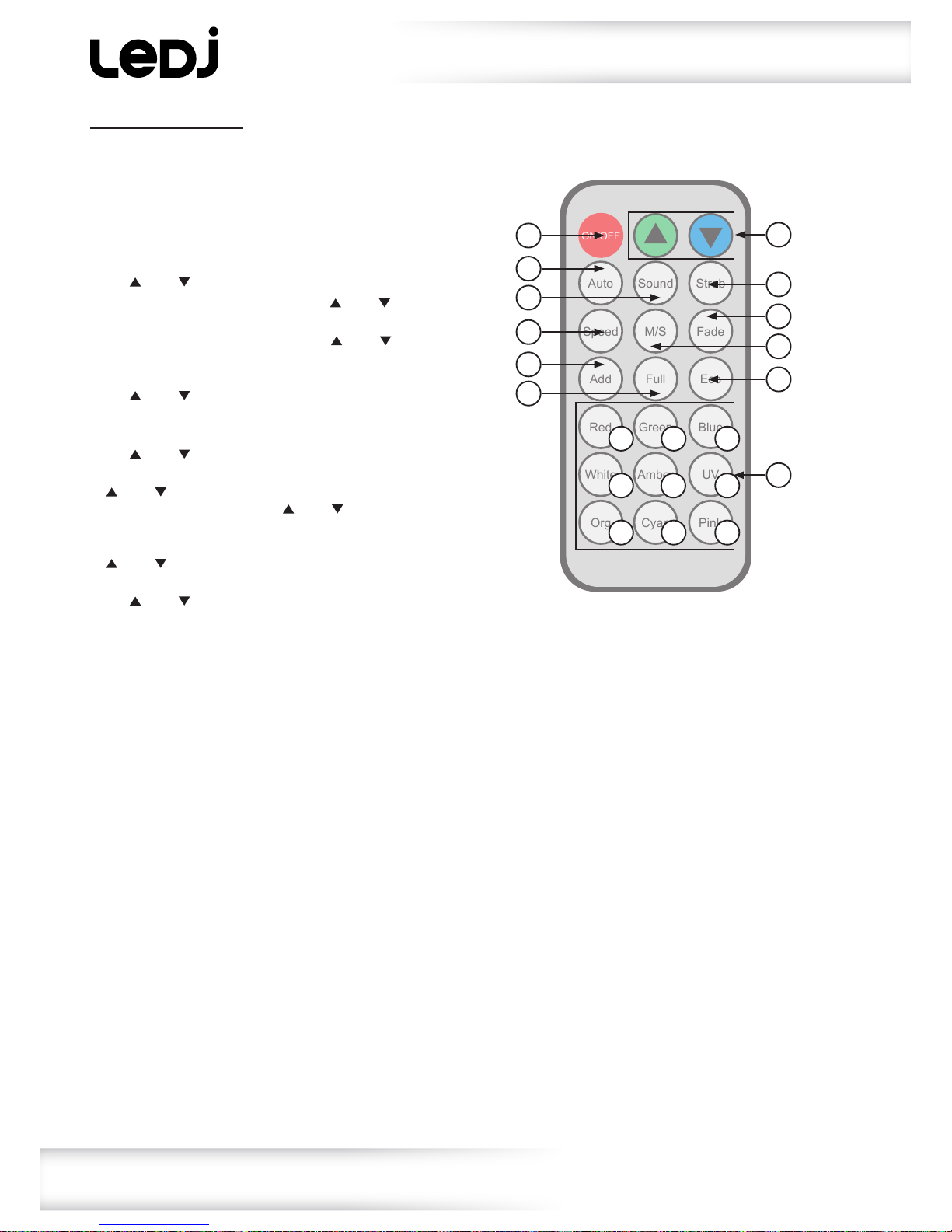

IR remote functions:
01 - Sets the unit into blackout off/on (LED on/off)
02 - Sets the static colour (see chart key for colours)
03 - Runs the auto mode, use the ‘Speed’ button followed by
the ‘ ’ and ‘ ’ buttons to adjust the auto speed
04 - Runs the sound program, use the ‘ ’ and ‘ ’ buttons
to adjust the sound sensitivity
05 - Runs the strobe program, use the ‘ ’ and ‘ ’ buttons to
adjust the strobe speed
06 - Sets the auto/fade speed. Press this button followed by
the ‘ ’ and ‘ ’ buttons to adjust the program speed
07 - Sets the unit in either master or slave mode
08 - Runs the fade mode, use the ‘Speed’ button followed by
the ‘ ’ and ‘ ’ buttons to adjust the fade speed
09 - Sets the DMX address. Press this button followed by the
‘ ’ and ‘ ’ buttons to adjust the DMX address. Press this
button again followed by the ‘ ’ and ‘ ’ buttons to adjust
the DMX channel
10 - Sets the unit in full on. Press this button followed by the
‘ ’ and ‘ ’ buttons to adjust brightness (000-255)
11 - Sets the unit in Eco mode. Press this button followed by
the ‘ ’ and ‘ ’ buttons to turn eco mode on/off
12 - Adjusts the auto, fade and strobe speed, sound
sensitivity, DMX address/channel, full on brightness and
turns the eco mode on/off.
A - Red
B - Green
C - Blue
D - White
E - Amber
F - UV
G - Orange
H - Cyan
I - Pink
Page 13
www.prolight.co.uk Rapid QB1 HEX IP User Manual
13
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
Page 14
www.prolight.co.uk Rapid QB1 HEX IP User Manual
14
Page 15
www.prolight.co.uk Rapid QB1 HEX IP User Manual
15
Page 16
www.prolight.co.uk Rapid QB1 HEX IP User Manual
16
Loading...
