Page 1
150W UV COB Flood
User Manual
Order code: LEDJ188
Page 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Before your initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM RAIN,
MOISTURE AND LIQUIDS
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
• Never let the power cable come into contact with other
cables. Handle the power cable and all mains voltage
connections with particular caution!
• Never remove warning or informative labels from the unit.
• Do not open the equipment and do not modify the unit.
• Do not connect this equipment to a dimmer pack.
• Do not switch the equipment on and off in short intervals,
as this will reduce the system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when
equipment is not in use or before cleaning! Only handle
the power-cable by the plug. Never pull out the plug by
pulling the power-cable.
• Make sure that the available mains supply voltage is
between 100~240V AC, 50/60Hz.
• Make sure that the power cable is never crimped or
damaged. Check the equipment and the power cable
periodically.
• If the equipment is dropped or damaged, disconnect the
mains power supply immediately and have a qualied
engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic
temperature uctuation (e.g. after transportation),
do not connect power or switch it on immediately.
The arising condensation might damage the equipment.
Leave the equipment switched off until it has reached
room temperature.
• If your product fails to function correctly, stop use
immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Pro Light
dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• This lighting xture is for professional use only - it is
not designed for or suitable for household use. The
product must be installed by a qualied technician in
accordance with local territory regulations. The safety of
the installation is the responsibility of the installer. The
xture presents risks of severe injury or death due to re
hazards, electric shock and falls.
• Warning! Risk Group 2 LED product according to
EN 62471. Do not view the light output with optical
instruments or any device that may concentrate the beam.
• WARRANTY: One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and
the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and/or property.
www.prolight.co.uk 150W UV COB Flood User Manual
2
Page 3
Product overview & technical specications
150W UV COB Flood
Featuring COB technology this robust ood is loaded with a 150W UV LED which is housed in a 93° reector
producing strong black light effects. This xture has been designed to ll a variety of venues with a phenomenal
UV glow and is easy to transport and install. The high output LED is ideal for washing stages, nightclubs, bowling
centres and skating rinks whilst built-in features include DMX, sound active and manual modes.
• 1 x 150W UV COB LED
• Beam angle: 93°
• Ultra violet wavelength: 395-400nm
• 8kHz refresh rate
• DMX channels: 1 or 2 selectable
• Manual, sound active and master/slave modes
• 0-100% dimming and variable strobe
• Supplied with hanging bracket
• 4 push button menu with LED display
• PowerCON input/output
• 3-Pin XLR input/output
• Fan cooled
Specications
Power consumption 150W (max.)
Power supply 100~240V, 50/60Hz
Fuse T2A 250V
Dimensions 282 x 306 x 244mm (with bracket)
210 x 222 x 244mm (without bracket)
Weight 4.3kg
Order code LEDJ188
306mm
222mm
244mm
222mm
32mm
178mm
282mm
210mm
www.prolight.co.uk 150W UV COB Flood User Manual
3
Page 4
MENU
DMX INPUT
POWER INPUT:
100-240V~50/60Hz
POWER CONSUMPTION: 150W (max.)
FUSE:
T2A 250V
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
UP ENTERDOWN
150W UV COB Flood
www.prolight.co.uk
08
Technical specications
04
09 09
01
10
06
03
02
07
05
01 - LED display
02 - Function buttons
03 - 3-Pin DMX input
04 - 3-Pin DMX output
05 - PowerCON input
06 - PowerCON output
07 - Fuse T2A 250V
08 - Hanging bracket
09 - Hanging bracket
adjustment knobs
10 - Safety eye
In the box: 1 x xture,
1 x power cable,
& 1 x user manual
www.prolight.co.uk 150W UV COB Flood User Manual
4
Page 5
A 0 0 1
C h n d

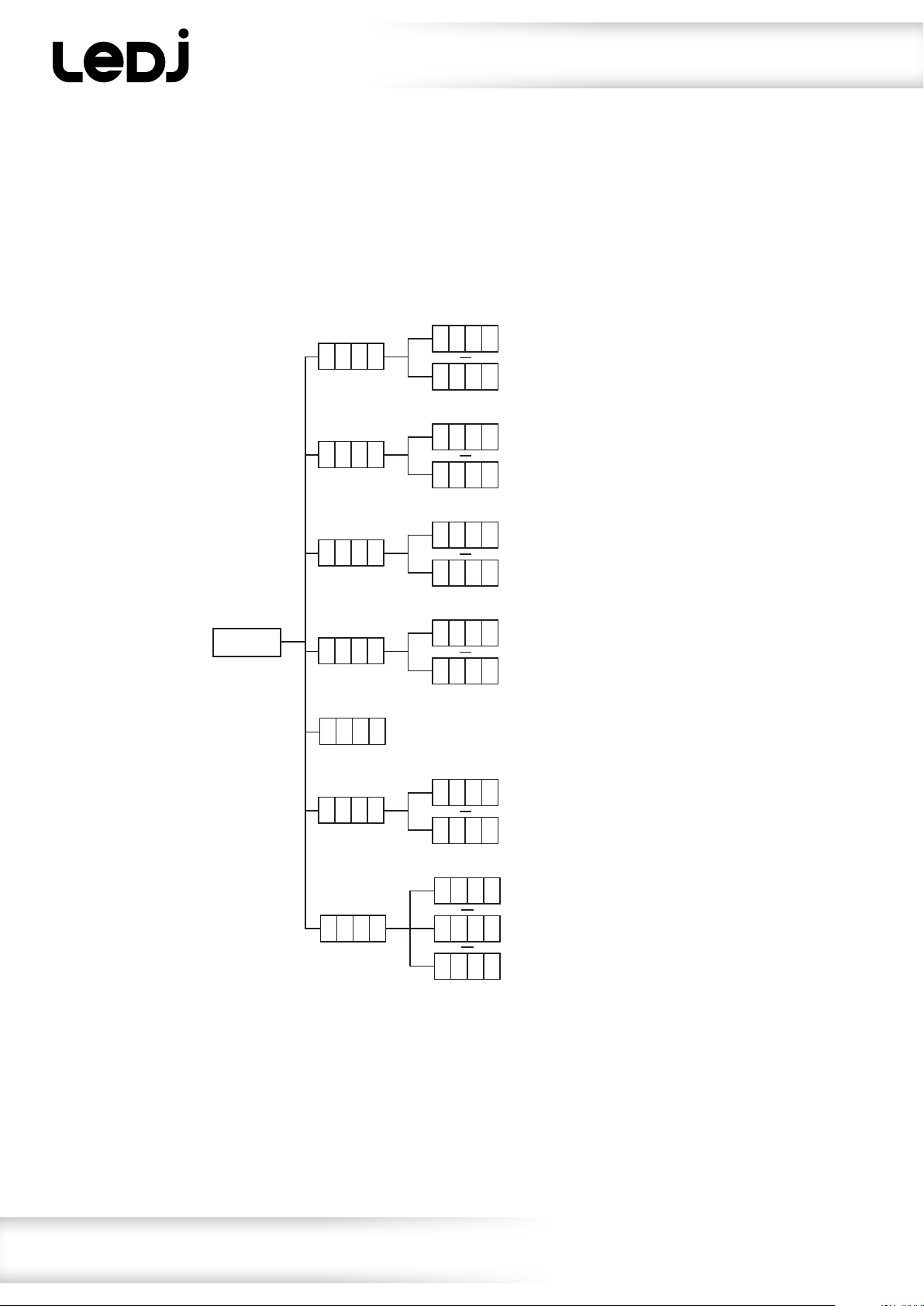

Operating instructionsOperating instructionsOperating instructions
A 0 0 1
DMX address setting
A 5 1 2
1 C H
Slave mode
2 C H
MENU
C - 0 0
F - 0 0
S L A V
S U 0 0
b 1 n d
C - 0 0
C - 9 9
F - 0 0
F - 9 9
Slave mode
S U 0 0
S U 9 9
b 1 n d
S o U N
H o 1 d
Manual mode (dimmer)
Manual mode (strobe)
Sound mode
DMX fail
www.prolight.co.uk 150W UV COB Flood User Manual
5
Page 6
Operating instructions
DMX mode:
Operating in a DMX control mode environment gives the user the greatest exibility when it comes
to customising or creating a show. In this mode you will be able to control each individual trait of
the xture and each xture independently.
To access the DMX address mode, press the “MENU” button and use the “UP” and “DOWN” buttons to
show A001 on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons
to set the required DMX address. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
DMX channel mode:
To access the DMX channel mode, press the “MENU” button and use the “UP” and “DOWN” buttons to
show Chnd on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons
to choose one of the 1 or 2 DMX channel modes. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
1 channel mode:
Channel Value Function
CH1 000-255 Master dimmer (0-100%)
Manual mode:
To access manual mode, press the “MENU” button to show C-00 on the LED display. Now press
the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimmer brightness between
2 channel mode:
Channel Value Function
CH1 000-255 Master dimmer (0-100%)
CH2 000-255 Strobe (slow-fast)
00 ~ 99. Press the “ENTER” button to conrm the setting. Press the “MENU” button once more to
show F-00 on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”
buttons to set the strobe speed between 00 ~ 99. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Master/slave mode:
To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons to select one of
the manual or sound active modes.
To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons to
show SLAV on the LED display. Press the “ENTER” button to conrm the setting.
The unit will now run in sequence with the master unit.
To exit out of any of the above options, press the “MENU” button.
Please ensure that all slave units are set to the same DMX channel mode as the master unit.
www.prolight.co.uk 150W UV COB Flood User Manual
6
Page 7
Operating instructions
Sound active:
To access the sound active mode, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show SU00 on the LED display. Now press the “ENTER” button and use the
“UP” and “DOWN” buttons to set the sound sensitivity between 00 ~ 99. Press the “ENTER” button to
conrm the setting. To exit out of any of the above options, press the “MENU” button.
DMX fail:
To change what the unit does when the DMX signal is lost, press the “MENU” button and use the “UP”
and “DOWN” buttons on the rear of the unit to show b1nd on the LED display. Now press the “ENTER”
button and use the “UP” and “DOWN” buttons to choose between b1nd (Blackout),
SoUN (Sound mode) or Ho1d (Hold the last DMX command).
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
www.prolight.co.uk 150W UV COB Flood User Manual
7
Page 8

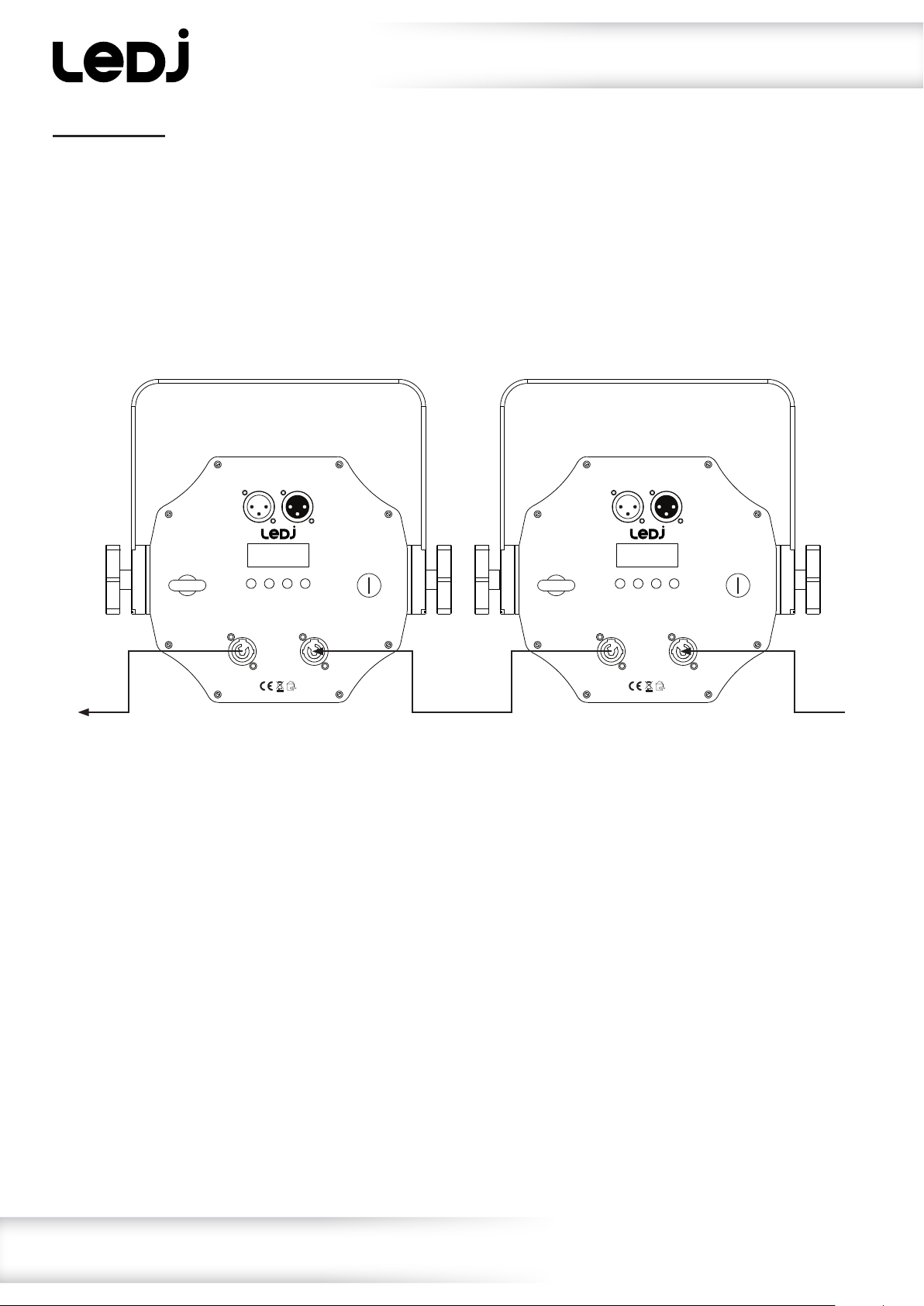

Multiple xture power linking
Power linking:
This xture provides power linking via the power output on the rear allowing multiple units to be
connected together. The maximum number of xtures that can be connected is 12 xtures @ 240V
or 6 xtures @ 120V (including the rst xture). After the maximum number of xtures are
connected a new power run will need to be started.
Please note: Caution should be used when power linking other xtures to the 150W UV COB Flood
as the power consumption of other xtures will vary. Fixtures tted with lamps often require 2/3 times
more current on startup, these may require their own power source.
DMX OUTPUT
MENU
UP ENTERDOWN
150W UV COB Flood
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
POWER CONSUMPTION: 150W (max.)
DMX INPUT
POWER INPUT:
100-240V~50/60Hz
FUSE:
T2A 250V
DMX OUTPUT
MENU
UP ENTERDOWN
150W UV COB Flood
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
POWER CONSUMPTION: 150W (max.)
DMX INPUT
POWER INPUT:
100-240V~50/60Hz
FUSE:
T2A 250V
www.prolight.co.uk 150W UV COB Flood User Manual
8
Page 9

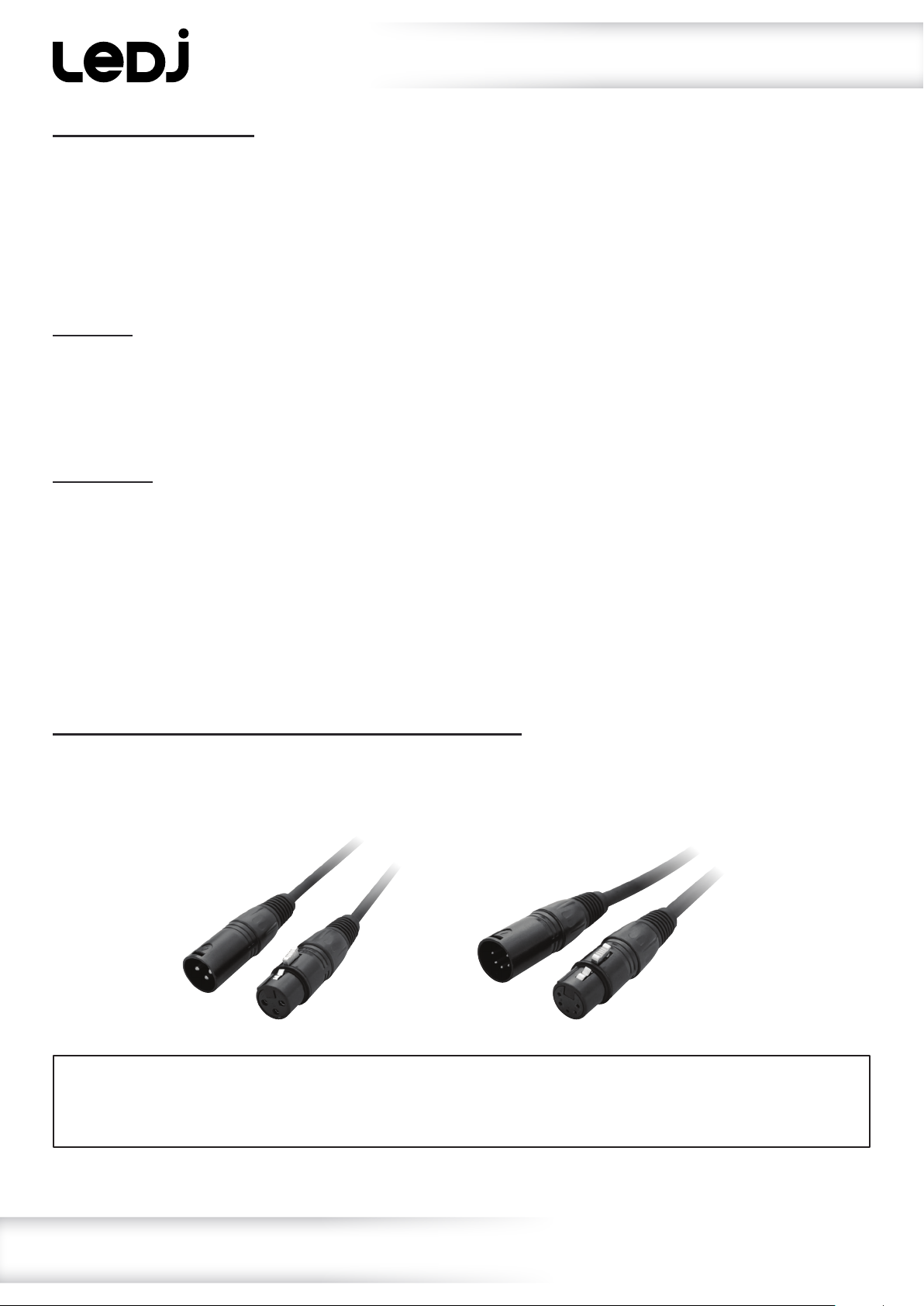

DMX setup
Setting the DMX address:
The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”
from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel
indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was
addressed to start on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104,
105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in
the chain starts at 107.
DMX 512:
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent
xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.
DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”
XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).
DMX linking:
DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest
cable path possible. The order in which xtures are connected in a DMX line does not inuence the
DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,
no matter where it is located in the DMX chain.
DATA cable (DMX cable) requirements (for DMX operation):
This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.
Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output,
see images below.
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers.
Please quote:
Also remember that DMX cable must be daisy chained and cannot be split.
CABL10 – 2m CABL11 – 5m CABL12 – 10m3-Pin:
CABL185 – 2m CABL187 – 5m CABL188 – 10m5-Pin:
www.prolight.co.uk 150W UV COB Flood User Manual
9
Page 10
Notice:

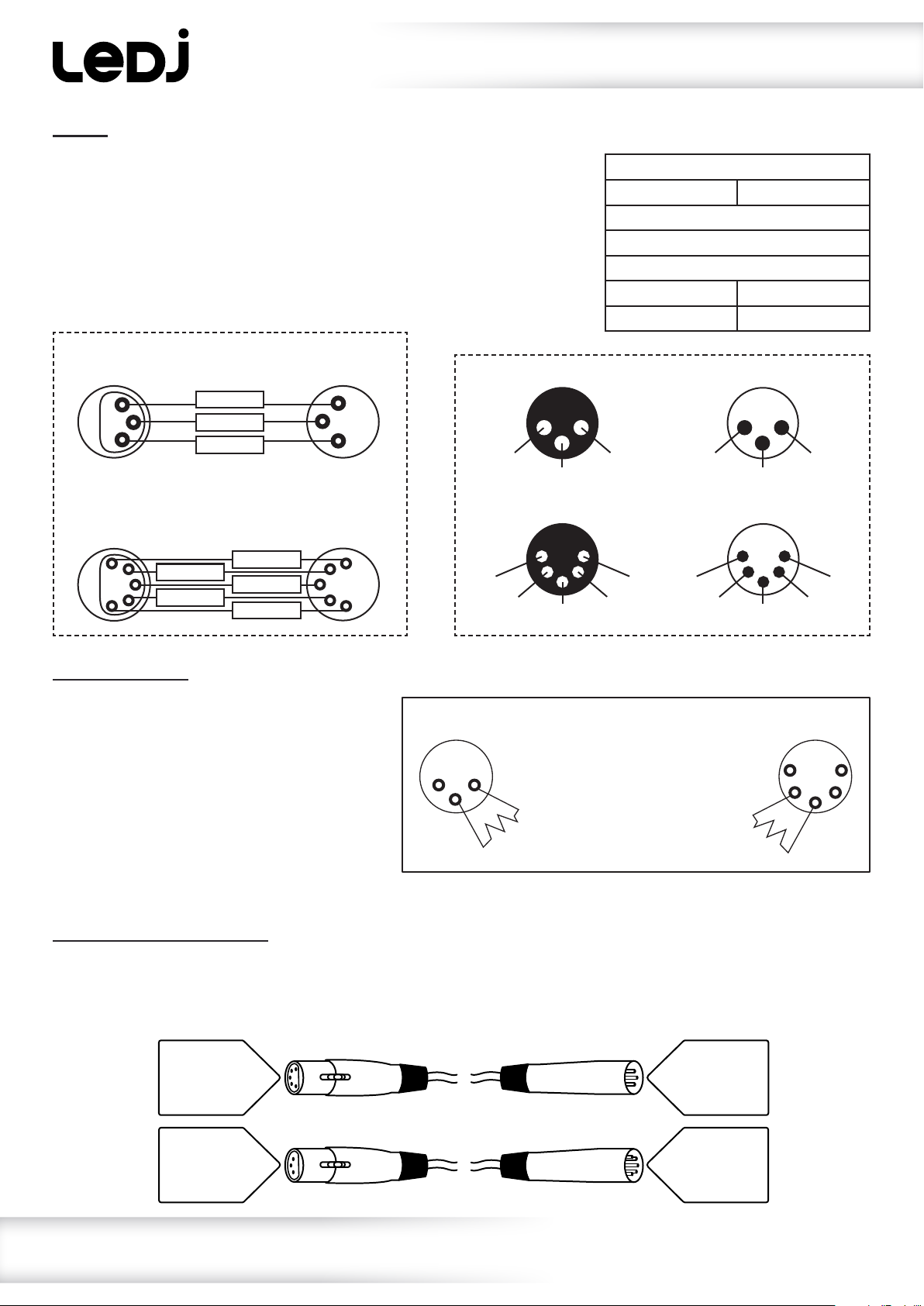

DMX setup
Be sure to follow the diagrams below when making your own cables.
Do not connect the cables shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLRs
outer casing. Grounding the shield could cause a short circuit
and erratic behaviour.
DMX 512
3-Pin XLR output
1
3
2
DMX 512
5-Pin XLR output
1
2
3
4
5
GROUND
DMX –
N/C
DMX +
DMX –
GROUND
DMX +
N/C
DMX 512
3-Pin XLR input
1
3
2
DMX 512
5-Pin XLR input
1
2
3
4
5
3-Pin XLR male 3-Pin XLR female
1 ground
3 hot
5-Pin XLR male 5-Pin XLR female
1 ground 5 N/C
2 cold
3 hot
2 cold
4 N/C
Pin Conguration
3-Pin 5-Pin
Pin 1 - Ground
Pin 2 - Negative
Pin 3 - Positive
– Pin 4 - N/C
– Pin 5 - N/C
2 cold
5 N/C 1 ground
4 N/C
3 hot
3 hot
1 ground
2 cold
Line termination:
When longer runs of cable are used,
you may need to use a terminator on
the last unit to avoid erratic behaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL90,
3-Pin
1 2
3
Termination reduces signal
transmission problems and
interference. It is always
advisable to connect a DMX
terminal, (resistance 120
Ohm 1/4W) between pin 2
(DMX-) and pin 3 (DMX+) of
the last xture.
5-Pin
1
2 4
3
5
5-pin - Order ref: CABL89)
5-pin XLR DMX connectors:
Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a
3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
5-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
www.prolight.co.uk 150W UV COB Flood User Manual
10
Page 11
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed of
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
www.prolight.co.uk 150W UV COB Flood User Manual
11
Page 12
www.prolight.co.uk 150W UV COB Flood User Manual
12
Loading...
