(Order code: LEDJ162)
USER MANUAL

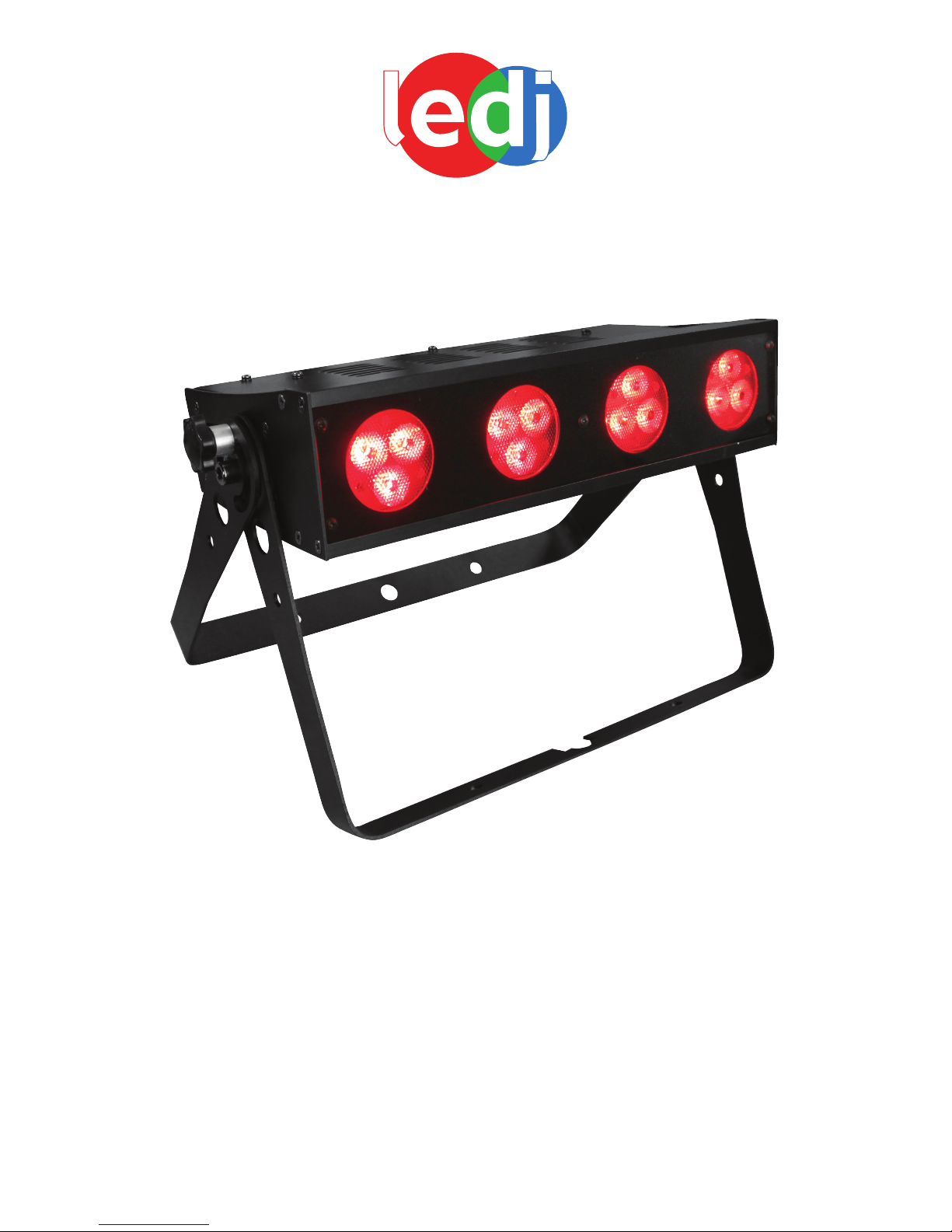

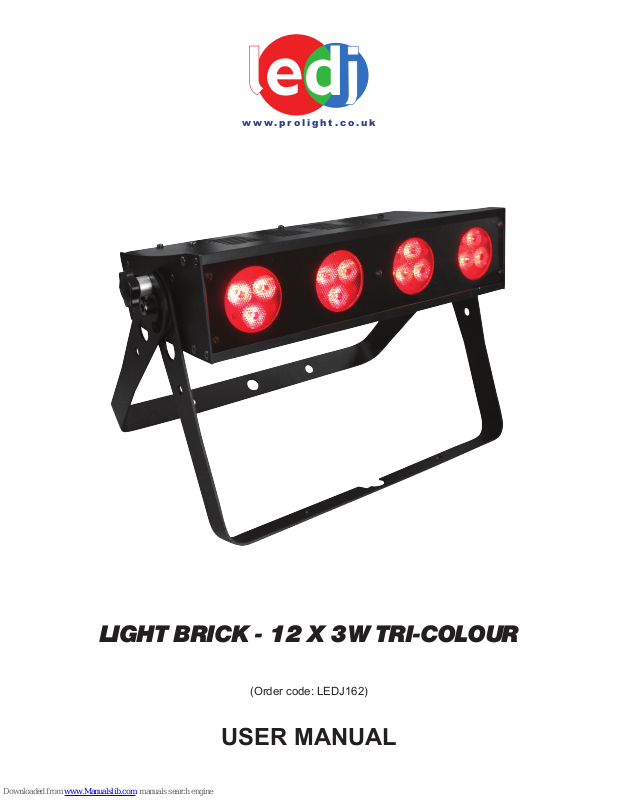

LIGHT BRICK - 12 X 3W TRI-COLOUR
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
LEDJ Light Brick Safety
Page 3
LEDJ Light Brick Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Cleaning must be done at regular intervals.
• Before cleaning, wait until the unit has cooled.
• Use a vacuum or dry compressed air and a soft brush to remove the dust collected on the
external vents and accessible internal components.
• Clean the external surfaces with a mild solution of non-ammonia glass cleaner or
isopropyl alcohol and wipe with a soft, lint free cotton cloth or lense cleaning tissue.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 100V-240V.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
• LEDJ products are designed and intended for professional use only by competent
persons. The products are not suitable for domestic use.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
You should nd inside the LEDJ carton the following items:
1, Light Brick - 12 x 3W tri-colour 2, Instruction manual, 3, Power Cable
Technical Specications:
DMX channels: 3/7/10/12 or 16 selectable
12 x 3W tri-colour LEDs
Sound active, master/slave and DMX modes
4 push button LED display
IEC power in/out sockets
3-pin XLR in/out sockets
Beam angle: 30 degrees
Power supply: 100-240V~50/60Hz
Power consumption: 60W
Dimensions: 395 x 80 x 300mm
Weight: 3Kgs
Operating modes: 1, Sound active
2, master/slave
3, DMX
Overview:
LEDJ Light Brick Technical specications

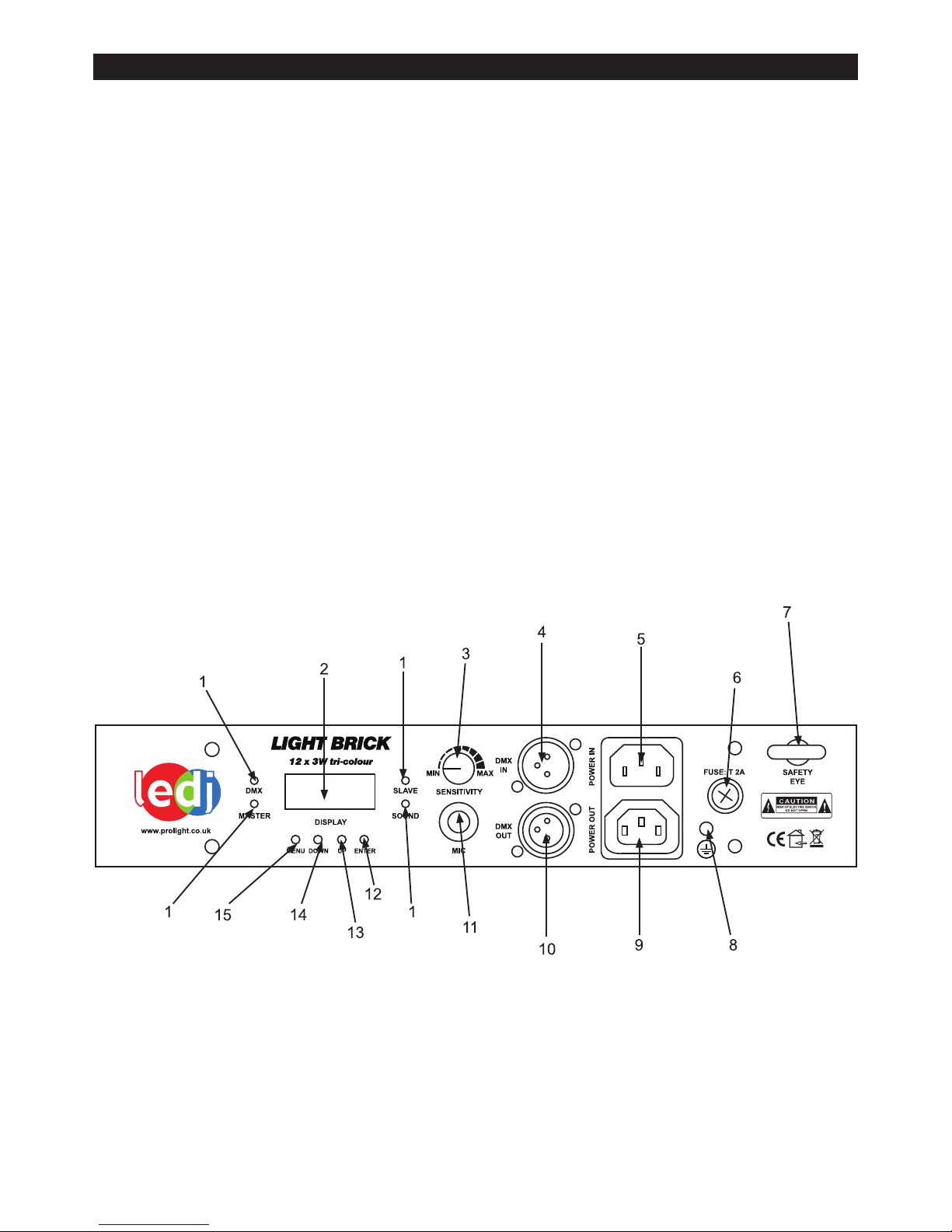

Identication:
1. Function LEDs
2. LCD display
3. Sound sensitivity control
4. DMX input socket
5. Power input socket
6. Fuse
7. Safety eye
8. Earthing point
9. Power output socket
10. DMX output socket
11. Microphone
12. Enter button
13. Up button
14. Down button
15. Menu button
Page 5
1, DMX Mode
To enter the DMX mode, press the “MENU” button to show “SET DMX ADDRESS” on the LCD display. Now
press the “ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512.
Now press the “ENTER” button again to conrm the setting.
2, DMX channel selection
To choose a DMX channel mode press the “MENU” button to show “SET RUN CHANNEL” on the LCD
display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select one of the channel
modes: 3, 7, 10, 12 or 16 channel modes.
When you are happy with your choice, press the “ENTER” button to conrm it.
3, Built-in sound active programmes mode
To enter the built-in sound active programmes mode, press the “MENU” button to show “SET RUN MODE”
on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to scroll through
the 14 built-in sound active programmes, 0 - 13.
To increse or decrease the sensitivity levels, simply use the sensitivity control on the rear of the unit.
4, Master/slave mode
To enter the master/slave mode, press the “MENU” button to show “SET MAST MODE” on the LCD display.
Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select “MASTER”, “SLAVE” or
“OFF”.
Master = When the unit is set as the master this unit should be the rst in line of the set up.
Slave = When the unit is set as the slave, the unit will foll,ow in sequence with the master unit.
Off = When the unit is set to the off option the unit will blackout. To turn back on, simply set it back to
the master option.
DMX charts:
3CH
LEDJ Light Brick Operation
Channel Value Function
1 000-255 Red 0-100%
2 000-255 Green 0-100%
3 000-255 Blue 0-100%
Page 6
7 Channel DMX chart
LEDJ Light Brick DMX Charts
Channel Value Function
1
0-7 No function
8-15 Macro 1
16-23 Macro 2
24-31 Macro 3
32-39 Macro 4
40-47 Macro 5
48-55 Macro 6
56-63 Macro 7
64-71 Macro 8
72-79 Macro 9
80-87 Macro 10
88-95 Macro 11
96-103 Macro 12
104-111 Macro 13
112-119 Macro 14
120-127 Macro 15
128-135 Macro 16
136-143 Macro 17
144-151 Macro 18
152-159 Macro 19
160-167 Macro 20
168-175 Macro 21
176-183 Macro 22
184-191 Macro 23
192-199 Macro 24
200-207 Macro 25
208-215 Macro 26
216-223 Macro 27
224-231 Macro 28
232-239 Macro 29
240-255 Sound Active
2 000-255 Red 0-100%
3 000-255 Green 0-100%
4 000-255 Blue 0-100%
Page 7
Channel Value Function
5
0-7 No function
8-15 Red
16-23 Green
24-31 Blue
32-39 Yellow
40-47 Pink
48-55 Turquoise
56-63 Cold white
72-79 Light pink
80-87 Light blue
88-95 Golden yellow
96-103 Light Blue
104-111 Light Pink
112-118 Pink
119-127 Green/blue
128-135 Neutral white
136-195 Colour fade (slow to fast)
196-255 7 colour change (slow to fast)
6 000-255 Strobe
7 000-255 Dimmer 0-100% (will not control CH1 or CH5)
7 Channel DMX chart cont.......
LEDJ Light Brick DMX Charts
Page 8
10 Channel DMX chart:
LEDJ Light Brick DMX Charts
Channel Value Function
1
0-7 No function
8-15 Macro 1
16-23 Macro 2
24-31 Macro 3
32-39 Macro 4
40-47 Macro 5
48-55 Macro 6
56-63 Macro 7
64-71 Macro 8
72-79 Macro 9
80-87 Macro 10
88-95 Macro 11
96-103 Macro 12
104-111 Macro 13
112-119 Macro 14
120-127 Macro 15
128-135 Macro 16
136-143 Macro 17
144-151 Macro 18
152-159 Macro 19
160-167 Macro 20
168-175 Macro 21
176-183 Macro 22
184-191 Macro 23
192-199 Macro 24
200-207 Macro 25
208-215 Macro 26
216-223 Macro 27
224-231 Macro 28
232-239 Macro 29
240-255 Sound Active
2 000-255 Red 1
3 000-255 Green 1
4 000-255 Blue 1
5 000-255 Red 2
6 000-255 Green 2
7 000-255 Blue 2
Page 9
12 Channel DMX chart:
LEDJ Light Brick DMX Charts
Channel Value Function
1 000-255 Red 1
2 000-255 Green 1
3 000-255 Blue 1
4 000-255 Red 2
5 000-255 Green 2
6 000-255 Blue 2
7 000-255 Red 3
8 000-255 Green 3
9 000-255 Blue 3
10 000-255 Red 4
11 000-255 Green 4
12 000-255 Blue 4
8
0-7 No function
8-15 Red
16-23 Green
24-31 Blue
32-39 Yellow
40-47 Pink
48-55 Turquoise
56-63 Cold white
64-71 Summer yellow/green
72-79 Light pink
80-87 Light blue
88-95 Golden yellow
96-103 Light Blue
104-111 Light Pink
112-118 Pink
119-127 Green/blue
128-135 Neutral white
136-195 Colour fade (slow to fast)
196-255 7 colour change (slow to fast)
9 000-255 Strobe
10 000-255 Dimmer 0-100% (will not control CH1 or CH8)
10 Channel DMX chart cont....:
Page 10
16 Channel DMX chart:
LEDJ Light Brick DMX Charts
Channel Value Function
1
0-7 No function
8-15 Macro 1
16-23 Macro 2
24-31 Macro 3
32-39 Macro 4
40-47 Macro 5
48-55 Macro 6
56-63 Macro 7
64-71 Macro 8
72-79 Macro 9
80-87 Macro 10
88-95 Macro 11
96-103 Macro 12
104-111 Macro 13
112-119 Macro 14
120-127 Macro 15
128-135 Macro 16
136-143 Macro 17
144-151 Macro 18
152-159 Macro 19
160-167 Macro 20
168-175 Macro 21
176-183 Macro 22
184-191 Macro 23
192-199 Macro 24
200-207 Macro 25
208-215 Macro 26
216-223 Macro 27
224-231 Macro 28
232-239 Macro 29
240-255 Sound Active
2 Red 1
3 Green 1
4 Blue 1
5 Red 2
6 Green 2
7 Blue 2
8 Red 3
9 Green 3
10 Blue 3
11 Red 4
12 Green 4
13 Blue 4
Page 11
16 Channel DMX chart cont....:
LEDJ Light Brick DMX Charts
Channel Value Function
14
0-7 No function
8-15 Red
16-23 Green
24-31 Blue
32-39 Yellow
40-47 Pink
48-55 Turquoise
56-63 Cold White
64-71 Summer yellow/green
72-79 Light pink
80-87 Light blue
88-95 Golden yellow
96-103 Light Blue
104-111 Light Pink
112-118 Pink
119-127 Green/blue
128-135 Neutral white
136-195 Colour fade (slow to fast)
196-255 7 colour change (slow to fast)
15 000-255 Strobe
16 000-255 Dimmer 0-100% (will not control CH1 or CH14)
Page 12
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.

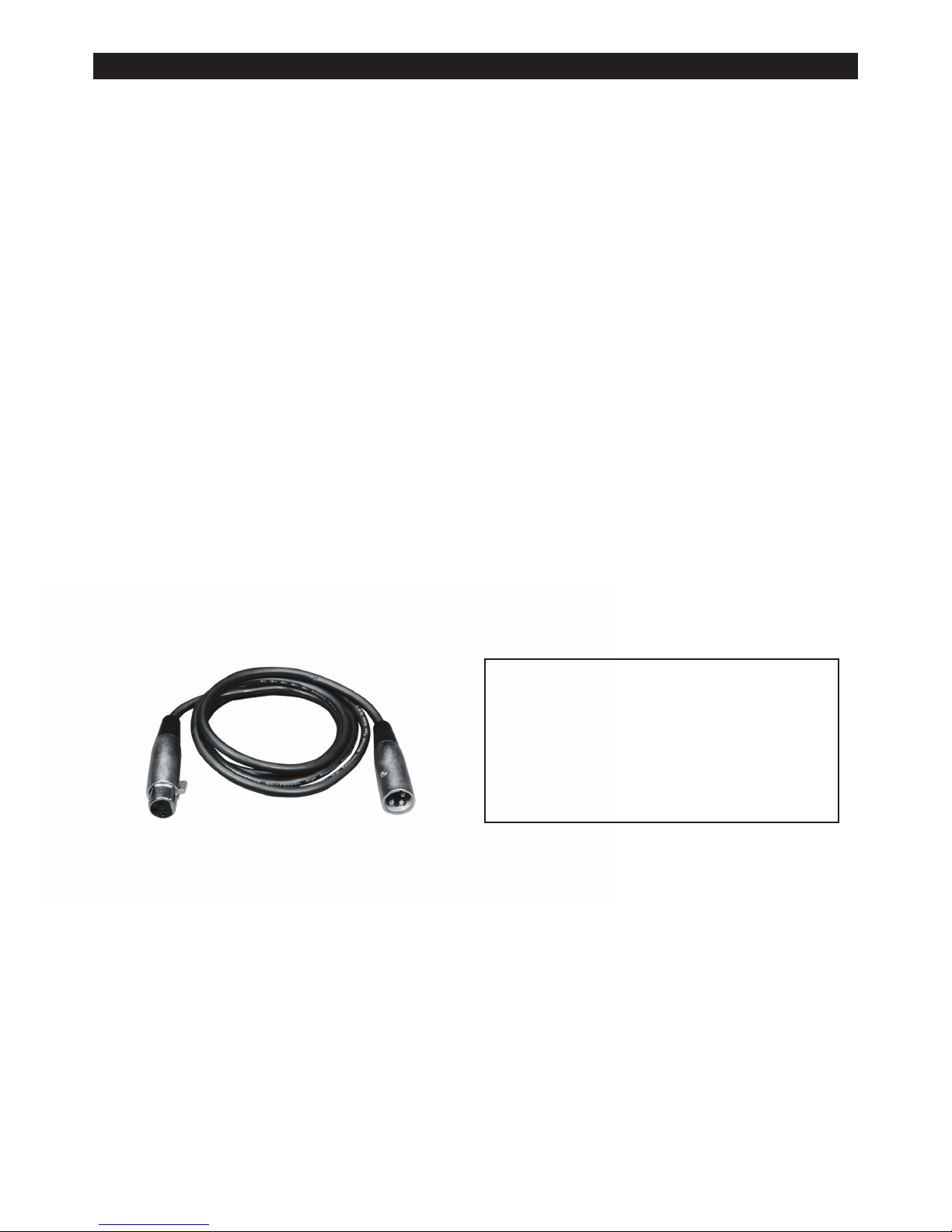

DATA Cable (DMX cable) requirements (for DMX operation):
• The LEDJ Light Brick can be controlled via DMX-512 protocol. The DMX address is set on the
back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
LEDJ Light Brick DMX Setup
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
Page 13
Notice:

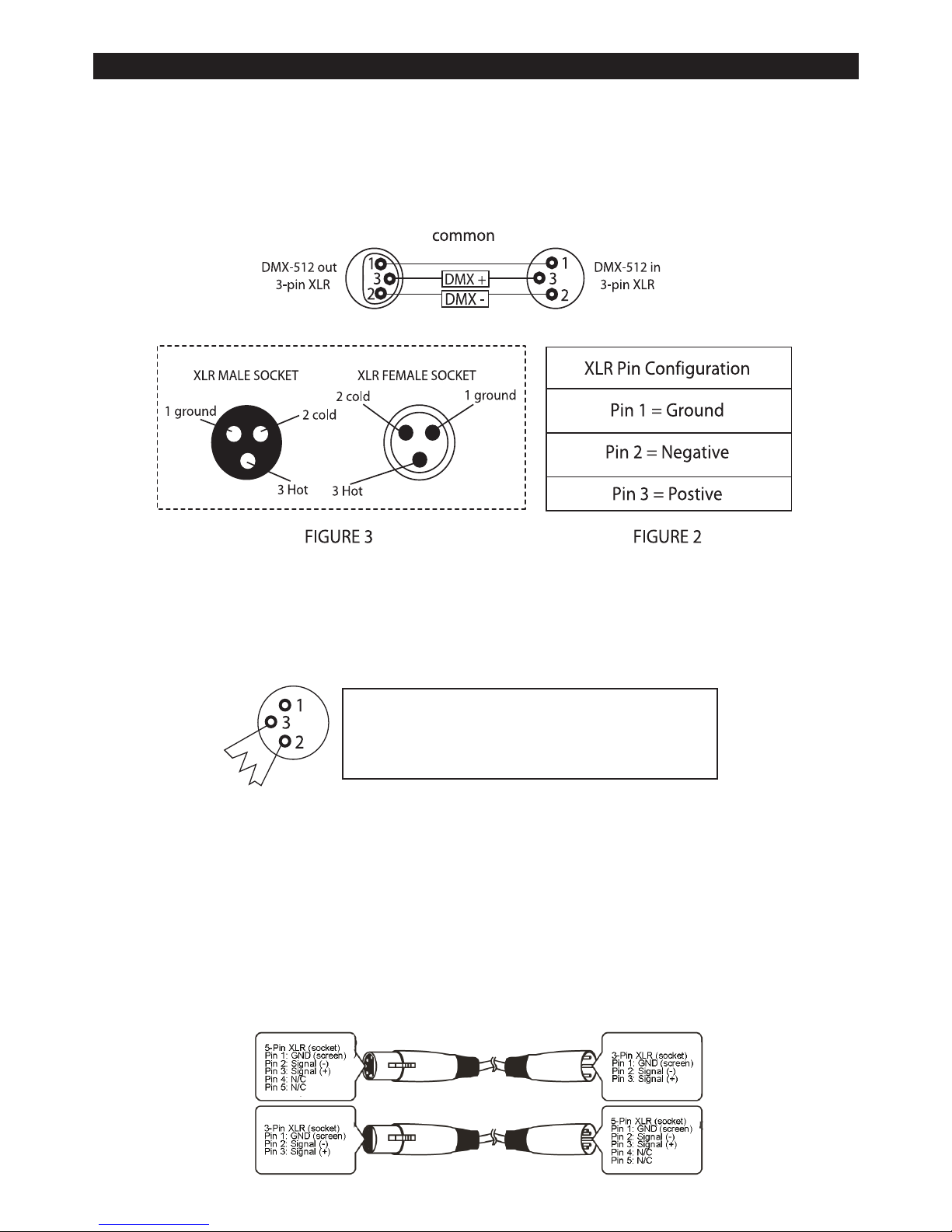

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90 3-pin, CABL89 5-pin) will decrease the
possibilities of erratic behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
LEDJ Light Brick DMX Setup
Page 14

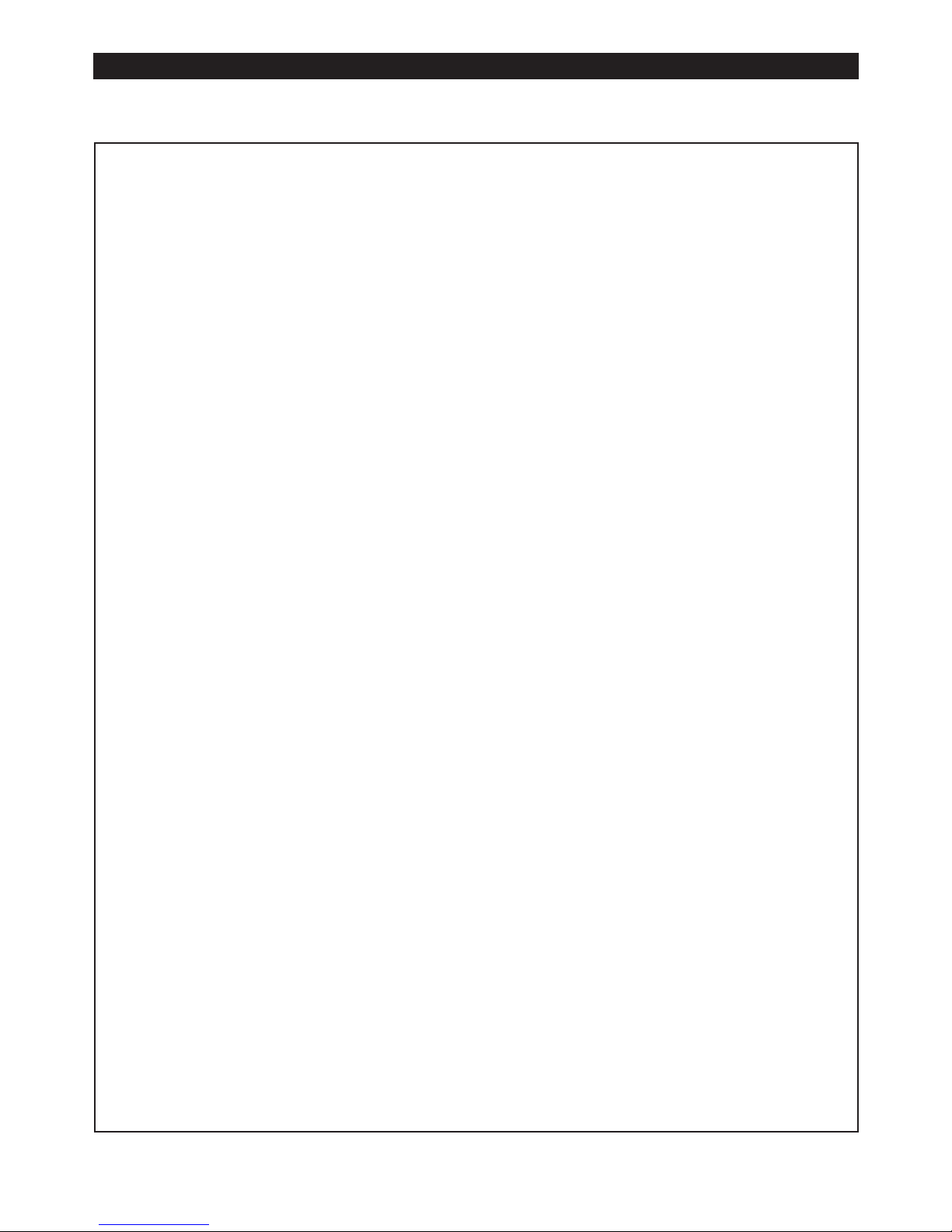

Notes:
LEDJ Light Brick Notes
Page 15
Notes:
LEDJ Light Brick Notes
Page 16
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
English
(Applicable in the European Union and other European countries with seperate
collection systems)
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
seperate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Loading...
