Page 1
w w w . p r o l i g h t . c o . u k

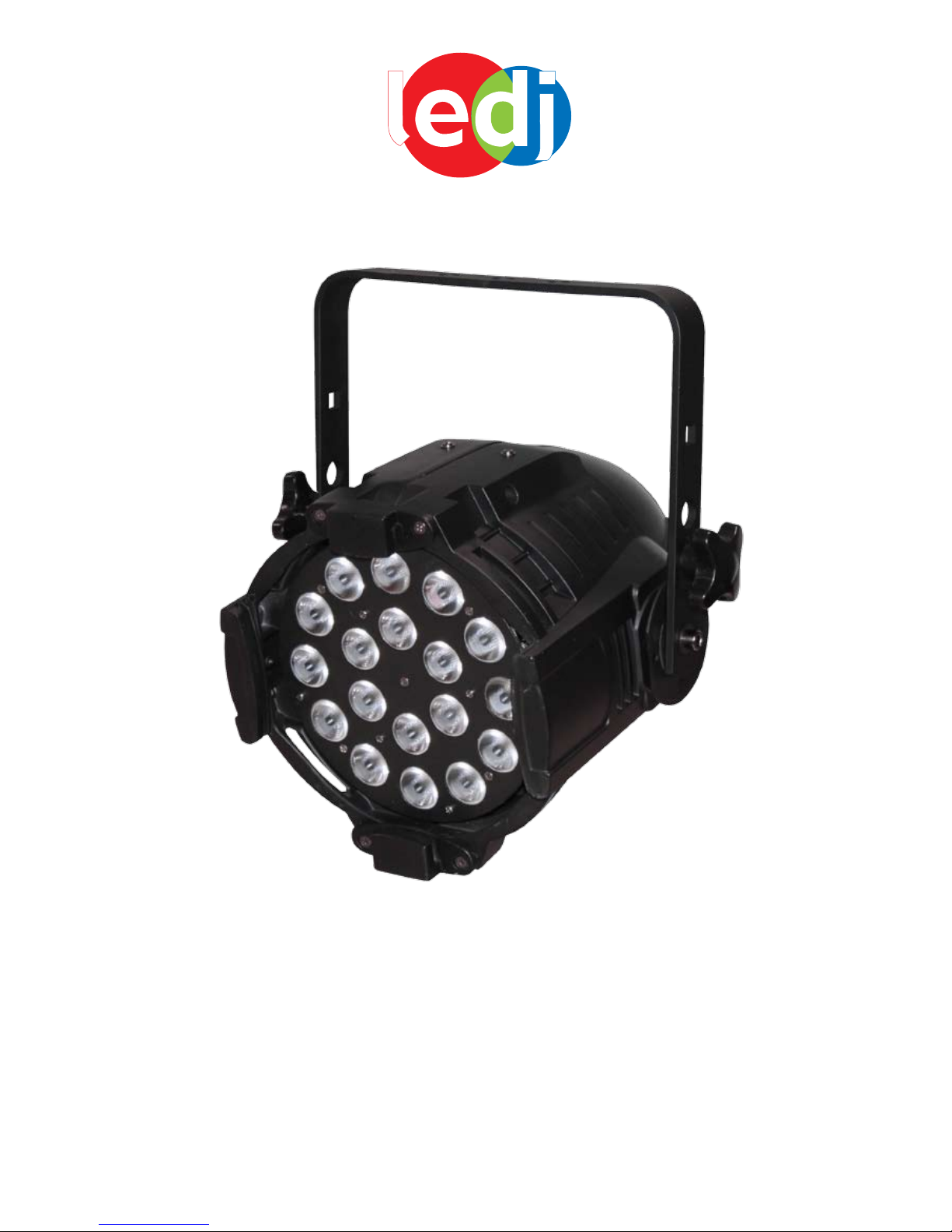

ALU QUAD PAR 64
Order code: LEDJ113
USER MANUAL
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modifications to this equipment are not
subject to warranty.
Alu Quad Par 64 Safety
Page 3
Alu Quad Par 64 Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modification to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to flammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualified engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature fluctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualified
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
You should find inside the LEDJ carton the following items:
1, Alu Quad Par 64 Unit 2, Instruction manual
Technical Specifications:
DMX channels: 3/5/7 or 8 selectable
Power supply: 240V
18 Ultra Bright 8W Quad colour LEDs (12 x RGBW, 6 x RGBA)
Power consumption: 163W
Beam angle: 25 degrees
Built-in microphone
3 push button LED display
Dimensions: 300 x 270 x 220mm
Weight: 4.3Kgs
Operating modes: 1, Static colour mode
2, Built-in programmes
3, Sound active
Overview:
Alu Quad Par 64 Technical specifications
4, DMX
5, Master/slave
1
2
3
4
5
6
7
8

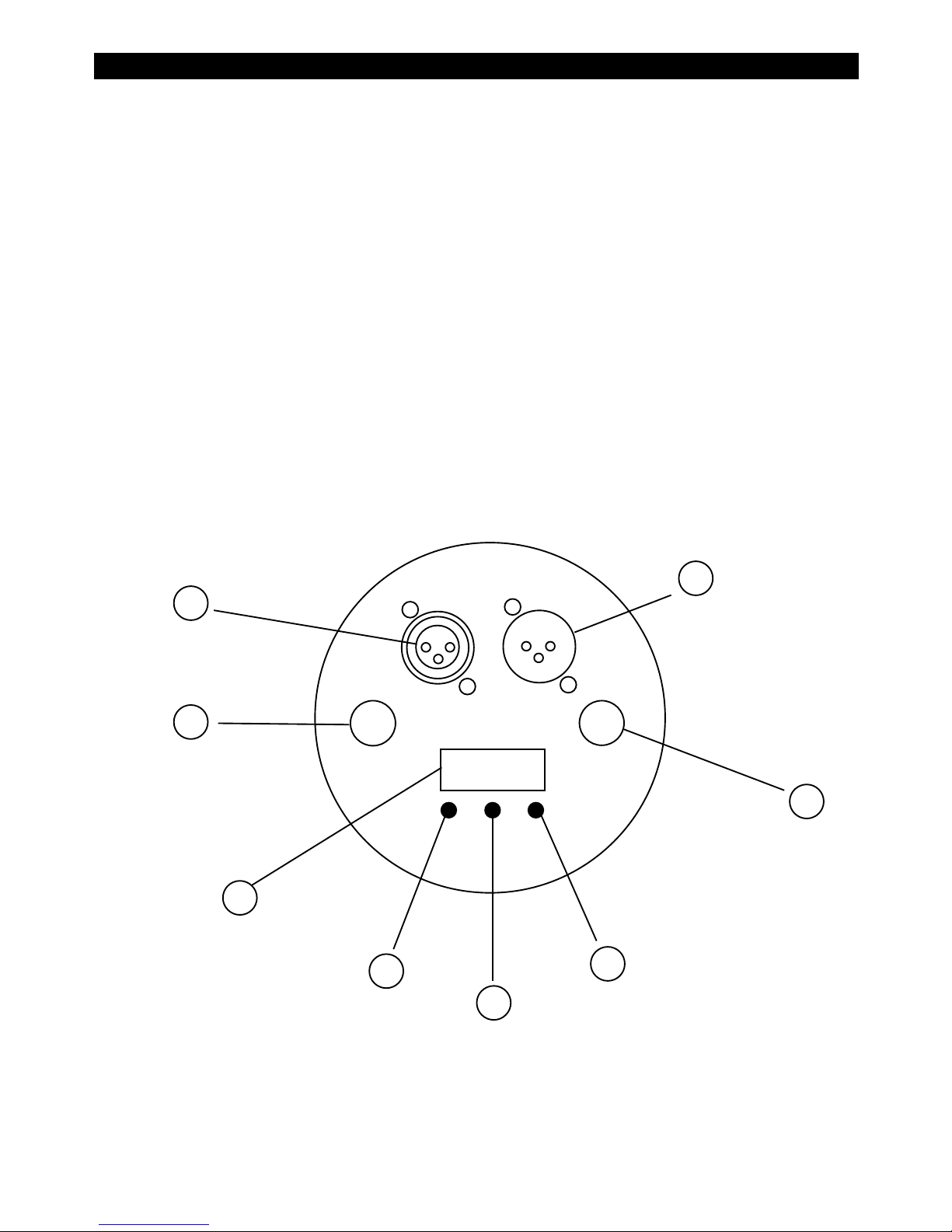

Identification:
1, DMX input
2, DMX output
3, LED display
4, Power cable
5, Fuse (2A/240V)
6, Mode button
7, Down button
8, Up button
Page 5
Setup
Operating Instructions
The Alu Quad Par 64 is a DMX-512 controllable, full RGBW/RGBA colour mixing Par Can made up
of high efficiency and super bright 8W LEDs. There are two four colour groups (RGBW and RGBA)
whose intensity can be controlled individually allowing the creation of an unlimited range of
colours.
The Alu Quad Par 64 will operate in Stand-alone, Master/Slave, Sound activated and
DMX-512 control modes.
Operations:
There are 5 different operation modes to choose from:
1) Static colour mode 2) Built-in programme mode 3) Sound active mode
4) DMX mode 5) Master/slave
1). Static colour mode
By pressing the “MODE” button under the LED display, the LED display will show “C01”, then you
can select one of the 30 static colours using the “UP” and “DOWN” buttons.
2). Built-in programme mode
Press the MODE button until the LED display shows “P01”, now use the “UP” and “Down”
buttons to select one of the 6 built-in programmes. For the built-in programme list, please see the
built-in programme chart over leaf.
3). Sound active
Press the MODE button until the LED display shows “S01”, the unit will then run in Sound Active
mode. Select the sensitivity level from 00 - 99 via the “UP” and “Down” buttons.
Please note: The higher the value the more sensitive it will be and is set to “S50” as default.
4). DMX mode
To access any of the 4 DMX channel modes, press the MODE button until the LED display
shows “3CH”, now use the “UP” and “Down” buttons to select either the 3, 5, 7 or 8 channel
DMX modes. The DMX values and functions are as follows over leaf.
To set the units address, press the MODE button to show “001” on the LED display. Now use the
“UP” and “Down” buttons to set the desired address from “001” to “512”.
5) Master/slave mode
To set the unit into slave mode, set the slave units address to “001”. The slave unit(s) will now
follow in sequence with the master unit.
To set the unit as a master simply use any of the above modes.
Alu Quad Par 64 Setup
Page 6
Alu Quad Par 64 DMX Charts
DMX Charts
3 channel DMX chart
5 channel DMX chart
7 channel DMX chart
CHANNEL VALUE
FUNCTION
1
2
3
0-7
8-255
Blackout
30 preset static colours
0-255
Master dimmer 0-100%
1-5
6-10
11-255
Sound mode
On
Strobe (slow to fast)
CHANNEL VALUE
FUNCTION
0-255 Red 0-100%
Green 0-100%
Blue 0-100%
Amber 0-100%
White 0-100%
1
2
3
4
5
0-255
0-255
0-255
0-255
CHANNEL VALUE
FUNCTION
0-255 Red 0-100%
Green 0-100%
Blue 0-100%
Amber 0-100%
White 0-100%
1
2
3
4
5
0-255
0-255
0-255
0-255
Master dimmer 0-100%
6
0-255
7
0
1-5
6-10
11-255
On
Sound mode (7 colours)
On
Strobe (slow to fast)
Page 7
Alu Quad Par 64 DMX Charts
DMX Charts
8 channel DMX chart
Built-in programme chart
CHANNEL VALUE
FUNCTION
0-255 Red 0-100%
Green 0-100%
Blue 0-100%
Amber 0-100%
Red 0-100%
1
2
3
4
5
0-255
0-255
0-255
0-255
Green 0-100%
6
0-255
7
0-255
0-255
Blue 0-100%
White 0-100%
8
MODE OPERATION
5 colour change, every 3 seconds
30 colour change, every 3 seconds
5 colour fade, in every 3 seconds
30 colour fade, every 3 seconds
five colour change via sound
30 colour change via sound
P01
P02
P03
P04
P05
P06
Page 8
Alu Quad Par 64 DMX setup
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the
controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all fixtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX fixtures try to use the
shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Alu Quad Par 64 can be controlled via DMX-512 protocol. The DMX address is set on the
back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (figure 1).

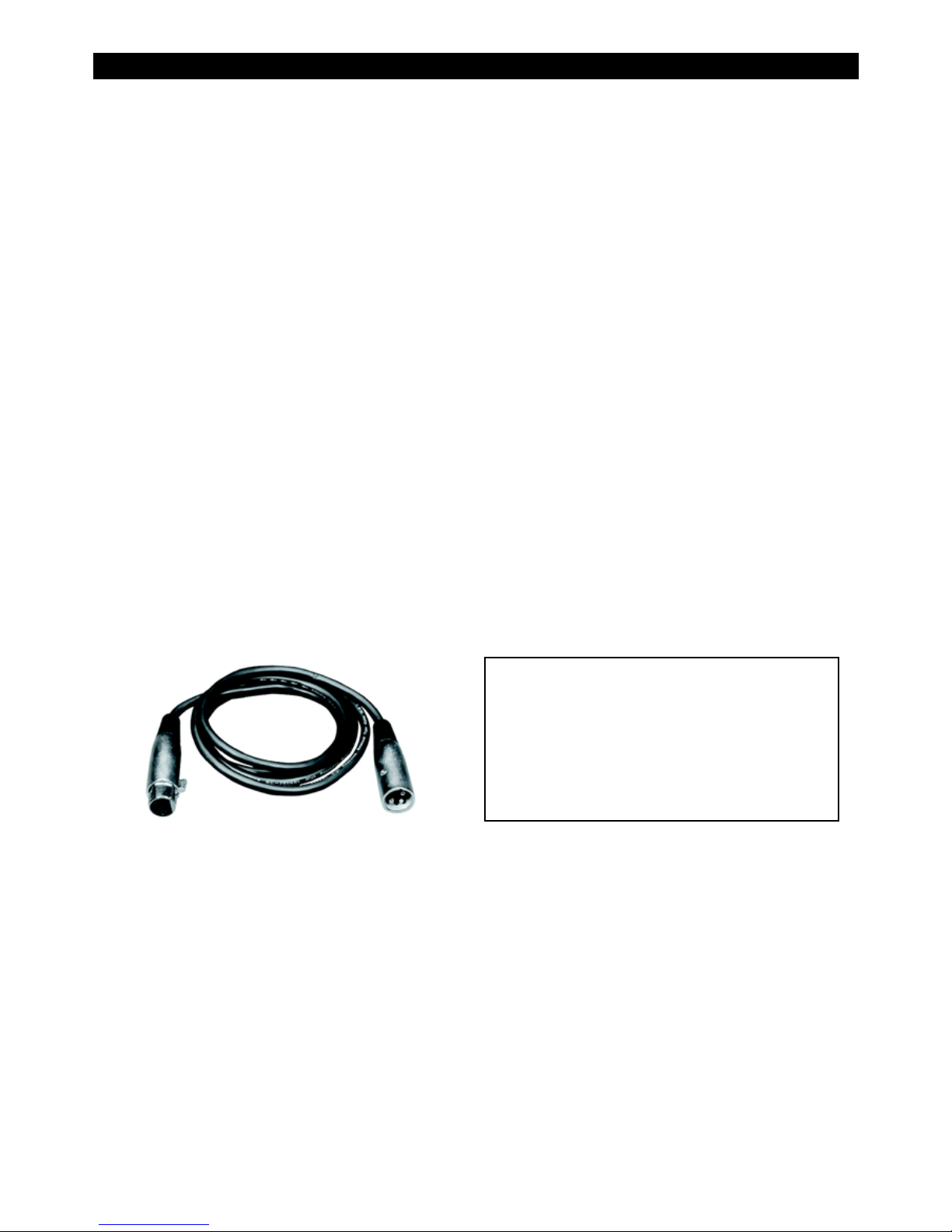

Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
Page 9
Alu Quad Par 64 DMX setup
Notice:

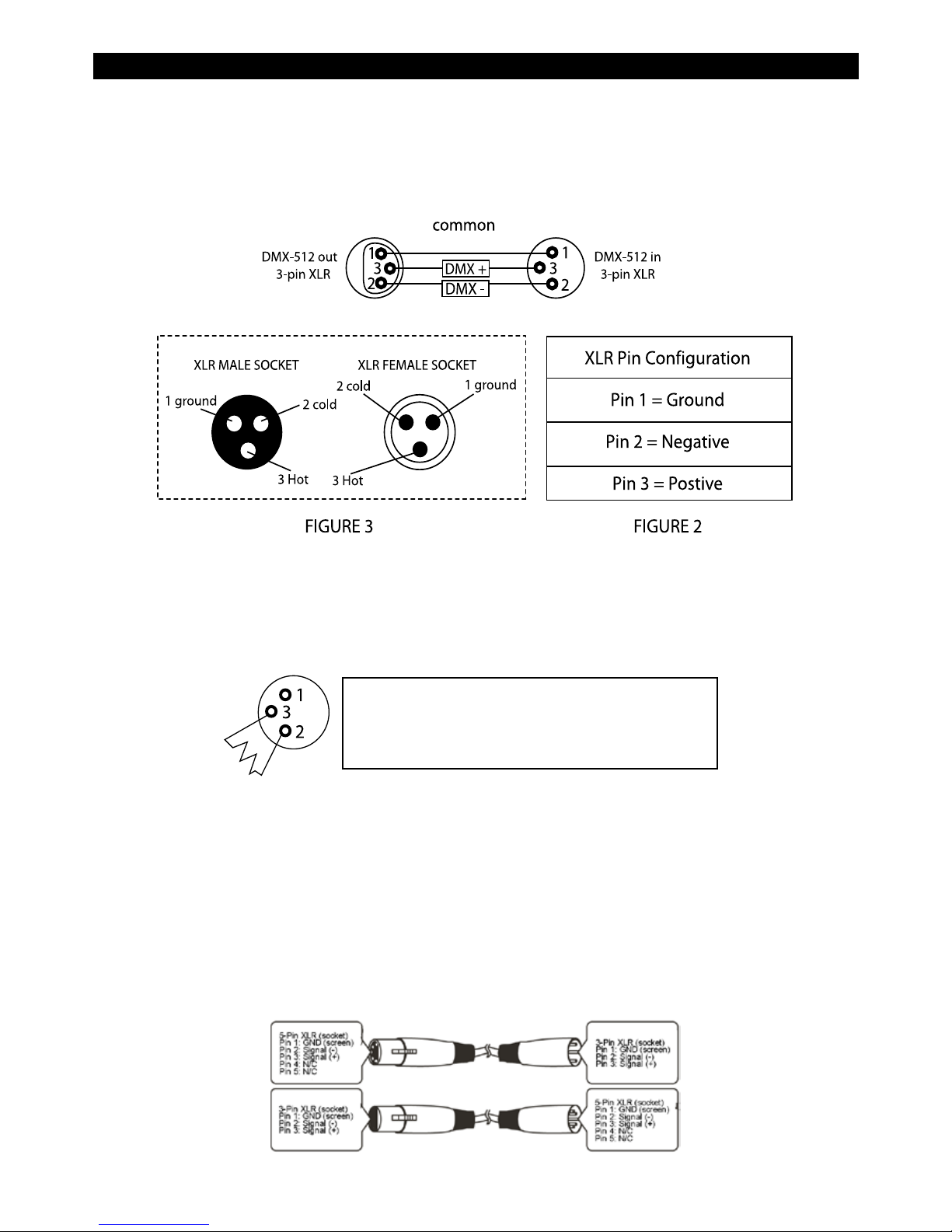

• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Page 10
Technical Specifications
Weight & Dimensions
• Length…..............................................................................................................................300mm
• Width....................................................................................................................................270mm
• Height………....................................................................………...…………………………..220mm
• Weight……………………………………….............................................................................4.3kgs
Power
• AC input……………………………………..................................................AC 120V/240V, 50/60Hz
Fuse
• Main……………………………………………….....................................20mm Glass 2A Fast Blow
Control & Programming
• Data input…………………………………...........................……...Locking 3-pin XLR male socket
• Data output…………………………………….......................….Locking 3-pin XLR female socket
• Protocols…………………………………………......................................................DMX-512 USITT
• DMX channels…………………………………..............................................3/5/7 and 8 selectable
Alu Quad Par 64 Specifications
