Ledj STAGE COLOUR 24 TRI, LEDJ108 User Manual
www.prolight.co.uk
(Order code: LEDJ108)
USER MANUAL
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
STAGE COLOR 24 TRI SAFETY
1.
STAGE COLOR 24 TRI SAFETY
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
2.
Setup
Operating Instructions
The Stage Color 24 Tri is a DMX-512 controllable unit made up of high efciency and Ultra Bright
Tri-colour LEDs and will operate in stand alone, master/slave, sound activated or DMX control
modes.
MB-2 Footswitch operation (optional)
To operate the Stage Colour 24 Tri via the (optional) LEDJ MB-2 foot controller (LEDJ124),
ensure that the Stage Colour 24 Tri has been set into “SLAVE MODE”, Now connect the foot con-
troller into the 5-pin footswitch socket of the rear of the unit.
HBR-1D operation (optional)
To operate the Stage Colour 24 Tri via the (optional) LEDJ HBR-1D controller (LEDJ123),
ensure that the Stage Colour 24 Tri has been set into “SLAVE MODE”, Now connect the controller

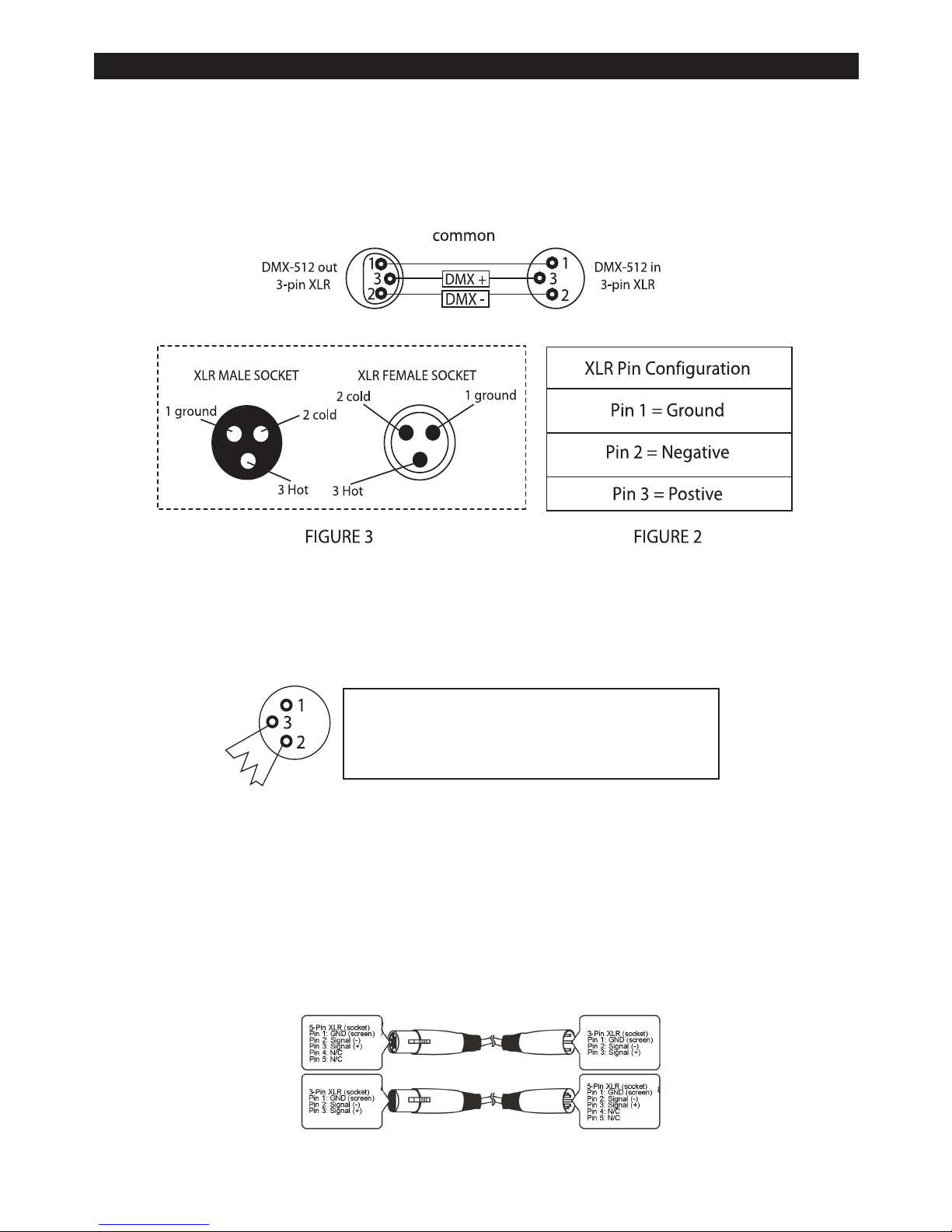

into the 3-pin XLR socket of the rear of the unit.
When using both of the HBR-1D and MB-2 controllers together please note that the MB-2
footswitch controller has to be plugged into HBR-1D controller not the xture.
Note: Please follow the user manuals supplied with the optional MB-2 or HBR-1D controllers
for details of various operation modes.
STAGE COLOR 24 TRI INTRODUCTION
Introduction
Features

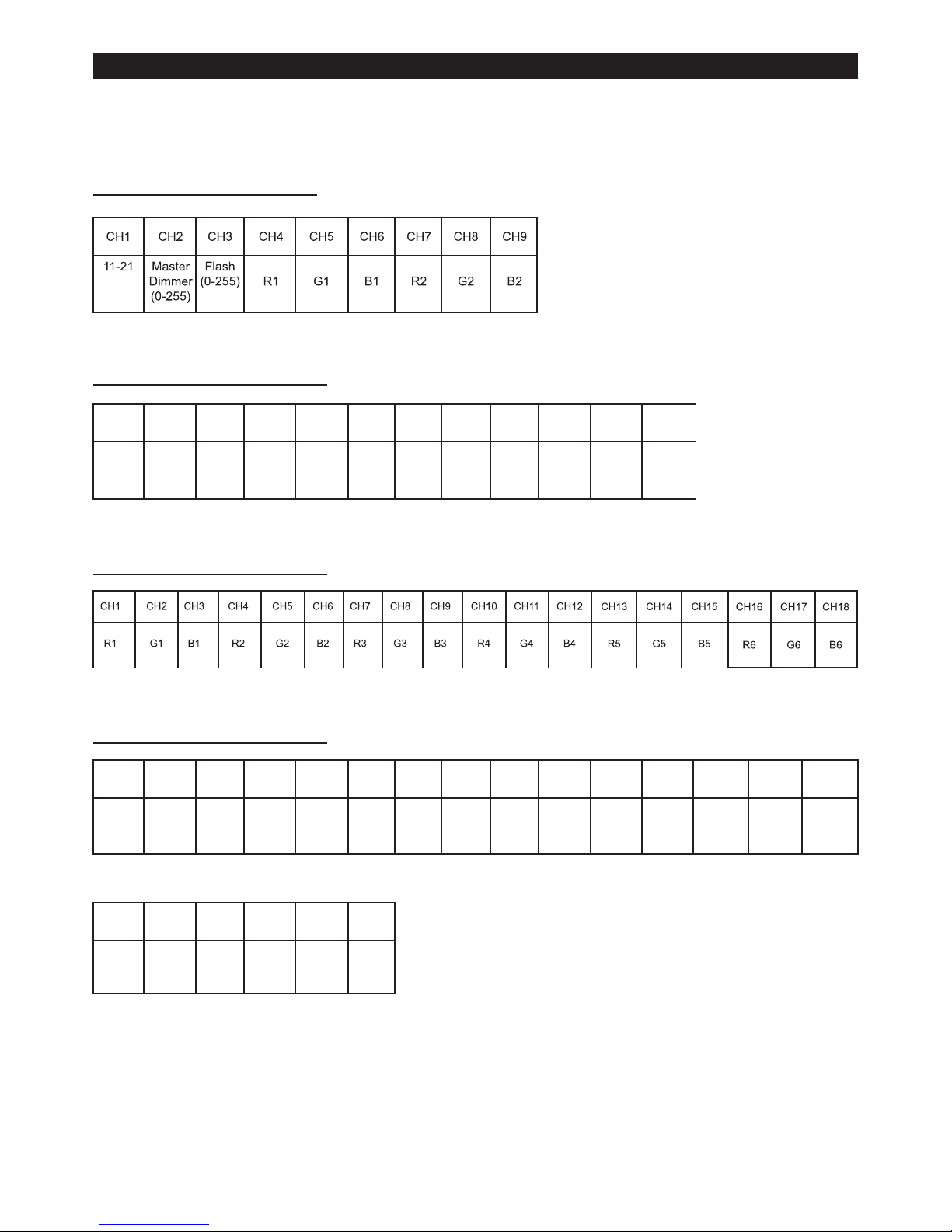

• DMX channels: 21/18/12/9/6 selectable
• 24 x 3W Tri-colour LEDs
• Sound control via internal microphone
• 14 built-in programmes
• Master/Slave functions
• Auto run mode
• Consumption: 100W
• Beam 25 degrees
Overview
3.
POWER SUPPLY
ENTERMODE
LCD DISPLAY
UP DOWN
