Page 1
www.prolight.co.uk
Order code: LEDJ06 - Black
Order code: LEDJ07 - Polished
USER MANUAL
Page 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modifications to this equipment are not
subject to warranty.
Eco LED 56 Cans SAFETY
Page 3
Eco LED 56 Cans SAFETY
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modification to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to flammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualified engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature fluctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualified
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Page 4
Eco LED 56 Cans INTRODUCTION
Introduction
CONTROL FEATURES
• 3/6-channel DMX
• Blackout/Dimmer/Strobe
• Individual control of Red, Green and Blue LEDs

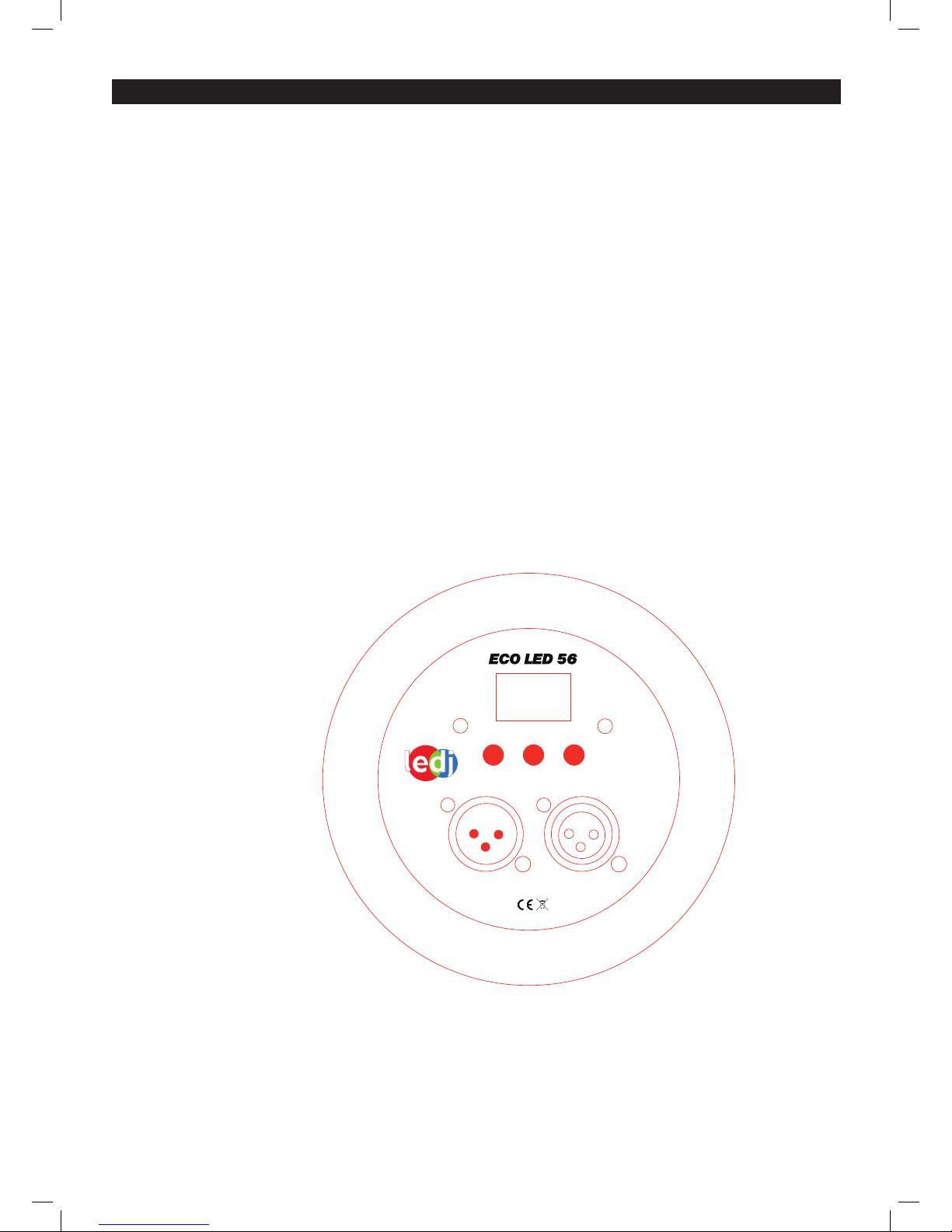

Product Overview
Setup
Operating Instructions
The Eco LED 56 Can is a DMX-512 controllable, full RGB colour mixing spot made up of high
efficiency and super bright 5mm LED’s. There are three colour groups (red, green and blue) whose
intensity can be controlled individually allowing the creation of an unlimited range of colours.
The Stratos will operate in Stand-alone, Master/Slave, Sound activated and via DMX-512 control.
Features
• 151 LEDs: - Red (51), Green (49), and Blue (51)
• Ultra Bright 5mm LEDs
• Sound control via internal microphone
• Colour change speed and strobe effect adjustable via control panel
• Multi-colour changes
• RGB Colour mixing
• Master/Slave functions
• Sound activated
• Rugged compact housing
• Consumption: 30W
• Beam angle: 25 degrees
• Long life LEDs
DMX IN
MODE
www.prolight.co.uk
DOWN UP
DMX OUT
Page 5
Eco LED 56 Cans Programmes

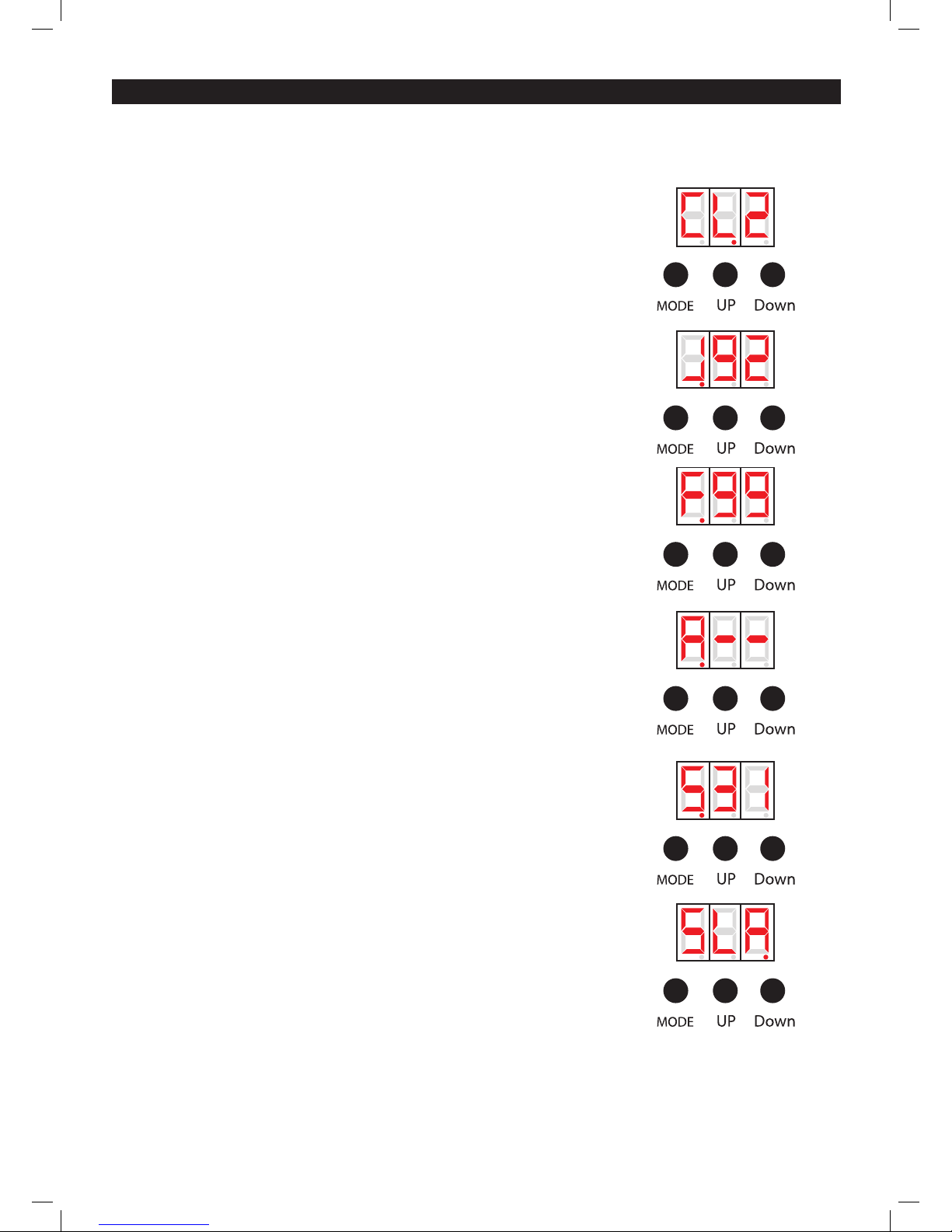

Programme Selection:
Static Colour Mode:
Press the mode button and use the up and down buttons to select
one of the 7 desired colours.
1, Red 2, Green 3, Blue 4, Yellow 5, Cyan 6, Purple 7 White
Colour Changing Mode
Press the mode button to select the Colour Change programme.
The unit will then run in Colour change mode. Press the up and
down buttons to select the colour change speed from 0-99.
Colour Fading Mode:
Press the mode button to select Fade mode. The unit will then run
in colour fade mode. Press the up and down buttons to select the
fade speed from 0-99.
Auto Running Mode:
Press the mode button to select Auto mode. The unit will then run
automatically through all of the built-in programmes. The run
speed can be pre-set via the speed of the colour change and
colour fade modes.
Sound Active Mode:
Press the mode button to select sound mode. The unit will then run
via the sound. Press the up and down buttons to adjust the sound
sensitivity levels.
Master/Slave Mode:
Link the units together and press the mode button of the slave
units to SLA mode. The slave units will follow in sequence with the
master unit.
Page 6
Eco LED 56 Cans CONTROL OPTIONS

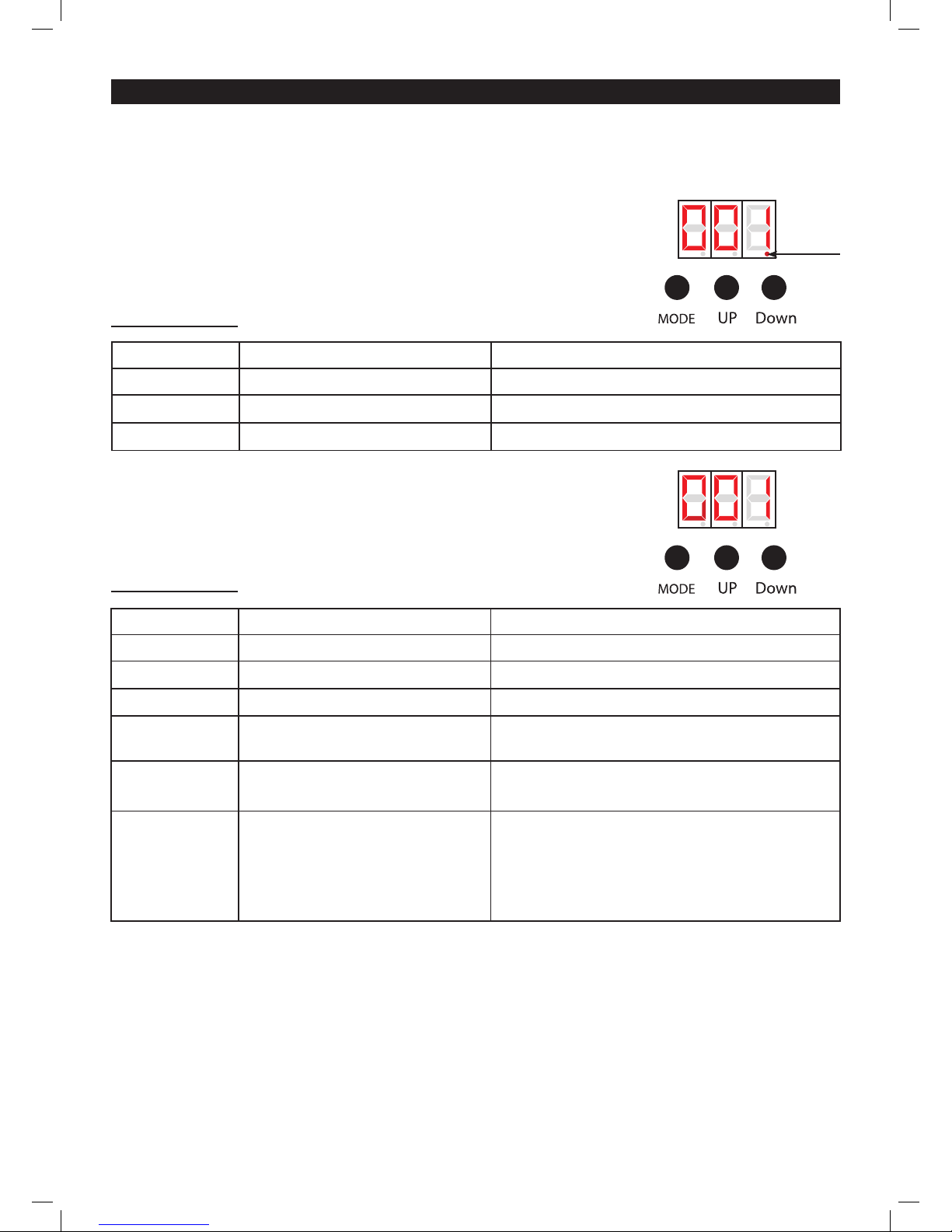

DMX Control Mode:
The Eco LED 56 can has two DMX modes to choose from, 3 channel or 6 Channel.
To access the 3 Channel mode, press the mode button to show
a red dot illuminated under the first digit of the DMX address.
The unit is now ready for use in 3 channel mode
To access the 6 Channel mode, press the mode button to show
NO red dot under the first digit of the DMX address.
The unit is now ready for use in 6 channel mode
To change from 3 channel to 6 channel mode, press ONLY the mode button
repeatedly until you return to the DMX control mode.
Daisy Chain Connection
1) Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin
connector of the first fixture
2) Connect the end of the cable coming from the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector.
Proceed to connect from the output as stated above to the input of the following fixture
and so on.
CHANNEL
CH1
CH2
CH3
CH4
CH5
CH6
VALUE
000-255
000-255
000-255
0-7
8-255
0-16
17-255
0-31
32-95
96-159
160-233
244-255
FUNCTION
RED (0-100%)
GREEN (0-100%)
BLUE (0-100%)
No function
Colour macro mixing
No function
Strobe/Speed Adjust/Sound Sensitivity Adjust
No function
Colour mixing
RGB colour change
7 colour change
Sound activation
6CH DMX Mode:
CHANNEL
CH1
CH2
CH3
VALUE
000-255
000-255
000-255
FUNCTION
RED (0-100%)
GREEN (0-100%)
BLUE (0-100%)
3CH DMX Mode:
Red Dot
Page 7
Eco LED 56 Cans DMX SET UP
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the
controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all fixtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX fixtures try to use the
shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Eco LED 56 Can can be controlled via DMX-512 protocol. The DMX address is set on the
back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (figure 1).

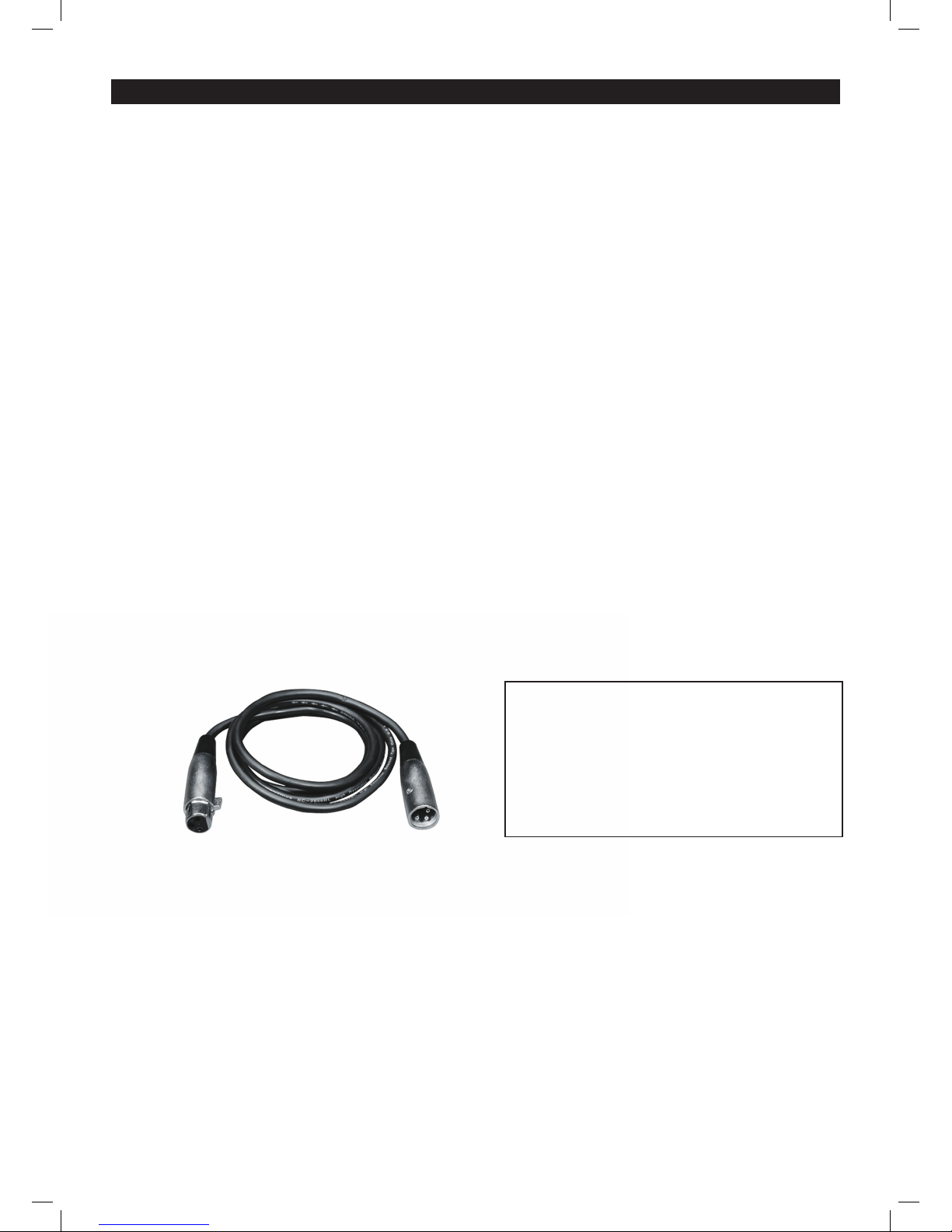

Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
Page 8
Notice:

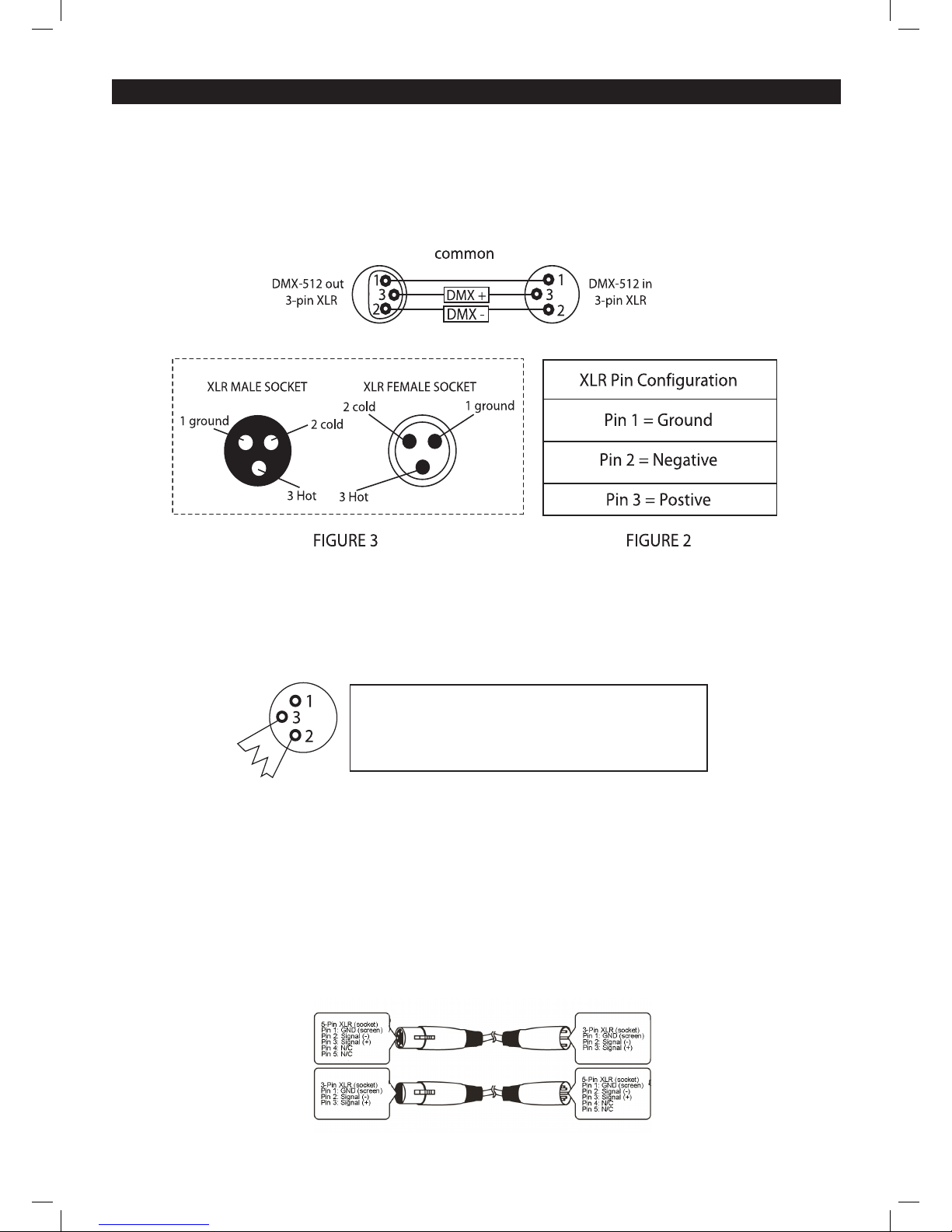

• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Eco LED 56 Cans DMX SET UP
Page 9
Eco LED 56 Cans DMX VALUES
Technical Specifications
Weight & Dimensions
• Length…..................................................................................
• Width.......................................................................................
• Height…………………………………………........................…..
• Weight………………………………………................................
Power
• AC input……………………………………................................
Fuse
• Main………………………………………………........................
Control & Programming
• Data input………………………………………..........................
• Data output………………………………………........................
• Protocols .…………………………………….…........................
• DMX channels…………………………………..........................
169mm
203mm
213mm
1.4kgs
240V/50hz
20mm Glass 0.5A Fast Blow
Locking 3-pin XLR male socket
Locking 3-pin XLR female socket
DMX-512 USITT
3/6 selectable
