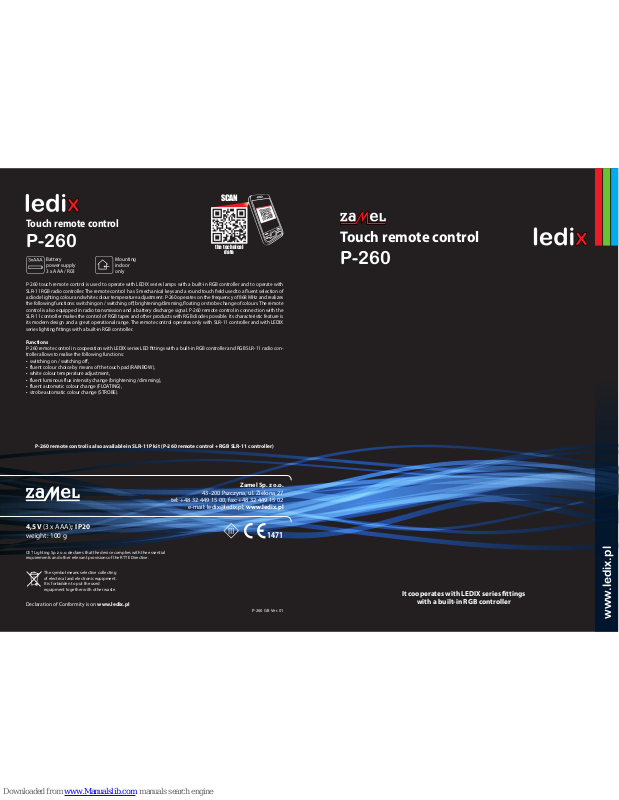

Page 1
1471
www.ledix.pl
Touch remote control
P-260
The symbol means selective collecting
of electrical and electronic equipment.
It is forbidden to put the used
equipment together with other waste.
P-260 touch remote control is used to operate with LEDIX series lamps with a built-in RGB controller and to operate with
SLR-11 RGB radio controller. The remote control has 5 mechanical keys and a round touch eld used to a uent selection of
a diode lighting colour and white colour temperature adjustment. P-260 operates on the frequency of 868 MHz and realizes
the following functions: switching on / switching o, brightening/dimming, oating or strobe change of colours. The remote
control is also equipped in radio transmission and a battery discharge signal. P-260 remote control in connection with the
SLR-11 controller makes the control of RGB tapes and other products with RGB diodes possible. Its characteristic feature is
its modern design and a great operational range. The remote control operates only with SLR-11 controller and with LEDIX
series lighting ttings with a built-in RGB controller.
Functions
P-260 remote control in cooperation with LEDIX series LED ttings with a built-in RGB controller and RGB SLR-11 radio con
-
troller allows to realise the following functions:
• switching on / switching off,
• fluent colour choice by means of the touch pad (RAINBOW),
• white colour temperature adjustment,
• fluent luminous flux intensity change (brightening / dimming),
• fluent automatic colour change (FLOATING),
• strobe automatic colour change (STROBE).
P-260 GB Ver. 01
Zamel Sp. z o.o.
43-200 Pszczyna, ul. Zielona 27
tel: +48 32 449 15 00, fax: +48 32 449 15 02
e-mail: [email protected], www.ledix.pl
SCAN
the technical
data
4,5 V (3 x AAA); IP20
weight: 100 g
Declaration of Conformity is on www.ledix.pl
Battery
power supply
3 x AAA / R03
Mounting
indoor
only
P-260 remote control is also available in SLR-11P kit (P-260 remote control + RGB SLR-11 controller)
It cooperates with LEDIX series ttings
with a built-in RGB controller
Touch remote control
P-260
CET Lighting Sp. z o.o. declares that the device complies with the essential
requirements and other relevant provisions of the RTTE Directive.
Page 2
• Before using the P-260 remote control it is necessary to carry out the procedure of adding a transmitter to the
receiver (a tting with a built-in RGB controller or SLR-11 controller). Up to 32 P-260 remote controls can be
added to one receiver.
• The procedure for adding to P-260 remote control is described in the manual instructions of lighting ttings
with a built-in RGB receiver and of SLR-11 controller.
• The given range concerns open area - an ideal condition without any natural or articial obstacles. If there are
some obstacles between a transmitter and a receiver, it is advisable to decrease the range according to: bricks:
from 10 to 40%, wood and plaster: from 5 to 20%, reinforced concrete: from 40 to 80%, metal: from 90 to 100%,
glass: from 10 to 20%. Over- and underground medium and high electrical power lines, radio and television
transmitters, GSM transmitters set close to a device system have also a negative inuence on the range.
P-260 touch remote control is used to operate with LEDIX series lamps with a built-in RGB controller and to operate with
SLR-11 RGB radio controller. The remote control has 5 mechanical keys and a round touch eld used to a uent selection of
a diode lighting colour and white colour temperature adjustment. P-260 operates on the frequency of 868 MHz and realizes
the following functions: switching on / switching o, brightening/dimming, oating or strobe change of colours. The remote
control is also equipped in radio transmission and a battery discharge signal. P-260 remote control in connection with the
SLR-11 controller makes the control of RGB tapes and other products with RGB diodes possible. Its characteristic feature is
its modern design and a great operational range. The remote control operates only with SLR-11 controller and with LEDIX
series lighting ttings with a built-in RGB controller. P-260 remote control in cooperation with LEDIX series LED ttings with
a built-in RGB controller and RGB SLR-11 radio controller allows to realise the following functions:
• switching on / switching off,
• fluent colour choice by means of the touch pad (RAINBOW),
• white colour temperature adjustment,
• fluent luminous flux intensity change (brightening / dimming),
• fluent automatic colour change (FLOATING),
• strobe automatic colour change (STROBE).
TECHNICAL DATA
CAUTIONS
DESCRIPTION APPEARANCE
Power supply voltage: 4,5 V DC
Battery type: 3x AAA
Number of push-buttons: 5 + a touch pad
Transmission: f = 868,32 MHz
Transmission way: Unidirectional without conrmation
Coding: Yes - addressing transmission
Operation range: Up to 230 m in the open area
Programmes:
Automatic fluent colour change (FLOATING),
Automatic strobe colour change (STROBE)
Functions:
Switch on/switch off, Brightening/dimming,
Choose colour from the table (RAINBOW), White colour temperature
STEPS (FLOATING and STROBE): 10 (to 50 min)
Ambient temperature range: -10 ÷ +55
o
C
Casing protection degree: IP20
Protection level: III
Dimensions: 113 x 55 x 21 mm
Weight: 100 g
Reference standard: PN-ETSI EN 300 220-1, PN-ETSI EN 300 220-2, ETSI EN 301 489-1,3
Brightening
RAINBOW / FLOATING mode
Dimming
Touch pad
White colour temperature / STROBE mode
ON/OFF
