LEDGlow Advanced 3 Million Limousine LED Underbody Kit User Manual

Limo Underbody Kit Includes:

 (4) 48 Inch Tubes  (2) 36 Inch Tubes  (1) Control Box  (1) USB Hub

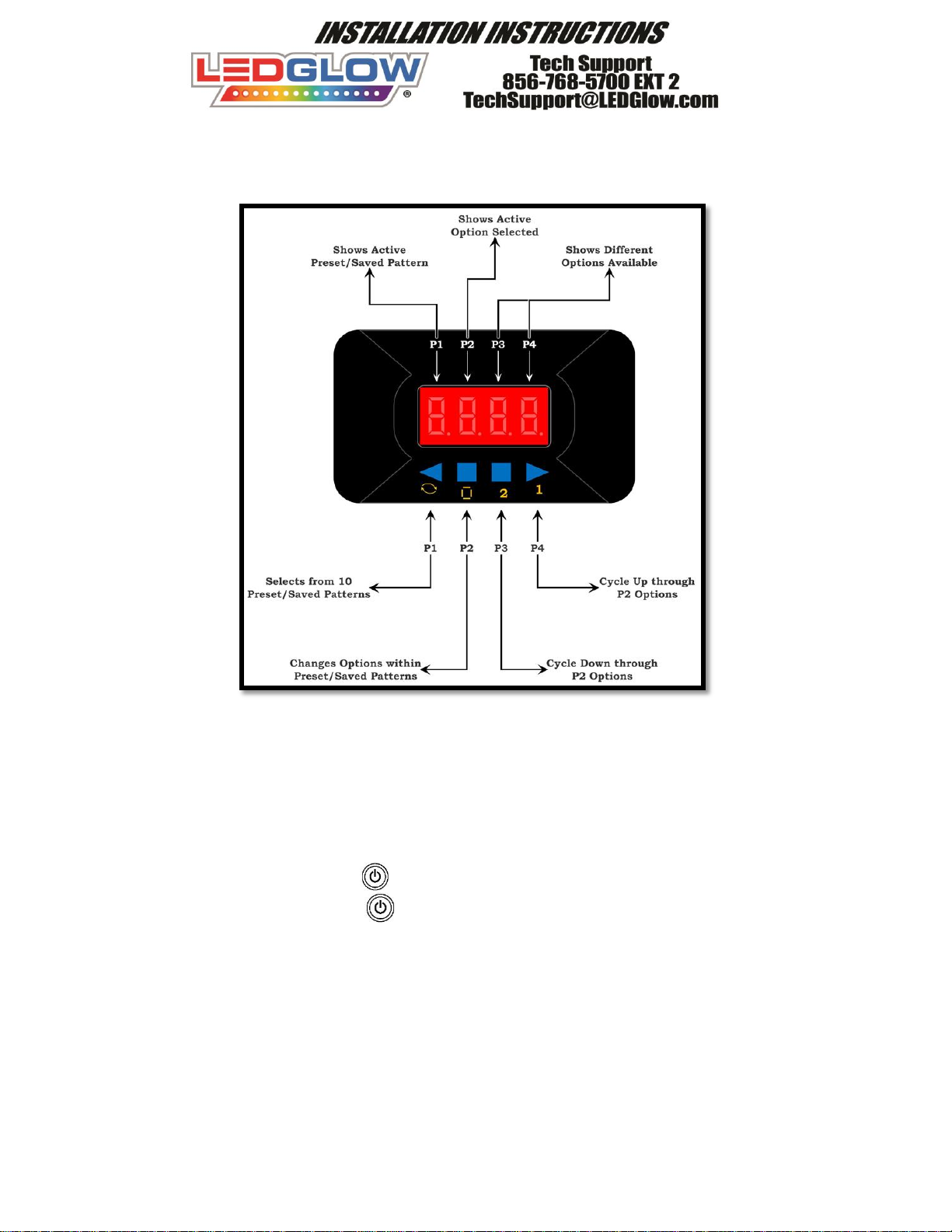

 (1) Wireless Remote  (14) Mounting Brackets  (25) Zip Ties  (30) Large Screws

Advanced 3 Million Wireless USB Limousine Underbody Kit

Warning: Please check your state and local laws before installing this LED underbody kit. Every state has different policies and procedures in

place regarding aftermarket vehicle accessories. LEDGlow is not responsible for any fines that you may receive while using this underbody kit.

This kit is for off road use only.

Warning: The installation of this kit is recommended to be installed by a licensed professional. The improper installation of this kit will void

all warranties.

The control box that is used to power the underbody tubes must be installed in a dry location! Having this part exposed to water or the elements will cause the kit’s controller to fail. Any water damage or corrosion to this part will VOID all warranties.

PLEASE READ THE FOLLOWING INSTRUCTIONS THOROUGHLY BEFORE INSTALLING AND OPERATING THIS LED UNDERBODY KIT.

Underbody Kit Installation:

1. Arrange the tubes out on the ground and test the kit to ensure proper functionality before installing.

2. Before mounting the underbody tubes, please refer to the schematic below. The underbody tubes on this kit must be

installed in a specific way. This ensures all lighting patterns are properly synchronized and displayed correctly.

Note: The tubes can be plugged into any of the ports on the USB hub and will not affect the patterns.

3. Optional: Raise and support the vehicle.

4. First, mount the front 36 inch tube with the red sticker to your vehicle using the included mounting brackets and zip ties. Make

sure the tube’s USB connector is facing the passenger side and is at least 8 inches away from any direct heat source and/or away from all moving parts. Use the included zip ties to secure the underbody tube to the mounting bracket. IMPORTANT: DO NOT MOUNT THE TUBE TO THE RADIATOR.

5. Next, mount the two driver’s side 48 inch tubes with the green stickers using the included mounting brackets and zip ties. Make

sure the USB connectors are facing the rear of the vehicle. A good mounting location for these tubes are to either the pinch well or side skirt. Be extremely aware of the location of brake lines and fuel lines and do not mount the underbody tube too close to the exhaust. Leave at least 8 inches between the exhaust and the underbody tube. Keep the tube and the power wire away from any moving parts. Use the included zip ties to secure the underbody tube to the mounting bracket.

6. Next, mount the rear 36 inch tube with the white sticker to your vehicle using the included mounting brackets and zip ties. Make

sure the tube’s USB connector is facing the driver side of the vehicle. Be extremely aware of the location of brake lines and fuel lines, and do not mount the underbody tube too close to the exhaust. Leave at least 8 inches between the exhaust and the underbody tube. Keep the tube and the power wire away from any moving parts. Use the included zip ties to secure the

underbody tube to the mounting bracket.

7. Next, mount the two driver’s side 48 inch tubes with the blue stickers using the included mounting brackets and zip ties. Make

8. Find a safe, secure and dry place to mount the USB junction box. We recommend mounting the junction box inside of the

car, if possible. If this is not possible, we suggest mounting the USB junction box under the hood in the driest location available. Optional: For extra protection, apply a thin layer of silicone along the seams of the junction box to seal it.

9. Connect the red power wire to a 12 volt source. If you need to extend the power wires, be sure to only use 16 or 18 gauge

automotive grade wiring. If you are running the power wire to the battery, it must go through the firewall by using an existing grommet or by drilling a hole and adding a new grommet, which is available at any auto parts store. Be sure to install the fuse within 6 inches of the power source. If you connect the power wire to a switched 12 volt source, the underbody kit may not remember the previous color and pattern it was last on before turning off the vehicle. If you connect the power wire to a constant 12 volt source, the underbody kit will remember the previous color and pattern it was on prior to powering the vehicle down. You can also power this kit directly from your vehicle’s fuse box by using LEDGlow’s Expandable Circuit that is available at

www.LEDGlow.com

10. Connect the black wire to a good unpainted metal source. A couple of good ground sources are under the dash at any main

bracket or grounding block, the negative terminal on your battery or any engine ground.

11. Beginning with the rear tube, run the wire to the location of the USB junction box. Make sure to secure the wires tightly when

going around the suspension and/or exhaust. Leave at least 8 inches between the exhaust and the underbody tube. Run the rear

tube’s power wire along one of the side tubes and make sure it is tightly secured. Next, run both side tubes power wires to the USB junction box and lastly, run the front tube’s power wire to the USB junction box.

12. It is imperative to make sure that the wires are not mounted to any direct hear source or to any moving parts. Any excess length

on the tube power wire will have to be bound up and secured tightly.

13. DO NOT SHORTEN OR CUT ANY OF THE UNDERBODY TUBE POWER WIRES. THIS WILL DESTROY THE

KIT AND VOID ALL WARRANTIES.

14. Lower the vehicle if it was raised. Power the kit and test it for full functionality.

15. Once the vehicle is on the ground, turn the steering wheel as far as it can go in both directions to ensure the tube and/or wires are

not coming in contact with your tires or any other moving parts.
