Page 1

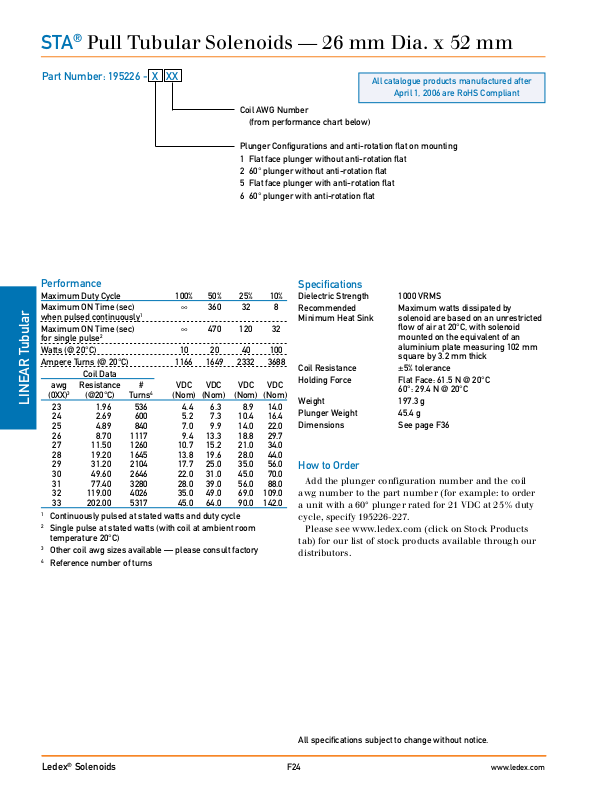

STA® Pull Tubular Solenoids — 26 mm Dia. x 52 mm
Part Number: 195226 - X XX
Coil AWG Number
(from performance chart below)
Plunger Configurations and anti-rotation flat on mounting
1 Flat face plunger without anti-rotation flat
2 60° plunger without anti-rotation flat
5 Flat face plunger with anti-rotation flat
6 60° plunger with anti-rotation flat
Performance
Maximum Duty Cycle 100% 50% 25% 10%
Maximum ON Time (sec) ∞ 360 32 8
when pulsed continuously1
Maximum ON Time (sec) ∞ 470 120 32
for single pulse2
Watts (@ 20°C) 10 20 40 100
Ampere Turns (@ 20°C) 1166 1649 2332 3688
Coil Data
awg Resistance # VDC VDC VDC VDC
3
(0XX)
LINEAR Tubular
(@20°C) Turns
23 1.96 536 4.4 6.3 8.9 14.0
24 2.69 600 5.2 7.3 10.4 16.4
25 4.89 840 7.0 9.9 14.0 22.0
26 8.70 1117 9.4 13.3 18.8 29.7
27 11.50 1260 10.7 15.2 21.0 34.0
28 19.20 1645 13.8 19.6 28.0 44.0
29 31.20 2104 17.7 25.0 35.0 56.0
30 49.60 2646 22.0 31.0 45.0 70.0
31 77.40 3280 28.0 39.0 56.0 88.0
32 119.00 4026 35.0 49.0 69.0 109.0
33 202.00 5317 45.0 64.0 90.0 142.0
1
Continuously pulsed at stated watts and duty cycle
2
Single pulse at stated watts (with coil at ambient room
temperature 20°C)
3
Other coil awg sizes available — please consult factory
4
Reference number of turns
4
(Nom) (Nom) (Nom) (Nom)
All catalogue products manufactured after
April 1, 2006 are RoHS Compliant
Specifications
Dielectric Strength 1000 VRMS
Recommended Maximum watts dissipated by
Minimum Heat Sink solenoid are based on an unrestricted
flow of air at 20°C, with solenoid
mounted on the equivalent of an
aluminium plate measuring 102 mm
square by 3.2 mm thick
Coil Resistance ±5% tolerance
Holding Force Flat Face: 61.5 N @ 20°C
60°: 29.4 N @ 20°C
Weight 197.3 g
Plunger Weight 45.4 g
Dimensions See page F36
How to Order
Add the plunger configuration number and the coil
awg number to the part number (for example: to order
a unit with a 60° plunger rated for 21 VDC at 25% duty
cycle, specify 195226-227.
Please see www.ledex.com (click on Stock Products
tab) for our list of stock products available through our
distributors.
All specifications subject to change without notice.
Ledex® Solenoids www.ledex.com
F24
Page 2
Stroke – mm
0
2.5 5.0 7.5 10.0 12.5
Force – N
Speed – ms
Stroke – mm
0
2.5 5.0 7.5 10.0 12.5
90
108
126
18
36
54
72
36
45
54
9
18
27
15.0 17.5
Force – N
Stroke – mm
0
2.5 5.0 7.5 10.0 12.5
30
40
50
10
20
Stroke – mm
0
2.5 5.0 7.5 10.0 12.5 15.0 17.5
Speed – ms
30
40
50
10
20
10% Duty Cycle 100W
25% Duty Cycle 40W
50% Duty Cycle 20W
100% Duty Cycle 10W
100% Duty Cycle 10W
50% Duty Cycle 20W
25% Duty Cycle 40W
10% Duty Cycle 100W
100% Duty Cycle 10W
50% Duty Cycle 20W
25% Duty Cycle 40W
10% Duty Cycle 100W
10% Duty Cycle 100W
25% Duty Cycle 40W
50% Duty Cycle 20W
100% Duty Cycle 10W
STA® Pull Tubular Solenoids — 26 mm Dia. x 52 mm

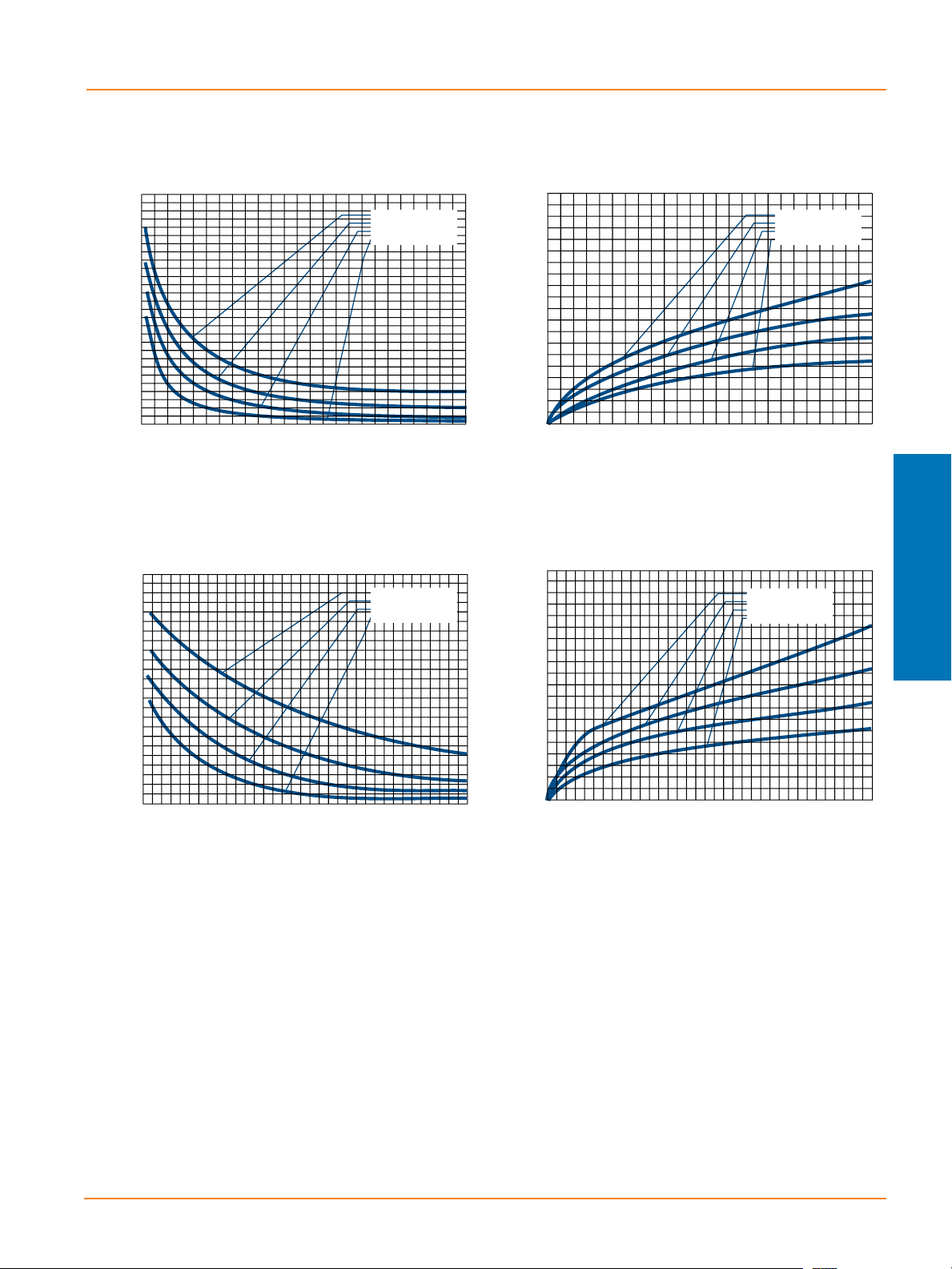

Pull Tubular Solenoid – 26 mm dia. x 52 mm – Flat Face Plunger
Typical Speed @ No Load, 20°CTypical Force @ 20°C
Pull Tubular Solenoid – 26 mm dia. x 52 mm – 60° Plunger
Typical Force @ 20°C
Typical Speed @ No Load, 20°C
LINEAR Tubular
Ledex® Solenoids www.ledex.com
F25
All specifications subject to change without notice.
Page 3
Ledex® Tubular Solenoids Dimensions
3.1 ± 0.3
M20 x 1.5
9.52 ± 0.30
19.05
± 0.38
52.07 max
9.5 ± 0.3
4.76 ± 0.30
Ø3.05 / 3.15
28.58
R min
Ø25.91
max
Ø3.97
ref
Ø10.95 ± 0.08
Mounting nut shipped loose.
7.92
250 mm min.,
0.20 mm
2
PVC
Ø25.91
max
3.18 ± 0.08
M20 x 1.5
9.52 ± 0.30
28.58
± 0.38
52.07 max
3.56 max
7.92
Mounting nut shipped loose.
250 mm min.,
0.20 mm
2
PVC
mm
®
Series Pull — 26 mm Dia. x 52 mm
STA
LINEAR Tubular
STA® Series Push — 26 mm Dia. x 52 mm
All solenoids are illustrated in energised state
Ledex® Solenoids www.ledex.com
All specifications subject to change without notice.
F36
