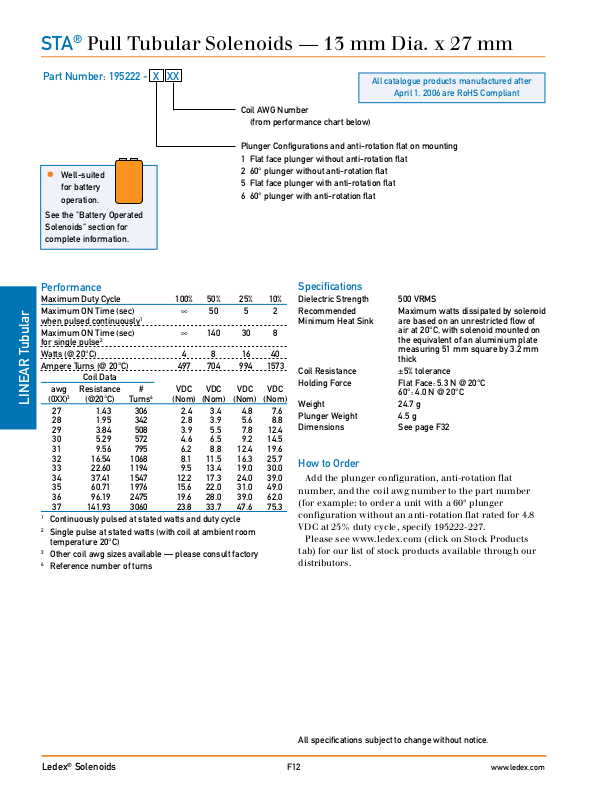

Page 1
STA® Pull Tubular Solenoids — 13 mm Dia. x 27 mm
Part Number: 195222 - X XX
Coil AWG Number
(from performance chart below)
Plunger Configurations and anti-rotation flat on mounting
1 Flat face plunger without anti-rotation flat
Well-suited
for battery
operation.
See the "Battery Operated
Solenoids" section for
complete information.
2 60° plunger without anti-rotation flat
5 Flat face plunger with anti-rotation flat
6 60° plunger with anti-rotation flat
Performance
Maximum Duty Cycle 100% 50% 25% 10%
Maximum ON Time (sec) ∞ 50 5 2
when pulsed continuously1
Maximum ON Time (sec) ∞ 140 30 8
for single pulse2
Watts (@ 20°C) 4 8 16 40
Ampere Turns (@ 20°C) 497 704 994 1573
Coil Data
awg Resistance # VDC VDC VDC VDC
3
(0XX)
LINEAR Tubular
(@20°C) Turns
27 1.43 306 2.4 3.4 4.8 7.6
28 1.95 342 2.8 3.9 5.6 8.8
29 3.84 508 3.9 5.5 7.8 12.4
30 5.29 572 4.6 6.5 9.2 14.5
31 9.56 795 6.2 8.8 12.4 19.6
32 16.54 1068 8.1 11.5 16.3 25.7
33 22.60 1194 9.5 13.4 19.0 30.0
34 37.41 1547 12.2 17.3 24.0 39.0
35 60.71 1976 15.6 22.0 31.0 49.0
36 96.19 2475 19.6 28.0 39.0 62.0
37 141.93 3060 23.8 33.7 47.6 75.3
1
Continuously pulsed at stated watts and duty cycle
2
Single pulse at stated watts (with coil at ambient room
temperature 20°C)
3
Other coil awg sizes available — please consult factory
4
Reference number of turns
4
(Nom) (Nom) (Nom) (Nom)
All catalogue products manufactured after
April 1, 2006 are RoHS Compliant
Specifications
Dielectric Strength 500 VRMS
Recommended Maximum watts dissipated by solenoid
Minimum Heat Sink are based on an unrestricted flow of
air at 20°C, with solenoid mounted on
the equivalent of an aluminium plate
measuring 51 mm square by 3.2 mm
thick
Coil Resistance ±5% tolerance
Holding Force Flat Face: 5.3 N @ 20°C
60°: 4.0 N @ 20°C
Weight 24.7 g
Plunger Weight 4.5 g
Dimensions See page F32
How to Order
Add the plunger configuration, anti-rotation flat
number, and the coil awg number to the part number
(for example: to order a unit with a 60° plunger
configuration without an anti-rotation flat rated for 4.8
VDC at 25% duty cycle, specify 195222-227.
Please see www.ledex.com (click on Stock Products
tab) for our list of stock products available through our
distributors.
All specifications subject to change without notice.
Ledex® Solenoids www.ledex.com
F12
Page 2
Stroke – mm
Force – N
Speed – ms
Stroke – mm
0
Force – N
Stroke – mm
0
1.25 2.5 3.75 5.0 6.25
0
1.25 2.5 3.75 5.0 6.25
Stroke – mm
0
Speed – ms
8.0
10.0
12.0
2.0
4.0
6.0
2.0
4.0
6.0
8.0
2.5 5.0 7.5 10.0 12.5
16
20
24
4
8
12
2.5 5.0 7.5 10.0 12.5
40
50
60
10
20
30
100% Duty Cycle 4W
50% Duty Cycle 8W
25% Duty Cycle 16W
10% Duty Cycle 40W
10% Duty Cycle 40W
25% Duty Cycle 16W
50% Duty Cycle 8W
100% Duty Cycle 4W
10% Duty Cycle 40W
25% Duty Cycle 16W
50% Duty Cycle 8W
100% Duty Cycle 4W
100% Duty Cycle 4W
50% Duty Cycle 8W
25% Duty Cycle 16W
10% Duty Cycle 40W
STA® Pull Tubular Solenoids — 13 mm Dia. x 27 mm

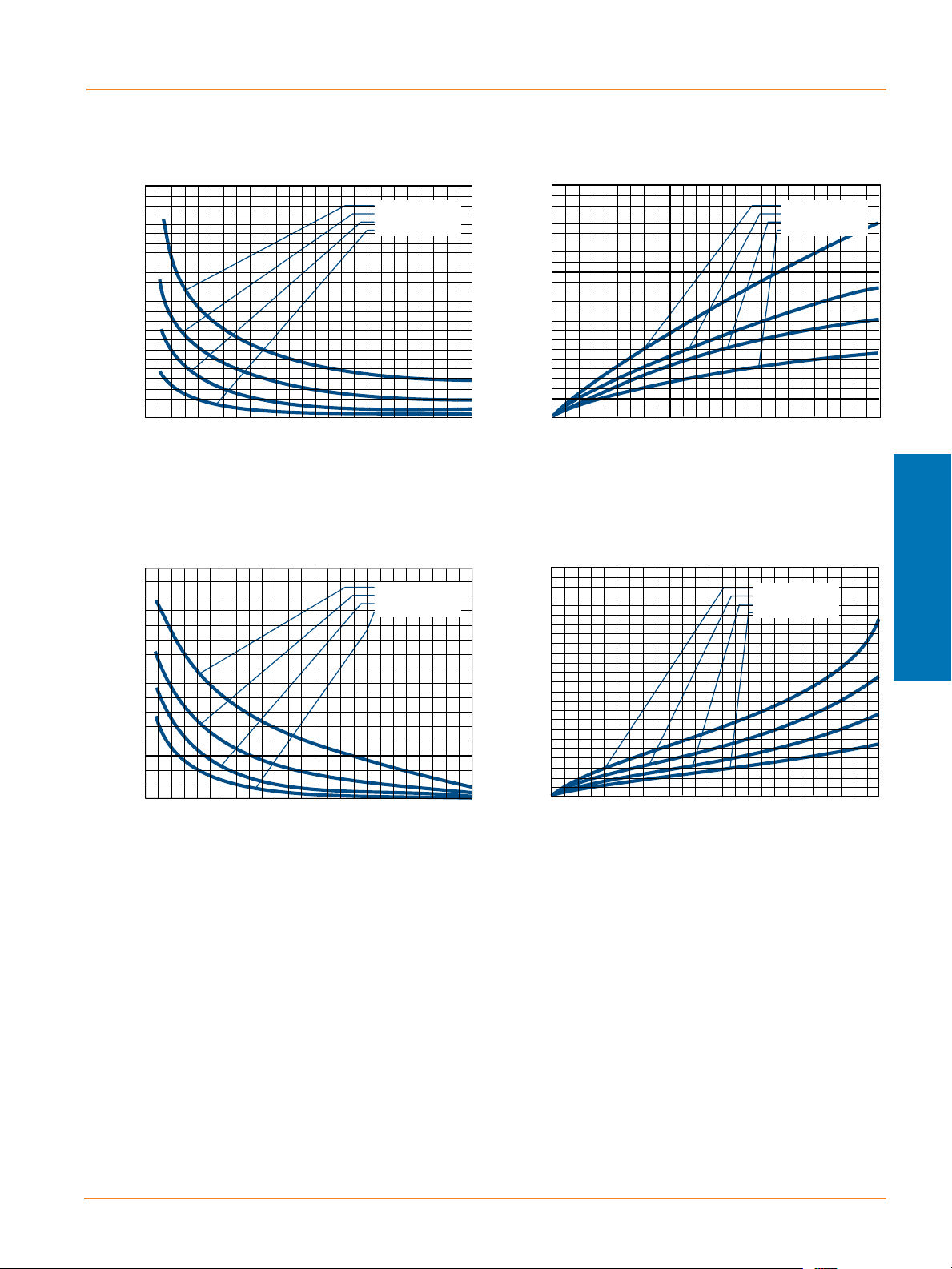

Pull Tubular Solenoid – 13 mm dia. x 27 mm – Flat Face Plunger
Typical Speed @ No Load, 20°CTypical Force @ 20°C
Pull Tubular Solenoid – 13 mm dia. x 27 mm – 60° Plunger
Typical Force @ 20°C
Typical Speed @ No Load, 20°C
LINEAR Tubular
All specifications subject to change without notice.
Ledex® Solenoids www.ledex.com
F13
Page 3
Ledex® Tubular Solenoids Dimensions
2.1 ± 0.3
M10 x 0.75
6.35 ± 0.30
26.67 max
14.29
± 0.38
3.18 ± 0.30
Ø2.05 / 2.15
28.6 R min
Ø13.21
max
Ø1.98
max.
Ø4.70 ± 0.08
3.86
6.35 ± 0.3
Mounting nut shipped loose.
250 mm min.,
0.20 mm
2
PVC
1.59 ± 0.08
M10 x 0.75
6.35 ± 0.30
26.67 max
19.05
± 0.38
Ø13.21
max
2.77 max
3.86
Mounting nut shipped loose.
250 mm min.,
0.20 mm
2
PVC
mm
STA® Series Pull — 13mm Dia. x 27 mm
LINEAR Tubular
®
Series Push — 13 mm Dia. x 27 mm
STA
All solenoids are illustrated in energised state
Ledex® Solenoids www.ledex.com
All specifications subject to change without notice.
F32
