Description:
Outside Diameter
Free Length
Spring Rate
Short Spring:
13.72
19.05
2.71N/cm
Long Spring:
13.72
31.75
1.56N/cm
ALL PRODUCTS ARE RoHS COMPLIANT

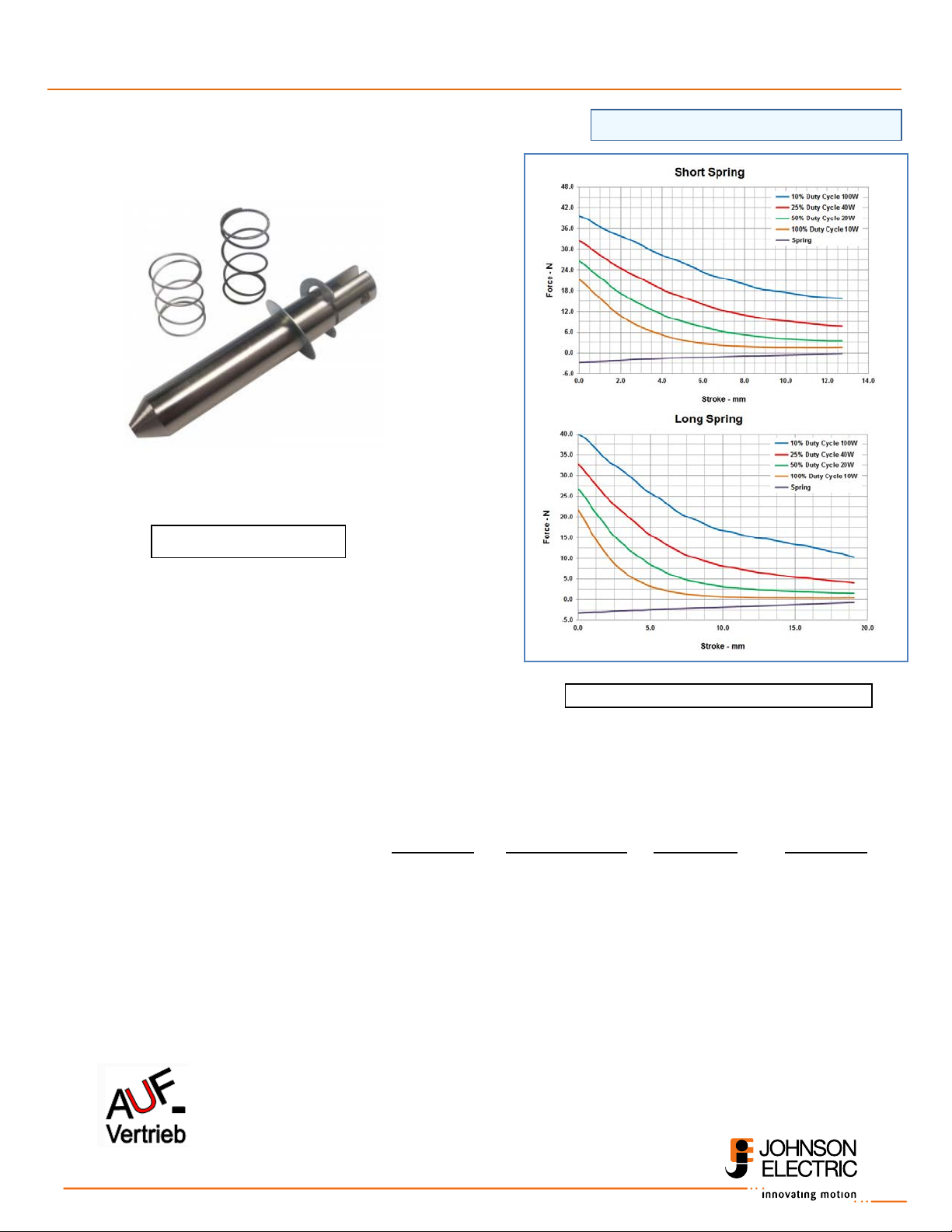

Typical Performance When Installed on Solenoid 195226-2XX
Fits Metric Solenoid

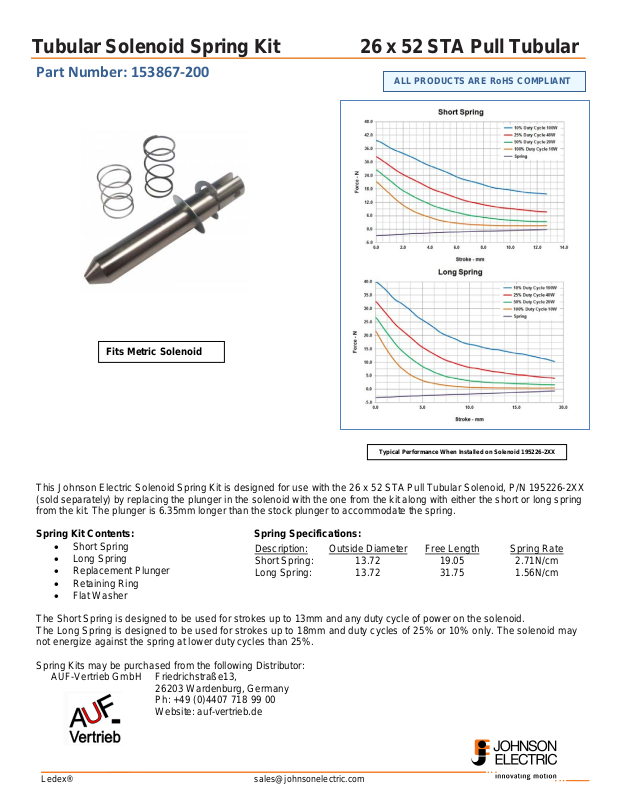

Tubular Solenoid Spr ing K it 26 x 52 STA Pull Tubular
Part Number: 153867-200
This Johnson Electric Solenoid Spring Kit is designed for use with the 26 x 52 STA Pull Tubular Solenoid, P/N 195226-2XX
(sold separately) by replacing the plunger in the solenoid with the one from the kit along with either the short or long spring
from the kit. The plunger is 6.35mm longer than the stock plunger to accommodate the spring.
Spring Kit Contents: Spring Specifications:
• Short Spring
• Long Spring
• Replacement Plunger
• Retaining Ring
• Flat Washer
The Short Spring is designed to be used for strokes up to 13mm and any duty cycle of power on the solenoid.
The Long Spring is des igned to be used for strok es up to 18mm and duty cycles of 25% or 10% onl y. The sole noid ma y
not energize against the spring at lower duty cycles than 25%.
