Description:
Outside Diameter
Free Length
Spring Rate
Short Spring:
9.14
15.88
0.93N/cm
Long Spring:
9.14
19.05
0.75N/cm
ALL PRODUCTS ARE RoHS COMPLIANT

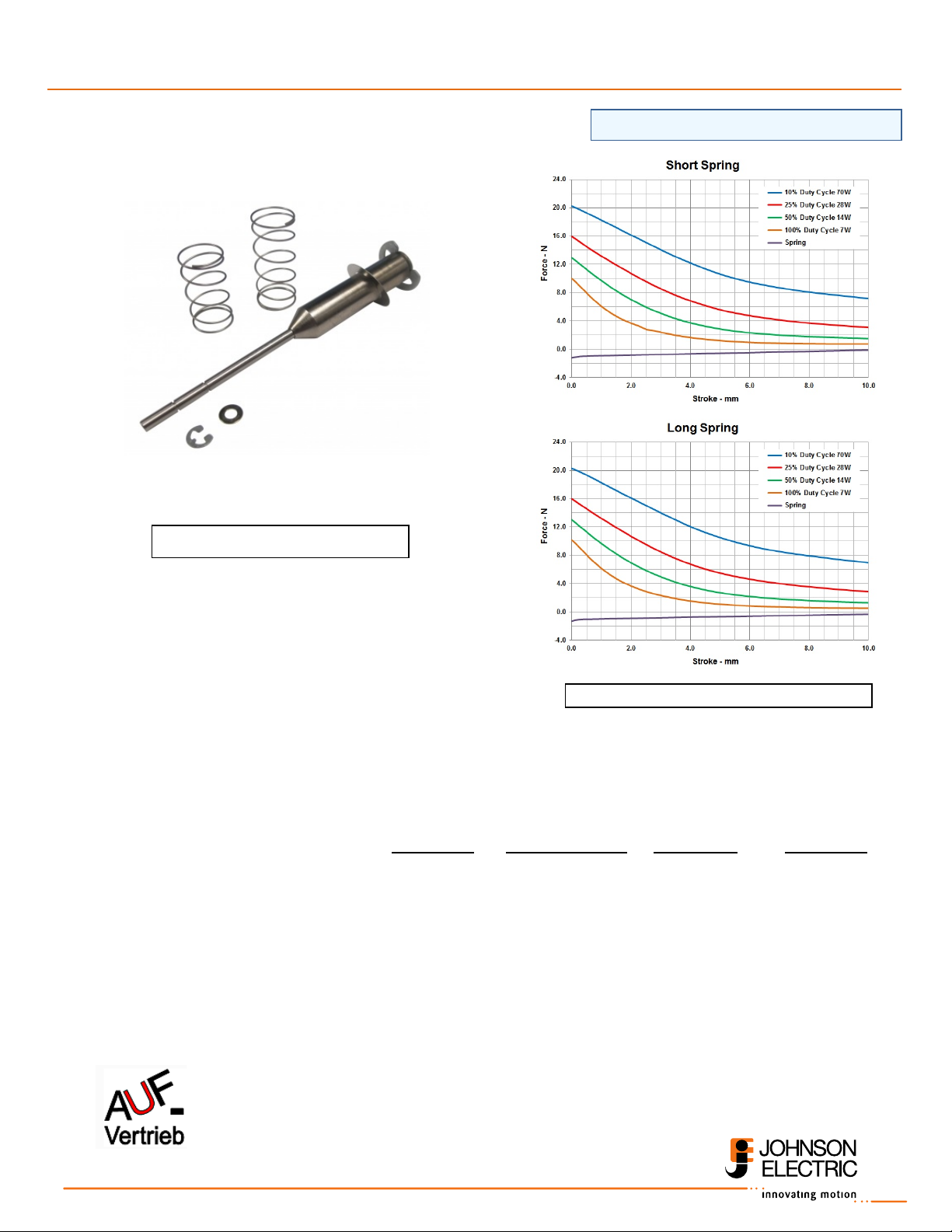

Typical Performance When Installed on Solenoid 195225-2XX
Fits Imperial or Metric Solenoid

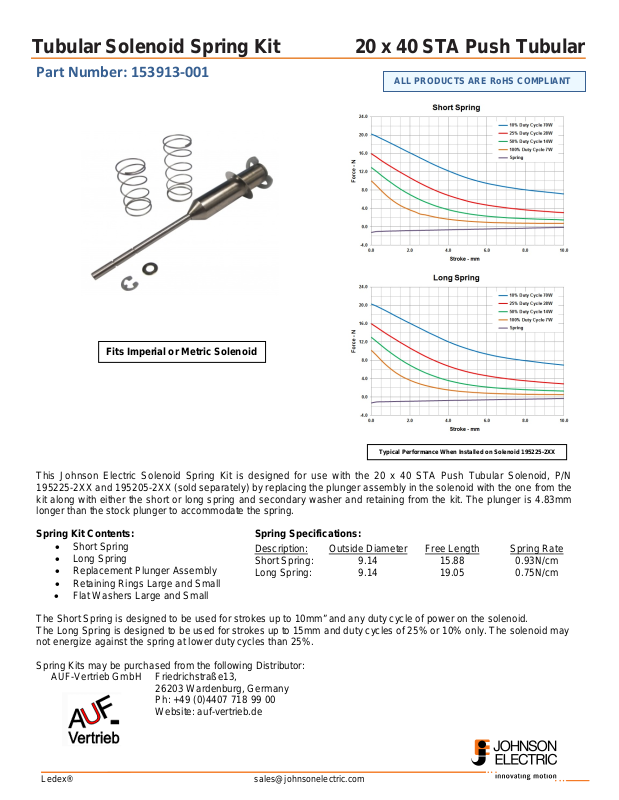

Tubular Solenoid Spr ing K it 20 x 40 STA Push Tubular
Part Number: 153913-001
This Johnson Electric Solenoid Spring Kit is designed for use with the 20 x 40 STA Push Tubular Solenoid, P/N
195225-2XX and 195205-2XX (sold separately) by replacing the plunger assembly in the solenoid w ith the o ne f r om the
kit along with either the short or long s pring and secondary washer and ret aining from the k it. The plunger is 4.83mm
longer than the stock plunger to accommodate the spring.
Spring Kit Contents: Spring Specifications:
• Short Spring
• Long Spring
• Replacement Plunger Assembly
• Retaining Rings Large and Small
• Flat Washers Large and Small
The Short Spring is designed to be used for strokes up to 10mm” and any duty cycle of power on the solenoid.
The Long Spring is designed to be used for strokes up to 15mm and duty cycles of 25% or 10% only. The solenoid may
not energize against the spring at lower duty cycles than 25%.
Spring Kits may be purchased from the following Distributor:
Ledex® [email protected]
