Description:
Outside Diameter
Free Length
Spring Rate
Short Spring:
9.14
15.9
0.93 N/cm
Long Spring:
9.14
25.4
0.56 N/cm
ALL PRODUCTS ARE RoHS COMPLIANT

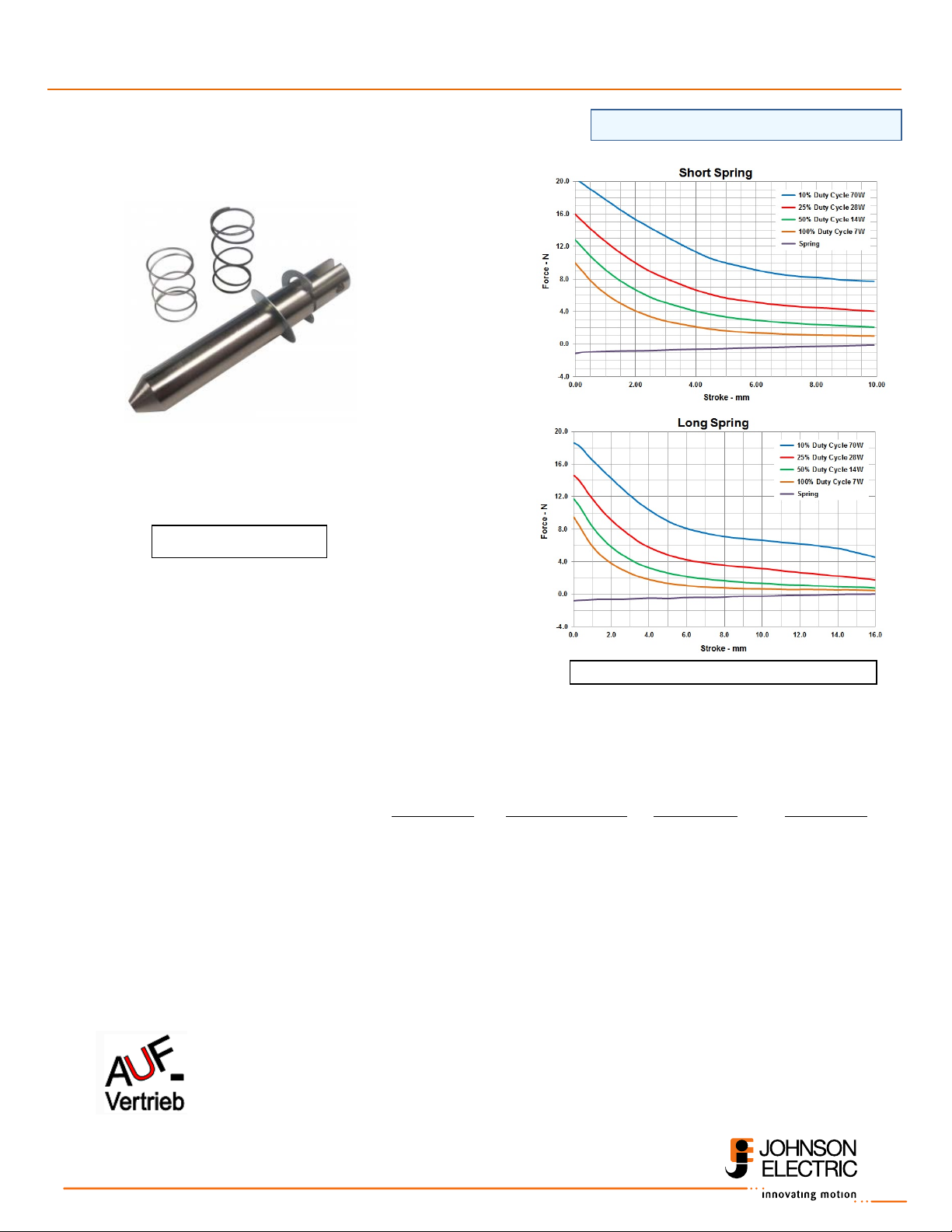

Typical Performance When Installed on Solenoid 195224-2XX
Fits Metric Solenoid

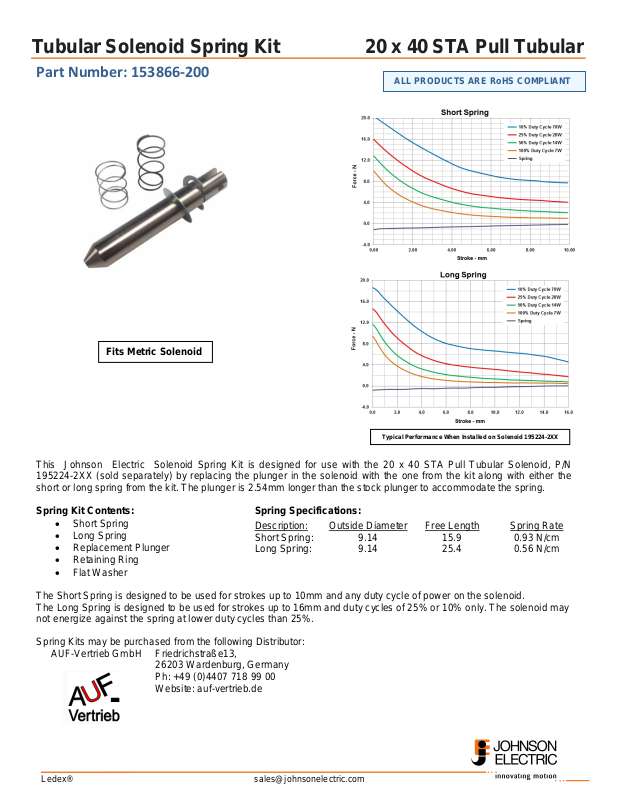

Tubular Solenoid Spr ing K it 20 x 40 STA Pull Tubular
Part Number: 153866-200
This Johnson Electric Solenoid Spring Kit is designed for use with the 20 x 40 STA Pull Tubular Solenoid, P/N
195224-2XX (sold separately) by replacing the plunger in the so lenoid with the one from the kit along with either the
short or long spring from the kit. The plunger is 2.54mm longer than the stock plunger to accommodate the spring.
Spring Kit Contents: Spring Specifications:
• Short Spring
• Long Spring
• Replacement Plunger
• Retaining Ring
• Flat Washer
The Short Spring is designed to be used for strokes up to 10mm and any duty cycle of power on the solenoid.
The Long Spring is designed to be used for strokes up to 16mm and duty cycles of 25% or 10% only. The solenoid may
not energize against the spring at lower duty cycles than 25%.
