Description
Outside Diameter
Free Length
Spring Rate
Long Spring
6.10
12.70
0.26N/cm
Short Spring
6.10
19.05
0.70N/cm
ALL PRODUCTS ARE RoHS COMPLIANT

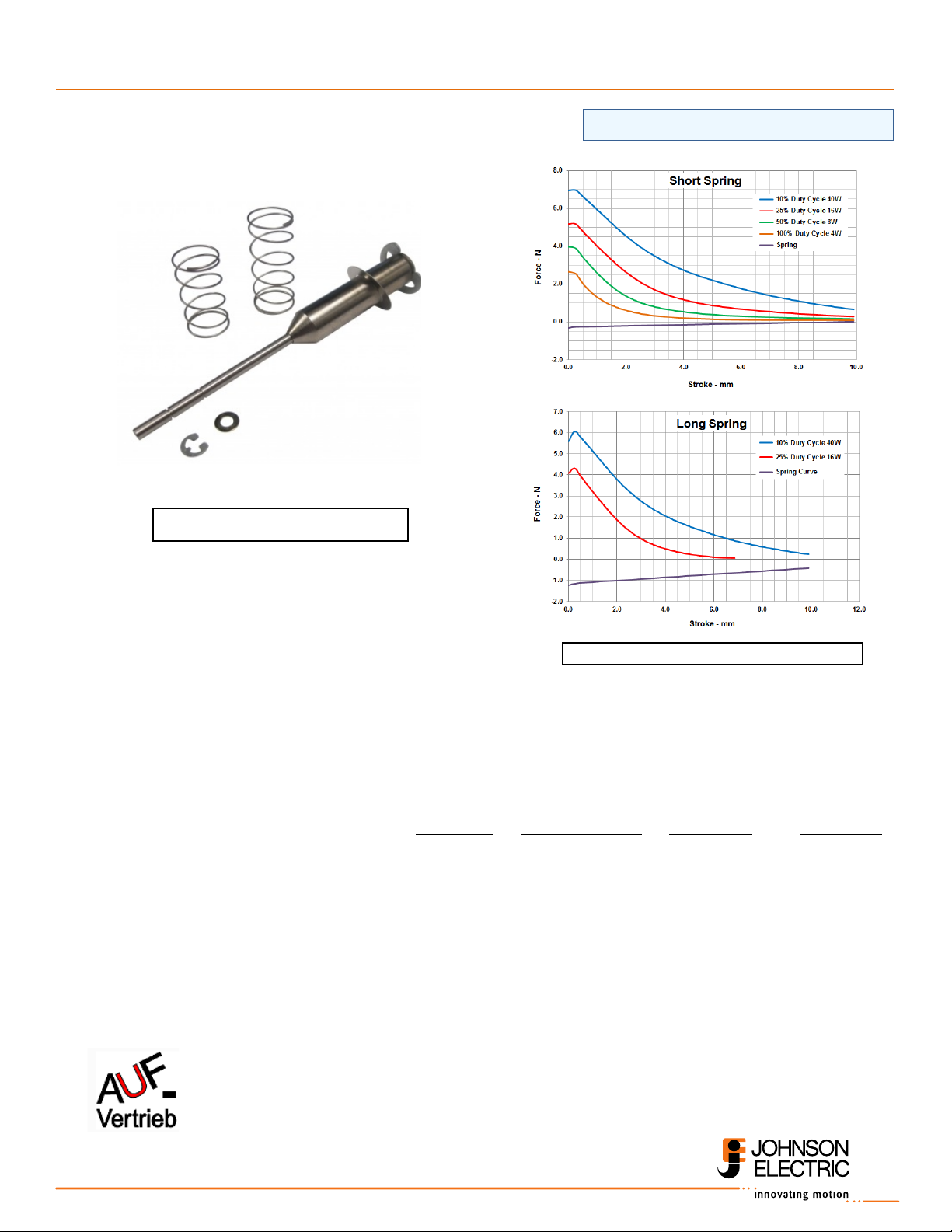

Typical Performance When Installed on Solenoid 195223-2XX
Fits Imperial or Metric Solenoid

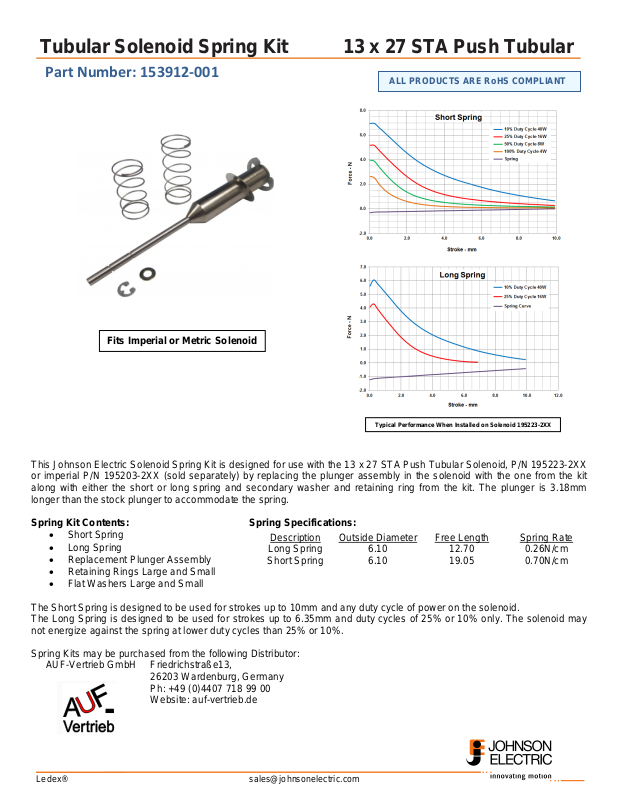

Tubular Solenoid Spr ing K it 13 x 27 STA Push Tubular
Part Number: 153912-001
This Johnson Electric Solenoid Spring Kit is designed f or use with the 13 x 27 STA Push Tubular Solenoid, P/N 195223-2XX
or imperial P/N 195203-2XX (sold separately) by replacing the plunger assembly in the s olenoid with the one from the kit
along with either the short or long spring and secondary washer and retaining ring from the kit. T he plunger is 3.18mm
longer than the stock plunger to accommodate the spring.
Spring Kit Contents: Spring Specifications:
• Short Spring
• Long Spring
• Replacement Plunger Assembly
• Retaining Rings Large and Small
• Flat Washers Large and Small
The Short Spring is designed to be used for strokes up to 10mm and any duty cycle of power on the solenoid.
The Long Spring is designed to be us ed for strok es up to 6.35mm and duty cycles of 25% or 10% only. The s olenoid may
not energize against the spring at lower duty cycles than 25% or 10%.
