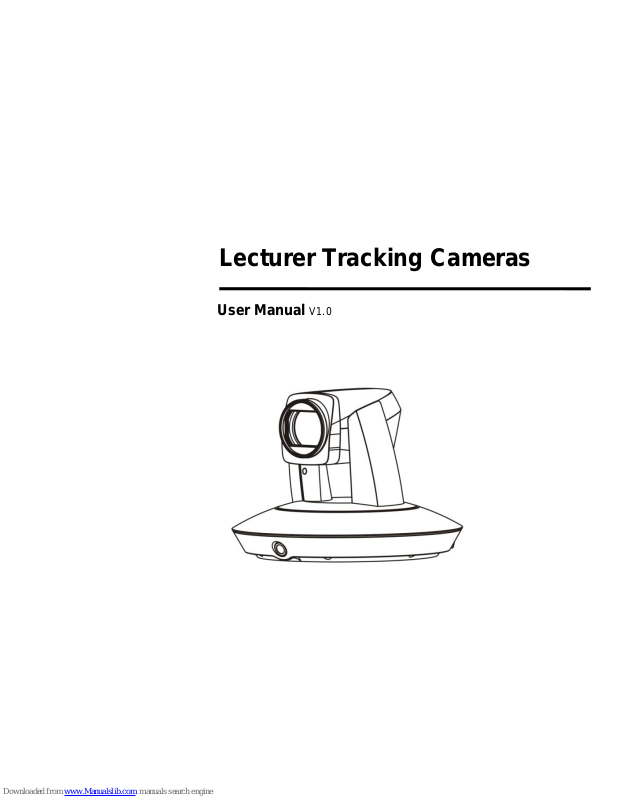

Lecturer Tracking Cameras
User Manual V1.0
SAFETY NOTICE-IMPORTANT!!!
The following important notes must be followed carefully to run the camera and respective
accessories in total safety. The camera and relative accessories are called video system in
this section.
Before installing the camera, please read this manual carefully. Please follow installation
instructions indicated in this manual during installation. Please keep this manual for future
use.
The installation should be performed by qualified service personnel or system installers in
accordance with all local rules.
Before powering on the camera, please check the power voltage carefully. Make sure that
you are using the correct power source.
Please put the power cable, video cable and control cable in safe place.
Do not operate the camera beyond the specified temperature and humidity. Working
temperature range of the camera is between 0℃ and +40℃. The ambient humidity range is
less than 95﹪.
During transporting, avoid violent shake or force to the camera.
To prevent electric shock, do not remove screws or housing of the camera. There are no
self-serviceable parts inside. Refer to qualified service personnel for servicing.
Video cable and RS485/RS232 cable should be kept far away from other cables. Shielded
and independent wiring is necessary for video and control cables.
Never aim the lens of the camera at the sun or other extremely bright objects. Otherwise, it
may cause damage.
When cleaning the camera, please use soft cloth. If the camera is very dirty, wipe it off
gently with a soft cloth moistened with a weak solution of water and a neutral kitchen
detergent. Wring all liquid from the cloth before wiping the camera, then wipe off all
remaining dirt with a soft, dry cloth. Use lens cleaning paper to clean the lens.
Do not move the camera head manually. In doing so would result in malfunction of the
camera. Do not hold the camera head when carrying the video camera.
Make sure the camera is not directly exposed to rain and water.
Make sure the camera is far away from area where radiation, X-rays, strong electric
waves, or magnetism is generated.
Attention
If you need to extend the power cable, please extend the
power cable from the part 1 on below picture (220V/110V), do
not extend from part 2 on below picture (DC12V), otherwise it
will cause unexpected damage to the device.
CONTENTS
ABOUT THE PRODUCT -------------------------------------------------------- 1
FEATURES -------------------------------------------------------------------------------- 1
CHARACTERISTICS & FUNCTIONS ----------------------------------------------------------- 1
LIST OF PARTS & ACCESSORIES ----------------------------------------------------------- 2
MAIN PARTS & INTERFACES ---------------------------------------------------------------- 2
CABLE CONNECTING INSTRUCTIONS --------------------------------------- 4
HD-SDI 1 (FULL-VIEW CAMERA) INTERFACE ------------------------------------------------ 4
HD-SDI 2 (TRACKING CAMERA) INTERFACE ------------------------------------------------- 4
CONTROL CABLE(RS485,RS232) ---------------------------------------------------------- 4
POWER CONNECTION ---------------------------------------------------------------------- 5
INSTALLATION INSTRUCTIONS----------------------------------------------- 6
WALL MOUNT INSTALLATION --------------------------------------------------------------- 6
PENDANT MOUNT INSTALLATION ----------------------------------------------------------- 7
PARAMETERS SETTING ------------------------------------------------------ 8
SETTING PROCESS ------------------------------------------------------------------------ 8
MAIN MENU ---------------------------------------------------------------------------- 10
ISMART PARAM SETPAGE ----------------------------------------------------------------- 11
ADVANCED PARAM SETPAGE ------------------------------------------------------------- 12
FIRMWARE UPGRADE --------------------------------------------------------------------- 14
MENU SETTINGS ------------------------------------------------------------ 15
MENU CONFIGURATION ------------------------------------------------------------------- 15
MENU EXPLANATION---------------------------------------------------------------------- 19
VIDEO ---------------------------------------------------------------------------------- 20
EXPOSURE ---------------------------------------------------------------------------- 20
WHITE BALANCE ----------------------------------------------------------------------- 22
PAN/TILT/ZOOM ------------------------------------------------------------------------ 22
SYSTEM -------------------------------------------------------------------------------- 23
STATUS -------------------------------------------------------------------------------- 24
RESTORE DEFAULTS ------------------------------------------------------------------ 24
ANNEX 1 TECHNICAL SPECIFICATIONS ------------------------------------ 25
ANNEX 2 SIZE AND DIMENSION -------------------------------------------- 27
TROUBLESHOOTING -------------------------------------------------------- 28
1
ABOUT THE PRODUCT
ABOUT THE PRODUCT
Features
The Lecturer tracking camera adopts the most
advanced face recognition and tracking
algorithm based on image analysis to detect,
lock and track moving target ; it can realize
smooth tracking performance automatically; It
can precisely lock the moving target in the
center of the image.
With its stability, easy-to-use and excellent
performance, it is widely used in electronic
classroom, distance learning, technical
training and video conferencing room, etc.
Characteristics & Functions
Featured Advantages
Advanced face recognition and tracking
algorithm based on image analysis;
Integrated Full HD panoramic camera and Full
HD tracking camera. Both HD videos can be
outputted at 1080p60 simultaneously;
Tracking range can cover the whole
classroom, even the target is walking among
the students;
Precisely and stably track a specific target,
free from any light & moving interference;
Tracking camera and full-view camera can be
set to automatically switch mode.
Intelligent Tracking
Smooth tracking performance, free from
interference of other moving objects, also
even if the target turns around, stands still for
a long time or his / her other small gestures
will not affect the tracking effect;
Auto zoom performance during tracking.;
Suits all kinds of classroom with different size,
shape and type;
Smart AE technology to effectively avoid the
interference of complicated lights from
projectors, monitors etc.
Simple Configuration
1 priority zone, and 8 blocking zones can be
easily set through control software;
Customizable output code when target
appears or lost;
User-friendly interface, simple parameter
settings, parameters can be set via
RS-485/232.
2
List Of Parts & Accessories
When you open the box, check all accessories
according to the packing list.
Camera (1)
Power Adapter (1)
Cable Package (1)
Main Parts & Interfaces
Camera
Front View
1 Tracking Camera
2 Full-view Camera
Rear View
3 Audio (Not Supported Temporarily)
4 Debugging Interface (For Upgrading)
5 HD-SDI 1 Interface (Full-view Camera)
6 HD-SDI 2 Interface (Tracking Camera)
7 Control Interfaces (RS485, RS232)
8 Power Input (DC12V)
3
ABOUT THE PRODUCT
Bottom View
9 Mounting Hole
1/4”inch screw thread for fixing camera.
10 Locating Hole
To define installation direction of camera.
4
CABLE CONNECTING INSTRUCTIONS
Connect the camera to relative devices with the cables supplied with the camera.
HD-SDI 1 (full-view Camera) Interface
HD-SDI 2 (tracking camera) Interface
Control Cable(RS485,RS232)
Pin#
Pin Definition
1 / 2 / 3
TXD
4
GND
5
RXD
6
GND
7
485+
8
485-
5
CABLE CONNECTING INSTRUCTIONS
Power Connection
Connect power adapter supplied together
with the camera to power source, after
powered on, the camera will start
self-testing, pan/tilt, go to preset number 1
and start tracking.
6
INSTALLATION INSTRUCTIONS
The camera should be stand mounted, and
make sure the full-view camera is pointing
directly to the blackboard. The available
installation zone of the classroom is shown in
the picture:
Camera should be installed in the right ahead
of the platform with distance 5~15 meters.
The height from the camera to floor is 2~3
meters.
Suggested height from the camera to floor is
2.4 meters, suggested distance from the
camera to the platform is 8 meters, and the
installation position should be close to the
central axis to get the best tracking result.
The camera has 2 installation types: wall and
pendant mount.
Attention
Before installing, make sure there
is enough space to install the
camera and its parts.
Make sure the installed place is
strong and safe enough to hold the
camera and relative parts, it is
suggested that the installed place
can withstand 4 times the weight of
the camera and its relative parts.
Wall Mount Installation
1. According to diameter and position of the
4 installation holes (As shown below) on
the bracket, drill 4 holes on the wall and fix
the bracket onto the wall by using 4
screws which should be prepared by
yourself.
INSTALLATION INSTRUCTIONS
7
2. Use inch screws to fix the camera on the
bracket, fix the limit screw according to
actual requirement, and make sure the
camera is tightly fixed onto the bracket
before you let go of the camera.
Pendant Mount Installation
1. According to diameter and position of the
4 holes on the pole (as shown below), Fix
the pole brackets onto ceiling with 4
screws which are prepared by yourself.
2. Use screws to fix camera on the pole.
Make sure the camera is tightly fixed onto
the bracket before you let go of the
camera.
8
Parameters Setting
Setting Process
Preset 0: It is a position that can be configured
to have the camera move to once tracked
object gets lost, recommended to set at full
view image. See basic parameter settings for
details.
Preset 1: Preset 1 is the position where tracking
starts, preferred to be set at Podium; to
configure it, move the camera’s Pan/Tilt/Zoom
to put the lecturer in the appropriate size and
position in the image, then set it as preset 1.
In some other cases, the preset 1 is also
useful: after camera finishes calibration, it will
sit at preset 1; once tracking object gets lost,
the camera can be configured to move to
preset 1; when the camera starts auto
zooming, its zooming times is also based on
preset 1’s zooming times.
Connect camera to your computer’s serial
ports with RS232 or RS485 cables, Double
click on iSmartTCS.exe, enter the main menu,
choose the relative communication port, then
click the button CONNECT. If the connection
is successful, the version information will
appear, and the button PARAMETER will be
available.
MAIN MENU
Click PARAMETER to enter the Ismart Param
SetPage.
PARAMETERS SETTINGS
9
Ismart Param SetPage
Click the button PARAMETER three times to
enter the Ismart Advanced Param SetPage.
Ismart Advanced Param SetPage
The default setting as below:
Default Settings
Address
1
Baud Rate
9600bps
Protocol
VISCA
Video Format
1080P25
When in the parameter setup page,
HD_SDI_2 can output both videos of
HD_SDI_1 and HD_SDI_2 through split
screen. As shown in the picture below, the left
image is from tracking video, the right image
is from full view video
10
MAIN MENU
PTZ & MENU
MENU: Click MENU to enter menu, refer to
menu settings to change the tracking
camera's parameters. Click MENU again to
exit menu.
Note: The parameters in the menu have been
adjusted to have the best tracking
performance when leaving factory, for general
user, there is no need to change the
parameters.
White Balance
White balance mode, two options: Auto WB,
one push WB.
Auto WB: The camera can automatically
adjust white balance (WB) according to the
alteration of background lightness to give a
true color image. Auto WB can be used for
general use.
One push WB: When the color of the video is
obviously incorrect, you can enable one push
trigger WB for color correction.
Operation of One push WB :
1. Have a person hold a A4 white paper, make
sure the paper is pointing directly to the
tracking camera.
2. Adjust the camera’s Pan / Tilt / Zoom until
the paper is able to cover the whole image
without finger or other objects.
3. Choose one push WB option, after waiting
for ten seconds when the image has been
adjusted, move away the paper.
SYSTEM SET
Firmware Upgrade: Used to upgrade
firmware. Restart Device: press RESTART
DEVICE, the camera will run a calibration
procedure and reboot.
TRACKING SETTING
START TRACK: When the camera stops
tracking, press START TRACK to activate
tracking (call preset 80 can also activate
tracking).
PARAMETERS SETTINGS
11
STOP TRACK: press STOP TRACK to stop
tracking (call preset 81 can also stop the
camera from tracking).
PARAMETER: If the connection is successful,
the button PARAMETER will be available.
Click PARAMETER to enter the Ismart Param
SetPage. Click the button PARAMETER three
times to enter the Ismart Advanced Param
SetPage.
Ismart Param SetPage
Zone set
Recommended to set the platform or podium
as priority zone, the camera will detect object
from this zone to start tracking accordingly.
Set other interference sources (like projector,
digital whiteboard, TV screen and etc) near
the platform or podium as blocking zones so
the camera will not track these sources. The
blocking zones must be inside the priority
zone, otherwise, there will be problem in
blocking.
Prio Track Zone
The camera’s tracking range can cover the
whole classroom, so the platform zone is
defined as a priority tracking zone.
Usually set the top edge of the blackboard as
the top boundary of the platform zone (at least
higher than the lecturer's head), and the
bottom boundary is higher than the students'
head.
Prio Track Zone: Press PRIO TRACK ZONE,
There will be a mouse point appears on the
full view image on the left of the split-screen,
move the mouse to choose the platform zone
displayed in red rectangle, then “OK” and
“CANCEL” will appear in the lower right corner,
press “OK” to confirm the setting, press
“CANCEL” to cancel the setting and go back
to the previous setting. As shown in the
picture below:
Blocking Zones
Blocking zones: There are 8 blocking zones
shown in green rectangle, they can be
configured independently. Refer to Prio Track
Zone setting for operation.
12
Object Lost Act
Object Lost Act: used to define the action to
be performed if the camera loses the tracked
object for a period of time. And the timeout
before object lost act will be performed is
adjustable in advanced param setpage.
Tracking Set
Auto Zoom: When in auto zoom mode, the
camera can adjust zoom in or out during
tracking based on lecturer’s moving close or
away from the camera, otherwise, zooming
times is always the same as preset 1’s
zooming times.
Tilt Motion: When in tilt motion mode, the
camera can adjust tilt degree during tracking
based on lecturer’s height in the image.
otherwise, the tilt degree is always the same
as preset 1’s tilt degree.
If the lecturer will not go down the platform,
turn off auto zoom and tilt motion.
Basic Set
This menu is used to change video format,
device address and etc.
Back
Back: After finishing the settings, click BACK
to return to main menu, then HD-SDI-2 will
output tracking video only.
Advanced Param SetPage
Advanced Set
Track Sens: If tracked object’s moving range
is large but you want the camera to keep still,
then decrease the tracking sensitivity by
moving the cursor rightwards. If the tracked
PARAMETERS SETTINGS
13
object’s moving range is large and you want
the camera to move accordingly, increase the
tracking sensitivity by moving the cursor
leftwards.
Pan Speed: adjust pan speed during tracking.
Tilt Speed: adjust tilt speed during tracking.
Zoom Limit: adjust zoom limit during tracking.
Lost Timeout: adjust timeout before object
lost act will be performed.
Position Calibration
Position Calibration: adjust the lecturer’s
position in the video when he/she is not in the
center.
Warning
The position has been adjusted to
the best value before leaving the
factory, do not change it until it is
necessary.
Definable Commands
Select the box that you want to set, then input
the definable code (each code is no more than
10 bytes, each byte should be in hexadecimal
format, and separated by spaces), click SET
to confirm the setting. For example as in the
picture, when object appears, the camera will
send “ff 00 00 07 00 01 08” via RS485 or
RS232, and when object gets lost, the camera
will send “ff 00 00 07 00 02 09”.
Click SEARCH to search the code that has
been set before.
Blackboard Close-up
This function should be used with extra
blackboard camera. Click OPEN, then the
camera will give blackboard close-up image
according to the size of preset 2 when lecturer
is writing on the blackboard. Click CLOSE to
close the blackboard close-up function.
14
Auto Switch
Click OPEN, then HD-SDI-1 will switch to the
tracking video when the camera detects
moving objects. In non-tracking mode, this
interface will output the full-view video. Click
CLOSE, HD-SDI-1 always output the full-view
video.
Restore Defaults
Click RESTORE DEFAULTS to reset all
settings to default value.
Firmware Upgrade
Connect the debugging interface at the rear
panel of the camera to your PC’s network
interface with RJ45 cable, then press
UPGRADE, the following page will pop up:
Please connect the device with PC through
RJ45 cable, change the IP address and
Gateway of PC to 192.168.18.1; then put the
firmware you want to upgrade in this
software’s “Upgrade” folder; finally click
UPGRADE button below to upgrade.
Please contact the manufacturer if there is
any problem.
15
MENU SETTINGS
MENU SETTINGS
Simply click the button MENU to enter or exit the menu of the tracking camera, Press IRIS+ to
access the selected second level, Press IRIS- to go back to the previous level menu. Press the
direction button to change menu item or change the parameters.
The parameters in the menu has adjusted to the best value before leaving the factory,
please do not change the parameters easily. If necessary, please contact the manufacturer.
Menu Configuration
<VIDEO>
Refer to
Page 20
FORMAT
1080i50, 720p60, 720p50, 720p30, 720p25,
1080p60, 1080p50, 1080p30, 1080p25, 1080i60
SHARPNESS
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
DNR LEVEL
OFF, LOW, MID, HIGH
WIDE DYNAMIC
ON, OFF
16
<EXPOSURE>
Refer to
Page 20
MODE
FULL AUTO
MANUAL
GAIN
-3, 0, +2, +4, +6, +8, +10,
+12, +14, +16, +18, +20,
+22, +24, +26, +28
SPEED
1/25, 1/50, 1/75, 1/100,
1/120, 1/150, 1/215,
1/300, 1/425, 1/600,
1/1000, 1/1250, 1/1750,
1/2500, 1/3500, 1/6000,
1/10000
IRIS
F14, F11, F9.6, F8, F6.8,
F5.6, F4.8, F4, F3.4, F2.8,
F2.4, F2, F1.6, CLOSE
SHUTTER
PRI
SPEED
1/25, 1/50, 1/75, 1/100,
1/120, 1/150, 1/215,
1/300, 1/425, 1/600,
1/1000, 1/1250, 1/1750,
1/2500, 1/3500, 1/6000,
1/10000
IRIS PRI
IRIS
F14, F11, F9.6, F8, F6.8,
F5.6, F4.8, F4, F3.4, F2.8,
F2.4, F2, F1.6, CLOSE
BRIGHT PRI
BRIGHT
0, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24, 25, 26,
27, 28, 29, 30, 31
EXP-COMP
ON
LEVEL
-7, -6, -5, -4, -3, -2, -1, 0,
+1, +2, +3, +4, +5, +6, +7
OFF
BLC
ON, OFF
17
MENU SETTINGS
<WHITE BALANCE>
Refer to Page 22
MODE
AUTO
ATW
ONE PUSH
INDOOR
OUTDOOR
MANUAL
R.GAIN
0~255
B.GAIN
0~255
<PAN TILT ZOOM>
Refer to Page 22
PAN/TILT SPEED
1, 2, 3, 4, 5, 6, 7, 8
PAN/TILT LIMIT
ON, OFF
UP -30°~+90°
DOWN
-30°~+90°
LEFT
-170°~+170°
RIGHT
-170°~+170°
D-ZOOM LIMIT
X1, X2, X3, X4, X5, X6, X7,
X8, X9, X10, X11, X12
PTZ TRIG AF
ON, OFF
POWER UP ACTION
PRESET 1, PRESET 2,
PRESET 3, PRESET 4,
PRESET 5, PRESET 6,
PRESET 7, PRESET 8,
PRESET 9, HOME
18
<SYSTEM>
Refer to
Page 24
DISPLAY INFO
ON, OFF
RATIO SPEED
ON, OFF
PRESET FREEZE
ON, OFF
RS485
HALF-DUPLEX-1,HALF-DUPLEX-2,
<STATUS>
Refer to
Page 24
ADDRESS 1
PROTOCOL VISCA
BAUDRATE 9600
FORMAT 1080P50
MOUNT STAND
FIRMWARE VER V1.1.1
<RESTORE DEFAULTS> Refer to Page 24
19
MENU SETTINGS
Menu Explanation
Main Menu
Click MENU button to enter / exit menu.
❶ Menu Title
It displays currently selected menu option.
❷ Menu Options
It displays options under current menu
title.
Click UP or DOWN button to select
among menu options, once color of
options turned to different color, it
indicates the menu has been elected, click
IRIS+ button to get into this menu.
Submenus
From main menu, navigate to select
<EXPOSURE> menu, click IRIS+ to enter.
❶ Menu Title
It displays currently selected menu option.
❷ Menu Options
It displays options under current menu
title.
Click UP or DOWN button to select
among menu options, once color of
options turned to different color, it
indicates the menu has been elected, click
IRIS+ button to get into this menu.
❸ Manual Exposure
Click LEFT or RIGHT button to change
value.
<EXPOSURE>
MODE MANUAL
GAIN 0
SPEED 1/50
IRIS F14
EX-COMP ON
LEVEL 0
BLC OFF
<MENU>
VIDEO
EXPOSURE
WHITE BALANCE
PAN TILT ZOOM
SYSTEM
STATUS
RESTORE DEFAULTS
❶ ❸
❷
❶
❷
20
VIDEO
VIDEO menu is used to change video value.
Available Options:
FORMAT: 1080i50, 720p60, 720p50, 720p30, 720p25, 1080p60, 1080p50, 1080p30, 1080p25,
1080i60.
SHARPNESS: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.
DNR LEVEL: OFF, LOW, MID, HIGH
If camera displays color image, it is suggested to turn off the DNR level, otherwise, the video
trails will be generated. The higher the level is, the better is the noise reduction performance, but
more video trails will be generated.
WIDE DYNAMIC: ON, OFF
EXPOSURE
EXPOSURE menu is used to adjust exposure value.
<EXPOSURE>
MODE MANUAL
GAIN 0
SPEED 1/50
IRIS F14
EXP-COMP ON
LEVEL 0
BLC ON
<VIDEO>
FORMAT 1080i50
SHARPNESS 8
DNR LEVEL OFF
WIDE DYNAMIC OFF
MENU SETTINGS
21
Available Options:
MODE:
FULL AUTO: Gain, Shutter Speed and Iris value are adjusted automatically accordingly to working
environment.
MANUAL: manually adjust Gain, Shutter Speed and Iris
GAIN: -3, 0, +2, +4, +6, +8, +10, +12, +14, +16, +18, +20, +22, +24, +26, +28.
SPEED: 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250,
1/1750, 1/2500, 1/3500, 1/6000, 1/10000s.
IRIS: F14, F11, F9.6, F8, F6.8, F5.6, F4.8, F4, F3.4, F2.8, F2.4, F2, F1.6, CLOSE.
SHUTTER PRI: Gain and Iris value are adjusted automatically according to working environment;
shutter speed value is adjustable manually.
SPEED: 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250,
1/1750, 1/2500, 1/3500, 1/6000, 1/10000s.
IRIS PRI: Gain and shutter speed value are adjusted automatically according to working
environment; Iris value is adjustable manually.
IRIS: F14, F11, F9.6, F8, F6.8, F5.6, F4.8, F4, F3.4, F2.8, F2.4, F2, F1.6, CLOSE.
BRIGHT PRI: manually adjust bright of image.
BRIGHT: 0, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28,
29, 30, 31.
EXP-COMP:once EXP-COMP is set as On, below level options become available -7, -6, -5, -4, -3,
-2, -1, 0, +1, +2, +3, +4, +5, +6, +7. +7 is the maximum compensation value for bright, -7 is the
maximum compensation value for dark.
BLC : ON, OFF
Backlight compensation (BLC) is video gain done automatically to correct the exposure of
subjects that are in front of a bright light source.
22
WHITE BALANCE
WHITE BALANCE menu is used to select from white balance modes. Available options:
MODE: AUTO, ATW(auto tracking), ONE PUSH, INDOOR, OUTDOOR, MANUAL.
“ONE PUSH”:when in “ONE PUSH TRIGGER” mode, aim the camera at a pure white object
(say a white paper), then press OK button.
“MANUAL”mode: R.GAIN and B. GAIN value can be chosen from 0~255.
PAN/TILT/ZOOM
PAN/TILT/ZOOM is used to change pan/tilt/zoom value, available options:
PAN/TILT SPEED: 1, 2, 3, 4,5, 6, 7, 8 the bigger the number is, the faster the speed is. The speed
is the fastest in 1x zoom compared to other zooming times.
High speed: 15°~50°（5°/step）
Low speed: 4°~11°（1°/step）
PAN/TILT LIMIT: ON/OFF, once it is set as ON, below limit value can be set
UP: -30°~+90°, adjustable 1°/step;
DOWN: -30°~+90°, adjustable 1°/step;
<PAN TILT ZOOM>
PAN/TILT SPEED 8
PAN/TILT LIMIT ON
UP +90
DOWN -30
LEFT +150
RIGHT -150
D-ZOOM LIMIT X4
PTZ TRIG AF ON/OFF
POWER UP ACT HOME
< WHITE BALANCE>
MODE MANUAL
R.GAIN 1
B.GAIN 128
MENU SETTINGS
23
LEFT: -170°~+170°, adjustable 1°/step;
LIGHT: -170°~+170°, adjustable 1°/step.
D-ZOOM LIMIT: X1, X2, X3, X4, X5, X6, X7, X8, X9, X10, X11, X12.
PTZ TRIG AF: Turn ON / OFF the auto focus when the camera pans / tilts / zooms.
POWER UP ACT: PRESET 1, PRESET 2, PRESET 3, PRESET 4, PRESET 5, PRESET 6,
PRESET 7, PRESET 8, PRESET 9, HOME.
SYSTEM
DISPLAY INFO: Turn ON / OFF display of pan / tilt angle and prompt message.
RATIO SPEED: When RATIO SPEED is set as ON, the camera’s pan and tilt speeds are based on
zooming times, that is, more zooming, less pan and tilt speed; less zooming, more pan and tilt
speed.
PRESET FREEZE: When it is on, during a regular preset call, the video will be frozen at point A till
Point B. At Point B, the video will be displayed normally.
RS485: HALF-DUPLEX-1, HALF-DUPLEX-2
FULL-DUPLEX:RS422 full duplex mode, connecting R + , R-, T + , T- interface of the camera to
control devices.
HALF-DUPLEX-1:RS485 half duplex mode, in VISCA protocol, after executing the command
message, the camera does not return confirmation / completion / error messages.
<SYSTEM>
DISPLAY INFO OFF
RATIO SPEED ON
PRESET FREEZE OFF
RS422 HALF-DUPLEX-1
24
STATUS
It displays current camera’s address, protocol, baud rate, video format and firmware version
number.
RESTORE DEFAULTS
RESTORE DEFAULTS option is used to reset all menus to default value. Press OK to confirm or
press to cancel and return to previous menu.
< RESTORE DEFAULTS>
PRESS OK CONFIRM
PRESS BACK CANCEL
< STATUS>
ADDRESS 1
PROTOCOL VISCA
BAUD RATE 2400
FORMAT 1080P50
FIRMWARE VER V1.1.0
ANNEX 1 TECHNICAL SPECIFICATIONS
25
ANNEX 1 TECHNICAL SPECIFICATIONS
MODEL
LTC-S2007
LENS
Tracking Camera
Image Sensor
1/2.8” Exmor CMOS, 2.14MP
Lens
4.7mm-94mm
Iris
F1.6-F3.5
Optical Zoom
20X
Digital Zoom
12X
Angle of view
55.4°-3.3°(1080P)
Focus
Auto/Manual/One push trigger
Min.Illumination
0.1 lux (30FPS), 0.2 lux (60FPS)
Shutter
1/1 ~ 1/10,000 sec
Gain
Auto/Manual
White Balance
Auto, Indoor, Outdoor, One push, Manual, ATW
Exposure
Auto, Manual, Shutter Priority, Iris Priority, Bright Priority
S/N Ratio
Not less than 50DB
Full-view Camera
Image Sensor
1/3" CMOS
Effective Pixels
2.1MP
White Balance
Auto
Exposure
Auto
Focus
Manual
focal distance
3.73mm
Angle of view
Horizontal:92°, Vertical:50°
PTZ
Pan Range
-170°~+170°
Tilt Range
-30°~+90°
Pan Speed
0.1°~160°/s
Tilt Speed
0.1°~120°/s
Preset Number
256
Comm. Port
RS-485，RS-232
Debug Interface
100M/1000M (RJ45)
Protocol
PELCO-D/P,VISCA
Video
Video Input
HD-SDI (2 Channel)
Video Format
1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60,
26
720p/50
Genral
OSD
Yes
Power Input
DC12V
Power
Consumption
<20W
Working Temp
0℃~+40℃
Storage Temp
-20°C~+60
Dimensions
225mm×163mm×212mm
Weight
1.96KG
Color
Grey
ANNEX 2 SIZE AND DIMENSION
27
ANNEX 2 SIZE AND DIMENSION
Front
Top
Rear
Side
Bottom
28
TROUBLESHOOTING
Problem
Possible Cause
Solution
No action or image
after powered on
Power supply failure
Check power supply
Power adapter damaged
Replace power adapter
Power cable connection got loosen
Check & reconnect
No self-testing after
powered on, or with
motor noise
Not enough power supply
Check & reconnect power cable
connection
Mechanical failure
Repair
Not controllable from
remote controller
Low battery of remote controller
Change battery for remote controller
Exceed remote control distance
Control within distance of 8M
After power on,
self-test
successfully, but not
controllable
Wrong address / protocol / baud rate
Check & set again
Wrong connection or short circuit of
RS-485/RS422 or RS-232 cable
Check & reconnect
Video loss when
pans / tilts / zooms
Not enough power supply
Check & reconnect power cable
Video cable not properly connected
Replace with a good video cable
Video captured after
connected to digital
video interface of a
capture device is not
good as the video
captured after
connected directly
analog video
interface of the
capture device
Different video capture devices have
different video capturing
performance, image quality maybe
worse after it has been converted
from analog to digital
Consult video capture device
supplier for more information
Loading...
