Lectrosonics ZS-LRLT-A1, ZS-LRLT-C1 User manual

LT
Synthesized UHF Belt-Pack Transmitter
Featuring
Digital Hybrid Wireless Technology
US Patent 7,225,135
®
INSTRUCTION MANUAL
Quick Start Steps
1) Install good batteries and turn power on (see pages 6 and 7).
2) Set the compatibility mode to match the receiver (see page 10).
3) Connect the signal source and adjust input gain for optimum modulation level (see pages 10 and 11).
4) Set Step Size and frequency to match receiver (see page 11). Also see receiver manual for scan­ning procedure to find a clear operating frequency.
5) Turn on the receiver and verify that solid RF and audio signals are present (see receiver manual).
Fill in for your records:
Serial Number:
Purchase Date:
LT
2
LECTROSONICS, INC.
Table of Contents
Introduction ........................................................................... 4
Battery Installation ............................................................... 6
Belt Clips ............................................................................... 6
IR (infrared) Sync .................................................................. 6
Operating Instructions ......................................................... 7
Battery Status LED Indicator .............................................. 7
Powering On in Operating Mode ......................................... 7
Powering On in Standby Mode ........................................... 8
Powering Off ....................................................................... 8
Navigating Menus ............................................................... 8
Adjusting LCD Backlight ..................................................... 8
RF ON/OFF on the Menu .................................................... 8
Power Menu ........................................................................ 8
Locking/Unlocking Changes to Settings.............................. 9
Selecting Programmable Switch Functions......................... 9
Main Window Indicators ...................................................... 9
Selecting the Compatibility (Compat) Mode ........................ 10
Connecting the Signal Source ............................................ 10
Using Line Level and Instrument Inputs ............................. 10
Selecting the Low Frequency Roll-off ................................. 10
Adjusting the Input Gain ...................................................... 11
Selecting Step Size ............................................................. 11
Selecting Frequency ........................................................... 11
Selecting Frequency Using Two Buttons ............................. 12
Helpful Features on Receivers ............................................ 12
About Overlapping Frequency Blocks ................................. 12
Selecting Audio Polarity (Phase) ......................................... 12
Selecting Battery Type ........................................................ 12
Enabling Remote Control .................................................... 13
Setting Transmitter Output Power ....................................... 13
Restoring Default Settings .................................................. 13
IR Sync Operation ............................................................... 13
5-Pin Input Jack Wiring ........................................................ 14
Microphone Cable Termination
for Non-Lectrosonics Microphones ............................. 15
Input Jack Wiring for Different Sources ............................. 16
Compatible Wiring for Both Servo Bias Inputs
and Earlier Transmitters: ..................................................... 16
Simple Wiring for Servo Bias Inputs ONLY: ......................... 16
Microphone RF Bypassing .................................................. 17
Line Level Signals ............................................................... 17
Accessories .......................................................................... 18
Troubleshooting .................................................................... 19
Specifications and Features ................................................ 20
Service and Repair ............................................................... 22
Returning Units for Repair .................................................. 22
Digital Hybrid Wireless Belt-Pack Transmitter
Consumer Alert for US Users - FCC Order DA 10-92
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this micro­phone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless mi­crophone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones. To operate wireless microphone systems at power greater than 50mW, you must qualify as a Part 74 user and be licensed. If you qualify and wish to apply for a license go to: http://www.fcc.gov/Forms/Form601/601.html
Rio Rancho, NM
3
LT
Introduction
The design of the LT transmitter delivers the advanced technology and features of Digital Hybrid Wireless® in a Lectrosonics belt-pack transmitter at a modest cost. Digital Hybrid Wireless® combines a 24-bit digital audio chain with an analog FM radio link to eliminate a compandor and its artifacts, yet preserve the extended operating range and noise rejection of the finest analog wireless systems. DSP “compatibility modes” allow the LT to also be used with a variety of analog receivers by emulating the compandors found in earlier Lectrosonics analog wireless and IFB receivers, and certain receiv­ers from other manufacturers (contact the factory for details).
The housing is a rugged, machined aluminum package with removable, stainless steel wire belt clip. The input jack is a standard Lectrosonics 5-pin type for use with electret lavaliere mics, dynamic mics, musical instru­ment pickups and line level signals. The LEDs on the top panel allow quick and accurate level settings without having to view the receiver. The unit is powered by two AA batteries. The antenna port uses a standard 50 ohm SMA connector. Straight and hinged whip antennas are available.
The switching power supplies in the LT provide constant voltages to the transmitter circuits from the beginning to the end of battery life, with output power remaining constant over the life of the battery. The input amplifier uses an ultra low noise op amp. Input gain is adjustable over a 44 dB range, with a DSP-controlled dual enve­lope input limiter that will cleanly handle signal peaks over 30 dB above full modulation.
About Digital Hybrid Wireless
All wireless links suffer from channel noise to some degree, and all wireless microphone systems seek to minimize the impact of that noise on the desired signal. Conventional analog systems use compandors for enhanced dynamic range, at the cost of subtle artifacts (known as “pumping” and “breathing”). Wholly digital systems defeat the noise by sending the audio informa­tion in digital form, at the cost of some combination of power, bandwidth, operating range and resistance to interference.
The Lectrosonics Digital Hybrid Wireless system over­comes channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded informa­tion via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique which can be accomplished only in the digital domain.
Since the RF link between transmitter and receiver is FM, channel noise will increase gradually with in­creased operating range and weak signal conditions, however, the Digital Hybrid Wireles system handles this situation elegantly with rarely audible audio artifacts as the receiver approaches its squelch threshold.
®
In contrast, a purely digital system tends to drop the audio suddenly during brief dropouts and weak signal conditions. The Digital Hybrid Wireless system simply encodes the signal to use a noisy channel as efficiently and robustly as possible, yielding audio performance that rivals that of purely digital systems, without the power, noise and bandwidth problems inherent in digital transmission. Because it uses an analog FM link, Digital Hybrid Wireless enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and long battery life.
Frequency Agility
Frequency selection is provided in 100 kHz or 25 kHz steps with up to 3072 channels available covering three standard Lectrosonics 25.6 MHz blocks. Frequencies are displayed on the LCD in MHz and in a hex code used with earlier Lectrosonics equipment.
Wide-Band Deviation
Deviation has a direct effect on the dynamic range and signal to noise ratio of an FM system. The greater the deviation, the wider the dynamic range and the better the signal to noise ratio. In the Digital Hybrid Wireless mode, the system operates with a maximum of +/-75 kHz of deviation. The resulting 180 kHz of occupied bandwidth just fits inside the government specified spectral mask of 200 kHz. In order to make this pos­sible, an advanced, DSP-controlled limiter is used to prevent signal peaks from exceeding the maximum allowed bandwidth, but not cause distortion.
The result of all this is that the audio quality is outstand­ing, rivaling a hard-wired microphone. The system deliv­ers a very wide dynamic range, and can handle loud signal peaks without distortion.
Servo Bias Input and Wiring
The LT input preamp is a unique design that delivers audible improvements over conventional transmitter inputs. The transmitters are easier to use and much harder to overload. It is not necessary to introduce pads on some mics to prevent overload of the input stage, divide the bias voltage down for some low voltage mics, or reduce the limiter range at minimum gain settings.
Two different microphone wiring schemes are available to simplify and standardize the configuration. Simpli­fied 2-wire and 3-wire configurations provide several arrangements designed for use only with servo bias inputs to take full advantage of the preamp circuitry. Other wiring schemes are compatible with Servo Bias and conventional inputs.
A line level input wiring provides an extended frequency response with an LF roll-off at 35 Hz for use with instru­ments and line level signal sources.
4
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
DSP-controlled Input Limiter
The transmitter employs a digitally-controlled analog audio limiter prior to the analog-to-digital converter. The limiter has a range greater than 30 dB for excellent overload protection. A dual release envelope makes the limiter acoustically transparent while maintaining low distortion. It can be thought of as two limiters in series, connected as a fast attack and release limiter followed by a slow attack and release limiter. The limiter recovers quickly from brief transients, so that its action is hidden from the listener, but recovers slowly from sustained high levels to keep audio distortion low and preserve short term dynamic changes in the audio.
No Pre-Emphasis/De-Emphasis
Because the signal to noise ratio of the Digital Hybrid Wireless system is so high, there is no need for con­ventional pre-emphasis (HF boost) in the transmitter and de-emphasis (HF roll off) in the receiver. Thus, the potential distortion problems associated with pre-em­phasis and de-emphasis are eliminated.
LT Block Diagram
Input Jack
+5V
Shunt
Limiter
Input
Preamp
Servo Bias
Supply
Gain
Adj
Bias Voltage
0, 2 or 4V
HI/Lo Pass Filter
Limiter Control
AUDIO
A-D
Converter
I2S
Pilot Tone Squelch
The squelch system in a receiver is a method of muting the audio when the RF signal conditions are too poor to produce usable audio. While not all squelch systems work the same way, the goal is always the same: to discard noise and unusable audio.
The Digital Hybrid Wireless system employs a DSP­generated supersonic tone (pilot tone), using it as a kind of signature, so the receiver can mute even strong signals that aren’t from the appropriate transmitter. The pilot tone also helps to ensure that the receiver is quiet when the transmitter is turned on and off.
256 different pilot tones provide reliable operation in multi-channel wireless systems. A different tone is generated every 100 kHz across the tuning range of the system, so that a tone is not repeated until it is 25.6 MHz above or below the previous one.
D-A
Converter
I2S
Encoded Audio and Pilot Tone
(2) AA
Batteries
LT Transmitter
Buffer Amp
and Filter
Switching
Power
Supply
Rio Rancho, NM
DSP Clock
Oscillator
Oscillator
Bicolor
Modulation
LEDs
Micro Clock
PLL Ref
Microprocessor
Phase Locked Loop
Keypad
Voltage Controlled
Control
Oscillator
Tr icolor
Power
LED
AUDIO
Driver
Final
Amplifier
Filters
(3)
5
LT
Battery Installation
The transmitter is powered by two AA batteries. We recommend using alkaline, lithium, or rechargeable batteries for longest life. Standard zinc-carbon batteries marked “heavy-duty” or “long-lasting” are not adequate.
The battery status circuitry compensates for the differ­ence in voltage drop between alkaline and lithium bat­teries across their usable life, so it’s important to select the correct battery type in the menu.
Because rechargeable batteries run down quite abrupt­ly, using the Power LED to verify battery status will not be reliable. However, it is possible to track battery status using the battery timer function available in Lectroson­ics Digital Hybrid Wireless receivers.
Push outward on the battery compartment door and lift it to open.
If the batteries are inserted incorrectly, the door will close but the unit will not operate.
The battery contacts can be cleaned with alcohol and a cotton swab, or a clean pencil eraser. Be sure not to leave any remnants of the cotton swab or eraser crumbs inside the compartment.
Contact springs
Insert the batteries according to the markings on the back of the housing.
Belt Clips
The wire belt clip may be removed by pulling the ends out of the holes in the sides of the case. Use pliers to grasp the wire and avoid scratching the surface of the housing. Pliers also help when installing the clip.
An optional spring-loaded, hinged belt clip (model num­ber BCSLEBN) is also available. This clip is attached by removing the plastic hole cap on the back of the hous­ing and mounting the clip with the supplied screw.
IR (infrared) Sync
The opening on the keypad is an IR port for quick setup using a receiver with this function available. IR Sync will transfer the settings for frequency, step size and compatibility mode from the receiver to the transmitter. Refer to your page 13 of this manual and to the receiver manual for details.
IR Port
5
A
623.400
-40
-20
0
NOTE: If a mismatch exists between the receiver and transmitter, an error message will appear on the transmitter LCD stating what the problem is. See page 13 for more information.
6
LECTROSONICS, INC.
Operating Instructions
Digital Hybrid Wireless Belt-Pack Transmitter
Modulation
Indicators
Antenna
Port
Power/Function
-10
AUDIO
-20
mounting hole
Compartment
LED
PWR/FUNC
Battery
Status LED
Belt clip
Battery
Door
Programmable
Function Switch
Audio
Input
Jack
5
A
623.400
-40
Full access to all settings is provided through the key­pad and LCD. The transmitter can also be configured as a “one button” device by locking the ability to make changes with the keypad, and configuring the top panel switch as either power on/off or a mute function.
Belt clip
mounting hole
-20
0
USB Port
Battery Status LED Indicator
Alkaline, lithium or rechargeable batteries can be used to power the transmitter. The type of batteries in use are selectable in a menu on the LCD.
When alkaline or lithium batteries are being used, the LED labeled BATT on the keypad glows green when the batteries are good. The color changes to red when the they are nearing the end of life. When the LED begins to blink red, there will be only a few minutes remaining.
The Power/Function LED on the top panel will mirror the keypad LED unless the programmable switch is set to the Mute or Talkback mode, and the switch is turned on.
The exact point at which the LEDs turn red will vary with battery brand and condition, temperature and power consumption. The LEDs are intended to simply catch your attention, not to be an exact indicator of remaining time.
A weak battery will sometimes cause the LED to glow green immediately after the transmitter is turned on, but it will soon discharge to the point where the LED will turn red or the unit will turn off completely.
Rechargeable batteries give little or no warning when they are depleted. If you wish to use these batteries in the transmitter, you will need to manually keep track of the operating time to prevent interruptions caused by dead batteries. Start with a fully charged battery, then measure the time it takes for the Power LED to go out completely.
NOTE: The battery timer feature in many Lectrosonics receivers is very helpful in measuring battery runtime when using rechargeable batteries. Refer to the receiver instructions for details on using the timer.
Powering On in Operating Mode
Press and hold the Power Button for several seconds until a counter on the LCD progresses from 1 through 3, followed by a display of the model, firmware version, frequency block and compatibility mode.
Hold for Rf On
...3
LT V1.02 Blk. A1 Hybrid
When you release the button, the unit will be operation­al with the RF output turned on and the Main Window displayed. Only the second and third screens will ap­pear when the programmable function switch is used to turn on the power.
b 19
5
1
494.500
-40
-20
0
Rio Rancho, NM
7
LT
Powering On in Standby Mode
A brief press of the Power Button , releasing it before the counter has reached 3, will turn the unit on with the RF output turned off. In this Standby Mode the menus can be browsed to make settings and adjustments with­out the risk of interfering with other wireless systems nearby.
Hold for Rf On
...1
After settings and adjustments are made, press the power button again to turn the unit off.
NOTE: Also see the section entitled Power Menu for the AutoOn feature.
Release Power
Button before
the counter
reaches 3 to
enter standby
mode
RF indicator blinks
b 19
5
1
494.500
-40
-20
0
Powering Off
Powering O . . .
1
If the power button is released, or the top panel switch is turned back on again before the countdown is com­pleted, the unit will remain turned on and the LCD will return to the same screen or menu that was displayed previously.
NOTE: If the programmable switch is in the OFF position, power can still be turned on with the power button. If the programmable switch is then turned on, a brief message will appear on the LCD.
From any screen, power can be turned off by selecting Pwr Off in the power menu, holding the Power Button in and waiting for the countdown, or with the program­mable switch (if it is configured for this function).
Navigating Menus
The LCD and keypad interface makes it easy to browse the menus and make the selections for the setup you need. When the unit is powered up in either the oper­ating or the standby mode, press MENU/SEL on the keypad to enter a menu structure on the LCD. Use the
and arrow buttons to select the menu item. Then
press the MENU/SEL button to enter the menu.
Gain
LineIn Freq. ProgSw
Gain
-40
-20
25
0
Adjusting LCD Backlight
For viewing the LCD in dimly lit conditions, the backlight can be turned on continuously or set to turn off auto­matically after either 30 seconds or 5 minutes.
Locked
Backlit
Rf On? BatType
Backlit
On 30 sec 5 min
RF ON/OFF on the Menu
The RF output of the transmitter can be turned off and on with a menu item on the LCD to switch from the standby mode to the operating mode.
Locked
Rf On?
Backlit
Rf On?
BatType
No Ye s
Power Menu
Pressing the power button when the unit is turned on will display a menu with several options:
• Resume - returns to the previous mode and screen
• Rf On? - enters a screen to enable the operating or
standby modes
• AutoOn? - allows the unit to automatically power back up after a power failure or when new batteries are installed (works in the operating mode only)
• Pwr Off - turns the unit off irrevocably
Resume
Rf On? AutoOn? Pwr Off
The other two menu items will open a screen asking for a Yes or No answer.
Resume
Rf On?
AutoOn? Pwr Off
Resume Rf On? AutoOn?
Pwr Off
Rf On?
No Ye s
Resume and Pwr Off
will execute
the command
immediately
The prompt in the upper right corner may
display one or both arrows, depending upon
what adjustment can be made. If the changes
are locked, a small padlock symbol will appear.
Resume Rf On?
AutoOn?
Pwr Off
8
AutoOn?
No Ye s
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Locking/Unlocking Changes to Settings
Changes to the settings can be locked.
Locked
Backlit Rf On? BatType
A small padlock symbol will appear on adjustment
Locked?
No Ye s
screens when changes have been locked.
Gain
-40
-20
25
0
When changes are locked, several controls and actions can still be used:
• Settingscanstillbeunlocked
• Menuscanstillbebrowsed
• Programmableswitchstillworks
• Powercanstillbeturnedoffbyusingthepower
menu or removing the batteries.
Selecting Programmable Switch Functions
The programmable switch on the top panel can be con­figured using the menu to provide several functions:
• Power - turns the power on and off
• Mute - mutes the audio when switched on
• TalkBk (talkback) - redirects the audio to a different
output channel on the receiver (with receivers that offer this function)
• (none) - disables the switch
Gain LineIn Freq.
ProgSw
ProgSw
Power
ProgSw
Mute
Main Window Indicators
The Main Window displays the block number, Standby or Operating mode, operating frequency, audio level, battery status and programmable switch function. When the frequency step size is set at 100 kHz, the LCD will look like the following.
Block number
b 19
Frequency
(hex number)
51
494.500
Frequency (MHz)
-40
Audio level
When the frequency step size is set to 25 kHz, the hex number will appear smaller and may include a fraction.
1/4 = .025 MHz
1/2 = .050 MHz
3/4 = .075 MHz
b 19
51
494.525
-40
Changing the step size never changes the frequency. It only changes the way the user interface works. If the frequency is set to a fractional increment between even 100 kHz steps and the step size is changed to 100 kHz, the hex code will be replaced by two asterisks on the main screen and the frequency screen.
Frequency set to fractional 25 kHz step,
but step size changed to 100 kHz.
b 19
MUTE
Freq.
494.525
Operating mode
MUTE
-20
0
Fraction
1
MUTE
4
-20
b 19
Battery status
Programmable
switch function
Note that the
frequency has
increased by 25
kHz from the upper
example.
0
ProgSw
TalkBk
NOTE: The programmable switch will continue to operate whether or not keypad changes are locked.
Rio Rancho, NM
ProgSw
Mute
Use the and
arrow buttons to
select the desired
function or disable
the switch
-40
-20
0
494.525
If the programmable switch function is set for Mute, the Main Window will indicate that the function is enabled.
b 19
51
MUTE
Mute function
enabled but
not active
494.500
-40
-20
0
When the switch is turned on, the mute icon appear­ance will change, the word MUTE will blink at the bot­tom of the display, and the power/function LED will blink blue.
9
LT
b 19
MUTE
51
494.500
<–MUTE–>
If the programmable switch function is set for Talkback, the Main Window will indicate that the function is en­abled but not active.
Main Window will blink
the word MUTE when
the audio is muted
Top Panel LED will
blink blue when the
audio is muted
PWR/FUNC
AUDIO
-10
-20
b 19
51
TB
494.500
-40
-20
0
When the programmable switch is turned on, the talk­back icon appearance will change and the power/func­tion LED will glow blue.
b 19
51
TB
494.500
-40
-20
0
Talkback
function is
enabled but
not active
The TB icon will
change when
Talkback is active
Top Panel LED will
glow blue when
Talkback is active
PWR/FUNC
AUDIO
-10
-20
Selecting the Compatibility (Compat) Mode
When used with a Lectrosonics Digital Hybrid Wireless® receiver, the best audio quality will be achieved with the system set to the Hybrid compatibility mode.
Rolloff
Compat
StepSiz Phase
Use the UP and DOWN arrows to select the desired mode, then press the BACK button twice to return to the Main Window.
Compatibility modes are as follows:
Receiver Models LCD menu item
• 100Series: 100Mode
• 200Series: 200Mode
• Mode3:* Mode3
• DigitalHybridWireless®: Hybrid
• IFBSeries: IFBMode
• Mode6:* Mode6
• Mode7:* Mode7
10
Compat
Hybrid
100 Series works with Lectrosonics UCR100 analog receivers.
200 Series works with Lectrosonics earlier UCR201/205/210D/211 and UCR195 analog receivers with dual band compandors.
Mode 3* works with certain non-Lectrosonics models.
Digital Hybrid Wireless® works with all Lectrosonics
Digital Hybrid receivers. The receiver must also be set to the Digital Hybrid compatibility mode.
IFB Series works with Lectrosonics IFB R1/R1a analog receivers.
Mode 6* works with certain non-Lectrosonics models.
Mode 7* works with certain non-Lectrosonics models.
*Contactthefactoryfordetailsofthesemodes
Connecting the Signal Source
Microphones, line level audio sources and instruments can be used with the transmitter. Refer to the section entitled Wiring Hookups for Different Sources for details on the correct wiring for line level sources and microphones to take full advantage of the Servo Bias circuitry.
Using Line Level and Instrument Inputs
Two types of high levels signals can be used with the transmitter:
• Line Used with line level outputs from recorders, mixers and other audio devices.
• Instr. (instrument) A special type of high imped- ance input with an active preamp for an optimal match with instrument pickups.
Gain
LineIn
LineIn
LineIn
Freq. ProgSw
The wiring of the connector is the same for both types of inputs.
Line Instr.
Line Instr.
Selecting the Low Frequency Roll-off
Low frequency audio content may be desirable or distracting, so the point at which the roll-off takes place can be set to 35, 50, 70, 100, 120 and 150 Hz.
Rolloff
Compat StepSiz Phase
Rolloff
70 Hz
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Adjusting the Input Gain
The two bicolor Modulation LEDs on the control panel provide a visual indication of the audio signal level entering the transmitter. The LEDs will glow either red or green to indicate modulation levels as shown in the following table.
Signal Level -20 LED -10 LED
Less than -20 dB Off Off
-20 dB to -10 dB Green Off
-10 dB to +0 dB Green Green
+0 dB to +10 dB Red Green
Greater than +10 dB Red Red
NOTE: Full modulation is achieved at 0 dB, when the “-20” LED first turns red. The limiter can cleanly handle peaks up to 30 dB above this point.
It is best to go through the following procedure with the transmitter in the standby mode so that no audio will en­ter the sound system or recorder during adjustment.
1) With fresh batteries in the transmitter, power the unit on in the standby mode (see previous section Powering On in Standby Mode).
2) Navigate to the Gain setup screen.
Selecting Step Size
This menu item allows frequencies to be selected in either 100 kHz or 25 kHz increments.
Rolloff
StepSiz
StepSiz
Compat
StepSiz
Phase
If the desired frequency ends in .025, .050 or .075 MHz, the 25 kHz step size must be selected.
Normally, the receiver is used to find a clear operat­ing frequency. All Lectrosonics Digital Hybrid Wireless® receivers provide a scanning function to quickly and easily find prospective frequencies with little or no RF interference. In other cases, a frequency may be speci­fied by officials at a large event such as the Olympics or a major league ball game. Once the frequency is determined, set the transmitter to match the associated receiver.
100 kHz 25 kHz
100 kHz 25 kHz
Selecting Frequency
The setup screen for frequency selection offers several ways to browse the available frequencies.
Gain
LineIn
Gain
25
Freq. ProgSw
3) Prepare the signal source. Position a microphone the way it will be used in actual operation and have the user speak or sing at the loudest level that oc­cur during use, or set the output level of the instru­ment or audio device to the maximum level that will be used.
4) Use the and arrow buttons to adjust the gain until the –10 dB glows green and the –20 dB LED starts to flicker red during the loudest peaks in the audio.
5) Once the audio gain has been set, the signal can be sent through the sound system for overall level adjustments, monitor settings, etc.
6) If the audio output level of the receiver is too high or low, use only the controls on the receiver to make adjustments. Always leave the transmitter gain ad­justment set according to these instructions, and do not change it to adjust the audio output level of the receiver.
-40
-20
0
Gain LineIn
Freq.
ProgSw
Each field will step through the available frequencies in a different increment. The increments are also different in the 25 kHz mode from the 100 kHz mode.
Freq.
b 19
494.500
51
Press MENU/ SEL to select
one of four
fields to make
adjustments
Freq.
b 19
51
494.500
These two fields step in 25 kHz
increments when the step size is 25
Freq.
kHz and 100 kHz increments when
the step size is 100 kHz.
b 19
51
494.500
Freq.
b 19
51
These two fields
always step in the
same increments
1 block steps
Freq.
b 19
51
Rio Rancho, NM
494.500
1 MHz steps
494.500
11
LT
A fraction will appear next to the hex code in the setup screen and in the main window when the frequency ends in .025, .050 or .075 MHz.
Freq.
b 19
494.525
51
Fraction appears
next to hex code
1 4
in 25 kHz mode
b 19
1
MUTE
51
4
494.525
-40
-20
Selecting Frequency Using Two Buttons
Hold the MENU/SEL button in, then use the and arrow buttons for alternate increments.
1 block steps
1.6 MHz steps to nearest 100 kHz
channel
100 kHz steps
to next 100 kHz
channel
1 block steps
10 MHz steps
100 kHz Mode
Freq.
b 19
51
494.500
25 kHz Mode
Freq.
b 19
1.6 MHz steps
1
51
10 MHz steps
494.525
If the Step Size is 25 kHz with the frequency set be­tween even 100 kHz steps and the Step Size is then changed to 100 kHz, the mismatch will cause the hex code to display as two asterisks.
Freq.
b 19
Step Size and
Frequency
mismatch
**
494.500
4
100 kHz steps
b 19
MUTE
494.525
-40
-20
0
Helpful Features on Receivers
To aid in finding clear frequencies, several Lectrosonics receivers offer a SmartTune feature that scans the tun- ing range of the receiver and displays a graphical report that shows where RF signals are present at different levels, and areas where there is little or no RF energy present. The software then automatically selects the best channel for operation.
Lectrosonics receivers equipped with an IR Sync func­tion allow the receiver to set frequency, step size and compatibility modes on the transmitter via an infrared link between the two units.
About Overlapping Frequency Blocks
When two frequency blocks overlap, it is possible to select the same frequency at the upper end of one and the lower end of the other. While the frequency will be the same, the pilot tones will be different, as indicated by the hex codes that appear.
In the following examples, the frequency is set to
0
494.500 MHz, but one is in block 470 and the other in block 19. This is done intentionally to maintain compat­ibility with receivers that tune across a single block. The block number and hex code must match the receiver to enable the correct pilot tone.
Freq.
b 19
51
494.500
Freq.
b470
494.500
block number and
the receiver setting
F4
Make sure the
hex code match
Selecting Audio Polarity (Phase)
Audio polarity can be inverted at the transmitter so the audio can be mixed with other microphones without comb filtering. The polarity can also be inverted at the receiver outputs.
Rolloff
Phase
Compat StepSiz
Phase
Pos. Neg.
Selecting Battery Type
The voltage drop over the life of different batteries var­ies by type and brand. Be sure to set the correct battery type for accurate indications and warnings. The menu offers alkaline or lithium types.
Locked Backlit Rf On?
BatType
If you are using rechargeable batteries, it is better to use the timer function on the receiver to monitor the battery life rather than the indicators on the transmitter. Rechargeable batteries maintain a fairly constant volt­age across the operating time on each charge and stop working abruptly, so you will have little or no warning as they reach the end of operation. The timer is available on all Lectrosonics Digital Hybrid Wireless® receivers.
BatType
Alk. Lith.
12
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Enabling Remote Control
Transmitter settings can be configured using special tones generated by Lectrosonics RM or RM2 remote control units, or by a smartphone using a remote control application such as Lectro RM (available on the Ap­pStore or Google Play). Enable this feature on the transmitter with the following menu items.
BatType
Remote
Remote
TxPower Default
The following settings can be configured:
• TxInputGain
• Sleep/Unsleep
• Lock/Unlock
• Txpoweroutput
• Frequency
Enable Ignore
Setting Transmitter Output Power
The output power can be set to 50 mW or 100 mW.
BatType Remote
TxPower
Default
TxPower
50 mW 100 mW
IR Sync Operation
A Lectrosonics receiver with IR Sync capability can transfer the settings for Frequency, Step Size and Com­patibility mode to the transmitter via the IR ports. The transfer is triggered by a switch in the receiver. When the settings are successfully transferred, an confirma­tion will appear on the transmitter LCD.
IR Sync
OK
If a mismatch exists and the transfer cannot be com­pleted, an error message will appear on the transmitter LCD indicating what the problem is.
IR Sync
BLOCK Mismatch
BLOCK Mismatch indicates that the transmitter and receiver are on different frequency blocks and the frequency cannot be set to match. COMPAT Mismatch will appear when the compatibility mode in the receiver is not available in the transmitters; for example, when you are trying to sync a US model to work an export model.
IR Sync
COMPAT Mismatch
Restoring Default Settings
This is used to restore the factory settings.
BatType Remote TxPower
Default
Default settings
No Ye s
Rio Rancho, NM
13
LT
10k
1k
5
4
3
2
1
To Audio Amplifier
5V SOURCE
MIC
VOLTAGE SELECT
LINE IN
GND
+
15uF
+5 VDC
Servo Bias
Pin 4 to Pin 1 = 0 V
Pin 4 Open = 2 V
Pin 4 to Pin 2 = 4 V
+
To Limiter Control
30uF
500 Ohm
100 Ohm
2.7K
200 Ohm
+
3.3uF
5-Pin Input Jack Wiring
The wiring diagrams included in this section represent the basic wiring necessary for the most common types of microphones and other audio inputs. Some micro­phones may require extra jumpers or a slight variation on the diagrams shown.
It is virtually impossible to keep completely up to date on changes that other manufacturers make to their products, thus you may encounter a microphone that differs from these instructions. If this occurs please call our toll-free number listed under Service and Repair in this manual or visit our web site at:
www.lectrosonics.com
Backshell with
strain relief
Audio input jack wiring:
PIN 1 Shield (ground) for positive biased electret lavaliere microphones. Shield (ground) for dynamic microphones and line level inputs.
PIN 2 Bias voltage source for positive biased electret lavaliere microphones that are not using servo bias circuitry and voltage source for 4 volt servo bias wiring.
PIN 3 Microphone level input and bias supply.
PIN 4 Bias voltage selector for Pin 3. Pin 3 voltage depends on Pin 4 connection.
Pin 4 tied to Pin 1: 0 V Pin 4 Open: 2 V Pin 4 to Pin 2: 4 V
PIN 5 Line level input for tape decks, mixer outputs, musical instruments, etc.
Remove strain relief
if using dust boot
Dust boot (35510)
TA5F Latchlock
Insert
Insulator
Cable clamp
Backshell
without strain
relief
Note: If you use the dust boot, remove the rubber strain relief that is attached to the TA5F cap, or the boot will not fit over the assembly.
Installing the Connector:
1) If necessary, remove the old connector from the microphone cable.
2) Slide the dust boot onto microphone cable with the large end facing the connector.
3) If necessary, slide the 1/8-inch black shrink tubing onto the mircrophone cable. This tubing is needed for some smaller diameter cables to ensure there is a snug fit in the dust boot.
4) Slide the backshell over the cable as shown above. Slide the insulator over the cable before soldering the wires to the pins on the insert.
5) Solder the wires and resistors to the pins on the insert according to the diagrams shown in Wiring Hookups for Different Sources. A length of .065 OD clear tubing is included if you need to insulate
14
the resistor leads or shield wire.
6) If necessary, remove the rubber strain relief from the TA5F backshell by simply pulling it out.
7) Seat the insulator on the insert. Slide the cable clamp over the and of the insulator and crimp as shown on the next page.
8) Insert the assembled insert/insulator/clamp into the latchlock. Make sure the tab and slot align to allow the insert to fully seat in the latchlock. Thread the backshell onto the latchlock.
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
0.3"
Microphone Cable Termination for Non-Lectrosonics Microphones

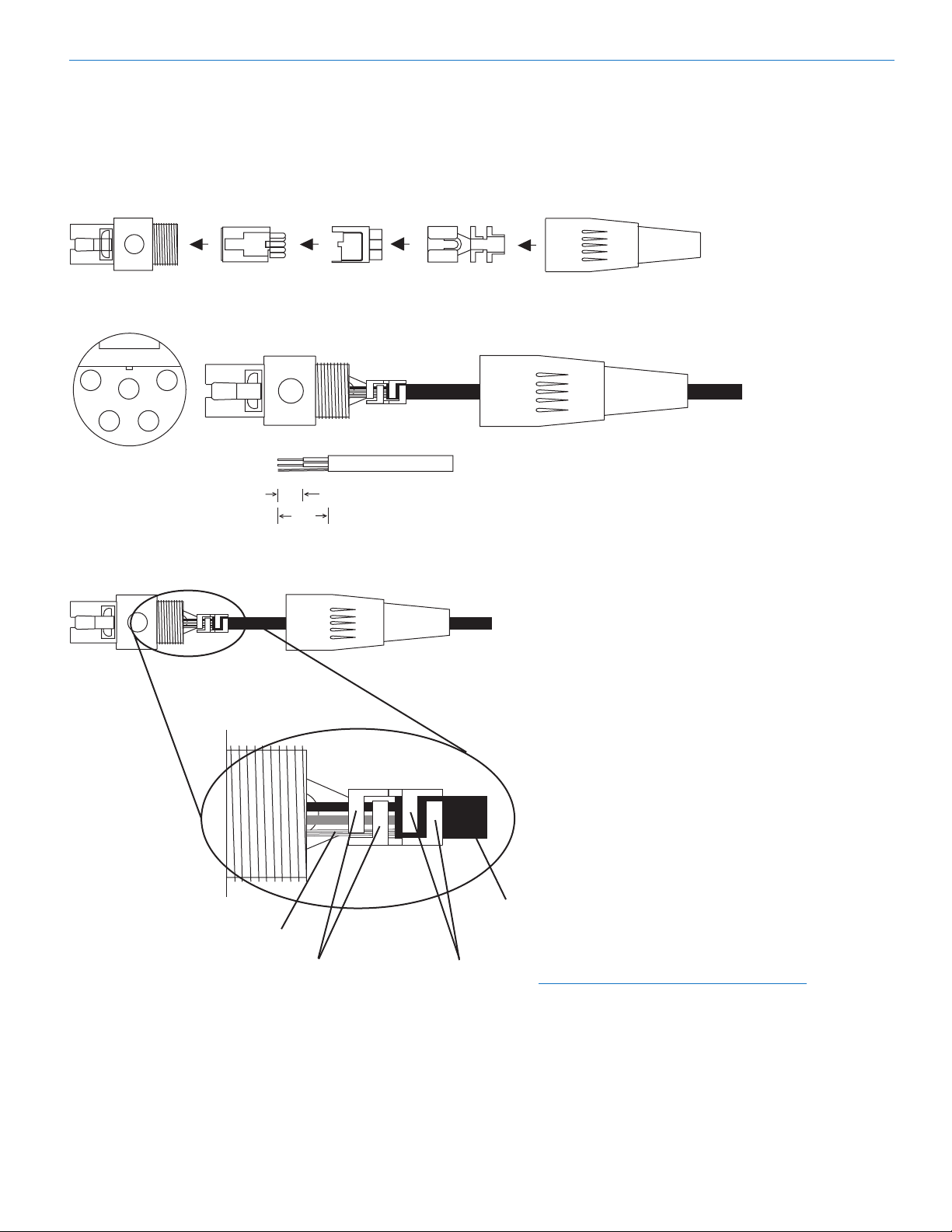

TA5F Connector Assembly
Mic Cord Stripping Instructions
1
23
VIEW FROM SOLDER
SIDE OF PINS
4
5
0.15"
Crimping to Shield and Insulation
Strip and position the cable so that the clamp can be crimped to contact both the mic cable shield and the insulation. The shield contact reduces noise with some microphones and the insulation clamp increases ruggedness.
Rio Rancho, NM
Shield
Crimp these
fingers to
contact the
shield
Insulation
Crimp these
fingers to clamp the insulation
NOTE: This termination is intended for UHF transmitters only. VHF transmitters with 5-pin jacks require a different termination. Lectrosonics lavaliere microphones are terminated for compatibility with VHF and UHF transmitters, which is different from what is shown here.
15
LT
4 VOLT POSITIVE BIAS 2-WIRE ELECTRET
UNBALANCED LINE LEVEL SIGNALS
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
DPA MICROPHONES (Danish Pro Audio miniature models)
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
LO-Z MICROPHONE LEVEL SIGNALS
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
PLUG
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Simplified wiring for microphones such as Countryman B6 Lavalier and E6 Earset models and others.
NOTE: This Servo Bias wiring is not compatible with earlier versions of Lectrosonics transmitters. Check with the factory to confirm which models can use this wiring.
UNBALANCED LINE LEVEL SIGNALS
Input Jack Wiring for Different Sources
In addition to the microphone and line level wiring illus­trated below, Lectrosonics makes a number of cables and adapters for other situations such as connecting musical instruments (guitars, bass guitars, etc.) to the transmitter. Visit www.lectrosonics.com and click on Accessories, or download the master catalog.
A lot of information regarding microphone wiring is also available in the FAQ section of the web site at:
www.lectrosonics.com > SUPPORT > FAQs
Follow the instructions to search by model number or other search options.
Compatible Wiring for Both Servo Bias Inputs and Earlier Transmitters:
Fig. 1
SHIELD
A UDI O
Compatible wiring for microphones such as Countryman E6 headworn and B6 lavaliere.
Fig. 2
Most common type of wiring for lavaliere mics. Fully compatible with 5-pin inputs on Lectrosonics transmitters such as the LM and UM Series.
Fig. 3
3.3 k
1.5 k
PIN
1
2
3
4
5
4
3
5
T A5 F
1
2
Fig. 8
SLEEVE
LINE LEVEL RCA or 1/4” PLUG
For signal levels up to 3V (+12 dBu) before limiting. Fully compatible with 5-pin inputs on other Lectrosonics transmitters such as the LM and UM Series. A 20k ohm resistor can be inserted in series with Pin 5 for an additional 20 dB of attenuation to handle up to 30V (+32 dBu).
TIP
SHIELD
A UDI O
Fig. 8
SLEEVE
LINE LEVEL RCA or 1/4” PLUG
For signal levels up to 3V (+12 dBu) before limiting. Fully compatible with 5-pin inputs on other Lectrosonics transmitters such as the LM and UM Series. A 20k ohm resistor can be inserted in series with Pin 5 for an additional 20 dB of attenuation to handle up to 30V (+32 dBu).
TIP
SHIELD
A UDI O
PIN
1
2
4
5
3
3
4
T A5 F
5
PLUG
See Line Level
Signals on next page
PIN
1
2
4
5
3
3
4
T A5 F
5
PLUG
1
2
1
2
This wiring is for DPA lavalier and headset microphones.
NOTE: The resistor value can range from 3k to 4k ohms.
Fig. 4
SHIELD
AUDIO
Compatible wiring for microphones such as negative bias TRAM models.
NOTE: The resistor value can range from 2k to 4k ohms.
Fig. 5
WITH EXTERNAL RESISTOR
Used for 3-wire lavaliere microphones that require an external resistor such as the Sanken COS-11.
This wiring is fully compatible with 5-pin inputs on Lectrosonics transmitters such as the LM and UM Series. This is the wiring for the Lectrosonics M152 lavaliere microphone.
SHIELD
DRAIN (BIAS)
SOURCE (AUDIO)
Fig. 6
2.7 k
PIN
Simple Wiring for Servo Bias Inputs ONLY:
Fig. 9
1
2
1
4
3
5
3
T A5 F PLUG
2
Fig. 10
Simplified wiring for microphones such as negative bias TRAM.
NOTE: This Servo Bias wiring is not compatible with earlier versions of Lectrosonics transmitters. Check with the factory to confirm which models can use this wiring.
Fig. 11
4
5
XLR JACK
Insert 1k resistor in series with pin 3 if attenuation is needed
16
For low impedance dynamic mics or electret mics with internal battery or power supply.
NOTE: This Servo Bias wiring is not compatible with earlier versions of Lectrosonics transmitters. Check with the factory to confirm which models can use this wiring.
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
OR
Microphone RF Bypassing
When used on a wireless transmitter, the microphone element is in the proximity of the RF coming from the transmitter. The nature of electret microphones makes them sensitive to RF, which can cause problems with microphone/transmitter compatibility. If the electret microphone is not designed properly for use with wire­less transmitters, it may be necessary to install a chip capacitor in the mic capsule or connector to block the RF from entering the electret capsule.
Some mics require RF protection to keep the radio sig­nal from affecting the capsule, even though the trans­mitter input circuitry is already RF bypassed.
If the mic is wired as directed, and you are having dif­ficulty with squealing, high noise, or poor frequency response, RF is likely to be the cause.
The best RF protection is accomplished by installing RF bypass capacitors at the mic capsule. If this is not pos­sible, or if you are still having problems, capacitors can be installed on the mic pins inside the TA5F connec­tor housing. Refer to the diagram below for the correct locations of capacitors.
Use 330 pF capacitors. Capacitors are available from Lectrosonics. Please specify the part number for the desired lead style.
Leaded capacitors: P/N 15117 Leadless capacitors: P/N SCC330P
All Lectrosonics lavaliere mics are already bypassed and do not need any additional capacitors installed for proper operation.
Line Level Signals
The wiring for line level and instrument signals is:
• SignalHottopin5
• SignalGndtopin1
• Pin4jumpedtopin1
This allows signal levels up to 3V RMS to be applied without limiting.
NOTE for line level inputs only (not instrument): If more headroom is needed, insert a 20 k resistor in series with pin 5. Put this resistor inside the TA5F connector to minimize noise pickup. The resistor will have little or no effect on the signal if the input is set for instrument.
Line Level
Normal Wiring
See Fig. 8 on
previous page
Line Level
More Headroom
(20 dB)
2-WIRE MIC 3-WIRE MIC
CAPSULE
Capacitors next
to mic capsule
SHIELD
AUDIO
CONNECTOR
TA5F
CAPSULE
Capacitors in
TA5F connector
SHIELD
AUDIO
BIAS
TA5F
CONNECT
Rio Rancho, NM
17
LT
Accessories
P/N 26895 Wire belt clip
BCSLEBN Spring-loaded belt clip
LTBATELIM Battery eliminator; allows transmitter to be operated from external power; 6 to 36 VDC
M152/5P Lavaliere microphone; omnidirectional
MI33PRA Instrument cable; passive type for use with very high output pickups; right angle 1/4” plug
MI33PST Instrument cable; passive type for use with very high output pickups; straight 1/4” plug
MC35 Line level adapter cable; XLR-F to TA5F; 37” length
MC41 Dynamic mic level adapter cable; XLR-F to TA5F; 37” length
P/N 55008 AA battery caddy; 4-pack; blue
18
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Troubleshooting
It is important that you follow these steps in the sequence listed.
Symptom: Possible Cause:
Transmitter Battery LED off 1. Batteries are inserted incorrectly. when Power Switch “ON” 2. Batteries are low or dead.
No Transmitter Modulation LEDs 1. Gain control turned all the way down. when Signal Should be Present 2. Batteries are inserted incorrectly. Check power LED.
3. Mic capsule is damaged or malfunctioning.
4. Mic cable damaged or miswired.
5. Instrument Cable damaged or not plugged in.
6. Musical instrument output level set too low.
Receiver Indicates RF But No Audio 1. Audio source or cable connected to transmitter is defective. Try using an alternate source or cable.
2. Make sure the compatibility mode is the same on transmitter and receiver.
3. Ensure musical instrument volume control is not set to minimum.
4. Check for correct pilot tone indication on the receiver. See item on page 11 entitled About Overlapping Frequency Blocks.
Receiver RF Indicator Off 1. Ensure that the transmitter and receiver are set to the same frequency, and that the hex code matches.
2. Transmitter not turned on, or battery is dead.
3. Receiver antenna missing or improperly positioned.
4. Operating distance is too great.
5. Transmitter may be set to the Standby Mode. See page 8.
No Sound (Or Low Sound Level), Receiver 1. Receiver output level set too low. Indicates Proper Audio Modulation 2. Receiver output is disconnected; cable is defective or miswired.
3. Sound system or recorder input is turned down.
Distorted Sound 1. Transmitter gain (audio level) is too high. Check Modulation LEDs on transmitter and receiver while distortion is being heard.
2. Receiver output level may be mismatched with the sound system or recorder input. Adjust output level on receiver to the correct level for the recorder, mixer or sound system.
3. Transmitter and receiver may not be set to the same compatibility mode. Some mis-matched combinations will pass audio.
4. RF interference. Reset both transmitter and receiver to a clear channel. Use scanning function on receiver if available.
Wind Noise or Breath “Pops’” 1. Reposition microphone, or use a larger windscreen, or both.
2. Omni-directional mics produce less wind noise and breath pops than directional types.
Hiss and Noise -- Audible Dropouts 1. Transmitter gain (audio level) far too low.
2. Receiver antenna missing or obstructed.
3. Operating distance too great.
4. RF interference. Reset both transmitter and receiver to a clear channel. Use scanning function on receiver if available.
5. Musical instrument output set too low.
6. Microphone capsule picking up RF noise. See item on page 15 entitled Microphone RF Bypassing.
Excessive Feedback (With Microphone) 1. Transmitter gain (audio level) too high. Check gain adjustment and/or reduce receiver output level.
2. Microphone too close to speaker system.
3. Microphone is too far from user’s mouth.
Rio Rancho, NM
19
LT
Specifications and Features
Operating Frequencies: Block A1: 470.100 - 537.575 Block B1: 537.600 - 614.375 Block C1: 614.400 - 691.175 Block D1: 691.200 - 767.975 (export only)
Frequency Selection Steps: Selectable; 100 kHz or 25 kHz RF Power output: 50 or 100 mW Pilot tone: 25 to 32 kHz; 5 kHz deviation
(Digital Hybrid mode) Frequency Stability: ± 0.002% Deviation: ± 75 kHz max. (Digital Hybrid mode) Spurious radiation: 60 dB below carrier Equivalent input noise: –120 dBV (A-weighted) Input level: Nominal 2 mV to 300 mV, before limiting
Greater than 1V maximum, with limiting.
Inputimpedance: • Mic:300Ohm  • Line:2kOhm
Input limiter: DSP controlled, dual envelope “soft” limiter with greater than 30 dB range
Gain control range: 44 dB; digital control Modulationindicators: • DualbicolorLEDsindicatemodulationof
-20, -10, 0 and +10 dB referenced to full modulation
• LCDbargraph Controls: • Toppaneltoggleswitch;programmableas
power, mute, talkback or none (off) function   • SidepanelmembraneswitcheswithLCD
interface for power on/off and all setup and configuration controls
Audio Input Jack: Switchcraft 5-pin locking (TA5F) Antenna: Galvanized steel, flexible wire Battery: Two AA; alkaline, lithium, NiMH rechargeable
BatteryLife: • Alkaline:4.5hours   • DuracellQuantum:7hours   • Eneloop2400mAHNiMH:8hours;
new batteries fully charged Weight: 5.8 ounces (141 grams), including lithium AA batteries
and wire belt clip Dimensions: 3.2 x 2.4 x .9 in. (81 x 61 x 20 mm) Emission Designator: 180KF3E
Audio Performance (Digital Hybrid mode)
Frequency Response: Mic input: 35 Hz to 20 kHz (+/-1dB); low frequency
roll-off is selectable at 35, 50, 70, 100, 120, 180 Hz Line/Instrument: 35 Hz to 20 kHz (+/-1dB)
THD: 0.2% (typical) SNR at receiver output:
Note: The dual envelope “soft” limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB
SmartNR No Limiting w/Limiting OFF 103.5 108.0 NORMAL 107.0 111.5 FULL 108.5 113.0
Specifications subject to change without notice.
20
For body worn operation, this transmitter model has been tested and meets the FCC RF exposure guidelines when used with the Lectrosonics accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Contact Lectrosonics if you have any questions or need more information about RF exposure using this product..
This device complies with FCC radiation exposure limits as set forth for an uncontrolled environment. This device should be installed and operated so that its antenna(s) are not co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada radiation exposure limits as set forth for a controlled “professional” use only.
Cet appareil est conforme avec les normes d’Industrie Canada concernant les limites d’exposition aux radiations pour un usage professionnel contrôlé seulement.
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM
21
LT
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equipment needs repair. Make sure you have followed the setup procedure and operating instructions. Check the interconnecting cables and then go through the Troubleshooting section in this manual.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop at­tempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose connection, send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units. Once set at the factory, the various controls and trimmers do not drift with age or vibration and never require readjustment. There are no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it does to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by phone for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment to the factory for repair without first contacting us by email or by phone. We need
to know the nature of the problem, the model number and the serial number of the equipment. We also need a phone number where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help speed
your repair through our receiving and repair departments. The return authorization number must be clearly shown on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with the
proper packing materials. UPS is usually the best way to ship the units. Heavy units should be “double-boxed” for safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Lectrosonics USA:
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. (505) 892-4501 PO Box 15900 581 Laser Rd. (800) 821-1121 Toll-free Rio Rancho, NM 87174 Rio Rancho, NM 87124 (505) 892-6243 Fax USA USA
Web: E-mail: www.lectrosonics.com sales@lectrosonics.com
Lectrosonics Canada:
Mailing Address: Telephone: E-mail:
49 Spadina Avenue, (416) 596-2202 Sales: colinb@lectrosonics.com Suite 303A (877) 753-2876 Toll-free Service: joeb@lectrosonics.com Toronto, Ontario M5V 2J1 (877-7LECTRO) (416) 596-6648 Fax
22
LECTROSONICS, INC.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM
23
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in materials or workmanship provided it was purchased from an authorized dealer. This warranty does not cover equipment which has been abused or damaged by careless handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which vary from state to state.
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com (505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.com
11 November 2014
LTman.indd
Loading...
