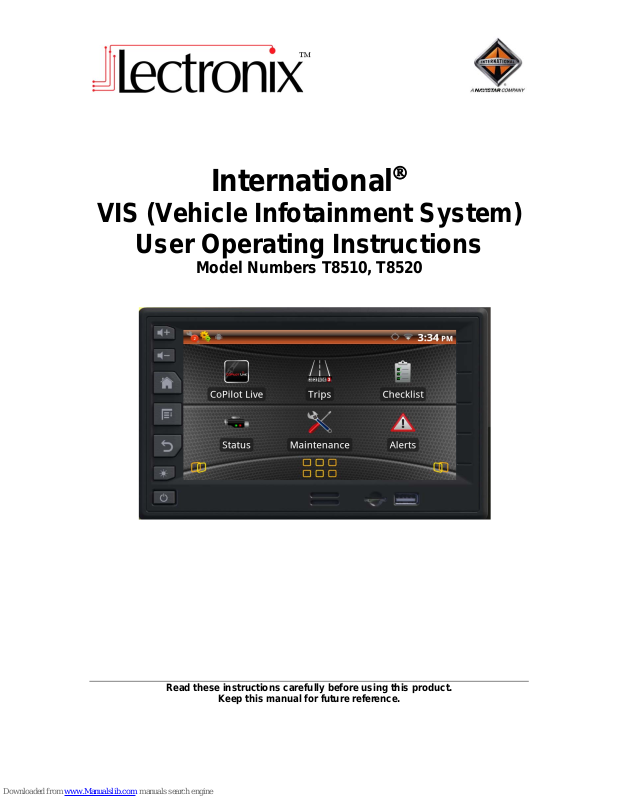

Lectronix T8510, T8520 User Operating Instructions Manual
International
VIS (Vehicle Infotainment System)
User Operating Instructions
Model Numbers T8510, T8520
Read these instructions carefully before using this product.
Keep this manual for future reference.
This page intentionally left blank
© 2013 Lectronix, Inc.
Part Number – 21146-A.0
DISCLAIMER
THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO
LECTRONIX, INC. RELATING TO YOUR USE OF THE LECTRONIX VIS SYSTEM. READ IT
CAREFULLY. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS
SYSTEM.
Failure to properly focus on the operation of your motor vehicle can result in death,
serious injury and property damage. The T8500 product family should never be used at a
time or in a manner that distracts you from focusing on the operation of the motor vehicle
in which it is installed. Our concern is for your safety. We ask that you fully cooperate
with and share that concern.
Always operate the vehicle in a safe manner and in full compliance with speed limits, road
safety signs and all other laws and devices that regulate operation of a motor vehicle. Be
aware of driving conditions at all times when using this system while operating a motor
vehicle.
Operation of this unit, including its camera, navigation, audio and other features can be
distracting to your operation of the motor vehicle. While the system is intended to provide
both entertainment and vehicle and navigation information, it is not intended to, nor
should you allow it to distract you from properly focusing on operating the motor vehicle
in which it is installed. It is up to you to minimize or prevent such distraction.
Learn how to use this system before placing the vehicle in operation. Minimize the
amount of time spent viewing the screen of the unit while driving. Do not attempt to adjust
settings of the system or resolve any malfunction while driving. Instead, pull off the road
in a safe and legal manner and then adjust its settings or deal with any malfunction. In the
event of malfunction, disable the unit (turn power off or remove power from the system).
In addition to its multiple other functions, your VIS (Vehicle Infotainment System) is
equipped with a navigation function. When navigating, carefully compare information
displayed on the unit to all available navigation sources, including information from street
signs, visual sightings, and maps. Do not enter destinations, change settings or access
any functions requiring prolonged use of the controls of the unit while operating your
motor vehicle. For safety, pull off the road before making any adjustments to the system
or resolving any navigation discrepancies or questions.
Table of Contents
Safety Information ......................................................................................................................... 1
Warnings ...................................................................................................................................... 1
Cautions ....................................................................................................................................... 2
Notes on Use: Liquid Crystal Display Panel and Touch Screen .................................................. 2
Getting Started ............................................................................................................................... 3
Understanding your Vehicle Infotainment System (VIS) ............................................................. 3
Controls ........................................................................................................................................ 4
Front Panel Buttons & Features ................................................................................................... 4
Turning the VIS On and Off .................................................................................................... ..... 5
Standby Operation ....................................................................................................................... 5
Home Screen ............................................................................................................................... 6
Home Screen Functions .............................................................................................................. 6
Audio ............................................................................................................................................... 8
Music Application (T8520 Only) ................................................................................................... 8
Gallery Application ....................................................................................................................... 8
Camera ............................................................................................................................................ 9
Applications ................................................................................................................................. 10
Status Application ...................................................................................................................... 10
Alerts .......................................................................................................................................... 11
Vehicle Maintenance .................................................................................................................. 12
Checklists ................................................................................................................................... 13
Trip Computer ............................................................................................................................ 14
Tire Pressure .............................................................................................................................. 15
CoPilot Live Navigation .............................................................................................................. 17
Language and Units selection .................................................................................................... 18
Clock .......................................................................................................................................... 18
Access Control Application ........................................................................................................ 19
Maintenance ................................................................................................................................. 20
Troubleshooting .......................................................................................................................... 21
If You Suspect Something is Wrong .......................................................................................... 21
General Problems ...................................................................................................................... 21
Camera Problems ...................................................................................................................... 22
Navigation Problems .................................................................................................................. 22
Display Problems ....................................................................................................................... 22
Audio Problems .......................................................................................................................... 22
USB Problems............................................................................................................................ 22
Appendix A: Service and Technical Support ............................................................................ 23
System Configuration ................................................................................................................. 23
Appendix B: Software Notice ..................................................................................................... 24
Software Notice .......................................................................................................................... 24
General End-User Software License Agreement ....................................................................... 24
Specific End-User Restrictions Applicable to Ivona Android Voices (“Speech Software”) ........ 27
Navigation Software End User License Agreement................................................................... 28
GNU and Lesser GNU Open Source Licensing ......................................................................... 34
Appendix C: VIS Technical Specifications ............................................................................... 35
Power and Grounding ............................................................................................................ 35
Mechanical Form Factor ......................................................................................................... 35
Environmental ........................................................................................................................ 35
Camera Inputs ........................................................................................................................ 35
Standard In-Dash Display ...................................................................................................... 35
Audio Out ................................................................................................................................ 35
USB functionality .................................................................................................................... 35
SD Card functionality .............................................................................................................. 35
Wi-Fi functionality (T8520 Only) ............................................................................................. 35
Rear Panel Connections ............................................................................................................. 36
Connector Definitions ................................................................................................................. 37
Vehicle Power (Rear) ................................................................................................................. 37
Vehicle I/O (MIC) (Rear) ............................................................................................................ 37
Fleet Management / Camera (Rear) .......................................................................................... 38
GPS Antenna (Rear) .................................................................................................................. 38
USB (Front) ................................................................................................................................ 38
IMPORTANT SAFETY INFORMATION
Driver Responsibility
When behind the wheel, safe driving is your responsibility and should always be your first priority.
It is your responsibility to know and to comply with the law in your area.
Safety Information
Read the operating instructions for the VIS (Vehicle Infotainment System) and all other
components of the system carefully before using the system. They contain instructions about
how to use the system in a safe and effective manner. FAILURE TO OBSERVE THE
INSTRUCTIONS GIVEN IN THIS MANUAL MAY CAUSE INJURY OR DAMAGE AND VOID THE
WARRANTY.
This manual uses symbols to show you how to use the product safely and to alert you to potential
dangers resulting from improper connections and operations. The meanings of the symbols a re
explained below. It is important that you fully understand the meanings of the symbols in order to
use this manual and the system properly.
This symbol intends to alert you to the presence of
Warning
Caution
Warnings
Warning
The driver should not operate the system while driving.
Operating the system will distract the driver from looking ahead of the vehicle and can
cause accidents. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
Use the proper power supply.
This product is designed for operation with a negative grounded 12 V DC battery system.
Never operate this product with other battery systems, especially a 24 V DC battery
system.
Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the product yourself. If the
product needs repair, contact your International
Do not use the unit when it is not functional.
If the unit is not functional (no power, no sound) or in an abnormal state (has foreign
objects in it, is exposed to water, is smoking, or smells), turn it off immediately and
contact your International
Refer installation and service to qualified personnel.
important operation instruction and installation
instructions. Failure to heed the instructions may result
in severe injury or death.
This symbol intends to alert you to the presence of important
operation instruction and installation instructions. Failure to
heed the instructions may result in injury or material damage.
Observe the following warnings when using
this unit.
dealer.
dealer.
1
IMPORTANT SAFETY INFORMATION
Cautions
Notes on Use: Liquid Crystal Display Panel and Touch Screen
The VIS display is a Liquid Crystal Display Panel, commonly known as an LCD. Over the surface
of the LCD is a touch screen to allow the user to touch the screen and activate buttons and other
controls. There are a number of considerations to keep in mind with any system using an LCD
panel. The touch screen is subject to damage if it is not properly used. While both elements can
take substantial use, they need to be treated with care. The following guidelines should be
followed when using your unit. Refer to the Maintenance section of this manual for cleaning
instructions.
Do not cause impact to the liquid crystal panel/touch screen.
Do not use a mechanical pointer to touch the screen, as it will damage the touch screen.
Always use your finger so you can feel how much pressure is being applied to the
screen.
When the temperature is very cold or very hot, the image may appear unclear or may
move slowly.
2
Getting Started
Understanding your Vehicle Infotainment System (VIS)
The VIS is designed to be installed in a double DIN mounting hole of the instrument panel (IP) of
International and Caterpillar Trucks. The VIS Base unit (T8510) offers a comprehensive
information processing and display navigation system for your International
Trucks. It features a 6.5” color display and resistive touch screen for easy operation. It has the
ability to connect to the vehicle’s J1939 bus which provides the driver with engine and truck data
as well as operating environment. The VIS Premium (T8520) system is similar to the base unit,
but adds Wi-Fi connectivity.
Options include camera support for one camera and SmartWave
for tractor tires.
The VIS works in conjunction with the Delphi DEA350 & 355 Radio series to produce audio.
Reference the Audio section of this manual for details on selecting audio sources from the VIS.
System Overview
Integrated Vehicle Monitor and Trip
Computer
In-Dash Controller Unit with 6.5” Color
TFT LCD Display with touch screen
(1)
Wi-Fi
Vehicle Monitor
Monitor Truck and Engine Data from
Vehicle Busses
Alerts for Fault and Out of Range
Conditions
Checklists for Tractor, Trailer and Cab
tasks
Maintenance Scheduling & Reminders
Vehicle Bus Connections for J1939
Trip Computer
Multiple Trip Odometers
Speed and Distance Tracking
Fuel Consumption
Camera Display
Supports One (1) NTSC Camera
Integrated Navigation with Logistics
Complete North American and
Canadian Maps included
12+ million Points Of Interest
Logistics Intelligently Routes Vehicle
Around Roads with Restrictions based
on Vehicle Cargo, Dimensions and
Weight
Tire Pressure Monitoring System
Teamed with the SmartWave
Continuously Monitors Tractor Tire
Pressures
Alerts Driver to Low Tire Pressure to
avoid Tire Damage and Dangerous
Driving Conditions
(1) AvailableontheT8520PremiumVISmodel.
Tire Pressure Sensing System
and Caterpillar
System,
3
V
r
Controls
The front panel controls let you select the VIS’s applications and functions. Buttons and controls are
shown below.
olume Up
Volume Down
Home
Menu
Back
Brightness
Powe
Front Panel Buttons & Features
Status /
Application
Window
Selector
Icon
Window
Selector
Icon
Volume Up – Increases the audio volume
Volume Down – Decreases the audio volume
Home – Displays the home screen
Menu – Displays the menu options
Back – Displays the previous screen
Brightness – Adjusts the display brightness (off, low, medium and high)
Power – The power button has the following functions
o Short Press – blanks the screen, press again to restore the screen
o 2 Second Press – Mute/Unmute Sound or reset the unit
o 5 Second Press – (Reset & Restart if ignition is in the ON or ACC position) allows the
user to reset/shutdown unit
Internal Speaker – The internal speaker is used if no factory radio or compatible radio is installed
in the vehicle
o Optimized for use with the DEA 300 & DEA 355 Delphi Radios Only.
Micro SD Slot – Additional memory can be added to store media
USB Port – Used for software updates and media access
Launcher
Window
Icon
Internal
Speaker
Micro SD
USB Port
4
Turning the VIS On and Off
The VIS has been installed at the factory or at your International or CAT Dealership. The VIS will
automatically turn on when the ignition of the vehicle is turned on. If the vehicle ignition has been off for
more than two hours, the VIS will need approximately one minute to start up. A logo screen, then an
advisory screen will be displayed during this start up time.
Touch the Continue button to proceed to the Home Screen.
If desired, the VIS may be turned off at any time while the vehicle ignition is on. While the system will
appear off, it will actually be in a Standby low power state and can be immediately turned back on. To
turn the system off, push and hold the Power On/Off button for approximately five seconds. The screen
will go black and all functions will stop. Release the Power On/Off button.
To turn the system back on, push and release the Power On/Off button.
Standby Operation
When the vehicle ignition is turned off, the VIS will enter a low power Standby state. The system will
remain in Standby state for approximately two hours. At two hours the system will save all user settings
and power off.
If the vehicle ignition is turned on before the two hour time limit, the system is immediately restored to the
most recent function and display.
If the vehicle ignition is turned after two hours, the system will go through a full power up sequence as
described above.
5
Home Screen
When the VIS is turned on for the first time, the Home Screen will be displayed.
Home Screen
Status/Notification
Application
Icons
Window
Selector
Icon
Launcher
Window Icon
Window
Selector
Icon
Note: depending on the system configuration, not all applications may be available.
Home Screen Functions
Status/Notification Bar – Displays time, ongoing activities with your device (i.e. system alerts,
warnings or updates, application updates and external memory connectivity). It will also display
Wi-Fi and Bluetooth connectivity and signal strength if applicable.
CoPilot Live – This is the navigation application provided by ALK Technologies.
Trips Application – Maintains a trip log consisting of Trip and Leg Segments. Allows for trip
statistics to be collected, providing feedback on the efficiency of trip.
Checklists Application – Provides a checklist of safety related tasks to remind the driver of
items to check before departure.
Status Application – Provides information on engine, electrical and fuel system status.
Maintenance Application – Displays many vehicle maintenance items to remind driver or
mechanic of recommended services.
Alerts Application – Displays any active alarm.
Window Selector Icon – Accesses additional application windows.
Launcher Window Icon – Provides access to all system applications loaded such as acce ss
control, calculator, camera, clock, gallery, settings, tires, music and launcher icons.
6
Android Device Functions
The following Android terminology will be used in this manual:
Touch – To activate items on screen touch icon with your finger with light pressure.
Touch & Hold – Allows the activation of action by touching and holding finger until an action
happens without lifting the finger until the action occurs.
Drag – Touch & hold an item for a moment, then without lifting finger or removing pressure, slide
finger on the screen until it reaches the target position.
Swipe or Slide – Without pausing when the screen is touched, quickly move finger across the
surface of the screen.
Screen to Screen – Slide finger left to right or right to left across the home screen by applying
light pressure.
To learn more about Android visit http://www.lectronixinc.com/products/T8520.html
Android 2.3.4 manual.
to get a copy of the
7
Audio
If the VIS is connected to the truck radio (Delphi DEA 300 or DEA 355), audio will be heard from the cab
speaker system. If there is no radio in the truck then the VIS speaker will be used.
The truck radio functions can be used normally, but if the VIS is being used and the truck functions are
accessed, the VIS functions will be overridden. If the VIS function is then selected, the radio will return to
the VIS function.
The one exception is Navigation prompts. These will always be played from the truck radio.
Music Application (T8520 Only)
Use the Music application to play MP3 files from a USB stick. Place the USB stick with music into the
USB slot and select the Music application. The music application will automatically detect MP3 files.
Press the menu button for music playing options.
Carefully insert the USB memory stick in the vertical USB
Caution
Gallery Application
port. Do not force the memory stick into the slot. If it does
not appear to fit, turn it 180 degrees and try again. Do not
insert foreign objects into the USB port.
The gallery application allows you to view pictures located on your USB stick. Selecting the gallery
application will automatically search the inserted USB stick for pictures. Touch the gallery screen for
viewing options.
8
Loading...
