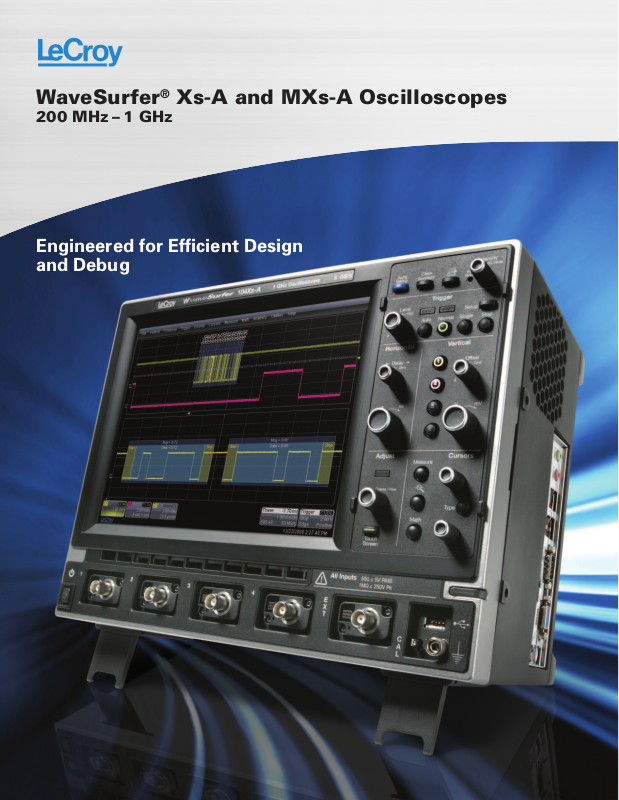

WaveSurfer®Xs-A and MXs-A Oscilloscopes

200 MHz – 1 GHz

Engineered for Efficient Design and Debug

ESSENTIAL TOOLS FOR VALIDATION AND DEBUG

WaveSurfer®Xs-A

• 200 MHz, 400 MHz, 600 MHz

and 1 GHz bandwidths

• 2.5 GS/s Sample Rates per

Channel, up to 5 GS/s with WS 104Xs-A

Many oscilloscopes promise high-performance, great

banner specs, ease-of-use and a rich feature set to shorten

debug and validation time but the WaveSurfer®Xs-A and

• 5 Mpts/Ch Memory

• Fast Processing of Long

Memory and Math

• Responsive User Interface

• WaveStream™ Fast

Viewing Mode

• WaveScan™ – Advanced

Search and Find

• 10.4" Touch Screen Display

• LXI Compliant

WaveSurfer® MXs-A

All the great features of the WaveSurfer Xs-A plus:

• 10 Mpts/Ch Memory

• Up to 5 GS/s per Channel

• LabNotebook™ Documentation

and Report Generation

• Advanced Math with

15 Different Functions and Enhanced FFT

• Additional SMART Trigger™

Capabilities

MXs-A oscilloscopes truly deliver on these promises.

Its small form factor packs a powerful processor that can handle long memory

captures faster than any of the competition. The touch screen interface is the

ultimate in ease-of-use. With features like WaveStream™fast viewing mode

and WaveScan™Search and Find, you can be confident that every problem

can quickly be detected and analyzed.

Beyond these great features,

the WaveSurfer offers a wide

range of serial data trigger and

decode tools for SPI, I2C UART,

RS-232, USB, Audiobus (I2S, LJ, RJ,

TDM), MIL-STD-1553, ARINC 429,

MIPI D-PHY, DigRF, CAN and LIN, as

well as industry leading mixed signal

capabilities to quickly troubleshoot

embedded system designs. With

bandwidths from 200 MHz to

1 GHz the WaveSurfer is the ideal

oscilloscope for everyday design

and debug.

Speed and Responsiveness

The WaveSurfer was designed to

shorten debug time through faster

hardware and more sophisticated

software. The hardware allows for

fast processing of long memory even

when using math and measurement

functions. The software is designed

to respond immediately to the user’s

input even while processing data,

eliminating any lag or delay.

WaveScan Advanced Search

WaveScan allows searching in a

single acquisition using more than

20 different modes. Or, set up a

Scan condition and scan for an event

over hours or days, and perform

some action when it is found. The

MS-250 or MS-500 mixed signal

options add the ability to search

digital channels as well as analog.

Long Capture Time

With 5 Mpts/Ch (10 Mpts/Ch with

MXs-A) of fast acquisition memory

standard the WaveSurfer provides

long capture time at full sample rate,

and longer times at lower sample

rates. WaveSurfer long memory is

also thoughtfully designed to respond

quickly, even when measurements,

math, or serial decoders are being used.

WaveStream Fast Viewing Mode

WaveStream provides a vibrant,

intensity graded (256 levels) display

with a fast update to closely simulate

the look and feel of an analog

oscilloscope. Turn WaveStream ON

or OFF, and adjust intensity, using

the front panel knob. Use it only

when you want to.

Touch Screen Simplicity

Keep your testing efficient with a

thoughtfully designed user interface

that provides the busy engineer with

a GUI that is smooth, transparent, and

easy to use. Use the touch screen

to quickly access all triggers, math

functions and measurement parameters

or to “draw a box” around the area

of interest and zoom all channels to

the desired area.

Embedded Controller Design and Debug

Save time when working with

embedded controllers by adding

high-performance mixed signal

capability to the WaveSurfer. Capture

digital signals up to 500 MHz with

up to 50 Mpts/Ch memory, 2 GS/s

and 18 or 36 channels. Quickly and

easily isolate specific serial data

events with optional I2C, SPI, UART,

RS-232, USB, Audiobus (I2S, LJ, RJ,

TDM), MIL-STD-1553, ARINC 429,

MIPI D-PHY, DigRF, CAN and LIN

trigger and decode options.

ZS Series High Impedance Active Probes

The ZS Series of high impedance

active probes provide full bandwidth at

the probe tip, and the high impedance

(1 MΩ || 0.9 pF) you want. A variety

of standard and available probe tip

and grounding accessories are offered

to meet any requirement. What’s more,

ZS Series probes are available for a

very affordable price. Use the ZS1000

with 200 to 600 MHz WaveSurfers and

the ZS1500 with 1 GHz WaveSurfers

to give full system bandwidth at the

probe tip.

INTUITIVE USER INTERFACE TO FIND PROBLEMS FASTER

The new WaveSurfer Xs-A oscilloscope

makes everyday testing simpler and

easier. The intuitive user interface and

streamlined front panel make it easy

to turn on the oscilloscope and start

making measurements. The interface

is designed so that all the common

measurements and functions are just

one touch away.

1. Only 15 cm (6") Deep

The most space-efficient oscilloscope for your

bench from 200 MHz to 1 GHz.

2. Local Language User Interface

Select from 10 language preferences. Add a front

panel overlay with your local language.

3. Bright 10.4" Display

You’ll never use a small display oscilloscope again.

A fantastic viewing angle makes it easy to view.

4. “Push” Knobs

Trigger level, delay, and offset knobs all provide

shortcuts to common actions when pushed.

5. Zoom Control Knobs

Navigate zoom or math traces with the

multiplexed horizontal knobs.

6. LeCroy WaveStream Fast Viewing Mode

Provides a lively, analog-like feel similar to a phosphor

trace. Adjust “trace” intensity with the front panel

control, or toggle between LeCroy WaveStream and

real-time modes.

7. Dedicated Cursor Knobs

Select type of cursor, position them on your

signal, and read values without ever opening

a menu.

8. Touch Screen with Built-in Stylus

The most time-efficient user interface is even

easier to use with a built-in stylus.

Document and Share:

• Save to on-board hard drive

• Save to network drive

• E-mail to team members

• Send to a printer

• Utilize front mounted USB port

• Main port is standard

10/100Base-T Ethernet

LECROY WAVESCAN ADVANCED SEARCH

WaveScan provides powerful isolation capabilities that hardware triggers can’t provide. WaveScan provides the ability to locate unusual events in a single capture (i.e., capture and search), or “scan” for an event in many acquisitions over a long period of time. Select from more than 20 search modes to find events on any analog or digital channel or search for a pattern across multiple digital channels.

WaveStream Fast Viewing Mode

WaveStream provides a vibrant, intensity

graded (256 levels) display with a fast

update rate to closely simulate the

look and feel of an analog oscilloscope.

WaveStream is most helpful in viewing

signals that have signal jitter or signal

anomalies, or for applying a visual

check before creating an advanced

trigger or WaveScan setup to locate

an unusual event.

Since the scanning

“modes” are not simply

copies of the hardware

triggers, the utility and

capability is much higher.

For instance, there is no “frequency”

trigger in any oscilloscope, yet

WaveScan allows for “frequency”

to be quickly “scanned.” This allows

the user to accumulate a data set of

unusual events that are separated by

hours or days, enabling faster debug-

ging. When used in multiple acquisi-

tions, WaveScan builds on

the traditional LeCroy strength of

fast processing of data. A LeCroy

X-Stream oscilloscope will quickly

scan millions of events looking for

unusual occurrences, and do it much

faster and more efficiently than other

oscilloscopes can.

Since the sampling rate in WaveStream

mode can be as high as 5 GS/s (up

to 2.5x that of other oscilloscopes),

it is an excellent runt or glitch finder.

Timing jitter is often visually assessed

to understand approximate behavior.

WaveStream makes it easy to

understand jitter on edges or in eye

diagrams. WaveStream also excels

in allowing you to relate composite

(WaveStream) to single-event (real-time

sampled) behaviors. Just capture in

WaveStream mode, toggle to view

or zoom a single trace, then toggle

back to WaveStream mode.

EMBEDDED SYSTEM DESIGN AND DEBUG

Successful design and debug of an embedded system requires monitoring a wide range of signals at any given time. The WaveSurfer Xs-A and MXs-A oscilloscopes can be made in to an all-in-one tool for capturing analog, digital and serial signals simultaneously.

High-performance MSO

Capture digital signals up to 500 MHz

with up to 50 Mpts/Ch memory,

2 GS/s, and 18 or 36 channels by

adding the MS-500 or MS-250 to any

model WaveSurfer. Create analog and

digital cross-pattern triggers of up to

4 analog and 36 digital channels and

view the data as individual lines or

in a bus view.

Intuitive, Color-coded Decode Overlay

Advanced software algorithms decon-

struct the waveform into binary, hex,

or ASCII protocol information, then

overlay the decoded data on the wave-

form. Various sections of the protocol

are color-coded to make it easy to

understand. The decode operation is

fast—even with long acquisitions.

Table Summary and Search/Zoom

Turn your oscilloscope into a protocol

analyzer with the Table display of

protocol information. Customize the

table, or export Table data to an Excel

file. Touch a message in the table and

automatically zoom for detail. Search

for specific address or data values in

the acquisition.

I2C, SPI, UART, RS-232, USB Audiobus (I

S, LJ, RJ, TDM), MIL-STD-1553, ARINC 429, MIPI D-PHY, DigRF, CAN and LIN Serial Trigger and Decode

Quickly and easily isolate specific

serial data events on your embedded

controller for better understanding and

faster debug with trigger conditions

in binary or hexadecimal formats.

The conditional data trigger allows

for triggering on a range of values.

THE WAVESURFER M-TYPE OSCILLOSCOPE

0 MS

<y>

ydx

10 MS

<y>

ydx

V/div T/div

Memory Length

Sample Rate

Measurement

Math

V/div T/div

Memory Length

Sample Rate

Measurement

Math

One-Touch FunctionalityDocument Your Work Save Your Work

WAVEF ORM

OSC ILLOSC OPE S ETU P

SCR EEN DU MP

PRI NTER

HAR D

DRI VE

USB

DRI VE

EMA IL

La bN ot ebo ok

Recall Jobs

Higher sample rates, 10 Mpts/Ch

memory, advanced math and

triggering, enhanced FFT

capabilities and LabNotebook

make the WaveSurfer M-Type

a truly unique oscilloscope.

No other product in this class offers such a powerful combination of features

and banner specs making the WaveSurfer M-Type the ideal oscilloscope for fast

and efficient debug from 200 MHz to 1 GHz.

High Sample Rate

5 GS/s max sample rate at 600 MHz and 5 GS/s per channel at 1 GHz to capture

the fastest signals.

Long Capture

Maintain the high sample rate with 10 Mpts/Ch on all models.

Advanced Math and Triggering

Many oscilloscopes offer a small set of basic trigger modes, math functions and

limited FFT. The M-Type offers 10 trigger modes, 1 Mpt FFT and 17 math functions.

LabNotebook™

A Unique Tool for Documentation and Report Generation

Use LabNotebook to quickly save and

document all your work. With a single

button press all displayed waveforms,

relevant settings, and screen images

can be stored. Easy report generation

allows you to annotate screen

images, share your findings and

communicate important results;

reports can even be emailed directly

from the oscilloscope. The Flashback

function lets you recall your settings

from any report and use them to

reproduce previous measurements.

findings and communicate

Easy report generation

helps you share your

important results.

save all essential waveforms,

LabNotebook adds a simple

way to report your work and

settings, and screen images.

Quickly save all

the necessary

files with

LabNotebook

in a single

button press.

Recall your

settings from

any report

by using

the Flashback

capability.

PROBES, ACCESSORIES, AND OPTIONS

LeCroy offers an extensive range of probes,

accessories, and options for WaveSurfer Xs-A.

Leverage your investment with these items.

ZS Series High Impedance Active Probes

Leading Features:

• 1 GHz (ZS1000) and 1.5 GHz

(ZS1500) bandwidths

• High Impedance (0.9 pF, 1 MΩ)

• Extensive standard and

available probe tip and ground connection accessories

• ±12 Vdc offset (ZS1500)

• LeCroy ProBus system

ADP305, ADP300

Leading Features:

• 20 MHz and 100 MHz bandwidth

• 1,000 V

• 1,400 V

• EN 61010 CAT III

• 80 dB CMRR at 50/60 Hz

• LeCroy ProBus system

common mode voltage

rms

differential voltage

peak

AP031

Leading Features:

• Lowest priced differential probe

• 15 MHz bandwidth

• 700 V maximum input voltage

• Works with any 1 MΩ input

oscilloscope

AP033, AP034

Leading Features:

• 500 MHz and 1 GHz bandwidth

• 10,000:1 CMRR

• Wide dynamic range, low noise

• LeCroy ProBus system

Advanced Trigger Option

Adds Runt, Slew Rate, Interval, Dropout, and Qualified/State

triggers to the standard triggers.

Extended Math Option

Adds 12 additional math functions, chaining of two math

functions, rescaling with unit selection, and 1 Mpts FFTs.

PPE1.2KV, PPE2KV, PPE4KV, PPE5KV, PPE6KV, PPE20KV

Leading Features:

• Suitable for safe, accurate

high-voltage measurements

• 1.2 kV to 20 kV

• Works with any 1 MΩ input

oscilloscope

CP030, CP031

Leading Features:

• 30 A

• 50 or 100 MHz bandwidth

• Small form factor accommodates

large conductors with small jaw size

• LeCroy ProBus system

continuous current (50 A

rms

peak

I2C, SPI, UART, RS-232, USB, Audiobus (I2S, LJ, RJ, TDM), MIL-STD-1553, ARINC 429, MIPI D-PHY, DigRF, CAN and LIN Trigger and Decode Options

Powerful serial triggering, including conditional data

triggering, intuitive, color-coded decode overlay, search,

and table display.

MS Series Mixed Signal Oscilloscope Options

Add high-performance

)

mixed signal capability

to a WaveSurfer Xs-A.

Capture digital signals

up to 500 MHz with up

to 50 Mpts/Ch memory,

2 GS/s and 18 or 36 channels.

WAVESURFER Xs-A SPECIFICATIONS

WaveSurfer WaveSurfer WaveSurfer WaveSurfer WaveSurfer WaveSurfer 24Xs-A 44Xs-A 42Xs-A 64Xs-A 62Xs-A 104Xs-A

Bandwidth (@ 50 Ω) 200 MHz 400 MHz 600 MHz 1 GHz Rise Time 1.75 ns 875 ps 500 ps 300 ps Input Channels 442424 Display 10.4" Color flat-panel TFT-LCD, 800 x600 SVGA, touch screen Sample Rate (single-shot) 2.5 GS/s 2.5 GS/s

Sample Rate (RIS mode) 50 GS/s Standard Record Length 5 Mpts/Ch (all channels) Standard Capture Time Up to 2 ms at full sample rate on all four channels Vertical Resolution 8-bits Vertical Sensitivity (V/div) 2 mV/div–10 V/div (1 MΩ); 2 mV/div–1 V/div (50 Ω) Vertical (DC Gain) Accuracy ±1.0% of full scale (typical); ±1.5% of full scale ≥ 10 mV/div (warranted) BW Limit 20 MHz 20 MHz, 200 MHz Maximum Input Voltage 50 Ω: 5 V

(DC + Peak AC ≤ 5 kHz) 1 MΩ: 250 V max.

Input Coupling AC, DC, GND (DC and GND for 50 Ω) Input Impedance 1 MΩ || 16 pF, or 50 Ω 1 MΩ || 20 pF,

Probing System BNC or ProBus Probes One PP009 (5 mm) per channel (standard) One PP011 (5 mm)

Timebase Range 200 ps/div–1000 s/div (roll mode from 500 ms/div–1000 s/div) Timebase Accuracy ≤ 5 ppm @ 25 °C (typical) (≤ 10 ppm @ 5–40 °C) Trigger Modes Normal, Auto, Single, and Stop Trigger Sources Any input channel, External, Ext/10, or line; slope and level unique to each source (except for line trigger) Trigger Coupling DC, AC, HFRej, LFRej Pre-trigger Delay 0–100% of full scale Post-trigger Delay 0–10,000 divisions Trigger Hold-off 1 ns to 20 s or 1 to 1,000,000,000 events Internal Trigger Level Range ±4.1 div from center External Trigger Range EXT/10 ±4V; EXT ±400 mV

, 1 MΩ: 400 V max. 50 Ω: 5 V

(5 GS/s Interleaved)

(DC + Peak AC

≤ 10 kHz)

or 50 Ω

per channel

(standard)

Triggering

Standard Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV – 720p, 1080i, 1080p)

Measure, Zoom, and Math Tools

Standard Parameter Up to 6 of the following parameters can be calculated at one time on any waveform: Amplitude, Area, Base Measurements (Low), Delay, Duty, Fall Time (90%-10%), Fall Time (80%-20%), Frequency, Maximum, Mean, Minimum,

Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10%-90%), Rise Time (20%-80%), RMS, Skew,

Standard Deviation, Top (High), Width+, Width-. Measurements can be gated. Zooming Use front panel QuickZoom button, or use touch screen or mouse to draw a box around the zoom area. Standard Math Operators include Sum, Difference, Product, Ratio, and FFT (up to 25 kpts with power spectrum

output and rectangular, VonHann, and FlatTop windows). 1 math function may be defined at a time.

Physical

Dimensions (HWD) 260 mm x 340 mm x 152 mm Excluding accessories and projections (10.25" x 13.4" x 6") Net Weight 7.26 kg. (16.0 lbs.)

Options

Advanced (WS Xs-ADVTRIG) Runt, Slew Rate, Interval (Signal or Pattern), Dropout, Qualified (State or Edge) Extended Math Adds the following additional math functions: Absolute Value, Averaging (summed and continuous), Derivative,

(WSXs-MATHSURF Option) Envelope, Enhanced Resolution (to 11-bits), Floor, Integral, Invert, Reciprocal, Rescale (change scale and units),

Roof, Square, and Square Root. Also adds chaining of two math functions and 1 Mpts FFTs.

WAVESURFER MXs-A SPECIFICATIONS

WaveSurfer WaveSurfer WaveSurfer WaveSurfer 24MXs-A 44MXs-A 64MXs-A 104MXs-A

Bandwidth (@ 50 Ω) 200 MHz 400 MHz 600 MHz 1 GHz Rise Time 1.75 ns 875 ps 500 ps 300 ps Input Channels 4 Display 10.4" Color flat-panel TFT-LCD, 800 x600 SVGA, touch screen Sample Rate (single-shot) 2.5 GS/s 2.5 GS/s (5 GS/s Interleaved) 5 GS/s Sample Rate (RIS mode) 50 GS/s Standard Record Length 10 Mpts/Ch (all channels) Standard Capture Time Up to 4 ms at 2.5 GS/s (2 ms at 5 GS/s) Vertical Resolution 8-bits Vertical Sensitivity (V/div) 2 mV/div–10 V/div (1 MΩ); 2 mV/div–1 V/div (50 Ω) Vertical (DC Gain) Accuracy ±1.0% of full scale (typical); ±1.5% of full scale ≥ 10 mV/div (warranted) BW Limit 20 MHz 20 MHz, 200 MHz Maximum Input Voltage 50 Ω: 5 V

(DC + Peak AC ≤ 5 kHz) 1 MΩ: 250 V max.

Input Coupling AC, DC, GND (DC and GND for 50 Ω) Input Impedance 1 MΩ || 16 pF, or 50 Ω 1 MΩ || 20 pF,

Probing System BNC or ProBus Probes One PP009 (5 mm) per channel (standard) One PP011 (5 mm)

, 1 MΩ: 400 V max. 50 Ω: 5 V

(DC + Peak AC

≤ 10 kHz)

or 50 Ω

per channel

(standard)

Triggering

Standard Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV – 720p, 1080i, 1080p), Runt, Slew Rate,

Interval (Signal or Pattern), Dropout, Qualified (State or Edge)

Measure, Zoom, and Math Tools

Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10%-90%), Rise Time (20%-80%), RMS, Skew,

Derivative, Envelope, Enhanced Resolution (to 11-bits), Floor, Integral, Invert, Reciprocal, Rescale (change

scale and units), Roof, Square, Square Root and FFT (up to 1 Mpts with power spectrum output and

rectangular, VonHann, and FlatTop windows). 1 math function may be defined at a time, 2 functions may

be chained together.

Physical

Dimensions (HWD) 260 mm x 340 mm x 152 mm Excluding accessories and projections (10.25" x 13.4" x 6") Net Weight 7.26 kg. (16.0 lbs.)

ORDERING INFORMATION

Product Description Product Code

WaveSurfer Xs-A Oscilloscopes

1 GHz, 2.5 GS/s, 4 Ch, 5 Mpts/Ch (5 GS/s interleaved) WaveSurfer 104Xs-A with 10.4" Color Touch Screen Display

600 MHz, 2.5 GS/s, 4 Ch, 5 Mpts/Ch WaveSurfer 64Xs-A with 10.4" Color Touch Screen Display 600 MHz, 2.5 GS/s, 2 Ch, 5 Mpts/Ch WaveSurfer 62Xs-A with 10.4" Color Touch Screen Display 400 MHz, 2.5 GS/s, 4 Ch, 5 Mpts/Ch WaveSurfer 44Xs-A with 10.4" Color Touch Screen Display 400 MHz, 2.5 GS/s, 2 Ch, 5 Mpts/Ch WaveSurfer 42Xs-A with 10.4" Color Touch Screen Display 200 MHz, 2.5 GS/s, 4 Ch, 5 Mpts/Ch WaveSurfer 24Xs-A with 10.4" Color Touch Screen Display

WaveSurfer MXs-A Oscilloscopes

1 GHz, 5 GS/s, 4 Ch, 10 Mpts/Ch WaveSurfer 104MXs-A with 10.4" Color Touch Screen Display

600 MHz, 2.5 GS/s (5 GS/s interleaved) 4 Ch, WaveSurfer 64MXs-A 10 Mpts/Ch with 10.4" Color Touch Screen Display

400 MHz, 2.5 GS/s, 4 Ch, 10 Mpts/Ch WaveSurfer 44MXs-A with 10.4" Color Touch Screen Display

200 MHz, 2.5 GS/s, 4 Ch, 10 Mpts/Ch WaveSurfer 24MXs-A with 10.4" Color Touch Screen Display

Included with Standard Configuration (WaveSurfer Xs-A and MXs-A)

÷10, 500 MHz, 10 MΩ Passive Probe (Total of 1 Per Channel) Getting Started Manual and Quick Reference Guide Standard Ports: 10/100Base-T Ethernet, USB 2.0 (5),

SVGA Video Out, Audio In/Out, RS-232 Protective Front Cover Anti-virus Software (Trial Version) Standard Commercial Calibration and Performance Certificate 3-year Warranty

Included with WaveSurfer MXs-A

10 Mpts/Ch Standard Memory Advanced Triggering with LeCroy SMART Triggers Extended Math with 15 Math Functions and Improved FFT Capabilities LabNotebook Documentation and Report Generation

Memory Options

10 Mpts/Ch Memory Option (for 4 Ch WaveSurfer Xs-A) WSXs-VL 10 Mpts/Ch Memory Option (for 2 Ch WaveSurfer Xs-A) WSXs-VL2

Software Options

Advanced Trigger Software Package WSXs-ADVTRIG Extended Math Software Package WSXs-MATHSURF Electrical Telecom Mask Test Software Package WSXs-ET-PMT

General Accessories

Keyboard Accessory WSXs-KYBD Optical Mouse Accessory WSXs-MOUSE External GPIB Accessory WS-GPIB Hard Carrying Case WSXs-HARDCASE Soft Carrying Case WSXs-SOFTCASE Rack Mount Accessory WSXs-RACK Accessory Pouch WSXs-POUCH

Mounting Accessory

Clamp Mounting Stand WSXs-MS-CLAMP

Product Description Product Code

Local Language Overlays

German Front Panel Overlay WSXs-A-FP-GERMAN French Front Panel Overlay WSXs-A-FP-FRENCH Italian Front Panel Overlay WSXs-A-FP-ITALIAN Spanish Front Panel Overlay WSXs-A-FP-SPANISH Japanese Front Panel Overlay WSXs-A-FP-JAPANESE Korean Front Panel Overlay WSXs-A-FP-KOREAN Chinese (Tr) Front Panel Overlay WSXs-A-FP-CHNES-TR Chinese (Simp) Front Panel Overlay WSXs-A-FP-CHNES-SI Russian Front Panel Overlay WSXs-A-FP-RUSSIAN

Serial Data Options

I2C Trigger and Decode Option UART and RS-232 Trigger and Decode Option WSXs-UART-RS232bus TD SPI Trigger and Decode Option WSXs-SPIbus TD LIN Trigger and Decode Option WSXs-LINbus TD CAN Trigger and Decode Option MIL-STD-1553 Trigger and Decode Option WSXs-1553 TD ARINC 429 Symbolic Decode Option WSXs-ARINC429bus DSymbolic USB 2.0 Decode Option D-PHY Decode Option DigRF3G Decode Option WSXs-DigRF3Gbus D Audiobus Trigger and Decode Option WSXs-Audiobus TD

for I2S, LJ, RJ, and TDM

WSXs-

I2Cbus TD

WSXs-CANbus TD

WSXs

-USB2bus D

WSXs

-DPHYbus D

Mixed Signal Oscilloscope Options

500 MHz, 18 Ch, 2 GS/s, 50 Mpts/Ch MS-500 Mixed Signal Oscilloscope Option

250 MHz, 36 Ch, 1 GS/s, 25 Mpts/Ch MS-500-36 (500 MHz, 18 Ch, 2 GS/s, 50 Mpts/Ch Interleaved) Mixed Signal Oscilloscope Option

250 MHz, 18 Ch, 1 GS/s, 10 Mpts/Ch MS-250 Mixed Signal Oscilloscope Option

Probes and Amplifiers*

Set of 4 ZS1500, 1.5 GHz, 0.9 pF, 1 M High Impedance Active Probe

Set of 4 ZS1000, 1 GHz, 0.9 pF, 1 M High Impedance Active Probe

1 GHz Active Differential Probe (÷1, ÷10, ÷20) AP034 500 MHz Active Differential Probe (x10, ÷1, ÷10, ÷100) AP033 30 A; 100 MHz Current Probe – AC/DC; 30 30 A; 50 MHz Current Probe – AC/DC;30A 30 A; 50 MHz Current Probe–AC/DC;30A 150 A; 10 MHz Current Probe – AC/DC; 150 A 500 A; 2 MHz Current Probe – AC/DC; 500 A 1,400 V, 100 MHz High-Voltage Differential Probe ADP305 1,400 V, 20 MHz High-Voltage Differential Probe ADP300 1 Ch, 100 MHz Differential Amplifier DA1855A

with Precision Voltage Source

*A wide variety of other passive, active, and differential probes are also available.

Consult LeCroy for more information.

Ω

; 50 A

rms

; 50 A

rms

; 50 A

rms

; 700

rms

ZS1500-QUADPAK

ZS1000-QUADPAK

peak

Pulse

peak

Pulse

peak

; 500

peak

Pulse CP031

CP030 AP015

Pulse CP150

Pulse CP500

Customer Service

LeCroy oscilloscopes and probes are designed, built, and tested to ensure high reliability. In the unlikely event you experience difficulties, our digital oscilloscopes are fully warranted for three years, and our probes are warranted for one year.

This warranty includes: No charge for return shipping • Long-term 7-year support • Upgrade to latest software at no charge

1-800-5-LeCroy www.lecroy.com

© 2010 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change without notice. Product or brand names are trademarks or requested trademarks of their respective holders.

Local sales offices are located throughout the world. Visit our website to find the most convenient location.

WSXs-MSXs-A-DS-12Oct10

PDF

LeCroy WaveSurfer 104Xs-A WaveSurfer Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
