LeCroy WaveRunner 620Zi Data Sheet

WaveRunner® 6 Zi Series
400 MHz– 4 GHz (8-bit and 12-bit Resolution)
The Ultimate Debug Machine
THE ULTIMATE DEBUG MACHINE
The WaveRunner® 6 Zi defines
superiority in a test instrument with
a powerful feature set including a
wide range of application packages,
advanced triggering to isolate events,
a user interface developed for quick
and easy navigation, a wide range
of probing options, and lightning-fast
performance.
2
Most Comprehensive Serial Data Analysis
WaveRunner 6 Zi offers the most
tools for serial data analysis. With
over 17 trigger, decode, and compli-
ance solutions, WaveRunner 6 Zi
can address problems with unique,
powerful views and automated
tools. The unique measurement
toolset, ProtoSync™, combines the
oscilloscope view with a simultaneous
view of data link layer decodes on
the same instrument.
Excellent Signal Fidelity
The WaveRunner 6 Zi oscilloscope
family features a pristine signal path
that offers unmatched signal fidelity
with low noise. The WaveRunner HRO
offers a 12-bit ADC, resulting in up to
55 dB Signal-to-Noise Ratio (SNR).
This performance is augmented by
a huge offset and timebase delay
adjustment to allow easy signal and
amplifier performance assessment
and zooming on vertical and horizontal
signal characteristics.
Unbelievable Performance
The WaveRunner 6 Zi oscilloscope is the most versatile
scope in the 400 MHz to 4 GHz class. The performance
offered is unmatched, offering deep memory, 40 GS/s
sample rate, low noise and fast operation to help get
the job done quickly and accurately.
The WaveRunner HRO 6Zi defines the best in class noise
performance with a 12 bit ADC to provide the best
resolution. The HRO 6Zi also features deep memory
options up to 256 Mpts/Ch.
The toolset provides every necessity for an engineer
to validate a design, debug errors at board bring up,
and offer powerful analysis to characterize
an embedded system. The WaveRunner 6 Zi
is the ultimate debug machine.
A New Way to
Navigate and View
The WavePilot control
area provides convenient
control of Cursors, Decode,
WaveScan,™ History,
LabNotebook,™ and Spectrum
by their respective function
buttons on the front panel.
The SuperKnob is a joystick-like
knob in the center of the WavePilot
control area used to easily navigate through
tables, zoom and position waveforms, and
quickly document and annotate your setups.
Simply slide the button on the left side of the
display and rotate upwards 90º. The display will
automatically change from landscape to portrait
mode. The display will also pivot upwards and
downwards to optimize viewing angle.
3
COMPLETE DEBUG SOLUTION FROM 400 MHz–4 GHz
WaveRunner 6 Zi combines the power of a fully featured multi-purpose oscilloscope, a dedicated logic analyzer for mixed signal design, and a protocol analyzer for serial data debug.
1. Industry leading performance—
400 MHz—4 GHz, 40 GS/s,
256 Mpts of analysis memory
2. 12.1" Widescreen (16 x 9) high
resolution WXGA color touch
screen display
2
3. 90º rotating and tilting display for
optimal viewing of signals
4. Small footprint, only 8.1" deep
5. Easy connectivity with two
convenient USB ports on the
front, two on the side
6. USBTMC (Test and Measurement
Class) port simplifies programming
7. X-Stream™ II streaming architecture
10–100 times faster analysis and
better responsiveness than other
oscilloscopes
3
Accessory pouch option available.
4
5
6
11
12
8. Deepest toolbox with more
measurement, more math, more power
9. Largest selection of serial triggers and
decoders—more than 17—available to
provide a total system view
10. Serial trigger captures signals up
to 3 Gb/s
11. WavePilot consolidates important
oscilloscope debug features in one
place. LEDs illuminate to indicate
navigation options and active
oscilloscope features
12. The SuperKnob provides joystick control
to easily navigation to key debug and
documentation features
13. LBUS provides easy connection to the
optional mixed signal feature, providing
up to 36 digital channels
13
14. Wide array of probes and accessories
to accommodate any probing challenge
4
5
3
5
12-BIT HIGH RESOLUTION OSCILLOSCOPE
Features
12-bit ADC resolution
400 MHz and 600 MHz
models
256 Mpts/Ch
±0.5% F.S. DC gain
accuracy
55 dB SNR
1 mV vertical Sensitivity
@ full bandwidth
Up to ±400 V offset
capability
20 MHz, 100 MHz,
200 MHz, 350 MHz
filters for additional
noise filtering
WaveRunner HRO 6 Zi
The WaveRunner HRO features
an industry leading 12-bit Analog
to Digital Convertor (ADC), deep
memory of 256 Mpts/Ch, and
superior DC accuracy specifications.
These features are in addition to
the extensive analysis features of
the WaveRunner 6 Zi. Engineers
no longer have to compromise high
resolution for deep analysis.
ADC
Resolution
8 256 48 dB
12 4096 72 dB
Resolution refers to the number of levels available. Number of levels = 2
Designed for the medical,
automotive, power, and electro-
mechanical markets, the
WaveRunner HRO has higher
resolution and measurement
precision than 8-bit alternatives.
Traditional oscilloscopes use
8-bit ADCs to digitize the
data, which is not enough for
many applications that require
viewing signals with both
a large and small voltage
component. The reduced noise
and improved resolution of
the 12-bit ADC architecture
provides finer measurement
accuracy and better waveform
clarity. This can be seen with
the superb 55 dB signal to
noise ratio (SNR) and ±0.5%
DC vertical gain accuracy,
which is up to four times better
than typical 8-bit oscilloscopes.
Number of
Steps
bits of resolution
Dynamic
Range
Lower resolution
Full Scale
80 V 312.5 mV 19.5 mV
40 V 156.2 mV 9.76 mV
20 V 78.1 mV 4.88 mV
8 V 31.3 mV 1.95 mV
4 V 15.6 mV 976 µV
1.6 V 6.3 mV 390 µV
800 mV 3.1 mV 195 µV
400 mV 1.56 mV 97.6 µV
160 mV 625 µV 39 µV
80 mV 313 µV 19.5 µV
40 mV 156 µV 9.76 µV
16 mV 62.5 µV 3.9 µV
8 mV 31.2 µV 1.95 µV

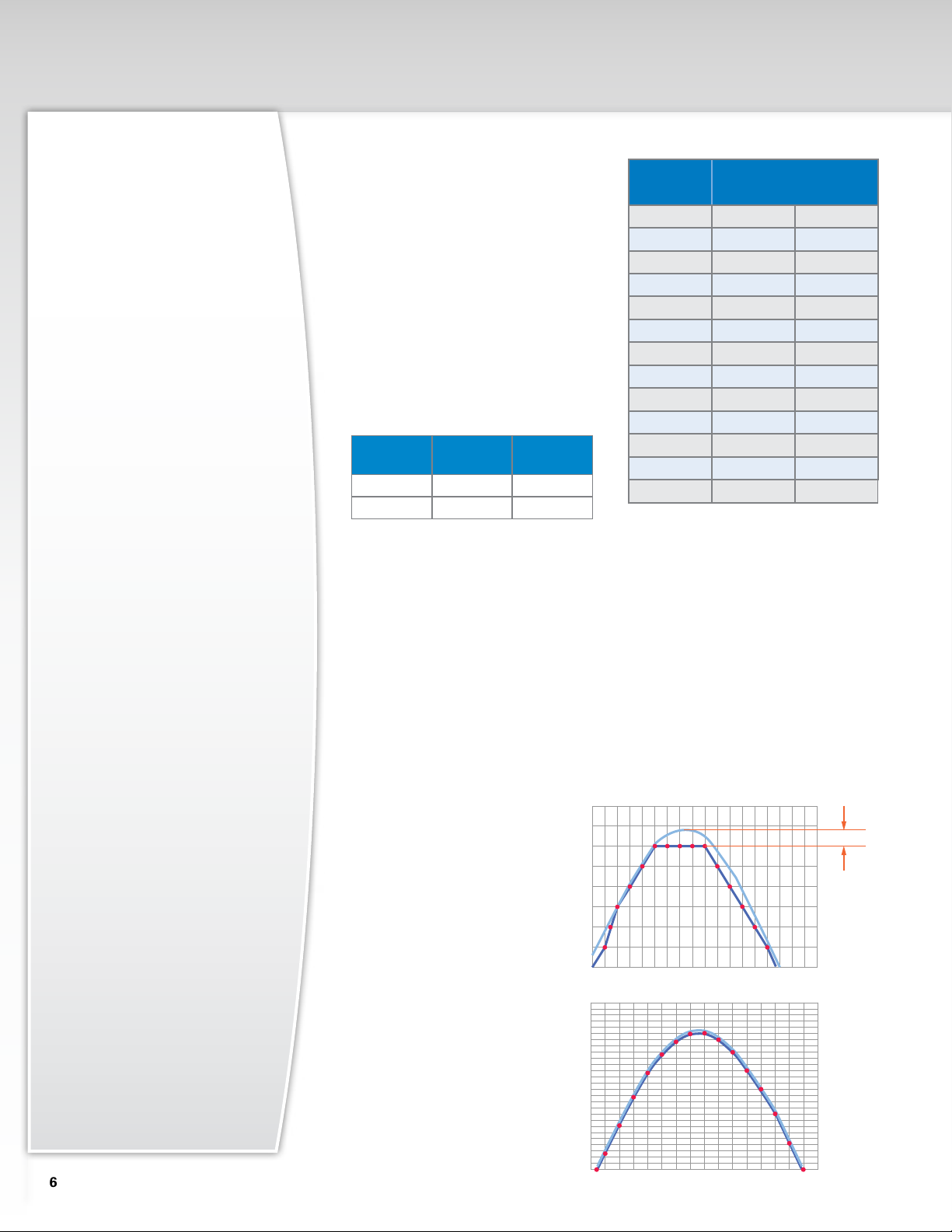

16 Times More Resolultion
12-bits of vertical resolution provides
sixteen times more resolution than
8-bits. The 4096 discrete levels reduce
the quantization error and improve the
voltage accuracy. The difference in
accuracy is shown below. The lower
resolution waveform shows a higher
level of quantization error, while the
higher resolution waveform shows a
more accurate representation of the
actual waveform.
Smallest Voltage Step
8-bits 12-bits
Quantization Error
6
Higher resolution
Capture a fast transient signal at the highest sample rate for the best resolution.
256 Mpts/Ch Deep Memory
High resolution applications typically
require a very long acquisition,
capturing up to 30 seconds of data to
detect very slow or gradual changes.
The 2 GS/s, 256 Mpts/Ch architecture
provides the ability to capture a fast
transient or a long acquisition.
WaveRunner HRO 6 Zi Analysis Tools
Conventional high resolution products have very limited analysis tools,
such as FFT, math, measurements, and triggers. The WaveRunner
HRO 6 Zi offers a full suite of analysis tools to address the most
challenging test needs.
Spectrum Analysis
Capture up to 30 seconds of data at sample rates as high as 10 MS/s for trending and searching for events.
12-bit High Resolution
A common application for high
resolution products is the ability to
view a small amplitude signal within
a larger voltage signal. The 4096
discrete amplitude levels and 55 dB
SNR of the WaveRunner HRO 6 Zi
can detect much smaller voltage
signals with more clarity than an
8-bit oscilloscope.
12-bit
16 Multiple Grids
Pass Fail Testing
Power Analysis
SDA II Serial Data
Analysis
JitKit Clock Jitter
Analysis
History Mode
Measurement Trigger
All Instance
Measurements
WaveScan
Full Customization
with XDEV
8-bit
TriggerScan – Rare
Event Capture
7
A
B
I2C
FlexRay
SPI
LIN
UART UART
A
B
I2C
SPI
LIN
UART UART
A
B
I2C
SPI
LIN
UART UART
A
B
I2C
FlexRay
SPI
LIN
UART UART
LIN
I2C
FlexRay
SPI
LIN
UART UART
A
B
I2C
SPI
LIN
UART UART
LIN
UART UART
A
B
I2C
FlexRay
SPI
LIN
UART UART
A
B
I2C
SPI
SPI
LIN
UART UART
SPI
LIN
UART UART
DEEP INSIGHT TO CLARIFY COMPLEX SIGNALS
More Trigger Capability Isolates More Problems More Quickly
A powerful combination of high band-
width edge and 10 different SMART
triggers, four stage cascade triggering,
measurement trigger, and triggerscan
are all standard and allow you to isolate
the problem quickly and begin focus on
the cause. The measurement trigger
offers a powerful option to qualify
a trigger event based on a qualified
measurement with great resolution.
A high-speed serial trigger enables
triggering on up to 3 Gb/s serial
patterns of up to 80-bits in length.
A full range of serial triggers (I2C, SPI,
UART, RS-232, Audio (I2S, LJ, RJ, TDM),
CAN, LIN, FlexRay, MIL-STD-1553, SATA,
PCIe, 8b/10b, USB2 and many others)
are also available.
Customized Tools
Only LeCroy completely integrates
third party programs into the
oscilloscope’s processing stream
by allowing you to create and deploy
a new measurement or math
algorithm directly into the oscilloscope
environment and display the result
on the oscilloscope in real-time!
Use C/C++, MATLAB,® Excel, JScript
(JAVA), and Visual Basic to create
your own customized math functions,
measurement parameters, or other
control algorithms.
TriggerScan
TriggerScan uses high-speed hardware
triggering capability with persistence
displays to capture only the signals
of interest and provide answers up to
100 times faster than other methods.
Traditional fast display update modes
work best on frequent events occurring
on slow edge rates while TriggerScan
excels in finding infrequent events on
fast edge rates.
XDEV Customization software package being used to implement a 1 MHz Butterworth filter using MATLAB.
I2C
X-Stream II Architecture
Optimized for Fast Throughput
X-Stream II architecture enables high throughput of data. X-Stream II uses variable waveform segment lengths to enable all processing intensive calculations to take place in fast CPU cache memory.
Learn More
http://www.lecroy.com/dl/5213
8
History Mode
History mode lets you scroll back
in time to isolate those anomalies,
measure them with parameters or
cursors, and quickly find the source
of the problem. History mode is
always buffering waveforms, so
no user action is required to save
traces, only to invoke the viewer.
Optimized for Long Memory
X-Stream II has no analysis memory length restrictions, regardless of analysis type, since the variable waveform segment length can always be limited to a size that can fit in CPU cache memory.
A 1 in a billion rare event seems fast but is only 5 seconds of circuit operation on a 200 MHz clock. TriggerScan finds the rare event in 4 minutes while an oscilloscope with 400,000 waveforms/second capture rate misses 99.8% of the signals and could spend nearly 42 minutes to find the error.
Optimized for Responsiveness
By dynamically allocating buffers to maximize memory availability, the WaveRunner 6 Zi Series embodies the fastest front panel responsiveness.
Learn More
http://www.lecroy.com/dl/5214
DISPLAY OPTIMIZED FOR ANALYSIS
Graphical Track, Trend, and Histogram Views
Track plots measurement values
on the Y-axis and time on the X-axis
to display a measurement change
time-correlated to the original channel
acquisition—perfect for intuitive
understanding of behaviors in
frequency modulated (FM) or pulse
width modulated (PWM) circuits and
jitter measurements, including modu-
lation or spikes. Histograms provide
a visual distribution representation
of a large sample of measurements,
allowing faster insight. Trends are
ideal for plotting slow changes in
measurement values.
Rotating Display
The 12.1" high resolution WXGA
wide screen is designed to provide
the best view of any signal type on
the display.
The widescreen is ideal for a variety
of signals where long records are
required and zooming or scrolling
results in a large block of data.
View 36 digital traces with the MS500-36 in portrait mode to clarify timing relationships
Rotate the screen 90° degrees to
optimize the display for viewing digital
signals, jitter tracks, eye diagrams, and
frequency plots. The screen image will
adjust automatically when rotated.
Tilt the display up or down in either
orientation to minimize reflections
or glare.
Rotate the display to view harmonic peaks in more detail.
Portrait mode shows eye diagrams and jitter histograms in greater detail.
9
A TOTAL SOLUTION FOR SERIAL DATA
The WaveRunner 6 Zi
features the most
complete serial data
solutions. Solving serial
data problems requires
intimate knowledge of
the protocol to get started.
With the WaveRunner 6 Zi,
the oscilloscope is the
expert. Simply connect your
probes or cables and the
scope can provide correct
level of detail needed to
view, debug, and analyze
the serial data signals.
Solutions address the
Embedded, Military and
Avionics, Handset/Mobile/
Cellular, and Storage/
Peripherals/Interconnects,
with a combination of
decode, trigger, measure/
graph, ProtoSync, and
compliance tools.
Whether the protocol under
test is a new emerging
standard requiring jitter
end eye diagram testing, a
mature standard requiring
compliance testing, or
an embedded standard
requiring protocol and
measurement and timing
analysis, WaveRunner 6 Zi
has it all.
View
Decode
Viewing the protocol layer has never
been easier with the intuitive color
overlay. Advanced software algorithms
understand the selected protocol
and deconstruct the waveform into
protocol information, then overlay the
decoded data on the waveform.
Table
The table feature turns your
oscilloscope into a protocol analyzer.
Custom configure the Table to
display only the information you
want, and export table data to an
excel file. Touch a message in the
table and automatically zoom for
detail. This feature is standard
with decode options.
Search
Serial data messages can be quickly
located by searching on Address,
Data, and other attributes specific to
a particular protocol. This feature is
standard with decode options.
Debug
Measure
Timing and bus measurements
allow quick and easy characteriza-
tion of a serial data system. The
PROTObus MAG toolkit is the basic
building block upon which many
other serial trigger and decoder
options can be added.
Graph
Extract data from the serial protocol
message stream and use the track
functions to graphically plot that data
on the display. The digital data is
used to create an analog waveform
that can then be compared to other
electrical signals.
Learn More
http://lcry.us/oHoltC
True Hardware Protocol Trigger
An 80-bit serial trigger for serial
data signals up to 3 Gb/s (including
SATA, PCIe, 8b/10b and USB2.0)
and a conditional trigger (I2C,
SPI, UART, CAN, LIN, FlexRay,™
I2S, Mil-STD-1553) can completely
isolate specific message events.
10

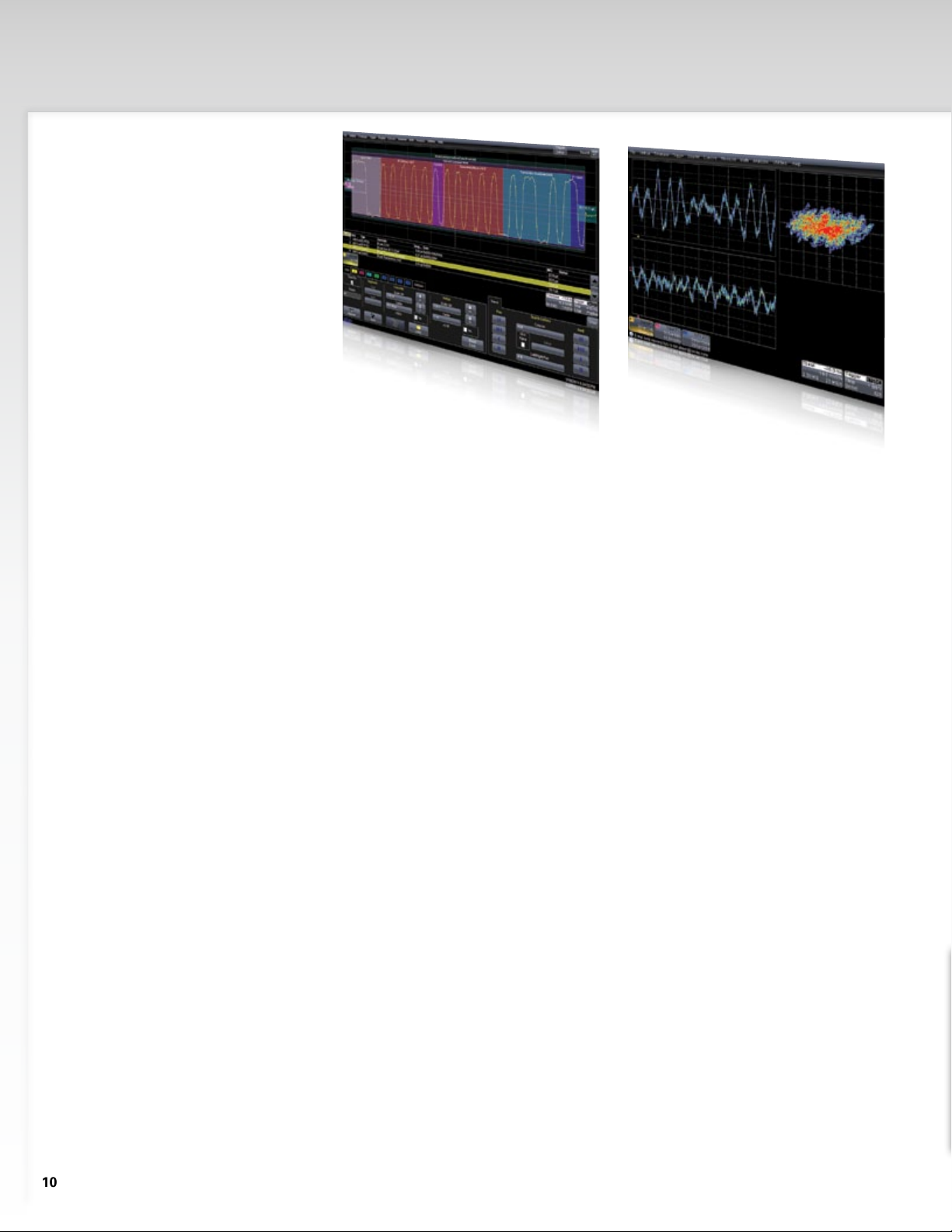

Serial Data Protocol Support
Decode
Trigger
Measure/Graph
PHY
rotoSync P
Quail
Analyze
Eye Diagrams
Create eye diagrams utilizing the
full memory for maximum statistical
significance. Unique eye diagram
features such as IsoBER and eye
violation locator provide powerful
insight into physical layer analysis.
Jitter
The integrated clock and jitter analysis
tools use advanced jitter decompo-
sition methodologies and tools to
provide more information about root
cause. TJ analysis, RjBUj analysis
and DDj analysis is made simple with
the deepest toolset dedicated to
providing the highest level of insight
into your serial data signals.
Learn More
http://lcry.us/n1OmTV
Compliance
Automated compliance and
testing is simplified with the
QPHY software option. QPHY
features automated scripts,
connection diagrams, and test
reports to greatly simplify the
compliance process.
Learn More
http://lecroy.com/serialdata
Embedded
Automotive
Avionics
Military &
Mobile
Cellular
Handset
Interconnects
Storage / Peripherals
I2C
SPI
I2S
UART, RS-232
CAN
LIN
FlexRay
ARINC 429
MIL-STD-1553
DigRF 3G
MIPI D-PHY /CSI-2/DSI
DigRF v4
8b/10b
Fibre Channel
SATA
(1.5 & 3 Gb/s)
SAS
(1.5 & 3 Gb/s)
PCIe
(Gen1)
USB 2.0
LPDDR2
DDR2
• • •
• • •
• • •
• • •
• • •
• • •
• • •
• • •
• •
• • • •
• • • •
• • • •
Ethernet
ProtoSync
ProtoSync combines the oscilloscope view with a simultaneous
view of data link layer decodes on the same instrument. This
combination makes ProtoSync very effective in debugging
PCI Express negotiation rates.
Compatible with PCI Express, USB 2, SAS, SATA, and Fibre Channel.
11
APPLICATION SPECIFIC SOLUTIONS
In addition to the general
purpose WaveShape
Analysis tools, applica-
tion specific solutions are
available for Serial Data
Compliance, Embedded
Design, Digital Design, and
Automotive. These options
extend the LeCroy standard
measurement and analysis
capabilities and expand
your oscilloscope’s utility
as your needs change.
12

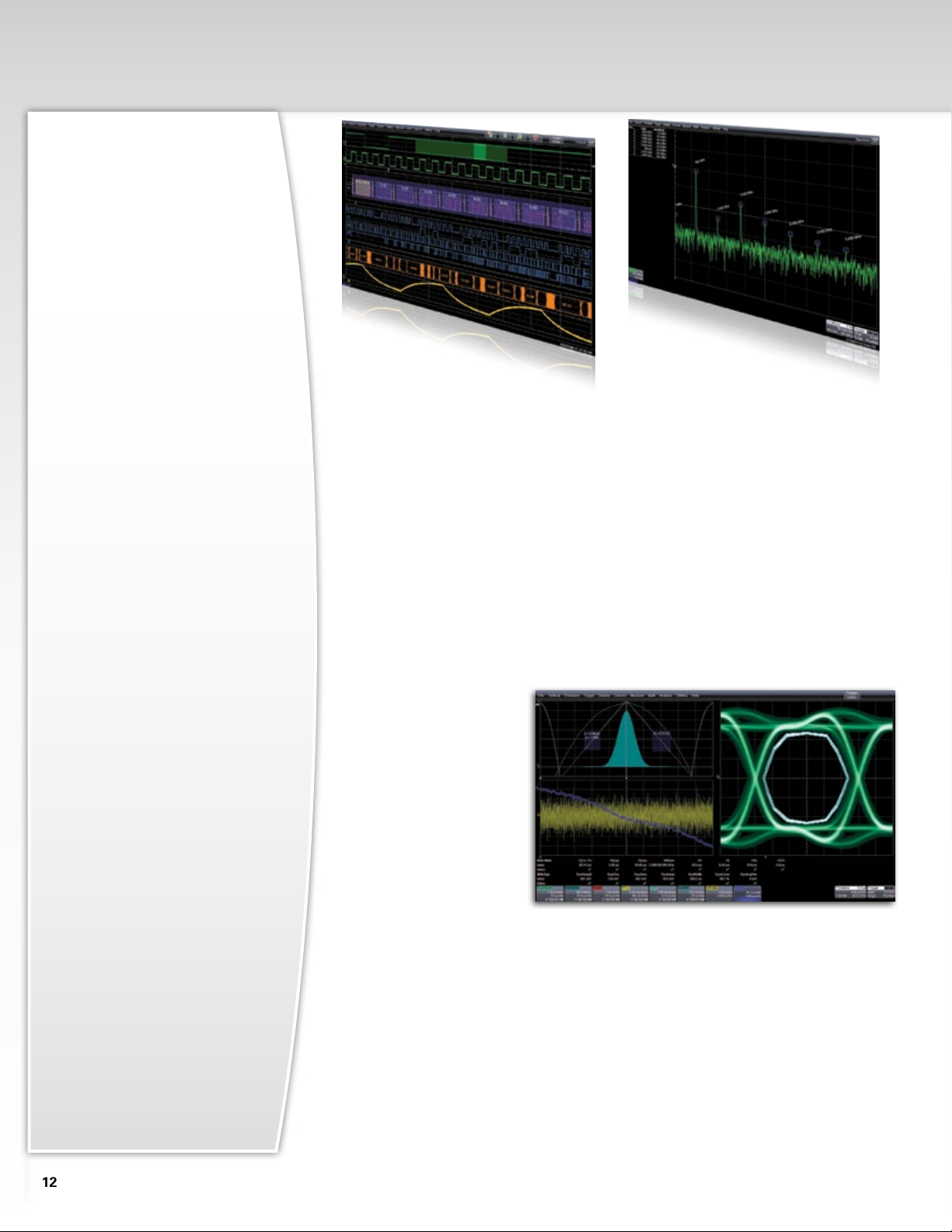

Digital Filter Software Option (WR6Zi-DFP2)
DFP2 lets you implement Finite or
Infinite Impulse Response filters
to eliminate undesired spectral
components, such as noise, and
enhances your ability to examine
important signal components. You
can choose from a standard set
of FIR or IIR filters. You can also
design your own filters.
Spectrum Analyzer Analysis Option (WR6Zi-SPECTRUM
SPECTRUM converts the controls
of your oscilloscope to those of
a spectrum analyzer. Adjust the
frequency span, resolution and center
frequency. Apply filtering to your signal
and watch the frequency signature
change in real time. A unique peak
search labels spectral components
and presents frequency and level
in a table. Touch any line to move
to that peak.
SDA II – Advanced Tools to Isolate and Analyze Option (WR6Zi-SDAII)
Unleash the power of
serial data analysis for
understanding and char-
acterizing your design,
proving compliance
and understanding why
a device or host fails
compliance. The X-Stream II architecture provides fast updates and creates
eye diagrams 100 times faster than other instruments. Combined with up to
128 Mpts record lengths and more complete jitter decomposition tools, SDA II
provides the fastest and most complete understanding of why serial data fails
a compliance test. Whether debugging eye pattern or other compliance test
failures, the WaveRunner 6 Zi Series rapidly isolates the source of the problem
in your design. Advanced jitter decomposition methodologies and tools provide
more information about root cause. Tj Analysis, RjBUj Analysis and DDj Analysis
is made simple with the deepest toolset dedicated to providing the highest level
of insight into your serial data signals.
After
Before
Disk Drive Measurements Software Option (WR6Zi-DDM2)
DDM2 converts your oscilloscope
into a Disk drive analysis machine
providing 28 custom measurements.
Use the PWxx, amplitude, pulse
shape, and ACSN parametric
measurement toolset to accelerate
design and debug.
Cable De-Embedding Option (WR6Zi-CBL-DE-EMBED)
Even expensive, high-performance
cabling can have an adverse effect
on measurements and decrease
margin from a design. Cable losses
and slow rise times can lead to
intersymbol interference causing
you to counter these measurement
effects. The cable de-embedding
feature removes these adverse
effects providing more accurate
measurements.
New Jitter and Timing Analysis Option (WR6Zi-JITKIT)
JITKIT makes it simple and easy to
understand the basic system jitter
performance of clock signals and
clock-data activities, including
period, half period, cycle-cycle, skew,
amplitude, differential voltage crossing,
slew rate, and a wide variety of
other common jitter measurements.
Serial Data Compliance Option
LeCroy’s QualiPHY compliance test
suite provides the best available
solutions to automate, configure
and document standardized tests.
The QualiPHY compliance test suite
provides step-by-step instructions for
testing compliance on a wide array of
serial data standards. Complete test
reporting is also provided.
Disk Drive Analyzer Software Option (WR6Zi-DDA)
DDA enables on button access to all
the tools needed to accurately debug
and analyze disk drive operation.
The DDA user interface and tool set
provides specific drive triggers (Sector,
Servo gate, Read Gate), and advanced
analysis tools (Head filter Equalizer
Emulation, Channel Emulation, SAM
histograms, and Analog Compare).
13
PROBES
High-performance probes are an essential tool for accurate signal capture. Consequently LeCroy offers an extensive range of probes to meet virtually every application need. Optimized for use with LeCroy oscilloscopes, these probes set new standards for responsiveness and signal detection.
WaveLink® Differential Probes (4 GHz – 6 GHz)
D610/D620, D410/D420 D600A-AT, D300A-AT, D500PT, D610-PT, D620-PT, D410-PT, D420-PT
Differential Probes (200 MHz – 1.5 GHz)
ZD1500, ZD1000, ZD500, ZD200
ZS Series High Impedance Active Probes
ZS2500, ZS1500, ZS1000, ZS2500-QUADPAK, ZS1500-QUADPAK, ZS1000-QUADPAK
High Voltage Differential Probes
ADP305, ADP300, AP031
WaveLink® probes provide industry leading technology for wideband signal connection to test instruments. The first differential probes to employ SiGe technology, they deliver full system bandwidth when used with WaveRunner, WavePro, WaveMaster, DDA, and SDA oscilloscopes up to 6 GHz.
High bandwidth, excellent common-mode rejection ratio (CMRR) and low noise make these active differential probes ideal for applications such as automotive development (e.g. FlexRay) and failure analysis, as well as wireless and data communication design. The ProBus interface allows sensitivity, offset and common-mode range to be displayed on the oscilloscope screen.
The ZS Series probes provide high impedance and an extensive set of probe tips and ground accessories to handle a wide range of probing scenarios. The high 1 MΩ input resistance and low 0.9 pF input capacitance mean this probe is ideal for all frequencies. The ZS Series probes provide full system bandwidth for all LeCroy oscilloscopes having bandwidths of 1 GHz and lower.
Low cost active differential probes are intended for measuring higher voltages. The differential techniques employed permit measurements to be taken at two points in a circuit without reference to the ground, allowing the oscilloscope to be safely grounded without the use of opto-isolators or isolating transformers.
Current Probes
CP031, CP030, AP015, CP150, CP500, DCS015
High Voltage Passive Probes
PPE1.2KV, PPE20KV, PPE2KV, PPE4KV, PPE5KV, PPE6KV
Passive Probes
PP008-1, PP009-1, PP007-WR-1, PP007-WS-1, PP005A, PP006A, PP010-1, PP011-1
14
LeCroy current probes reach bandwidths of 100 MHz, peak currents of 700 A and sensitivities of 10 mA/div. Use multiple current probes to make measurements on three-phase systems or a single current probe with a voltage probe to make instantaneous power measurements. LeCroy current probes enable the design and testing of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies.
The PPE Series includes five fixed-attenuation probes covering a range from 2 kV to 20 kV, and one switchable probe providing ÷10/÷100 attenuation for voltage inputs up to 1.2 kV. All fixed-attenuation, standard probes automatically rescale compatible LeCroy oscilloscopes for the appropriate attenuation of the probe.
LeCroy passive probes automatically scale the oscilloscope waveforms without user input. Passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400 V, some as high as 600 V.
WaveLink Probes
D410/D420 Differential Probes
The D410/D420 probes boast excellent noise
performance that is essential for making
precise jitter and other signal integrity
measurements. The high DC and midband
impedance make them ideal for many serial
data and memory applications such as PCI
Express, FireWire, and DDR. With ±4 volt
offset capability and ±3 volt common mode
control, the WaveLink probes are designed
for multi-purpose applications for single-
ended needs (such as DDR memory) and
serial data applications (such as HDMI).
D600A-AT/D500PT Browser
WaveLink browser solutions offer
adjustable tip widths and varying form
factors and a hand held x-y-z positioner
for accurate probe placement.
The WaveLink Differential Probe Series is a high bandwidth active differential probes series. These probes are suited for signal integrity measurements in high-speed digital systems.
Five Different Tips for Interconnect Flexibility
A. Solder-In Lead (SI)
The Solder-In
interconnect lead
features the smallest
physical tip size of
any high bandwidth
differential probe and
the highest level of
electrical performance.
B. Quick Connect (QC) (D6xx only)
The Quick Connect
interconnect lead
enables you to quickly
move the probe
between multiple test
points on the test
circuit.
C. Square Pin (SP)
Many applications, such
as IC characterization
boards, use standard
0.025" square pins for
interconnect. The Square
Pin interconnect lead
directly mates with a
pair of 0.025" (0.635
mm) square pins that are
mounted on standard
0.100” (2.54 mm) centers.
D. Positioner Tip (PT)
The PT positioner tips
provides spring loaded
leads to allow for easy
probing. The adjustable
wheel allows for precise
probing, allowing a
spread up to 0.14".
E. High Temperature (HiTemp) Cables and Solder-In Lead
The 90 cm HiTemp cables
and Solder-In lead is
ideally suited for testing
scenarios there the
temperature can fluctuate
from -40 °C to +105 °C.
15
SPECIFICATIONS
WaveRunner
HRO 64 Zi
WaveRunner
HRO 66 Zi
WaveRunner
604Zi
WaveRunner
606Zi
Vertical System
Analog Bandwidth @ 50 Ω (-3 dB) 400 MHz 600 MHz 400 MHz
Analog Bandwidth @ 1 MΩ (-3 dB) 400 MHz
Rise Time (10–90%, 50 Ω) 875 ps
Rise Time (20–80%, 50 Ω) 650 ps
Input Channels 4 Bandwidth Limiters 20 MHz, 100 MHz,
Input Impedance 50 Ω ±2% or 1 MΩ || 17pF, 10 MΩ || 9.5 pF with supplied Probe Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND Maximum Input Voltage 50 Ω: 5 V
1 MΩ: 400 V max. (DC + peak AC < 10 kHz)
Channel-Channel Isolation
Vertical Resolution 12-bits; up to 15-bits with enhanced resolution (ERES) 8-bits; up to 11-bits with enhanced resolution (ERES) Sensitivity 50 Ω: 1 mV/div–1 V/div, fully variable
1 MΩ: 1 mV/div–10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)
Offset Range 50 Ω:
(typical)
(typical)
(typical)
200 MHz
±10 V peak
rms
> 300:1 > 100:1 up to rated BW
±(0.5%) F.S, offset at 0 V ±1% F.S. (typical), offset at 0 V; ±1.5% F.S. (test limit),
±1.6 V @ 1 mV– 4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±10 V @ 20 mV–1 V
±1.6 V @ 1 mV–4.95 mV
±8 V @ 10 mV–19.8 mV
±16 V @ 20 mV–100 mV
±80 V @ 102 mV–198 mV
1 MΩ:
±4 V @ 5 mV–9.9 mV
±160 V @ 200 mV–1 V
±400 V @ 1.02 V–10 V
500 MHz
(typical)
625 ps
(typical)
435 ps
(typical)
20 MHz, 100 MHz,
200 MHz, 350 MHz
( 2 mV/div)
400 MHz
(typical)
875 ps
(typical)
650 ps
(typical)
20 MHz,
200 MHz
offset at 0 V
50 Ω:
±1.6 V @ 1 mV– 4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±10 V @ 20 mV–1 V
1 MΩ:
±1.6 V @ 1 mV–4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±16 V @ 20 mV–140 mV
±80 V @ 142 mV–1.4 V
±160 V @ 1.42 V–10 V
600 MHz
( 2 mV/div)
500 MHz
(typical)
580 ps
(typical)
435 ps
(typical)
20 MHz,
200 MHz
DC Vertical Offset Accuracy ±(1% of offset setting + 0.2% F.S. + 0.02%
max offset + 1 mV)
±(1.5% of offset setting +1% of full scale + 1 mV)
(test limit)
Horizontal System
Timebases Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input Time/Division Range Real-Time: 20 ps/div–1000 s/div; RIS mode: 20 ps/div–10 ns/div;
Clock Accuracy 1.5 ppm +(aging of 1.0 ppm/yr from last calibration) Trigger and Interpolator Jitter 6 ps
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel External Timebase Reference (Input) 10 MHz ±25 ppm via optional LBUS BNC adapter External Timebase Reference (Output) 10 MHz 3.5 dBm ±1 dBm, synchronized to reference being used by user (internal or external reference)
External Clock DC to 100 MHz; (50 Ω/1 MΩ), Ext. BNC input,
Roll mode: up to 1000 s/div (roll mode is user selectable at 100 ms/div and 5 MS/s
rms
(typical)
< 1.0 ps
(typical, software assisted)
via optional LBUS BNC adaptor
Minimum rise time and amplitude requirements apply at low frequencies
rms
5.5 ps
(typical)
< 1.0 ps
(typical, software assisted)
rms
rms
4.5 ps
(typical)
< 0.1 ps
(typical, software assisted)
rms
rms
4 ps
(typical)
< 0.1 ps
(typical, software assisted)
16
rms
rms
SPECIFICATIONS
WaveRunner
610Zi
WaveRunner
620Zi
Vertical System
Analog Bandwidth @ 50 Ω (-3 dB) 1 GHz
Analog Bandwidth @ 1 MΩ (-3 dB) 500 MHz
Rise Time (10–90%, 50 Ω) 375 ps
Rise Time (20–80%, 50 Ω) 280 ps
Input Channels 4 Bandwidth Limiters 20 MHz,
Input Impedance 50 Ω ±2% or 1 MΩ || 17pF, 10 MΩ || 9.5 pF with supplied Probe Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND Maximum Input Voltage 50 Ω: 5 V
Channel-Channel Isolation
Vertical Resolution 8-bits; up to 11-bits with enhanced resolution (ERES) Sensitivity 50 Ω: 1 mV/div–1 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)
Offset Range 50 Ω:
DC Vertical Offset Accuracy ±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)
( 2 mV/div)
(typical)
(typical)
(typical)
200 MHz
±10 V peak
1 MΩ: 400 V max. (DC + peak AC < 10 kHz)
1 MΩ: 1 mV/div–10 V/div, fully variable ±1% F.S. (typical), offset at 0 V; ±1.5% F.S. (test limit), offset at 0 V
rms
> 100:1 up to rated BW
±1.6 V @ 1 mV–4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±10 V @ 20 mV–1 V
1 MΩ:
±1.6 V @ 1 mV–4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±16 V @ 20 mV–140 mV
±80 V @ 142 mV–1.4 V
±160 V @ 1.42 V–10 V
2 GHz
( 5 mV/div)
500 MHz
(typical)
175 ps
(typical)
130 ps
(typical)
20 MHz,
200 MHz, 1 GHz
WaveRunner
625Zi
2.5 GHz
( 5 mV/div)
500 MHz
(typical)
160 ps
(typical)
120 ps
(typical)
20 MHz,
200 MHz, 1 GHz
±1.6 V @ 1 mV–4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±10 V @ 20 mV–1 V
±1.4 V @ 5 mV–122 mV/div
±10 V @ 124 mV–1 V/div
±1.6 V @ 1 mV–4.95 mV
±4 V @ 5 mV–9.9 mV
±8 V @ 10 mV–19.8 mV
±16 V @ 20 mV–140 mV
±80 V @ 142 mV–1.4 V
±160 V @ 1.42 V–10 V
WaveRunner
640Zi
4 GHz
( 5 mV/div)
500 MHz
(typical)
100 ps
(typical)
75 ps
(typical)
20 MHz,
200 MHz, 1 GHz
> 100:1 up to 2.5 GHz
> 30:1 from 2.5 GHz to
rated BW
50 Ω:
BWL 1 GHz
BWL > 1 GHz
1 MΩ:
Horizontal System
Timebases Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range Real-Time: 20 ps/div–1000 s/div; RIS mode: 20 ps/div–10 ns/div;
Clock Accuracy 1.5 ppm +(aging of 1.0 ppm/yr from last calibration) Trigger and Interpolator Jitter 3.5 ps
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel External Timebase Reference (Input) 10 MHz ±25 ppm via optional LBUS BNC adapter External Timebase Reference (Output) 10 MHz 3.5 dBm ±1 dBm, synchronized to reference being used by user (internal or external reference)
External Clock DC to 100 MHz; (50 Ω/1 MΩ), Ext. BNC input,
Roll mode: up to 1000 s/div (roll mode is user selectable at 100 ms/div and 5 MS/s
rms
(typical)
< 0.1 ps
(typical, software assisted)
via optional LBUS BNC adaptor
Minimum rise time and amplitude requirements apply at low frequencies
rms
(typical, software assisted)
3 ps
(typical)
< 0.1 ps
rms
rms
2.5 ps
(typical)
< 0.1 ps
(typical, software assisted)
rms
rms
2 ps
(typical)
< 0.1 ps
(typical, software assisted)
rms
rms
17
SPECIFICATIONS
WaveRunner
HRO 64 Zi
WaveRunner
HRO 66 Zi
WaveRunner
604Zi
WaveRunner
606Zi
Acquisition System
Single-Shot Sample Rate/Ch 2 GS/s on 4 Ch 10 GS/s on 4 Ch
Random Interleaved Sampling (RIS) 100 GS/s, user selectable for repetitive signals
Maximum Trigger Rate 500,000 waveforms/second (in Sequence Mode,
Intersegment Time 2 µs 1 µs Max. Acquisition Memory Points/Ch L-128 Option: 128M
Standard Memory (4 Ch / 2 Ch / 1 Ch) (Number of Segments)
Memory Options (4 Ch / 2 Ch / 1 Ch) (Number of Segments)
(20 ps/div to 10 ns/div)
up to 4 channels)
XL-256 Option: 256M
64M
(30,000)
L-128 Option: 128M (60,000)
XL-256 Option: 256M (65,000)
200 GS/s, user selectable for repetitive signals
1,000,000 waveforms/second (in Sequence Mode,
M-64 Option: 64M / 128M / 128M
S-32 Option: 32M / 64M / 64M (15,000)
M-64 Option: 64M / 128M / 128M (15,000)
20 GS/s on 2 Ch
(20 ps/div to 10 ns/div)
up to 4 channels)
S-32 Option: 32M / 64M / 64M
16M / 32M / 32M
(5,000)
Acquisition Processing
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps Enhanced Resolution (ERES) From 12.5- to 15-bits vertical resolution From 8.5- to 11-bits vertical resolution Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps Interpolation Linear or Sin x/x
Triggering System
Modes Normal, Auto, Single, and Stop Sources Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) Coupling Mode DC, AC, HFRej, LFRej Pre-trigger Delay 0–100% of memory size (adjustable in 1% increments or 100 ns) Post-trigger Delay 0–50,000,000,000 divisions in real time mode, limited at slower time/div settings or in roll mode Hold-off by Time or Events From 2 ns up to 20 s or from 1 to 99,999,999 events Internal Trigger Range ±4.1 div from center (typical) Trigger Sensitivity with Edge Trigger
(Ch 1–4)
External Trigger Sensitivity, (Edge Trigger)
Max. Trigger Frequency, SMART Trigger
External Trigger Input Range Ext (±0.4 V); Ext/10 (±4 V)
2 div @ < 400 MHz
1.5 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
2 div @ < 600 MHz
1.5 div @ < 300 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
400 MHz @
10 mV/div 1.9 ns
(minimum triggerable
width 1.9 ns)
2 div @ < 600 MHz
1.5 div @ < 300 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
600 MHz @
10 mV/div 1.2 ns
(minimum triggerable
width 1.2 ns)
2 div @ < 400 MHz
1.5 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
2 div @ 1 GHz
1.5 div @ < 500 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
400 MHz @
10 mV/div 1.9 ns
(minimum triggerable
width 1.9 ns)
2 div @ < 600 MHz
1.5 div @ < 300 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and
LFRej coupling)
600 MHz @
10 mV/div 1.2 ns
(minimum triggerable
width 1.2 ns)
Basic Triggers
Edge Triggers when signal meets slope (positive, negative, or either) and level condition Window Triggers when signal exits a window defined by adjustable thresholds TV-Composite Video Triggers NTSC or PAL with selectable line and field;
HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1–8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative)
18
SPECIFICATIONS
WaveRunner
610Zi
WaveRunner
620Zi
WaveRunner
625Zi
WaveRunner
Acquisition System
Single-Shot Sample Rate/Ch 10 GS/s on 4 Ch
20 GS/s on 2 Ch
Random Interleaved Sampling (RIS) 200 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time 1 µs Max. Acquisition Memory Points/Ch S-32 Option: 32M / 64M / 64M
Standard Memory (4 Ch / 2 Ch / 1 Ch) (Number of Segments)
Memory Options (4 Ch / 2 Ch / 1 Ch) (Number of Segments)
M-64 Option: 64M / 128M / 128M 16M / 32M / 32M
(5,000) S-32 Option: 32M / 64M / 64M (15,000)
M-64 Option: 64M / 128M / 128M (15,000)
20 GS/s on 4 Ch 40 GS/s on 2 Ch
Acquisition Processing
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps Enhanced Resolution (ERES) From 8.5- to 11-bits vertical resolution Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps Interpolation Linear or Sin x/x or cubic (using math tool)
Triggering System
Modes Normal, Auto, Single, and Stop Sources Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) Coupling Mode DC, AC, HFRej, LFRej Pre-trigger Delay 0–100% of memory size (adjustable in 1% increments or 100 ns) Post-trigger Delay 0–50,000,000,000 divisions in real time mode, limited at slower time/div settings or in roll mode Hold-off by Time or Events From 2 ns up to 20 s or from 1 to 99,999,999 events Internal Trigger Range ±4.1 div from center (typical) Trigger Sensitivity with Edge Trigger
(Ch 1–4) ProBus Inputs
External Trigger Sensitivity, (Edge Trigger)
Max. Trigger Frequency, SMART Trigger
External Trigger Input Range Ext (±0.4 V); Ext/10 (±4 V)
2 div @ < 1 GHz
1.5 div @ < 500 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
2 div @ 1 GHz
1.5 div @ < 500 MHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and LFRej coupling)
1.0 GHz @
10 mV/div
(minimum triggerable
width 750 ps)
2 div @ < 2 GHz
1.5 div @ < 1 GHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
2.0 GHz @
10 mV/div
(minimum triggerable
width 400 ps)
2 div @ < 2.5 GHz
1.5 div @ < 1.25 GHz 1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and
LFRej coupling)
2.0 GHz @ 10 mV/div
(minimum triggerable
width 300 ps)
2 div @ < 4 GHz
1.5 div @ < 2 GHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz (DC, AC, and
LFRej coupling)
2.0 GHz @
(minimum triggerable
width 200 ps)
640Zi
10 mV/div
Basic Triggers
Edge Triggers when signal meets slope (positive, negative, or either) and level condition Window Triggers when signal exits a window defined by adjustable thresholds TV-Composite Video Triggers NTSC or PAL with selectable line and field;
HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1–8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative)
19
SPECIFICATIONS
WaveRunner
HRO 64 Zi HRO 66 Zi
WaveRunner
604 Zi 606 Zi
WaveRunner
610 Zi 620 Zi
WaveRunner
625 Zi 640 Zi
SMART Triggers
State or Edge Qualified Triggers on any input source only if a defined state or edge occurred on another input source.
Delay between sources is selectable by time or events
Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A)
is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input. Each source
can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end
of the pattern
SMART Triggers with Exclusion Technology
Glitch Triggers on positive or negative glitches with widths selectable as low as 200 ps (depending on oscilloscope
bandwidth) to 20 s, or on intermittent faults Width (Signal or Pattern) Triggers on positive or negative glitches with widths selectable as low as 200 ps (depending on oscilloscope
bandwidth) to 20 s, or on intermittent faults
Interval (Signal or Pattern) Triggers on intervals selectable between 1 ns and 20 s Timeout (State/Edge Qualified) Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events Runt Trigger on positive or negative runts defined by two voltage limits and two time limits.
Select between 1 ns and 20 ns Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns Exclusion Triggering Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Measurement Trigger
Trigger on measurement values, Edge, Serial Pattern, Bus Pattern, Non-monotonic
Cascade (Sequence) Triggering
Capability Arm on “A” event, then Trigger on “B” event. Or Arm on “A” event, then Qualify on “B” event, and Trigger on
“C” event. Or Arm on “A” event, then Qualify on “B” then “C” event, and Trigger on “D” event Types A, B, C, or D event: Edge, Glitch, Width, Window, Dropout, Interval, Runt, Slew Rate, or Pattern (analog),
Measurement Trigger Holdoff Holdoff between A and B, B and C, C or D, or any is selectable by time or number of events Reset Reset between A and B, B and C, C and D, or any combination is selectable in time or number of events
Optional High-speed Serial Protocol Triggering (WR6Zi-80B-8B10B TD)
Data Rates N/A 150 Mb/s–3 Gb/s Pattern Length N/A 80-bits, NRZ or 8b/10b Clock and Data Outputs N/A Not available Clock Recovery Jitter N/A 1 ps
Hardware Clock Recovery Loop BW N/A PLL Loop BW = Fbaud/5500, 100 Mb/s
+ 0.3% Unit Interval RMS for PRBS data patterns with
rms
50% transition density
to 2.488 Gb/s (typical)
Color Waveform Display
Type Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen Resolution WXGA; 1280 x 800 pixels Number of Traces Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces Grid Styles Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y Waveform Representation Sample dots joined, or sample dots only
20
SPECIFICATIONS
WaveRunner
HRO 64 Zi HRO 66 Zi
WaveRunner
604 Zi 606 Zi
WaveRunner
610 Zi 620 Zi
WaveRunner
625 Zi 640 Zi
Processor/CPU
Type Intel® E5300 Pentium Dual Core 2.6 GHz or greater Processor Memory 4 GB standard 2 GB standard, up to 4 GB optional Operating System Microsoft Windows Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks
®
7 Professional for Embedded Systems, 64-bit
Interface
Remote Control Via Windows Automation, or via LeCroy Remote Command Set Network Communication Standard VXI-11 or VICP, LXI Class C (v1.2) Compliant GPIB Port (Optional) Supports IEEE—488.2 (External)
Ethernet Port Supports 10/100/1000Base-T Ethernet interface (RJ45 port) USB Minimum 4 total (Including 2 front panel) USB 2.0 ports support Windows compatible devices USB Device Port 1 USBTMC Port External Monitor Port 15-pin D-Type SVGA compatible DB-15 to support customer-supplied external monitor.
Includes support for extended desktop operation with WXGA resolution on second monitor
Peripheral Bus LeCroy LBUS standard
Power Requirements
Voltage 100–240 VAC ±10% at 45–66 Hz; 100–120 VAC ±10% at 380–420 Hz;
Automatic AC Voltage Selection; Installation Category: 300 V CAT II
Power Consumption (Nominal) 325 W / 325 VA 400 W / 400 VA
Max Power Consumption 425 W / 425 VA (with all
PC peripherals, active
probes connected to 4
channels, and MSO active)
500 W / 500 VA (with all PC peripherals, active probes connected
to 4 channels, and MSO active)
Environmental
Temperature (Operating) +5 °C to +40 °C Temperature (Non-Operating) –20 °C to +60 °C Humidity (Operating) 5% to 80% relative humidity (non-condensing) up to +31 °C
Upper limit derates to 50% relative humidity (Non-condensing) at +40 °C Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F Altitude (Operating) Up to 10,000 ft. (3,048 m) at or below +25 °C Random Vibration (Operating) 0.31 g Random Vibration (Non-Operating) 2.4 g Functional Shock
30 g
5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
rms
5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
rms
, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total
peak
Physical Dimensions
Dimensions (HWD) 11.6929" H x 16.4567" W x 8.937" D (297 x 418 x 227 mm) Weight 25.4 lbs. (11.52 kg) Shipping Weight 36 lbs. (16.36 kg) 39 lbs. (17.69 kg)
Certifications
CE Compliant, UL and cUL listed; Conforms to EN 61326-1, EN 61010-1, UL 61010-1 2nd edition, and
CSA C22.2 No. 61010-1-04
Warranty and Service
3-year warranty; calibration recommended annually. Optional service programs include extended warranty,
upgrades, and calibration services
21
SPECIFICATIONS
Standard
Math Tools
Display up to 8 math function traces (F1–F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
absolute value
average (summed)
average (continuous)
correlation (two waveforms)
cubic interpolation
derivative
deskew (resample)
difference (–)
enhanced resolution (to 11 bits vertical)
envelope
Measure Tools
Display any 8 parameters together with statistics, including their average, high, low, and standard deviations. Histicons provide a fast, dynamic view of parameters and wave shape characteristics. Parameter Math allows addition, subtraction, multiplication, or division of two different parameters.
amplitude
area
base
cycles
data
delay
delay
duty cycle
duration
falltime (90–10%, 80–20%, @ level)
frequency
first
last
exp (base e)
exp (base 10)
fft (power spectrum, power average, magnitude, phase, up to 128 Mpts)
floor
integral
interpolate (cubic, quadratic, sinx/x)
invert (negate)
log (base e)
level @ x
maximum
mean
median
minimum
narrow band phase
narrow band power
number of points
+ overshoot
– overshoot
peak-to-peak
period
risetime (10–90%, 20–80%, @ level)
log (base 10)
product (x)
reciprocal
rescale (with units)
roof
(sinx)/x
sparse
square
square root
sum (+)
zoom (identity)
rms
std. deviation
top
width
median
phase
time @ minimum (min.)
time @ maximum (max.)
time @ level
time @ level from
trigger
x @ max.
x @ min.
Standard (cont’d)
Pass/Fail Testing
Simultaneously test multiple parameters against selectable parameter limits or pre-defined masks. Pass or fail conditions can initiate actions including document to local or networked files, e-mail the image of the failure, save waveforms, send a pulse out at the front panel auxiliary BNC output, or (with the GPIB option) send a GPIB SRQ.
Jitter and Timing Analysis
This package provides jitter timing and analysis using time, frequency, and statistical views for common timing parameters, and also includes other useful tools. Includes:
“Track” graphs of all parameters, no limitation of number
– Cycle-Cycle Jitter
– N-Cycle
– N-Cycle with
start selection
– Frequency @ level
Edge @ lv parameter (counts edges)
Histograms expanded with 19 histogram parameters and up to
2 billion events
Trend (datalog) of up to 1 million events
Track graphs of all parameters
Persistence histogram, persistence trace (mean, range, sigma)
– Period @ level
– Half Period
– Width @ level
– Time Interval
Error @ level
– Setup
– Hold
– Skew
– Duty Cycle @ level
– Duty Cycle Error
22
SPECIFICATIONS
Software Options
SDA II Serial Data Analysis Option (WR6Zi-SDAII)
Total Jitter
A complete toolset is provided to measure total jitter. Eye Diagrams with millions of UI are quickly calculated from up to 128 Mpts records, and advanced tools may be used on the Eye Diagram to aid analysis. Complete TIE and Total Jitter (Tj) parameters and analysis functions are provided.
Time Interval Error (TIE) Measurement Parameter, Histogram,
Spectrum and Jitter Track
Total Jitter (Tj) Measurement Parameter, Histogram, Spectrum
Eye Diagram Display (sliced)
Eye Diagram IsoBER (lines of constant Bit Error Rate)
Eye Diagram Mask Violation Locator
Eye Diagram Measurement Parameters
– Eye Height
– One Level
– Zero Level
– Eye Amplitude
Q-Fit Tail Representation
Bathtub Curve
Cumulative Density Function (CDF)
PLL Track
Jitter Decompostion Models
Two jitter decomposition methods are provided and simultaneously calculated to provide maximum measurement confidence. Q-Scale, CDF, Bathtub Curve, and all jitter decomposition measurement parameters can be displayed using either method.
Spectral Method
NQ-Scale Method
Random Jitter (Rj) and Non-Data Dependent Jitter (Rj+BUj)
Random Jitter (Rj) Measurement Parameter
Rj+BUj Histogram
Rj+BUj Spectrum
Rj+BUj Track
Deterministic Jitter (Dj)
Deterministic Jitter (Dj) Measurement Parameter
Data Dependent Jitter (DDj)
Data Dependent Jitter (DDj) Measurement Parameter
DDj Histogram
DDj Plot (by Pattern or N-bit Sequence)
– Eye Width
– Eye Crossing
– Avg. Power
– Extinction Ratio
– Mask hits
– Mask out
– Bit Error Rate
– Slice Width
(setting)
Software Options (cont’d)
Cable De-embedding Option (WR6Zi-CBL-DE-EMBED)
Removes cable effects from your measurements. Simply enter the S-parameters or attenuation data of the cable(s) then all of the functionality of the WR6Zi can be utilized with cable effects de-embedded.
8b/10b Decode and 80-bit High Speed Serial Trigger Option (WR6Zi-80B-8B10B TD)*
Intuitive, color-coded serial trigger decode with powerful search capability enables captured waveforms to be searched for user-defined sequences of symbols. Multi-lane analysis decodes up to four simultaneously captured lanes. Includes 150 Mb/s to 3.125 Gb/s High-speed 80-bit Serial Pattern Trigger Option
*
Not available on WaveRunner HRO 6Zi models.
8b/10b Decode Option (WR6Zi-HRO-80B-8B10B D)
Intuitive, color-coded serial decode with powerful search capability enables captured waveforms to be searched for user-defined sequences of symbols. Multi-lane analysis decodes up to four simultaneously captured lanes.
Serial Data Mask Option (WR6Zi-SDM)
Create eye diagrams using a comprehensive list of standard eye pattern masks, or create a user-defined mask. Mask violations are clearly marked on the display for easy analysis.
Electrical Telecom Pulse Mask Test Option (WR6Zi-ET-PMT)
Performs automated compliance mask tests on a wide range of electrical telecom standards.
Spectrum Analyzer Mode Option (WR6Zi-SPECTRUM)
This package provides a new capability to navigate waveforms in the frequency domain using spectrum analyzer type controls.
FFT capability added to include:
Power averaging
Power density
Real and imaginary components
Frequency domain parameters
FFT on up to 128 Mpts
Disk Drive Measurements Option (WR6Zi-DDM2)
This package provides disk drive parameter measurements and related mathematical functions for performing disk drive WaveShape Analysis.
Disk Drive Parameters are as follows:
– amplitude
assymetry
– local base
– local baseline
separation
– local maximum
– local minimum
– local number
– local peak-peak
– local time
between events
– local time
between peaks
– local time
between troughs
– local time
at minimum
– local time
at maximum
– local time
peak-trough
– local time
over threshold
– local time
trough-peak
– local time
under threshold
– narrow band phase
– narrow band power
– overwrite
– pulse width 50
– pulse width 50 –
– pulse width 50 +
– resolution
– track average
amplitude
– track average
amplitude –
– track average
amplitude +
– auto-correlation s/n
– non-linear
transition shift
23
ORDERING INFORMATION
Product Description Product Code
WaveRunner 6 Zi Series Oscilloscopes
400 MHz, 2 GS/s, 4 Ch, 64 Mpts/Ch 12-bit DSO with
12.1" WXGA Color Display
600 MHz, 2 GS/s, 4 Ch, 64 Mpts/Ch 12-bit DSO with
12.1" WXGA Color Display
400 MHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
600 MHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
1 GHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
2 GHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
2.5 GHz, 20 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 40 GS/s and 32 Mpts/Ch in Interleaved Mode
4 GHz, 20 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display. 50 Ω and 1 MΩ Input 40 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner HRO 64Zi
WaveRunner HRO 66Zi
WaveRunner 604Zi
WaveRunner 606Zi
WaveRunner 610Zi
WaveRunner 620Zi
WaveRunner 625Zi
WaveRunner 640Zi
Included with Standard Configuration
÷10, 500 MHz Passive Probe (Qty. 4)
Optical 3-button Wheel Mouse, USB 2.0
Printed Quick Reference Guide
Printed Getting Started Manual
Product Manual in PDF Format on Oscilloscope Desktop
Anti-virus Software (Trial Version)
®
Microsoft Windows
Commercial NIST Traceable Calibration with Certificate
Power Cable for the Destination Country
3-year Warranty
7 for Embedded Systems 64-bit License
Oscilloscope Synchronization
8 Channel Simultaneous Acquisition­Capture and Transfer Waveforms Between Two WR 6Zi or HRO 6Zi Oscilloscopes
WR6ZI-8CH-SYNCH
Product Description Product Code
Memory Options
64 Mpts/Ch Standard Memory. Includes 4 GB of RAM
128 Mpts/Ch Memory. Includes 4 GB of RAM.
256 Mpts/Ch Memory. Includes 4 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
16 Mpts/Ch (32 Mpts/Ch Interleaved) Standard Memory. Includes 2 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR6Zi-HRO-STD
WR6Zi-HRO-L-128
WR6Zi-HRO-XL-256
WR604Zi-STD
WR606Zi-STD
WR610Zi-STD
WR620Zi-STD
WR625Zi-STD
WR640Zi-STD
WR604Zi-S-32
WR606Zi-S-32
WR610Zi-S-32
WR620Zi-S-32
WR625Zi-S-32
WR640Zi-S-32
WR604Zi-M-64
WR606Zi-M-64
WR610Zi-M-64
WR620Zi-M-64
24
ORDERING INFORMATION
Product Description Product Code
Memory Options (cont’d)
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR625Zi-M-64
WR640Zi-M-64
Memory and Sample Rate Options
20 GS/s (40 GS/s Interleaved) Sampling Rate Option
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM. 20 GS/s (40 GS/s Interleaved) Sampling Rate Option
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM. 20 GS/s (40 GS/s Interleaved) Sampling Rate Option
20 GS/s (40 GS/s Interleaved) Sampling Rate Option
32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM. 20 GS/s (40 GS/s Interleaved) Sampling Rate Option
64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM. 20 GS/s (40 GS/s Interleaved) Sampling Rate Option
WR610Zi-STD-4x20GS
WR610Zi-S-32+4x20GS
WR610Zi-M-64+4x20GS
WR620Zi-STD-4x20GS
WR620Zi-S-32+4x20GS
WR620Zi-M-64+4x20GS
Computer Upgrade
Upgrade From 2 GB RAM to 4 GB RAM
Removeable Hard Drive Option WR6Zi-160GB-RHD
Removeable 500 GB Hard Drive Option WR6Zi-500GB-RHD
Additional 160 GB Hard Drive for Use With RHD Option. Includes Windows 7 Pro for Embedded Systems OS, LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
Additional 500 GB Hard Drive for Use With RHD Option. Includes Windows 7 Pro for Embedded Systems OS, LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
Upgrade From Standard Size Hard Drive to 500 GB Hard Drive
WR6Zi-UPG-4GBRAM
WR6Zi-160GB-RHD-02
WR6Zi-500GB-RHD-02
WR6Zi-500GB-HD
Serial Trigger and Decode
Cable De-Embedding Option WR6Zi-CBL-DE-EMBED
Eye Doctor (Virtual Probe and Equalizer Emulation Bundle), Serial Data Analyzers, and Disk Drive Analyzers
WR6Zi-EYEDRII
Product Description Product Code
Serial Trigger and Decode (cont’d)
ARINC 429 Bus Symbolic Decode Option
UART and RS-232 Trigger and Decode Option
CANbus TD Trigger and Decode Option
CANbus TDM Trigger, Decode and Measure/Graph Option
FlexRay Trigger and Decode Option WR6Zi-FlexRaybus TD
FlexRay Trigger, Decode, and Physical Layer Test Option
LIN Trigger and Decode Option WR6Zi-LINbus TD
Vehicle Bus Analyzer Package - Includes CANBus TDM, FlexRay TDP, LINBus TD, and ProtoBus MAG
8b/10b Trigger and Decode Option WR6Zi-80B-8B10B TD
MIL-STD-1553 Trigger and Decode Option
Audiobus Trigger and Decode for
2
S, Option LJ, RJ, and TDM
I
Audiobus Trigger, Decode, and Graph Option for I
USB 1.x/2.0 Trigger/Decode Option WR6Zi-USB2bus TD
USB2-HSIC Decode Option WR6Zi-USB2-HSICbus D
PCI Express Gen1 Decode Option WR6Zi-PCIebus D
SATA Trigger Decode Annotation Option Supports SATA Gen1, 2, and 3
SAS Decode Annotation Option PCI Express Gen1 Trigger and Decode Annotation Option
Fibre Channel Decode Annotation Option
DigRF 3G Decode Option WR6Zi-DigRF3Gbus D
DigRF v4 Decode Option WR6Zi-DigRFv4bus D
MIPI D-PHY Decode Option WR6Zi-DPHYbus D
MIPI D-PHY Decode and Physical Layer Test Option
MIPI M-PHY Decode Option WR6Zi-MPHYbus D
MIPI M-PHY Decode and Physical Layer Test Option
PROTObus MAG Serial Debug Toolkit WR6Zi-PROTObus MAG
Decode Annotation and Protocol Analyzer Synchronization Software Option
2
C, SPI and UART Trigger and
I Decode Option
MS-500-36 with I Trigger and Decode Option
2
S, LJ, RJ, and TDM
2
C, SPI and UART
WR6Zi-ARINCbus DSymbolic
WR6Zi-UART-RS232bus TD
WR6Zi-CANbus TD
WR6Zi-CANbus TDM
WR6Zi-FlexRaybus TDP
WR6Zi-VBA
WR6Zi-1553 TD
WR6Zi-Audiobus TD
WR6Zi-Audiobus TDG
WR6Zi-SATAbus TD
WR6Zi-SASbus D
WR6Zi-FCbus D
WR6Zi-DPHYbus DP
WR6Zi-MPHYbus DP
WR6Zi-ProtoSync
WR6Zi-EMB
WR6Zi-MSO-EMB
25
ORDERING INFORMATION
Product Description Product Code
Serial Data Compliance
QualiPHY Enabled Ethernet 10/100/1000BT Software Option
QualiPHY Enabled USB 2.0 Software Option
QualiPHY Enabled SATA Software Option
QualiPHY Enabled MIPI D-PHY Software Option
QualiPHY Enabled DDR2 Software Option
QualiPHY Enabled LPDDR2 Software Option
QualiPHY Enabled DDR3 Software Option
QualiPHY Enabled MOST150o Software Option
QualiPHY Enabled MOST50e Software Option
QualiPHY Enabled BroadR-Reach Software Option
10/100/1000Base-T Ethernet Test Fixture
Telecom Adapter Kit 100 Ω Bal., 120 Ω Bal., 75 Ω Unbal.
SATA 1.5 Gb/s, 3.0 Gb/s and
6.0 Gb/s Compliance Test Fixture
USB 2.0 Compliance Test Fixture TF-USB-B
QPHY-SATA-TSG-RSG
QPHY-ENET
QPHY-USB
QPHY-MIPI-DPHY
QPHY-DDR2
QPHY-LPDDR2
QPHY-DDR3
QPHY-MOST150o
QPHY-MOST50e
QPHY-BroadR-Reach
TF-ENET-B
TF-ET
TF-SATA-C
**
Product Description Product Code
Data Storage Software
*
Disk Drive Measurements Software Option
Disk Drive Analyzer Software Option WR6Zi-DDA
Advanced Optical Recording Measurement Option
WR6Zi-DDM2
WR6Zi-AORM
Power Analysis Software
PowerMeasure Analysis Software Option
WR6Zi-PMA2
Jitter Analysis Software
Clock Jitter Analysis with Four Views Software Option
WR6Zi-JITKIT
Other Software Options
Advanced Customization Option WR6Zi-XDEV
Spectrum Analyzer and Advanced FFT Option
EMC Pulse Parameter Software Option
Electrical Telecom Mask Test Software Option
WR6Zi-SPECTRUM
WR6Zi-EMC
WR6Zi-ET-PMT
Digital Filtering Software
Digital Filter Software Option
WR6Zi-DFP2
Remote Control/Network Options
External USB2 to GPIB Adaptor
USB2-GPIB
* TF-ENET-B required. ‡ TF-USB-B required. ** Includes ENET-2CAB-SMA018 and ENET-2ADA-BNCSMA.
Serial Data Analysis
Serial Data Mask Software Option WR6Zi-SDM
SDA II Serial Data Analysis Option WR6ZI-SDAII
Mixed Signal Solutions
250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch (500 MHz, 18 Ch, 2 GS/s, 50 Mpts/Ch Interleaved) Mixed Signal Oscilloscope Option
MS-250
MS-500
MS-500-36
General Accessories
Oscilloscope Cart with Additional Shelf and Drawer
Oscilloscope Cart OC1021
Accessory Pouch WR6Zi-POUCH
Rackmount, 8U Adaptor Kit WR6ZI-RACK
Keyboard, USB KYBD-1
MIL Calibration Certification WR6Zi-CCMIL
Soft Carrying Case
Protective Hard Cover
External Adaptor for Reference In and Out (To be applied at the Lbus Connector)
WR6Zi-SOFTCASE
WR6Zi-ExtRef-IN/OUT
OC1024
WR6Zi-COVER
26
ORDERING INFORMATION
Product Description Product Code
Probes
÷10, 500 MHz 10 MΩ Passive Probe PP009
÷10, 500 MHz 10 MΩ Passive Probe PP008
200 MHz, 3.5 pF, 1 MΩ Active Differential Probe
500 MHz, 1.0 pF, 1 MΩ Active Differential Probe
1 GHz, 1.0 pF, 1 MΩ Active Differential Probe
1.5 GHz, 1.0 pF, 1 MΩ Active Differential Probe
1 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
Set of 4 ZS1000, 1 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
1.5 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
Set of 4 ZS1500, 1.5 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
2.5 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
Set of 4 ZS2500, 2.5 GHz, 0.9 pF, 1 MΩ High Impedance Active Probe
WaveLink 6 GHz Differential Amplifier Module with Adjustable Tip
WaveLink 3 GHz Differential Amplifier Module with Adjustable Tip
WaveLink 5 GHz Differential Amplifier Module with Positioner Tip
Optical-to-Electrical Converter, 500-870 nm ProBus BNC Connector
Optical-to-Electrical Converter, 950-1630 nm ProBus BNC Connector
1,400 V, 20 MHz High-Voltage Differential Probe
1,400 V, 100 MHz High-Voltage Differential Probe
10:1/100:1 200/300 MHz 50 MΩ High-Voltage Probe 600 V/1.2 kV Max. Volt. DC
100:1 400 MHz 50 MΩ 2 kV High-Voltage Probe
100:1 400 MHz 50 MΩ 4 kV High-Voltage Probe
1000:1 400 MHz 50 MΩ 5 kV High-Voltage Probe
ZS1000-QUADPAK
ZS1500-QUADPAK
ZS2500-QUADPAK
ZD200
ZD500
ZD1000
ZD1500
ZS1000
ZS1500
ZS2500
D600A-AT
D300A-AT
D500PT
OE425
OE455
ADP300
ADP305
PPE1.2KV
PPE2KV
PPE4KV
PPE5KV
Product Description Product Code
Probes (cont’d)
1000:1 400 MHz 5 MΩ / 50 MΩ 6 kV High-Voltage Probe
1000:1 100 MHz 100MΩ High-Voltage Probe 20 kV Max. Volt. DC + 40 kV Peak AC
30 A; 50 MHz Current Probe – AC/DC; 30 A
30 A; 50 MHz Current Probe – AC/DC; 30 A
30 A; 100 MHz Current Probe – AC/DC; 30 A
150 A; 10 MHz Current Probe – AC/DC; 150 A
500 A; 2 MHz Current Probe – AC/DC; 500 A
700 V, 15 MHz High-Voltage Differential Probe (÷10, ÷100)
1 Ch, 100 MHz Differential Amplifier with Precision Voltage Source
DA1855A with Rackmount DA1855A-RM
2 Ch, 100 MHz Differential Amplifier with Precision Voltage Source
DA1855A with Rackmount (must be ordered at time of purchase, no retrofit)
WaveLink ProBus Platform/Cable Assembly (4 GHz)
WaveLink 4 GHz 2.5 Vp-p Differential Amplifier Small Tip Module
WaveLink 4 GHz 5 Vp-p Differential Amplifier Small Tip Module
WaveLink 4 GHz, 2.5 Vp-p Differential Positioner Tip
WaveLink 4 GHz, 5 Vp-p Differential Positioner Tip
* For a complete probe, order a PBus Platform/Cable Assembly with the
Probe Tip Module.
rms; 50 Apeak Pulse
rms; 50 Apeak Pulse
rms; 50 Apeak Pulse
rms; 500 Apeak Pulse
rms; 700 Apeak Pulse
DA1855A-PR2-RM
PPE6KV
PPE20KV
AP015
CP030
CP031
CP150
CP500
AP031
DA1855A
DA1855A-PR2
WL-PBus
D410
D420
D410-PT
D420-PT
*
*
27
1-800-5-LeCroy www.lecroy.com
© 2012 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
PCI Express
MATLAB of their respective holders.
®
is a registered trademark and/or service mark of PCI-SIG.
®
is a registered trademark of The MathWorks, Inc. All other product or brand names are trademarks or requested trademarks
Local sales offices are located throughout the world. Visit our website to find the most convenient location.
waverunner6zi-ds-17may12
PDF
Loading...
