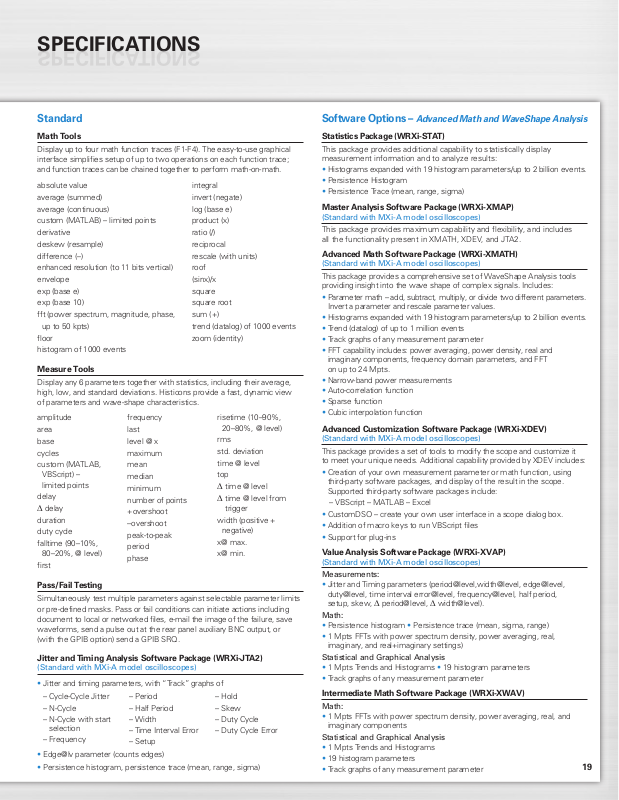

SPECIFICATIONS
19
Standard
Math Tools
Display up to four math function traces (F1-F4). The easy-to-use graphical
interface simplifies setup of up to two operations on each function trace;
and function traces can be chained together to perform math-on-math.
absolute value integral
average (summed) invert (negate)
average (continuous) log (base e)
custom (MATLAB) – limited points product (x)
derivative ratio (/)
deskew (resample) reciprocal
difference (–) rescale (with units)
enhanced resolution (to 11 bits vertical) roof
envelope (sinx)/x
exp (base e) square
exp (base 10) square root
fft (power spectrum, magnitude, phase, sum (+)
up to 50 kpts) trend (datalog) of 1000 events
floor zoom (identity)
histogram of 1000 events
Measure Tools
Display any 6 parameters together with statistics, including their average,
high, low, and standard deviations. Histicons provide a fast, dynamic view
of parameters and wave-shape characteristics.
Pass/Fail Testing
Simultaneously test multiple parameters against selectable parameter limits
or pre-defined masks. Pass or fail conditions can initiate actions including
document to local or networked files, e-mail the image of the failure, save
waveforms, send a pulse out at the rear panel auxiliary BNC output, or
(with the GPIB option) send a GPIB SRQ.
Jitter and Timing Analysis Software Package (WRXi-JTA2)
(Standard with MXi-A model oscilloscopes)
• Jitter and timing parameters, with “Track” graphs of
• Edge@lv parameter (counts edges)
• Persistence histogram, persistence trace (mean, range, sigma)
Software Options –
Advanced Math and WaveShape Analysis
Statistics Package (WRXi-STAT)
This package provides additional capability to statistically display
measurement information and to analyze results:
• Histograms expanded with 19 histogram parameters/up to 2 billion events.
• Persistence Histogram
• Persistence Trace (mean, range, sigma)
Master Analysis Software Package (WRXi-XMAP)
(Standard with MXi-A model oscilloscopes)
This package provides maximum capability and flexibility, and includes
all the functionality present in XMATH, XDEV, and JTA2.
Advanced Math Software Package (WRXi-XMATH)
(Standard with MXi-A model oscilloscopes)
This package provides a comprehensive set of WaveShape Analysis tools
providing insight into the wave shape of complex signals. Includes:
• Parameter math – add, subtract, multiply, or divide two different parameters.
Invert a parameter and rescale parameter values.
• Histograms expanded with 19 histogram parameters/up to 2 billion events.
• Trend (datalog) of up to 1 million events
• Track graphs of any measurement parameter
• FFT capability includes: power averaging, power density, real and
imaginary components, frequency domain parameters, and FFT
on up to 24 Mpts.
• Narrow-band power measurements
• Auto-correlation function
• Sparse function
• Cubic interpolation function
Advanced Customization Software Package (WRXi-XDEV)
(Standard with MXi-A model oscilloscopes)
This package provides a set of tools to modify the scope and customize it
to meet your unique needs. Additional capability provided by XDEV includes:
• Creation of your own measurement parameter or math function, using
third-party software packages, and display of the result in the scope.
Supported third-party software packages include:
– VBScript – MA
TLAB – Excel
• CustomDSO – create your own user interface in a scope dialog box.
• Addition of macro keys to run VBScript files
• Support for plug-ins
Value Analysis Software Package (WRXi-XVAP)
(Standard with MXi-A model oscilloscopes)
Measurements:
• Jitter and Timing parameters (period@level,width@level, edge@level,
duty@level, time interval error@level, frequency@level, half period,
setup, skew
, Δ period@level, Δ width@level).
Math:
• Persistence histogram • Persistence trace (mean, sigma, range)
• 1 Mpts FFTs with power spectrum density, power averaging, real,
imaginary, and real+imaginary settings)
Statistical and Graphical Analysis
• 1 Mpts Trends and Histograms • 19 histogram parameters
• Track graphs of any measurement parameter
Intermediate Math Software Package (WRXi-XWAV)
Math:
• 1 Mpts FFTs with power spectrum density, power averaging, real, and
imaginary components
Statistical and Graphical Analysis
• 1 Mpts Trends and Histograms
• 19 histogram parameters
• Track graphs of any measurement parameter
amplitude
area
base
cycles
custom (MA
TLAB,
VBScript) –
limited points
delay
Δ delay
duration
duty cycle
falltime (90–10%,
80–20%, @ level)
first
frequency
last
level @ x
maximum
mean
median
minimum
number of points
+overshoot
–overshoot
peak-to-peak
period
phase
risetime (10–90%,
20–80%, @ level)
rms
std. deviation
time @ level
top
Δ time @ level
Δ time @ level from
trigger
width (positive +
negative)
x@ max.
x@ min.
– Cycle-Cycle Jitter
– N-Cycle
– N-Cycle with start
selection
– Frequency
– Period
– Half Period
– Width
– Time Interval Error
– Setup
– Hold
– Skew
– Duty Cycle
– Duty Cycle Error
20
SPECIFICATIONS
WaveRunner WaveRunner WaveRunner WaveRunner WaveRunner
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Vertical System 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Nominal Analog Bandwidth 400 MHz 600 MHz 600 MHz 1 GHz 2 GHz
@ 50 Ω, 10 mV–1 V/div
Rise Time (Typical) 875 ps 500 ps 500 ps 300 ps 180 ps
Input Channels 4 4 2 4 4
Bandwidth Limiters 20 MHz; 200 MHz
Input Impedance 1 MΩ||16 pF or 50 Ω 1 MΩ||20 pF or 50 Ω
Input Coupling 50 Ω: DC, 1 MΩ: AC, DC, GND
Maximum Input Voltage 50 Ω: 5 V
rms
, 1 MΩ: 400 V max. 50 Ω: 5 V
rms
, 1 MΩ: 250 V max.
(DC + Peak AC ≤ 5 kHz) (DC + Peak AC ≤ 10 kHz)
Vertical Resolution 8 bits; up to 11 with enhanced resolution (ERES)
Sensitivity 50 Ω: 2 mV/div–1 V/div fully variable; 1 MΩ: 2 mV–10 V/div fully variable
DC Accuracy ±1.0% of full scale (typical); ±1.5% of full scale, ≥ 10 mV/div (warranted)
Offset Range
50 Ω: ±1 V @ 2–98 mV/div, ±10 V @ 100 mV/div–1 V/div;
50 Ω: ±400 mV @ 2–4.95 mV/div, ±1 V @ 5–99 mv/div,
1 M Ω: ±1 V @ 2–98 mV/div, ±10 V @ 100 mV/div–1 V/div,
±10 V @ 100 mV–1 V/div
±100 V @ 1.02 V/div–10 V/div
1 M Ω: ±400 mV @ 2–4.95 mV/div, ±1 V @
5–99 mV/div, ±10 V @ 100 mV–1 V/div,
±100 V @ 1.02–10 V/div
Input Connector ProBus/BNC
Timebase System
Timebases Internal timebase common to all input channels; an external clock may be applied at the auxiliary input
Time/Division Range Real time: 200 ps/div–10 s/div, RIS mode: 200 ps/div to 10 ns/div, Roll mode: up to 1,000 s/div
Clock Accuracy ≤ 5 ppm @ 25 °C (typical) (≤ 10 ppm @ 5–40 °C)
Sample Rate and Delay Time Accuracy Equal to Clock Accuracy
Channel to Channel Deskew Range ±9 x time/div setting, 100 ms max., each channel
External Sample Clock DC to 600 MHz; (DC to 1 GHz for 104Xi-A/104MXi-A and 204Xi-A/204MXi-A) 50 Ω, (limited BW in 1 MΩ),
BNC input, limited to 2 Ch operation (1 Ch in 62Xi-A), (minimum rise time and amplitude requirements apply
at low frequencies)
Roll Mode User selectable at ≥ 500 ms/div and ≤ 100 kS/s
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Acquisition System 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Single-Shot Sample Rate/Ch 5 GS/s
Interleaved Sample Rate (2 Ch) 5 GS/s 10 GS/s 10 GS/s 10 GS/s 10 GS/s
Random Interleaved Sampling (RIS) 200 GS/s
RIS Mode User selectable from 200 ps/div to 10 ns/div User selectable from 100 ps/div to 10 ns/div
Trigger Rate (Maximum) 1,250,000 waveforms/second
Sequence Time Stamp Resolution 1 ns
Minimum Time Between 800 ns
Sequential Segments
Acquisition Memory Options Max. Acquisition Points (4 Ch/2 Ch, 2 Ch/1 Ch in 62Xi-A) Segments (Sequence Mode)
Standard 12.5M/25M 10,000
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Acquisition Processing 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Time Resolution (min, Single-shot) 200 ps (5 GS/s) 100 ps (10 GS/s) 100 ps (10 GS/s) 100 ps (10 GS/s) 100 ps (10 GS/s)
Averaging Summed and continuous averaging to 1 million sweeps
ERES From 8.5 to 11 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
Interpolation Linear or (Sinx)/x
Trigger System
Trigger Modes Normal, Auto, Single, Stop
Sources Any input channel, External, Ext/10, or Line; slope and level unique to each source, except Line
Trigger Coupling DC, AC (typically 7.5 Hz), HF Reject, LF Reject
Pre-trigger Delay 0–100% of memory size (adjustable in 1% increments, or 100 ns)
Post-trigger Delay Up to 10,000 divisions in real time mode, limited at slower time/div settings in roll mode
Hold-off 1 ns to 20 s or 1 to 1,000,000,000 events
SPECIFICATIONS
21
WaveRunner WaveRunner WaveRunner WaveRunner WaveRunner
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Trigger System (cont’d) 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Internal Trigger Level Range ±4.1 div from center (typical)
Trigger and Interpolator Jitter ≤ 3 ps rms (typical)
Trigger Sensitivity with Edge Trigger 2 div @ < 400 MHz 2 div @ < 600 MHz 2 div @ < 600 MHz 2 div @ < 1 GHz 2 div @ < 2 GHz
(Ch 1–4 + external, DC, AC, and 1 div @ < 200 MHz 1 div @ < 200 MHz 1 div @ < 200 MHz 1 div @ < 200 MHz 1 div @ < 200 MHz
LFrej coupling)
Max. Trigger Frequency with 400 MHz 600 MHz 600 MHz 1 GHz 2 GHz
SMART Trigger™ (Ch 1–4 + external) @ ≥ 10 mV @ ≥ 10 mV @ ≥ 10 mV @ ≥ 10 mV @ ≥ 10 mV
External Trigger Range EXT/10 ±4 V; EXT ±400 mV
Basic Triggers
Edge Triggers when signal meets slope (positive, negative, or Window) and level condition.
TV-Composite Video Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate
(50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1–8), Lines (up to 2000), Frame Rates (25, 30, 50,
or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).
SMART Triggers
State or Edge Qualified Triggers on any input source only if a defined state or edge occurred on another input source.
Delay between sources is selectable by time or events.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input – 2 Ch+EXT
on WaveRunner 62Xi-A). Each source can be high, low, or don’t care. The High and Low level can be se-
lected independently. Triggers at start or end of the pattern.
SMART Triggers with Exclusion Technology
Glitch and Pulse Width Triggers on positive or negative glitches with widths selectable from 500 ps to 20 s or on intermittent faults
(subject to bandwidth limit of oscilloscope).
Signal or Pattern Interval Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified) Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between
1 ns and 20 s.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 s.
Exclusion Triggering Trigger on intermittent faults by specifying the normal width or period.
LeCroy WaveStream Fast Viewing Mode
Intensity 256 Intensity Levels, 1–100% adjustable via front panel control
Number of Channels up to 4 simultaneously
Max Sampling Rate 5 GS/s (10 GS/s for WR 62Xi-A, 64Xi-A/64MXi-A,104Xi-A/104MXi-A, 204Xi-A/204MXi-A in interleaved mode)
Waveforms/second (continuous) Up to 8000 waveforms/second
Operation Front panel toggle between normal real-time mode and LeCroy WaveStream Fast Viewing mode
Automatic Setup
Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals.
Vertical Find Scale Automatically sets the vertical sensitivity and offset for the selected channels to display a waveform with
maximum dynamic range.
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Probes 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Probes One PP008 per channel standard; One PP007 per channel standard;
Optional passive and active probes available. Optional passive and active probes available.
Probe System; ProBus Automatically detects and supports a variety of compatible probes.
Scale Factors Automatically or manually selected, depending on probe used
Color Waveform Display
Type Color 10.4" flat-panel TFT-LCD with high resolution touch screen
Resolution SVGA; 800 x 600 pixels; maximum external monitor output resolution of 2048 x 1536 pixels
Number of Traces Display a maximum of 8 traces. Simultaneously display channel, zoom, memory, and math traces.
Grid Styles Auto, Single, Dual, Quad, Octal, XY, Single + XY, Dual + XY
Waveform Styles Sample dots joined or dots only in real-time mode
22
SPECIFICATIONS
Zoom Expansion Traces
Display up to 4 Zoom/Math traces with 16 bits/data point
Internal Waveform Memory
M1, M2, M3, M4 Internal Waveform Memory (store full-length waveform with 16 bits/data point) or
store to any number of files limited only by data storage media.
Setup Storage
Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.
Interface
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
GPIB Port (Accessory) Supports IEEE – 488.2
Ethernet Port 10/100/1000Base-T Ethernet interface (RJ-45 connector)
USB Ports 5 USB 2.0 ports (one on front of instrument) supports Windows-compatible devices.
External Monitor Port Standard 15-pin D-Type SVGA-compatible DB-15; connect a second monitor to use
extended desktop display mode with XGA resolution.
Serial Port DB-9 RS-232 port (not for remote oscilloscope control)
44Xi-A 64Xi-A 62Xi-A 104Xi-A 204Xi-A
Auxiliary Input 44MXi-A 64MXi-A 104MXi-A 204MXi-A
Signal Types Selected from External Trigger or External Clock input on front panel
Coupling 50 Ω: DC, 1 MΩ: AC, DC, GND
Maximum Input Voltage 50 Ω: 5 V
rms
, 1 MΩ: 400 V max. 50 Ω: 5 V
rms
, 1 MΩ: 250 V max.
(DC + Peak AC ≤ 5 kHz) (DC + Peak AC ≤ 10 kHz)
Auxiliary Output
Signal Type Trigger Enabled, Trigger Output. Pass/Fail, or Off
Output Level TTL, ≈3.3 V
Connector Type BNC, located on rear panel
General
Auto Calibration Ensures specified DC and timing accuracy is maintained for 1 year minimum.
Calibrator Output available on front panel connector provides a variety of signals for probe calibration
and compensation.
Power Requirements 90–264 V
rms
at 50/60 Hz; 115 V
rms
(±10%) at 400 Hz, Automatic AC Voltage Selection
Installation Category: 300V CAT II; Max. Power Consumption: 340 VA/340 W; 290 VA/290 W
for WaveRunner 62Xi-A
Environmental
Temperature: Operating +5 °C to +40 °C
Temperature: Non-Operating -20 °C to +60 °C
Humidity: Operating Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly
to 50% relative humidity at 40 °C
Humidity: Non-Operating 5% to 95% RH (non-condensing) as tested per MIL-PRF-28800F
Altitude: Operating Up to 2,000 m
Altitude: Non-Operating 12,190 m
Physical
Dimensions (HWD) 260 mm x 340 mm x 152 mm Excluding accessories and projections (10.25" x 13.4" x 6")
Net Weight 6.95 kg. (15.5 lbs.)
Certifications
CE Compliant, UL and cUL listed; Conforms to EN 61326, EN 61010-1, UL 61010-1 2nd Edition,
and CSA C22.2 No. 61010-1-04.
Warranty and Service
3-year warranty; calibration recommended annually. Optional service programs include extended
warranty, upgrades, calibration, and customization services.
ORDERING INFORMATION
23
Product Description Product Code
WaveRunner Xi-A Series Oscilloscopes
2 GHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 204Xi-A
(10 GS/s, 25 Mpts/Ch in interleaved mode)
with 10.4" Color Touch Screen Display
1 GHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 104Xi-A
(10 GS/s, 25 Mpts/Ch in interleaved mode)
with 10.4" Color Touch Screen Display
600 MHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 64Xi-A
(10 GS/s, 25 Mpts/Ch in interleaved mode)
with 10.4" Color Touch Screen Display
600 MHz, 2 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 62Xi-A
(10 GS/s, 25 Mpts/Ch in interleaved mode)
with 10.4" Color Touch Screen Display
400 MHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 44Xi-A
(25 Mpts/Ch in interleaved mode)
with 10.4" Color Touch Screen Display
WaveRunner MXi-A Series Oscilloscopes
2 GHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 204MXi-A
(10 GS/s, 25 Mpts/Ch in Interleaved Mode)
with 10.4" Color Touch Screen Display
1 GHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 104MXi-A
(10 GS/s, 25 Mpts/Ch in Interleaved Mode)
with 10.4" Color Touch Screen Display
600 MHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 64MXi-A
(10 GS/s, 25 Mpts/Ch in Interleaved Mode)
with 10.4" Color Touch Screen Display
400 MHz, 4 Ch, 5 GS/s, 12.5 Mpts/Ch WaveRunner 44MXi-A
(25 Mpts/Ch in Interleaved Mode)
with 10.4" Color Touch Screen Display
Included with Standard Configuration
÷10, 500 MHz, 10 MΩ Passive Probe (Total of 1 Per Channel)
Getting Started Manual and Quick Reference Guide
Optical 3-button Wheel Mouse – USB
Standard Ports; 10/100/1000Base-T Ethernet, USB 2.0 (5),
SVGA Video out, Audio in/out, RS-232
Protective Front Cover
Accessory Pouch
Standard Commercial Calibration and Performance Certificate
3-Year Warranty
General Purpose Software Options
Statistics Software Package WRXi-STAT
Master Analysis Software Package WRXi-XMAP
(Standard with MXi-A model oscilloscopes)
Advanced Math Software Package WRXi-XMATH
(Standard with MXi-A model oscilloscopes)
Intermediate Math Software Package WRXi-XWAV
(Standard with MXi-A model oscilloscopes)
Value Analysis Software Package (Includes XWAV and JTA2) WRXi-XVAP
(Standard with MXi-A model oscilloscopes)
Advanced Customization Software Package WRXi-XDEV
(Standard with MXi-A model oscilloscopes)
Spectrum Analyzer and Advanced FFT Option WRXi-SPECTRUM
Processing Web Editor Software Package WRXi-XWEB
Product Description Product Code
Application Specific Software Options
Jitter and Timing Analysis Software Package WRXi-JTA2
(Standard with MXi-A model oscilloscopes)
Digital Filter Software Package WRXi-DFP2
Disk Drive Measurement Software Package WRXi-DDM2
PowerMeasure Analysis Software Package WRXi-PMA2
Serial Data Mask Software Package WRXi-SDM
Ethernet Application Software Package QPHY-ENET*
USB 2.0 Compliance Test Software Package QPHY-USB
†
EMC Pulse Parameter Software Package WRXi-EMC
Electrical Telecom Mask Test Package ET-PMT
* TF-ENET-B required. †TF-USB-B required.
Serial Data Options
I2C Trigger and Decode Option WRXi-I2Cbus TD
SPI Trigger and Decode Option WRXi-SPIbus TD
UART and RS-232 Trigger and Decode Option WRXi-UART-RS232bus TD
LIN Trigger and Decode Option WRXi-LINbus TD
CANbus TD Trigger and Decode Option CANbus TD
CANbus TDM Trigger, Decode, and Measure/Graph Option CANbus TDM
FlexRay Trigger and Decode Option WRXi-FlexRaybus TD
FlexRay Trigger and Decode Physical Layer WRXi-FlexRaybus TDP
Test Option
A variety of Vehicle Bus Analyzers based on the WaveRunner Xi platform are available.
These units are equipped with a Symbolic CAN trigger and decode.
Mixed Signal Oscilloscope Options
500 MHz, 18 Ch, 2 GS/s, 50 Mpts/Ch MS-500
Mixed Signal Oscilloscope Option
250 MHz, 36 Ch, 1 GS/s, 25 Mpts/Ch MS-500-36
(500 MHz, 18 Ch, 2 GS/s, 50 Mpts/Ch Interleaved)
Mixed Signal Oscilloscope Option
250 MHz, 18 Ch, 1 GS/s, 10 Mpts/Ch MS-250
Mixed Signal Oscilloscope Option
Probes and Amplifiers*
Set of 4 ZS1500, 1.5 GHz, 0.9 pF, 1 M
Ω
ZS1500-QUADPAK
High Impedance Active Probe
Set of 4 ZS1000, 1 GHz, 0.9 pF, 1 M
Ω
ZS1000-QUADPAK
High Impedance Active Probe
2.5 GHz, 0.7 pF Active Probe HFP2500
1 GHz Active Differential Probe (÷1, ÷10, ÷20) AP034
500 MHz Active Differential Probe (x10, ÷1, ÷10, ÷100) AP033
30 A; 100 MHz Current Probe – AC/DC; 30
A
rms
; 50 A
rms
Pulse CP031
30 A; 50 MHz Current Probe – AC/DC;
30
A
rms
; 50 A
rms
Pulse
CP030
30 A; 50 MHz Current Probe – AC/DC; 30 A
rms
; 50 A
peak
Pulse AP015
150 A; 10 MHz Current Probe – AC/DC; 150 A
rms
; 500
A
peak
Pulse CP150
500 A; 2 MHz Current Probe – AC/DC; 500 A
rms
; 700
A
peak
Pulse CP500
1,400 V, 100 MHz High-Voltage Differential Probe ADP305
1,400 V, 20 MHz High-Voltage Differential Probe ADP300
1 Ch, 100 MHz Differential Amplifier DA1855A
*A wide variety of other passive, active, and differential probes are also available.
Consult LeCroy for more information.
Product Description Product Code
Hardware Accessories*
10/100/1000Base-T Compliance Test Fixture TF-ENET-B
†
USB 2.0 Testing Compliance Test Fixture TF-USB-B
External GPIB Interface WS-GPIB
Soft Carrying Case WRXi-SOFTCASE
Hard Transit Case WRXi-HARDCASE
Mounting Stand – Desktop Clamp Style WRXi-MS-CLAMP
Rackmount Kit WRXi-RACK
Mini Keyboard WRXi-KYBD
Removable Hard Drive Package (Includes removeable WRXi-RHD
hard drive kit and two hard drives)
Additional Removable Hard Drive WRXi-RHD-02
* A variety of local language front panel overlays are also available.
†
Includes ENET-2CAB-SMA018 and ENET-2ADA-BNCSMA.
Customer Service
LeCroy oscilloscopes and probes are designed, built, and tested to
ensure high reliability. In the unlikely event you experience difficulties,
our digital oscilloscopes are fully warranted for three years, and our
probes are warranted for one year.
This warranty includes:
• No charge for return shipping
• Long-term 7-year support
• Upgrade to latest software at no charge
ORDERING INFORMATION
Local sales offices are located throughout the world.
To find the most convenient one visit www.lecroy.com
© 2009 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change
without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
PCI Express
®
is a registered trademark and/or service mark of PCI-SIG.
1-800-5-LeCroy
www.lecroy.com
WRXi-ADS-W1-02Feb09
Loading...
