Squiggles Early Sitting System
User Instructions
The Squiggles Early Sitting System is
an Early Intervention product designed
to offer a range of therapeutic positions
during play time. This manual shows
how you can quickly, easily and safely
make use of all the functions. The
instructions on safety and maintenance
will ensure that you will enjoy the use of
this product fully.
Contents
01 Intended use
02 Declaration of conformity
03 Terms of warranty
04 Product history record
05 Product training record
06 Safety information
07 How to unpack and assemble the Early Sitting System
08 Fitting the cushions / components
09 Clinical setup for postural management
10 Frequent adjustments for daily use
11 Cleaning & care information
12 Daily product inspection
13 Annual product inspection
14 Reissuing Leckey products
15 Product servicing
16 Technical information
1. Intended Use
The Squiggles Early Sitting System is an
activity seat which has been designed for
children with disabilities aged 18 months
to 48 months for Early Intervention use at
home and/or in the school environment.
2. Declaration of Conformity
James Leckey Design Ltd. As
manufacturer with sole responsibility
declares that the Squiggles Early Sitting
System conforms to the requirements of
the 93/42/EEC Guidelines and EN12182
Technical aids for disabled persons
general requirements and test methods.
3. Terms of Warranty
The warranty applies only when the
product is used according to the
specified conditions and for the intended
purposes, following all manufacturer’s
recommendations (also see general
terms of sale, delivery and payment).
A two year warranty is provided on all
Leckey manufactured products and
components.
4. Product History Record
Your Leckey product is classified as
a Class 1 Medical device and as such
should only be prescribed, set up
or reissued for use by a technically
competent person who has been trained
in the use of this product.
5. Product Training Record
(Parents, Teachers & Carers)
Your Leckey product is a classified
as a Class 1 Medical device and as
such should only be prescribed, set
up or reissued for use by a technically
competent person who has been trained
in the use of this product. Leckey
recommend that a written record is
maintained to provide details of all
setups, reissue inspections and annual
inspections of this product.
Section 06
Safety Information
Section 10
Frequent Adjustments for Daily use
Section 11
Cleaning and Care
Section 12
Daily Product Inspection
6.1 Always read instructions fully before
use.
6.2 Users should not be left unattended
at any time whilst using Leckey
equipment.
6.3 Only use Leckey approved
components with your product. Never
modify the product in any way. Failure
to follow instructions may put the user
or carer at risk and will invalidate the
warranty on the product.
6.4 If in any doubt to the continued safe
use of your Leckey product or if any
parts should fail, please cease using the
product and contact our customer
services department or your local dealer
as soon as possible.
6.5 Some adjustments may require the
use of a tool which is provided with
each product. Keep all tools out of
reach of children.
6.6 When putting the user into a seating
system, both for positional and safety
reasons, always secure the pelvic
harness first.
6.7 Adjustments can be made with the
user in the product.
6.8 Lifting and handling guidelines
should be followed at all times. We
do not recommend that users are
moved while using the product. All due
care and attention should be taken if
transporting the user in and out of the
seat.
6.9 Always ensure the system is placed
on an even non slip surface before
putting a user into the product.
6.10 Ensure all rubber feet are present
on product base. Additional feet are
supplied with your system.
6.11 When the Trunk Support is in use
please ensure the flexi rods are fully
engaged & secure.
6.12 Always ensure the Trunk Support
angle is fixed on both sides and cannot
be adjusted accidentally by other
children.
6.13 When the Prone Bar is in use
please ensure that the poppers are fully
engaged and system is stable.
6.14 When using the Activity Tray
ensure
the tilt angle is locked on both sides
and cannot be adjusted accidentally by
other children.
6.15 Ensure the seat cover side flaps
are fastened to prevent the child
accessing
the adjustments.
6 Safety Information
6.16 When the system is being used on
a dining chair please ensure the seat
is attached securely with the straps
provided. Make sure the base is stable
and does not slide before you place the
user in the seat.
6.17 Do not use the leg support when
attaching the seat to a dining chair.
6.18 The product contains components
which could present a choking hazard
to small children. Always check that
locking
knobs and bolts within the child’s reach
are tightened.
6.19 Leckey products comply with fire
safety regulations in accordance with
EN12182. However the product contains
plastic components and therefore
should be kept away from all direct
sources of heat including naked flames,
cigarettes,
electric and gas heaters.
6.20 Clean the product regularly. Refer
to (11) Cleaning and care information.
Do not use abrasive cleaners. Carry
out maintenance checks on a regular
basis to ensure your product is in good
working condition.
6.21 The product is designed for
indoor use and when not in use should
be stored in a dry place that is not
subjected to extremes of temperatures.
The safe operating temperature range of
the product is +5 to +40 deg Celsius.
How to unpack
and assemble
the Early
Sitting System
7
Check parts
Congratulations on purchasing your
Squiggles Early Sitting System. When
opening the box take care not to cut
through the box as you may damage some
of the parts contained inside. All of the parts
will be contained in polythene bags with
each one clearly labelled. Carefully remove
them from the boxes and check
you have all the parts you have ordered.
Safety First
Keep polythene bags away from
children.
Once you have checked you have all the
components you ordered you are then ready
to assemble the System.
Multi-tool
A number of adjustments will require the use
of the multi-tool, which is supplied with each
seat and can be found together with your
information pack.
Components will be disassembled for
shipping. You will receive the Seat base
assembly with cover and pelvic harness fully
attached together with the trunk support and
any additional components you have ordered
in separate packaging.

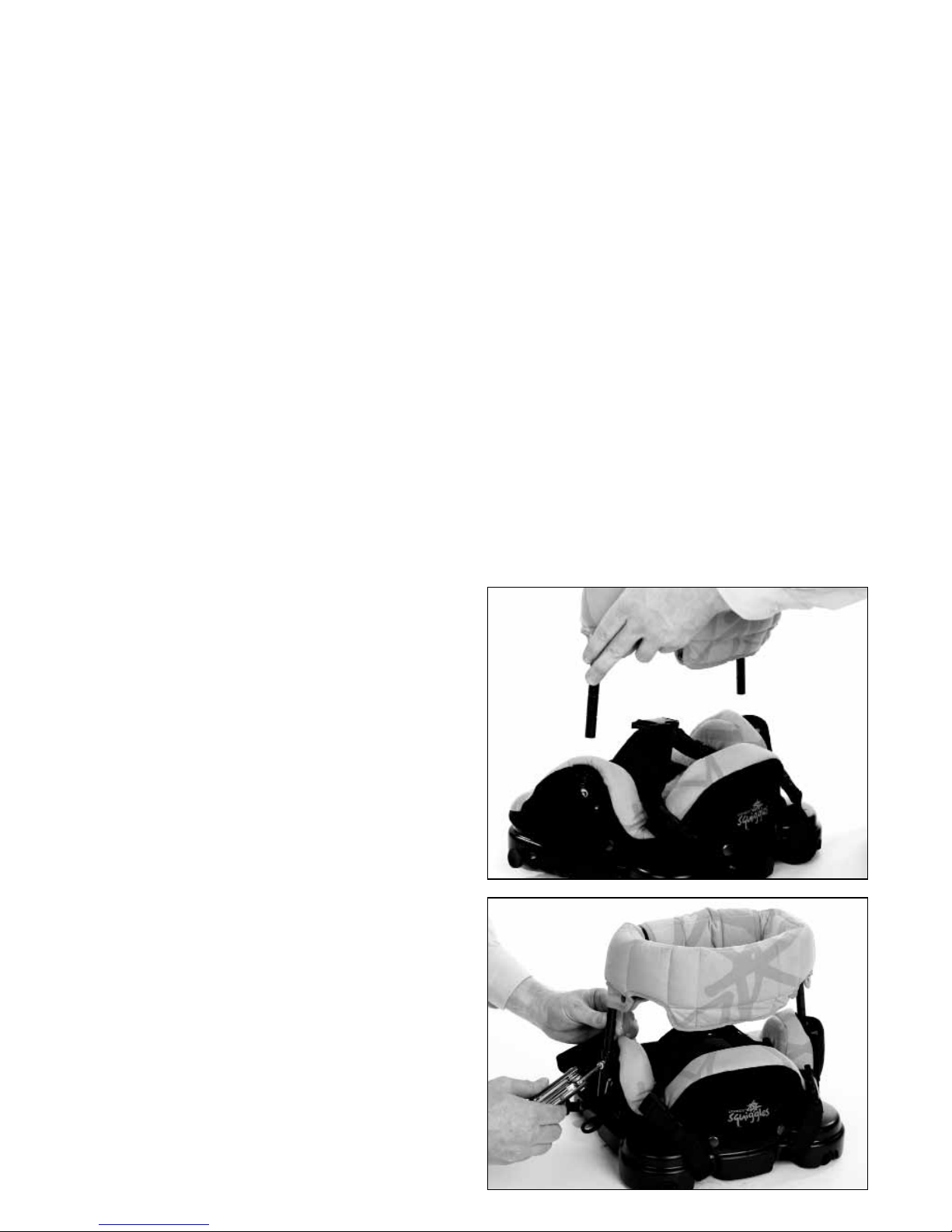

7.1 Seat Assembly
To attach the dynamic trunk support to the
seat base sleeve the plastic rods into the
receiving tubes on either side of the seat
base. Set to the minimum height and secure
with the allen bolts using the Leckey tool
provided.

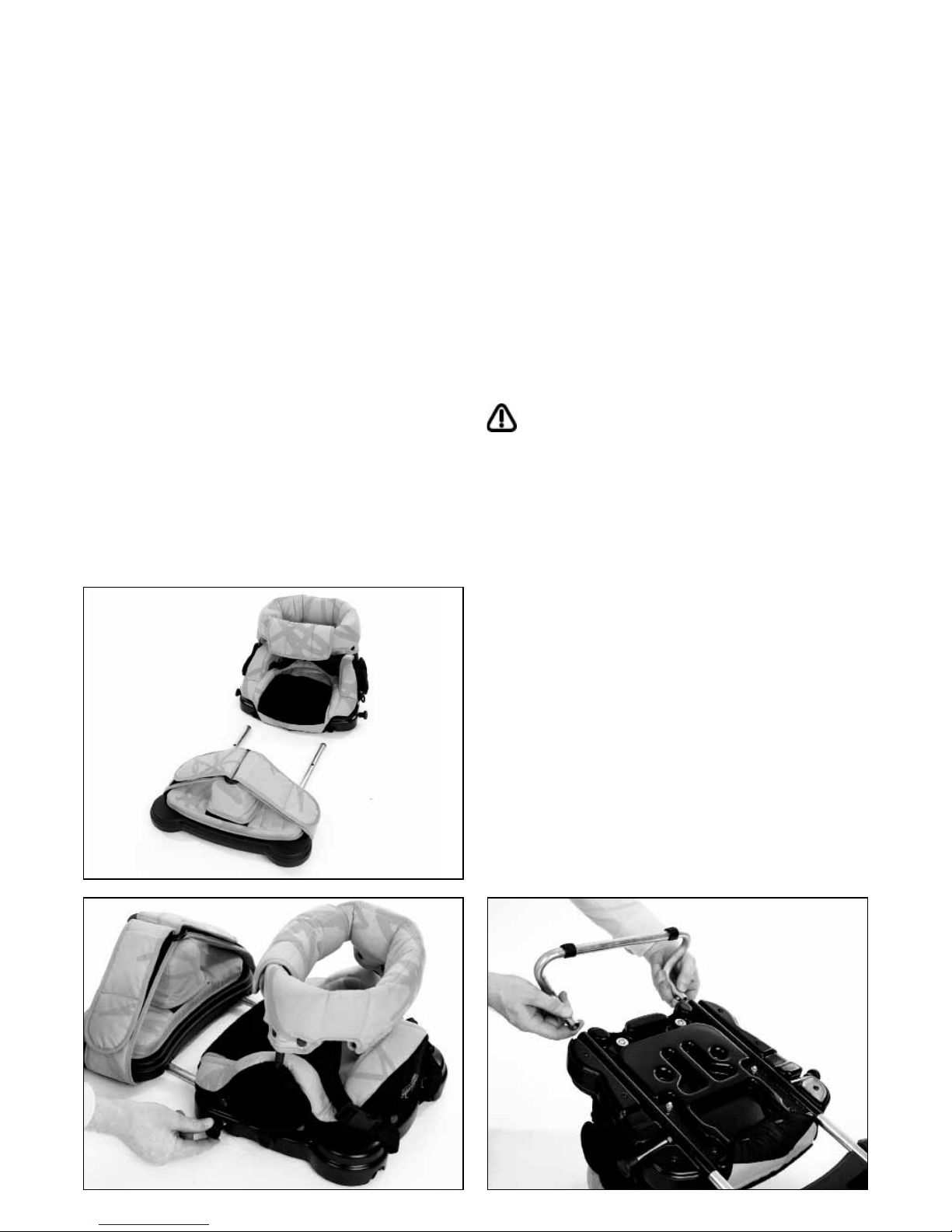

7.2 Dynamic trunk
support attachment
The leg support is supplied complete with
support cushion, leg abduction pommel
and a positioning strap.
To attach the leg support assembly insert
the inner tubes into the receiving sleeves
on the seat base assembly and secure
at the sides with the locking knobs. The
maximum extension is indicated by two
holes on the inner tubes, when these are
visible the leg support assembly is in it’s
maximum extension.

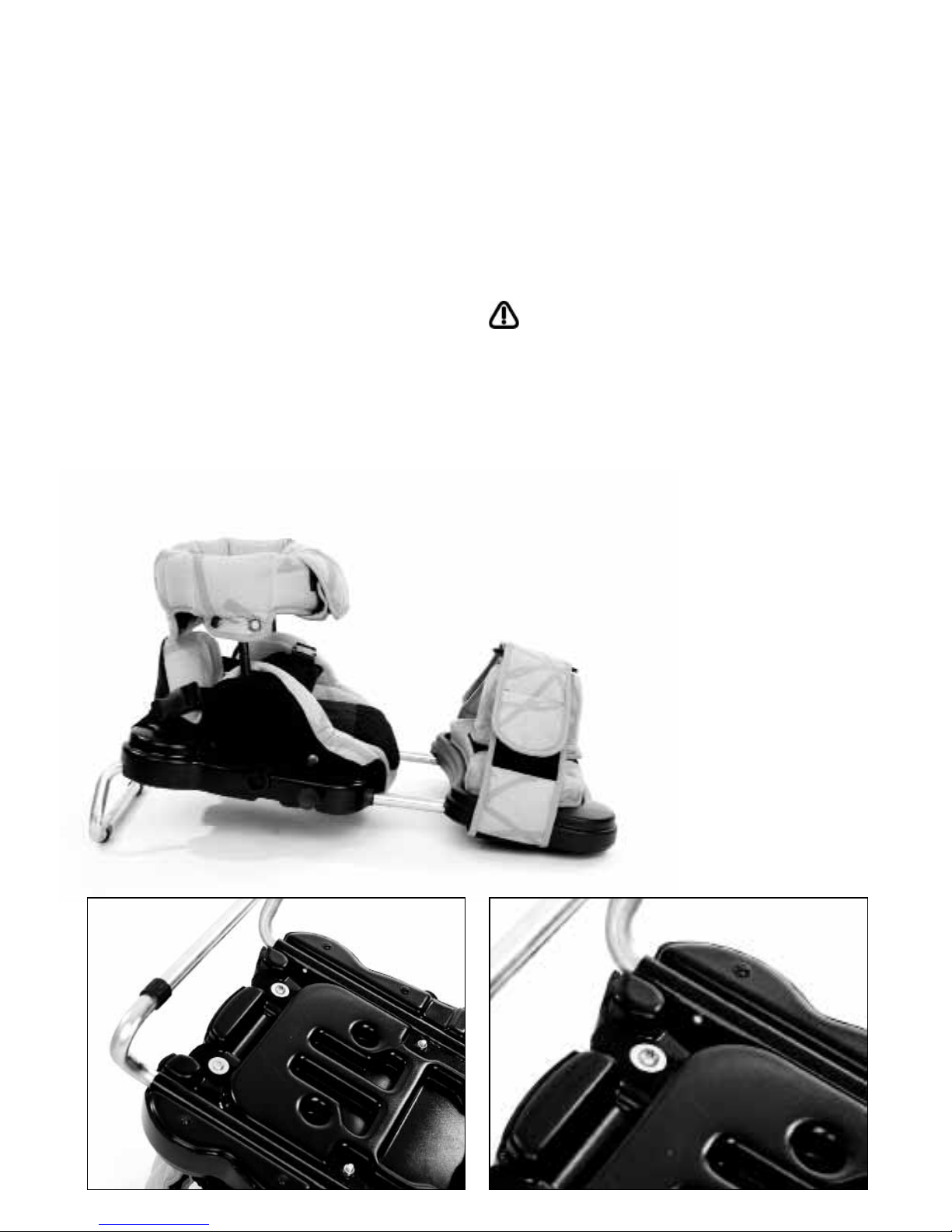

7.3 Attaching the leg
support to the seat
If you have ordered the prone bar, remove it
from its packaging. This component should
only be used with the seat assembled
together with the Leg Support.
To attach the prone bar, turn the seat base
upside down, press the poppers in and slide
the prone bar into the receiving tubes at the
back of the seat. The bar is secure when
the poppers are engaged in the holes in
the receiving tubes. To remove reverse the
process.
When the part is not in use store it in a
safe place out of reach to children.
7.4 Prone bar
attachment

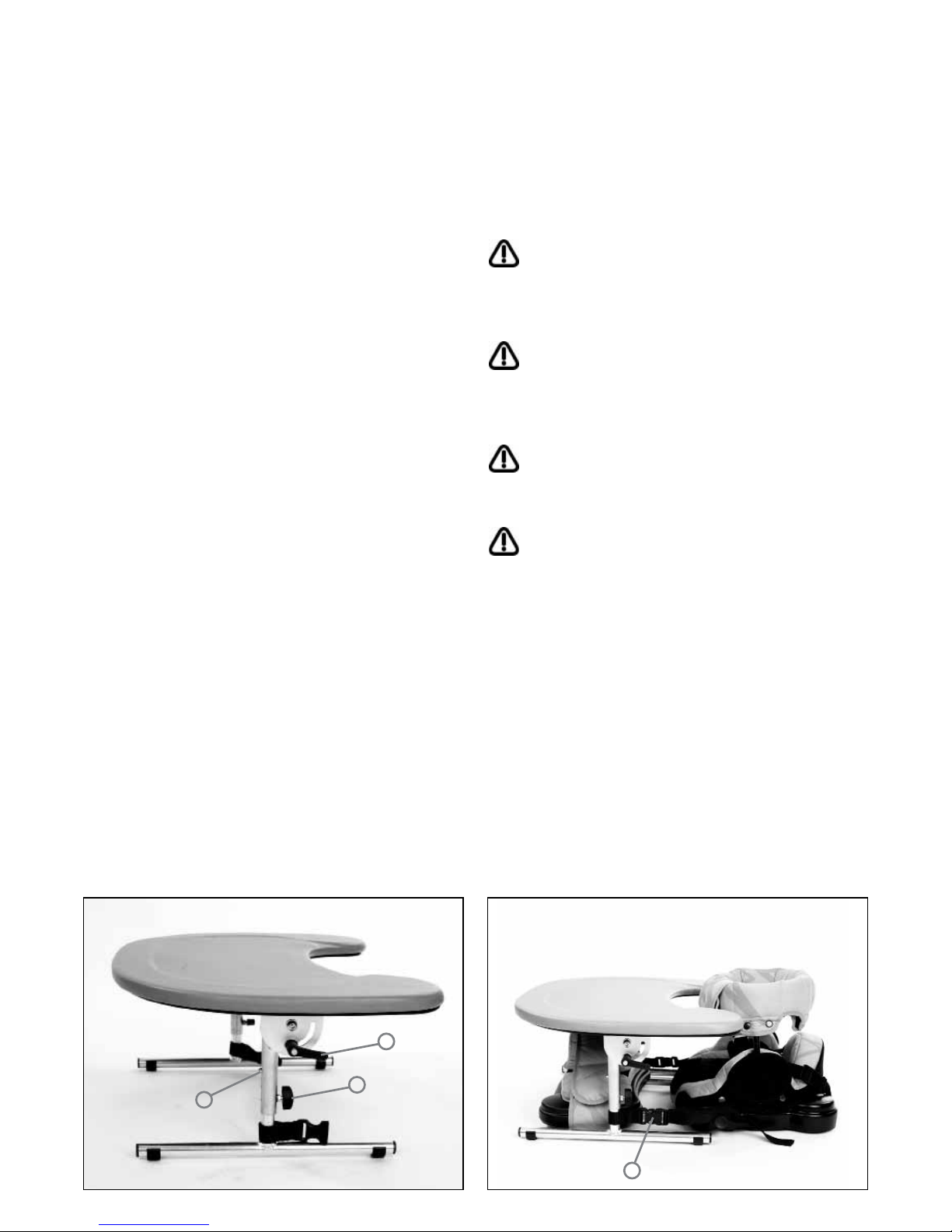

If you have ordered a Tray it will come
packaged disassembled for transport.
To assemble insert the tubes into the
outer sleeve until the popper engages.
Secure with plastic knob. Repeat for the
other leg, ensuring both legs are set to
the same height.
7.5 Tray assembly

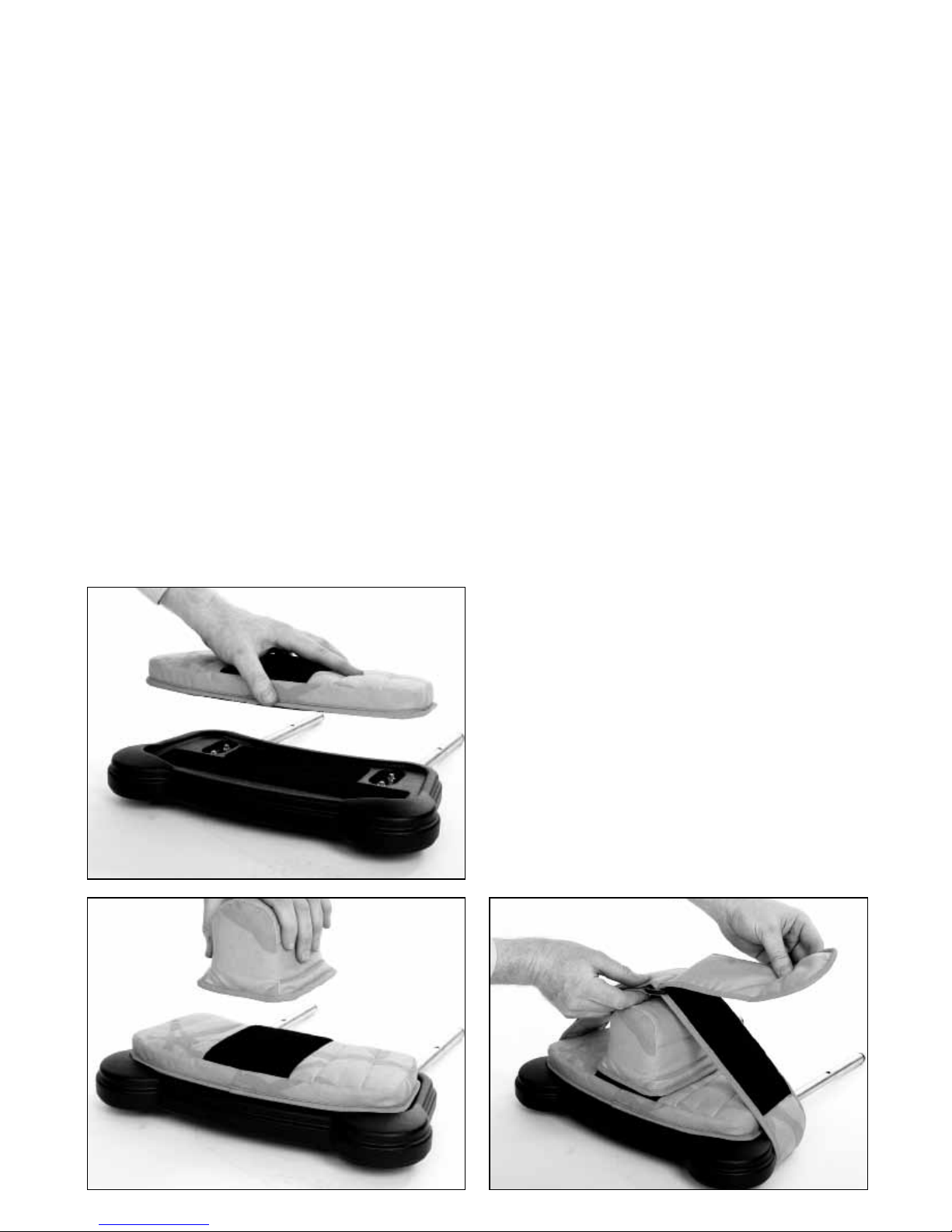

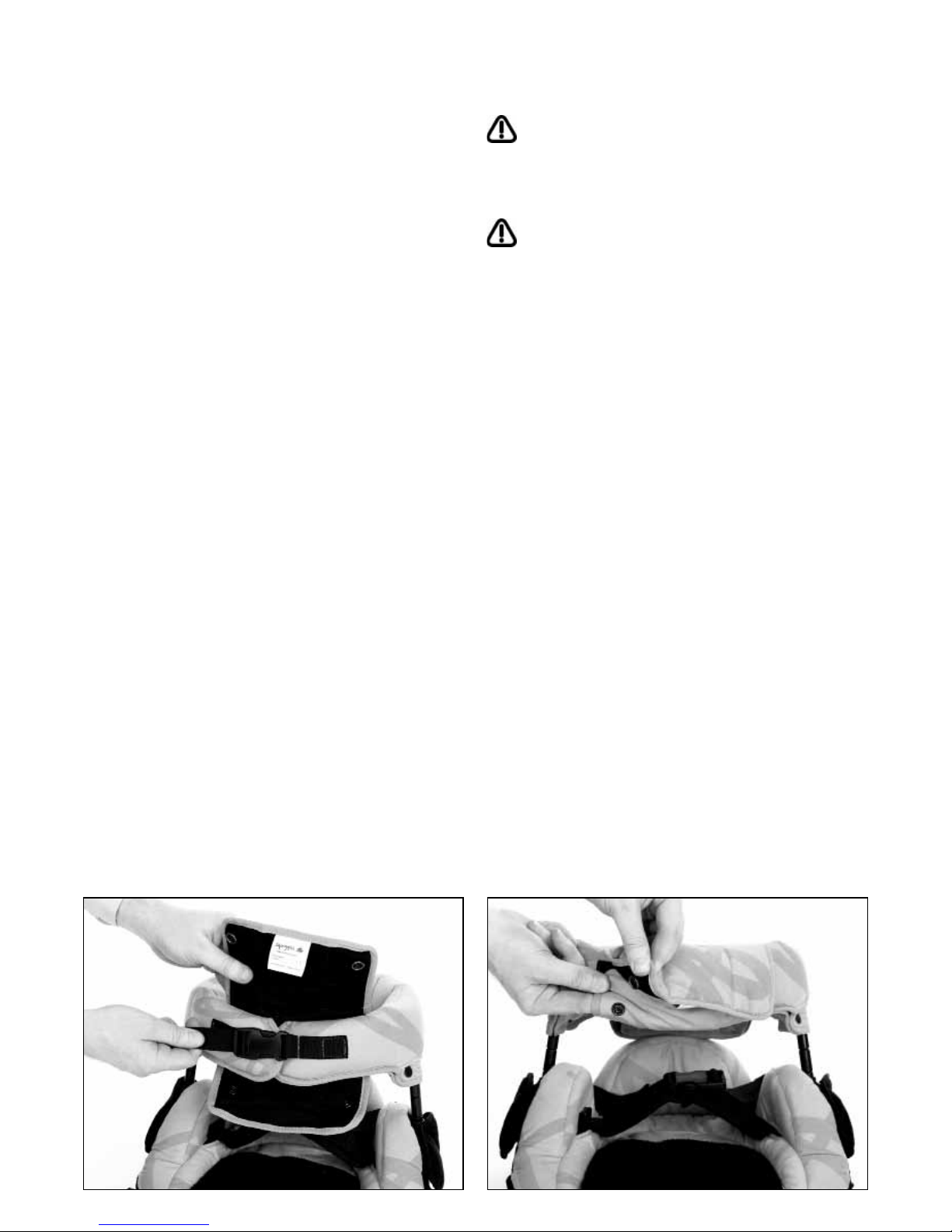

To attach the spacer pads first remove
the dynamic trunk support from the
seat assembly and lay it down flat on
a work surface.

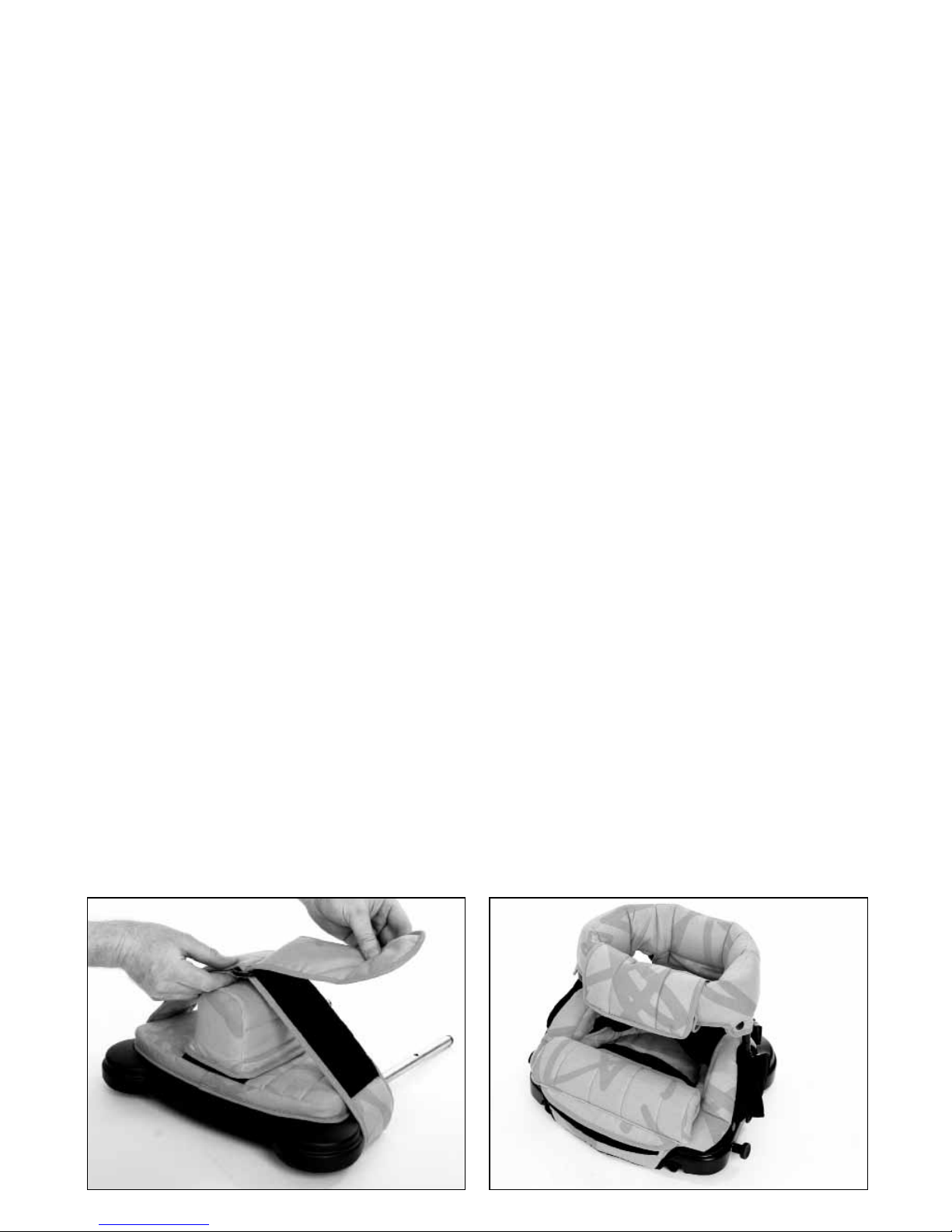

Wrap the spacer pad/s around the cushion
ensuring that the top fastens down over the
bottom between the flexi rods and secure
with the snap fasteners. Reattach the
dynamic trunk support to the seat base as
detailed above under “Dynamic trunk support
attachment”
7.6 Spacer Pads

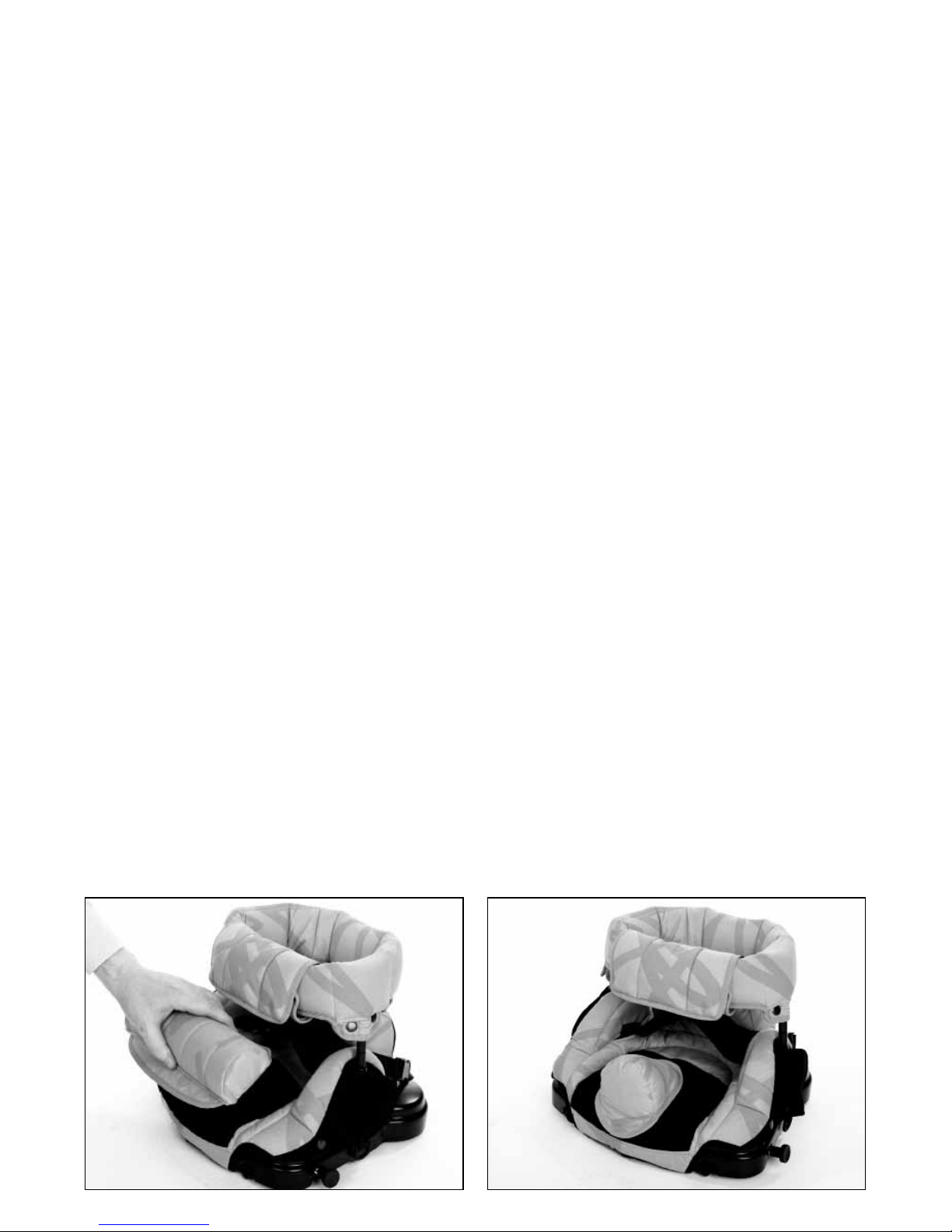

7.7 Flexion Roll
The flexion roll contains hooky strips
underneath the support to attach it to the
seat cover. Position the roll in the desired
location ensuring the hooky attaches securely
to the loop panel of the seat cover.

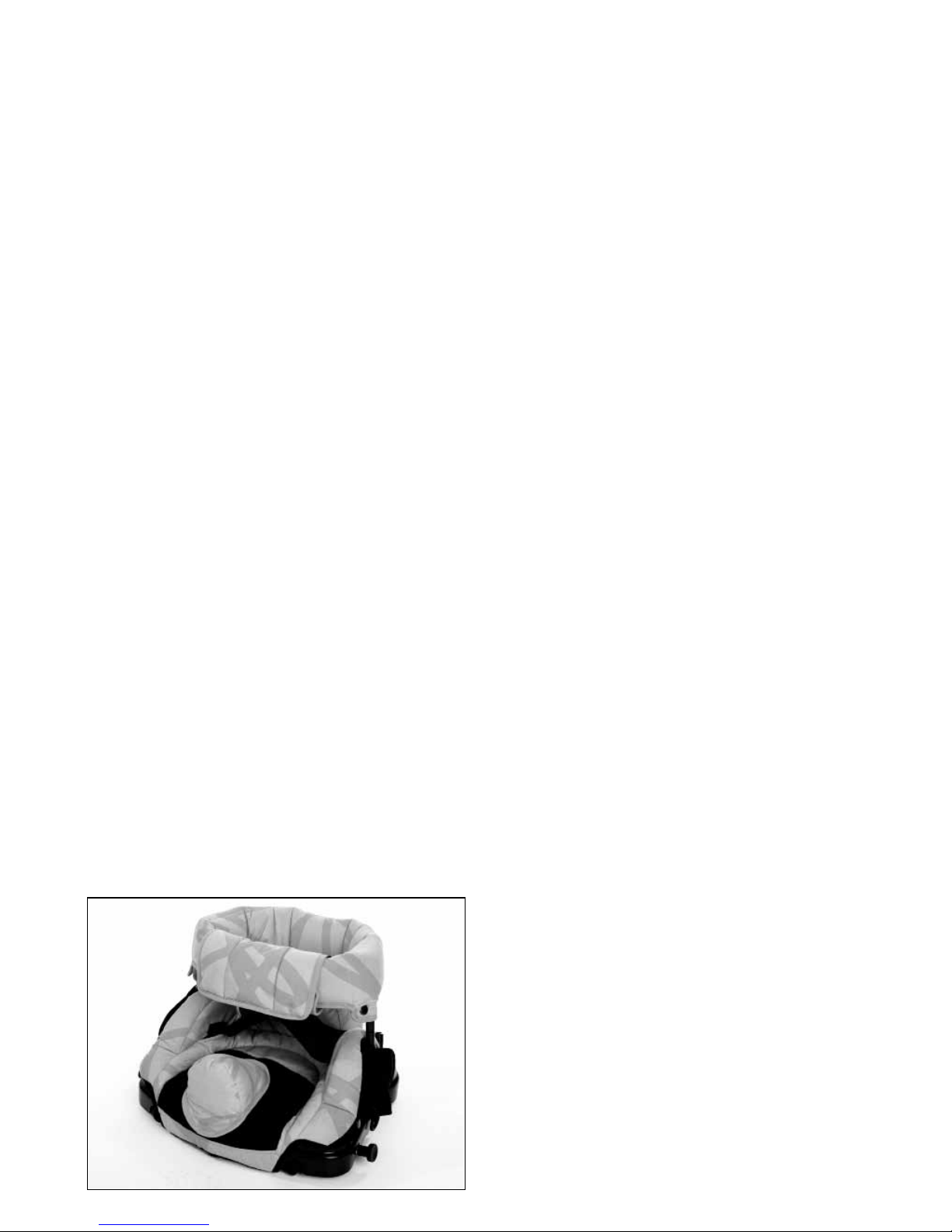

7.8 Abduction
pommel
Position the support in the desired location
ensuring the hooky attaches securely to the
loop panel of the seat cover.
7.9 Attachment
Straps
Ensure the product is secure and stable
before you place the child in the seat.
Do not use the Leg support attachment
when positioned on a dining chair.
Never leave the child unattended at any
time when the seat base is attached to
a dining chair

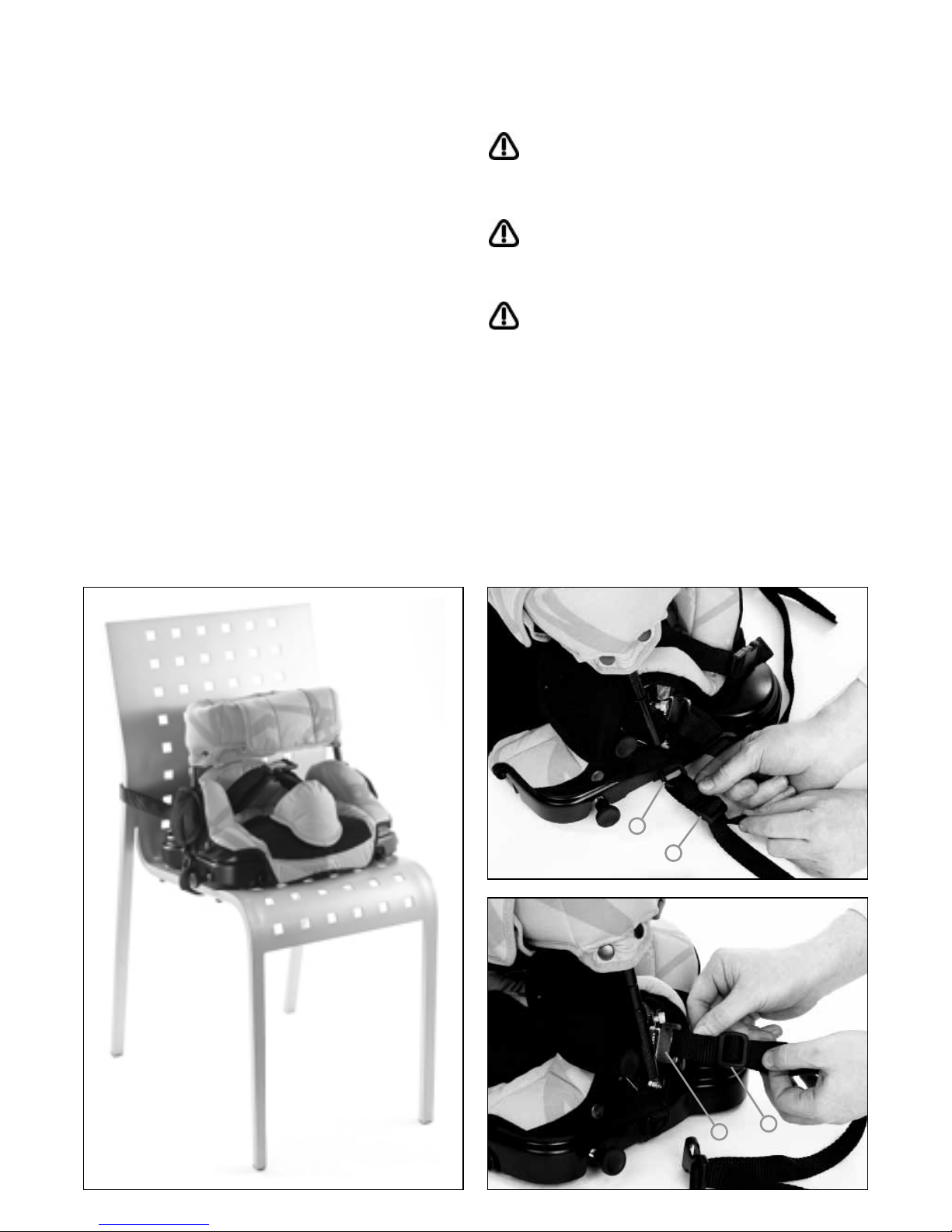

The Early sitting system is supplied with
two attachment straps which can be used
to secure the seat base to a dining chair for
feeding or other activities at table height.
One strap should be attached around the
seat base of the dining chair and the other
should be secured around the back rest.
To attach the straps to the seat base feed the
end of the strap through the plastic ring (A)
and loop back through the three bar slide (B).
repeat on the other side. Then clip the plastic
buckle together in the centre.
To attach the straps to go round the
backrest, feed the end of the strap through
the slot in the metalwork (C) and loop back
through
the three bar slide (D). repeat on the other
side. Then clip the plastic buckle together
in the centre.
A
B
C
D
Fitting the
cushions
8

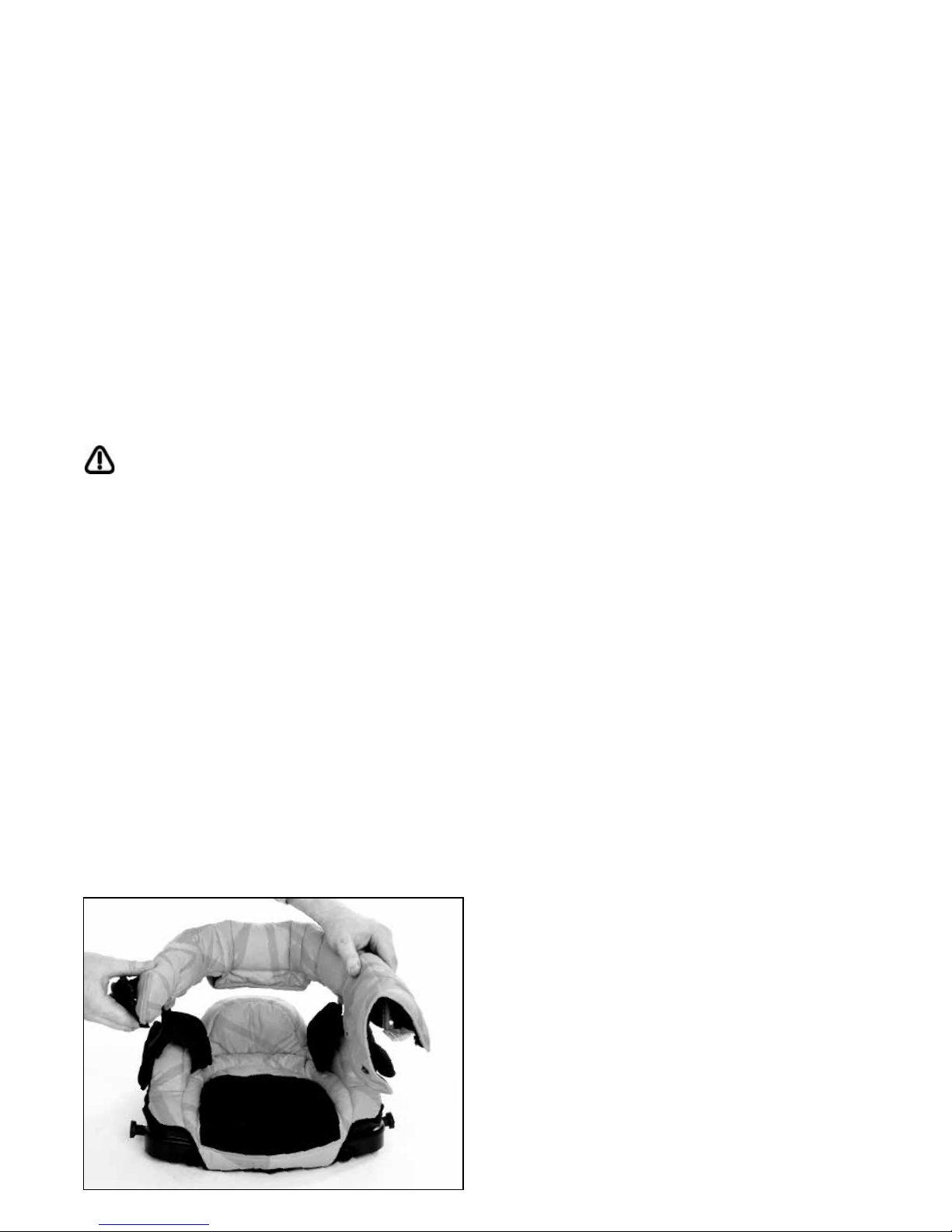

To attach the seat cushion place the seat
shell onto a flat work surface. Drape the
side panels over the shell and then align the
hooky with the receiving fluffy on the seat
base. Secure the two top front fasteners first,
then turn upside down and secure the two
fasteners underneath the seat shell. Line up
all remaining external fasteners to secure the
cover in place.

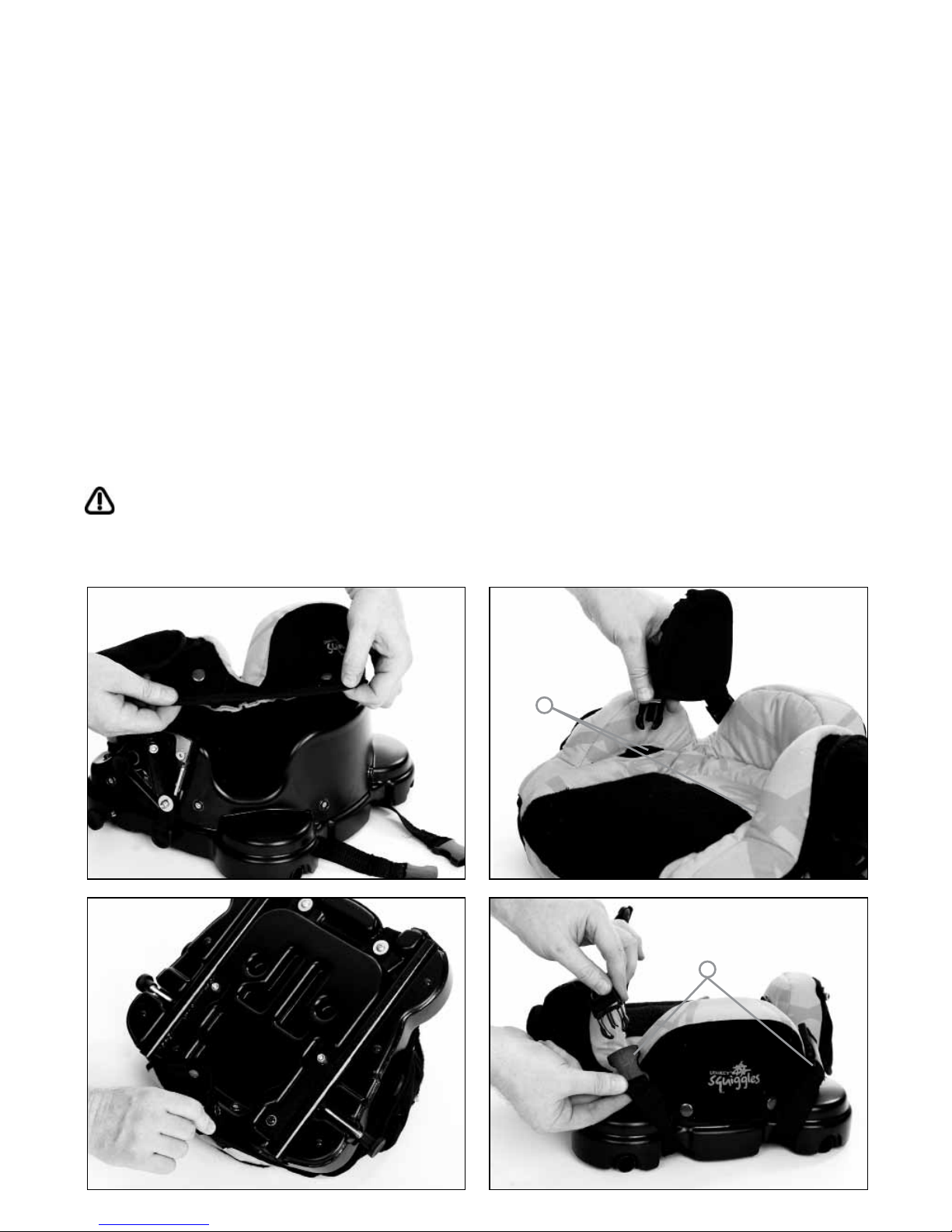

Once the cover is secured feed the two
female buckles through the slits at either side
to allow attachment of the four point pelvic
harness. Ensure the buckles are protected by
the cushion at all times to prevent irritation to
the user.
Always ensure the side flaps conceal
the adjustments and metalwork away
from children.

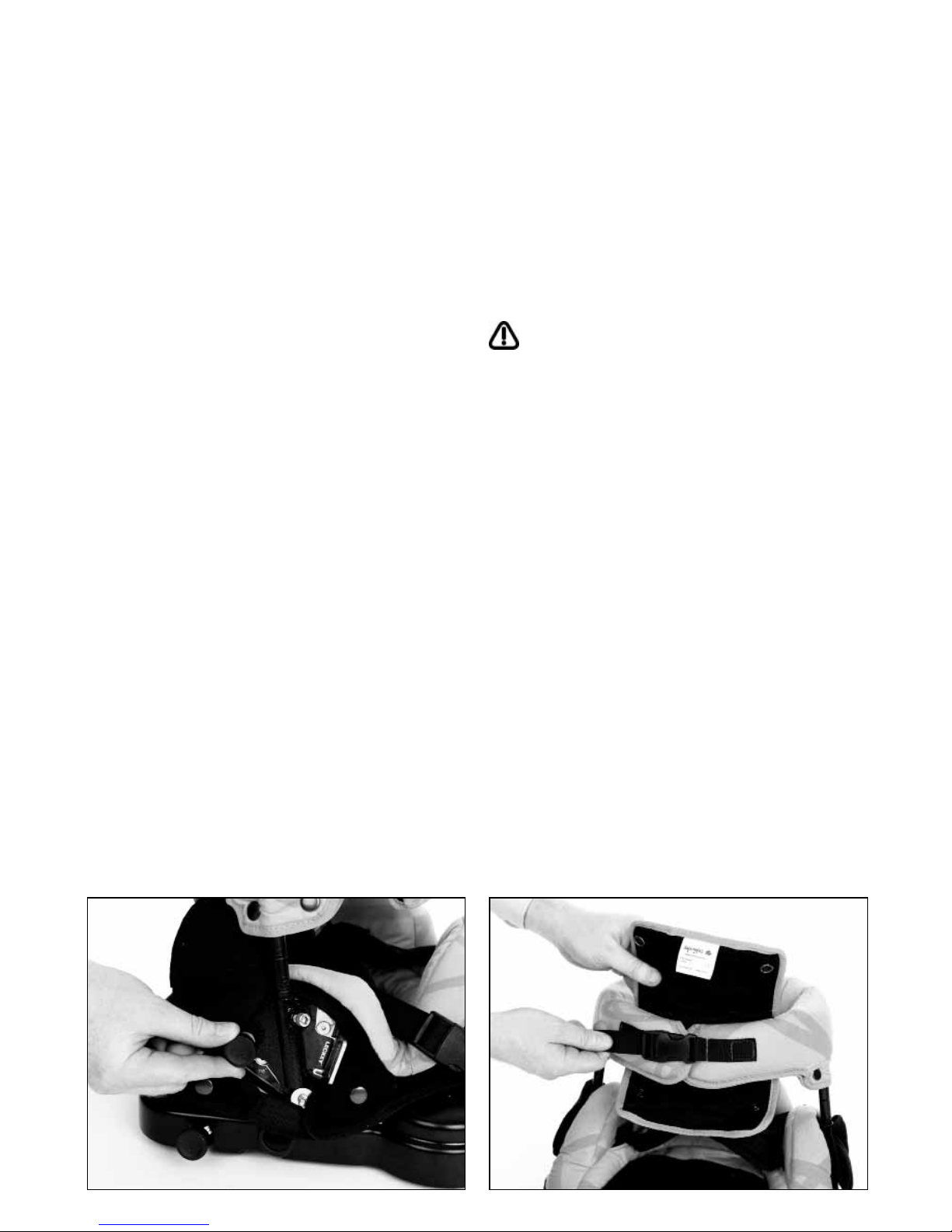

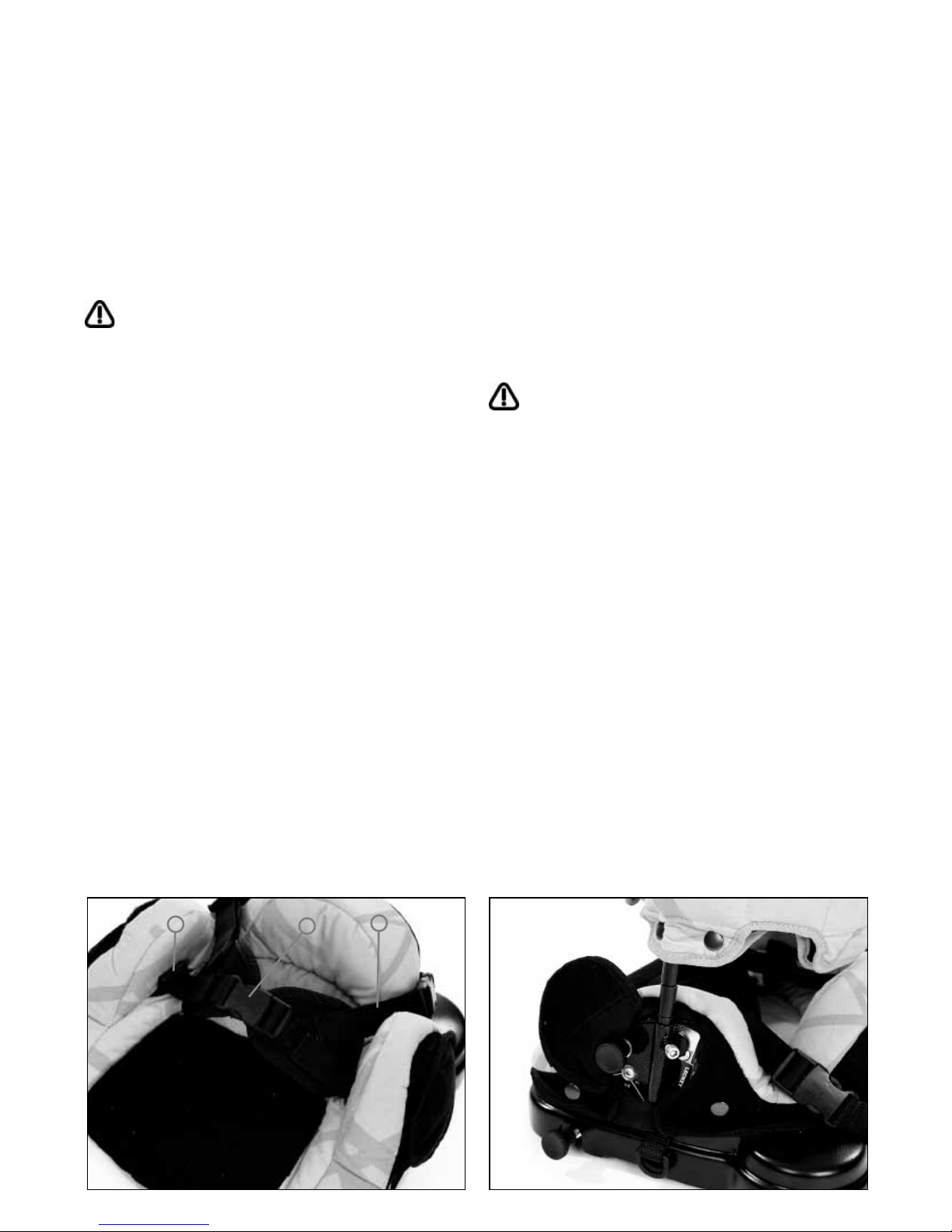

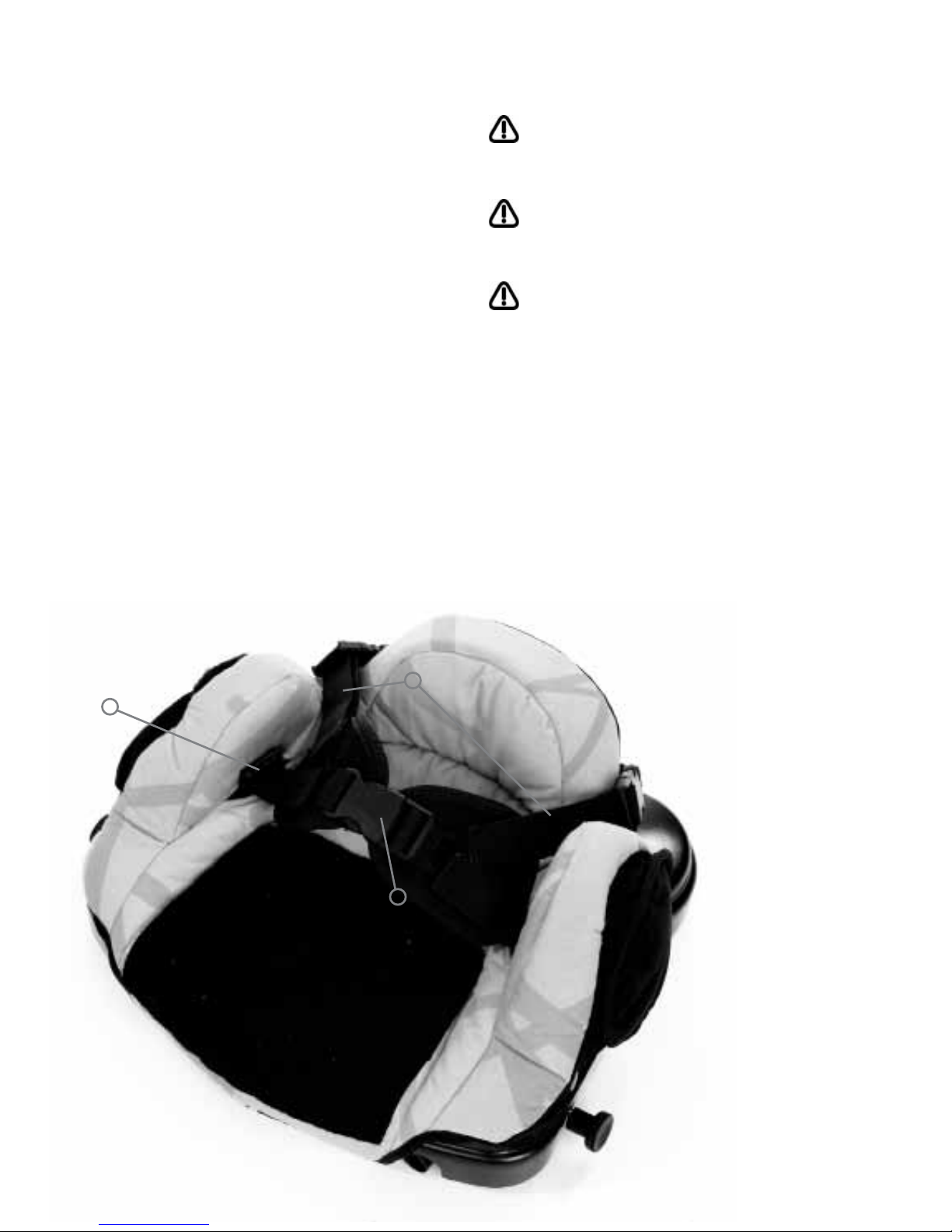

The Pelvic Harness contains four attachment
points, two at the front (A) and two at the
back (B). Clip the two front buckles into their
receivers on either side of the seat base. Then
attach the remaining two rear buckles into
their receivers at the rear of the seat base.
8.1 Seat cushion
attachment
8.2 Four point pelvic
harness attachment
A
B
To attach the cushion first remove the
dynamic trunk assembly from the seat base
and lay it down flat. Open the side fasteners
and hooky panels of the trunk support. Insert
one end of the assembly into the pocket in
the cushion. Then sleeve the other end of the
inner into the opposite end of the cushion.
Once in position snap the fasteners together
around the plastic rods and the one fastener
in the middle of the support plate. Finally
secure the Velcro tabs at the back. You can
then reattach the trunk support as detailed in
Section 7.
8.3 Dynamic trunk
support cushion
attachment

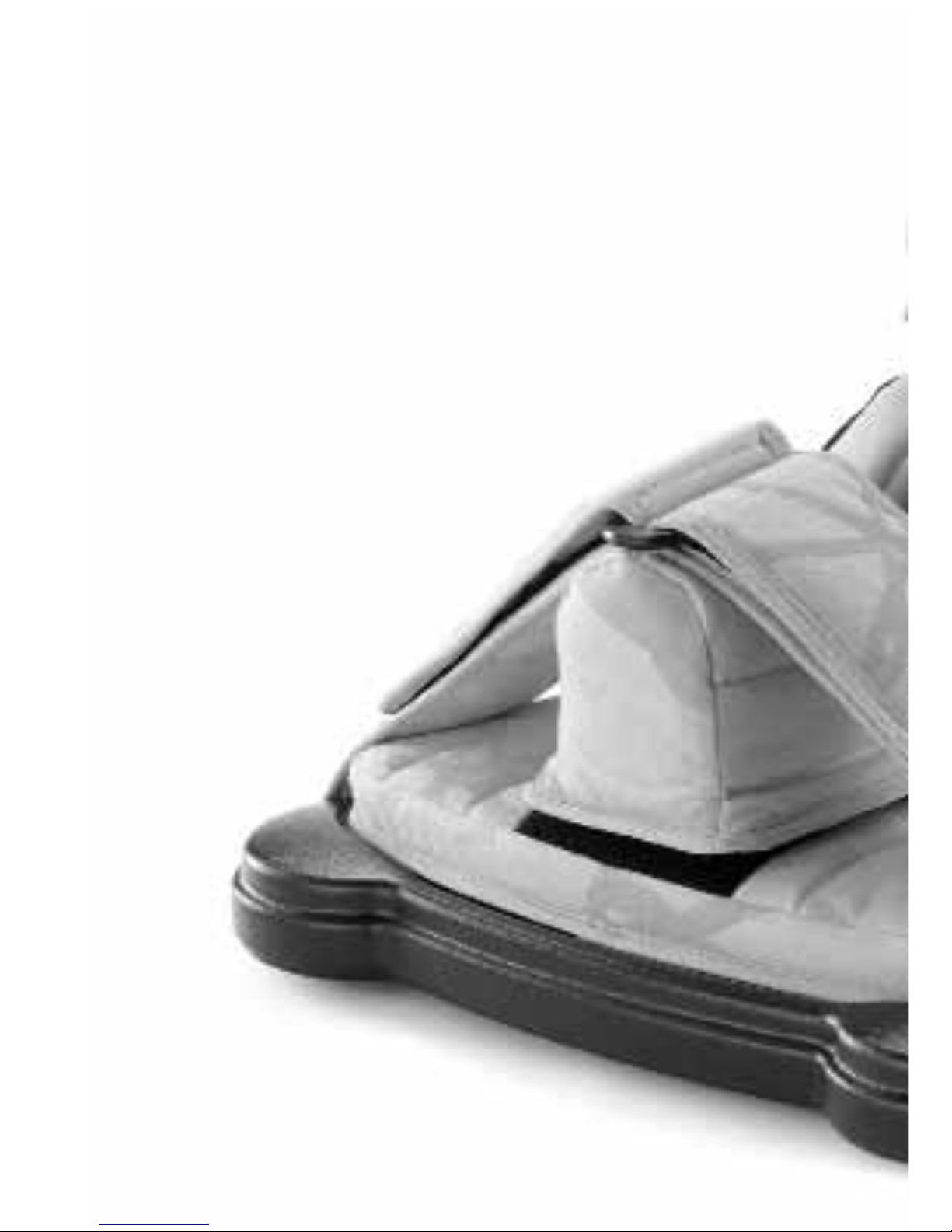

The leg support cushion and pommel is
secured by Velcro , simply position the
cushion in the recess and push down firmly to
locate in position.
The positioning strap is attached by looping
the strap underneath the plastic base and
securing the Velcro panel to the base.
8.4 Leg support cushion
and positioning
strap attachment
Clinical setup
for Postural
Management
9
The clinical setup of the product
should be completed by a
technically and clinically competent
person who has been trained in
the use of the product. Leckey
recommend a written record is
maintained of all clinical setups for
this product.
Always secure the Pelvic harness first when
placing the child in the seat. Loosen all the
straps to their maximum before placing the
child in the seat. First secure the plastic
buckle (C) in the middle. To adjust the
depth, adjust straps (A) on both sides and
(B) for height.
Always attach the pelvic strap first
before making any other adjustments

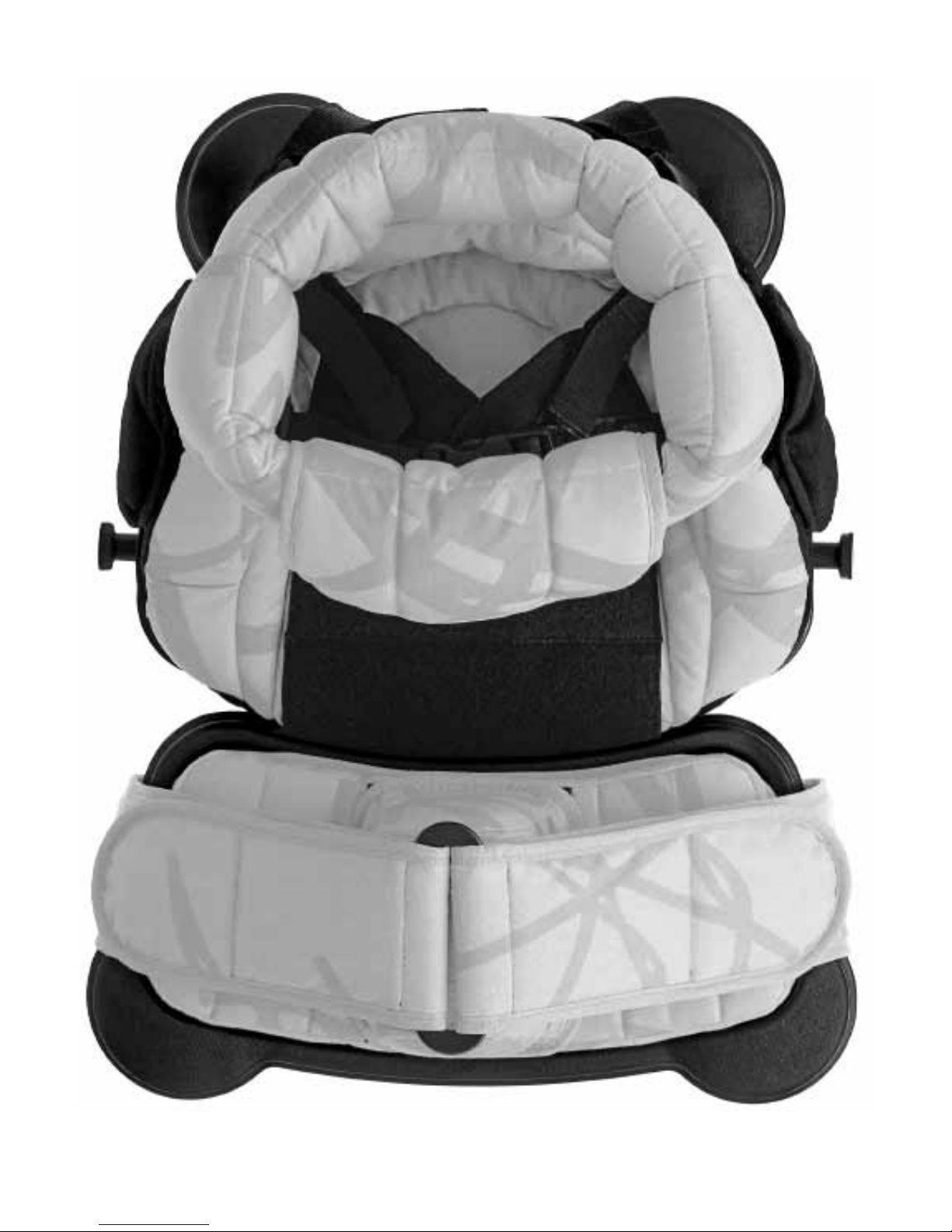

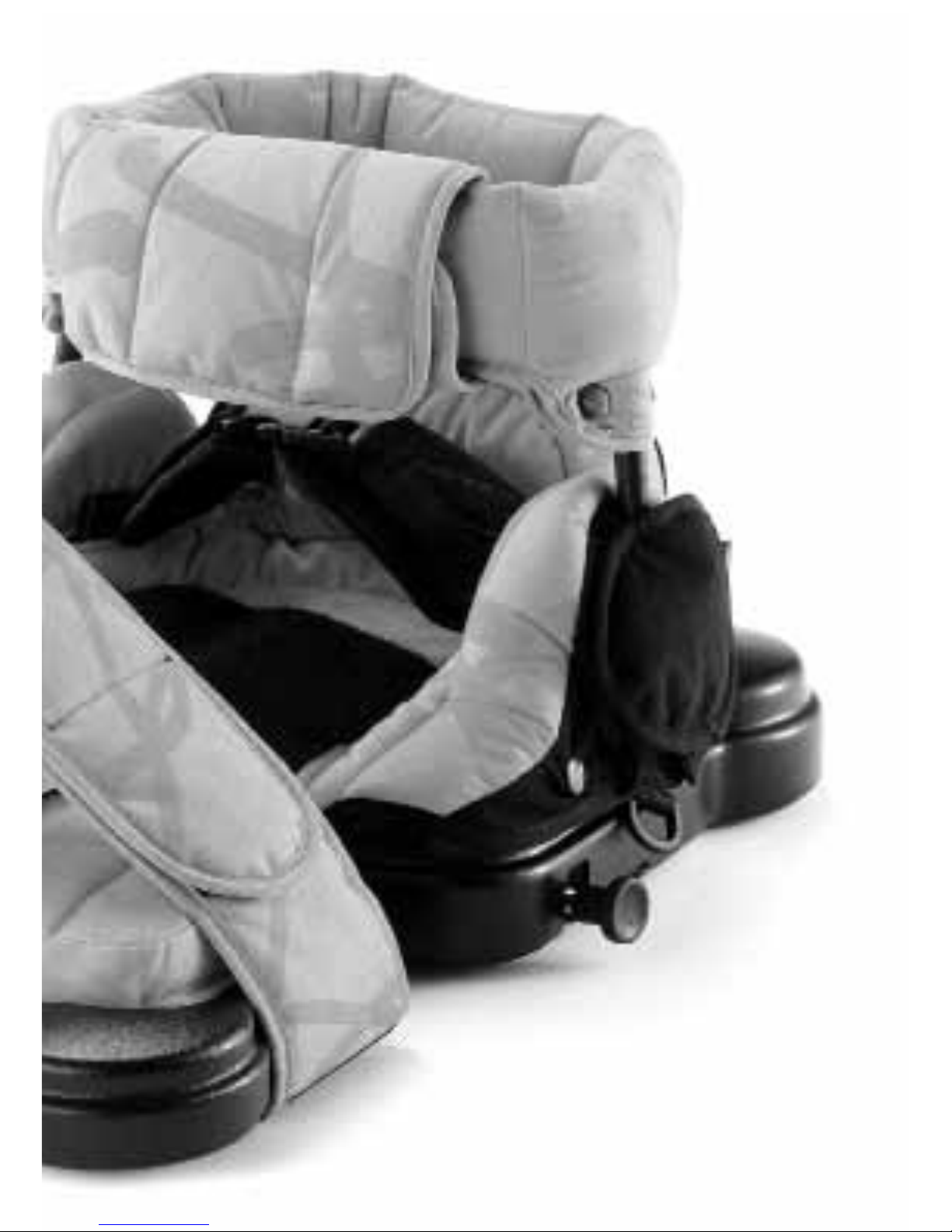

The dynamic trunk support is designed as a
mid thoracic support to allow movement.
The height can be adjusted while the child is
in the seat to provide more or less support
depending on the child’s abilities.
To height adjust loosen the allen bolts at
either side with the Leckey tool, slide the rods
to the required height and re-tighten. Use the
grooves on the rods to ensure they are at the
same height.
Never adjust the height beyond the third
groove on the plastic rods as this
indicates
the maximum height adjustment
available.
9.1 Pelvic harness 9.2 Dynamic trunk
support height
adjustment
A
B
C
The trunk support can be secured in an
upright sitting position, or locked in any
angle, retaining flexibility. It can be adjusted
while the user is in the seat. To angle adjust,
open the flap at either side and loosen the
plastic knobs, set the supports to the desired
position and then retighten securely.
Use the markers on the labels as a guide to
ensure both sides are set to the same angle
To width adjust the trunk support open the
flap at the front and pull the tensioning strap
to the desired position. The flap is attached
with Velcro® and can be repositioned so it is
centrally aligned around the child.
Close the flap and secure with the two snap
fasteners at the front.
If the child has a feeding tube ensure
the trunk support does not restrict or
interfere with it.
9.3 Dynamic trunk
support angle adjustment
9.4 Dynamic trunk
support width
adjustment
This position can be used to promote
development of the spinal curves, stability of
the trunk and improved function. The seat
base with the leg support attached can be
elevated into prone by inserting the prone bar
into the underside of the seat base.
To attach the prone bar, turn the seat base
upside down, press the poppers in and slide
the prone bar into the receiving tubes at the
back of the seat. The bar is secure when the
poppers engage in the holes in the receiving
tubes. To remove reverse the process.
Place the seat with prone bar attached on a
stable flat surface.
Set the trunk support angle to 115 degrees so
the child is in an upright position. Fine tuning
of the trunk support can be carried out with
the child in the seat.
Check that the product is stable and
never leave the child unattended
especially if they are very active in the
seat.
9.5 Prone bar
We recommend that the leg abduction
pommel be used when using the positioning
strap. Attach the leg abduction pommel onto
the receiving loop of the leg support cushion
and press down firmly to secure.
With the hooky panel firmly secured to the
underside of the leg support moulding, wrap
the two straps over the child’s legs with the
abduction pommel secured. Insert the two
straps through the plastic slide and tension
the straps as desired.
By removing the leg support and placing the
flexion roll under the knees, a more flexed
sitting position can be provided for the child.
The raised seat base helps to prevent the legs
from falling into abduction, and the pelvis into
posterior tilt, providing a more symmetrical
and functional position.
The flexion roll is attached by Velcro and can
be positioned on the seat base cushion so
that it rests comfortably behind the child’s
flexed knees.
9.6 Leg support pommel
and positioning strap
9.7 Flexion roll
Adding the abduction pommel to the seat
base increases the stability offered, by
abducting and externally rotating the femurs.
The abduction pommel is attached by Velcro
and can be positioned on the seat base
cushion so that it provides optimum support
for abduction or adduction prevention.
9.8 Seat base abduction
pommel
9.9 Padded activity tray
The padded activity tray can be angle, height
and depth adjusted to provide optimum
support for, posture function or play
activities.
To height adjust the tray loosen the plastic
knobs (A), press the popper in (B), slide
the inner tube to the desired position and
re-tighten the plastic knob .(A) Ensure that
the poppers are in the same hole position at
either side so the tray remains level.
To angle adjust loosen the plastic handle
(C) at either side of the tray, tilt the tray
to the desired position and re-tighten the
plastic handle.
The tray can be simply depth adjusted
by pushing the tray closer to the child.
However, to prevent an active child from
pushing the tray away it can be secured
to the seat base with the additional
attachment straps (D) provided.
To secure the tray, clip the buckles at the
base of the tray into the attachment strap
receivers at the bottom of the seat base.
The depth can be set by adjusting the straps.
Always use caution to ensure the childs
hands or arms do not become trapped
when adjusting the tray.
Always use caution to ensure that
fingers do not become trapped in the
slot when angle adjusting the tray.
Do not place hot objects on the tray,
greater than 30 degrees Celsius.
Please note that the tray is for the use
of the user only. Do not lean or place
heavy objects on the tray, greater than
8kgs (17.6lbs)
C
A
B
D
Frequent
adjustment
for daily use
(therapists / carers / parents)
Parents and carers should be shown
how to make frequent adjustments
and made aware of the safety checks
in Section 6 by a technically and
clinically competent person who has
been trained in the use of the product.
Leckey recommend that a written
record is maintained of all parents and
carers who have been trained in the
use of this product.
10
Before placing the child in to the system
carry out the daily product inspection as
outlined in section 12 of this user manual.
The system should always be positioned
on a flat surface so that it is stable. Make
sure the safety buckle on the dynamic trunk
support and pelvic harness are released and
out of the way to facilitate transfer.
Open the cushioned support by first
unfastening the front panel and unclipping
the plastic buckle in the centre. Pull the
flexible supports out of the way to aid lifting
the child in or out of the seat.
Adjust the harnesses so the child
cannot slide or creep forward in the
seat.
10.1 Transferring your
child into and out of
the seat
The correct positioning and tensioning of the
pelvic harness is key to a child’s postural
management affecting their comfort and
ability to achieve functional goals. Please ask
your therapist as to the correct tensioning of
straps for your child as this is critical to good
postural management.
Loosen all the straps to their maximum
before placing the child in the seat. First
secure the plastic buckle (C) in the middle.
To adjust the depth, adjust straps (A) on both
sides and (B) for height.
10.2 Pelvic harness
Always attach the pelvic strap first
before making any other adjustments
The harness may need to be
repositioned depending on the clothing
worn.
Check harness is secure to ensure the
child is safe and cannot slide forward in
the seat.
B
A
C
Always check with your therapist as to
the optimum positioning and tensioning
of the straps and support items.
If the child has a feeding tube, ensure
the straps or cushions do not interfere
with it.
If the child requires trunk support as part
of their postural support programme it
may need to be repositioned depending
on the activity.
To change the width of the trunk support,
unfasten the front panel adjust the straps
to the desired position and refasten the
front panel.
To set the height and angle of the
dynamic trunk support please refer to
section 10 Clinical setup for postural
management
10.3 Dynamic trunk
support adjustment
The padded activity tray can be angle,
height and depth adjusted to provide
optimum support for, posture function or
play activities.
To height adjust the tray loosen the
plastic knobs (A), press the popper in
(B), slide the inner tube to the desired
position and re-tighten the plastic knob
(A). Ensure that the poppers are in the
same hole position at either side so the
tray remains level.
To angle adjust loosen the plastic handle
(C) at either side of the tray, tilt the tray
to the desired position and re-tighten the
plastic handle.
The tray can be simply depth adjusted
by pushing the tray closer to the child.
However, to prevent an active child from
pushing the tray away it can be secured
to the seat base with the additional
attachment straps (D) provided.
10.4 Padded activity tray
To secure the tray, clip the buckles at the
base of the tray into the attachment strap
receivers at the bottom of the seat base.
The depth can be set by adjusting the straps.
Always use caution to ensure the childs
hands or arms do not become trapped
when adjusting the tray.
Always use caution to ensure that
fingers do not become trapped in the
slot when angle adjusting the tray.
Do not place hot objects on the tray,
greater than 30 degrees Celsius.
Please note that the tray is for the use
of the user only. Do not lean or place
heavy objects on the tray, greater than
8kgs (17.6lbs)
C
A
B
D
11 Cleaning & Care
Information
How to Maintain
When cleaning we recommend that you
use only warm water and a non-abrasive
detergent. Never use organic solvents or dry
cleaning fluids.
Upholstery and Fabrics
Cleaning the Fabric
(Manufacturer guidelines)
The most effective way to clean the fabric is
by using warm water and a detergent, such
as Fairy Liquid following the simple steps
shown below.
1. Soak a cloth eg a J cloth in warm water and
wring out the excess liquid. (For body fluids eg.
blood, urine, use cold water).
2. Apply a small amount of detergent
onto the cloth.
3. Clean the fabric paying particular attention
to badly stained areas.
4. Apply the cloth to the fabric using
a firm circular motion.
5. A nylon nailbrush can be used on
more stubborn stains. This fabric is extremely
durable and brushing it will not cause any
damage.
6. Rinse off the surface of the fabric with warm
water ensuring all soap residue
is removed. This fabric is totally
waterproof. Water will not penetrate
the surface of the fabric and get through
to the foam filling. However, care should be
taken where there are stitch lines as liquid may
seep through.
7. The fabric can then be either left to dry
naturally or any excess surface moisture can
be mopped up using paper towels.
8. Once the fabric has dried it is advisable to
lightly brush the surface using a soft brush.
9. More stubborn stains can be removed using
mineral spirit or isopropyl alcohol providing the
area being cleaned off is washed with soap
and water immediately afterwards. A half cup
of household bleach to 5 litres of water can
also be used as a useful disinfectant.
10. Chlorine based cleaning agents such as
CHLOR-CLEAN or HAZ-TABS can be used
to disinfect the product providing they do not
contain more than 10% chlorine by volume.
11. When using a proprietary product it
is important to follow the directions on
the container.
12. Never use organic solvents such as
dry cleaning fluids.
13. Always ensure the product is dry
before use.
As an alternative to the steps outlined above,
alcohol wipes can be used as an effective
means of cleaning to prevent cross infection.
Following independent testing excellent
stain removal has been found for -
Simulated Vomit (Porridge), Simulated Vomit
(Pureed Carrot), Orange Juice, Gravy, Toast/
Butter/Marmite, Tomato Sauce, Salad Cream/
Mayonnaise, Lipstick, Nail Varnish, Ball Point
Pen Marks, Soy Sauce, Fruit Juice, Animal
Blood, Urine, Iodine, Betadine, Suntan Lotion,
Grease.
Antifungal/Antimicrobial Properties
The upholstery used on the positional
components has an antifungal and
antimicrobial treatment which helps to prevent
and contain cross-infection. This treatment
is permanent and cannot be washed out. If
you clean your product using the methods
described the risk of cross-infection will be
greatly reduced.
Metal and Plastic Components
1. Soap and water or antibacterial spray can
be used for daily cleaning.
2. For deep cleaning a low pressure steam
cleaner can be used.
3. Do not use solvents eg Cellulose Thinners to
clean plastic or metal components.
4. Make sure the product is dry before use.
12 Daily Product
Inspection
(Therapists, parents & carers)
We recommend that daily visual checks of the
equipment are carried out by therapists, carers
or parents to ensure the product is safe for
use. The recommended daily checks
are detailed below.
1. Ensure all adjustment knobs and bolts are in
place and secure.
2. Check all upholstery and Velcro® for signs
of wear and tear.
3. Ensure the pelvic harness is fully secured
around the user and they cannot slide or creep
forward in the seat.
If in any doubt to the continued safe use of
your Leckey product or if any parts should fail,
please cease using the product and contact
our customer service department or your local
dealer as soon as possible.
13 Annual Product
Inspection
(Therapist, Technician, Leckey Product
Advisor, Dealer)
Leckey recommend that each product should
be subject to a detailed inspection at least
once a year and every time the product is
reissued for use. This inspection should be
carried out by a technically competent person
who has been trained in the use of the product
and should include the following checks as a
minimum requirement.
1. Check all knobs, nuts, bolts and plastic
buckles are in place, replacing any missing
items. Paying particular attention to the
following items;
- Trunk Support height and angle
adjustments bolts.
- Pelvic harness attachment points.
- Chair attachment straps.
2. Check that there is no visible wear or tear
on the metal or plastic components.
3. Visually check the structure of the product
paying attention to weld points on the frame
ensuring there are no signs of fatigue or
cracking around the welds.
4. Leckey recommend that a written record is
maintained of all annual product inspections.
If in any doubt to the continued safe use of
your Leckey product or if any parts should fail,
please cease using the product and contact
our customer service department or your local
dealer as soon as possible.
14 Re-issuing Leckey
Products
15 Product Servicing
Most Leckey products are assessed and
ordered to meet the needs of an individual
user. Before reissuing a product we
recommend that the therapist prescribing
the product has carried out an equipment
compatibility check for the new user and
has ensured that the product being re-issued
contains no modifications or special
attachments.
A detailed technical inspection should be
carried on the product prior to re-issuing.
This should be carried out by a technically
competent person who has been trained in
the use and inspection of the product. Please
refer to section 13 for the required checks to
be carried out.
Ensure the product has been cleaned
thoroughly in accordance with section 11 of
this manual.
Ensure a copy of the user manual is supplied
with the product. A copy can be downloaded
from our website www.leckey.com
Leckey recommend that a written record is
maintained of all product inspections carried
out during the reissue of the product.
If in any doubt to the continued safe
use of your Leckey product or if any
parts should fail, please cease using
the product and contact our customer
service department or your local dealer
as soon as possible.
Servicing of all Leckey products should only
be carried out by technically competent
persons who have been trained in the use of
the product.
In the UK & ROI please contact the Leckey
Service Centre on UK 0800 318265 or ROI
1800 626020 and our customer service
department will be delighted to assist you with
your servicing requirements.
All international service enquiries should be
directed to the appropriate Leckey distributor
who will be delighted to assist you. For further
information on Leckey distributors please visit
our website www.leckey.com
User
Age Max 48 months
Weight Max User Weight 18kg / 39.6lbs
Stature Max 1000mm / 39.4 inches
System dimensions
Floor Mat
Width 760mm / 26.3 inches
Length 950mm / 37.4 inches
Sitting Support
Height 190mm / 7.4 inches
Depth 300mm / 11.8 inches
Seat width
Min 200mm / 7.9 inches
Max 250mm / 9.8 inches
Support Roll small
Width 60mm / 2.4 inches
Length 600mm / 23.6 inches
Support Roll medium
Diameter 80mm / 3.2 inches
Length 700mm / 27.5 inches
Trunk Wedge
Width 270mm / 10.6 inches
Length 208mm / 8.2 inches
Angle 7.5 degrees
Positioning Straps
Width 80mm / 3.14 inches
Length 660mm / 25.9 inches
16 Technical Information
Code: Description:
119-600 Seat Shell
119-673 Leg Support
119-627 Activity Tray
119-669 Abduction pommel
119-670 Flexion roll
119-672 Spacer Pads
119-062 Prone bar
Leckey
19A Ballinderry Road
Lisburn
BT28 2SA
Northern Ireland
United Kingdom
T: 028 9060 2277
F: 028 9060 0796
E: info@leckey.com
W: www.leckey.com
LS183-02
Loading...
