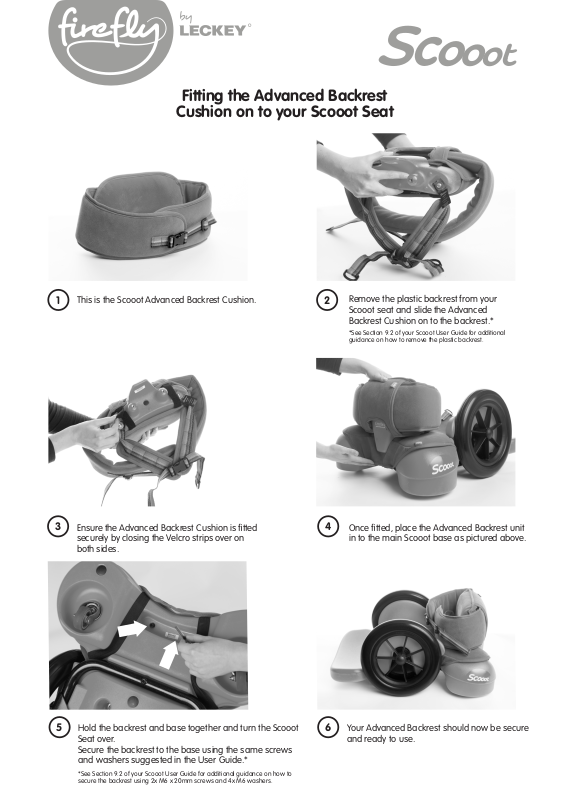

Fitting the Advanced Backrest
Cushion on to your Scooot Seat
This is the Scooot Advanced Backrest Cushion.
1
3
Ensure the Advanced Backrest Cushion is fitted
securely by closing the Velcro strips over on
both sides.
Remove the plastic backrest from your
2
Scooot seat and slide the Advanced
Backrest Cushion on to the backrest.*
*See Section 9.2 of your Scooot User Guide for additional
guidance on how to remove the plastic backrest.
4
Once fitted, place the Advanced Backrest unit
in to the main Scooot base as pictured above.
5 6
Hold the backrest and base together and turn the Scooot
Seat over.
Secure the backrest to the base using the same screws
and washers suggested in the User Guide.*
*See Section 9.2 of your Scooot User Guide for additional guidance on how to
secure the backrest using 2x M6 x 20mm screws and 4x M6 washers.
Your Advanced Backrest should now be secure
and ready to use.
Removing the lateral support
from the Advanced Backrest Cushion
The lateral support on the Advanced Backrest
1
Cushion is detachable when the cushion is not
attached to the plastic Scooot backrest.
3
Slide the lateral out of the backrest cushion by
pulling it to the right.
Remove the lateral from the Advanced
2
Backrest Cushion by un-popping both
popper buttons on the cushion.
4
The backrest cushion and lateral should
now be separated. To re-join the two parts,
simply reverse the previous two steps.
5 6
To attach the backrest cushion on to the plastic
Scooot backrest, ensure both Velcro strips are
closed over securely.
LS570-02
Hold the backrest and base together and turn the
Scooot Seat over.
Secure the backrest to the base using the same
screws and washers suggested in the User
Guide.*
*See Section 9.2 of your Scooot User Guide for additional guidance
on how to secure the backrest using 2x M6 x 20mm screws and 4x
M6 washers.
