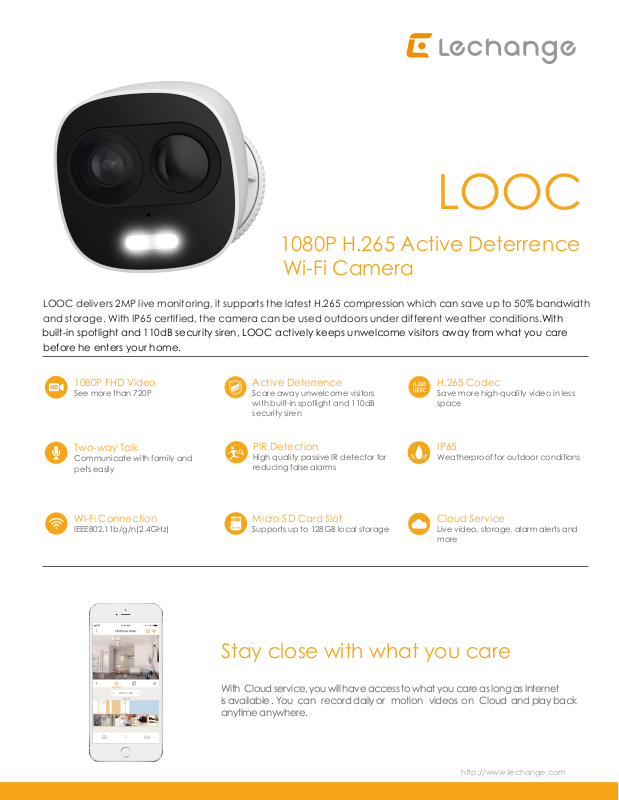

Lechange LOOC User Manual [de]

LOOC

1080P H.265 Active Deterrence

Wi-Fi Camera

LOOC delivers 2MP live monitoring, it supports the latest H.265 compression which can save up to 50% bandwidth
and storage. With IP65 certified, the camera can be used outdoors under different weather conditions.With

built-in spotlight and 110dB security siren, LOOC actively keeps unwelcome visitors away from what you care

before he enters your home.

1080P FHD Video

See more than 720P

Two-way Talk

Communicate with family and
pets easily

Wi-Fi Connection

IEEE802.11b/g/n(2.4GHz)

Active Deterrence

Scare away unwelcome visitors
with built-in spotlight and 110dB
security siren

PIR Detection

High quality passive IR detector for
reducing false alarms

Micro SD Card Slot

Supports up to 128GB local storage

H.265 Codec

Save more high-quality video in less
space

IP65

Weatherproof for outdoor conditions

Cloud Service

Live video, storage, alarm alerts and
more

Stay close with what you care

With Cloud service, you will have access to what you care as long as Internet
is available . You can record daily or motion videos on Cloud and play back
anytime anywhere.

http://www.lechange.com

Specifications

Camera

1/2.7” 2 Megapixel Progressive CMOS

2MP(1920 x 1080)

Night Vision: 10m(33ft) Distance

2.8mm Fixed Lens

Field of View : 111°(H), 58°(V), 133°(D)

Video & Audio

Video Compression : H.265/H.264

Up to 25/30fps Frame Rate

16x Digital Zoom

Mic & Speaker, 110dB Siren

Built-in

Built-in Spotlight

Notice Management

Motion Detection
PIR Detection
Configurable Region

What’s in the box

Network

Wi-Fi:IEEE802.11b/g/n,100m Open Field
Internal Dual Antennas, 2 x 2 MIMO

CGI

Lechange App: iOS, Android

Auxiliary Interface

Micro SD Card Slot(up to 128GB)
Reset/WPS Button

General

DC 5V2A Power Supply

Power Consumption:≤6W

Working Environment: -20°C~+50°C, Less Than 95%RH
IP65 Weatherproof
Dimensions: 75 × 84× 97.7mm (2.95 × 3.3 × 3.8inch)

Weight: 308g (0.68lb)
CE, FCC, UL

- 1x Camera

- 1x Quick Start Guide

- 1x Power Adapter

-1x Bracket

Rev 001.001

- 5 x Screw Packages

- 1x Installation Position Map

-1x Cable Clip Package

-1x Pry Bar
