U5010W
Introduction
0844 815 3737
Thank you for buying this high qualit
This handbook is designed to help you through each step of owning your new
appliance, from installation, to use.
Please read through all of this guide carefully before you start using your
appliance, as we have endeavoured to answer as many questions as possible,
and provide you with as much support as we can.
If, however, you should find something missing, or not covered, please contact
the Lec Customer Care team who will be only too happy to assist you on:
y appliance!
0871 22 22 505
Our policy is one of constant development and improvement, therefore we
cannot guarantee the strict accuracy of all of our illustrations and specifications
changes may have been made subsequent to publishing.
Contents
For yoursafety

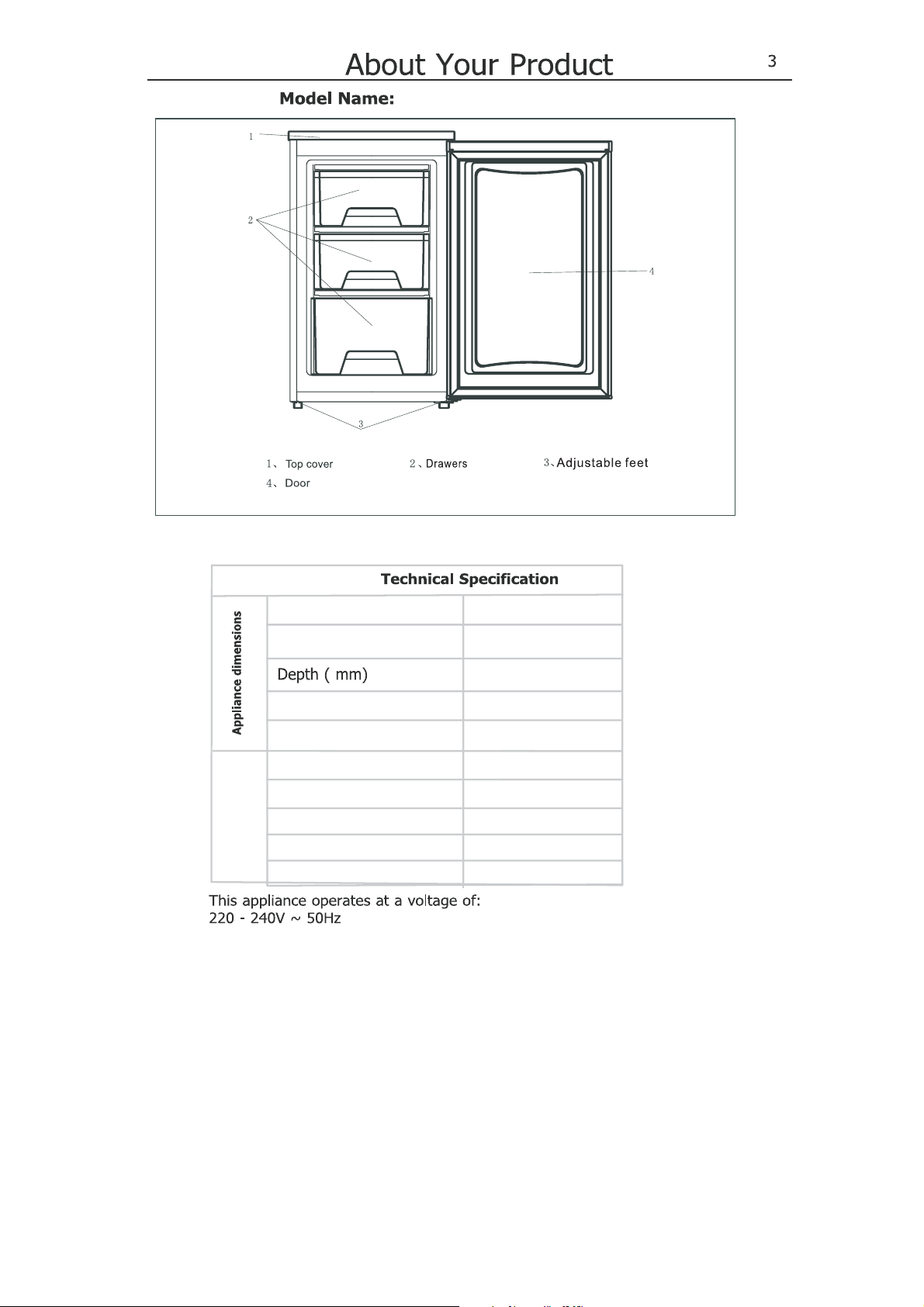

About your product .................................................. 3

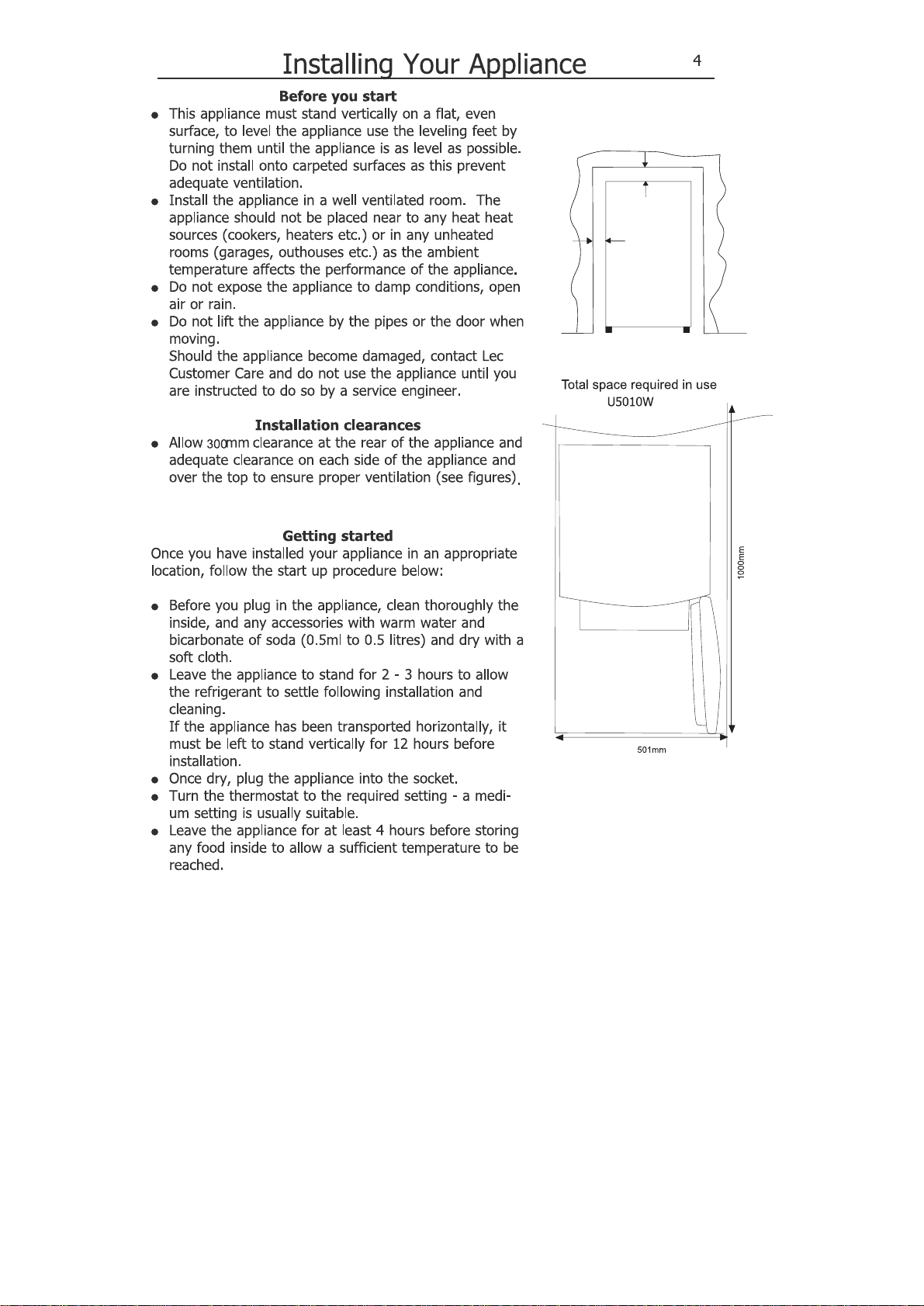

Installing your applianc e...............................................
Using your appliance................................................. 5
Care& cleanin
Troubleshooting..................................................... 9
Reversing the door.................................................. 10
Changing the plug..................................................
Service record and Customer Care
.....................................................
................................
.....................................................
..................................................
................................
Backcover
11
1
4
8
For Your Safety
Disposal of old appliances
Before disposin g of an old appliance , make sure that you
have broke n off, or disable d any locking mechanism s to
prevent childre n becomin g accidentall y locked inside.
Remove any plugs and powe r leads to ensure that the
appliance is inoperative.
Please note: This symbo l means that products
bearing it may not be dispose d of with household
waste.
The refrige ration system contain s insulatin g gases and
refrigeran t which will require specialis t disposal . Most
component s can be recycled . Always contact your local
council or authorit y for informatio n regardin g the correct
disposal/remo val of old appliances, do not dispose of with
household waste.
Warning:
that
All of the packagin g supplie d with your applianc e can be
recycled, or disposed of without any harm to the
environment.
Cardboar
required for recycling or disposal . The polythen e and
polystyrene included contai n no CFC’s , and are
environmentally friendly.
For further informatio n on recycling, contac t your local
council or
When disposin g of an old applia nce make sure
the pipe work does not becom e damaged.
Packaging
d maybe crushed ,orcut into smaller pieces if
authority.
1
Before installing and using your new appliance
Read throug h the instruction s supplied with your
appliance- failure to install or use this appliance in
accordan ce with the instruc tion book may invalidate
any warranty.
The manufacture r does not accep t any liabilit y for
damage cause d through imprope r use, or incorrect
installation.
Do not install this appliance if it has been damaged
during transport ation. This includes the plug and
powe
r supply cord.
Always install this appliance in line with these
instructions.
Always read these instruction s fully before using the
appliance for the first time.
For Your Safety
Warning: Do not allow the refrigerant circuit to
become damaged while using or installing. Should it
become damaged, do not use the appliance until you
are instructed to do so by a service engineer.
Refrigerant can ignite or cause damage to the eye
when leaking.
Always remember to unplug the appliance before
cleaning. When disconnecting from the electricity
supply, pull the plug, not thepowe r cord.
Do not use any electrical appliance inside the food
storage area- unless they are recommended by the
manufacturer.
All electrical repairs must be carried out by a qualified
electrician. Inadequate repairs may result in in a
major source of danger for the user and invalidate any
warranty.
Never store anything dangerous inside the appliance,
such as combustibles, explosives, strong acid and alkali
etc. Alcoholic beverages must be stored upright in an
air tight container in the refrigerator. Never store
alcohol in a freezer.
When defrosting the appliance, never use sharp or
pointed metal implements. Always usea plastic
scraper. (see Defrosting for moreinformation).
Always keep any ventilation openings clear of
obstruction. Should they become blocked, clear them
straight away.
Do not allow children to play, sit or hang onto any part
of the appliance.
This appliance is intended for domestic use only, for
food refrigeration, food freezing and frozen food storage.
Make sure that the plug is in an accessible place when
installation is complete and remove all packaging.
Only use this appliance for domestic purposes in accordance with these instructions.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Refrigerating appliances might not operate consistently
when sited for an extended period of time below the
cold end of the the range of temperatures of the appliance.
2
U5010W
MODEL
Width(mm)
Height(mm)
Net volume(litres)
Energy Rating
Freezing capacity
Climate Class
Noise(dB(A)re1pw)
Technical Data
Refrigerant type
U5010W
501
540
845
0L/70L
A+
4kg/24hrs
ST
40dBA
(33g)
R
600a
25mm
25mm
Using Your Appliance
About the thermostat
•
The thermostat is located in the upper Front part of the
appliance.
•
To reduce the temperature inside the appliance, turn
4
the thermostat towards
•
To increase the temperature inside the appliance turn
the thermostat towards 1 minimum.
•
Depending on the ambient temperature of the room
the appliance is in, you may need to adjust the
thermostat accordingly.
maximum.
5
CONDITION/REASON:
REFRIGERATOR too cold
Not set correctly for your
conditions
REFRIGERATOR too warm
Door opened often, large amount of
food added or room temperature
very warm
FREEZER too cold
Not set correctly for your
conditions
FREEZER too warm/too little ice
Door opened often, or large amount
of food added or very cold room
temperature (can't cycle often
enough) or heavy ice usage
SETTING
ADJUSTMENT:
Adjust TEMPERATURE
Control one setting
lower
Adjust TEMPERATURE
Control one setting
higher
Adjust TEMOERATURE
Control one setting
lower
Adjust TEMPERATURE
Control
highe
one setting
r
Making ice cubes
•
Fill the ice cube tray
3/4
full with water and place into
the freezer.
•
Place the tray ontoa level suraface.
•
To remove ice cubes, twist the try or place under
running water for a few seconds to loosen.
•
Do not use sharp, pointed or metal implements to
remove the ice cube tray if it becomes frozen to the
fridge.
Using Your Appliance
Tips for using this appliance
•
Before storing cooked foods in the refrigerator, allow
them to cool to room temperature.
To maintain adequate air circulation, do not over fill
•
the appliance. If there is too much food inside, the
compressor does not work as effectively.
•
Do not open the door any more than necessary - this
will keep the temperature as cold as possible inside.
•
When storing frozen food in the freezer, make sure
that you follow the food manufacturers guidelines.
•
Ices and water ices should not be consumed straight
from the freezer - this can cause ice burns to the
tongue and hands.
•
Never touch the inside of the appliance, or any frozen
items with wet hands. This can cause injury to your
hands if they stick to cold surfaces.
•
Wrap or cover foods well before storing. Always make
sure that any packaging is air tight and suitable for
use inside a fridge or freezer.
•
Cooked meats and raw meats should be stored on
separate shelves, and raw meat should not be allowed
to drip onto other foods. Food which is to be frozen
should not be in direct contact with already frozen food.
•
You may hear gurgling noises or a humming sound
while the appliance is in use and this is perfectly normal when the compressor is running and the coolant is
moving through the system.
•
A clicking sound may be heard, this is the thermostat
and is normal.
•
This appliance is designed to operate in an ambient
temperature between 16 and 38 °C.
•
Effervescent (fizzy) drinks should not be stored in the
freezer or low temperature compartments.
•
Do not exceed the storage times recommended by the
food manufacturer andd always check expiry dates.
•
Smaller portions of fresh food freeze quicker than
large portions. Divide large portions into smaller ones.
This helps to preserve the nutrients and quality of the foo d
•
Always allow warm food to cool down before freezing
it, preferably to room temperature.
•
Before you store large amounts of food in the freezer,
adjust the thermostat to the maximum (coldest) setting while the appliance freezes the food. After 24
hours, re-set the thermostat to the previous setting.
•
Only thaw the amount of food you need, once food
has been thawed cook it immediately.
6
.
In the event of a power cut
If the power failure is 3 hours or less, food can remain
inside the appliance. Keep the door closed to maintain
the temperature inside.
If the power cut is longer than 3 hours, remove all food,
wrap well and store in a cool dry place.
Important: Be aware that the storage life of the food
will have been reduced. Use up this food as soon as possible or discard. Do not re-freeze food which has
thawed, either consume or cook and re-freeze if appropriate.
Care & Cleaning
Before cleaning your appliance
You should always unplug this appliance before cleaning.
To clean your appliance
•
Once defrosted, remove the accessories inside and
clean the using warm water and a neutral detergent.
Do not place them in a dishwasher.
•
Clean the inside of the cabinet with warm water and a
neutral detergent, do not use harsh abrasives or
caustic cleaners.
•
Dry the inside of the cabinet with a soft, dry cloth.
Always make sure the inside of the appliance is dry
after cleaning.
•
Avoid getting water into the electric components of the
appliance (i.e. the thermostat), or spilling water on the
fridge.
•
When cleaning the door seals, use only warm soapy
water. Please use a mild soap and avoid damaging
the door seal as this will affect the performance of
your appliance.
•
Clean the outside of the appliance with warm, soapy
water and dry with a soft cloth. Any accumulation of
dirt and dust should be removed from the back and
bottom of the appliance to maintain adequate
ventilation.
•
If the appliance is not in use for a long period of time,
you should defrost and clean the appliance as detailed.
Make sure that it is dry, then unplug and leave the
door open to prevent unpleasant smells inside.
8
Please note:
this appliance.
Regular turning off may shorten the life of
Troubleshooting
Before calling Lec Customer Care, please check the table
below to see if the problem can be solved without calling
for a Service engineer.
9
Problem
The fridge / freezer doesn't work • Check that the appliance is switched on
Unusual noises
The temperature inside the
fridge / freezer is not cold
enough.
The temperature inside the
appliance is too cold
I
•
Check that the plug is not damaged
•
Check that the fuse has not blown
•
Check that the voltage is correct for the appliance
•
Turn the thermostat up higher
•
Check there has not been a power cut by checking the household
li
ghts.
•
Check that the appliance is on a flat, level surface and is stable.
•
Check that nothing is coming into contact with the appliance.
• Check that there is not too much stored in the appliance.
• Check the frequency of door openings. If opened too often this can
cause the compressor to run for some time.
•
Check that the thermostat is set to a suitable temperature.
•
Check that the appliance is not in direct sunlight, or near a heating
source.
•
Check that the ventilation grille has not become blocked.
•
Check the ambient temperature is within the operation limits of the
appliance (16°C - 38°C)
•
Change the temperature setting to a more suitable setting.
Solution
The outer surfaces of the fridge
/ freezer are wet
The inner surfaces of the fridge / • The door is opened frequently, or kept open too long.
freezer are wet
Excess frost and ice has built up
inside the appliance.
Please note:
Any damage caused by not following the
• Caused by condensation - dry the outer of the appliance carefully.
• Caused by condensation - dry the inside of the appliance thoroughly.
•
Check that the door has not been left open.
•
Check that the door gasket is clean and undamaged.
instructions within this handbook may lead to a charge
for a service engineer visit and any repairs carried out.
Reversing the door
FOR: The doors on the U5010W
1.Unscrew the top cover and take off it.
2 screws for
fixing the top
cover
2.Unscrew the top hinge.
3 screws for
fixing top
hinge
3.Re-install the top hinge pin,shaft sheath and
block piece on the oppolsite side.
a:Move the top hinge to opposite side
4.Unscrew the three scews on the down hinge
and screw them on the opposite side.
5.Move the adjustable foot to the opposite side.
6.Align the door properly,
fix the top hinge and top cover.
b:Move the shaft sheath and block piece
to opposite side also
Changing the Plug
Any electrical work required to install this appliance should be
carried out by a qualified electrician or competent person.
This appliance must be earthed. The manufacturer declines
any liability should these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate. The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug
supplied, a 13 amp ASTA approved (BS 1362) fuse must be
used. Should the plug need to be replaced for any reason. The
wires in the mains lead are coloured in accordance with the
following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to the
terminal marked with the letter "E" or by the earth symbol
or coloured green and yellow. The wire coloured blue must be
connected to the terminal "N". The wire coloured brown must
be connected to the terminal marked "L".
Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer
sheath.
*
11
The wires in the mains lead
are coloured in accordance
with the following code:
Green and Yellow = Earth
Blue = Neutral
Brown = Live
Important!
The plug must still be accessible after the appliance has been
installed. The appliance should not be connected to the
electrical supply by means of an extension cable. In case that
the electrical cable has to be replaced, please contact the
Customer Care Centre and arrange a service engineers visit.
Warning!
A cut off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that it is disposed of safely.
This appliance complies with the following E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent
modifications, 89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent modifications.
Service Record
Please record your model number and serial number in the space below.
Having these numbers to hand will help us to help you, quickly and more
efficiently.
When contacting us, please use the Customer Care number on the back
cover of this handbook
Model Number
Serial Number
12
Date of purchase
Place of purchase:
Date
Installers stamp / Printed name
Part(s) replaced
Engineers Stamp/
Date of installation
Printed Name
Lec Refrigeration
Stoney Lane, Prescot, Merseyside, L35 2XW
Customer Care Centre: 08
44 815 3737
www.lec.co.uk
Lec Refrigeration, a division of Glen Dimplex Home Appliances
08 26362 00 © 05.2006
4577672200
07.06.06
Loading...
