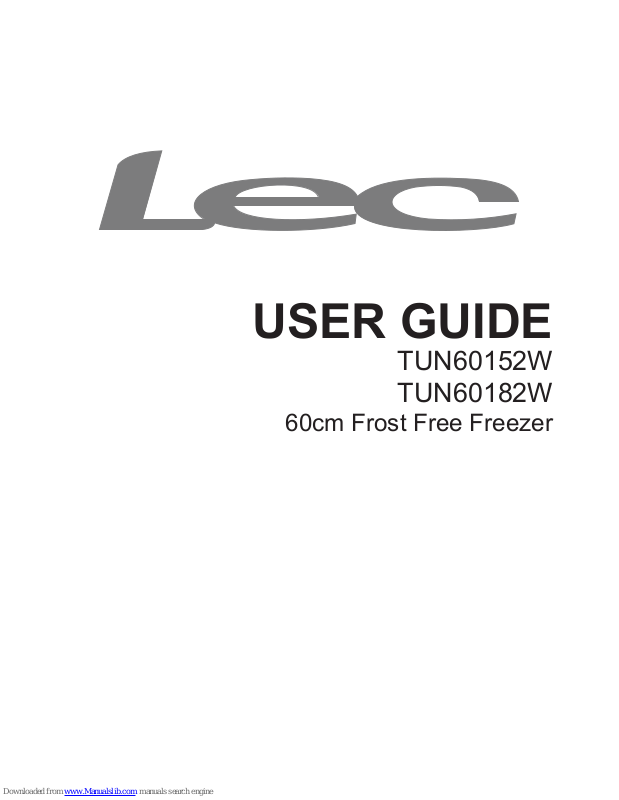

USER GUIDE
TUN60152W
TUN60182W
60cm Frost Free Freezer
UK - 1 -
Thank you for buying this high quality appliance
This handbook is designed to help you through each step of owning
your new appliance, from installation to use.
Please read through this handbook carefully before you start using
your appliance, as we have endeavoured to answer as many
questions as possible, and provide you with as much support as
possible.
If, however, you nd something missing or not covered, please contact
our Customer Care Centre, using the number at the back of this
handbook, who will be only too happy to help you.
Our policy is one of constant development and improvement, therefore
we cannot guarantee the strict accuracy of all our illustrations
and specications, changes may have been made subsequent to
publishing.
UK - 2 -
Index
CHAPTER 1. BEFORE USING YOUR FRIDGE ................................................... 3
Information on No-Frost Technology ................................................................................3
Safety Instructions ...........................................................................................................4
Warnings ..........................................................................................................................5
Installing and Operating your Fridge ................................................................................6
CHAPTER 2. HOW TO OPERATE THE APPLIANCE ......................................... 7
Operating your Freezer ....................................................................................................7
MODE Button ..............................................................................................................................7
SET Button .................................................................................................................................7
Freezer Compartment Temperature Adjustment and Activating FAST FREEZING Mode .......... 8
Fast Freezing Mode ....................................................................................................................8
While SF mode is selected: ........................................................................................................9
Economy mode ...........................................................................................................................9
Warnings about Temperature Adjustments ....................................................................10
CHAPTER 3. FOOD STORAGE IN THE APPLIANCE ....................................... 11
CHAPTER 4. CLEANING AND MAINTENANCE ............................................... 13
Defrosting ......................................................................................................................13
CHAPTER 5. SHIPMENT AND REPOSITIONING ............................................. 14
Shipment ........................................................................................................................14
REVERSING THE DOOR ................................................................................... 14
CHANGING OF DOOR OPENING DIRECTION ................................................ 17
CHAPTER 6. BEFORE CALLING SERVICE ..................................................... 18
Advice for Saving Energy ..............................................................................................21

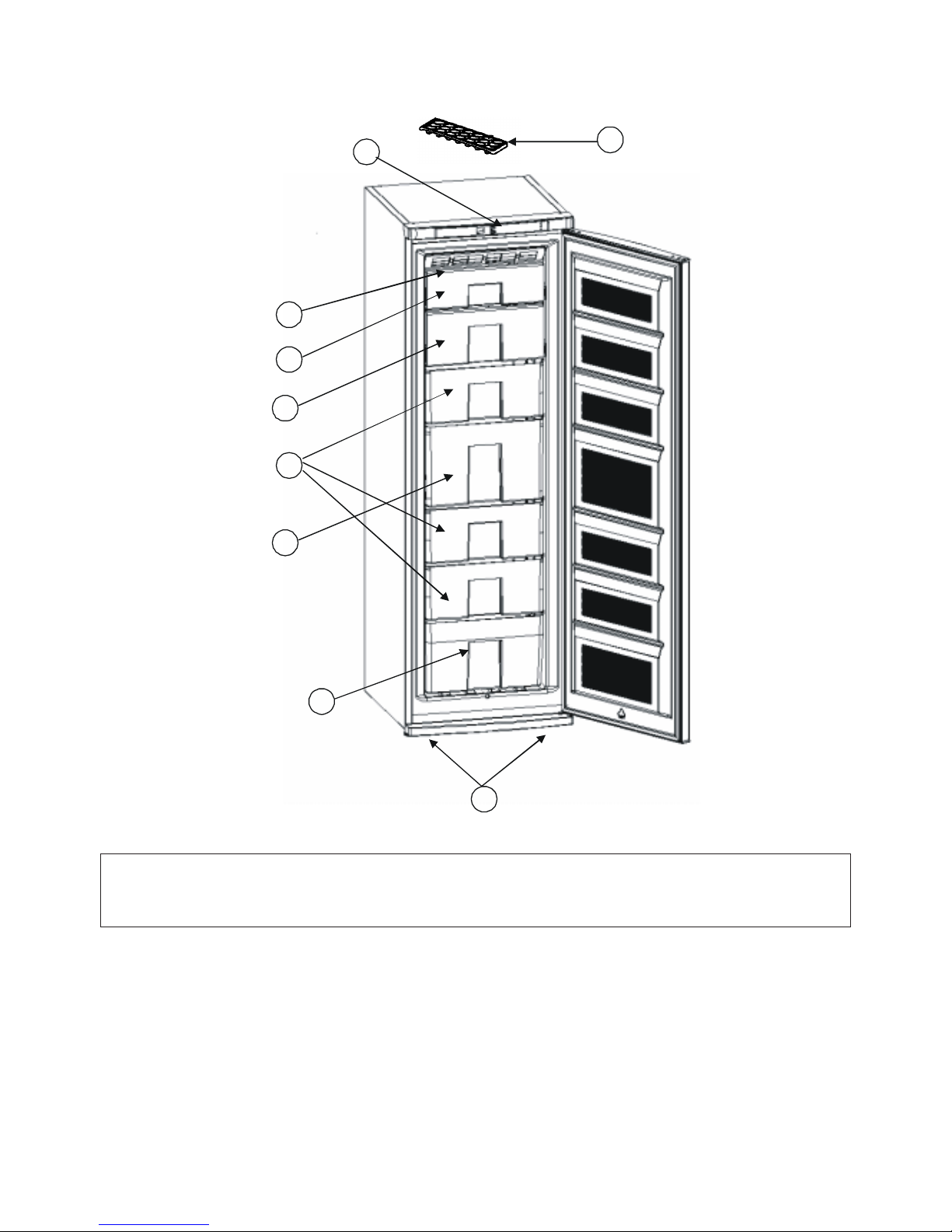

CHAPTER 7. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS .............................................................................................. 23
LEC CUSTOMER CARE ..................................................................................... 26
UK - 3 -
CHAPTER 1. BEFORE USING YOUR FRIDGE
Information on No-Frost Technology
No-frost fridges differ from other static fridges in their
operating principle.
In normal fridges, the humidity entering the fridge when the
door is opened and the humidity of the food causes freezing
in the freezer compartment. To defrost the build-up of ice in
the freezer compartment, you should turn off the fridge, take
the food that needs to be kept in a constant temperature
off the fridge, and remove the ice gathered in the freezer
department periodically.

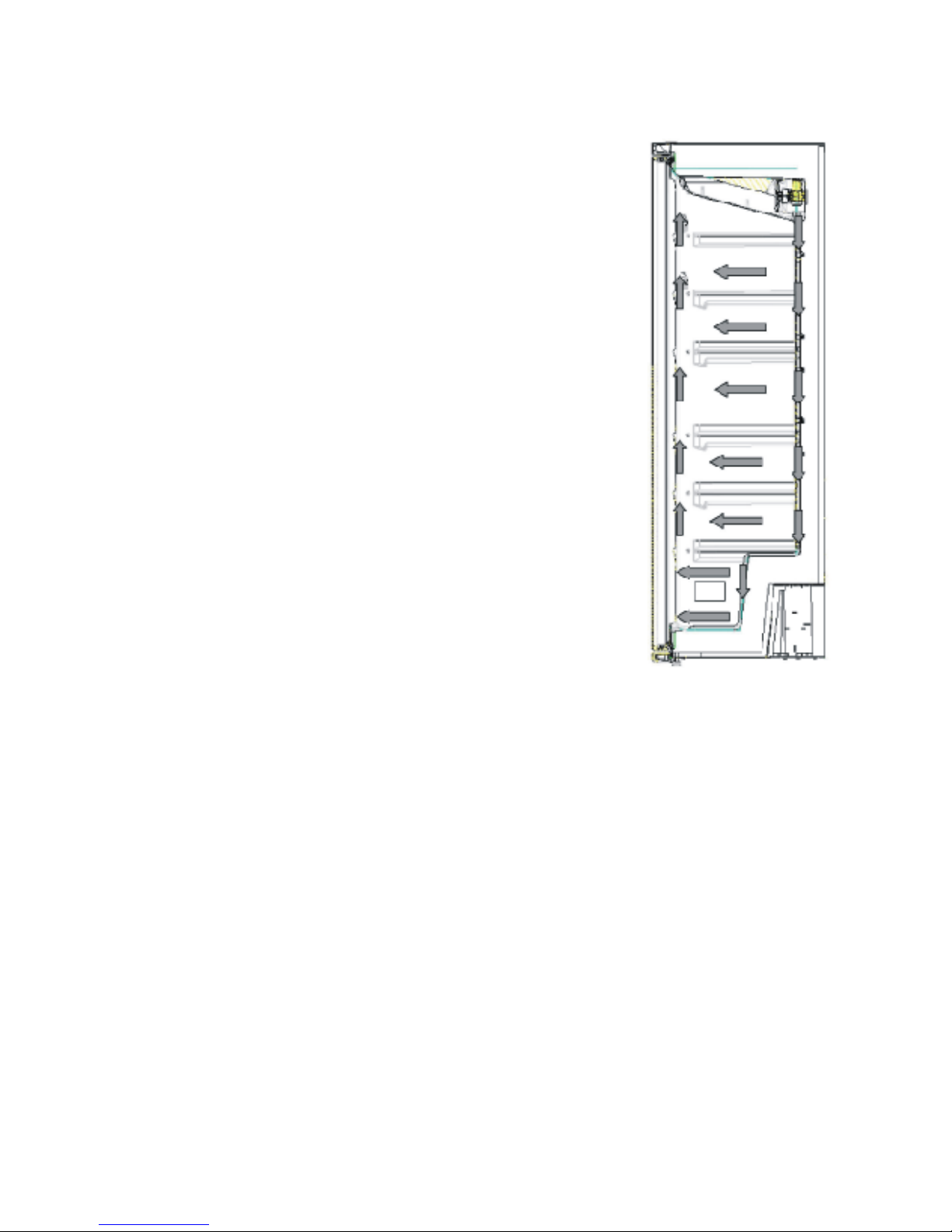

The situation is completely different in no-frost fridges. Dry
and cold air is blown into the fridge and freezer departments
homogeneously from several points via a blower fan. Cold air
dispersed homogeneously even between the shelves cools
all your food equally and uniformly, thus prevents humidity
and freezing.
Therefore your no-frost fridge allows you ease of use, besides its huge volume and stylish
appearance.
UK - 4 -
Safety Instructions
• Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect installation
and use.
• If this appliance is to replace an old one equipped with a lock, break or remove the lock
as a safety measure to avoid children becoming trapped inside.
• This model contains refrigerant isobutene (R600a). Caution is required since isobutene
is ammable. It is essential to ensure that refrigerant pipelines are not damaged during
transportation and installation of the appliance. Should the pipes become damaged - do
not use the appliance until you have been advised to do so by a service engineer.
• Do not damage the refrigerant circuit. In the event that the refrigerant circuit is damaged,
avoid open ames or ignition sources and ventilate the room in which the unit is placed
- do not use the appliance until you have been advised to do so by a service engineer.
• Do not allow children to play with the appliance. Children must never sit in the drawers
or hang from the door.
• Do not plug this appliance into an extension lead.
• Do not use old or damaged power supply cables.
• Do not twist, bend or trap the cable. Cables should also be kept clear of heat sources.
• When plugging in the appliance, always make sure that your hands are dry.
• Your old appliances contain insulation gases and refrigerant that must be disposed of
properly. Please contact your local authority for information about recycling centres. Do
not dispose of this appliance with household waste.
• After installation make sure that the power cable is not trapped underneath appliance.
UK - 5 -
Conformity Information
• Normal Class is dened for the environment temperatures between 16°C and 32°C in
accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC603352-24, 2004/108/EC standards.
Warnings
• Do not defrost the appliance with other electrical devices (i.e. hair dryer) or any articial
means and do not use sharp metal objects to remove the ice on the freezer, as this
could cause damage to the refrigerant system.
• Do not operate any electrical appliances inside the refrigerator or freezer.
• Do not place bottles (glass or plastic) containing liquids (especially effervescent liquids)
into the freezer as they could cause the bottle to burst during freezing.
• Do not touch the cooling surfaces while the appliance operates, especially with wet
hands, because the skin may stick to cold surfaces.
• Do not eat ice which has just been removed from the freezer as this can cause freezer
burns to the hands and tongue.
Information on Disposal for Users (private households)
Attention: Your product is marked with this symbol. It means that used electrical
and electronic products should not be mixed with general household waste.
There is a seperate collection system for these products.
Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!
Used electrical and electronic equipments must be treated separetely and in accordance
with legislation that requires proper treatment, recovery and recycling of used electrical and
electronic equipment.
Following the implementation by member states, private households within th EU states may
return their used electrical and electronic equipment to designated collection facilities free of
charge*. In some countries* your local retailer may also take back your old product free of
charge if you purchase a similar new one.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose
of these seperately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the
necessary treatment, recovery and recycling and thus prevent potential negative effects on
the environment and human health which could otherwise arise due to inappropriate waste
handling.
UK - 6 -
Installing and Operating your Fridge
The climate class of this appliance is Class N with an ambient temperature range of +16°C
and +32°C, the appliance should be sited within this ambient range.
The appliance may not operate consistently (possibility of defrosting contents or temperature
becoming too warm in the frozen food compartment) if it is sited for extended periods of time
below the cold end of the climate class temperature range for which the appliance is designed.
Operating voltage for your fridge is 220-240 V at 50Hz
• Before switching on place the appliance in an upright position and wait at least three
hours without moving the appliance. This will give the refrigerant circuit time to settle
and operate efciently.
• Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and
Maintenance).
• This appliance must be earthed.
• Insert the plug into a socket which is appropriate. This appliance has a plug already
tted - if the plug is not suitable for your socket we suggest that you call an authorized
electrician for assistance. If the plug is damaged in any way - do not attempt to use it.
It must be replaced with a new plug.
• Do not install the appliance in direct sunlight, damp or cold conditions (i.e. in a garage
or out house). Do not allow the appliance to be exposed to rain.
• Place the appliance away from heat sources and in a well ventilated position. The
appliance should be at least 50 cm from radiators, gas or coal stoves, and 5 cm away
from electrical stoves.
• Keep the top clear by at least 2 cm, and do not overload the top of the appliance with
heavy items.
• If the appliance is installed next to another refrigerator or freezer, observe a minimum
distance of 2 cm to avoid condensation.
• Fit plastic wall spacers to the condenser at the back of the appliance to prevent the
appliance leaning against the wall.
• The appliance must stand rmly and level on the oor. Use the two front leveling feet to
level the appliance on the oor.
• Do not allow the condenser to be blocked. Regular cleaning will prevent a build up of
dust which may damage your appliance. You can clean the condenser with a brush or
a vacuum cleaner.
• The manufacturer is not responsible for failure to complete installation as
described in this guide.
UK - 7 -
CHAPTER 2. HOW TO OPERATE THE APPLIANCE
Operating your Freezer
FREEZER COMPARTMENT
TEMPERATURE INDICATOR
MODE BUTTON
SET BUTTON
ECONOMY MODE
LAMP
POWER LAMP
FAST FREEZING
MODE LAMP
(For some models)
MODE Button
• Mode button allows switching between Freezer
Compartment Indicator, Fast Freezing Mode Lamp,
Economy Mode Lamp.
• When you press once, Freezer Compartment Indicator
starts to ash.
Set value is ready to be changed.
• When you press twice, Fast Freezing Mode Lamp starts
to ash.
• When you press three times, Economy Mode Lamp starts to ash.
SET Button
Allows the temperature adjustment of the related
compartment when Freezer compartment Indicator is
selected with the mode button.
UK - 8 -
Freezer Compartment Temperature Adjustment and Activating FAST FREEZING
Mode
• Initial temperature value for Freezer Department
Indicator is -18oC.
• Press mode button once.
• The set value for freezer Compartment indicator starts
to ash when you press this button.
• The value for freezer Compartment indicator changes
for a lower temperature each time you press this button
when the indicator is ashing.
( -16oC, -17oC, -18oC, -19oC, -20oC, -21oC, -22oC, -23oC, -24oC)
• When you wait for 5 seconds without pressing any button after reaching the desired set
value, the set value is activated and your fridge operates with that set value.
• When you press set button until the value for Freezer compartment Indicator reaches
-24oC (maximum cold position), if you press the button again, SF letters will ash.
• If you continue to press the button when SF is ashing, the values will start again from
-16oC.
Recommended Temperature Values for Freezer
Fast Freezing Mode
• To freeze a large amount of food
• To freeze ready foods
• To freeze foods rapidly
• To store the seasonal foods for a long time
How to use;
• Press the mode button until Fast Freezing mode.
• While Fast Freezing Mode Lamp is ashing if no button is clicked for 5 seconds then a
beep sound will be heard and the mode will be enabled.
• While the Fast Freezing mode is active the letters “SF” will be seen at the Indicator of
the Freezer.
UK - 9 -
While SF mode is selected:
To cancel SF Mode and continue with previous set value:
Please press Mode Button 1 time and wait for 5 secs. SF
mode will be cancelled and appliance will start to work
according to previous set value.
To cancel SF Mode and continue with new set value:
Please press Mode Button 1 time and in 5 sec, push set
button until you see set value you want and wait for 5 secs.
SF mode will be cancelled and appliance will start to work
according to new set value.
To cancel SF Mode and activate Economy Mode:
Please press Mode Button 3 times and wait for 5 secs. SF mode will be cancelled and appliance
will start to work according to Economy Mode.
Note: “Super Freezing” mode will be cancelled automatically after 24 hours or when the
freezer sensor temperature falls below -32°C.
If Super Freeze mode is nished automatically, SF led will continue to light. It is enough to
push mode button to turn off SF led.
Economy mode
Your freezer will consume minimum energy at -18°C set value
which is the most optimum storage condition.
When to use;
• When you want your refrigerator to operate economically.
How to use;
• Press the mode button until Economy Mode Led lights
up (3 times).
• While the Economy Mode Led is ashing if no button is clicked then a beep sound will
be heard and the mode will be enabled.
• During this mode, the freezer compartment operate at the special temperature value
set on the control circuit.
• While the Economy mode is active the letters “Ec” will be seen at the Indicator the
Freezer Compartment.
While Economy mode is selected;
To cancel Economy Mode and continue with previous set value:
Please press Mode Button 3 times and wait for 5 secs. Economy mode will be cancelled and
appliance will start to work according to previous set value.
UK - 10 -
To cancel SF Mode and continue with new set value:
Please press Mode Button 1 time and in 5 sec, push set button until you see set value you
want and wait for 5 secs. Economy mode will be cancelled and appliance will start to work
according to new set value.
To cancel Economy Mode and activate SF Mode:
Please press Mode Button 3 times and wait for 5 secs. Economy mode will be cancelled and
appliance will start to work according to SF Mode.
Warnings about Temperature Adjustments
• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• Do not pass to another adjustment before completing an adjustment
• Temperature adjustments should be made according to the frequency of door openings,
the quantity of food kept inside the fridge and ambient temperature of the place of your
fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled.
• Do not open doors of your fridge frequently and do not place much food inside it in this
period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug off and then plug it on again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
UK - 11 -
CHAPTER 3. FOOD STORAGE IN THE APPLIANCE
This freezer is a 4 star rated ( ) appliance.
Optimal performance is obtained at temperatures between +16°C and +32°C.
• The use of a freezer is for freezing fresh food and storing frozen food for long periods
of time and making ice cubes.
• Do not put fresh or warm food with frozen food side by side as it can thaw the frozen
food.
• While freezing fresh food (i.e. meat, sh etc) divide them into smaller portions, this will
allow you to defrost only the food you need.
• For storing frozen food; the instructions shown on frozen food packages should always
be followed carefully, if no information is provided food should not be stored for more
than 3 months from the purchased date.
• When buying frozen food; ensure that these have been frozen at suitable temperatures
and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of
the food and should be placed into the freezer as soon as possible.
• If a package of frozen food shows signs of humidity and abnormal swelling it is probable
that it has been previously stored at an unsuitable temperature and that the contents
have deteriorated. Do not use this food, dispose of it as soon as possible.
• The storage life of frozen food depends on the room temperature, thermostat setting,
how often the door is opened, the type of food and the length of time required to transport
the product from the shop to your home. Always follow the instructions printed on the
package and never exceed the maximum storage life indicated.
If you would use maximum freezing capacity of your freezer
• Take the frozen food in the upper basket to other baskets and activate “Fast Freezing”
mode. “Fast Freezing” mode will be deactivated automatically after 24 hours. Place the
food you want to freeze to the upper basket of the freezer department without exceeding
the freezing capacity of your fridge. (Your refrigerator has the capacity to freeze 15 kg
at 25°C and 14 kg at 32°C) Then reactivate the “Fast Freezing” mode. You can put
your food next to other frozen food after they are frozen (minimum 24 hours after “Fast
Freezing” mode is activated for the 2nd time).
If you would freeze about 3 kg food in your freezer:
• You can place your food without touching other frozen food and activate “Fast Freezing”
mode. You can put your food next to other frozen food after they are frozen (after minimum
24 hours).
• Do not re-freeze the frozen goods after being melted. This may cause health issues like
food poisoning.
UK - 12 -
For TUN60152W
• If there is a power cut or malfunction, do not open the door. This will help maintain the
temperature inside the freezer, ensuring that foods are conserved for about 10 hours at
25°C ambient temperature and about 8,5 hours at 32°C ambient temperature. Do not
re-freeze food that is defrosting or that has already been defrosted. These foods must
be cooked and eaten.
For TUN60182W
• If there is a power cut or malfunction, do not open the door. This will help maintain the
temperature inside the freezer, ensuring that foods are conserved for about 9,5 hours
at 25°C ambient temperature and about 8 hours at 32°C ambient temperature. Do not
re-freeze food that is defrosting or that has already been defrosted. These foods must
be cooked and eaten.
UK - 13 -
CHAPTER 4. CLEANING AND MAINTENANCE
• Make sure to unplug the freezer before starting to clean.
• Do not wash your freezer by pouring water into it.
• You can wipe the inner and outer sides with a soft cloth or
a sponge using warm and soapy water.
• Remove the parts individually and clean with soapy water.
Do not wash in dishwasher.
• Never use ammable, explosive or corrosive material like
thinner, gas, acid for cleaning.
Make sure that your freezer is unplugged while cleaning.
Defrosting
• Your freezer defrosts automatically. Water
produced by defrosting flows to evaporating
container passing through water collecting
groove, and vaporizes here by itself.
Evaporation container
UK - 14 -
CHAPTER 5. SHIPMENT AND REPOSITIONING
Shipment
• Original package and foam may be kept for re-transportation (optional).
• You should fasten your freezer with thick package, bands or strong cords and follow the
instructions for transportation on the package for re-transportation.
• Remove movable parts (drawers etc.) or x
them into the freezer using tape during repositioning and transportation.
• Carry your freezer in the upright position.
REVERSING THE DOOR
1)
1a)
1b)
1c)
UK - 15 -
2)
3)
3a)
3b)
3c)
3d)
3e)
2a)
2b)
2c)
UK - 16 -
4)
4a)
4b)
5)
5a)
5c)
5b)
UK - 17 -
CHANGING OF DOOR OPENING DIRECTION
1a-) Unscrew top and bottom screws of head panel.
1b-)Take the head panel off.
1c-) Cut the opposite side of the head panel throughout
the traced line.
2a-) Unscrew the screws of top hinge.
2b-) Take the door off.
2c-) Unscrew the pin of the top hinge and assemble it
to the opposite one.
3-a) Take the kick plate off.
3b-) Cut the opposite side of the kick plate throughout
the traced line.
3c-) Unscrew the pin of the bottom hinge and assemble
it to the opposite hole on the hinge.
3d-) Assemble the bottom hinge to opposite side of the
product.
3e-) Take off the hinge which was assembled with the
pin.
4a-) Take the bush of the door and insert it to opposite
hole.
4b-) Unscrew the stopper and assemble it to opposite
side.
4c-) If the product has door handle, reposition the handle
according to door handle montage instruction which was
given with product.
5a-) Insert the door onto the bottom hinge, assemble
the top hinge and the door together.
5b-) Insert the head panel to its place.
5c-) Insert the kick plate to its place.
883 mm
595 mm
1094,4 mm
542,5 mm
120°
UK - 18 -
CHAPTER 6. BEFORE CALLING SERVICE
If your fridge is not operating ;
• Is there any electrical faults?
• Is the plug is placed properly in the receptacle?
• Is the fuse of the receptacle that the plug is plugged or the main fuse blown?
• Is there any fault in the socket? Examine this by plugging your fridge into a receptacle
which you are sure that is working.
WARNING TYPE MEANING REASON REMEDY
Sr Failure warnings
Appears when one or
more of the refrigera-
tor parts fail or there
is a problem in the
cooling system.
Call service immedi-
ately.
LF
Freezer
compartment is
not cold enough
This warning appears
if there has been a
power failure for a
long period and when
the refrigerator is
operated for the rst
time.
1-) If your frozen food
is thawed, consume
them as soon as possible and do not freeze
them again since there
is a risk of putrefac-
tion.
LP Low voltage
Refrigerator switches
to the standby mode
when the voltage
supply falls below 170
Volts.
This feature prevents
the compressor from
getting damaged due
to low voltage. Refrig-
erator will start operat-
ing automatically when
the voltage restores to
the required level.
UK - 19 -
Temperature Warning:
The temperature display ashes “LF” and an audible warning sounds, when the temperature
in the freezer compartment is too warm.
A rise in the temperature may be caused by;
• Frequent door opening for long periods of time
• Loading with large quantities of warm foods
• High ambient temperature
• An error with the appliances.
Check Warnings;
Your freezer warns you if the temperatures for freezer departments are in improper levels
or when a problem occurs in the appliance. Warning codes are displayed in the Freezer
Department Indicators. Warning codes appear in the Freezer Compartment Setting Displays.
Also a warning sound are heared.
Showing code and buzzer will continue until you pushes SET or MODE button. When you
push one of these buttons, buzzer will stop. “LF” warning will be disappear in 15 minutes.
You don’t have to call your service, this condition may appear due to reasons above. You
can keep storing your foods in your freezer. If “LF” warning will not disappear in an hour after
pressing the button, you can call your service and do not re-freeze your food. These foods
must be eaten.
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).
Short cracking
• Heard when the thermostat switches the compressor on/off.
Compressor noise
• Normal motor noise. This noise means that the compressor operates normally
Compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash:
• This noise is caused by the ow of the refrigerant in the tubes of the system.
Water ow noise:
• Normal ow noise of water owing to the evaporation container during defrosting. This
noise can be heard during defrosting.
UK - 20 -
Air Blow Noise:
• Normal fan noise. This noise can be heard in No-Frost fridge during normal operation
of the system due to the circulation of air.
If the edges of freezer cabinet that the door joint contact are warm;
• Especially in summer (hot weather), the surfaces that the joint contact may get warmer
during the operation of the compressor, this is normal.
If humidity builds up inside the freezer;
• Are all food packed properly? Are the containers dried before placing them in the freezer?
• Is the freezers door opened frequently? Humidity of the room gets in the freezer when
the doors are opened. Humidity build up will be faster when you open the doors more
frequently, especially if the humidity of the room is high.
• Build up of water drops on the rear wall after automatic defrosting is normal. (in Static
Models)
If the door is not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the drawers placed properly?
• Are door joints broken or torn?
• Is your freezer on a level surface?
If your freezer is not cooling enough;
Your freezer is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling effectiveness.
Climate Class Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)
UK - 21 -
Advice for Saving Energy
• Do not install the appliance close to heat producing appliances. Such as cooker, oven,
dishwasher or radiator, locate the appliance in the coolest part of the room.
• Locate the appliance in a cool well ventilated room and make sure that the air openings
of the appliances are not obstructed.
• Always leave warm food to cool down to room temperature before placing in the freezer.
• Try to avoid keeping the door open for long periods or opening the door too frequently
as warm air will enter the cabinet and cause the compresor to switch on unnecessarily.
• Ensure there are no obstructions preventing the door from closing properly.
• Cover foods before placing them in the freezer. This cuts down on moisture build-up
inside the unit.
• Refer to the “temperature settings” section for the suggested temperature control settings.
• Do not block cold air vents. Doing so causes the freezer to run longer and use more
energy.
• Keep freezer full.
• Level the freezer so that the door closes tightly.
• Occasionally clean the rear of the appliance with a vacuum cleaner or small brush to
prevent an increased power consumption.
• Keep door gaskets clean and pliable. Replace gaskets if worn.
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not stabilized
yet. Your freezer will start after 5 minutes, there is nothing to worry about.
• If you will not use your freezer for a long time (e.g. in summer holidays) unplug it. Clean
your freezer according to Chapter 4 and leave the door open to prevent humidity and
smell.
• If the problem persists after you have followed all the instructions above, please consult
to the nearest Authorized service.
UK - 22 -
Supplier's name or trade mark
Model / Item TUN60152W
Type of appliance GT/N321K
The energy efciency class A+
Voltage 220-240V / 50HZ
Power 166 W
Energy consumption 0,769 kw / 24h
Net storage volume of fresh food ---
Net storage volume of frozen food 194 lt
Star rating of frozen food storage compartment 4
Refrigeration system No-Frost
Power cut safe Z h' (-18ºC to -9ºC) 510 min.(32°C) / 600 min.(25°C)
Freezing capacity' 16kg / 24h
Climate class' T / N
Size ( H x W x D ) mm 1550 X 595 X 634
Net weight 62
Noise' 43 dB (A)
Supplier's name or trade mark
Model / Item TUN60182W
Type of appliance GT/N391K
The energy efciency class A+
Voltage 220-240V / 50HZ
Power 165 W
Energy consumption 0,884 kw / 24h
Net storage volume of fresh food ---
Net storage volume of frozen food 251 lt
Star rating of frozen food storage compartment 4
Refrigeration system No-Frost
Power cut safe Z h' (-18ºC to -9ºC) 480 min.(32°C) / 570 min.(25°C)
Freezing capacity' 14kg / 24h
Climate class' T / N
Size ( H x W x D ) mm 1850 X 595 X 634
Net weight 72
Noise' 44 db (A)
UK - 23 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
1. ICE TRAY
2. DISPLAY PANEL
3. NO FROST AIR CIRCULATION SYSTEM
4. SMALL FREEZER FLAP
5. BIG FREEZER FLAP
6. FREEZER DRAWERS
7. FREEZER BOTTOM DRAWER
8. LEVELLING FEET
CHAPTER 7. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
TUN60152W
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
UK - 24 -
1. ICE TRAY
2. DISPLAY PANEL
3. NO FROST AIR CIRCULATION SYSTEM
4. SMALL FREEZER FLAP
5. BIG FREEZER FLAP
6. FREEZER DRAWERS
7. FREEZER BIG DRAWER
8. FREEZER BOTTOM DRAWER
9. LEVELLING FEET
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
TUN60182W
1
2
3
4
5
6
7
8
9
UK - 25 -
ELECTRICAL CONNECTION (UK ONLY)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug tted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is tted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin
plug..
How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are
coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked
with the letter E or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is rmly secured under the cord clamp.
Important!
The plug must still be accessible after the appliance has been installed. The appliance
should not be connected to the electrical supply by means of an extension cable. In case
that the electrical cable has to be replaced, please contact the Customer Care Centre and
arrange a service engineers visit.
Warning!
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure
that it is disposed of safely. This appliance complies with the following E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modications, 89/336 EEC
of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modications.
GREEN/YELLOW
Earth
BLUE
Neutral
Cord Clamp
BROWN
Live
FUSE
13 Amps
UK - 26 -
LEC CUSTOMER CARE
Please keep this handbook in a safe place.
Please ll in the model number and serial number in the spaces provided below as they
will assist us should you need to call.
0844 815 3737
When you dial this number you will hear a recorded message and
be given a number of options. This indicates that your call has
been accepted and is being held in a queue. Calls are answered
in strict rotation as our Customer Care Representatives become
available.
Enter appliance numbers here for future reference:
These numbers can be found on your appliances.
Outside the UK and Northern Ireland, refer to your local supplier.
Stoney Lane, Prescot, Merseyside, L35 2XW
Model No
Serial No
52068274
Loading...
