Lec TL5510W User Manual

TL5510W
Introduction
Thank you for buying this high qualit
This handbook is designed to help you through each step of owning your new appliance, from installation, to use.
Please read through all of this guide carefully before you start using your appliance, as we have endeavoured to answer as many questions as possible, and provide you with as much support as we can.
If, however, you should find something missing, or not covered, please contact the Lec Customer Care team who will be only too happy to assist you on:
y appliance!
0871 22 22 505
Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications changes may have been made subsequent to publishing.
Contents
For yoursafety
About your product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installingyour appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Care & cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reversing the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing the plug. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service record and Customer Care Backcover
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
4
For Your Safety
Disposal of old appliances
Before disposin g of an old appliance , make sure that you have broke n off, or disable d any lockin g mechanism s to prevent childre n becomin g accidentall y locked inside. Remove any plugs and powe r leads to ensur e that the appliance is inoperative.
Please note: This symbo l mean s that products
bearing it may not be disposed of with household
waste. The refrige ration syste m contain s insulatin g gases and refrigeran t which will requir e specialis t disposal . Most component s can be recycled . Always contact your local council or authorit y for informatio n regarding the correct disposal/remo val of old appliances, do not dispose of with
household waste.
Warning: When disposin g of an old appliance make sure
that the pipe work does not become damaged.
Packaging
All of the packagin g supplie d with your applianc e can be recycled, or dispose d of without any harm to the environment. Cardboar d may be crushed , or cut into smalle r piece s if required for recycling or disposal . The polythen e and
polystyrene included contain no CFC’s, and are environmentally friendly.
For further informatio n on recycl ing, contact your local council or authority.
1
Before installing and using your new appliance
Read throug h the instruction s supplied with your appliance - failure to install or use this appliance in accordan ce with the instruc tion book may invalidate any warranty. The manufacture r does not accep t any liability for damage cause d throug h imprope r use, or incorrect installation. Do not install this appliance if it has been damaged during transport ation. This include s the plug and power supply cord. Always install this appliance in line with these instructions.
Always read these instruction s fully before using the
appliance for the first time.
For Your Safety
Warning: Do not allow the refrigerant circuit to become damaged while using or installing. Should it become damaged, do not use the appliance until you are instructed to do so by a service engineer. Refrigerant can ignite or cause damage to the eye when leaking. Always remember to unplug the appliance before cleaning. When disconnecting from the electricity supply, pull the plug, not thepowe r cord. Do not use any electrical appliance inside the food storage area - unless they are recommended by the manufacturer. All electrical repairs must be carried out by a qualified electrician. Inadequate repairs may result in in a major source of danger for the user and invalidate any warranty. Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid and alkali etc. Alcoholic beverages must be stored upright in an air tight container in the refrigerator. Never store alcohol in a freezer. When defrosting the appliance, never use sharp or pointed metal implements. Always use a plastic scraper. (see Defrosting for moreinformation). Always keep any ventilation openings clear of obstruction. Should they become blocked, clear them straight away. Do not allow children to play, sit or hang onto any part of the appliance. This appliance is intended for domestic use only, for food refrigeration, food freezing and frozen food stor­age. Make sure that the plug is in an accessible place when installation is complete and remove all packaging. Only use this appliance for domestic purposes in accor­dance with these instructions. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowl­edge, unless they have been given supervision or instruction concerning use of the appliance by a per­son responsible for their safety. Refrigerating appliances might not operate consistently when sited for an extended period of time below the cold end of the the range of temperatures of the appli­ance.
2
TL5510W
1
2
3
4
1
Top cover
4
Crisper
Door shelves
7
MODEL
Wi dth(m m)
5
Light bulb
2 5
Feet
3 6
TL5510W
54 5
57 0
7
6
Glass shelves Big d oor shelf
He ight( mm)
Ne t volume(lit res)
En ergy Rating
Cl imate C lass
No ise(d B(A)r e1pw)
Refr igerant type
Technical Data
14 40
24 5L
A
ST
40dBA
R
600a
(25g)
300
300mm
100mm
Total space required in useT
TL 5010W
0mm 6 0 1
551mm
ri ght
Do n ot wash shelf retention in hot wat er.
The drainage chan eln
The drainage collects water on the back wall of the refrigerator and ensures that it is drained away into a drip tray at the rear of the appliance.

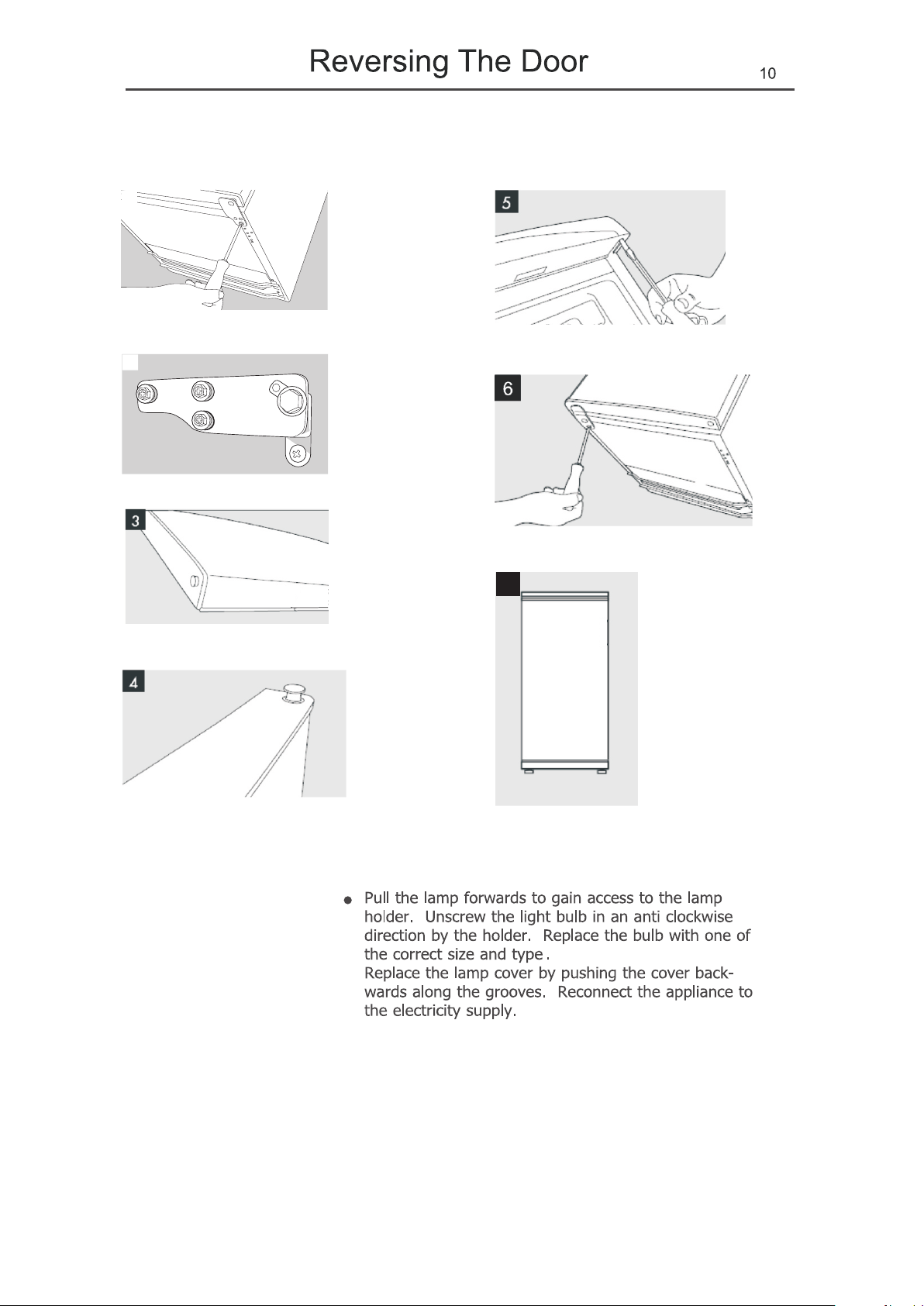

Reversing the door
For: The doors on the TL5510W
1.
Undo th e screws and r emove the hi nge bra cke t from th e bas e. A spanne r may be requi red to lo ose n the bol ts fi rst.
th e
1.
2.
Remov e the screws a nd adju sta ble foo t fro m the opp osi te side and fit b ack to where t he hinge bra cket wa s loc ated.
2.
Slide t he door down a nd off the top h ing e pin and
3. lift aw ay from the ap plian ce.
5.
Using a s crew drive r, remov e the p in from t he to p brack et. Repla ce it on the opp osite b rac ket. En sur e the pin i s sec ure
Slide t he door on to th e top hinge, e nsuri ng it i s all the
6. way up.
Screw t he bottom hi nge into pla ce on the n ew si de
and rep lace
7. Ch eck t hat doo r i s ali gned horizon tally a nd verti cal ly and that th e seals ar e clo sed o n alls ide s befo re fin allyt igh tenin g the bot tom hingle .Re-adju st the le velli ng
the adj ustable fe et
7
Remov e the hinge bu sh at the top of t he door and s wap it wi th th e
4. blank ing plate on t he othe rsi de. Rep eat w ith the h ing e bush and bla nking p lat e on the botto m of the do or.
Changing The Bulb
