USER GUIDE
TF55152S
55cm Fridge Freezer
Introduction
Thank you for buying this high quality appliance!
This handbook is designed to help you through each step of owning your new appliance,
from installation, to use.
Please read through this entire guide carefully before you start using your appliance, as
we have endeavored to answer as many questions as possible, and provide you with as
much support as we can.
If, however, you should find something missing, or not covered, please contact the Lec
Customer Care team who will be only too happy to assist you on:
0844 815 3737
Our policy is one of constant development and improvement, therefore we cannot
guarantee the strict accuracy of all of our illustrations and specifications changes may
have been made subsequent to publishing.
1
WARNING!
In order to ensure normal operation of your refrigeration appliance, which uses an
environmentally friendly refrigerant R 600a (flammable) you must observe the following
rules:
- Do not prevent the circulation of the air around the appliance.
- Do not use mechanical devices to accelerate the defrosting, other than ones
recommended by the manufacturer.
- Do not damage the refrigeration circuit.
- Do not use electrical appliances inside the food storage compartment, other than
those that have been recommended by the manufacturer.
2
GB/IE
Contents
3
Description
Page
Safety first ...........................................................................
Electrical requirements .......................................................
Transportation instructions .................................................
Installation instructions .......................................................
Getting to know your appliance ..........................................
Suggested arrangement of food in the appliance ...............
Temperature control and adjustment .................................
Before operating ................................................................
Storing frozen food ............................................................
Freezing fresh food ............................................................
About Fresh Food ..............................................................
No frost Technology ...........................................................
Making ice cubes ...............................................................
Defrosting ..........................................................................
Replacing the interior light bulb .........................................
Cleaning and care .............................................................
Repositioning the door .......................................................
Do’s and don’ts ..................................................................
Information about operating noises ...................................
Troubleshooting .................................................................
Technical data ...................................................................
Changing the plug .............................................................
7
8
8
8
9
9
10
10
11
11
11
11
12
12
12
12
13
13
14
15
15
16
Getting To Know Your Appliance
Fig 1
4
General Installation & Maintenance
Fig 2
Fig 3
Fig 4
Fig 9
Fig 5
Fig 6
Fig 7
Fig 8
Fig 10
5

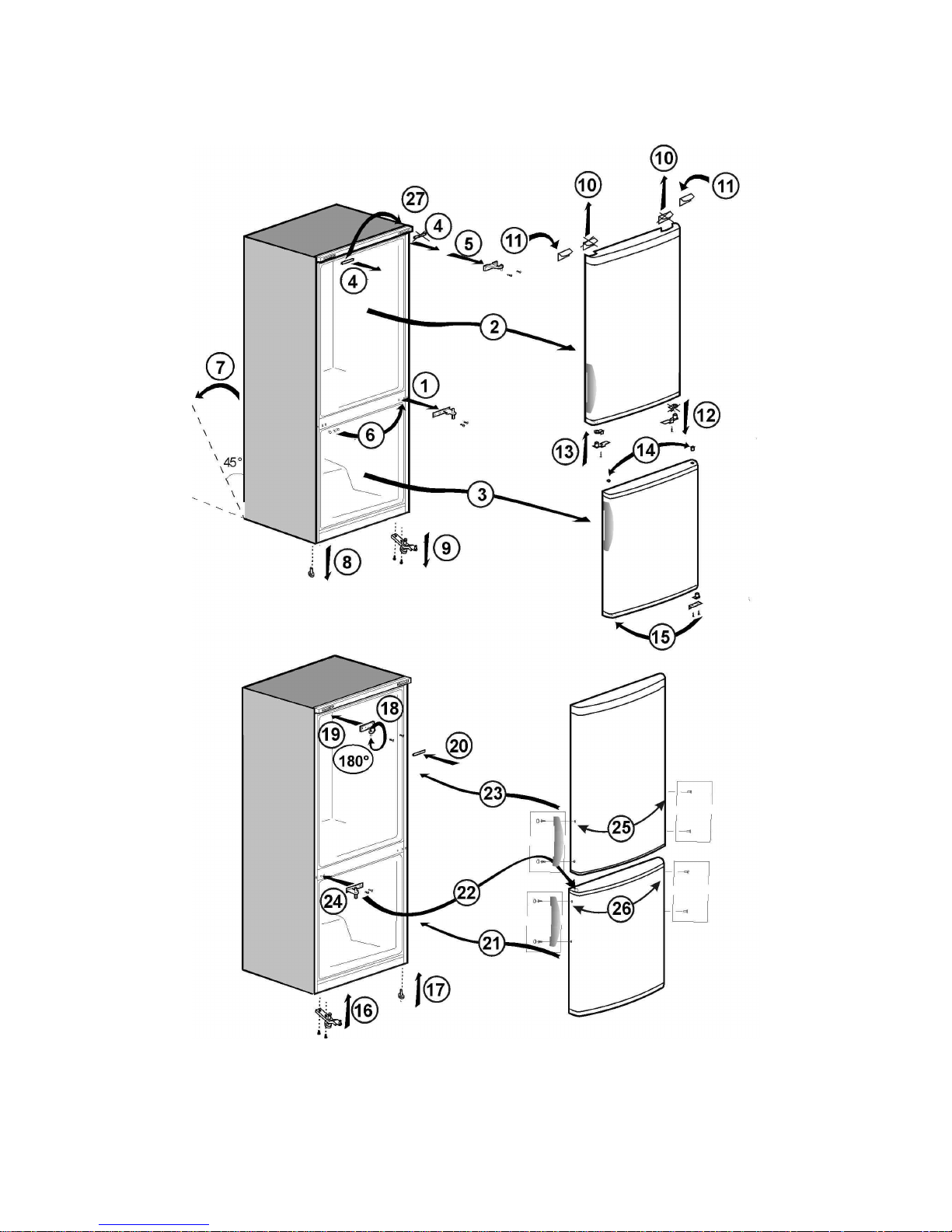

Repositioning The Door
Fig 11
6
C
ongratulations on your choice of a LEC Quality
Appliance, designed to give you many years of service.
Safety first!
Do not connect your appliance to the electricity supply
until all packing and transit protectors have been
removed.
• Leave to stand for at least 12 hours before switching
on, to allow the refrigerant to settle.
• If you are discarding an old appliance with a lock or
latch fitted to the door, ensure that the lock is disabled
or broken, to prevent children becoming trapped inside.
• This appliance must only be used for its intended
purpose.
• Do not set fire to this appliance. Your appliance
contains non CFC substances in the insulation which
are flammable. We suggest you contact your local
authority for information on disposal and available
facilities.
• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory,
annex, shed, out-house etc.)
• To obtain the best possible performance and trouble
free operation from your appliance it is very important to
read these instructions carefully. Failure to observe
these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for easy
reference.
GB/IE
Instruction for use
7
GB/IE
Instruction for use
8
Electrical requirements
Before inserting the plug into the electrical
socket make sure that the voltage and the
frequency shown in the data badge inside the
appliance corresponds to your electricity
supply.
We recommend that this appliance is
connected to the mains supply via a suitably
switched and fused socket which is in a
readily accessible position.
Warning! This appliance must be earthed.
Repairs to electrical equipment should only be
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person
can carry risks to the user of the appliance.
ATTENTION!
This appliance operates with R600a which is
an environmental friendly but flammable gas.
During the transportation and fixing of the
product, care must be taken not to damage
the cooling system. If the cooling system is
damaged and there is a gas leakage from the
system, keep the product away from open
flame sources and ventilate the room.
WARNING - Do not use mechanical devices
or other means to accelerate the defrosting
process, others than those recommended by
the manufacturer.
WARNING - Do not damage the refrigerant
circuit.
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
Transportation instructions
1. The appliance sh
ould be transported only in
an upright position. The packing as supplied
must be intact during transportation.
2. If during the transport the appliance, has
been positioned horizontally, it must not be
operated for at least 12 hours, to allow the
system to settle.
Important!
• Care must be taken while cleaning/carrying
the appliance not to touch the bottom of the
condenser metal wires at the back of the
appliance, as this could cause injury to fingers
and hands.
• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use.
You could injure yourself or damage the
appliance.
• Make sure that the mains cable is not caught
u
nder the appliance during and after moving,
as this could damage the cable.
• This appliace is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience or knowledge, unless they have been
given supervision or instruction concerning
use of the appliance by a person responsible
for their safety.
WARNING children should be supervised to
ensure that they do not play with the
appliance.
AETCS – Advanced Electronic
Temperature Control System
Your Fridge Freezer is equipped with AETCS,
which features the following benefits;
• Accurate and consistent temperature
maintenance for improved performance
thanks to advanced electronics used in the
control system.
• The system in the electronics monitors the
ambient temperature and controls the
compressor to make sure that the freezer
will work in ambient temperatures down to 15°C. This means you can install your
appliance, if required, in a garage or similar
outside locations where there is no heating.
Because the fridge would be too cold, food
may be affected, such as salad and fruit. So
make sure you don’t leave such food in the
fridge in very cold ambient conditions.
• Because in cold conditions, the appliance
works less, it would also save on electricity
costs.
GB/IE
Instruction for use
9
Installation instructions
1. If the ambient temperature is below 0°C,
the food in the fridge compartment will freeze.
So, we recommend you don't use the fridge
compartment in such low ambient conditions.
You can continue using the freezer
compartment as usual.
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will
cause extra strain on the appliance's
functions. If installed next to a source of heat
or freezer, maintain the following minimum
side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm
3. Make sure that sufficient room is provided
around the appliance to ensure free air
circulation (Fig 2).
• Open the door of the appliance to make sure
that there is enough space for the door to
open properly (Fig 2).
Fit spacers on the condenser as per Fig 3.
4. The appliance should be positioned on a
smooth surface. The two front feet can be
adjusted as required.To ensure that your
appliance is standing upright adjust the two
front feet by turning clockwise or anticlockwise, until firm contact is secured with
the floor. Correct adjustment of feet prevents
excessive vibration and noise
(Fig 4).
5. Refer to "Cleaning and Care" section to
prepare your appliance for use.
Getting to know your appliance
(Fig 1)
1 - Setting knob and interior light
2 - Adjustable Cabinet shelves
3 - Water collector
4 - Crisper cover
5 - Crisper
6 - Ice tray support & ice tray
7 - Compartment for freezing fresh food
8 - Compartments for storing frozen froods
9 - Adjustable foot
10 - Dairy Compartment
11 - Shelf for jars
12 - Shelf for bottles
13 - Freezer fan
The fan circulates air in the frezer
compartment of the appliance and works in
parallel with the motor compressor. When the
motor compressor is off, the fan is also off.
Suggested arrangement of food in
the appliance
Guidelines for obtaining optimum storage and
hygiene:
1. The fridge compartment is for the shortterm storage of fresh food and drinks.
2. The freezer compartment is rated
and suitable for the freezing and
storage of pre-frozen food.
The recommendation for storage
as stated on the food packaging should be
observed at all times.
3. Dairy products should be stored in the
special compartment provided in the door
liner.
4. Cooked dishes should be stored in airtight
containers.
5. Fresh wrapped produce can be kept on the
shelf. Fresh fruit and vegetables should be
cleaned and stored in the crispers.
6. Bottles can be kept in the door section.
7. To store raw meat, wrap in polythene bags
and place on the lowest shelf. Do not allow
to come into contact with cooked food, to
avoid contamination. For safety, only store
raw meat for two to three days.
8. For maximum efficiency, the removable
shelves should not be covered with paper
or other materials to allow free circulation of
cool air.
9. Do not keep vegetable oil on door shelves.
Keep t
he food packed, wrapped or covered.
Allow hot food and beverages to cool
before refrigerating. Leftover canned food
should not be stored in the can.
10. Fizzy (effervescent) drinks should not be
frozen and products such as flavoured
water ices should not be consumed too
cold as there is a risk of freezer burns.
11. Some fruit and vegetables suffer damage
if kept at temperatures near 0°C. Therefore
wrap pineapples, melons, cucumbers,
tomatoes and similar produce in polythene
bags.
GB/IE
Instruction for use
10
12. High-proof alcohol must be stored upright
in tightly closed containers. Never store
products that contain flammable propellant
gas (e.g. aerosols, gas cannisters /
cartridges.) or explosive substances.
These are an explosion / fire hazard.
Temperature control and adjustment
Operating temperatures are controlled by the
setting knob (see diagram) located on the
ceiling of fridge compartment. Settings may be
made from min, 1 ... 6, max, max being the
coldest position.
When the appliance is switched o
n for the first
time, the setting knob should be adjusted so
that after 24 hours, the average fridge
temperature is no higher than +5°C (+41°F).
We recommend you set the knob on 5
position between the min and max setting and
monitor to obtain the desired temperature i. e.
towards max you will obtain a colder fridge
temperature and vice versa. Some sections of
the fridge may be cooler or warmer (such as
the salad crisper and the top part of the
cabinet) which is quite normal.
The normal storage temperature o
f the freezer
should be -18°C (0°F). Lower temperatures
may be obtained by adjusting setting knob
towards max position.
We recommend that you check the
temperature with an accurate thermometer to
ensure that the storage compartments are
kept to the desired temperature.
Remember you must take your reading very
quickly since the thermometer temperature
will rise very rapidly after you remove it from
the freezer.
Please remember each time the door is
opened cold air escapes and the internal
temperature rises. Therefore never leave the
door open and ensure it is closed immediately
after food is put in or removed.
If the ambient (room or garage) temperature is
between 0°C and -15°C, we recommend you
set the knob halfway between the min and
max setting to reach -18°C in the freezer
compartment. Lower temperatures may be
obtained by adjusting setting knob towards
max position."
Before operating
Final Check
Before you start using the appliance check
that:
1. The feet have been adjusted for perfect
levelling.
2. The interior is dry and air can circulate
freely at the rear.
3. The interior is clean as recommended
under "Cleaning and care.”
4. The plug has been inserted into the wall
socket and the electricity is switched on.
When the door is open the interior light will
come on.
And note that:
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may also
make some (noise), whether the
compressor is running or not. This is quite
normal.
6. Slight undulation of the top of the cabinet is
quite normal due to the manufacturing
process used; it is not a defect.
7. We recommend setting of the knob midway
and monitor the temperature to ensure the
appliance maintains desired storage
temperatures (See section Temperature
Control and Adjustment).
8. Do not load the appliance immediately after
it is switched on. Wait until the correct
storage temperature has been reached. We
recommend checking the temperature with
an accurate thermometer (see;
Temperature Control and Adjustment).
Freezer basket / drawers
For the best performance of your appliance
always use and distribute the foods evenly
within the freezer baskets and do not overfill
them as it can lead to poor performance of the
freezer; such as excessive electricity
consumption and / or inconsistent internal
freezer temperatures.
GB/IE
Instruction for use
Making ice cubes
Fill the ice - cube tray 3/4 full with water and
place it in the freezer. Loosen frozen trays
with a spoon handle or a similar implement;
never use sharp-edged objects such as
knives or forks.
Defrosting
The fridge compartment defrosts
automatically. The defrost water runs to the
drain tube via a collection container at the
back of the appliance (Fig 6).
During defrosting, water droplets may form at
the back of the fridge compartment where a
concealed evaporator is located. Some
droplets may remain on the liner and refreeze
when defrosting is completed. Do not use
pointed or sharp-edged objects such as
knives or forks to remove the droplets which
have refrozen.
If, at any time, the defrost water does not
drain from the collection channel, check that
no food particles have blocked the drain tube.
The drain tube can be cleared with a pipe-
cleaner or similar implement.
Check that the tube is permanently placed with
its end in the collecting tray on the compressor
to prevent the water spilling on the electric
installation or on the floor (Fig 7).
B) Freezer compartment
The NO FROST type defrost is compleetly
automatic. No intervention from your side is
required. The water is colected on the
compressor tray. Due the heat of the
compressor the water is evaporated
Do not use pointed or sharp-edged
objects, such as knives or forks to remove
the frost.
Never use hairdryers, electrical heaters or
other such electrical appliances for defrosting.
Sponge out the defrost water collected in the
bottom of the freezer compartment. After
defrosting, dry the interior thoroughly (Fig 8 &
9). Insert the plug into the wall socket and
switch on the electricity supply.
Storing frozen food
Please follow the instructions below to obtain
the best results.
Use the bottom two baskets / drawers for the
storage of already frozen foods.
Try to keep the time between the purchase of
frozen food and storage in the freezer as short
as possible to avoid frozen food thawing.
Once food is thawed either consume or cook
and re-freeze if recommended.
Always follow the food manufacturers storage
and cooking instructions.
In the event of a power failure, keep the door
closed and food should be unaffected for a
period of 14 hours, if the power cut lasts
longer than this time, food should be checked
for thawing and either consumed immediately
or cooked and re-frozen.
Freezing Fresh Food
Please follow the instructions below to obtain
the best results.
Use the top basket / drawer for freezing fresh
food: Always keep fresh food and already
frozen food separate to avoid accidental
defrosting of already frozen food.
Divide food into smaller portions. This will
speed up the freezing process and will also
allow you to defrost only the food you need at
a later date.
It is recommended to state the food type and
freezing date on the package so that you can
later check the storage duration of the food.
Do not exceed the freezing capacity of your
appliance in 24hr (stated on the data badge of
the appliance and in the technical data section
of this user book).
Always allow food to cool to room temperature
before putting into the freezer. Warm food
can cause other food to defrost or affect the
operation of the freezer.
All food should be packed in order to avoid
any moisture loss as a result of air circulation
and to ensure that food cannot protrude into
the blades of the circulating fan, impairing the
freezer performance.
GB/IE
Instruction for use
11
When freezing fresh food keep the setting
knob at the medium position. Small quantities
of food up to 1/2 kg (1lb) can be frozen
without adjusting the setting control knob. For
larger quantities of food adjust the thermostat
knob to the full on position for a period of 24
hrs after which you should return the knob to
its original position.
About No Frost
Your fridge freezer combines NO Frost
technology for accurate control and automatic
defrosting. This product is designed to avoid
formation of ice in the freezer. Accordingly,
there is no need for manual defrosting. The
product will automatically perform any
defrosting once it becomes necessary.
No Frost Technology
In order to facilitate the removal of the ice
layer the evaporator is assisted by electric
heating during the defrosting procedure. The
ventilator (circulating fan) is off during the
defrost cycle. The defrost water will drip into
the tray placed on the compressor and will
evaporate. In the course of the defrosting
procedure the evaporator becomes warm but
it has no influence on the internal
temperature.
All foods should be kept well packed to avoid
any moisture loss as a result of air circulation.
Warning: Internal circulating fans
Your appliance is fitted with a circulating fan
which is essential for the performance of your
appliance.
Please ensure that the internal circulating fan
is not blocked (stopped) or impaired by food
or packaging.
Do not overfill the freezer compartment taking
special care not to block the circulating fan at
the top of the compartment.
Blocking (stopping) or impairing the circulating
fan can result in an increase of internal
temperatures (Thawing).
GB/IE
Instruction for use
12
Making ice cubes
Fill the ice - cube tray 3/4 full with water and
place it in the freezer. Loosen frozen trays
with a spoon handle or a similar implement;
never use sharp-edged objects such as
knives or forks.
Defrosting
The fridge compartment defrosts
automatically. The defrost water runs to the
drain tube via a collection container at the
back of the appliance (Fig 6).
During defrosting, water droplets may form at
the back of the fridge compartment where a
concealed evaporator is located. Some
droplets may remain on the liner and refreeze
when defrosting is completed. Do not use
pointed or sharp-edged objects such as
knives or forks to remove the droplets which
have refrozen.
If, at any time, the defrost water does not
drain from the collection channel, check that
no food particles have blocked the drain tube.
The drain tube can be cleared with a pipecleaner or similar implement.
Check that the tube is permanently placed with
its end in the collecting tray on the compressor
to prevent the water spilling on the electric
installation or on the floor (Fig 7).
B) Fr eezer co mpar tment
The NO FROST type defrost is automatic. No
intervention from your side is required. The
water is collected on the compressor tray.
Due the heat of the compressor the water is
evaporated
Do not use pointed or sharp-edged
objects, such as knives or forks to remove
the frost.
Never use hairdryers, electrical heaters or
other such electrical appliances for defrosting.
Sponge out the defrost water collected in the
bottom of the freezer compartment. After
defrosting, dry the interior thoroughly
(Fig 8 & 9).
Insert the plug into the wall socket and switch
on the electricity supply.
Replacing the interior light bulb
(Fig 10)
In case that the light bulb is out of function it is
easily to replace. First make sure that the
refrigerator / freezer is disconnected from the
power supply by removing the plug. Take a
flat screwdriver and keep it carefully without
force into the left gap between lamp cover and
internal cabinet. Then press the handle of the
screwdriver carefully to the left side until you
notice that the left pin of the cover is
disengaged . Repeat this procedure on the
right gap, however now press the handle of
the screwdriver carefully to the right side. If
both sides are loosened the cover can be
removed easily.
Ensure that bulb is screwed securely in the
bulb holder. Plug the appliance into the power
supply. If the light still fails, replace E14
screw-cap type 15 Watt (Max) bulb from your
local electrical store and then fit it. Carefully
dispose of the burnt-out light bulb
immediately.
If you have changed the light bulb please fix
the cover again in it’s former position. Take
care that the cover snaps-in correctly.
Cleaning and care
1. We recommend that you switch off the
appliance at the socket outlet and pull out
the mains plug before cleaning.
2. Never use any sharp impliments or
abrasive substances, soap, household
cleaner, detergent or wax polish for
cleaning.
3. Use luke warm water to clean the cabinet of
the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution of
one teaspoon of bicarbonate of soda to one
pint of water to clean the interior and wipe it
dry.
5. Make sure that no water enters the
temperature control box.
6. If the appliance is not going to be used for a
long period of time, switch it off, remove all
food, clean it and leave the door ajar.
GB/IE
Instruction for use
7. We recommend that you polish the metal
parts of the product (i.e. door exterior,
cabinet sides) with a silicone wax (car
polish) to protect the high quality paint
finish.
8. Any dust that gathers on the condenser,
which is located at the back of the
appliance, should be removed once a year
with a vacuum cleaner.
9. Check door seals regularly to ensure they
are clean and free from food particles.
10. Never:
• Clean the appliance with unsuitable
material; eg petroleum based products.
• Subject it to high temperatures in any
way,
• Scour, rub etc., with abrasive material.
11. Removal of dairy cover and door tray :
• To remove the dairy cover, first lift the
cover up by about an inch and pull it off
from the side where there is an opening
on the cover.
• To remove a door tray, remove all the
contents and then simply push the door
tray upwards from the base.
12. Make sure that the special plastic
container at the back of the appliance
which collects defrost water is clean at all
times. If you want to remove the tray to
clean it, follow the instructions below:
• Switch off at the socket outlet and pull
out the mains plug
• Gently uncrimp the stud on the
compressor, using a pair of pliers, so that
the tray can be removed
• Lift it up.
• Clean and wipe it dry
• Reassemble, reversing the sequence
and operations
13. To remove a drawer, pull it as far as
possible, tilt it upwards and then pull it out
completely.
Repositioning the door
Proceed in numerical order (See Fig 11).
Do’s and don’ts
Do- Clean and defrost your appliance
regularly (See "Defrosting")
Do- Keep raw meat and poultry below
cooked food and dairy products.
Do- Take off any unusable leaves on
vegetables and wipe off any soil.
Do- Leave lettuce, cabbage, parsley and
cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof paper
and then in a polythene bag, excluding
as much air as possible. For best
results,
take out of the fridge compartment 1
hour before eating.
Do- Wrap raw meat and poultry loosely in
polythene or aluminium foil. This
prevents drying.
Do- Wrap fish and offal in polythene bags.
Do- Wrap food with a strong odour or which
may dry out, in polythene bags, or
aluminium foil or place in airtight
container.
Do- Wrap bread well to keep it fresh.
Do-
Chill white wines, beer, lager and mineral
water before serving.
Do- Check contents of the freezer every so
often.
Do- Keep food for as short a time as possible
and adhere to "Best Before" and "Use
by" etc. dates.
Do- Store commercially frozen food in
accordance with the instructions given on
the packets.
Do- Always choose high quality fresh food
and be sure it is thoroughly clean before
you freeze it.
Do- Prepare fresh food for freezing in small
portions to ensure rapid freezing.
Do- Wrap all food in aluminium foil or freezer
quality polythene bags and make sure
any air is excluded.
Do- Wrap frozen food immediately after
purchasing and put it in to the freezer as
soon as possible.
Do- Defrost food in the fridge compartment.
13
GB/IE
Instruction for use
Don’t
-
Store bananas in your fridge
compartment.
Don’t- Cover the shelves with any protective
materials which may obstruct air
circulation.
Don’t- Store poisonous or any dangerous
substances in your appliance. It has
been designed for the storage of
edible foodstuffs only.
Don’t- Consume food which has been
refrigerated for an excessive length of
time.
Don’t- Store cooked and fresh food together
in the same container. They should
be packaged and stored separately.
Don’t- Let defrosting food or food juices drip
onto food.
Don’t- Leave the door open for long periods,
as this will make the appliance more
costly to run and cause excessive ice
formation.
Don’t- Use sharp edged objects such as
knives or forks to remove the ice.
Don’t- Put hot food into the appliance. Let it
cool down first.
Don’t- Put liquid-filled bottles or sealed cans
containing carbonated liquids into the
freezer, as they may burst.
Don’t- Exceed the maximum freezing loads
when freezing fresh food (Stated on
the data badge).
Don’t- Give children ice-cream and water
ices direct from the freezer. The low
temperature may cause 'freezer
burns' on lips.
Don’t- Freeze fizzy drinks.
Don’t- Try to keep frozen food which has
thawed; it should be eaten within 24
hours or cooked and refrozen.
Don’t- Remove items from the freezer with
wet hands.
Information about operating noises
To keep the selected temperature constant,
your appliance occasionally switches ON the
compressor.
The resulting noises are quite normal.
As soon as the appliance has reached the
operating temperature, the noises
automatically reduce in volume.
The humming noise is emitted by the motor
(compressor). When the motor switches ON,
the noise may briefly increase in volume.
A sudden click can be heard sometimes due
to the timer changing position
The bubbling, gurgling or whirring noise is
emitted by the refrigerant as it flows through
the pipes.
The clicking noise can always be heard when
the setting knob ON/OFF the motor.
A clicking noise may occur when
- the automatic defrosting system is active.
- the appliance is cooling down or warming up
(material expansion).
If these noises are excessively loud, the
causes are probably not serious and are
usually very easy to eliminate.
- The appliance is not level - Use the heightadjustable feet or place packing under the
feet.
- The appliance is not free-standing - Please
move the appliance away from kitchen units
or other appliances.
- Drawers, baskets or shelves are loose or
stick - Please check the detachable
components and, if required, refit them.
-
Bottles and/or receptacles are touching each
other - Please move bottles and/or
receptacles away from each other.
14
Technical data
BRAND
d LEC
APPLIANCE TYPE FRIDGE FREEZER
MODEL TF55152S
Total gross volume (l) 235
Total useful volume (l) 215
Refrigerator comp. Useful volume (l) 145
Freezer comp. Useful volume (l) 70
Freezing capacity (kg/24 h) 4
Energy efficiency class (1) A+
Energy consumption (kWh/year) (2) 255
Temperature rise time (hours) 14
Noise (dB (A) re 1 pW) 40
Ecological refrigerant R600a
(1) Energy class : A . . . G (A = economical . . . G = less economical)
(2) The real energy consumption depends on the using conditions and appliance
location.
GB/IE
Instruction for use
Troubleshooting
If the appliance does not operate when
switched on, check;
• That the plug is inserted properly in the
socket and that the power supply is on. (To
check the power supply to the socket, plug
in another appliance)
• Whether the fuse has blown/circuit breaker
has tripped/main distribution switch has
been turned off.
• That the temperature control has been set
correctly.
• That the new plug is wired correctly, if you
have changed the fitted, moulded plug.
If the appliance is still not operating at all after
above checks, contact the dealer from whom
you purchased the unit.
Please ensure that above checks have been
done, as a charge will be made if no fault is
found.
15
Note: Only 13 amp fuses approved to
BS 1362 A.S.T.A. should be used. After
replacing or changing a fuse, the fuse cover
in the plug must be replaced.
Connect BLUE to Connect GREEN &
NEUTRAL(N)
YELLOW to EARTH (E)
Connect BROWN
to LIVE (L)
make sure the cable
is held by the clamp
Do not push excess mains lead into the
compressor (motor) compartment as this
may cause an electrical hazard.
10
Changing the plug
Your fridge freezer is fitted with a fused
three pin plug which will be suitable for use
in all residences fitted with sockets to
current specifications.
The fridge freezer runs on an electricity
supply of 220-240 V 50Hz and must be
earthed. If the plug is removed it should not
be re-
used, but thrown away immediately. A
cut off plug can be dangerous if plugged
into a socket.
If the plug supplied becomes damaged it
must be replaced with a new one and the
flexible mains lead connected as shown.
GB/IE
Instruction for use
16
Service Record
Please record your model number and serial number in the space below.
Having these numbers to hand will help more and us to help you, quickly
efficiently.
When contacting us, please use the Customer Care number on the back
cover of this handbook
Model Number
Serial Number
Date of purchase
Installers stamp / Printed name
Date of installation
Place of purchase:
Date
Part(s) replaced
Engineers Stamp/
Printed Name
Lec Refrigeration
Stoney Lane, Prescot, Merseyside, L35 2XW
Customer Care Centre: 0844 815 3737
www.lec.co.uk
Lec Refrigeration, a division of Glen Dimplex Home Appliances
08 26363 01 © 01.2007
4578331325
02.04.2012
Loading...
