USER GUIDE
T5576W
55cm Fridge Freezer
1
Introduction
Thank you for buying this high quality appliance!
This handbook is designed to help you through each step of owning your new appliance,
from installation, to use.
Please read through all of this guide carefully before you start using your appliance, as we
have endeavoured to answer as many questions as possible, and
provide you with as much support as we can.
If, however, you should find something missing, or not covered, please contact
the Lec Customer Care team who will be only too happy to assist you on:
0870 458 4386
Our policy is one of constant development and improvement, therefore we
cannot guarantee the strict accuracy of all of our illustrations and specifications
changes may have been made subsequent to publishing.
WARNING!
2
In order to ensure normal operation of your refrigerating appliance, which uses a
completely environmentally friendly refrigerant R 600a (flammable) you must observe
the following rules:
- Do not prevent the free circulation of the air around the appliance.
- Do not use mechanic devices in order to accelerate the defrosting, other than the
ones recommended by the manufacturer.
- Do not damage the refrigeration circuit.
- Do not use electric appliances inside the food storage compartment, other than those
that might have been reccommended by the manufacturer.
3
GB/IE
Contents
Description Page
Safety first ...........................................................................
Electrical requirements .......................................................
Transportation instructions .................................................
Installation instructions .......................................................
Getting to know your appliance ..........................................
Suggested arrangement of food in the appliance ...............
Temperature control and adjustment ................................
Before operating ...............................................................
7
8
8
8
9
9
10
10
Storing frozen food ...........................................................
Freezing fresh food ...........................................................
Making ice cubes ..............................................................
Defrosting .........................................................................
Replacing the interior light bulb ........................................
Cleaning and care .............................................................
Repositioning the door ......................................................
Do’s and don’ts .................................................................
Information about operating noises ..................................
Troubleshooting ................................................................
Technical data ..................................................................

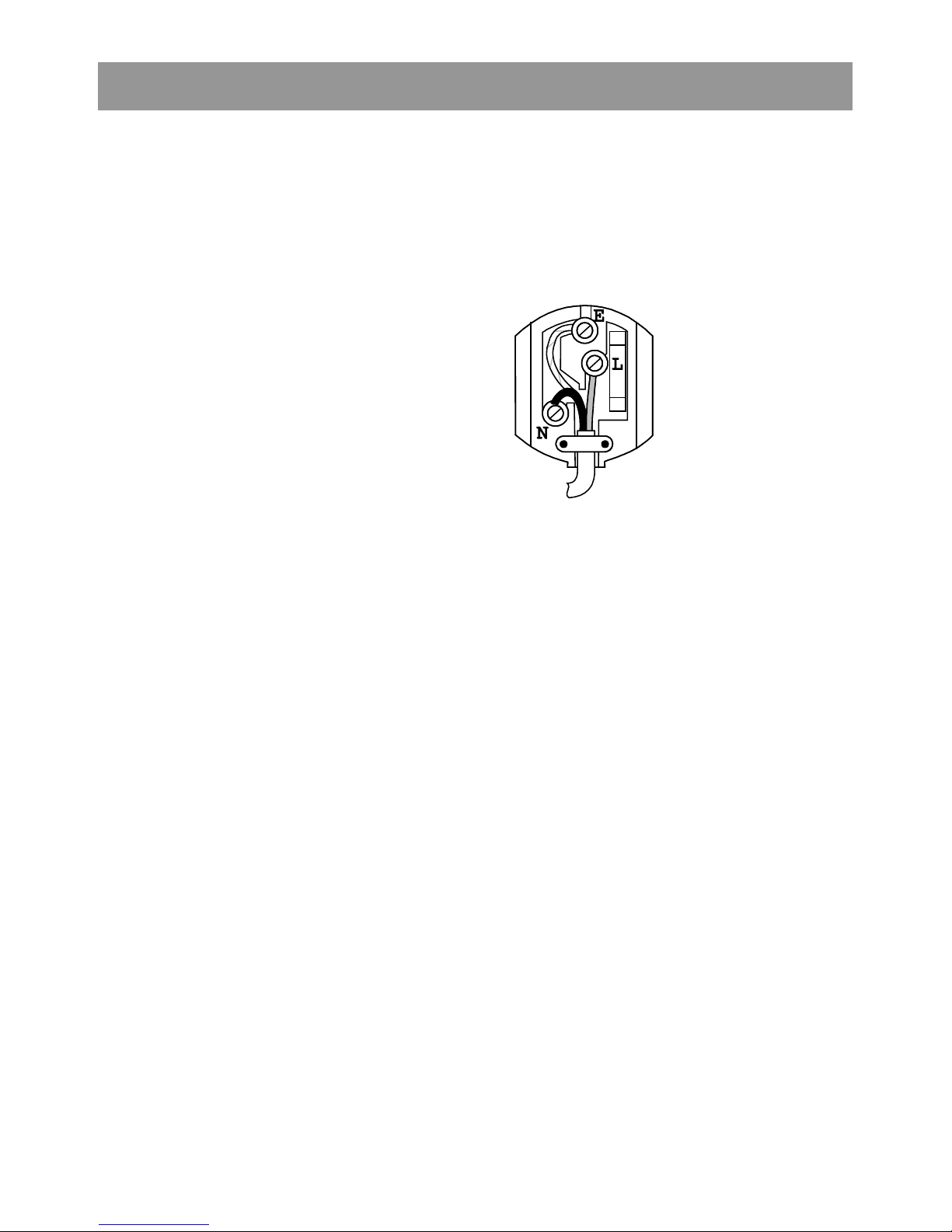

Changing the plug ............................................................
10
10
11
11
11
11
12
12
13
14
14
15
Getting To Know Your Appliance
4
Fig 1
General Installation & Maintenance
5
Fig 2
Fig 3
Fig 5
Fig 7
Fig 4
Fig 6
Fig 8
Fig 10
Fig 9
Repositioning The Door
6
Fig 11
GB/IE
Instruction for use
7
Congratulations on your choice of a
Appliance, designed to give you many years of service.
LEC
Quality
Safety first!
Do not connect your appliance to the electricity supply
until all packing and transit protectors have been
removed.
• Leave to stand for at least 12 hours before switching
on, to allow refrigerant to settle.
• If you are discarding an old appliance with a lock or
latch fitted to the door, break or disable the lock to
ensure that it is left in a safe condition to prevent
children becoming trapped inside.
• This appliance must only be used for its intended
purpose.
• Do not dispose of the appliance on a fire. Your
appliance contains non CFC substances in the
insulation which are flammable. We suggest you
contact your local authority for information on correct
disposal and available facilities.
• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory,
annex, shed, out-house etc.)
To obtain the best possible performance and trouble
free operation from your appliance it is very important to
read these instructions carefully. Failure to observe
these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for easy
reference.
Instruction for use
readily accessible position when the appliance
Repairs to electrical equipment should only be
ATTENTION!
1. The appliance should be transported only in
an upright position. The packing as supplied
at
3. Failure to comply with these instructions
4. The appliance must be protected against
• Open the door of your appliance to ensure
GB/IE
Electrical requirements
Before inserting the plug into an electrical
socket make sure that the voltage and the
could result in damage to the appliance, for
which the manufacturer will not be held
liable.
frequency shown in the rating plate inside the
appliance corresponds to your electricity
supply.
We recommend that this appliance is
connected to the mains supply via a suitably
switched and fused socket which is in a
rain, moisture and cold.
Important!
• Care must be taken while cleaning/carrying
the appliance not to touch the bottom of the
condenser metal wires at the back of the
is installed.
Warning! This appliance must be earthed.
appliance, as this could cause injury to fingers
and hands.
• Do not to sit or stand on top of your
appliance as it is not designed for such use.
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person
are carry risks that may have critical
consequences for the user of the appliance.
This appliance operates with R 600a which is
an environmental friendly but flammable gas.
During the transportation and fixing of the
product, care must be taken not to damage
the cooling system. If the cooling system is
damaged and there is a gas leak from the
system, keep the product away from ignition
sources and ventilate the room for a while.
WARNING - Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
WARNING - Do not damage the refrigerant
circuit.
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
Transportation instructions
You could injure yourself or damage the
appliance.
WARNING - Make sure that the mains cable
is not caught under the appliance during and
after moving, as this could damage the cable.
• Do not allow children to play with the
appliance or tamper with the controls.
Installation instructions
1. Do not keep your appliance in a room
where the temperature is likely to fall below
10 degrees C (50 degrees F) at night
and/or especially in winter, as it is designed
to operate in ambient temperatures
between +10 and +32 degrees C (50 and
90 degrees F). At lower temperatures the
appliance may not operate, resulting in a
reduction in the storage life of the food.
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will
cause extra strain on the appliance's
functions. If installed next to a source of
heat or freezer, maintain the following
minimum side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm
must be intact during transportation.
2. The appliance should not be operated for
least 12 hours after installation, to allow the
3. Make sure that sufficient room is provided
around the appliance to ensure free air
circulation
(Fig 2)
system to settle.
there is enough space for the door to open
properly.
(Fig 2).
Fit spacers on the condenser as per
8
.
Fig 3.
Instruction for use
4.
the floor. Correct adjustment of feet prevents
5. Refer to
t allow
Do not keep vegetable oil on door shelves.
Keep all food packed, wrapped or covered.
GB/IE
The appliance should be positioned on a
smooth surface. The two front feet can be
adjusted as required.To ensure that your
appliance is standing upright adjust the two
front feet by turning clockwise or anticlockwise, until firm contact is secured with
excessive vibration and noise
prepare your appliance for use.
Getting to know your appliance
(Fig 1)
1 - Thermostat and lamp housing
2 - Adjustable Cabinet shelves
3 - Water collector
4 - Crisper cover
5 - Crispers
6 - Ice tray support & ice tray
7 - Compartment for freezing fresh food
8 - Compartments for storing frozen froods
9 - Adjustable foot
10 - Dairy Compartment
11 - Shelf for jars
12 - Shelf for bottles
Suggested arrangement of food in
the appliance
Guidelines for obtaining optimum storage and
hygiene:
1. The fridge compartment is for the short-
term storage of fresh food and drinks.
2. The freezer compartment is
rated and suitable for the freezing and
storage of pre-frozen food and fresh food.
The recommendation for storage
as stated on the food packaging should be
observed at all times.
3. Dairy products should be stored in the
special compartment provided in the door
liner.
"Cleaning and Care" section to
(Fig 4)
.
4. Cooked dishes should be stored in airtight
containers.
5. Fresh wrapped produce can be kept on
the shelf. Fresh fruit and vegetables
should be cleaned and stored in the
crispers.
6. Bottles can be kept in the door section.
7. To store raw meat, wrap in polythene bags
and place on the lowest shelf. Do no
raw food to come into contact with cooked
food, to avoid contamination. For safety,
only store raw meat for two to three days.
8. For maximum efficiency, the removable
shelves should not be covered with paper
or other materials to allow free circulation
of cool air.
9.
Allow hot food and beverages to cool
before refrigerating. Leftover canned food
should not be stored in the can.
10. Fizzy (Effervescent) drinks should not be
frozen and products such as flavoured
water ices should not be consumed too
cold.
11. Some fruit and vegetables suffer damage
if kept at temperatures near 0°C.
Therefore wrap pineapples, melons,
cucumbers, tomatoes and similar produce
in polythene bags.
12. High-proof alcohol must be stored upright
in tightly closed containers. Never store
products that contain flammable propellant
gas (e.g. spray cans / gas cannisters.) or
explosive substances. Fire / explosion
hazard.
9
Instruction for use
which is quite normal.
thermometer to ensure that the cabinet is kept
And note that:
etting the thermostat knob
storage temperature has been reached. We
ods and also
be affected if the
when it is frozen right through to the core as
GB/IE
Temperature control and adjustment
Operating temperatures are controlled by the
thermostat knob
any position between 1 and 5 (5 being the
coldest position).
The average temperature inside the fridge
should be below +5°C (+41°F).
Therefore adjust the thermostat to obtain the
desired temperature. Some sections of the
fridge may be cooler or warmer (such as
salad crisper and top part of the cabinet)
you check the temperature periodically with a
to this temperature. Frequent door openings
cause internal temperatures to rise, so it is
advisable to close the door as soon as
possible after use.
Before operating
Final Check
Before you start using the appliance check
that:
1. The feet have been adjusted for perfect
levelling.
2. The interior is dry and air can circulate
freely at the rear.
3. The interior is clean as recommended see
"Cleaning and care.”
4. The plug has been inserted into the wall
socket and the electricity is switched on.
When the door is open the interior light will
come on.
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may also
make some noise, whether the compressor
is running or not. This is quite normal.
6. Slight undulation of the top of the cabinet is
quite normal due to the manufacturing
process used; it is not a defect.
7. We recommend s
midway and monitor the temperature to
ensure the appliance maintains desired
storage temperatures (See section
Temperature Control and Adjustment).
(Fig 5)
and may be set at
We recommend that
8. Do not load the appliance immediately after
it is switched on. Wait until the correct
recommend checking the temperature with
an accurate thermometer (see;
Temperature Control and Adjustment).
Storing frozen food
Your freezer is suitable for the long-term
storage of commercially frozen fo
can be used to freeze and store fresh food.
Home prepared-frozen food should be stored
in the 4 star compartiments only (marked on
the internal compartment basket/flap).
If there is a power failure, do not open the
door. Frozen food should not
failure lasts for less than 18 hrs. If the failure
is longer, then the food should be checked
and either eaten immediately or cooked and
then re-frozen.
Freezing fresh food
Please observe the following instructions to
obtain the best results.
Do not freeze too large a quantity at any one
time. The quality of the food is best preserved
quickly as possible.
Do not exceed the 24hr freezing capacity of
your appliance. (Stated on the data badge).
Placing warm food into the freezer
compartment causes the refrigeration
machine to operate continously until the food
is frozen solid. This can temporarily lead to
excessive cooling of the refrigeration
compartment.
When freezing fresh food, keep the
thermostat knob at medium position. Small
quantities of food up to 1/2 kg. (1 lb) can be
frozen without adjusting the temperature
control knob.
Do not store fresh food with already frozen
food (risk of thawing).
10
Instruction for use
with a plastic scraper or a similar implement;
A) Fridge compartment
when defrosting is completed. Do not use
the collecting tray on the compressor
All food should be wrapped in several layers
Do not use pointed or sharp
-
edged
the lamp cover and lamp housing and prise off
3. Use luke warm water to clean the cabinet of
6. If the appliance is not going to be used for a
GB/IE
Making ice cubes
Fill the ice - cube tray 3/4 full with water and
place it in the freezer. Loosen frozen trays
never use sharp-edged objects such as
knives or forks.
Defrosting
The fridge compartment defrosts
automatically. The defrost water runs to the
drain tube via a collection container at the
back of the appliance (Fig 6).
During defrosting, water droplets may form at
the back of the fridge compartment where a
concealed evaporator is located. Some
droplets may remain on the liner and refreeze
pointed or sharp-edged objects such as
knives or forks to remove the droplets which
have refrozen.
If, at any time, the defrost water does not
drain from the collection channel, check that
no food particles have blocked the drain tube.
The drain tube can be cleared with a pipe
cleaner or similar implement.
Check that the tube is permanently placed with
its end in
to prevent the water spilling on the electric
installation or on the floor
B) Freezer compartment
Defrosting is very straightforward and without
mess, thanks to a special defrost collection
basin.
Defrost twice a year or when a frost layer of
around 7 mm (1/4") has formed. To start the
defrosting procedure, switch off the appliance
at the socket outlet and pull out the mains
plug.
of newspaper and stored in a cool place (e.g.
fridge or larder).
Containers of warm water may be placed
carefully in the freezer to speed up the
defrosting.
(Fig 7)
.
objects, such as knives or forks to remove
the frost.
Never use hairdryers, electrical heaters or
other such electrical appliances for defrosting.
Sponge out the defrost water collected in the
bottom of the freezer compartment. After
defrosting, dry the interior thoroughly
Insert the plug into the wall socket and switch
on the electricity supply.
Replacing the interior light bulb
Should the light fail, switch off at the socket
outlet and pull out the mains plug.
Insert a flat bladed screw driver in between
the lamp cover.
Then ensure the bulb is screwed securely in the
bulb holder. Replace the plug and switch on.
If the light still fails, obtain a replacement E14
screw-cap type 15 Watt (Max) bulb from your
local electrical store and then fit it (Fig 10).
Carefully dispose of the burnt-out light bulb
immediately.
Cleaning and care
1. We recommend that you switch off the
appliance at the socket outlet and pull out
the mains plug before cleaning.
2. Never use any sharp instruments or
abrasive substances, soap, household
cleaner, detergent or wax polish for
cleaning.
the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution of
one teaspoon of bicarbonate of soda to one
pint of water to clean the interior and wipe it
dry.
5. Make sure that no water enters the
temperature control box.
long period of time, switch it off, remove all
food, clean it and leave the door ajar.
7. We recommend that you polish the metal
parts of the product (i.e. door exterior,
cabinet sides) with a silicone wax (car
polish) to protect the high quality paint
finish.
11
(Fig 8 & 9)
.
Instruction for use
appliance, should be removed once a year
as much air as possible. For best results,
te wines, beer, lager and mineral
Keep food for as short a time as possible
GB/IE
8. Any dust that gathers on the condenser,
which is located at the back of the
with a vacuum cleaner.
9. Check door seals regularly to ensure they
are clean and free from food particles.
10. Never:
• Clean the appliance with unsuitable
material; eg petroleum based products.
• Subject it to high temperatures in any
way,
• Scour, rub etc., with abrasive material.
11. Removal of dairy cover and door tray :
• To remove the dairy cover, first lift the
cover up by about an inch and pull it off
from the side where there is an opening on
the cover.
• To remove a door tray, remove all the
contents and then simply push the door
tray upwards from the base.
12. Make sure that the special plastic
container at the back of the appliance
which collects defrost water is clean at all
times. If you want to remove the tray to
clean it, follow the instructions below:
• Switch off at the socket outlet and pull
out the mains plug
• Gently remove the stud on the
compressor, using a pair of pliers, so that
the tray can be removed
• Lift it up.
• Clean and wipe it dry
• Reassemble, reversing the sequence
and operations
13. To remove a drawer, pull it as far as
possible, tilt it upwards and then pull it out
completely.
Repositioning the door
Proceed in numerical order
(Fig 11)
.
Do’s and don’ts
Do-
Clean and defrost your appliance
regularly (See "Defrosting")
Do-
Keep raw meat and poultry below
cooked food and dairy products.
Do-
Take off any unusable leaves on
vegetables and wipe off any soil.
Do-
Leave lettuce, cabbage, parsley and
cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof paper
and then in a polythene bag, excluding
take out of the fridge compartment 1
hour before eating.
Do-
Wrap raw meat and poultry loosely in
polythene or aluminium foil. This
prevents drying.
Do-
Wrap fish and offal in polythene bags.
Do-
Wrap food with a strong odour or which
may dry out, in polythene bags, or
aluminium foil or place in airtight
container.
Do-
Wrap bread well to keep it fresh.
Do-
Chill whi
water before serving.
Do-
Check contents of the freezer regulary.
Do-
and adhere to "Best Before" and "Use
by" etc. dates.
Do- Store frozen food in accordance with the
instructions given on the packets.
Do-
Always choose high quality fresh food
and be sure it is thoroughly clean before
you freeze it.
Do-
Prepare fresh food for freezing in small
portions to ensure rapid freezing.
Do-
Wrap all food in aluminium foil or freezer
quality polythene bags and make sure
any air is excluded.
Do- Wrap frozen food immediately after
purchasing and put it in to the freezer as
soon as possible.
Do- Defrost food in the fridge compartment.
12
Don’t
-
refrigerated for an excessive length of
Exceed the maximum freezing loads
when freezing fresh food (Stated on
Instruction for use
As soon as the appliance has reached the
A clicking noise may occur when
Bottles and/or receptacles are touching each
GB/IE
Store bananas in your fridge
Don’t- Cover the shelves with any protective
Don’t-
Don’t-
Don’t- Store cooked and fresh food together
Don’t-
Don’t-
Don’t- Use sharp edged objects such as
Don’t-
Don’t-
Don’t-
Don’t- Give children ice-cream and water
Don’tDon’t-
Don’t-
compartment.
materials which may obstruct air
circulation.
Store poisonous or any dangerous
substances in your appliance. It has
been designed for the storage of
edible foodstuffs only.
Consume food which has been
time.
in the same container. They should
be packaged and stored separately.
Let defrosting food or food juices drip
onto food.
Leave the door open for long periods,
as this will make the appliance more
costly to run and cause excessive ice
formation.
knives or forks to remove the ice.
Put hot food into the appliance. Let it
cool down first.
Put liquid-filled bottles or sealed cans
containing carbonated liquids into the
freezer, as they may burst.
the data badge).
ices direct from the freezer. The low
temperature may cause 'freezer
burns' on lips.
Freeze effervescent (fizzy) drinks.
Try to keep frozen food which has
thawed; it should be eaten within 24
hours or cooked and refrozen.
Remove items from the freezer with
wet hands.
Information about operating noises
To keep the selected temperature constant,
your appliance occasionally switches ON the
compressor.
The resulting noises are quite normal.
operating temperature, the noises
automatically reduce in volume.
The humming noise is emitted by the motor
(compressor). When the motor switches ON,
the noise may briefly increase in volume.
The bubbling, gurgling or whirring noise is
emitted by the refrigerant as it flows through
the pipes.
The clicking noise can always be heard when
the thermostat switches ON/OFF the motor.
- the automatic defrosting system is active.
- the appliance is cooling down or warming up
(material expansion).
If these noises are excessively loud, the
causes are probably not serious and are
usually very easy to eliminate.
- The appliance is not level - Use the heightadjustable feet or place packing under the
feet.
- The appliance is not free-standing - Please
move the appliance away from kitchen units
or other appliances.
- Drawers, baskets or shelves are loose or
stick - Please check the detachable
components and, if required, refit them.
other - Please move bottles and/or
receptacles away from each other.
13
Instruction for use
GB/IE
Troubleshooting
If the appliance does not operate when
switched on, check;
• That the plug is inserted properly in the
socket and that the power supply is on. (To
check the power supply to the socket, plug
in another appliance)
• Whether the fuse has blown/circuit breaker
has tripped/main distribution switch has
been turned off.
• That the temperature control has been set
correctly.
• That the new plug is wired correctly, if you
have changed the fitted, moulded plug.
If the appliance is still not operating at all after
above checks, contact the dealer from whom
you purchased the unit.
Please ensure that above checks have been
done, as a charge will be made if no fault is
found.
Technical data
Brand
Appliance type
Model T5576W
Total gross volume (l.) 240
Total usable volume (l.) 207
Freezer usable volume (l.) 62
Refrigerator useful volume 145
Freezing capacity (kg/24 h) 5
Energy class (1)
Power consumption (kWh/year) (2) 285
Temperature Rise Time (power cut) (h) 18
Noise [dB(A) re 1 pW] 41
(1) Energy class : A . . . G (A = economical . . . G = less economical)
(2) The real power consumption depends on using conditions and appliance location.
Ecological refrigerating agent R600a
14
FRIDGE FREEZER
LEC
A
YELLOW to EARTH (E)
Instruction for use
GB/IE
Changing the plug
Your fridge freezer is fitted with a fused
three pin plug which will be suitable for use
in all residences fitted with sockets to
current specifications.
The fridge freezer runs on an electricity
supply of 220-240 V 50Hz and must be
earthed. If the plug is removed it should not
be re-used, but thrown away immediately. A
cut off plug can be dangerous if plugged
into a socket.
If the plug supplied becomes damaged it
must be replaced with a new one and the
flexible mains lead connected as shown.
Note: Only 13 amp fuses approved to
BS 1362 A.S.T.A. should be used. After
replacing or changing a fuse, the fuse cover
in the plug must be replaced.
Connect BLUE to Connect GREEN &
NEUTRAL(N)
Connect BROWN
to LIVE (L)
make sure the cable
is held by the clamp
Do not push excess mains lead into the
compressor (motor) compartment as this
may cause an electrical hazard.
15
Please record your model number and serial number in the space below.
Having these numbers to hand will help us to help you, quickly and more
efficiently.
When contacting us, please use the Customer Care number on the back
cover of this handbook
Date of purchase
Mod el N u mber
Serial Number
Service Record
Installers stamp / Printed name
Date of installation
Place of purchase:
Date
Part(s) replaced
Engineers Stamp/
Printed Name
Lec Refrigeration
Stoney Lane, Prescot, Merseyside, L35 2XW
Customer Care Centre: 0870 458 4386
www.lec.co.uk
Lec Refrigeration, a division of Glen Dimplex Home Appliances
08 26320 00 © 03.2006
4577671600
07.07.06
Loading...
