U5017W/S/B
Contents
Safety Warnings ............................................................................................................................................. 4
Unpacking ...................................................................................................................................................... 6
Installation ..................................................................................................................................................... 7
Location............................................................................................................................................................................................7
Levelling the Unit..........................................................................................................................................................................7
Installing the Spacers ..................................................................................................................................................................7
Free Space Requirements ..........................................................................................................................................................7
Reversing the Door Swing ......................................................................................................................................................... 8
Cleaning Before Use ...................................................................................................................................................................11
Before Using Your Unit ..............................................................................................................................................................11
Product Overview ........................................................................................................................................ 12
Operation ..................................................................................................................................................... 13
Switching On Your Unit ............................................................................................................................................................13
Adjusting the Temperature .....................................................................................................................................................13
Fast Freezing .................................................................................................................................................................................13
Noises Inside the Unit ..............................................................................................................................................................13
Preparations for Freezing .........................................................................................................................................................14
Defrosting Frozen Food ............................................................................................................................................................14
Cleaning ....................................................................................................................................................... 15
Defrosting ......................................................................................................................................................................................15
Cleaning the Interior and the Exterior of the Unit ..........................................................................................................15
Maintenance ................................................................................................................................................ 16
Care When Handling / Moving the Unit .............................................................................................................................16
Servicing ........................................................................................................................................................................................16
..............................................................................................................................16
Condensation ...............................................................................................................................................................................16
Disposal ........................................................................................................................................................ 16
...............................................................................................................................................
4
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them for
future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to
include this manual.
• Ensure that the plug is easily accessible to enable disconnection from
the mains supply.
• If the mains cable is damaged, it must be replaced by the manufacturer,
• Choose a location for your unit away from heat sources such as radiators
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not play with the
unit.
•
keep the key out of reach and not in the vicinity of the unit.
• • Do not store explosive substances such as aerosol cans with a
Please do not place loose items on top of the unit, as these can drop and
cause a reduction in air ow to the compressor.
• This appliance is intended to be used in households but is not intended
to be used in applications such as;
;stnemnorivne gnikrow rehto dna seco ,spohs ni saera nehctik atSFarm houses and by clients in hotels, motels and other residential type
environments;
-
;stnemnorivne epyt tsafkaerb dna deB -
.snoitacilppa liater-non ralimis dna gniretaC -
5
• Do not store bottles or glass containers in the freezer compartment.
bottle and damage your freezer compartment. (If applicable)
WARNING
• Keep ventilation openings in the unit enclosure or in the built-in
structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very
environmental-friendly gas but is also combustible. Take care when
transporting or moving the unit to ensure that the refrigeration
or ignition sources and ventilate the room in which the unit is
placed for a few minutes.)
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH
INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
6
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
Thank you for purchasing your new LEC Undercounter
Freezer.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
The Main Unit
Large Freezer DrawerSmall Freezer Drawers x 2
Ice Tray
Instruction Manual
Instruction
Manual
Turning Thermostat
piece
The following items are included: (All images in this instruction manual are for indication only;
please refer to your individual unit for details.)
Scraper
7
INSTALLATION
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and
the room is well ventilated with an average room temperature of between 16°C and 38°C.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct
sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly. This unit is not designed for use in a garage
or an outbuilding. Do not drape the unit with any covering.
Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
Free Space Requirements
When installing the unit, ensure that 25 mm
of free space is left at both sides, 50 mm at
the rear of the unit and 25 mm at the top
of the unit. The door can be opened to the
right or the left, depending on which best
suits the location.
The unit should be installed so that the
door can open to 160 degrees as shown
in the diagram.
Max. 160°
Y mm
X mm
Installation
8
INSTALLATION

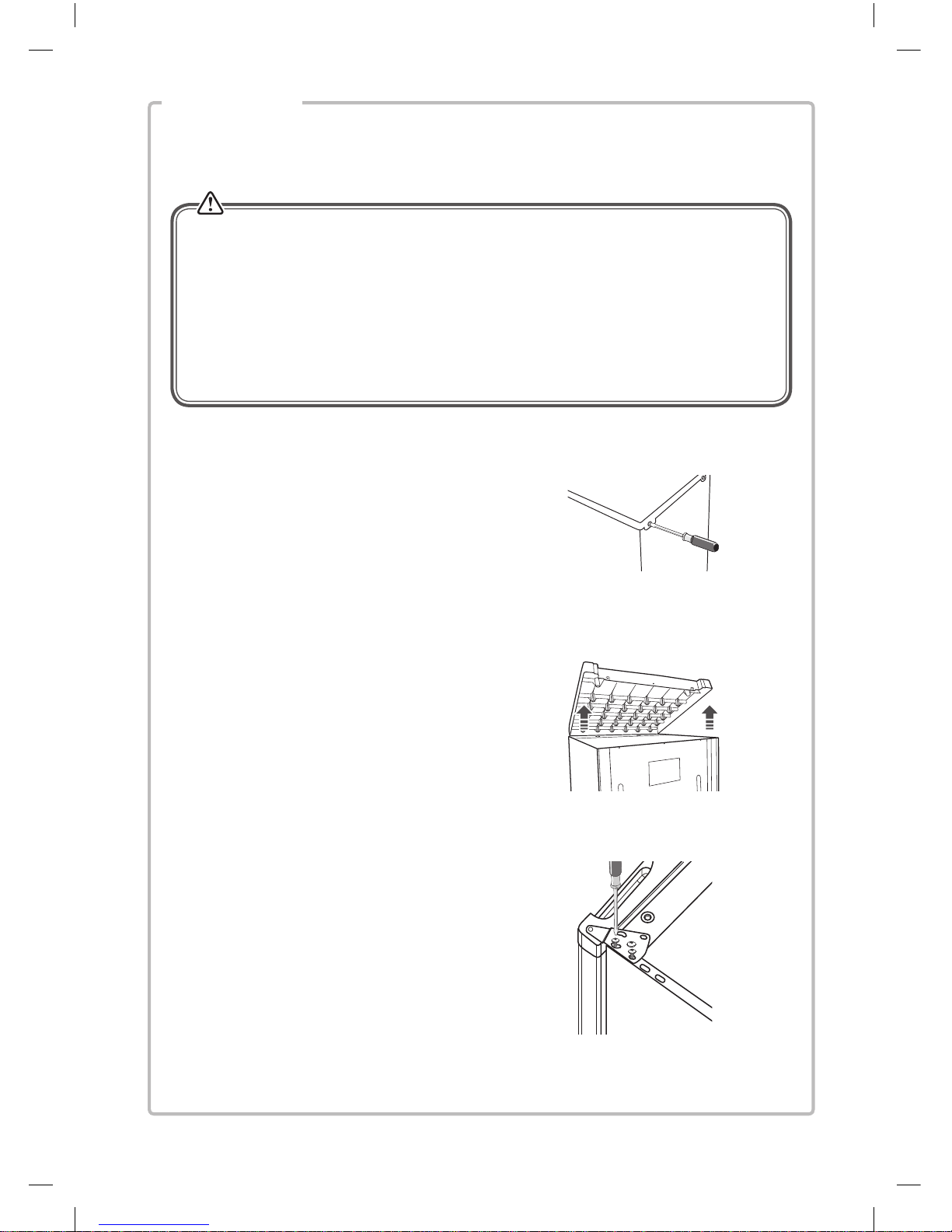

Reversing the Door Swing
Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a qualified
technician. You should only try to reverse the door yourself if you believe that you are
qualified to do so.
1. Remove the 2 screws on the back.
2. Lift the top cover away from the fridge.
3. Remove the three screws, then remove
the upper hinge that hold the door
in place. Lift the door and place it on
a padded surface to prevent it from
scratching.
9
INSTALLATION
4. Swap the bottom bush and bottom
bush cap of the door. The bottom
bush key must be in the correct
position to allow it to be inserted
correctly.
5. Remove the lower screws, hinge bracket
and adjustable feet from the unit bottom.
unscrew unscrew
6. Remove the screw-type adjustable feet
from the other side of the unit bottom and
transfer it to the corresponding position
on the opposite side of the unit bottom.
screw
screw
7. Reattach the two lower screws, hinge
bracket and adjustable feet to the
opposite side of the unit bottom. Loosely
secure.
10
INSTALLATION
8. Carefully set the upper door back into
place. Ensure the fridge door is aligned
horizontally and vertically so that the
seals are closed on all sides before finally
tightening the top hinge.
Insert the door limiter hinge bracket and
screw it to the top of the unit.
9. Use a spanner to tighten it if necessary.
10. Put the top cover back and fix it in place
with the screws.
11. With the door closed, check that the
door is aligned horizontally and vertically
and that the seals are closed on all sides
before finally tightening the bottom
hinge. Re-adjust the levelling feet as
needed.
11
INSTALLATION
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers
and salad bin. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
Before Using Your Unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to reach the correct temperature. Your unit should not
be overfilled.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Allow the unit to stand for at least two hours after significant movement.
12
Product Overview
Ice Tray
Freezer
Drawers
Thermostat Control Dial
Levelling Feet
Scraper
13
Operation
Switching On Your Unit
1. Connect the mains cable to the mains socket. The internal temperature of your unit is
controlled by a thermostat. There are four settings, of which position 4 is the coldest.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the
number, the lower the temperature. Position 2 is the recommended setting when operating
at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a
particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before
filling it with food.

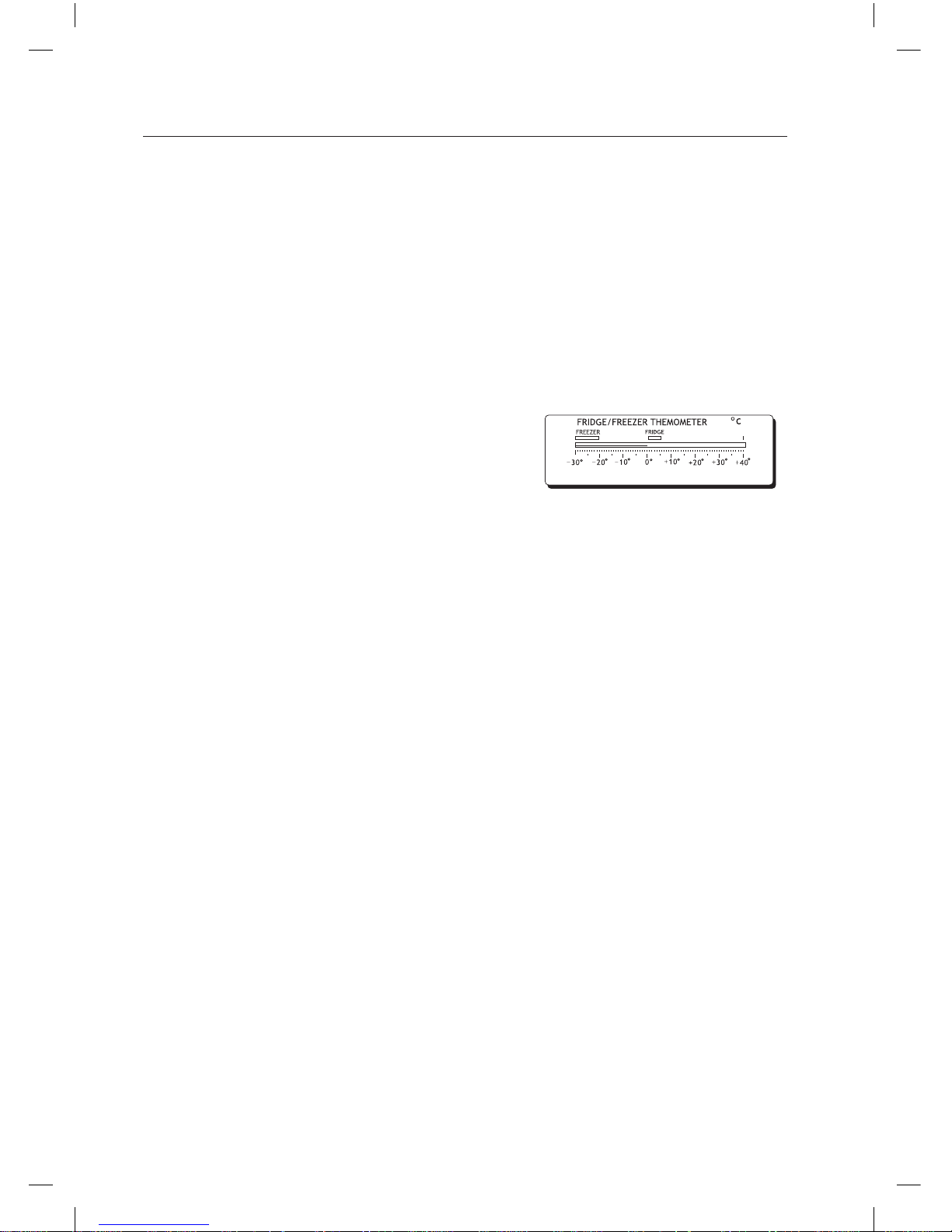

5. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature,
you will need a special fridge/freezer thermometer.
These are available from most supermarkets and
hardware shops.
Place the thermometer in the centre of the unit,
where it can be read easily. Leave overnight, the
temperature in the unit should be between -18°C or
lower.
Adjusting the Temperature
The internal temperature of the unit is controlled by a thermostat. 4 position is the coldest
setting and it is used for fast freezing. The recommended position is 2, but it should be adjusted
according to the environment.
Fast Freezing
Fresh food should be frozen as quickly as possible. Setting 4 makes your unit operate at its
coldest temperatures (approximately -28°C ) continuously. It helps to quickly freeze and retain
more of the goodness of your food. Freezing will be completed after 24 hours. After freezing
your food turn the thermostat control dial back to 2 (-18°C). Never freeze large quantities of
fresh food at one time.
Noises Inside the Unit
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
14
Preparations for Freezing
• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes
faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don’t freeze food in metal containers if you may want to microwave it straight from the
freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil
(heavy duty grade only). If in doubt, double wrap your food. Don’t use aluminium foil for
acidic foods, e.g. citrus fruits. Don’t use thin cling film, glass, or used food c
ontainers without
cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump
which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.

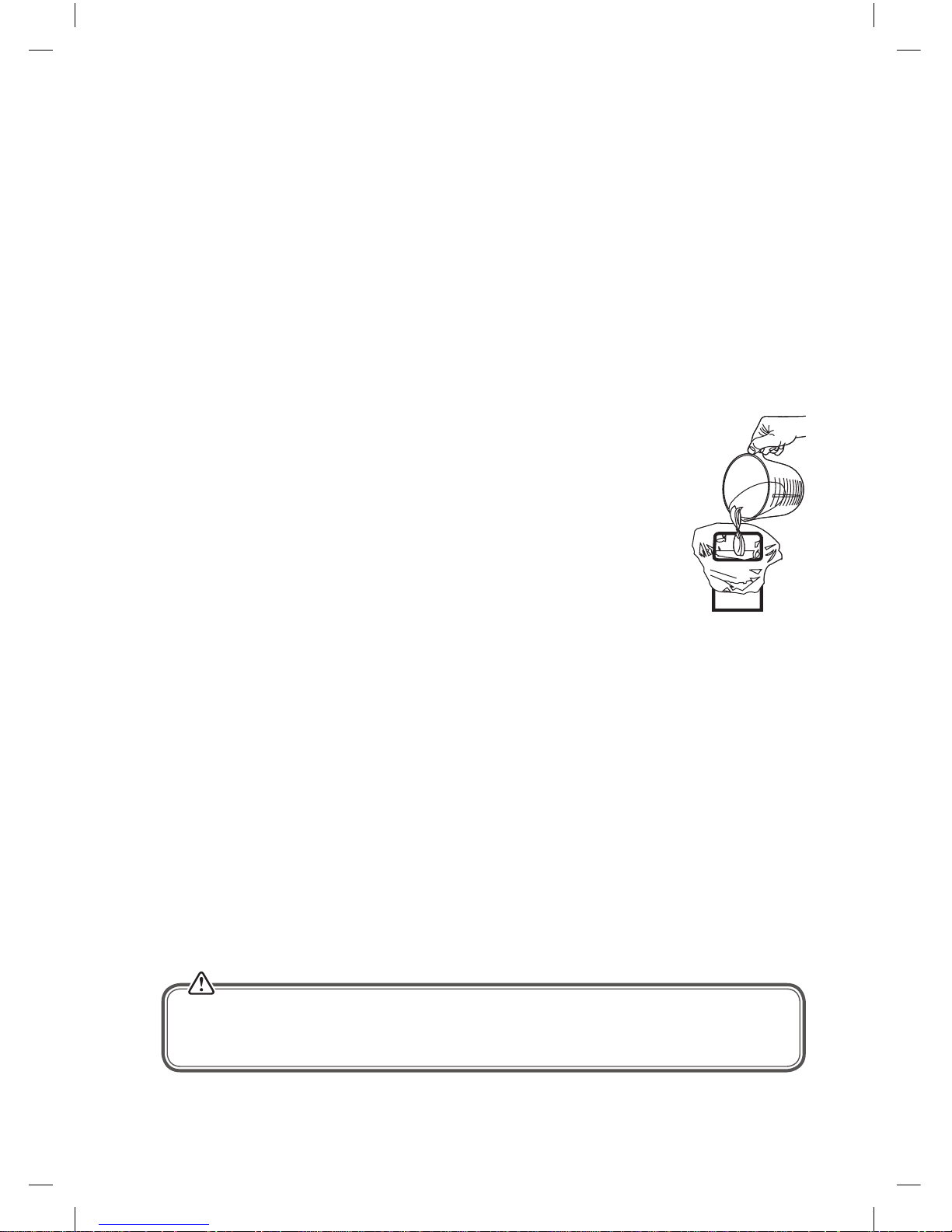

• You can use the space in the freezer most efficiently if you freeze
liquids (or solids with liquids, e.g. stew) in square blocks. This is known
as “Preforming”. Pour the liquid into a polythene bag which is inside a
square sided container. Freeze it, and then remove it from the container
and seal the bag.
• Label your frozen foods as they will look the same when in frozen state.
Use special freezer tapes, labels and pens with different colours. This
allows you to easily organise and to effectively use the
freezer. Write the
contents and date; otherwise the frozen food might exceed the storage
time and this could cause food poisoning. Please refer to your food
packaging for the recommended storage time.
You may also add the weight and cooking notes, e.g. “defrost first”, “cook from frozen” and keep
a separate log of what is in each drawer. This will save opening the door and searching around
unnecessarily.
Defrosting Frozen Food
1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room
temperature. Don’t forget that defrosting in a warm area encourages the growth of bacteria
and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat.
These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use
these if you intend to cook the food immediately afterwards.
Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful
bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This
prevents drying or freezer-burn and a build up of frost on any remaining food.
15
Cleaning
Defrosting
Frost might build up in the unit after the it has been used for a period of time. Scrape away the
frost using a plastic scraper (not included).
We recommend that defrosting should be carried out when the frost layer builds up to 10mm
(~0.39”). Choose a time when the stock of frozen food is low, follow these procedures:
1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the
frozen food should be put into another freezer. If this is not possible, wrap the food in several
sheets of newspaper or large towels and then a thick blanket to keep it cool.
2. Place a shallow bowl or pan below the unit. Scrape away the frost
using the plastic scraper. Defrosting the remaining frost can be
speeded up by placing a bowl of hot water inside the unit and
closing the door. As the solid frost loosens, scrape it away with the
plastic scraper and remove.
3. When defrosting is complete, clean your unit’s interior and exterior.
Cleaning the Interior and the Exterior of the Unit
• Remove all the drawers before cleaning.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with
warm water using a ‘wrung-out’ sponge or cloth. Wipe completely dry before replacing the
drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish getting on the magnetic door seal or inside
the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical
appliances to aid defrosting.
16
Maintenance
Care When Handling / Moving the Unit
Hold the unit around its sides or base when moving it.
Servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried
out by inexperienced persons may cause injury or serious malfunction. Contact a qualified
technician.
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty
all food and clean the unit, leaving the door ajar to prevent unpleasant smells.
Condensation
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
Disposal
Old units still have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in
your unit and insulation materials require special disposal procedures. Ensure that none of the
pipes on the back of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from
the new one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
Product fiche concerning the "COMMISSION DELEGATED REGULATION
(EU) No 1060/2010"
Trade mark: LEC
Moder Identifier: U5017W/S/B
Category of the household refrigerating appliance model: Freezer
Energy efficiency class: A+
Energy consumption 168 kWh/annum, based on standard test results for 24 hours. Actual energy
consumption will depend on how the appliance is used and where it is located.
Storage volume cooling compartment (l) 0
Storage volume freezing compartment (l) 68
Frost free: /
Temperature rise time: 15h
Freezing capacity: 4kg/24h
Climate class: N-ST. This appliance is intended to be used at an ambient temperature between 16°C
and 38°C.
Airborne acoustical noise emissions: 39 dB(A) re 1pW
Free-standing
0344 8153737
Loading...
