MILITARY STYLE
COMBAT/TRENCH shotgun
SOFT-M490L
OWNER’S MANUAL
FEATURES
» Multi-burst Super Special Combat/Trench Spring Operation Shotgun
» Fully Loaded with 4-position Twistable Telescopic Stock, Low Prole Tactical Rail,
Front/Rear Sights and Pistol Grip
» High Quality Polymer Construction with Matte Black Non-glare Finish
» Muscle Spring Action with Most Dominant Force
» Fastest Type of Aperture Sight- Windage/Elevation Adjustable Ghost Ring Sight for
Quick Aiming under Most Demanding CQB/Combat Applications
» Pistol Grip with Extra Storage of Spare Shot Shell Cartridge
» Pump and Fire Full Power Combat Loads to Carry out Critical Missions or Airsoft Skirmish
» Triple the Firing Fun - 3 BBs Simultaneously with Great Power and Pin Point Accuracy
» Authentic Shot Shell Cartridge Holding up to 30 BBs for 10 Powerful Shots Per Shell
» Allows Single Triple Shot and Continuous Everblast Triple Shots
» Complete with Spare Shell, Speed Loader and Quality Sling
» Optional, Most Affordable 6-to-a-pack Red/Green/Blue Spare Shot Shells
INCLUDED ACCESSORIES
Shot Shells Deluxe Spring Operated
Speed Loader
Quality Sling
Page 2
02

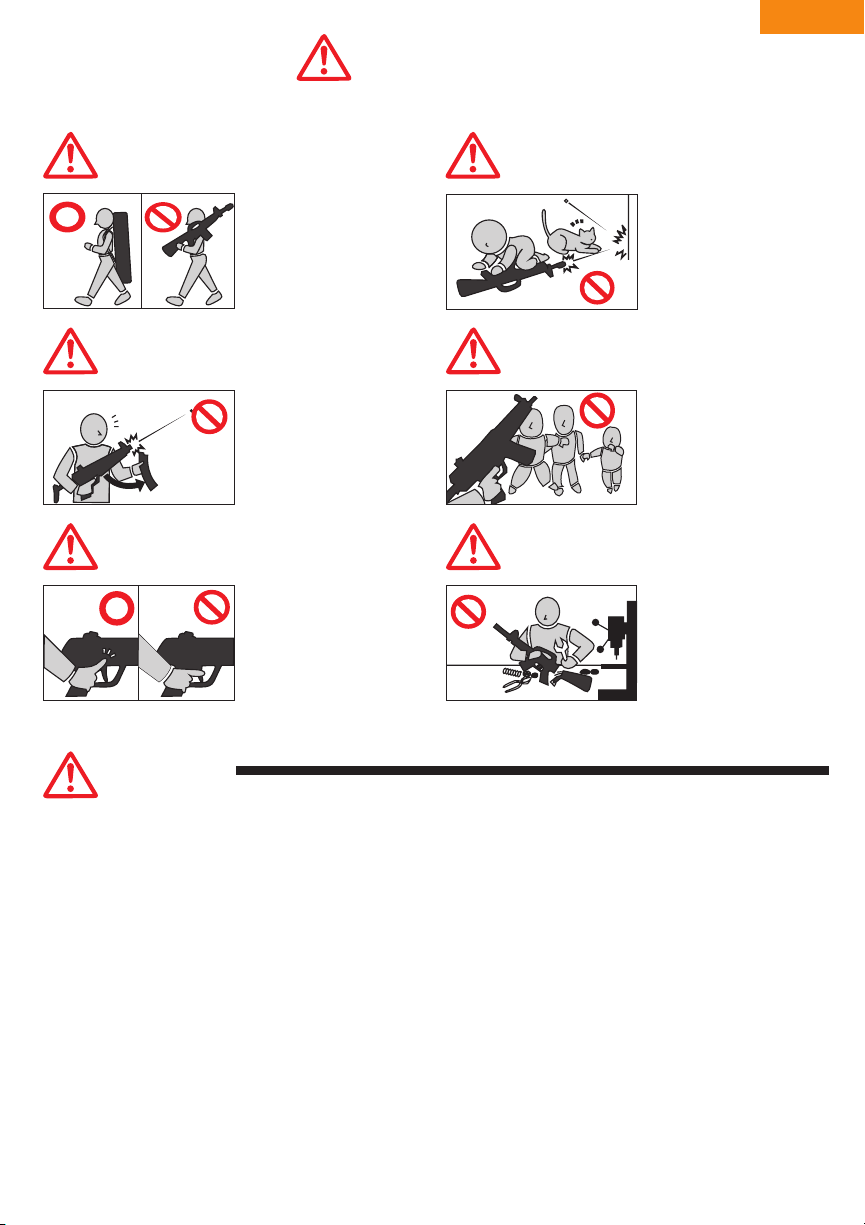

Product Warnings ATTENTION - PLEASE READ BEFORE USE
WARNING: NOT A TOY. FOR AGES 18 YEARS AND UP. MISUSE OR UNSAFE USE MAY CAUSE SE-
VERE INJURIES. EYE PROTECTION REQUIRED. The purchaser and the user should read and understand all instructions before using the gun and should OBEY all laws concerning the use and
ownership of an airsoft gun. Do NOT BRANDISH OR DISPLAY THIS PRODUCT IN PUBLIC - it may
confuse people and may be a crime. Police and others may think it is a rearm. Do not change the
coloration and markings to make it look more like a rearm. This is dangerous and may be a crime.
Please pay attention: carelessness while shooting could cause injury.
MAKE SURE TO WEAR PROTECTIVE
GLASSES TO PROTECT YOUR EYES.
Make sure to wear protective
glasses while shooting. Also
be careful of BBs ricocheting off of hard objects. (Pay
attention also to third party
bystanders.)
THERE MAY BE SERIOUS
CONCEQUENCES FROM
MISCHEIVOUS SHOOTING.
Mischeivous shooting may
damage public or personal
property or injure a person
or animal, causing serious
concequences. Always treat
airsoft sport seriously and
have fun responsibly.
NEVER LOOK INTO THE
MUZZLE AT ANY TIME.
Looking into the muzzle
is extremely dangerous,
regardless of BB loading
condition. If a BB hits your
eye, you may lose your sight.
DON’T AIM YOUR AIRSOFT GUN AT
PEOPLE OR ANIMALS.
Never aim or shoot a person
or animal as the target.
NEVER PULL THE TRIGGER WITH THE
SAFETY BUTTON SET TO SAFE.
Pulling the trigger with the
safety button being set to
SAFE may damage the gun.
AVOID PULLING THE
TRIGGER CARELESSLY.
Shooting carelessly is
extremely dangerous. Never
put your nger on the trigger
unless you are ready to
shoot at a target.
ALWAYS DIRECT THE MUZZLE
TOWARDS A SAFE DIRECTION.
NEVER SHOOT WHERE YOU MAY
CROSS PATHS WITH PEOPLE
OR TRANSPORTATION.
Never direct the muzzle
towards a person, animal
or other inappropriate
directions.
The operation procedure varies according to the model. DO NOT operate the airsoft gun without fully
understanding its features. Manufacturer and supplier are not responsible for any accidents, injuries or
repair costs arising from wrong operation/handling or from modications and disassembly of the airsoft gun.
Select a safe place for shooting, avoiding places where
people and cars are nearby.
Page 3
Product Warnings
03
ATTENTION - PLEASE READ BEFORE USE.
PLEASE PUT IN A BAG OR BOX
WHILE TRANSPORTING YOUR
AIRSOFT GUN.
While carrying the airsoft
gun, always set the Safety
Button to SAFE when not in
use. Always put it in a bag
or case.
BBS MAY BE DISCHARGED EVEN
IF THE MAGAZINE IS REMOVED.
There may still be BBs left in the
airsoft gun even though the shell
cartridge has been removed.
Pulling the trigger carelessly is
extremely dangerous. After removing the shell cartridge, direct the
muzzle towards a safe direction
and pull the trigger to conrm that
no BBs remain in the airsoft gun.
DO NOT PULL THE TRIGGER
UNLESS YOU EXPECT TO SHOOT.
Do not put your ngers on the
trigger unless you are shooting at a target. Keeping your
nger on the trigger may
cause sudden discharge,
which is dangerous.
KEEP OUT OF REACH FROM
CHILDREN.
Always remove any remaining BBs and the battery
before storage. Store the
airsoft gun in a case or bag
out the reach of children to
avoid accidents.
DO NOT DISPLAY IN PUBLIC.
POLICE AND OTHERS MAY THINK
IT IS A REAL FIREARM!
Do not brandish in public;
do not alter the coloration
and warnings - such an action is dangerous and
may be a crime.
DO NOT DISASSEMBLE
THE GUN BODY.
Disassembly or modication
of the airsoft gun could
easily cause trouble, accident and adversely affect
product performance.
ATTENTION
NEVER DISASSEMBLE OR MODIFY THE AIRSOFT GUN.
While using this product, please ensure the safety of the surrounding area where BBs can reach. Ensure
safety of property and people, including spectators.
The muzzle should not be directed at any hard surface, such as glass, mirrors, furniture, cars, etc., that might
cause BBs to break or ricochet.
Do not put your ngers into any gap of the airsoft gun body.
Make sure the airsoft gun is stored in a secure area where it won’t easily fall, and is out of the reach of children.
Always treat the airsoft gun with the same respect and safety precaution as you would with a rearm.
Use .2g (6mm), precision ground BBs. Low quality BB pellets may clog and damage the rie. Do not re-use
BBs. Do not insert anything other than specied BBs into the magazine. Use any other ammunition may cause
personal injury or damage to the airsoft gun.
Page 4
04

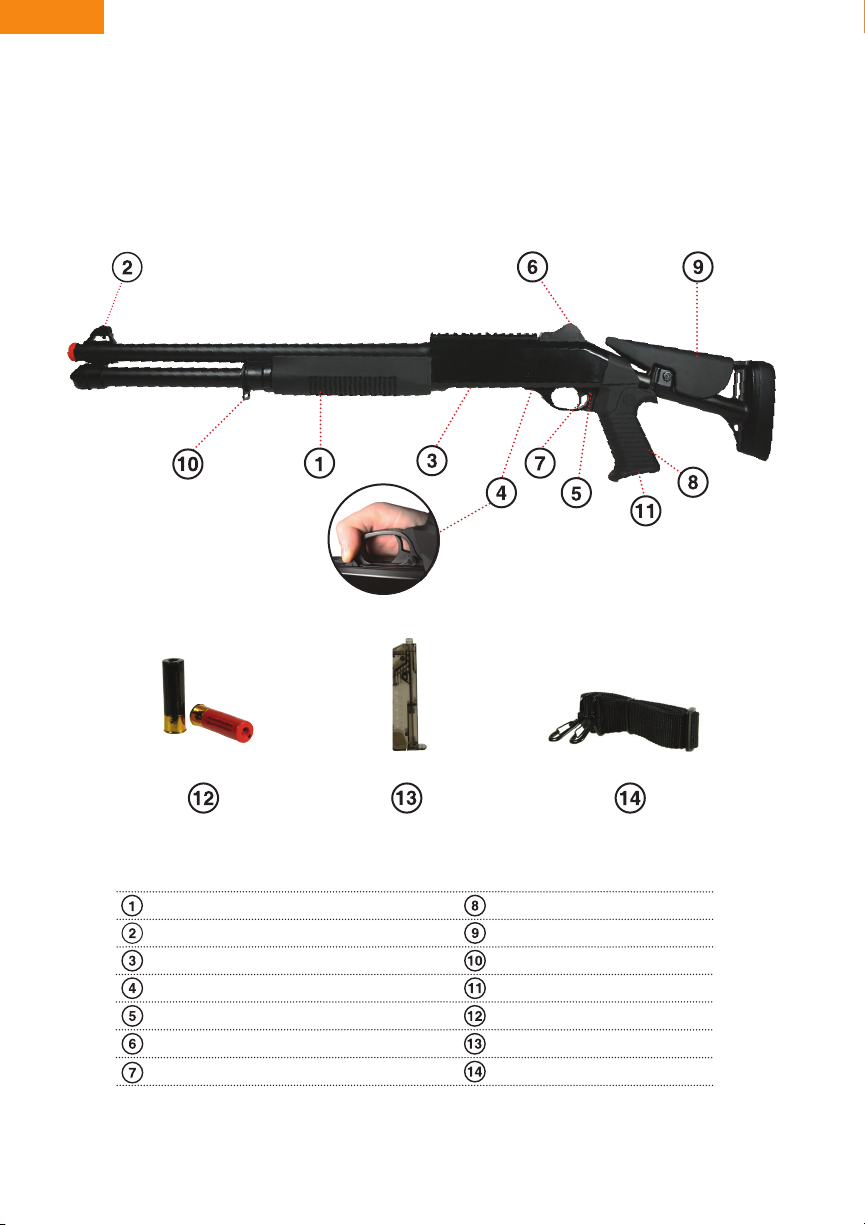

COMPONENT CHART
UTG SPORT Military Style Multi-Burst
M490 Combat/Trench Shotgun
Model: SOFT-M490L
Component Description
No. No.
Pump Grip
Front Sight
Shell Cartridge Compartment
Shell Cartridge Compartment Lever
Safety Button
Rear Sight
Trigger
Component Description
Pistol Grip
Twistable Telescopic Stock
Sling Hook
Spare Magazine Compartment
Magazine Shells
Pellet Speed Loader
Gun Sling
Page 5

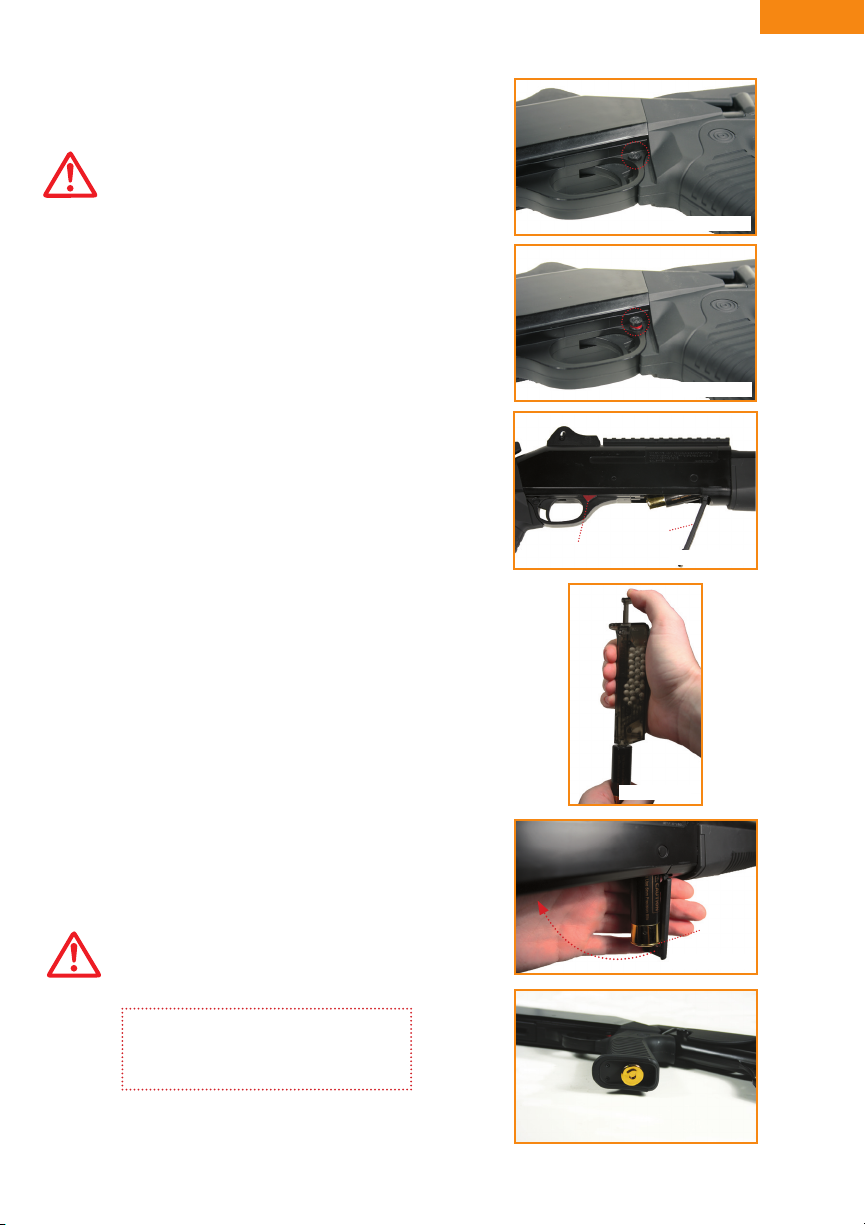

TO SET THE FIRE/SAFETY
BUTTON POSITION:
Warning! Before you follow the
assembly instruction, make sure
to set the Fire/Safety Button to
the “SAFE” position.
Place the shotgun at on a table in front of you
•
with the barrel pointing to the left and the pistol
grip bottom toward you.
The Safety/Fire Button is on the “SAFE” position,
•
if the Button is “Down” as in Fig. 1.
The Safety/Fire Button is on “FIRE” position, if
•
the Button is “Up” as in Fig. 2.
To change the Safety/Fire position, press the
•
button from one side to the opposite side.
05
Fig. 1 - Safe
Fig. 2 - Fire
BB PELLETS LOADING:
•
Push Shell Cartridge Compartment Lever
backward as in Fig. 3 to open Compartment
Door and take out the Cartridge.
•
Load 6mm BBs into the Speed Loader.
Align Speed Loader to the Shell Cartridge
receiving end as in Fig. 4.
•
Push down on Speed Loader handle to
inject BBs. The Shell Cartridge can hold
up to 30 pellets.
•
Detach the Speed Loader from Shell Cartridge.
•
Place the Cartridge’s metal head on the Compartment Door’s Inner Step as in Fig. 5 and close the
door to load the Cartridge.
You can put a backup Magazine into the bottom
•
of the grip as in Fig. 6.
Warning! Always use Precision Ground
Premium 6mm BB Pellets for accuracy
and safety. Never recyle pellets.
Activating the trigger carelessly is extremely
dangerous. Never release the Safety Button
or put your nger on the trigger unless you
are ready to shoot at a target.
Cartridge Compartment Lever
Compartment
Speed
Loader
Door
Fig. 3 - Lever
Fig. 4 - BB’s
Fig. 5 - Shell
Inner
Step
Fig. 5 - Shell
Fig. 6 - Spare
Page 6
06

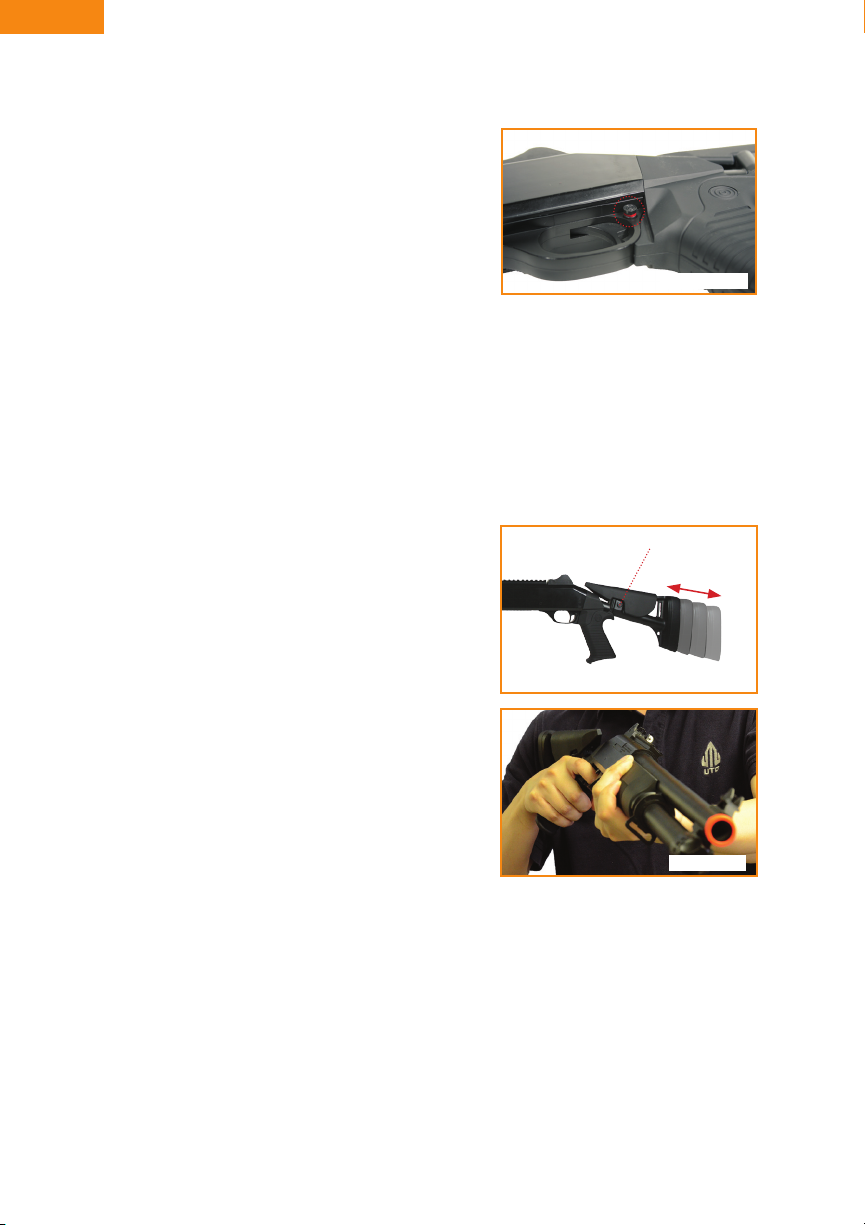

FIRING
1. Single Triple-Shot Shooting
Set Fire/Safety Button to the “FIRE” position
•
as in Fig. 7.
Briskly pull the Pump Grip backward toward your-
•
self until it clicks, and push it forward to complete
the cocking in one continuous movement.
Note: You must do this to re every shot.
Aim at your target and pull the trigger to re.
2. Everblast Triple-Shot Shooting
•
Set Fire/Safety Selector to the “FIRE” position.
Aim at your target.
•
Squeeze and hold the trigger and, concurrently,
pull the Pump Grip backward and push forward
to shoot.
•
By quickly moving the Pump Grip back and forth
while holding the trigger, you can pump TripleShots out continuously.
TWISTABLE
TELESCOPIC STOCK
Fig. 7 - Fire
Stock Adjustment Button
Press down and hold the Stock Adjustment but-
•
ton. Move the stock forward or backward to the
most comfortable position before releasing the
button. Fig. 8.
Resting the stock butt pad against your shoulder,
•
you can twist the gun to shoot at an angle if
needed. Fig. 9.
After shooting, collapse the butt stock to the
•
shortest position for easy carry and storage.
MAINTAINENCE
•
Keep the shotgun in clean condition.
•
Regularly clean the barrel with soft cleaning rod.
A few drops of silicone oil can be used to obtain
smooth shooting performance.
•
Always use Precision Ground Premium 6mm
BB Pellets for accuracy and safety. Never use
recycle BBs.
•
Do not store BB’s in the magazine when not
in use. Springs will weaken over time if BB’s
remain inside.
Fig. 8 - Stock
Fig. 9 - Twist
