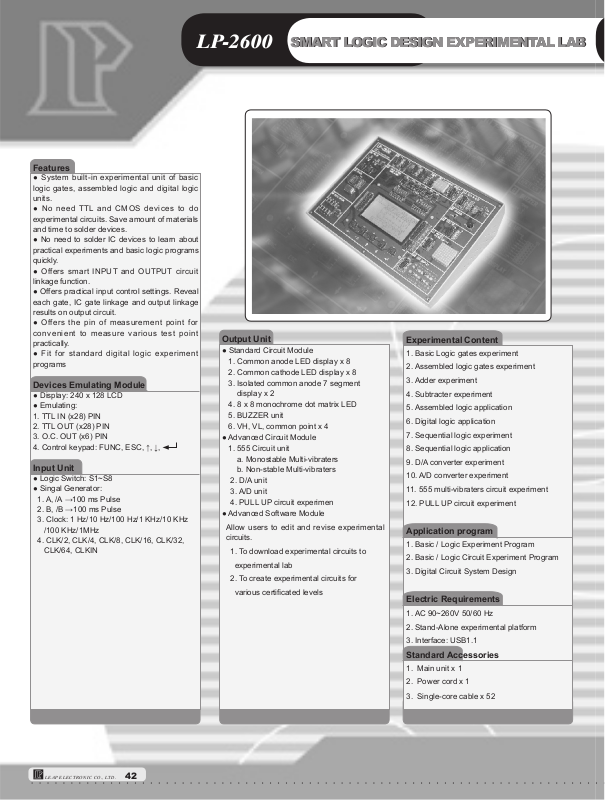

LP-2600

Features

● System built-in experimental unit of basic
logic gates, assembled logic and digital logic
units.

● No need TT L and CM OS dev ices to do
experimental circuits. Save amount of materials
and time to solder devices.

● No need to solder IC devices to learn about
practical experiments and basic logic programs
quickly.

● Off ers smart INPUT and OUTPUT circuit
linkage function.

● Offers practical input control settings. Reveal
each gate, IC gate linkage and output linkage
results on output circuit.

● Offer s the pin of measurement point for
co nveni ent to me asure va rious test poi nt
practically.

● Fit f or standard digital logic exp eriment
programs

Devices Emulating Module

● Display: 240 x 128 LCD

● Emulating:

1. TTL IN (x28) PIN

2. TTL OUT (x28) PIN

3. O.C. OUT (x6) PIN

4. Control keypad: FUNC, ESC, ↑, ↓,

Input Unit

● Logic Switch: S1~S8

● Singal Generator:

1. A, /A →100 ms Pulse

2. B, /B →100 ms Pulse

3. Clock: 1 Hz/10 Hz/100 Hz/1 KHz/10 KHz
/100 KHz/1MHz

4. CLK/2, CLK/4, CLK/8, CLK/16, CLK/32,
CLK/64, CLKIN

Output Unit

● Standard Circuit Module

1. Common anode LED display x 8

2. Common cathode LED display x 8

3. Isolated common anode 7 segment
display x 2

4. 8 x 8 monochrome dot matrix LED

5. BUZZER unit

6. VH, VL, common point x 4

● Advanced Circuit Module

1. 555 Circuit unit
a. Monostable Multi-vibraters
b. Non-stable Multi-vibraters

2. D/A unit

3. A/D unit

4. PULL UP circuit experimen

● Advanced Software Module

Allow users to edit and revise experimental
circuits.

1. To download experimental circuits to

experimental lab

2. To create experimental circuits for

various certicated levels

Experimental Content

1. Basic Logic gates experiment

2. Assembled logic gates experiment

3. Adder experiment

4. Subtracter experiment

5. Assembled logic application

6. Digital logic application

7. Sequential logic experiment

8. Sequential logic application

9. D/A converter experiment

10. A/D converter experiment

11. 555 multi-vibraters circuit experiment

12. PULL UP circuit experiment

Application program

1. Basic / Logic Experiment Program

2. Basic / Logic Circuit Experiment Program

3. Digital Circuit System Design

Electric Requirements

1. AC 90~260V 50/60 Hz

2. Stand-Alone experimental platform

3. Interface: USB1.1

Standard Accessories

1. Main unit x 1

2. Power cord x 1

3. Single-core cable x 52
