Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun
District Guangzhou China.
Tel：+86 020-66292177 Fax：+86 020-66292177

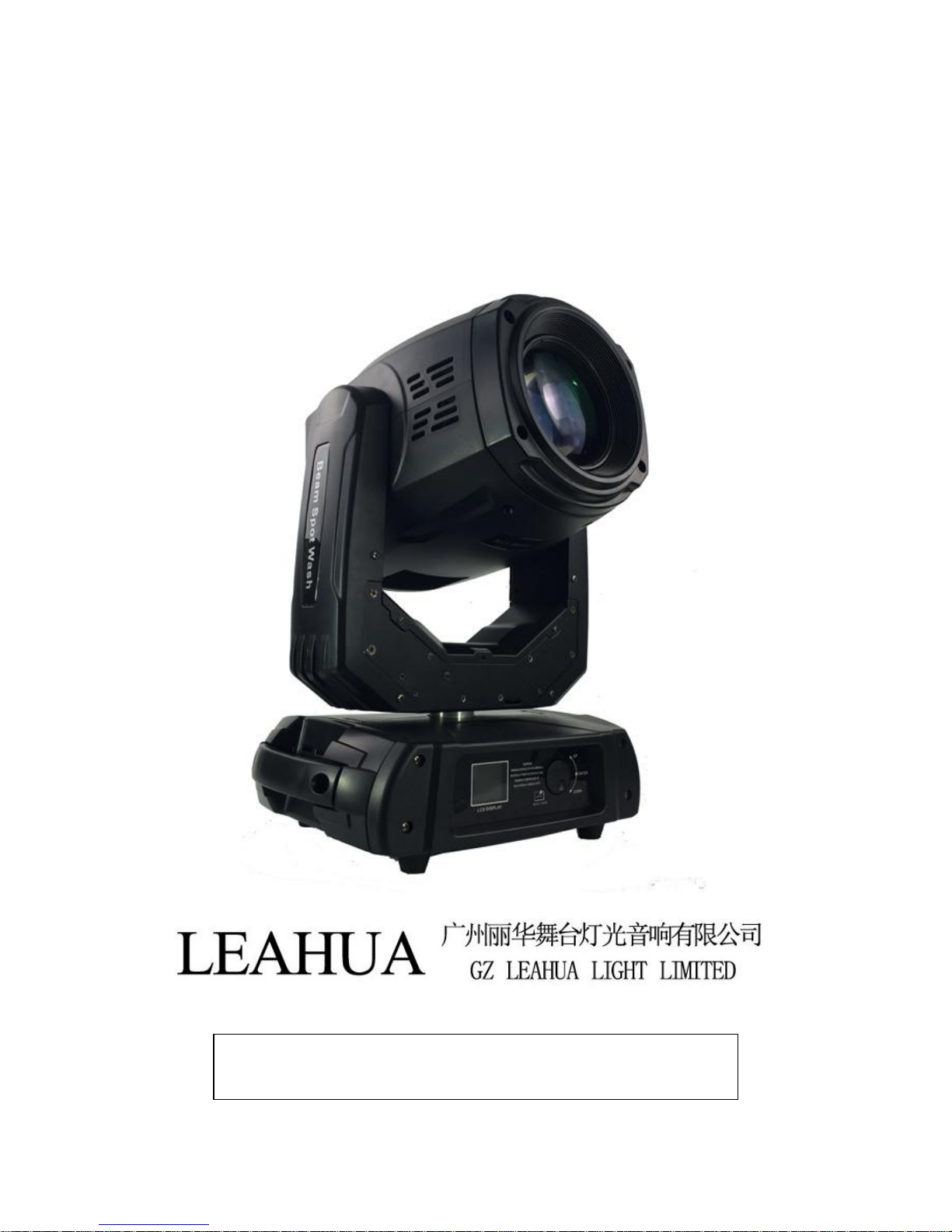

LH-A025 17R Beam Spot Wash moving
head light
User Manual
This manual contains important information.
Please read before operating fixture.
www.leahualight.com 1
1 SECURITY TIPS
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
non-professionals, not to disassemble the light arbitrarily and
lighting accessories inside.
rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ
(to be selected).
not beam irradiate the flammable materials, flammable materials
and the lamp should be maintained at least 1M over the distance.
lamps used in ambient temperature: -15 ℃ -40 ℃, the highest
temperature of the surface of the lamp: 60 ℃.
to keep away from the liquid substance and humid environment.
before using the lights must ensure the good grounding, can not
install charging and remove any parts.
the installation of lamps, must be fixed screw fasteners with
additional security cable and regular inspection.
lamps consecutive working hours is not recommended more than
10 hours.
should stop using the lights in time when happens unusual
conditions during the process
lamp parts of the rotation, external accessories and paste parts
should be regular inspected, such as the emergence of loose and
rock, should be reinforced in a timely manner to prevent the
accident.
lamps adopt strong winds to refrigerate, it is easy to accumulate the
dust, so you have to clean it weekly especially the cooling air
opening, otherwise the dust will plug leading to poor light
www.leahualight.com 2
2 TECHNOLOGY REFERENCE
Input: AC100v-240V 50/60HZ
Power Consumption:460w
Lamp source: YODN MSD 350w 17R
Lamp life:2000Hrs
Zoom angel:30-100(beam mode)50-290(Spot mode)
Electronic Focus:30-290
Color temperature:8000K
Control mode:DMX512/auto/master-slave
Channel:16ch
Net weight:15.8kg
Flight case size: 900*470*780mm(Double/CTN)
G.W.: 64kg
Specifiction：
Colors:1color wheel with 14 fixed colors+blank,with rainbow
effect
Rotating gobos:1 gobo wheel with 12 gobos+blank, indexable
and replaceable "SLOT&LOCK" glass gobos + open
Static gobos:1 gobo wheel with 17 gobos+blank
Prism:4 linear prism rotating+12 circular rotating prisms rotating
Dimmer:0-100% linear dimmer
Strobe:Independent strobe channel, 1-13times/s, speed
adjustable
Pan=5400 Tilt=2500movement
Pan/Tilt Resolution:16bit
LCD display
3pin DMX in/out
Power input:Power con
www.leahualight.com 3
3 Board Instruction
MENU:
1、After reset six functional menu.
A、DMX B、Setup C、Adjust D、RunTest E、Manual F、
Message
2、Strating up after 20s without operation or operation after 20
seconds automatically jump display address code
DMX
001-512
Increased clockwise and
anti-clockwise decreases, and press
confirmation immediately return to the
main menu
Setup
X Reverse
OFF/ON
Y Reverse
OFF/ON
Lamp on
OFF/ON
Language
CH/En
Backlight
001-255
Screen Ro
OFF/ON
Exit
Adjust
Gobo1
001-255
Color
001-255
Focus
001-255
Prism1
001-255
X
001-255
Y
001-255
Gobo2
001-255
Prism2
001-255
Exit
RunTest
AutoRun
OFF/ON
Soundrun
OFF/ON
SoftReset
OFF/ON
www.leahualight.com 4
Exit
Manual
ManualCtr
（01-24）（ 001-255）
Exit
Message
Lamp on
timer
Display lamp on time
Reset timer
After the input the correct password
lamp time reset
Set on timer
after iput correct password,set the
lamp on time*(1)
Set
Password
input old password set new password
Exit
*（1）:
Set lamp on time 00H
Unlimited use ON
When an unlimited use set to ON ,setting time is invalid, us
e the set lamp on time must be set to OFF
4 DMX CHANNEL SHEET
Channel
Function
DMX Value
Description
1
Pan
0-255
Pan movement by
540degrees
2
Pan fine
0-255
Fine control of pan
movement
3
Tilt
0-255
Tilt movement by
270degrees
4
Tilt fine
0-255
Fine control of tilt
movement
5
Pan/Tilt speed
0-255
Speed from max to min.
www.leahualight.com 5
6
Control
0-129
Reserved
130-139
Lamp On
230-239
Lamp off
240-255
Total reset
7
Color wheel
0-9
Open/white
10-20
Color 1
21-31
Color 2
32-42
Color 3
43-53
Color 4
54-64
Color 5
65-75
Color 6
76-86
Color 7
87-97
Color 8
98-108
Color 9
109-119
Color 10
120-130
Color 11
131-141
Color 12
142-152
Color 13
153-163
Color 14
164-199
Forwards rainbow effect
from fast to slow
200-255
Backwards rainbow effect
from slow to fast
8
Static gobo
wheel
0-3
Open/hole
4-9
Gobo 1
10-15
Gobo 2
16-21
Gobo 3
22-27
Gobo 4
28-33
Gobo 5
34-39
Gobo 6
40-45
Gobo 7
46-51
Gobo 8
www.leahualight.com 6
52-57
Gobo 9
58-63
Gobo 10
64-69
Gobo 11
70-75
Gobo 12
76-81
Gobo 13
82-87
Gobo 14
88-93
Gobo 15
94-99
Gobo 16
100-105
Gobo 17
106-111
Gobo 17 shaking gobo
from slow to fast
112-116
Gobo 16shaking gobo
from slow to fast
117-121
Gobo 15 shaking gobo
from slow to fast
122-126
Gobo 14 shaking gobo
from slow to fast
127-131
Gobo 13 shaking gobo
from slow to fast
132-136
Gobo 12 shaking gobo
from slow to fast
137-141
Gobo 11 shaking gobo
from slow to fast
142-146
Gobo 10 shaking gobo
from slow to fast
147-151
Gobo 9 shaking gobo
from slow to fast
152-156
Gobo 8 shaking gobo
from slow to fast
157-161
Gobo 7shaking gobo from
slow to fast
162-166
Gobo 6 shaking gobo
www.leahualight.com 7
from slow to fast
167-171
Gobo 5 shaking gobo
from slow to fast
172-176
Gobo 4 shaking gobo
from slow to fast
177-181
Gobo 3 shaking gobo
from slow to fast
182-186
Gobo 2 shaking gobo
from slow to fast
187-223
Forwards gobo wheel
rotation from fast to slow
224-255
Backwards gobo wheel
rotation from slow to fast
9
Rotating gobo
wheel
0-3
Open/hole
4 -12
Gobo 1
13-21
Gobo 2
22-30
Gobo 3
31-39
Gobo 4
40-48
Gobo 5
49-57
Gobo 6
58-66
Gobo 7
67-75
Gobo 8
76-84
Gobo 9
85-93
Gobo 10
94-102
Gobo 11
103-111
Gobo 12
112-120
Gobo 12 shaking gobo
from slow to fast
121-129
Gobo 11 shaking gobo
from slow to fast
130-138
Gobo 10 shaking gobo
from slow to fast
www.leahualight.com 8
139-147
Gobo 9 shaking gobo
from slow to fast
148-156
Gobo 8 shaking gobo
from slow to fast
157-165
Gobo 7shaking gobo from
slow to fast
166-174
Gobo 6 shaking gobo
from slow to fast
175-183
Gobo 5 shaking gobo
from slow to fast
184-192
Gobo 4 shaking gobo
from slow to fast
193-201
Gobo 3 shaking gobo
from slow to fast
202-210
Gobo 2 shaking gobo
from slow to fast
211-219
Gobo 1 shaking gobo
from slow to fast
220-234
Forwards gobo wheel
rotation from fast to slow
235-255
Backwards gobo wheel
rotation from slow to fast
10
Rot. gobo
0-127
Gobo indexing
128-177
Forwards gobo rotation
from fast to slow
128-203
No totation
204-255
Backwards gobo rotation
from slow to fast
11
Prism
0-19
Open position(hole)
20-127
4-facet linear prism
128-255
12-facet circular prism
12
Prism rotation
0-127
Prism indexing
www.leahualight.com 9
and indexing
128-177
Forwards prism rotation
from fast to slow
178-255
Backwards prism rotation
from slow to fast
13
Focus
0-255
Continuous adjustment
from far to near
14
Zoom
0-255
Zoom from max. to min
beam angle
15
Shutter/strobe
0-3
Shutter closed
4-103
Strobe-effect 1 from slow
to fast
104-107
Shutter open
108-207
Strobe-effect 2 from slow
to fast
208-211
Shutter open
212-251
Strobe-effect 3 from slow
to fast
252-255
Shutter open
16
Dimmer
intensity
0-255
Dimmer intensity from 0%
to 100%
5 DIFFICULTY RESOLUTION
The following is a list of problems and resolution, and other
malfunction preparing work should be professionally qualified staff to
deal with.
1. Bulb not working
a) Check whether approaching the service life of light bulbs, then
change it
b) Check whether bulbs circuitry leak, loss or connect poorly
www.leahualight.com 10
2. Beam appears bleak
a) The bulbs maybe approach the service life, then change it, or
the optical components are unclean.
b) Bulbs have accumulation of dust, so the bulbs and other parts
inside the lamp should be cleaned and maintained in regular
period.
3. Computer lamp work intermittently
a) Check whether the fan process naturally and become dirty
b) Check inner temperature-response control plug is off
c) Check whether the circuitry is good
4. The computer lamp not controlled by controller during lighting
a) Check numeral starting address and the connection of
communication control circuit
b) The corresponding channel button of controller is open or not
c) Check whether the fuse on power supply input jack is broken
off
6 AFTER SERVICE
1. Our company offer technical consultation to customers for ever.
2. If the machine is wrong and need repairmen, please truthfully fill in
the related content and feedback us the problems timely, as well as
we have to improve the product.
3. In addition to the lamp, also matching accessories are as follows：
accessories：Power line 1 piece Optional parts：(customers）
www.leahualight.com 11
Warranty Card
Name Model Production Purchase
Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the
warranty will not work (warranty period and terms, see the following)
warranty period：one year since purchase warranty terms：1、If fail when using the product
in normal state, you can made under the provisions of the warranty, show the warranty card
and purchase bills(copy), and enjoy free maintenance service in a specific service center or
the manufacturer.
2. The following will be the implementation of paid service:
(1)Without the effective warranty card
(2)There’s blank, alter and no point-of-sale name
(3)Fail caused by unresistance
(4)Fail caused by transportation or unloading
(5)Fail caused by not operate by manual
(6)Fail caused by disassemble without unauthorized
(7)Fail caused by using the unauthorized control system
Note:
Based on our company continue to improve the product, the statement
containing data may have changed, and will not notice the change any
more. Company retains its right to change specifications related when
product is improved. Thanks for your understanding.
End User
Company Name:
Add:
Sale Store
Link man:
Tel: Stamp
