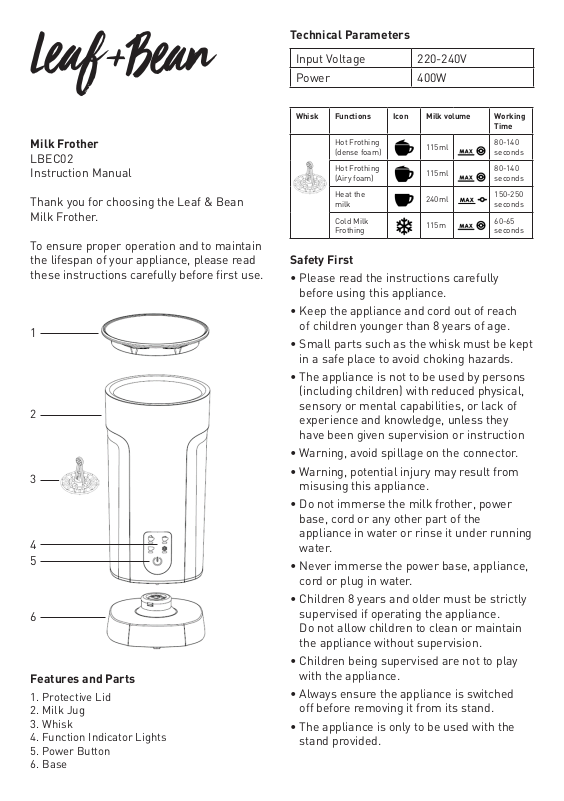

Leaf & Bean LBEC02 User manual

Technical Parameters

Input Voltage 220-240V
Power 400W

Milk Frother

LBEC02
Instruction Manual

Thank you for choosing the Leaf & Bean
Milk Frother.

To ensure proper operation and to maintain
the lifespan of your appliance, please read
these instructions carefully before first use.

1

2

3

4
5

6

Features and Parts

1. Protective Lid

2. Milk Jug

3. Whisk

4. Function Indicator Lights

5. Power Button

6. Base

Whisk Functions Icon Milk volume Working

Hot Frothing
(dense foam)

Hot Frothing
(Airy foam)

Heat the
milk

Cold Milk
Frothing

115ml

115ml

240ml

115m

Time

80-140
seconds

80-140
seconds

150-250
seconds

60-65
seconds

Safety First

• Please read the instructions carefully
before using this appliance.

• Keep the appliance and cord out of reach
of children younger than 8 years of age.

• Small parts such as the whisk must be kept
in a safe place to avoid choking hazards.

• The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instruction

• Warning, avoid spillage on the connector.

• Warning, potential injury may result from
misusing this appliance.

• Do not immerse the milk frother, power
base, cord or any other part of the
appliance in water or rinse it under running
water.

• Never immerse the power base, appliance,
cord or plug in water.

• Children 8 years and older must be strictly
supervised if operating the appliance.
Do not allow children to clean or maintain
the appliance without supervision.

• Children being supervised are not to play
with the appliance.

• Always ensure the appliance is switched
off before removing it from its stand.

• The appliance is only to be used with the
stand provided.

• The heating element surface is subject
to residual heat after use.

• Do not touch rotating parts
of the milk frother while in operation.

• Do not allow the main cable to hang loosely,
or touch/move the plug with wet hands.
Do not place the plug on a hot surface
or bring it in contact with oil.

• Unplug the milk frother when not in use.
Always keep the milk frother unplugged
when cleaning or replacing accessories.

• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similar qualified persons in order
to avoid a hazard.

• When the milk frother is in use, do not
touch the metal shell to avoid scalding.

• Do not operate the milk frother without
milk. Milk volume cannot exceed the
volume marked in the cup, otherwise
it will overflow.

• Do not insert fingers or any other object
into the gaps of the frother.

• This appliance is intended to be used in
household and similar applications such
as:

- Staff kitchen areas in shops, offices and

other working environments;

- Farm houses;

- By clients in hotels, motels and other

residential type environments;

- Bed and breakfast type environments

Before First Use

Carefully open the box and save all the
packaging materials inside. Keep the
packaging out of reach of children.
Make sure all listed accessories are
present and no damage has occurred prior
to opening.

Clean the cover, whisk and mixer with warm
water and a mild washing-up liquid.
Dry these components thoroughly.

Clean the base unit and milk jug with a moist
cloth only, and dry thoroughly.

Never fill the milk frother with other liquids.

Place the milk frother on a heat-resistant flat
surface, check the voltage corresponds to the
required parameters and plug the cord into
the socket.

Using Your Appliance

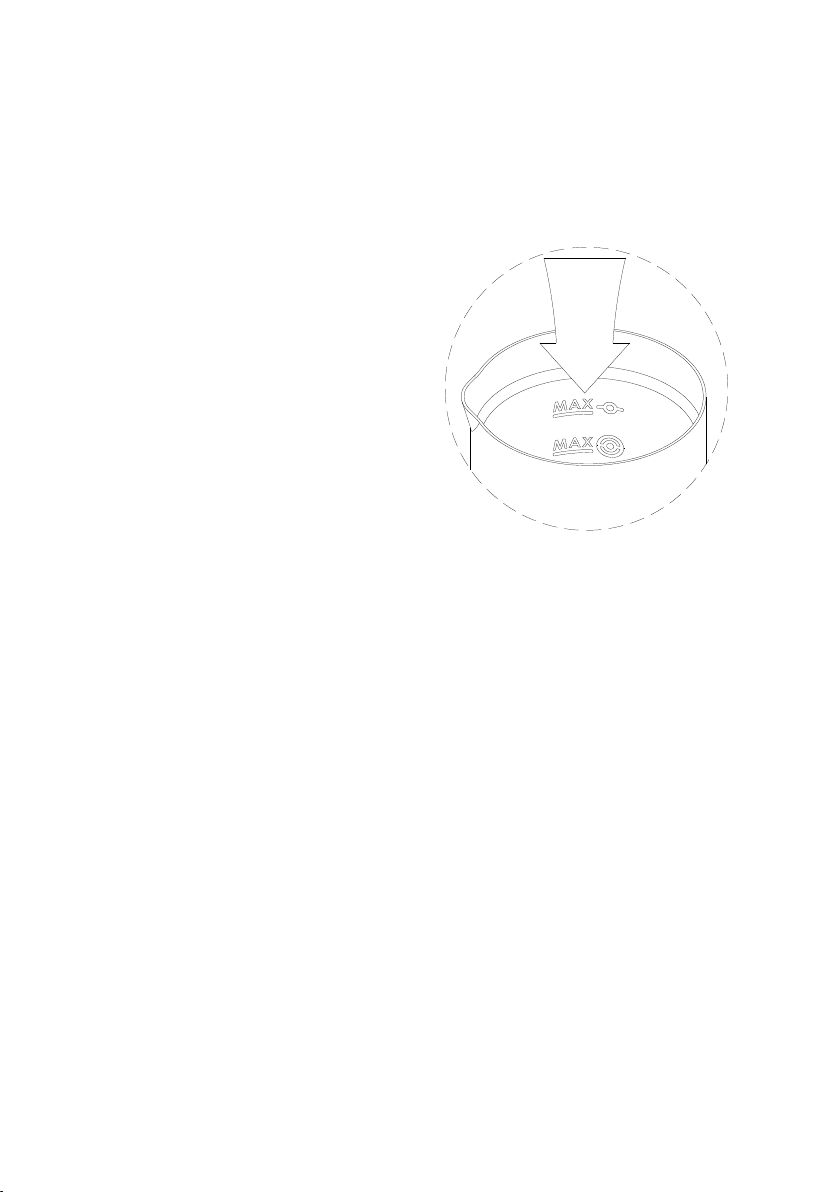

• Bottom Max line indicates maximum
amount of liquid for frothing function. This
is 115ml, this line should not be exceeded,
or the appliance will overflow when in use.

• Top Max line indicates the maximum
amount of liquid for warming function. This
is 240ml, this line should not be exceeded,
or the appliance will overflow when in use.

• After use - Unplug the milk frother and
allow it to cool for 2 minutes before using it
again, or cool it down by filling the jug with
cold water.

To Froth

• Open the lid and pour milk into the jug.
Make sure this 115ml or is between the Min
line and the bottom Max line. Firmly close
the lid.

• Press the power button to switch on the
milk frother. The white indicator light will
be on under the Hot Frothing (Dense Foam)
setting by default. There are four frothing
settings to choose from, each requiring
different volumes of milk and different run
times.

• To use the Hot Frothing (Dense Foam)
setting: Pour 115ml (bottom Max line) of
milk into the jug and press the button once.
Ensure the white light under Hot Frothing
(Dense Foam) icon is lit up. After 3 seconds,
the whisk will begin rotating, and the
milk will be heated and frothed in 80-140
seconds.

• To use the Hot Frothing (Airy Foam) setting:
Pour 115ml (bottom Max line) of milk into
the jug and press the button twice. Ensure
the white light under Hot Frothing (Airy
Foam) icon is lit up. After 3 seconds, the
whisk will begin rotating, and the milk will
be heated and frothed in 80-140 seconds.

• Once the milk is done frothing, the indicator
light will flash 5 times.

To Heat

• To use the Heating setting: Pour 240ml
(top Max line) of milk into the jug and press
the button three times. Ensure the white
light under Heating icon is lit up. After 3
seconds, the whisk will begin rotating, and
the milk will be heated in 2 ½ to 4 minutes.

• Once the milk is done heating, the indicator
light will flash 5 times.

To Cool

• To use the Cold Frothing setting: Pour
115ml (bottom Max line) of milk into the
jug and press the button four times. Ensure
the blue light under Cold Frothing icon is
lit up. After 3 seconds, the whisk will begin
rotating, and the milk will be frothed in
60-65 seconds.

• Once the milk is done frothing, the indicator
light will flash 5 times.

Tips

• For coffee or hot chocolate, prepare it while
the milk frother is working so you can add
hot and frothy milk to your beverage.

• Full fat milk usually produces the best
foam, however, try experimenting with
different milk types.

• The milk frother can work on cold milk,
but it cannot cool down milk further, as the
whisk produces its own heat when working.

• Milk can be heated up to 60-70°C before
being poured into the frother. The hotter the
milk, the stronger the taste of your coffee.

Cleaning and Maintenance

• Do NOT immerse the milk frother, power
base, cord, or any other part of the
appliance in water or rinse it under
running water.

• Wipe the outside regularly with a damp
cloth.

• To clean the whisk, remove it from the milk
frother by lifting it straight upwards and
use warm water to wash out residue.

• To clean the inside of the milk jug, remove
the whisk and pour some warm water and
a few drops of washing-up liquid and use
a soft sponge to remove any fat and residue
left behind by the milk. Pour the water
out and wipe clean with a soft cloth
or paper towel.

• For hygiene purposes, always make sure
there is no milk residue left behind in the
jug or whisk.

• Clean the lid and its silicone sealing ring
separately with warm water.

• Make sure all components are thoroughly
clean and dry.

• Do not use any abrasive detergents, steel
wool or other sharp objects to clean the
appliance. This could damage the coating.

Care

• If a defect renders the appliance unusable,
we recommend removing the plug from
the wall socket and cutting the cord
with scissors.

• If the appliance does not function after
it has been switched on, it is possible
that the fuse or circuit breaker has been
activated due to overload or a current leak.

• In case of a breakdown, never attempt to
repair the appliance yourself. If the safety
device is blown, it cannot be repaired,
and the appliance must be replaced.
Do not attempt to operate the milk frother
when damaged (including damage to the
power cord).

• Only original parts should ever be used.
The milk frother can only be used with
the base provided.

• Do not use damaged cords or plugs to
operate the milk frother. If the power
cord is damaged, it must be replaced by
the manufacturer, service agent or similar
professionals.

• This product cannot be discarded with
normal household waste. Please check
your respective council guidelines on hard
rubbish disposal or take the product to an
approved recycling facility.

Recipes

Frothed Milk

Cappuccino
1/3 espresso
Add 2/3 frothed milk, top with cocoa powder.

Latte Macchiato
Pour frothed milk in a tall glass
Add espresso carefully along rim of the glass.

Café Latte
1/3 espresso shot
Add 2/3 heated frothed milk and stir.

Heated Milk

Flat White
1 part espresso shot
Add 2 parts heated milk and stir.

Hot Chocolate
Pour heated milk in to a large mug
Add chocolate powder and stir to mix.

Instant Milky Coffee
Place instant coffee granules in a cup
Add hot milk and stir to mix.

Cold Milk

Frothy Coffee Milkshake
1 part espresso - allow to cool
Add 2 parts frothed cold milk.

Our 12-Month Guarantee

Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or
refund for a major failure and compensation
for any other reasonably foreseeable loss
or damage. You are also entitled to have
the goods repaired if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.

We stand by this product. Therefore, we offer
a 12-month guarantee on this appliance.
The benefits of this guarantee are in addition
to any rights and remedies imposed by
Australian Consumer Law. Our guarantee
excludes normal wear and tear and instances
where care and use instructions have not
been followed.

What IsAlbi will do: During this guarantee
period, IsAlbi will repair, replace or refund
any defective product. If identical product
is not available for replacement, a similar
product may be offered. IsAlbi asks you
to cover the cost of postage/transit if the
product needs to be sent back to us for
inspection. If IsAlbi deems the product is
defective, we will reimburse your postage/
transit expenses. IsAlbi will be responsible
for the postage/transit of the repaired/
replacement product back to you.

What to do: If a fault/defect is identified,
cease using the product immediately.

To make a claim on this guarantee, take the
product, proof of purchase and full details
of the alleged defect to the retailer from
whom the product was purchased. If you
cannot access the retailer or are unsatisfied
with the solution offered by the retailer,
contact IsAlbi via the details below.

IsAlbi

87 Chifley Drive, Preston, Victoria 3072
P: [phone]
E: [email protected]
www.isalbi.com.au
