Page 1

󾙚󾙒

󾙚󾙗

󾙛󾙒

󾙛󾙗



Infusion Kettle

G0000817 Instruction Manual

Thank you for choosing the Leaf & Bean Infusion Kettle. To ensure proper operation and to maintain the lifespan of your appliance, please read these instructions carefully before use.

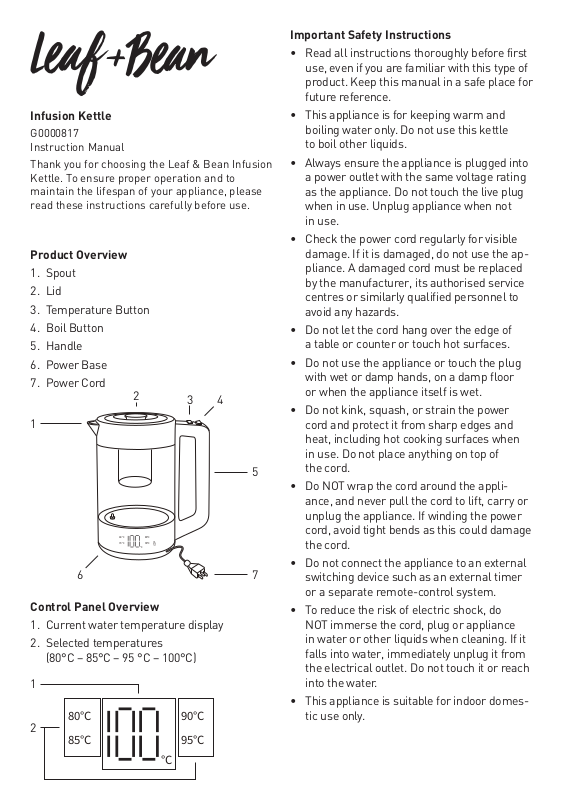

Product Overview

1. Spout

2. Lid

3. Temperature Button

4. Boil Button

5. Handle

6. Power Base

7. Power Cord 2

󾙖󾙒

󾙚󾙒

󾙙󾙒

󾙛󾙒



Control Panel Overview

1. Current water temperature display

2. Selected temperatures

(80°C – 85°C – 95 °C – 100°C)

Important Safety Instructions

• Read all instructions thoroughly before first use, even if you are familiar with this type of product. Keep this manual in a safe place for future reference.

• This appliance is for keeping warm and boiling water only. Do not use this kettle toboil other liquids.

• Always ensure the appliance is plugged into a power outlet with the same voltage rating as the appliance. Do not touch the liveplug when in use. Unplug appliance when not inuse.

• Check the power cord regularly for visible damage. If it is damaged, do not use the appliance. A damaged cord must be replaced by the manufacturer, its authorised service centres or similarly qualified personnel to avoid any hazards.

• Do not let the cord hang over the edge of atable or counter or touch hot surfaces.

• Do not use the appliance or touch the plug with wet or damp hands, on a damp floor

or when the appliance itself is wet.

• Do not kink, squash, or strain the power cord and protect it from sharp edges and heat, including hot cooking surfaces when in use. Do not place anything on top of

thecord.

• Do NOT wrap the cord around the appliance, and never pull the cord to lift, carry or unplug the appliance. If winding the power cord, avoid tight bends as this could damage the cord.

• Do not connect the appliance to an external

switching device such as an external timer or a separate remote-control system.

• To reduce the risk of electric shock, do NOTimmerse the cord, plug or appliance in water or other liquids when cleaning. If it falls into water, immediately unplug it from the electrical outlet. Do not touch it or reach into the water.

• This appliance is suitable for indoor domestic use only.

Page 2

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Do not allow children to play with the appliance. Ensure close supervision of children when operating the appliance.

• Do not submerge appliance in water or pour water directly on it.

• When adding water into the kettle, ensure water level does not exceed the maximum level mark (MAX). Excess water may boil and flow out of the kettle.

• Do not cover the spout with fabric. This may damage the lid and force hot water out.

• Always carry the kettle using the handle. Do not wrap, tilt or swing the kettle, or open lid during transportation as sudden movements may cause hot water and steam to escape from the lid or vent.

• Ensure lid is securely closed before boiling. Do not forcefully close the lid.

• Do NOT touch the spout with your hand as steam will cause scalding.

• Do not open the lid or pour water into the kettle while boiling. The released steam and any hot water splatters will cause scalding.

• Do not place the kettle on a cloth or any unstable surface. This may cause the kettle to topple and cause scalding.

• Clean the kettle only when completely cold. Unlock the lid and hold the lid open when pouring out remaining hot water. Be careful when doing so as it may gush out and causeinjury.

• Do not touch the lid unlock button when moving the kettle. The lid may open suddenly, causing hot water to spill.

• Do not place the kettle close to the wall, furniture or other electrical appliances. Steam and heat released may damage appliances.

• CAUTION: The heating element surface is subject to residual heat after use.

• Do not use this kettle without water. Repeated dry heating will reduce the life ofthiskettle.

• Misuse of this appliance can potentially cause injury.

• This appliance is for household and similar applications only, such as farmhouses, bed and breakfast and similar household type.

Packaging and Recycling

The materials used for this product’s packaging can be reused, recycled, and disposed of through specific waste streams.

• REUSE: Keep packaging to safely store or transport your appliance, preventing damage.

• RECYCLE: Look for recycling symbols on packaging components to identify if they are recyclable. Check with your local authority to find out what materials are accepted for recycling in your area.

• DISPOSE: Look for symbols on packaging components and dispose of materials accordingly.

Technical Information

Voltage 220-240V~,50/60Hz

Power 2000W

Capacity 1.8L

Page 3

Before First Use

• Before using your kettle, please read these operating instructions thoroughly and keep for future reference.

• Carefully unpack the appliance and remove any packaging.

• Wipe the outside of the appliance with a soft damp cloth and dry thoroughly.

• Place the kettle on a stable, flat, heat-resistant surface. Ensure it is plugged in and positioned away from other appliances. The kettle will admit a beep sound when plugged in.

• Before first use, fill the kettle it to the MAX line and boil twice, dumping and refreshing water each time to sterilize.

Operating Instructions

Boiling Water

This kettle offers a quick boil option. In this setting the kettle will boil to 100°C and turn off, always displaying the current water temperature.

1. Place the kettle on a flat level surface.

2. Pour water into the kettle to your desired level ensuring that it is above the MIN mark and below the MAX mark.

3. Close the lid after water is added. Place the kettle back on the power base.

4. Insert the mains plug (with dry hands) into the mains socket. You will hear a long beep. The control panel display will show the current water temperature.

5. Press the BOIL button to start boiling the water. A short beep will be heard, and the kettle will begin the boiling process.

6. When boiling the current water temperature display will indicate the temperature in real time, rising by degrees until 100°C is reached.

7. Once 100°C is reached kettle will beep three beeps and a light will illuminate. The light will disappear when the current temperature drops.

8. Press BOIL to stop and resume the boiling process.

9. Long press the BOIL button to turn off the kettle. The temperature display will turn off, while the °C symbol will remain flashing, indicating that the power is still running.

Note: To exit the boiling mode you can short press TEMPERATURE button to change to the selected temperature mode which includes (80°C – 85°C – 95 °C – 100°C )

Boil To Selected Temperature

This kettle offers temperature control options to conveniently reach optimal temperature for your favourite beverage. In this setting thekettle will also keep the water heated to the selected temperature, beginning the boiling process each time the temperature drops by 5°C.

Selected Temperature

80°C Green Tea, Jasmine Tea, Sencha, Darjeeling,

85°C White Tea, Fruit Infusions, Coconut, Ginger,

90°C Oolong Tea, Chamomile

95°C Coffee, Ceylon Tea, English Breakfast, Vanilla,

100°C Black Tea, Chai, Lemongrass, Peppermint,

Beverage Type

Peach Tea

Elderflower

Earl Grey, Lapsang Souchong

Rooibos

1. Place the kettle on a flat level surface.

2. Pour water into the kettle to your desired level ensuring that it is above the MIN mark and below the MAX mark.

3. Close the lid after water is added. Place the kettle back on the power base.

4. Insert the mains plug (with dry hands) into the mains socket. You will hear a long beep. The control panel display will show the current water temperature.

5. Press the TEMPERATURE button multiple times until you have reached your desired temperature setting from the 4 preset options.

6. Once you have selected your temperature the kettle will beep, and it will begin the boiling process.

Page 4

7. When boiling the current water temperature display will indicate the temperature in real time, rising by degrees until selected temperature is reached.

8. Once the selected temperature is reached the kettle will sound three beeps and a light will illuminate. The light will disappear when the current temperature drops.

9. The kettle will maintain selected temperature, beginning the boiling process again each time the current water temperature drops 5°C below the selected temperature.

10. The selected temperature mode will keep the water warm for up to 8 hours.

11. To come out of the selected temperature mode long press the TEMPERATURE button for approximately 3 seconds. The current temperature display will show current temperature and cease boiling.

Tips

• It is normal for the kettle to boil to a slightly higher temperature and cool down to the selected temperature. For example, if the selected temperature is 80°C, the kettle may boil up to 92°C before allowing water to cool to 80°C.

• The selected temperature mode offers arange of options: 80°C, 85°C, 90°C, and 95°C. Boil mode on the other hand is solely for boiling and does not offer temperature options.

• To exit the specific temperature mode, long press the TEMPERATURE button. The current temperature display will indicate that the appliance is in idle mode, displaying current temperature.

• To manually turn off the kettle, Long press the BOIL button to turn off the kettle. The temperature display will turn off, while the °C symbol will remain flashing, indicating that the power is still running.

• If the appliance is plugged in but not used for a while, The temperature display will turn off, while the °C symbol will remain flashing, indicating that the power is still running. Press the TEMPERATURE button to make the display visible again.

• Boiled water will gradually cool to the selected temperature. To resume boiling from this temperature, long press the TEMPERATURE button, then press the BOIL button until 100°C appears on the control panel display.

• This kettle is suitable for distilled water.

Care Instructions

• Unplug the kettle and allow it to cool before cleaning.

• Do not use harsh detergents, or abrasive objects for cleaning. Avoid using scourers as they may scratch the kettle.

• Wipe the kettle and power base with a soft, damp cloth, ensuring the power base on the underside of the kettle stays dry.

• Dry all parts after each use.

• Never immerse the kettle or power base in water.

• To maintain optimal performance, you should descale the kettle at least once a week if used frequently. Descaling helps remove mineral deposits that accumulate inside the kettle. Always descale the kettle before and after storing it for long periods.

Page 5

Descaling Method A

• Fill the kettle with water up to ¾ of its maximum capacity (MAX) and boil the water.

• Once the water has boiled, add vinegar and continue adding until the water reaches the maximum capacity mark (MAX). Household vinegar can be used.

• Let the mixture sit for about 12 hours.

• After 12 hours, pour out the water and wipe away any remaining limescale using a non-abrasive cloth, sponge, or cleaning brush.

• Repeat as necessary.

Troubleshooting Guide

Error Code

Problem Description

NTC open circuit

NTC short circuit

Less water detected

Possible Cause

The temperature sensor is not connected or faulty.

The temperature sensor has shorted.

Insufficient water in the kettle.

Descaling Method B

• Unplug the kettle and pour out any remaining water. Ensure the kettle is cool.

• Squeeze half a lemon into the kettle or add 120ml of distilled vinegar.

• If there is heavy scale buildup, scrub the kettle’s interior with a non-scratch scrub sponge.

• Add 500ml of water and boil the mixture.

• Pour out the mixture and wipe off any remaining scale with a non-abrasive cloth, sponge, or cleaning brush.

• Repeat as needed.

Note: For quick descaling, add 45ml of baking soda to 120ml of vinegar in the kettle. Swirl the mixture to coat the interior walls, then wipe with a non-scratch sponge and pour the mixture out. This method is effective for removing a thin layer of scale.
