TV to VGA Converter
User’s Manual
CODE: LR6019
P/N: W05G0063
WinFast TV Pro II
2
Copyright © 2006 by Leadtek Research Inc. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of Leadtek Research Inc.
Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of
merchantability, quality, or fitness for any particular purpose. The information in this document is subject
to change without notice. Leadtek reserves the right to make revisions to this publication without
obligation to notify any person or entity of any such changes.
WinFast
®
is a registered trademark of Leadtek Research Inc. Other trademarks or brand names
mentioned herein are trademarks or registered trademarks of their respective owners.
Leadtek Research Inc.
International Headquarters
18
th
Fl., 166, Chien-Yi Rd., Chung Ho
Taipei Hsien, Taiwan (235)
Tel: +886 (0)2 8226 5800
Fax: +886 (0)2 8226 5801
http://www.leadtek.com.tw
E-Mail: service@leadtek.com.tw
United States Headquarters
910 Auburn Court, Fremont CA 94538,
U.S.A.
Tel: +1 510 490 8076
Fax: +1 510 490 7759
http://www.leadtek.com
Europe Headquarters
Antennestraat 16 1322 AB
Almere, The Netherlands
Tel: +31 (0)36 536 5578
Fax: +31 (0)36 536 2215
http://www.leadtek.nl
WinFast TV Pro II User’s Manual
Version A
April 2006
CONTENTS
Chapter 1 Introduction.................................. 1
1.1 Features .....................................................................................1
1.2 Specification ...............................................................................2
1.3 System Requirement ..................................................................2
1.4 Package Checklist ......................................................................3
Chapter 2 Hardware Installation ...................3

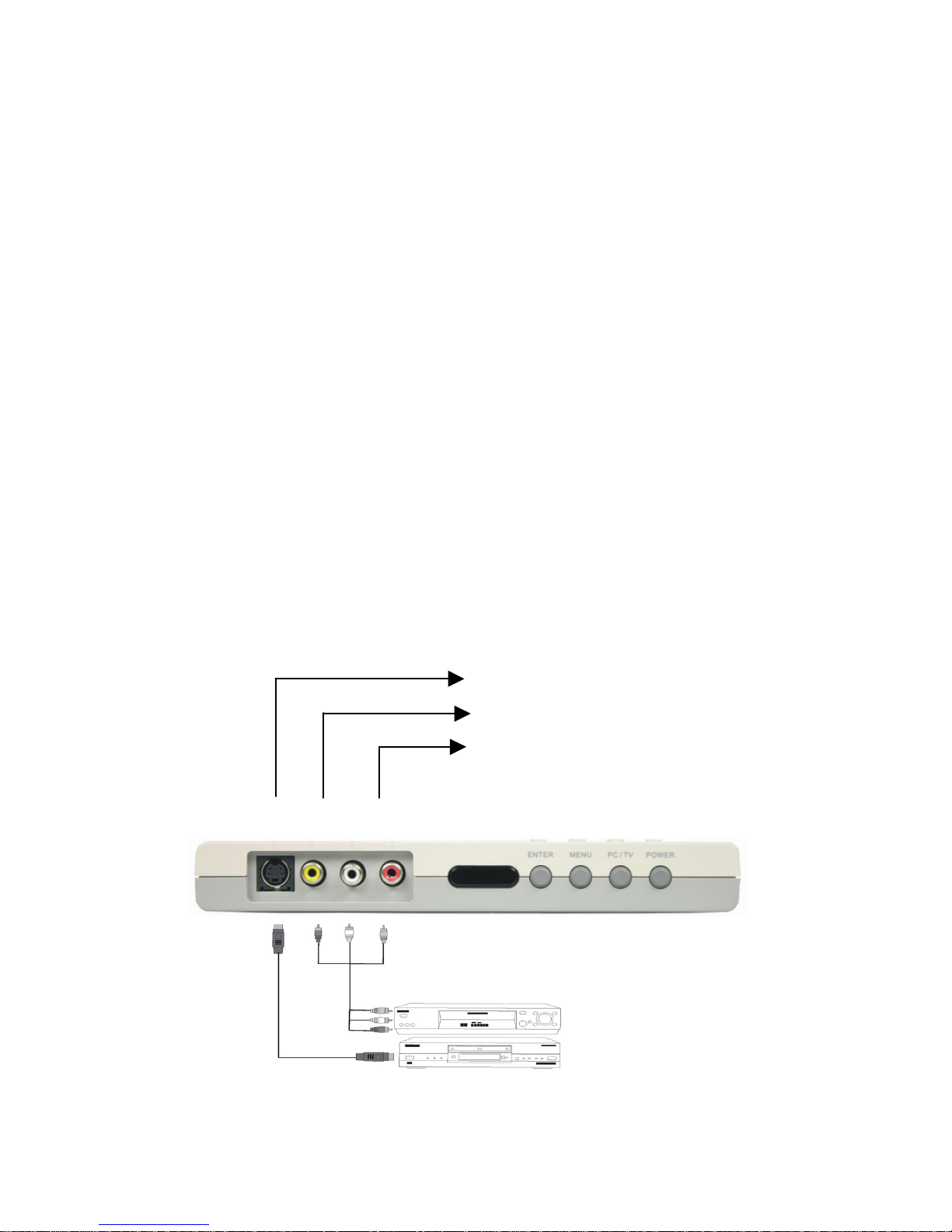

2.1 Front Panel.................................................................................3

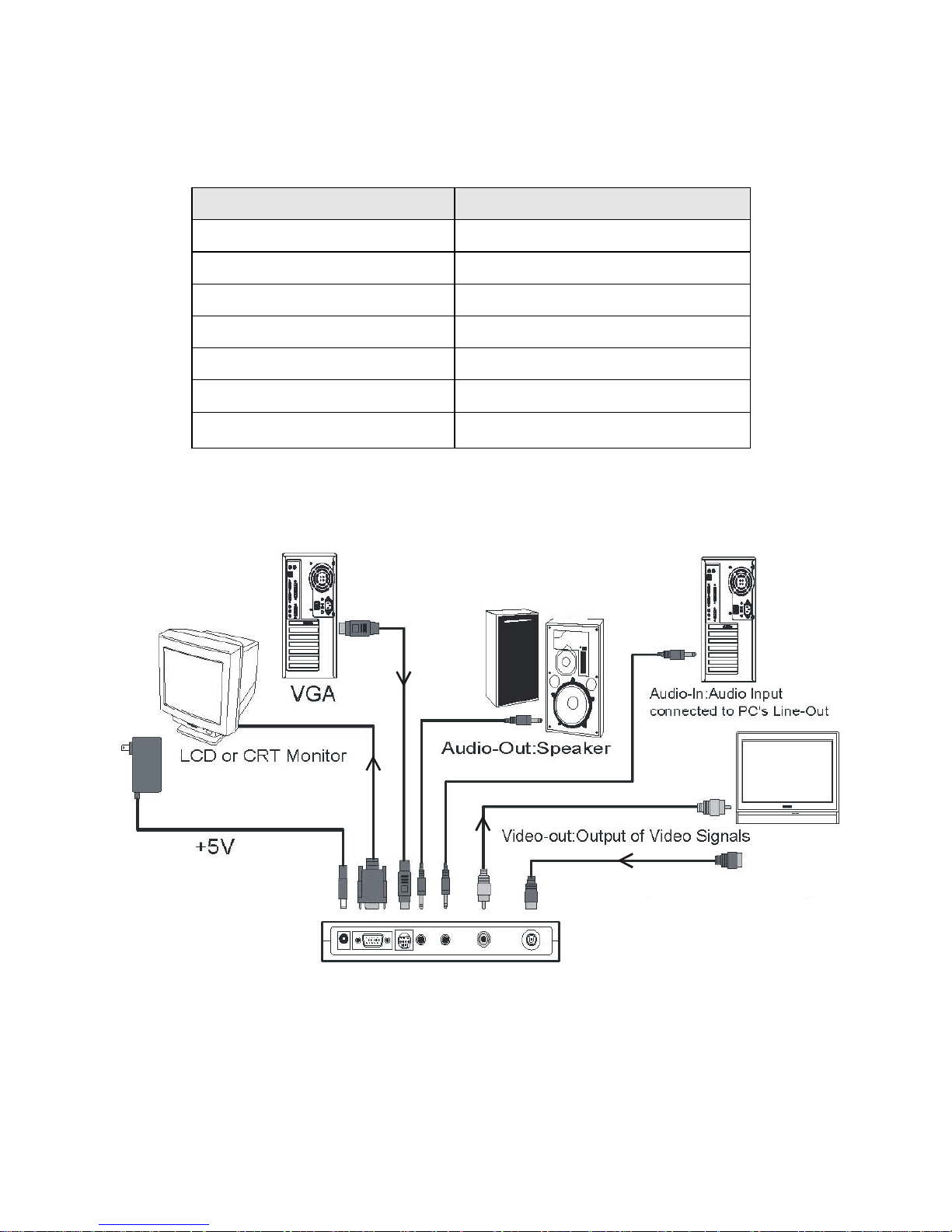

2.2 Back Panel .................................................................................4
Chapter 3 Operating Instruction ...................5

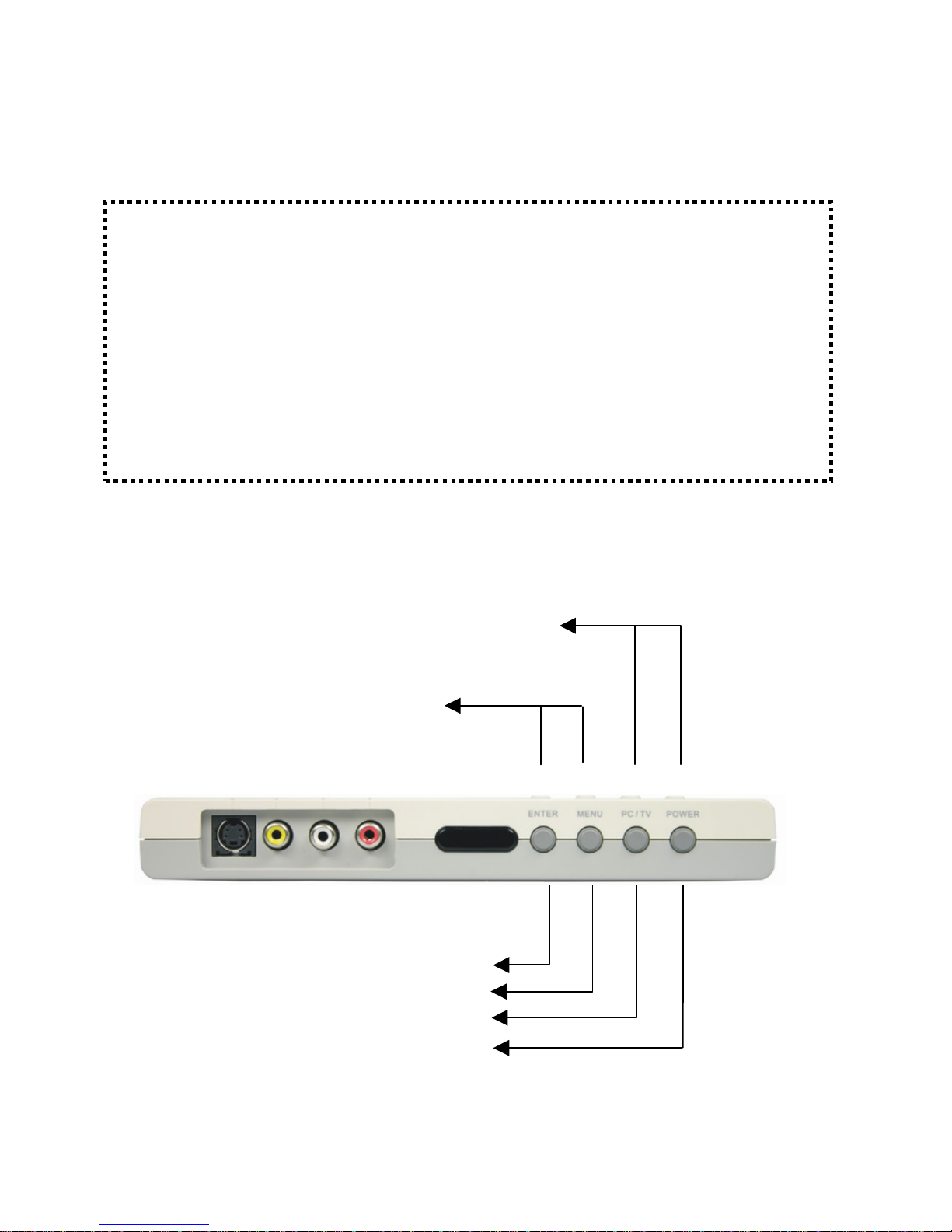

3.1 Functions of Control Panel.......................................................... 5

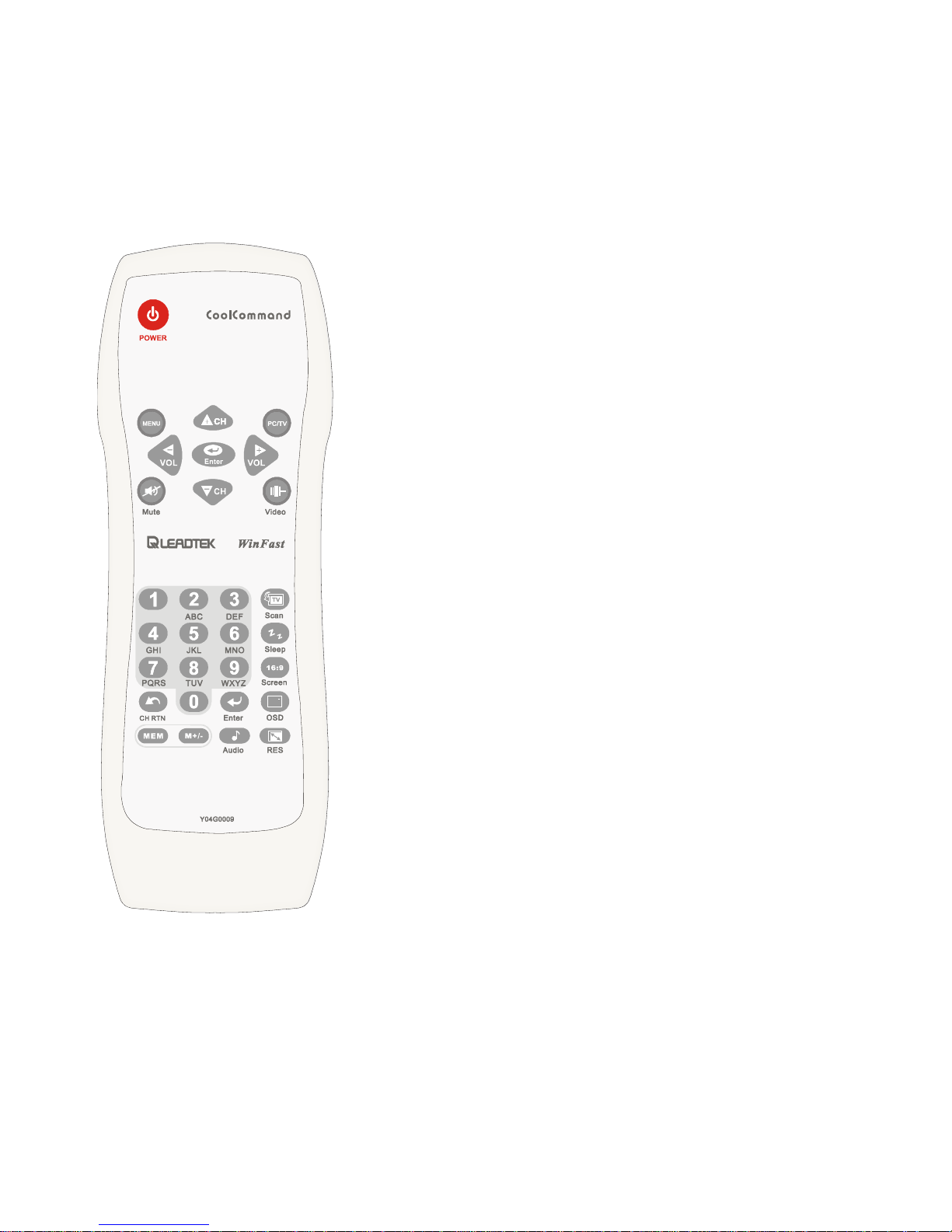

3.2 Functions of Remote Control ......................................................6
3.3 How to Operate this Machine......................................................7
Chapter 4 Menu Setting .................................9

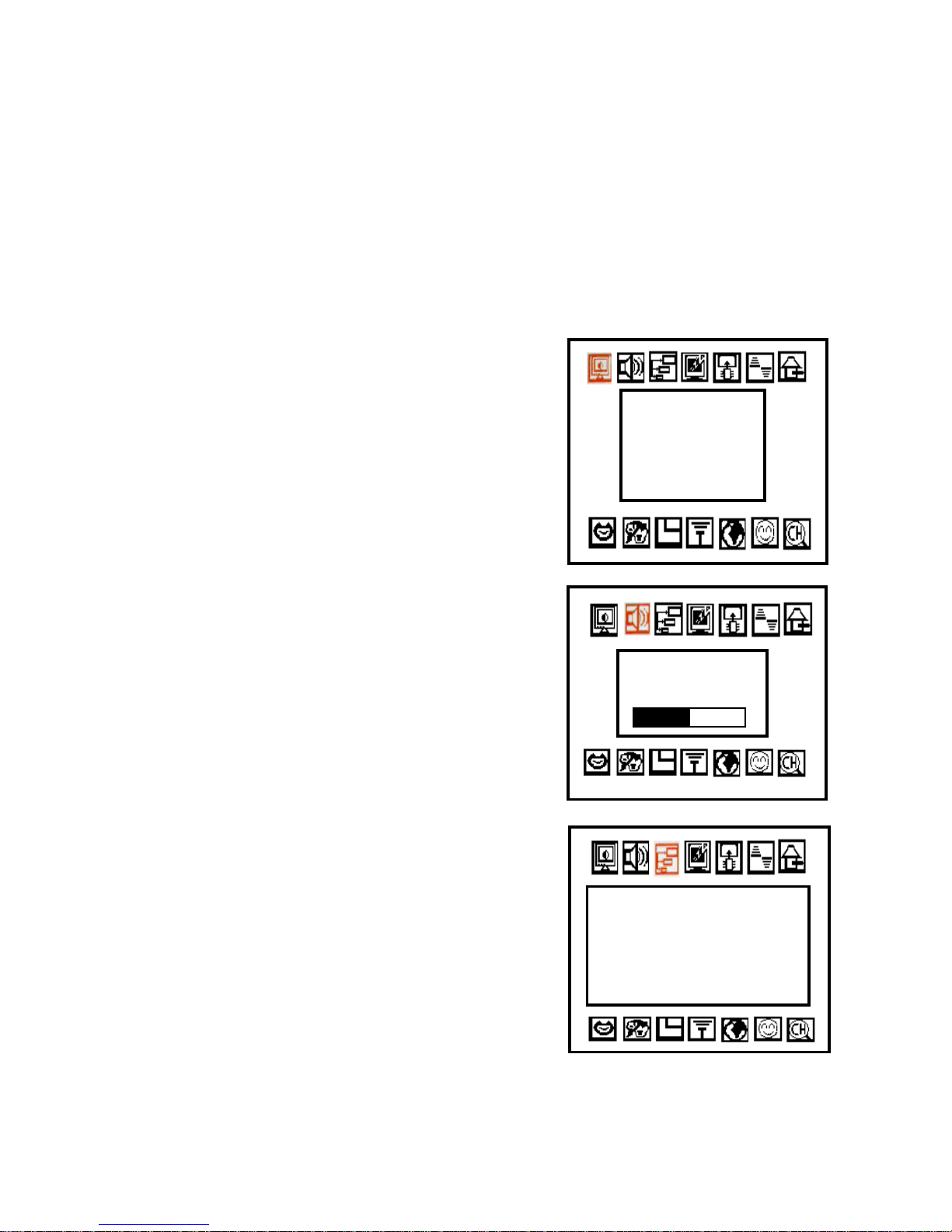

4.1 Picture ........................................................................................9
4.2 Volume .......................................................................................9
4.3 Resolution...................................................................................9
4.4 Sleep Setting ............................................................................10
4.5 Load Default ............................................................................. 10
4.6 Screen Setting ..........................................................................10
4.7 Channel Edit............................................................................. 11
4.8 Language.................................................................................. 11
4.9 OSD Mode................................................................................ 11
4.10 Screen Position.......................................................................12
4.11 TV Source...............................................................................12
4.12 Area Setting ............................................................................12
4.13 Favorite Channel ....................................................................13
4.14 Auto Scan ...............................................................................13
Recycling Information...................................14
1
Chapter 1 Introduction
With the conventional TV Box, you could only use your PC monitor to watch the TV program at a very low
resolution without any extra functions.
Thing’s nicely changed! With the new generation of TV Box, WinFast TV Pro II, you could use your
CRT, LCD, plasma or even projection monitor to watch the full-screen TV program, up to a sky-high
resolution of 1280*1024 in 24-bit color. Moreover, check below what extra functions you could enjoy
with WinFast TV Pro II.
1.1 Features
1. It supports extra high HDTV resolution, up to 1280 x 1024 pixels. Connecting 17” or 19” LCD Monitor, it
will achieve the best display effect.
2. It supports genuine 16:9 wide screen without any distortion.
3 .With a motion adaptive de-interlacing unit, it easily converts the conventional TV signals, which come
interlaced (scanned every other lines), into progressive ones (scanned every line). You’ll find that the
line flickering is reduced a lot. Our de-interlacing process, basically inserting new lines between the
two input lines, detects motion based on user programmable thresholds. It turns out that the zigzag
problem is greatly reduced.
4. It adopts a variety of new technologies including gamma correction, non-linear scaling, luminance/color
transient improvement, and sharpness enhancement.
It is true for the fact that you’ll happily enjoy the sharp, clear, saturated 3D video.
5. The top-class TV tuner is adopted to show the best picture quality.
6. With the multiple Audio/Video inputs, it can connect your A/V devices such as DVD player, VCR or DV
camcorder, and Game Consoles such as PS2 or XBOX.
7. It offers the Sleep Timer.
8. Remote Control is included.
9. The function of Favorite Channel enables you to switch between your favorite channels.
10. It supports OSD and Menu setting.
2
1.2 Specification
1.3 System Requirement
1. Air or Cable Antenna
2. VGA/SVGA/XGA/SXGA Compatible LCD or CRT Monitor
3. Speaker with 3.5mm Stereo Connector
4. Power Outlet
TV Input RF Jack
VGA Input 9-pin Mini-Din Jack (pass through)
Composite Video RCA Jack
Video Input
S-Video 4-pin Mini-Din Jack
Audio (R) RCA Jack
Audio (L) RCA Jack
Audio Input
3.5 mm Stereo Jack (connected to PC Audio Line Out)
Audio Output 3.5 mm Stereo Jack (connected to Speaker)
VGA Output D-Sub 15-pin Jack
Video Output Composite Video RCA Jack
Remote Built-in IR Receiver
LED Indicator Power On/Off Indication
Power Requirement DC-In Jack; 5VDC 2A Adaptor
Without stand - 206mm(L)*125mm(W)*26mm(H)
Dimension
With stand - 212mm(L)*125mm(W)*59mm(H)
640x480 (VGA) @ 60Hz/75Hz
800x600 (SVGA) @ 60Hz/75Hz/85Hz
1024x768 (XGA) @ 60Hz/75Hz/85Hz
VGA Output Mode
1280x1024 (SXGA) @ 60Hz
