6300MAX
MA Pro
Socket 370 Mainboard
Copyright © 2000 by Leadtek Research Inc. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means without
the prior written consent of Leadtek Research Inc.
Leadtek makes no warranties with respect to this doc umentation and disclaims any implied
warranties of merchantability, quality, or fitness for any particular purpose. The information in
this document is subject to change without notice. Leadtek reserves the right to make
revisions to this publication without obligation to notify any person or entity of any such
changes.
WinFast
®
is a registered trademark of Leadtek Research Inc. Other trademarks or brand
names mentioned herein are trademarks or registered trademarks of their respective
owners.
!"##
$!"#
%%!&& %'()%
*) !+,(- %'()%
./+)%0 ,
+)%12.341
!"#.2##/
$!"#.2#//2
%%!&& %'()
WinFast 6300MAX/MA Pro User’s Manual
MAX Version C
MA Pro Version A
July 2000
Table of Contents
1. Quick Setting......................................................................1
1.1 WinFast 6300MAX/MA Pro Mainboard Layout......................1
1.2 Jumper/Connector Listing......................................................1
1.3 CPU and SDRAM Clock Frequency Selection ......................2
2. Introduction........................................................................ 3
2.1 Overview................................................................................3
2.2 Specifications.........................................................................4
2.3 Package Content ...................................................................4
3. Hardware Setup .................................................................5
3.1 CPU Installation.....................................................................5
3.2 Memory Installation (DIMM1, DIMM2)...................................5
3.3 ADIMM Installation (ADIMM) .................................................6
3.4 Case Signal Connector (U12) ...............................................6
3.5 Hard Disk Connector (IDE1, IDE2)........................................6
3.6 Floppy Disk Connector (FLOPPY).........................................7
3.7 RJ45 Ethernet Connector and USB Connectors (U8/LAN,
USB1, USB2).........................................................................7
3.8 Cooling Fans (JP1, JP14)......................................................7
3.9 Stereo Audio/Video In Connectors (JP15, 16, 17) ................7
3.10 PAL & NTSC System Selector (JP19)...................................7
3.11 Power Supply Connector (ATX_PW R1)................................7
3.12 Serial, Parallel and VGA Ports (LPT1, COM1, VGA)............7
3.13 IrDA-Compliant Infrared Module Connector (J20, J21).........8
3.14 Midi/Joystick, MIC, Line In, Line Out (Game Port) ................8
3.15 PS/2 Keyboard and Mouse Connector (KB/MS) ...................8
3.16 3D Glasses (optional) + COM2 Connector (COM2, CN3).....8
3.17 USB Connector (CN2) ...........................................................8
4. BIOS Setup......................................................................... 9
4.1 Main Menu.............................................................................9
4.2 Standard CMOS Features.....................................................9
4.3 Advanced BIOS Features....................................................11
4.4 Advanced Chipset Features ................................................13
4.5 Integrated Peripherals..........................................................15
4.6 Power Management Setup ..................................................17
4.7 PnP/PCI Configurations.......................................................19
4.8 PC Health Status .................................................................19
4.9 X-BIOS.................................................................................20
4.10 Load Basic Defaults.............................................................20
4.11 Load Best Defaults...............................................................20
4.12 Set Supervisor/User Password............................................20
4.13 Save & Exit Setup................................................................21
4.14 Exit Without Saving..............................................................21
5. Software Setup.................................................................22
5.1 Windows 95/98 ....................................................................22
5.1.1 Gamma Correction ....................................................23
5.1.2 Video Setting .............................................................23
5.1.3 3D Settings................................................................23
5.1.4 Information.................................................................24
5.2 Windows NT 4.0...................................................................25
5.2.1 Install Windows NT 4.0 with the SiS630 onboard .....25
5.2.2 Install Display Driver..................................................25
5.3 Install Audio Driver for Windows 95/98................................25
5.4 Install Ethernet Driver for Windows 95/98/NT 4.0 ...............25
Appendix A. BIOS Flash Utility................................................ 26
Appendix B. Technical Support...............................................26
Appendix C. Troubleshooting Flowchart................................27
Appendix D. FCC Statement....................................................28
Appendix E. Limited Warranty.................................................28
WinFast 6300MAX/MA Pro User’s Manual
1
1. Quick Setting
WinFast 6300MAX and WinFast 6300MA Pro are two nearly identical models, the only
difference is that WinFast 6300MAX supports an ADIMM slot while WinFast 6300MA Pro
does not. WinFast 6300MA Pro users should disregard all descriptions concerning ADIMM.
1.1 WinFast 6300MAX Mainboard Layout
1.2 Jumper/Connector Listing
Jumper/Connector Description
ADIMM
For VGA shared memory card (WinFast ADIMM-128) or
TV, VGA and DVI card (WinFast ADIMM-DCT)
Note: WinFast 6300MA Pro does not support this connector.
AMR Audio Modem Riser
Leadtek Research Inc.
2
Jumper/Connector Description
ATX_PWR1 ATX power connector
CN2 For three USB connectors
CN3 3D glasses connector (Optional)
COM2 COM2
DIMM1, DIMM2 Memory module 1, 2
FLOPPY Floppy disk
Game Port Midi/Joystick, Mic In, Line In, Line Out
IDE 1 Hard disk (Primary IDE)
IDE 2 Hard disk (Secondary IDE)
J1 SPDIF output (Option)
J20 IR connector
J21 CIR connector
JP1/CPU FAN CPU fan connector
JP14/SYS FAN System fan connector
JP15 Audio connector (CD)
JP16 Video input connector
JP17 Audio connector (AUX)
JP19 NTSC & PAL system se le ctor.
[short]: PAL [open]: NTSC
JP20
Clear CMOS data.
[1-2]: Clear CMOS data, [2-3]: Normal (Default)
KB/MS PS/2 mouse (upper), PS/2 keyboard (lower) connector
LPT1, COM1, VGA Printer, COM1, VGA connector
PCI_1, PCI_2 PCI1, PCI2 Slots
U12
PWRBTN, RESET, KEY LOCK, SPEAK ER, HDD_LED,
POWER_LED, ACPI LED
U8 Ethernet (RJ45), USB1 and USB2 connectors
1.3 CPU and SDRAM Clock Frequency Selection
The CPU and SDRAM combined clock frequencies can be set at the
CPU
HOST/SDRAM/PCI Clock
item of
X-BIOS
in the BIOS Setup menu. The choices are 66/66,
66/100 (Default), 70/105, 95/95, 95/126, 96/96, 97/97, 97/129, 99/99, 99/132, 100/100,
100/133, 100/150, 105/140, 110/147, 112/112, 115/153, 120/120, 133/100, 132/132,
133/133, 138/138, 140/140, 145/145, 147/147, 150/100, 160/160, and 166/110.
The X-BIOS is a valuable feature for those over-clocking users becaus e the X-BIOS will
intelligently judge the CPU Clock Frequency you selected in BIOS Setup. If the selected
CPU clock is too high to be acceptable, the system will hang up with black screen after
exiting BIOS Setup. At this point, turn on the system right after shutting it down will make the
system set up to its default (66/100). Then you can press “DEL” key to re-enter BIOS Setup
to select another CPU/SDRAM combination values or any other key to accept the default.
Press and hold the <INS> key until the monitor displays. This action will make the system set
up to its default (66/100) automatically.
NOTE: If you shut down your engine very quickl y after booting, say “within 3~4 seconds ”
after turning on the engine, the BIOS may misjudge and resulting circumstances like the above.
WinFast 6300MAX/MA Pro User’s Manual
3
2. Introduction
2.1 Overview
The WinFast 6300MAX/MA Pro - a Socket 370 Processor based Micro ATX Mainboard,
integrating with onboard AC’97 Audio and Super AGP VGA for Hardware 2D/3D
Video/Graphics Accelerators, is a high performance/cost index Desktop solution for Intel
Socket 370 Celeron, CuMine Series and other compatible CPUs.
The mainboard uses the single chipset, SiS630, provides a high performance/low cost
desktop solution for the socket 370 series CPUs based system by integrating a high
performance North Bridge, advanced hardware 2D/3D GUI engine and Super-South bridge.
In addition, SiS630 provides system-on-chip solution that compli es with Easy PC Initiative
which supports Instantly Available/OnNow PC technology.
By integrating the Super UltraAGP technology and advanced 128-bit graphic display
interface, SiS630 delivers UltraAGP 4x performance and up to 1 GB/s memory bandwidth.
Furthermore, SiS630 provides powerful slice layer decoding (IDCT and Motion
Compensation) DVD accelerator to improve the DVD playback performance, in addition to
providing the standard interface for CRT monitors.
SiS630 integrates all peripheral control lers /accel erators /i nterfac es. SiS630 provides a tot al
communication solution including 10/100Mb Fast Ethernet for Office requirement. SiS630
offers AC’97 compliant interface that comprises digital audio engine with 3D-hardware
accelerator, on-chip sample rate converter, and professional wavetable along with s eparate
modem DMA controller. SiS630 also provides interface to Low Pin Count (LPC) operating at
33 MHz clock which is the same as PCI clock on the host, and dual USB host controller with
five USB ports that deliver better connectivity and 2 x 12Mb bandwidth.
The built-in fast PCI IDE controller supports the ATA PIO/DMA, and t he Ultra DMA33/66
function that supports the data transfer rate up to 66 MB/s. It provides the separate data path
for two IDE channels that can eminently improve the perform ance under the multi-tasking
environment.
WinFast 6300MAX has two types of optional add-on cards for the ADI MM slot, WinFast
ADIMM-DCT and WinFast ADIMM-128. WinFast ADIMM-DCT supports with one of the
following three functions: (1) Digital Video Interface (DVI) port for a standard interface
between a personal computer and a digital flat panel monitor, (2) NTSC/PAL Video Output,
(3) Secondary CRT Monitor. WinFast ADIMM-128 supports a “Share System Memory
Architecture” that can flexibly utilize the frame buffer bandwidth up to 128bits, enhance the
system performance up to 20~25%.
Leadtek Research Inc.
4
2.2 Specifications
CPU Support
!
Intel Sock et 370 Celeron, P entium III
series and other Socket 370 CPUs
Chipset
!
SiS 630 chipset
Super I/O chip (SiS 950) on board
!
One parallel (SPP/ECP/EPP)
!
Two serial (16650A) compliant
!
One floppy drive connector
Integrated 128-bit 2D/3D Graphics
Accelerator
!
Advanced HW accelerat ion for DVD
playback including MC and IDCT
!
Ultra-AGP™ architecture
!
Fully DirectX 6 compliant graphics
engine
!
UMA archit ect ure with 2/4/ 8/16/ 32/ 64MB
system memory sharable as display
memory
!
Resoluti on up to 1920x1200
256/32K/64K/16M color @80Hz NI
!
Support VESA, DDC1, DDC2B & DDC
3.0
!
Driver support for Windows 95/98,
Windows NT 4.0, and Windows 2000
!
WinFast ADIMM-128: Optional Extended
Graphics Memory (EGM) on ADIMM
card for 128-bit memory accessing
!
WinFast ADIMM-DCT: Support SiS301
video bridge interface for dual display
NTSC/PAL TV or secondary CRT
monitor or TFT digital LCD monitor
Integrated 3D Positional Audio Controller
!
64-voice polyphony wavetable
synthesizer
!
Direct S ound 3D accel e rat o r for IID, IAD
and Doppler effects
!
Full-duplex, independent s am pl e rate
converter for audio recording and
playback
!
AC’97 V2.1 interface f or external Audio
Codec
!
SoundBlaster Pro/16 compliant - driver
support for Windows 95/98, Windows NT
4.0, and Windows 2000
Integrated Ethernet
!
IEEE802.3, 10BASE-T, 100BASE-TX
standards
!
Supports On-Now, Wake-On-LAN, PCI
power management 1.0a
!
Driver support for Windows 95/98,
Windows NT 4.0, Windows 2000
Modem
!
AC’97 AMR/MDC HSP modem support
Integrated PC133 SDRAM Controller
!
2 DIMMs up to 1GB of system memory
!
Virtual Channel Mem ory (VCM) support
!
Synchronous or asynchronous
Host/SDRAM bus frequency
!
Support for Suspend-To-RAM (STR)
!
Support 5 USB ports
Power Management
!
ACPI 1.0, APM 1.2 compliant
!
W ake-up events incl ude power butt on,
hot-key, keyboard password, modem
ring, Ethernet, RTC alarm
!
System sleeping states S1, S3, S5
Dual Ultra 33/66 IDE Controller
!
Support up to PIO mode 4, Multi-word
DMA mode2 and Ultra DMA33/66
MB/Sec
!
Bus master dri vers f o r all well k nown OS
Other feature support
!
2 PCI Master
!
LPC 1.0 interface
!
Integrat ed RTC w/ Y2K support
!
Integrated keyboard/PS2 mouse
controller
!
I2C/SMbus interface
!
Meet PC’99 requirement
!
Hardware monitor support
2.3 Package Content
Accessories:
!
IDE cable x 1
!
FDD cable x 1
!
Ultra ATA 66 IDE cable
!
This user’s manual
Optional Accessories:
!

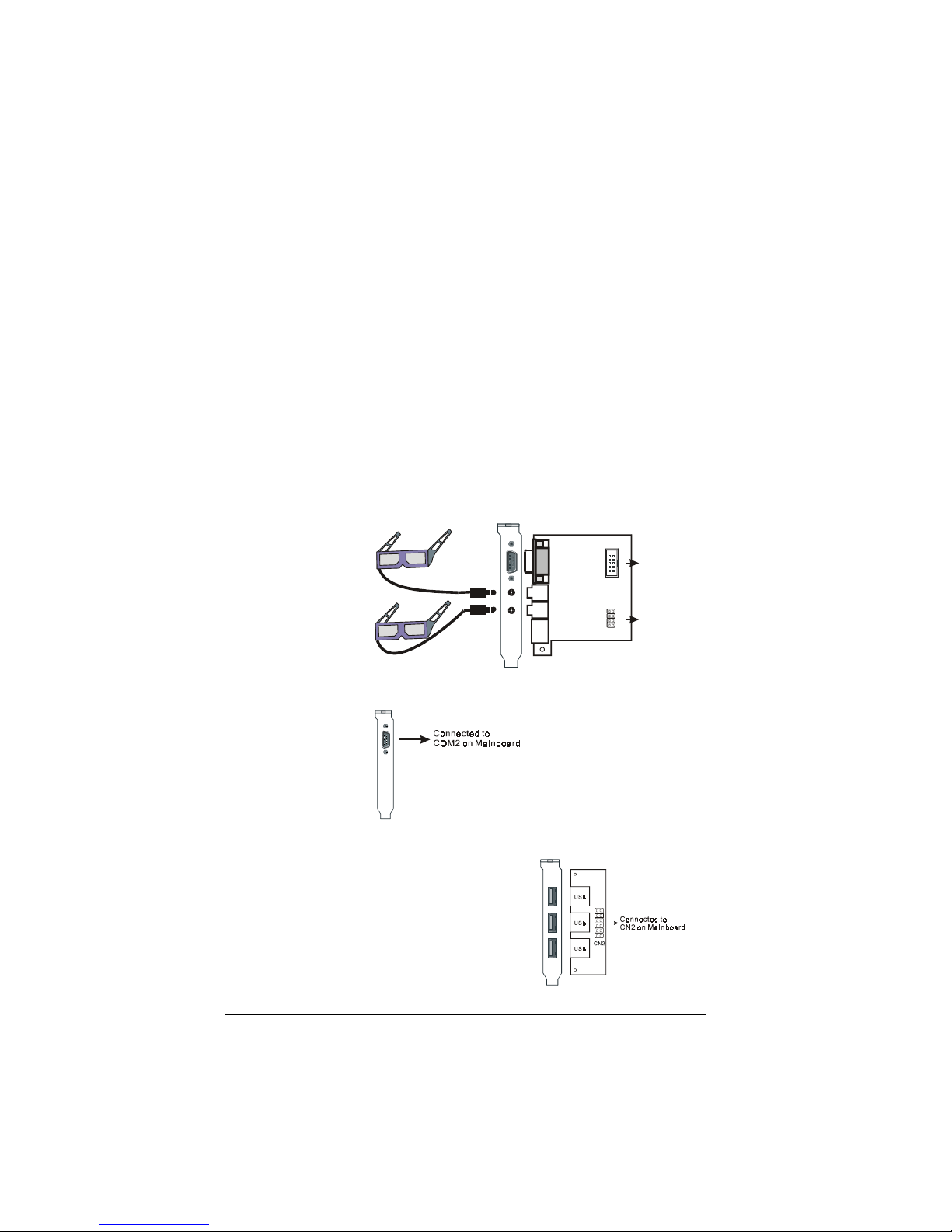

3D glasses c onnector, COM2
!
3D glasses x 1
!
USB module x 1
!
WinFast ADIMM-DCT
!
WinFast ADIMM-128
Mainboard & SCSI Software Pack CD:
!
On board VGA driver (Support
Windows 95/98/NT4.0/2000)
!
PC health utilit y for Wi ndows 95/ 98
!
Onboard audio driver
!
Onboard LAN driver
!
AWARD flash utility
!
User’s manual
WinFast 6300MAX/MA Pro User’s Manual
5
3. Hardware Setup
Static-Sensitive Devices
Static-sensitive electrical discharge can damage electronic components. To prevent damage
to your system board, it is important to handle it very carefully. The following measures are
generally sufficient to protect your equipment from static discharge.
Precautions
!
Use a grounded wrist strap des i gned for st atic discharge.
!
Touch a grounded metal object before you remove t he board from the anti-static bag.
!
Handle the board by its edges only; do not touch its components, peripheral chips,
memory modules, or gold contacts.
!
W hen handling chips or modules, avoid t o uching their pi ns.
!
Put the system board and peripheral s back into their anti-static bags when not in use.
!
For grounding purposes, be sure your computer system’s chassis provides excellent
conductive contact between its power supply, case, the mounting fasteners, and the
system board.
Unpacking
The system board is shipped in anti-static packaging to avoid static damage. When
unpacking the board, be sure the person handling the board is static-protected.
3.1 CPU Installation
NOTE: When handling the processor package, avoid placing direct pressure on the label
area of the fan.
Heat Sink
Please follow the instructions that came with your processor or heat sink to attach a heat sink
to the processor, and also make sure a good contact is made between the CPU chip and the
heat sink.
Processor
You are now ready to install the processor.
Your mainboard has a 370-pin, PPGA type
socket, which supports 370-pin (not SEPP
type) Celeron/CuMine processors. Lift the
lever on the PPGA socket and install with
the notched corner of the processor oriented
with pin 1. Fully seat the processor into the
socket and then close the lever.
You should install the processor to the mainboard first, then install t he mainboard in the
chassis, then the memory and add-on cards, and finally the cables and drivers. Please follow
the installation procedures in the order that will eliminate the common problems during the
system installation.
NOTE: Always connect the power cord last and always remove it before adding, removing
or changing any hardware components.
3.2 Memory Installation (DIMM1, DIMM2)
The mainboard provides two 168-pin DIMM (Double In-Line Mem ory Module) slots, DI MM1
and DIMM2. You can use SDRAM from 8, 16, 32, 64, 128, 256 to 512MB per DIMM slot, or
you can use VCM from 32, 64, and 128MB.
Leadtek Research Inc.
6
IF you use 100Mhz CPU Bus/SDRAM bus synchronous frequency, you must use the
qualified SDRAM that meets PC-100 specifications.
IF you use 133Mhz CPU Bus/SDRAM bus synchronous frequency, you must use the
qualified SDRAM that meets PC-133 specifications.
DIMM Installation Procedures
The DIMM slot has two keys marked “VOLT” and “DRAM”,
making the module only fit in one direction. Note that the
module must be a 3.3V unbuffered DIMM.
Step 1:
Insert the module vertically into the DIMM socket
and push it in.
Step 2:
The plastic clip at the side of the DIMM socket will automatically close.
3.3 ADIMM Installation (For WinFast 6300MAX only)
Step 1:
Position the optional card (WinFast ADIMM-128, WinFast ADIMM-DCT) over the
ADIMM slot and insert one end of the board into the slot first.
Step 2:
Firmly but gently press the bus connector on the bottom of the card into the slot.
Make sure the metal contacts on the bottom of the host adapter are securely
seated in the slot.
Step 3:
For ADIMM-DCT, anchor the card’s mounting bracket to the computer chassis and
have it fastened with screws.
3.4 Case Signal Connector (U12)
!
Pins [1 & 2] PW-BTN:
Allows connecting to a push
the power button on the system’s case.
!
Pins [4 & 5] RESET:
Connects to the reset button on
the system’s case. The reset button is used to “coldboot” the system without actual ly turning off the power,
reducing wear and tear on the power supply. Avoid
rebooting the system when the HDD LED is blinking.
!
Pins [7-10] SPEAKER:
Connects to the speaker on
the system’s case.
!
Pins [12 & 13] IDE1 and [25 & 26] IDE2:
IDE1/IDE2 hard disk LED shows the activity
of a hard disk drive. Avoid turning the power off while the HDD LED is lit.
!
Pins [14-16] PWR-LED:
Power LED. It is always lighted after the system power is on.
!
Pins [17 & 18] KLOCK:
Keyboard lock switch lead. It connects to the case-mounted
keylock switch. Allowing you to disable the keyboard function for security purpose.
!
Pins [20-22] ACPI-LED:
For ACPI LED connection on the case.

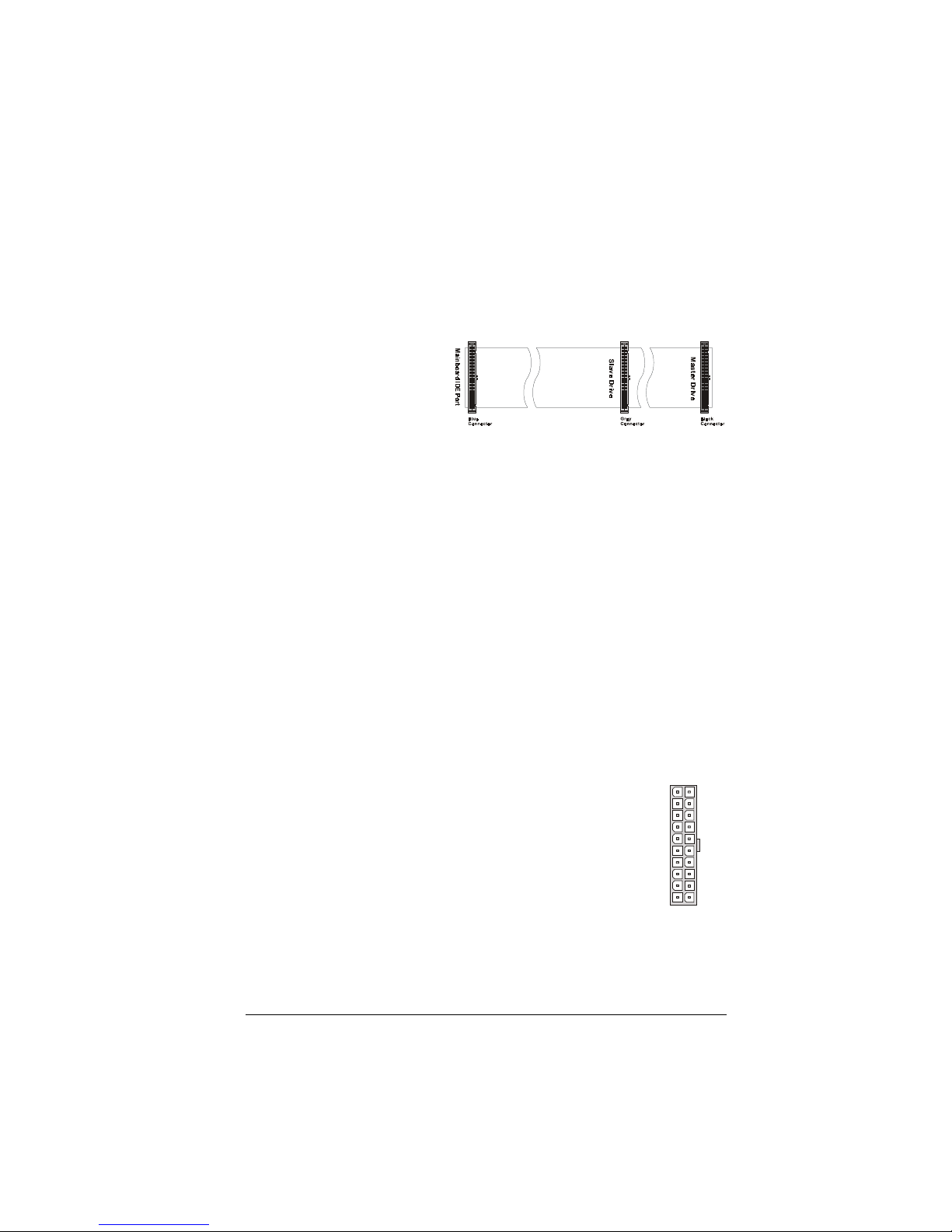

3.5 Hard Disk Connector (IDE1, IDE2)
The on-board Enhanced IDE controller can support up to 4 IDE hard drives or other ATAPI
devices, such as CD-ROMs. This controller, as with all Enhanced IDE controllers, consists of
both Primary (IDE 1) and Secondary (IDE 2) ports. Each port has an associated connector
and cable, which can support up to 2 ATAPI devices each.
All IDE devices have jumpers, which allow the user to configure the device as either “Master”
or “Slave”. A Master device is one that is ALONE on the IDE cable, whereas a Slave devi ce
is installed as a SECOND device on the same cable. Keep in mind that the Master device will
PW-BTN
PWR-LED
RESET
KLOCK
ACPI-LED
SPEAKER
IDE1IDE2
U12
14
1
13
26
Loading...
