Leadtek WinFast 6200MA User Manual

Download

PS/2 Mouse

USB1

USB2

VGA

MIC

Line In

Line Out

Printer LPT1

Midi/Joystick

COM1

USB1 J3 J4

PS/2 Keyboard

ISA

CPU

CPU FAN

SYS FAN

WOL

IR1

JP2

JP1

FDD1

IDE1

PW1

IDE2

COM1VGA

Gam

LPT1

USB1

PS/2 Mouse & PS/2 Keyboard

Socket 370

SiS 5595

SiS 620

BATTERY

BIOS

Super I/O

COM2

WinFast 6200MA

DIMM3

DIMM2

DIMM1

PCI 1

PCI 2

PCI 3

ESS Solo1 ES 1938S

WinFast

6200MA

User’s Manual

Version B

Web Site: www.leadtek.com.tw

E-Mail: service@leadtek.com.tw

Leadtek Research Inc.

WinFast® 6200MA User’s Manual

Table of Contents

CHAPTER 1 QUICK REFERENCE AND INSTALLATION............1

WINFAST 6200MA MAINBOARD LAYOUT................................................1

READ ME FIRST..........................................................................................2

QUICK CPU AND SDRAM CLOCK FREQUENCY SELECTION.....................2

QUICK JUMPER/CONNECTOR DESCRIPTION...............................................3

QUICK JUMPER SETTINGS..........................................................................4

CHAPTER 2 FEATURES...................................................................... 5

2-1 INTRODUCTION ...................................................................................5

2-2 WINFAST 6200MA PICTURE ..............................................................7

2-3 SPECIFICATIONS..................................................................................8

2-4 PACKAGE CONTENT............................................................................9

CHAPTER 3

HARDWARE INSTALLATION..................................10

3-1 CPU INSTALLATION..........................................................................10

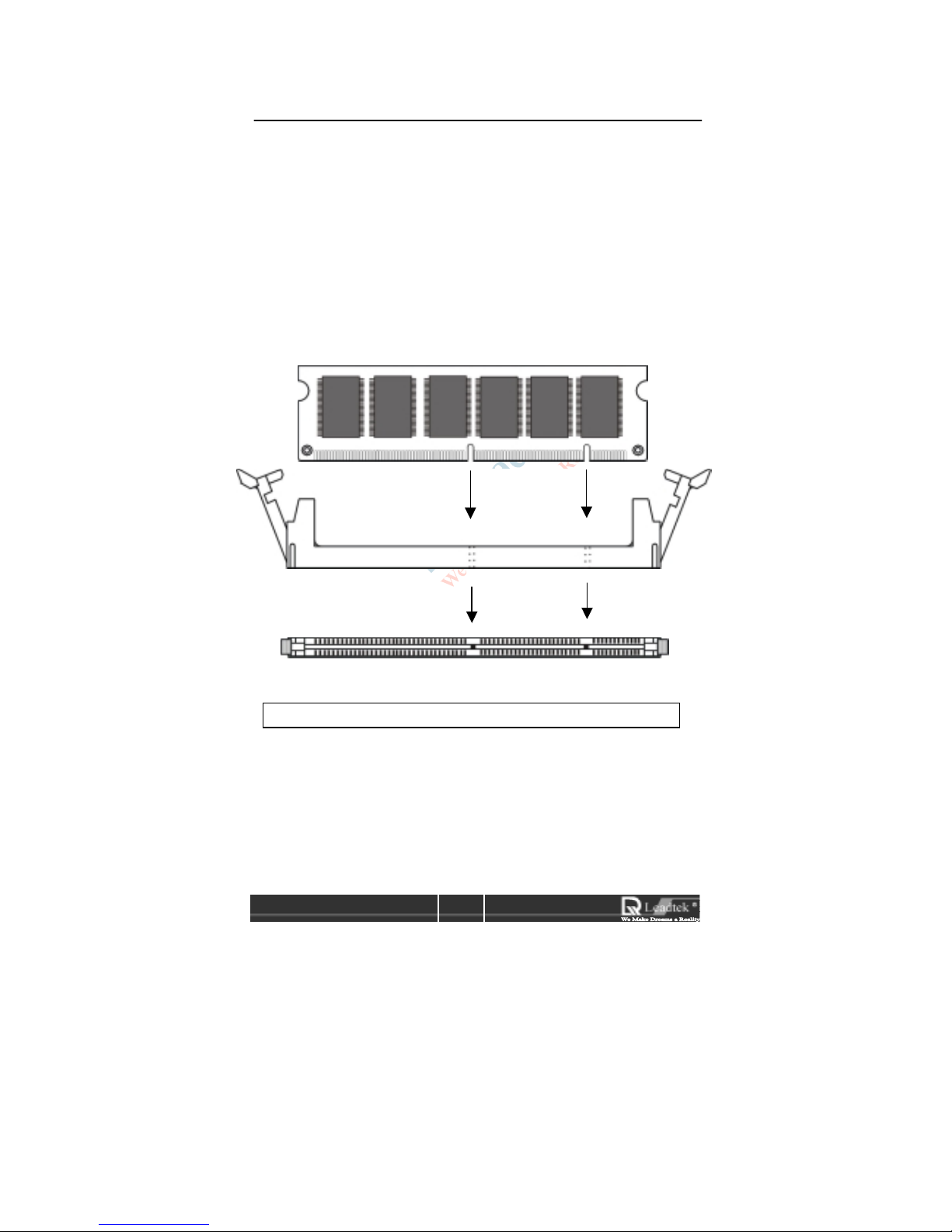

3-2 MEMORY INSTALLATION .................................................................. 12

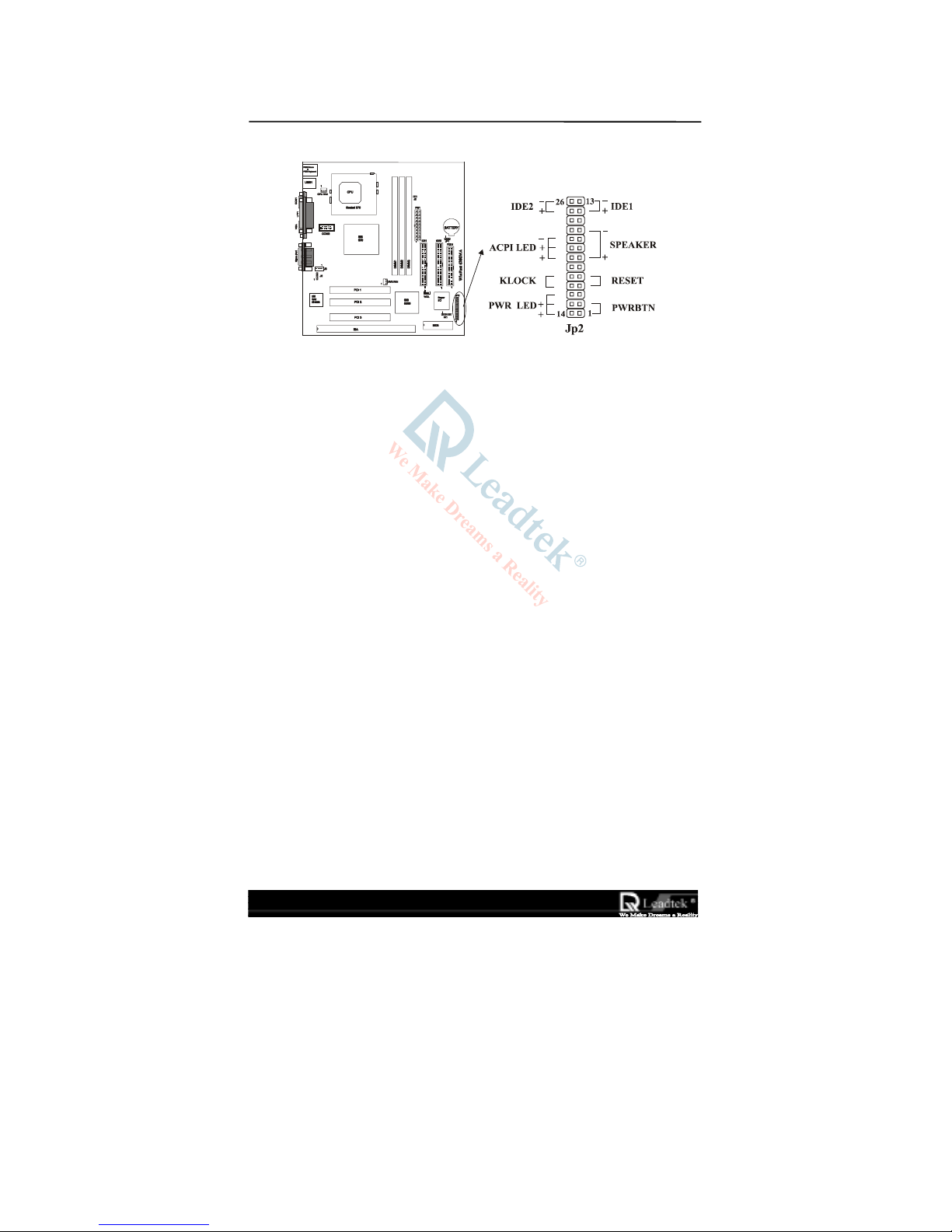

3-3 CASE SIGNAL CONNECTOR: (JP2).....................................................13

3-4 DISK CONNECTOR ...........................................................................14

3-4-1 Hard Disk Connector (IDE1, IDE2).........................................14

3-4-2 Floppy Disk Connector (FDD1)...............................................14

3-5 USB CONNECTOR.............................................................................14

3-6 COOLING FANS (SYSFAN,CPUFAN) ..............................................15

3-7 STEREO AUDIO IN CONNECTORS (J5, J6)..........................................15

3-8 POWER SUPPLY CONNECTOR (PW1).................................................15

3-9 SERIAL , PARALLEL AND VGA PORTS..............................................15

3-10 IRDA-COMPLIANT INFRARED MODULE CONNECTOR (IR1).16

3-11 WAKE –UP ON LAN CONNECTOR (WOL)......................................16

Leadtek Research Inc.

3-12 MIDI/JOYSTICK, MIC, LINE IN, LINE OUT...............................16

3-13 COM2 CONNECTOR........................................................................16

3-14 PS/2 KEYBOARD AN D MOUSE CONNECTOR....................................17

CHAPTER 4 INTRODUCTION OF BIOS.........................................18

4-1 MAIN MENU .....................................................................................19

4-2 STANDARD CMOS SETUP MENU......................................................21

4-3 BIOS FEATURES SETUP MENU.........................................................24

4-4 CHIPSET FEATURES SETUP MENU.....................................................28

4-5 POWER MANAGEMENT SETUP MENU................................................31

4-6 PNP/PCI CONFIGURATION ...............................................................35

4-7 LOAD BASIC DEFAULTS ..................................................................36

4-8 LOAD BEST DEFAULTS ....................................................................36

4-9 INTEGRATED PERIPHERALS...............................................................37

4-10 SUPERVISOR PASSWORD .................................................................39

4-11 USER PASSWORD ............................................................................39

4-12 IDE HDD AUTO DETECTION ..........................................................40

4-13 SAVE & EXIT SETUP .......................................................................41

4-14EXIT WITHOUT SAVING ...................................................................41

CHAPTER 5 VGA/AUDIO DRIVER INSTALLATION..................42

5-1 INSTALLING DISPLAY DRIVER FOR WINDOWS 95/98 ........................ 42

5-1-1 Installation................................................................................42

5-1-2 Display Modes.........................................................................42

5-1-3 Gamma Correction...................................................................43

5-1-4 Video Setting ...........................................................................44

5-1-5 WinFast Information................................................................45

5-2 INSTALLING DISPLAY DRIVER FOR WINDOWS NT 4.0......................45

5-2-1 Install Windows NT 4.0 with the SiS620 onboard................... 45

WinFast® 6200MA User’s Manual

iii

5-2-2 Install Display Driver for Windows NT 4.0.............................45

5-3 INSTALLING AUDIO DRIVER FOR WINDOWS 95/98,WINDOWS NT 4.0........... 46

CHAPTER 6 TECHNICAL INFORMATION...................................47

6-1 POST MESSAGES .............................................................................47

6-2 POST BEEP ......................................................................................47

6-3 ERROR MESSAGES ............................................................................47

6-4 TIME & DMA CHANNELS MAP..................................................50

6-5 INTERRUPT MAP..........................................................................50

APPENDIX A TECHNICAL SUPPORT............................................................51

APPENDIX B DEBUG DIY..................................................................................52

APPENDIX C BIOS FLASH UTILITY..............................................................53

APPENDIX D COPYRIGHT, TRADEMARK, DISCLAIMER NOTES.........54

WinFast® 6200MA User’s Manual

Quick Reference and

nstallation

Chapter 1

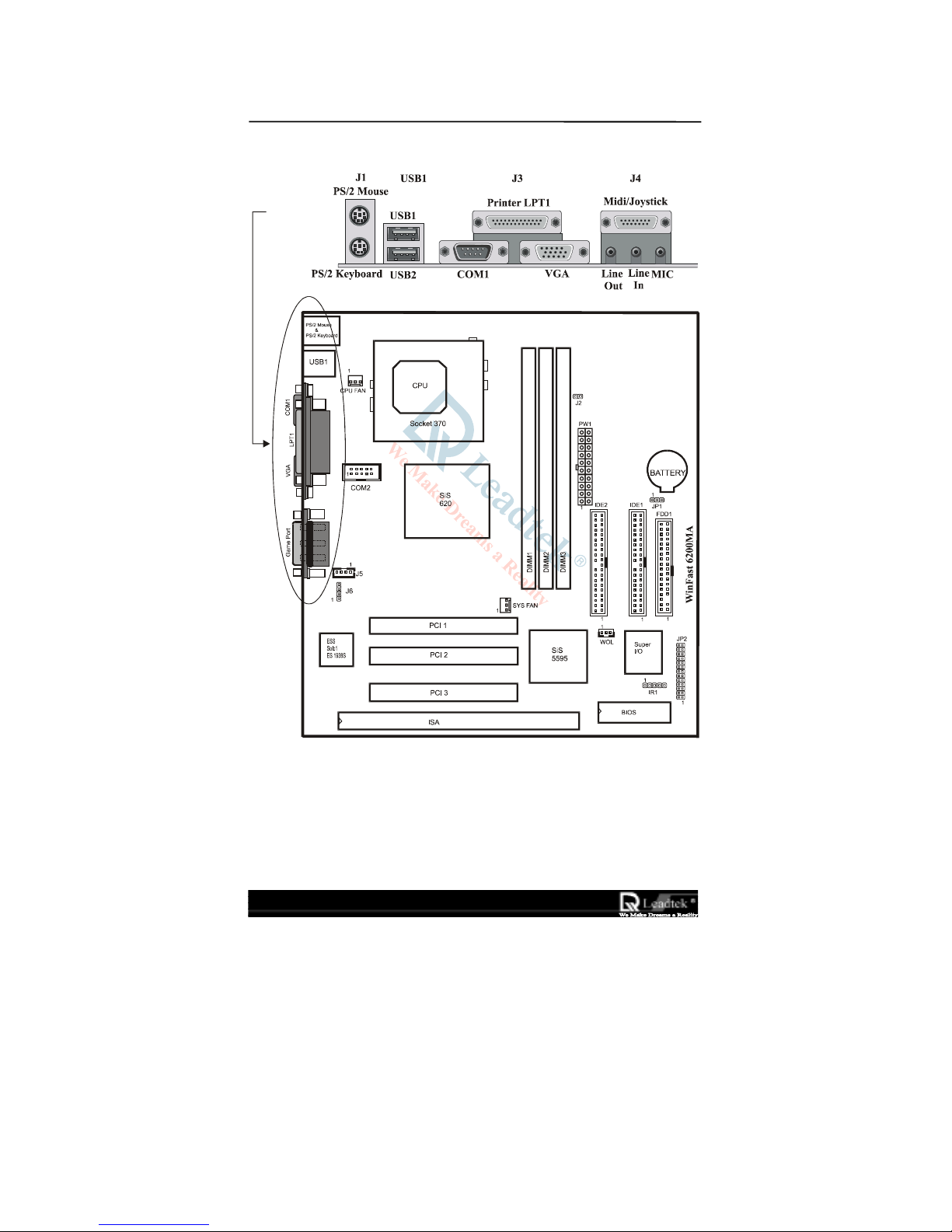

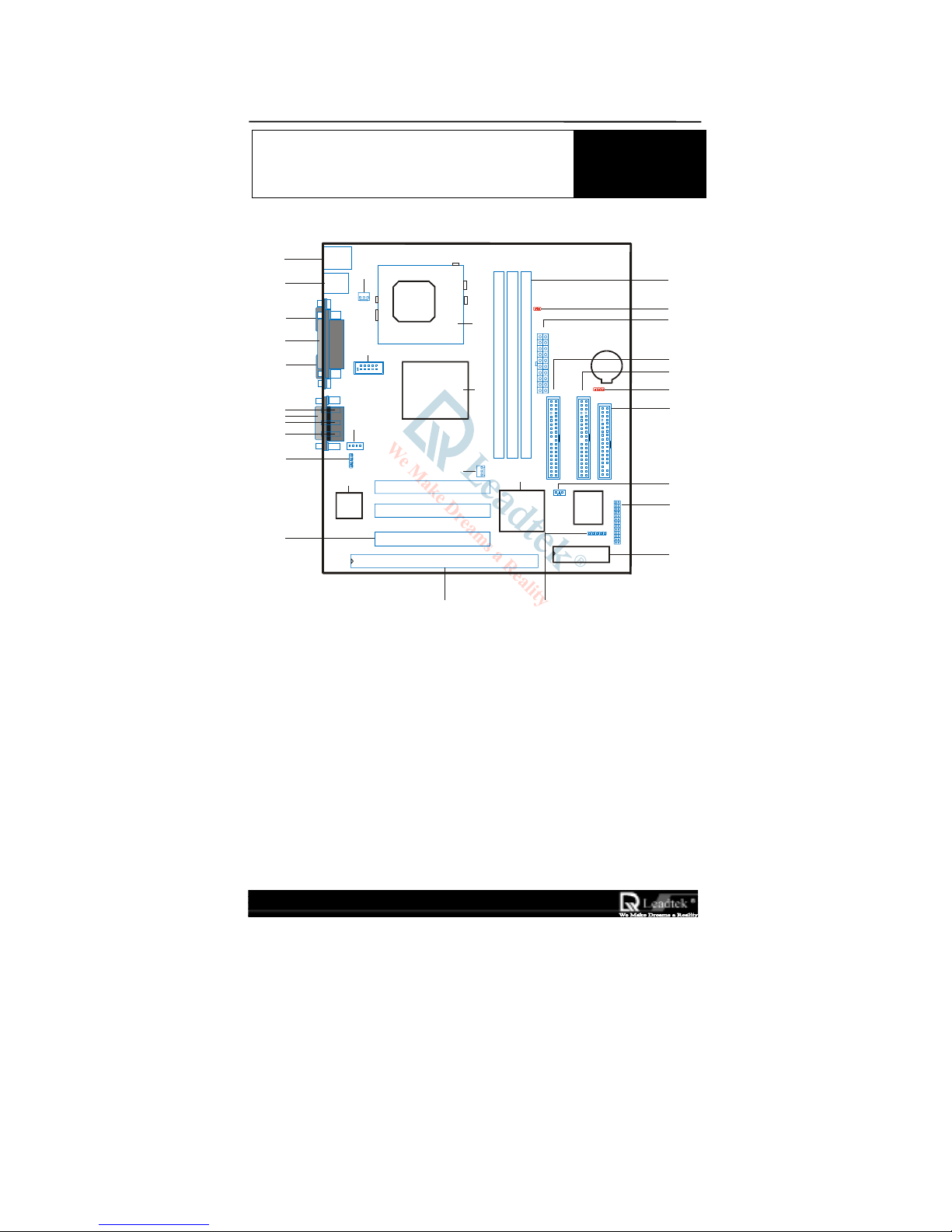

WinFast 6200MA Mainboard Layout

ISA

CPU

CPU FAN

SYS FAN

WOL

IR1

JP2

JP1

FDD1

IDE1

PW1

IDE2

COM1

VGAGame Port

LPT1

USB1

PS/2 Mouse & PS/2 Keyboard

Socket 370

SiS 5595

SiS 620

BATTERY

BIOS

Super I/O

COM2

WinFast 6200MA

DIMM1

PCI 1

ESS Solo1 ES 1938S

PCI 2

PCI 3

DIMM2

DIMM3

1. DIMM Sockets (DIMM1, DIMM2, DIMM3)

2. Enable/Disable Integrated VGA (J2)

3. ATX Power Connector (PW1)

4. Not available

5. Secondary IDE Connector (IDE 2)

6. Primary IDE Connector (IDE 1)

7. Clear CMOS Data jumper (JP1)

8. Floppy Disk Connector (FDD)

9. Wake On Lan Connector (WOL)

10. Case Signal Connectors (JP2)

11. Mainboard BIOS

12. Infrared Connector (IR1)

13. ISA Slot

14. PCI Slots (PCI 1, PCI 2, PCI 3)

15. CD-jack/Panasonic (J6)

16. Microphone Input Port (MIC)

17. Audio Sources Input Port (Line In)

18. Game (Midi/Joystick) Port

19. Audio Output Port (Line Out)

20. VGA Port

21. Printer Port Connector

22. COM1 Connector

23. USB 1, USB 2 Connectors

24. PS/2 Mouse (top), PS/2 Keyboard (bottom)

Connectors

25. CPU Fan Connector (CPUFAN)

26. CPU Socket 370

27. COM2 Connector

28. SiS 620 Chip

29. CD-jack/Sony/IDE (J5)

30. System Fan Connector (SYSFAN)

31. SiS 5595 Chip

32. Ess Solo-1 Audio Chip

Leadtek Research Inc.

Read me first

1. All default jumper settings are based on

Intel Celeron CPU 366 MHz together with SDRAM module that should meet

PC-100 specifications.

2. Always insert the SDRAM card into

DIMM1 slot first and then into DIMM2 or DIMM3.

3. "LOAD BEST DEFAULTS"

in CMOS setup menu loads the system

best default data directly from the flash ROM and initializes the associated hardware properly. This is the default setting for the mainboard.

4. If you experience power on problem with wrong CMOS settings, turn on your computer with INSERT key being pressed, this will force the POST (Power On Self Test) run with default CMOS settings. By this way, you will be able to enter into CMOS setup to correct your settings.

5. There is a basic requirement that the" +5V SB" power of the ATX power supply must be > =

0.2A (200mA) for KBPO (KeyBoard Power On) to operate correctly.

Quick CPU and SDRAM Clock Frequency Selection

In BIOS Setup, the CPU Host/SDRAM Clock item of Chipset Features Setup Menu can set CPU and SDRAM combined clock frequencies. The choices are 133/133, 124/124, 112/112, 100/100, 105/105, 90/90, 95/95, 83/83, 75/75, 66/66, 83/55, 95/63, 66/100, 112/74, 124/82 and Default (66/66).

The BIOS has also been enhanced that it will intelligently judge the CPU Clock Frequency you selected in BIOS Setup. If the selected CPU clock is not acceptable, the system will hang up with black screen after exiting BIOS Setup. When reboot the machine, the following messages will be shown on screen after finishing POST:

“Your previous attempt for setting CPU/SDRAM combined clock has

caused system hanging up. This rebooting has restored the CPU/SDRAM to a 66/66 combination. Please press DEL key to re-enter BIOS SETUP or any other key to accept the default.”

At this point, press “DEL” key to re-enter BIOS Setup to select another CPU/SDRAM combination values or any other key to accept the default.

WinFast® 6200MA User’s Manual

Quick Jumper/Connector Description

Leadtek Research Inc.

Jumper Description

Short for Disabling Internal VGA

JP1

Clear CMOS Data

Connector Description

JP2

PWRBTN, RESET, KEY LOCK, SPEAKER, HDD_LED, POWER_LED, ACPI LED

IR1

IR Connector

CPUFAN

CPU Fan

WOL1

Wake-On-LAN

PS/2 Mouse (top), PS/2 Keyboard (bottom)

USB1

USB1, USB2

Printer, COM1, VGA

Midi/Joystick, Mic In, Line In 1, Line Out 1

SYSFAN

System Fan

Audio Connector 1

Audio Connector 2

IDE 1

Hard Disk (Primary IDE)

IDE 2

Hard Disk (Secondary IDE)

PW1

ATX Power Connector

FDD1

Floppy Disk

COM2

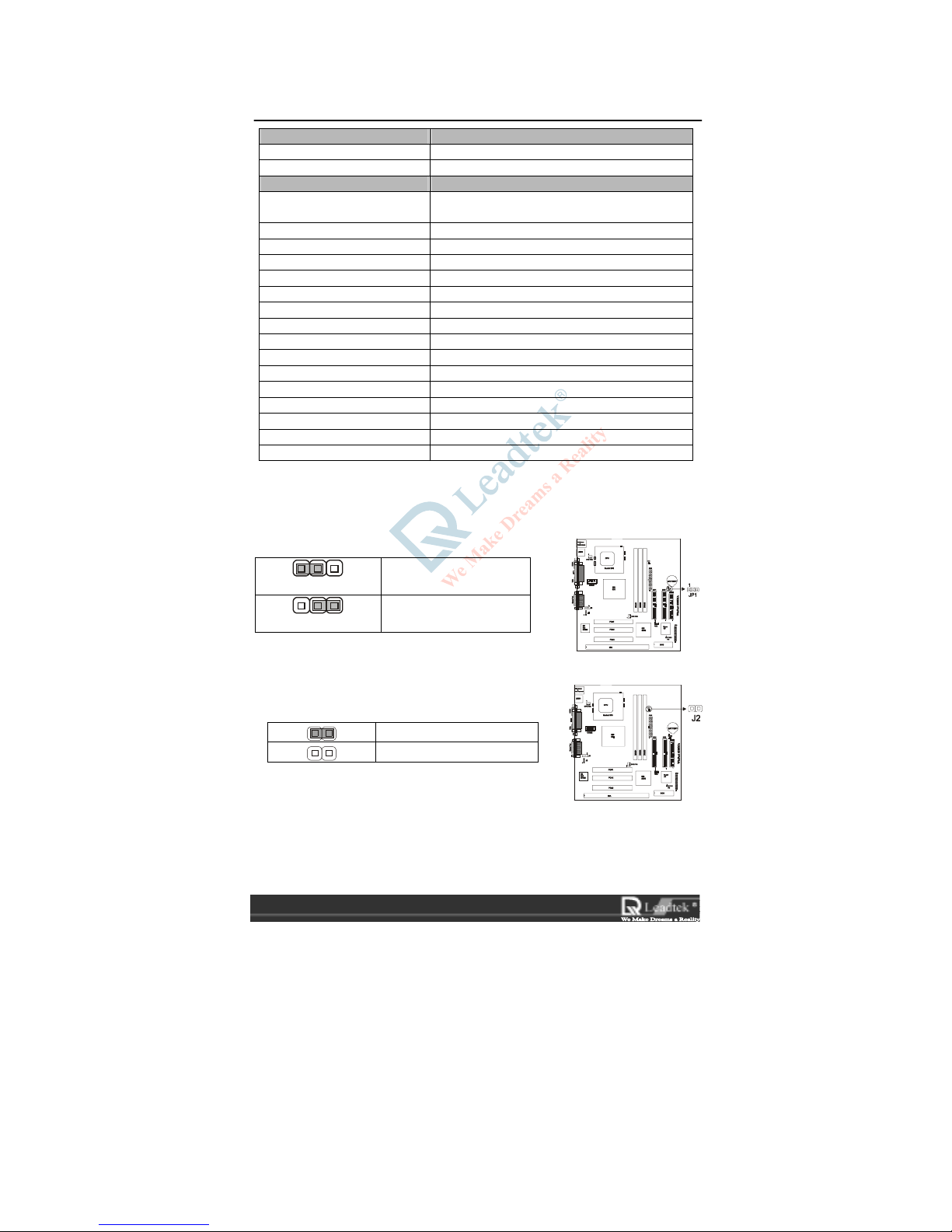

Quick Jumper Settings

JP1: Clear CMOS data

1 2 3

Clear CMOS data

1 2 3

Normal

J2: Disable Internal VGA

Disable Internal VGA

Normal

WinFast® 6200MA User’s Manual

Features Chapter 2

2-1 Introduction

The WinFast 6200MA - a Socket 370 Processor based Micro ATX Mainboard, integrating with onboard ESS Solo1 Audio and Super AGP VGA for Hardware 2D/3D Video/Graphics Accelerators, is a high performance/cost index Desktop solution for Intel Socket 370 Celeron Series and other compatible CPUs.

The mainboard uses the integrated SiS 620/5595 chipset to support the high performance host bus interface, the DRAM controller, the IDE controller, the PCI interface, 2D/3D Graphics accelerator and video playback accelerator.

The built-in fast PCI IDE controller is ATA-3 compliant, supporting PIO mode 0/1/2/3/4, DMA multiword 0/1/2 and Ultra DMA 33/66 operations. The two IDE channels are fully independent with dedicated 16 double-word FIFO built-in.

The DRAM controller supports 3-DIMM/6-Bank of 3.3V SDRAM. The maximum memory size supported per bank is 256MB, with a total of 1.5GB system memory. The memory clock frequency can be operated at up to 100MHz and can be in synchronous or asynchronous modes with respect to host bus frequency. The supported host/DRAM clock schemes include: 133/133、124/124、112/112、 100/100、105/105、90/90、95/95、 83/83、 75/75、 66/66、 83/55、95/63、66/100、 112/74、124/82 and 133/88. For power saving, the SDRAM can be put into suspend mode.

The PCI interface is PCI2.2 compliant and supports up to 3 PCI masters. The built-in PCI arbiter uses rotating priority arbitration scheme with guaranteed minimum access time for PCI masters, providing fair access as well as low latency for each PCI masters. The integrated 2D accelerator is a 64-bit BITBLT graphics engine. It supports all 256 raster operations and DirectDraw. The accelerated primitives include: BLT, Transparent BLT, Color expansion, Clipping, Multiple scanline, Polylines, Patterns, Trapezoid Fills. Up to 8MB of frame buffer can be used with linear addressing.

The integrated 3D graphics accelerator is composed of the triangle setup engine and the rendering engine. The hardware acceleration features can be enabled by SiS driver under Direct 3D and OpenGL. The supported 3D quality acceleration include: Gouroud Shading, Z buffer, Alpha buffer, Perspective Correction, MipMaping, Tri-linear Texture Filtering, Specular Lighting and Dithering.

The integrated graphics accelerator is compatible with AGP1.0 and PCI2.2 configurationWinFast 6200MA provides UMA mode for display memory allocation. In UMA mode, the display memory is shared with system memory.

In UMA mode operation, the integrated graphics accelerator uses up to 8MB of system memory as display memory, thereby saving the on-board DRAM cost for building a PC system. To reduce the performance degradation inherent from the UMA

Leadtek Research Inc.

architecture, SiS620 has inc luded the super- A GP a rchite cture , whic h c onsists of dual 64bits data path. One data path is between VGA and host bus, the other is between VGA and system memory. Both data paths are operating at 100MHz and provide 800MB/s bandwidth. The internal arbitration logic further allows concurrent transactions to take p l ace in different data paths. As a result, the overall system performance can be maintained at a reasonable high level whil e maximum cost-saving is achieved.

The SiS5595 PCI system I/O integrates the PCI-to-ISA bridge, KBC, USB, RTC, SMBUS, ACPI/APM compatible PMU, system e nvironm ent m onitoring f or the rm al, fan, voltage as well as comprehensive PCI audio support including DDMA, TDMA and SB-Link.

WinFast® 6200MA User’s Manual

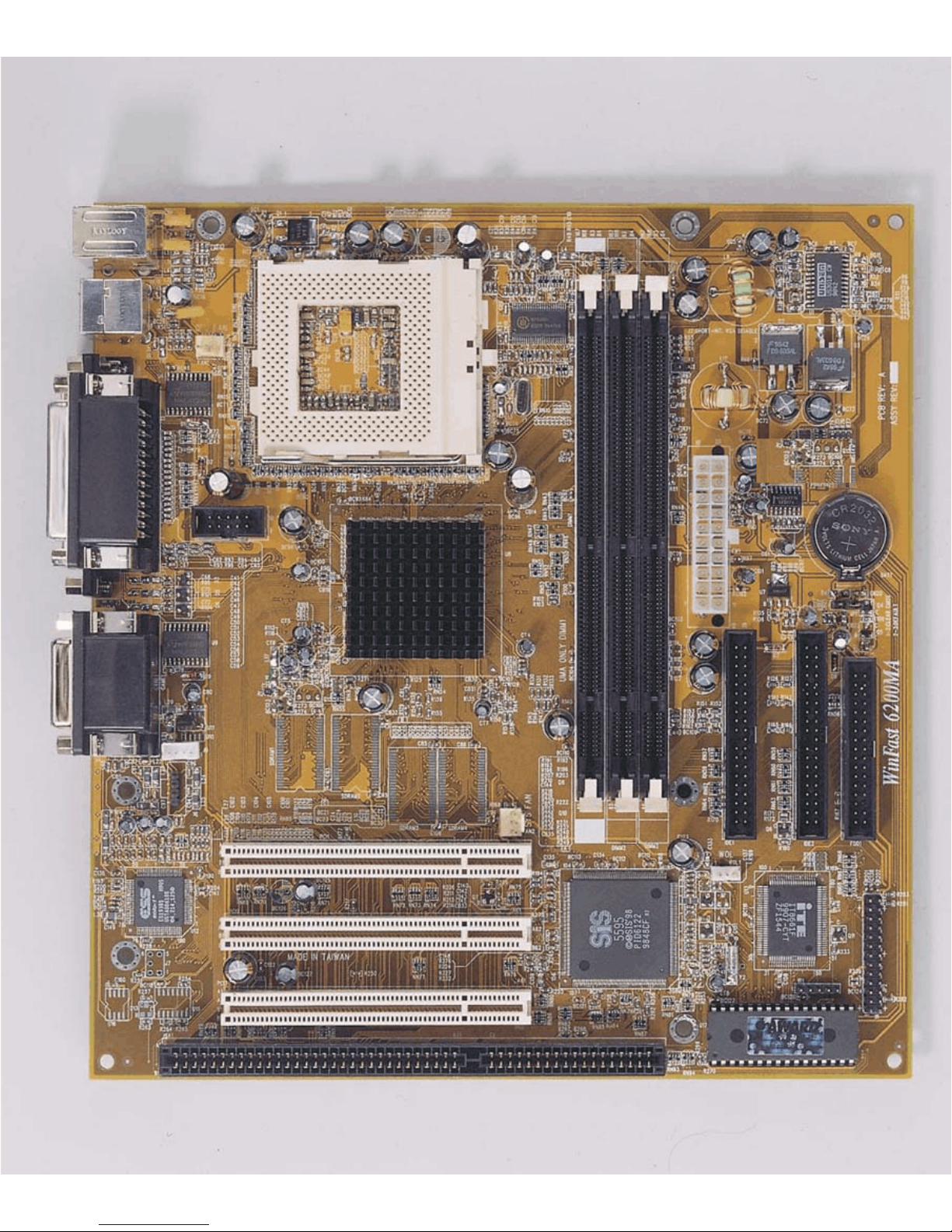

2-2 WinFast 6200MA Picture

Leadtek Research Inc.

2-3 Specifications

CPU Support

 Intel Socket 370 Celeron Series

and other Socket 370 CPUs

System BIOS (2 MB Flash ROM)

 AWARD BIOS, supports PnP,

APM, Multi-Device booting features (Floppy, LS120, CD-ROM, IDE, SCSI, ZIP, ATAPI

)

 ACPI (Advanced Configuration

Power Interface)

 Boot-u

anti-virus support

Main Memory

 Su

ort 3.3V SDRAM

 Support three 3.3V unbuffered

DIMM sockets for max 1.5GB memor

size

Super I/O chip on board

 One Parallel (SPP/ECP/EPP)  Two Serial

(

16650A) compliant

 One flo

ppy

drive connecto

Power-on events

 Keyboard password, WOL

(Wake-on-Lan) network card, Modem rin

on, RTC alar

 Software power-off control for

WIN95

 Ove

-ride power button

Two Ultra DMA-33/66 IDE ports

 Support up to PIO mode 4,

Multi-word DMA mode2 and Ultra DMA33/66 MB/Sec

 Bus master drivers for all well

known OS.

CPU/SDRAM/PCI clock

 Support Synchronous

CPU/SDRAM (system clock) 66/75/83/90/95/100/105/112/124 /133 MHz

Chipset

 SiS 620/5595 chi

sets

Onboard PCI Audio

 Ess Solo-1 (ES1938S) audio chip  CD-quality, 16-bit stereo audio

controller

 Programmabl e independent sample rate

from 4KHz to 48KHz for record and playback

Onboard Super AGP VGA

 Support hardware 2D/3D

Video/Graphics Accelerators

 Shared System Memory Area 2MB,

4MB, 8MB

Expansion slot s

 3 PCI, 1 ISA slot, one PCI/ISA

shared.

Other feature support

 Hardware monitorin

 Two Fan speed monitor input  Fulfills Year 2000 BIOS

com

liance

 Board Size: 244 mm x 230m

WinFast® 6200MA User’s Manual

2-4 Package Content

Accessories

 This Manual  IDE Cable x 1  FDD Cable x 1  COM2 Cab l e x 1

Optional Accessories

 Ultra ATA 66 IDE Cable

WinFast Software Pack CD x 1

 Award BIOS Flash Utility  On Board VGA/Audio Drivers  IDE bus master driver.  Hardware Monitor Utility.  Technical Support Request Form

Leadtek Research Inc.

ardware Installation Chapter 3

Static Precautions

Static-sensitive electrical discharge can damage electronic components. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from static discharge.

Precautions

 Use a grounded wrist strap designed for static discharge.  Touch a grounded metal object before you remove the board from the anti-static

bag.

 Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules, or gold contacts.

 When handling chips or modules, avoid touching their pins.  Put the system board and peripherals back into their anti-static bags when not in

use.

 For grounding purposes, be sure your computer system’s chassis provides

excellent conductive contact between its power supply, case, the mounting fasteners, and the system board.

Unpacking

The system board is shipped in anti-static packaging to avoid static damage. When unpacking the board, be sure the person handling the board is static-protected.

3-1 CPU installation

NOTE: When handling the processor package, avoid placing direct

pressure on the label area of the fan.

Heat Sink

Follow the instructions that came with your processor or heat sink to attach a heat sink to the processor. Make sure that good contact is made between the CPU chip and the heat sink.

Processor

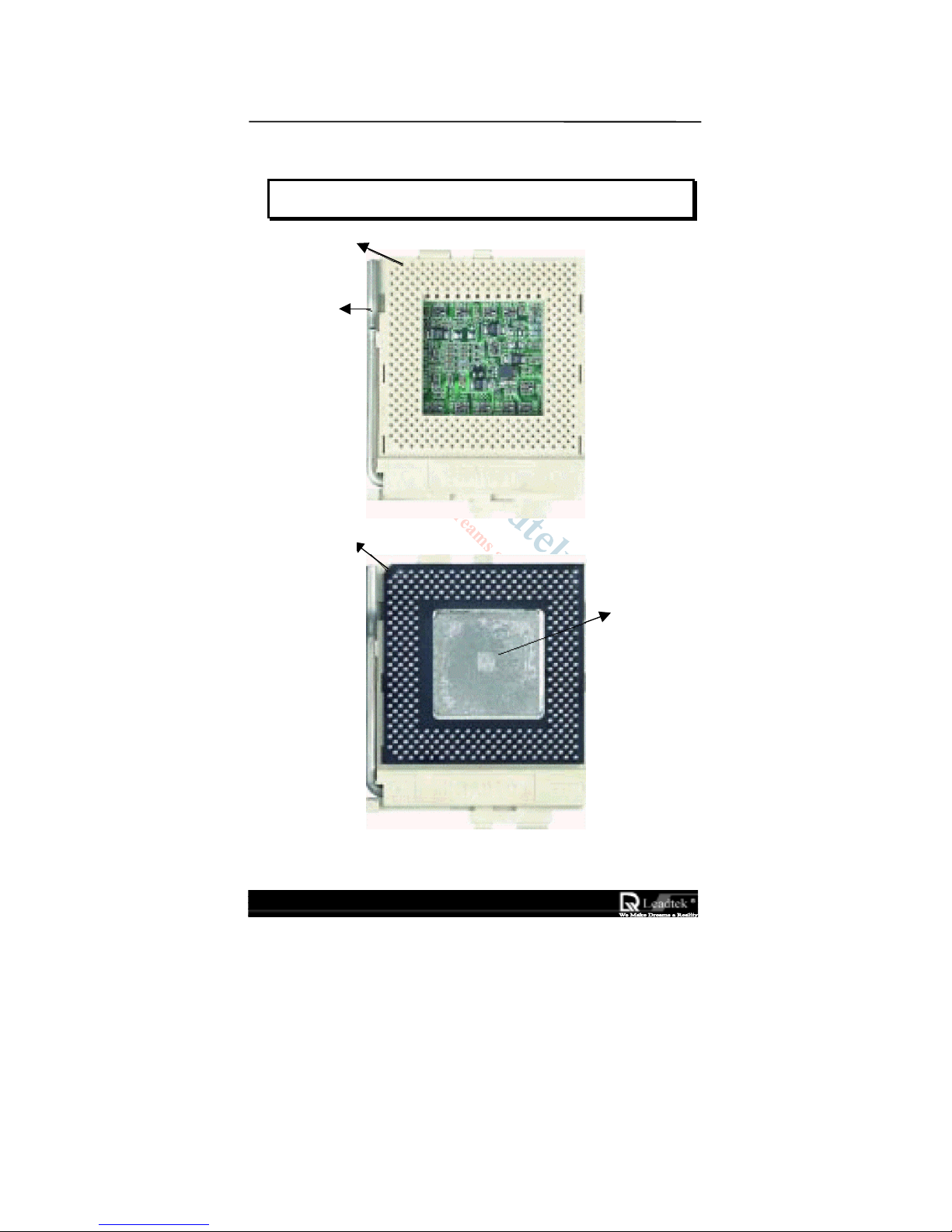

You are now ready to install the processor. Your motherboard has a 370-pin, PPGA type socket, which supports 370-pin (not SEPP type) Celeron processors. Lift the lever on the PPGA socket and install with the notched corner of the processor oriented with pin 1. Fully seat the processor into the socket and then close the lever. See Figure on next page for views of the PPGA 370-pin socket before and after processor installation.

You should install the processor to the motherboard first, then install the motherboard in the chassis, then the memory and add-on cards, and finally the

WinFast® 6200MA User’s Manual

cables and drivers. Following the installation proce du re s in the order they appear in this chapter should eliminate the most common problems encountered when installing a system.

NOTE: Always connect the power cord last and always remove it

before adding, removing or changing any har dware compo nents.

Pin 1

Leve

Notched

Corner

Processor

(installed)

Leadtek Research Inc.

3-2 Memory Installation

1. The mainboard provides three 168-Pin DIMM (Double In-Line Memory Module)

sockets. It supports a maximum of 1.5 GB memory. You can use SDRAM from 8MB, 16MB, 32MB, 64MB, 128MB, 256MB to 512MB per DIMM.

2. IF you use 100Mhz CPU Bus/SDRAM bus synchronous frequency , you must use the

qualify SDRAM which meets PC-100 Specifications.

The procedures:

1. Checking: The DIMM slot has two keys marked ”VOLT and DRAM” Thus, the

DIMM memory module can only fit in one direction.

2. Insert the DIMM memory modul e ver tically into the DIMM socket then push it in.

3. The Plastic clip at the side of the DIMM socket will automatically close.

Note: Use only 3.3V unbuffered DIMM

WinFast® 6200MA User’s Manual

3-3 Case Signal Connector: (JP2)

Pins [1 & 2] Power Button – Allows to connect to a push button on system’s case. Pins [4 & 5] Reset switch lead - Connects to the Reset Switch lead from the system’s case. The

reset switch is used t o “cold-b oot” the system wi thou t actually tu rnin g off the power, redu cing wear and tear on the power supply. Avoid rebooting the system when the HDD LED is blinking

Pins [7-10] Speaker connector - Connects to the Speaker lead from th e system’s case. Pins [12 & 13] and [25 & 26] Hard Drive LED – Pins 12 & 1 3 f or IDE1 and pins 25 & 26 f or

IDE2. Hard Disk LED shows the activity of hard disk drive.

Pins [14-16] Power Led – The power Led is always light while the system power is on. Pins [17 & 18] K eyb oard lock switch lead - Pins 17 & 18 connect to the case-mounted keylock

switch. Keylock allows you to disable the keyboard function for security purpose. Pins [20-22] ACPI Led – Pin 20 to 22 for ACPI LED when ACPI is enabled.

Leadtek Research Inc.

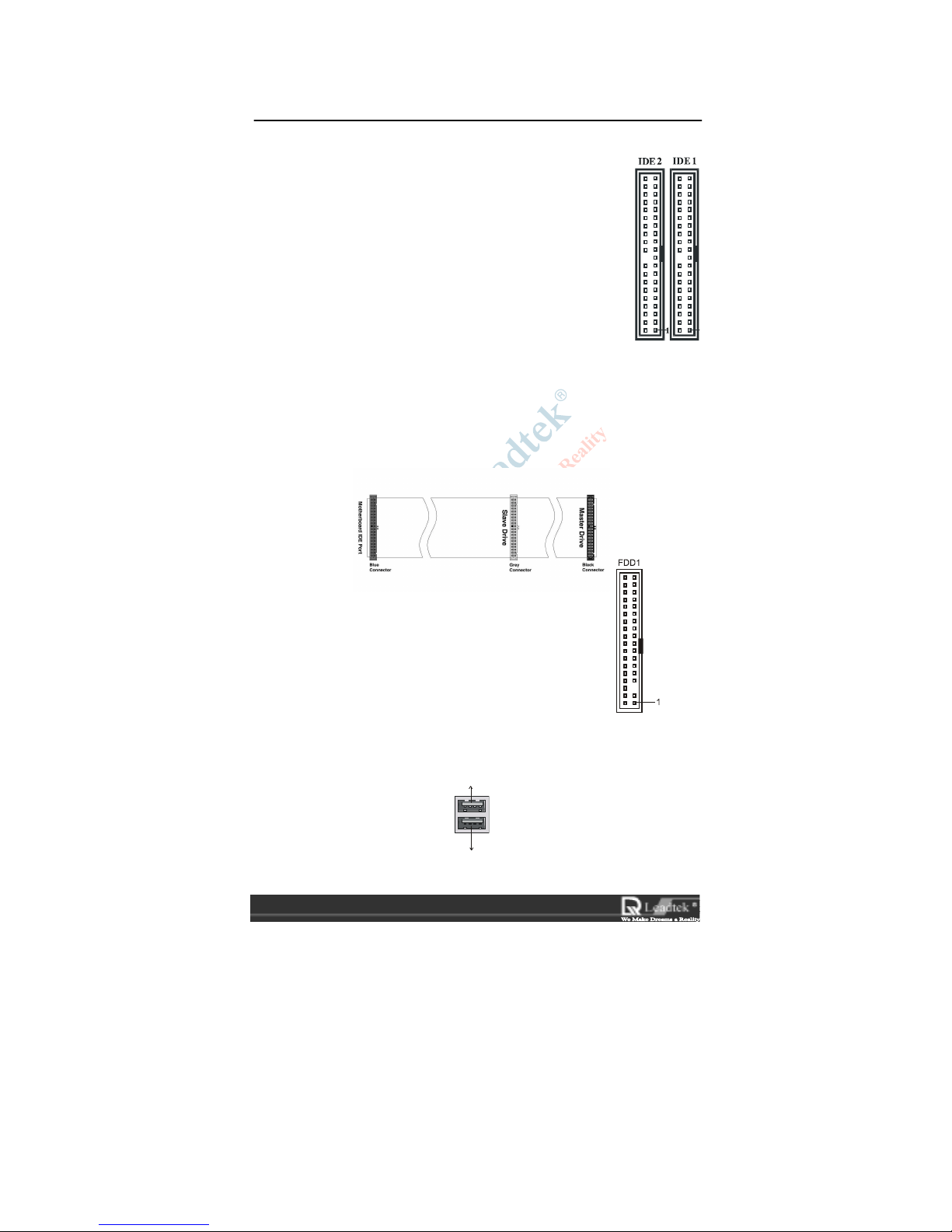

3-4 DISK Connector

3-4-1 Hard Disk Connector (IDE1, IDE2)

The on-board Enhanced IDE controller can support up to (4) IDE hard drives or other ATAPI devices, such as CD-ROMs. This controller, as with all Enhanced IDE controllers, consists of both Primary (IDE 1) and Secondary (IDE 2) ports. Each port has an associated connector and cable, which can support up to (2) ATAPI devices each. All IDE devices have jumpers, which allow the user to configure the device as either “Master” or “Slave”. A Master device is one that is ALONE on the IDE cable, whereas a Slave device is installed as a SECOND device on the same cable. Keep in mind that the Master device will appear before the Slave device in the CMOS Setup, as well as the Operating System software. *Refer to the device documentation for jumper settings. The Secondary IDE port can be used for up to (2) additional ATAPI devices.

ormally it’s recommended that you connect your first hard drive to the Primary port, and the first CD-ROM to the Secondary. Make sure to align the RED stripe on the ribbon cable with Pin-1 on the mainboard IDE connector. On most hard drives and CD-ROMs, the RED stripe should be oriented towards the power connector of the device. When using Ultra ATA 66 IDE cable, both Master and Slave drive should be Ultra ATA 66 drive. Do not connect CDROM to Ultra ATA 66 IDE cable, this will reduce the efficiency. The black color connector on the cable is for Master drive , grey color connector is for Slave drive and blue color connector is fo

connecting to IDE port onboard. Uitra ATA66 Cable:

3-4-2 Floppy Disk Connector (FDD1)

The on-board floppy controller supports (2) floppy disk drives. Make sure the RED stripe on the ribbon cable is oriented towards Pin-1. Notice the “twist” between the sets of connectors on the floppy cable. The floppy drive “A” position is at the END of the cable, whereas floppy drive “B” is hooked to one of the connectors on the other side of the twist.

3-5 USB Connector

This 8-pin connector permits connection of two USB peripheral devices directly to the system without an external hub.

USB

USB2

WinFast® 6200MA User’s Manual

3-6 Cooling Fans (SYSFAN,CPUFAN)

SYSFAN,CPUFAN are small 3-pin Header Connectors that provide 12-Volt power fo

CPU and System cooling fans. Plug in the fa

cable to the connector.

3-7 Stereo Audio In Connectors (J5, J6)

J5, J6 allows you to receive stereo audio inpu

from an internal CDROM drive or othe

auxiliary audio source.

3-8 Power Supply Connector (PW1)

This mainboard features a

ATX-style Power Suppl

Connector. This connector is keyed to prevent connection i

the wrong direct ion. Line up the locking mechanism on the connector from the Power Suppl

with the tab on the mainboard connector. Press down until the two connectors are locked.

3-9 Serial , Parallel and VGA Ports

A 25-pin D-Sub header is provided on the back panel for a multi-mode bi-directional parallel port. One 9-pin D-Sub headers is provided on the back panel for Serial port COM1. One VGA port is also provided.

Leadtek Research Inc.

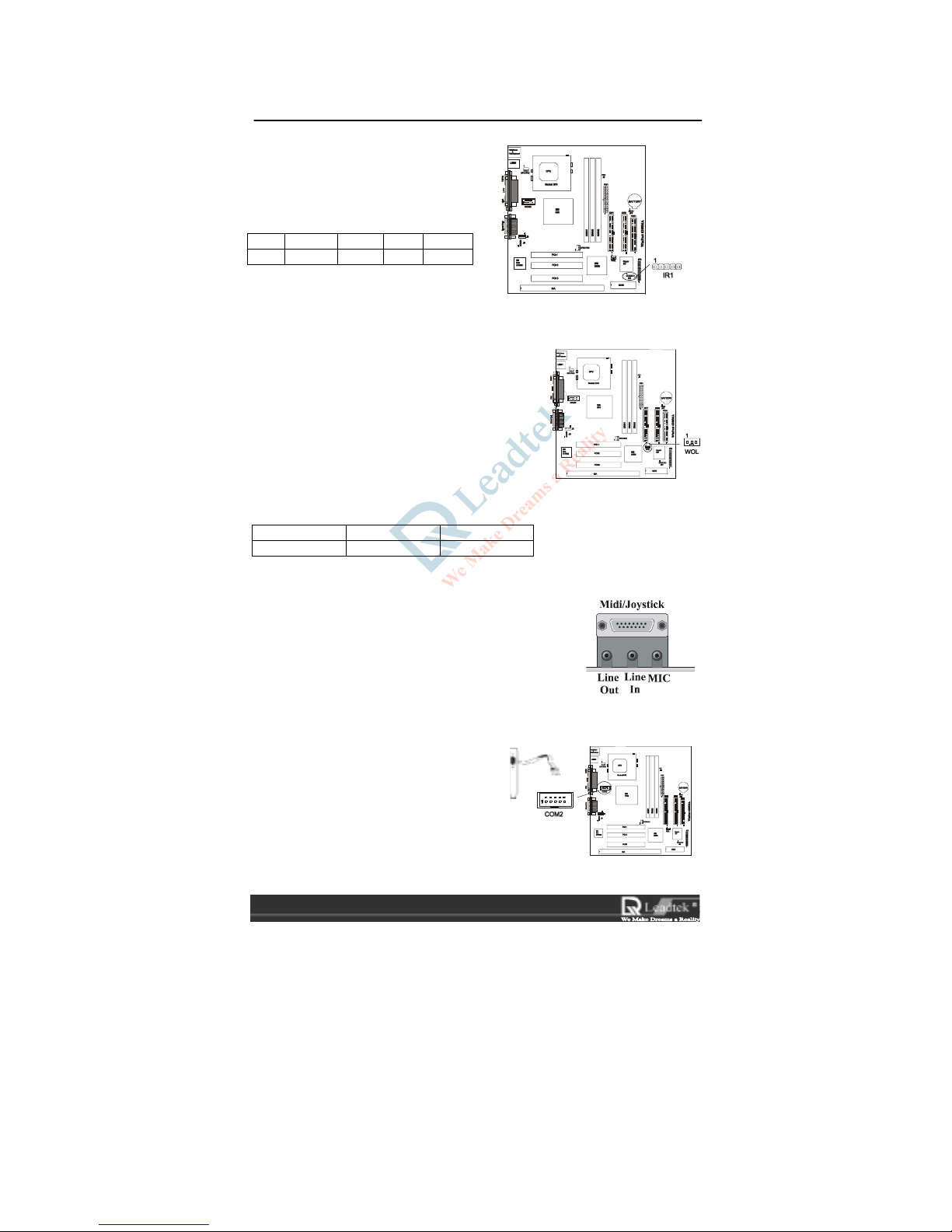

3-10 IrDA-Compliant Infrared Module Connector (IR1)

The IrDA conn ect or brack et h ook s direct ly to this connector on the mainboard. This connector provides support for the optiona

wireless transmitting and receiving infrare

module.

1 2 3 4 5

+5V IRRXF IRRX GND IRTX

3-11 Wake –up On LAN Connector (WOL)

The Wake-up On LAN function will allow the network to wake up a S oft P ow er D ow n (Sof t-Of f) PC. How eve r, if y o ur system is in the Suspend mode, you can wake-up the system only through an IRQ or DMA interrupt. To us e the Wake-up On LAN function, you must enable th e “Ring Power Up Control” fiel d in t he P ow er Manag e me nt Se tup o f the A w a rd BIOS. Connect the cable that comes with your LAN card to location WOL on the system board. Refer to the add-i

card’s manual for details. Note: Your LAN card mus

support Magic Packet in order to use the Wake-up-On-LAN function.

1 2 3

+5VSB GND RING

3-12 Midi/Joystick, MIC, Line In, Line Out

Midi/Joystick: Allow you to connect game joystick or game pad fo

playing games or connect Midi devices for playing or editing audio. Mic: allows microphones to be connected for inputting voice. Line In: allows tape players or other audio sources to be recorde

by your computer or played through the Line Out. Line Out: can be connected to headphones or speakers wit

amplifier.

3-13 COM2 Connector

This connector is located on board for serial port COM2.

WinFast® 6200MA User’s Manual

3-14 PS/2 Keyboard and Mouse Connector

These two connec tors are loca ted on the bac

panel of the mainboard.

PS/2 Mouse PS/2 Keyboar

Leadtek Research Inc.

ntroduction of BIOS Chapter 4

The Mainboard BIOS (Basic Input/Output System) acts as the bridge between your Hardware (CPU, Disk Drives, Video, etc.) and Operating System Software (Windows 95, OS/2 and so on…) The BIOS Setup (also called CMOS Setup) is where many hardware configuration options are set and stored. This configuration information will remain in the BIOS until it is changed, or cleared by removing the battery for a while then reinstalling it back. CMOS (Complementary Metal Oxide Semiconductor) refers to the chip in which the BIOS information is stored.

This mainboard also features a “Flash” BIOS. A Flash BIOS can be upgraded via software, thereby eliminating the need to actually replace the “BIOS Chip” on the mainboard. The Award BIOS installed in your computer system’s ROM (Read Only Memory) is a custom version of an industry standard BIOS.

This chapter describes the AwardBIOS Setup program. The Setup program lets you modify basic system configuration settings. The settings are then stored in a dedicated battery-backed memory, called CMOS RAM that retains the information when the power is turned off.

The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

The AwardBIOS is immediately activated when you first turn on the computer. The BIOS reads system configuration information in CMOS RAM and begins the process of checking out the system and configuring it through the power-on self test (POST).

When threes preliminaries are finished, the BIOS seeks an operating system on one of the data storage devices (hard drive, floppy disk, etc.). The BIOS launches the operating system and hands control of system operations to it.

During POST, you can start the Setup program in one of two ways:

1. By pressing Del immediately after switching the system on, or

2. By pressing Del or by pressing Ctrl-Alt-Esc when the following message appears briefly at the bottom of the screen during POST:

TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR DEL KEY

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or by pressing the RESET button on the system case. You may also restart by simultaneously pressing Ctrl-Alt-Del. If you do not press the keys at the correct time and the system does not boot, an error message appears and you are again asked to

PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the AwardBIOS supports an override to CMOS settings that resets your system to its default configuration.

WinFast® 6200MA User’s Manual

The best advice is to alter only settings that you thoroughly understand. In particular, do not change settings in the Chipset screen without a good reason. Leadtek has carefully chosen the Chipset defaults for the best performance and reliability. Even a seemingly small change to the Chipset setup may causing the system to become unstable.

4-1 Main Menu

When you enter the AwardBIOS CMOS Setup Utility, a Main Menu appears on the screen. The Main Menu a llows you to sele ct from se veral Setup f unctions and tw o exit choices. Use the arrow keys to select among the it ems and press Enter to accept and enter the submenu.

ROM PCI/ISA BIOS (2A6INLB9)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD BASIC DEFAULTS LOAD BEST DEFAULTS

INTEGRATED PERIPHERALS SUPERVISER PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc : Quit ↑↓→

↑↓→↑↓→

↑↓→ ←←←← : Select Item

F10 : Save & Exit Setup <Shift>F2 : Change Color

Leadtek Research Inc.

Standard CMOS Se tup

This setup page includes all the items in

standard AT-compatible BIOS. See Standard CMOS Setup section for details.

BIOS Features Setup

This setup page includes all the items of Award speci al enhan ced f eatu res. See BIOS Features Setup Section for details.

Chipset Features Setup

This setup page includes all the items o

chipset special features. See Chipse

Features Setup Section for details.

Power Management Setup

This entry only appears if your system supports Power Management “Green PC” standards. See Power Management Section for setup details.

PNP / PC I Configuration Setup

This entry appears if your system supports PNP / PCI. See PNP / PCI Configuratio

Section for details.

Load BASIC Defaults

The BASIC defaults hav e been set to provide the minimum req uirements for your system to operate. Unless your system has car

compatibility issues we suggest you to use Load BASIC Defaults.

Load BEST Defaults

The Load BEST Defaults are settings tha

rovide the better system performance. This is Default setting from Leadtek. If the CMOS data is corrupt or the checksum o

CMOS data is no t co rre ct, t hes e de faul ts w ill be loaded.

Integrated Peripherals

This page includes all t h e it ems of IDE hard drive, onboard SCSI device and Programme

Input / Output features. See Integrated Peripherals Section.

Supervisor Password

A supervisor password is used to protect the stored CMOS opti ons from being ch ange

by unauthorized users.

User Password

User Passw ord w ill requir e all user s to enter a

assword in order to use the system, and/or enter the BIOS setup (but can ’t change its contents).

IDE HDD Auto Detection

The Award BIOS includes this ability in the event of your being uncertain of your har

disk’s parameters. See Section “Standar

CMOS Setup”.

Save & Exit Setup

Save CMOS value chan ges to CMOS RAM and exit setup.

Exit Without Saving

Abandon all CMOS valu e changes and exi

setup.

WinFast® 6200MA User’s Manual

4-2 Standard CMOS Setup Menu

ROM PCI/ISA BIOS (

2A6INLB9))))

STANDARD

STANDARD STANDARD

STANDARD CMOS SETUP

CMOS SETUPCMOS SETUP

CMOS SETUP

AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC. AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC.

Date

Date Date

Date (mm:dd:yy) :

(mm:dd:yy) : (mm:dd:yy) :

(mm:dd:yy) : Fri

FriFri

Fri, Jan

, Jan , Jan

, Jan 1

1 1

1 199

199 199

1999999

Time

TimeTime

Time (hh:mm:ss) :

(hh:mm:ss) : (hh:mm:ss) :

(hh:mm:ss) : 00

0000

00 :

: :

: 00

0000

00 :

: :

: 00000000

HARD DISK

HARD DISKHARD DISK

HARD DISKSSSS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

-----------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------

Primary Master :

Primary Master : Primary Master :

Primary Master : AUTO

AUTOAUTO

AUTO 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 AUTO

AUTOAUTO

AUTO

Primary Slave :

Primary Slave : Primary Slave :

Primary Slave : AUTO

AUTOAUTO

AUTO 0 0 0

0 0 0 0 0 0

0 0 0 AUTO

AUTOAUTO

AUTO

Secondary Master :

Secondary Master : Secondary Master :

Secondary Master : AUTO

AUTOAUTO

AUTO 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 AUTO

AUTOAUTO

AUTO

Secondary Slave :

Secondary Slave : Secondary Slave :

Secondary Slave : AUTO

AUTOAUTO

AUTO 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 AUTO

AUTOAUTO

AUTO

Drive A

Drive ADrive A

Drive A :

: :

: 1.44M, 3.5 in.

1.44M, 3.5 in.1.44M, 3.5 in.

1.44M, 3.5 in.

Drive B

Drive BDrive B

Drive B : None

: None : None

: None

Video

Video Video

Video : EGA/VGA

: EGA/VGA : EGA/VGA

: EGA/VGA

Halt On

Halt OnHalt On

Halt On :

: :

: All

AllAll

All, But Keyboard

, But Keyboard, But Keyboard

, But Keyboard

Base Memory: 640K

Base Memory: 640K Base Memory: 640K

Base Memory: 640K Extended Memory: 130048K

Extended Memory: 130048K Extended Memory: 130048K

Extended Memory: 130048K Other Memory: 384K

Other Memory: 384K Other Memory: 384K

Other Memory: 384K

-------------------------

--------------------------------------------------

-------------------------

Total Memory

Total MemoryTotal Memory

Total Memory: 131072K

: 131072K: 131072K

: 131072K

ESC : Quit

ESC : Quit ESC : Quit

ESC : Quit ↑↓

↑↓↑↓

↑↓ ←←←← →→→→ : Select Item PU/PD/+/

: Select Item PU/PD/+/ : Select Item PU/PD/+/

: Select Item PU/PD/+/---- : Modify

: Modify : Modify

: Modify

F1 : Help

F1 : Help F1 : Help

F1 : Help (Shift)F2 : Change Color

(Shift)F2 : Change Color (Shift)F2 : Change Color

(Shift)F2 : Change Color

Date

The BIOS determines the day of the week from the other date information. This field is for information only.

Time

The time format is <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Primary Master/Primary Slave/Secondary Master/Secondary Slave Hard Disk

The BIOS supports up to four IDE drives. This section does not show information about other IDE devices, such as a CD-ROM drive, or about other hard drive types, such as SCSI drives.

NOTE: We recommend that you select type AUTO for all drives.

The BIOS can automatically detect the specifications and optimal operating mode of almost all IDE drives. When you select type AUTO for a hard drive, the BIOS detects its specifications during POST, every time the system boots.

If you do not want to select drive type AUTO, other methods of selecting the drive type are available:

1. Match the specifications of your installed IDE hard drive(s) with the programmed values for types 1 through 45.

2. Select type USER and enter values into each drive parameter field.

3. Use the IDE HDD AUTO DETECTION function in Setup.

Here is a brief explanation of drive specifications:

Leadtek Research Inc.

• Type: The BIOS contains a table of pre-defined drive types. Each defined drive type has a specified number of cylinders, number of heads, write precompensation factor, landing zone, and number of sectors. Drives whose specifications do not accommodate any pre-defined type are classified as type USER.

• Size: Disk drive capacity (approximate). Note that this size is usually slightly greater than the size of a formatted disk given by a disk-checking program.

• Cyls: Number of cylinders.

• Head: Number of heads

• Precomp: Write precompensation cylinder

• Landz: Landing zone

• Sector: Number of sectors

• Mode: Auto, Normal, Large, or LBA

o Auto: The BIOS automatically determines the optimal mode. o Normal: Maximum number of cylinders, heads and sectors supported are

1024, 16 and 63.

o La rge: For drives that do not support LBA and have more than 1024

cylinders.

o LBA (Logical Block Addressing): During drive accesses, the IDE

controller transforms the data address described by sector, head and cylinder number into a physical block address, significantly improving data transfer rates. For drives with greater than 1024 cylinders.

Drive A /Drive B

Select the correct specifications for the diskette drive(s) installed in your computer: The choice: N one , 36 0K (5.2 5 in) , 1. 2M ( 5. 25 i n), 720K ( 3.5 in) , 1 .4 4M ( 3.5 in), 2.8 8M ( 3. 5 in) .

Video

Select the type of primary video subsystem in your computer. The BIOS usually detects the correct video type automatically. The BIO S also supports a secondary video s ubs ystem, but yo u can not select it in Setup. The choice: CGA40, CGA80, MONO, EGA/ VGA.

Halt On

During the power-on self test (POST), the computer stops if the BIOS detects a hardware error. You can tell the BIOS to ignore certain errors during POST and continue the boot-up process. The followings are the selections:

All, But Keyboard POST does not stop for a keyboard error, but stops for all other errors. All, But Diskette POST does not stop for diskette drive errors, but st op for all othe

errors.

All, But Disk/Key POST does not stop for a keyboard or disk error, but stops for all othe

errors.

All errors If the BIOS detects any non-fatal error, POST stops and prompts you

to take corrective action.

o errors POST does not stop for any error.

Memory

You can not change an y values in the Mem ory fields, they are only for you r informa tion, The fields show the total installed random access memory (RAM) and amounts allocated to base

WinFast® 6200MA User’s Manual

memory, extended memory, and other (high) memory.

RAM is the computer’s working memory, where the computer stores programs and data currently being used, so they are accessible to CPU.

• Base Memory: Typically 640 KB. Also called conventional memory. The DOS

operating system and conventional applications use this area.

• Extende d Memory: Above the 1-MB boundary.

• Other Memory: Between 640 KB and 1 MB, often called High memory.

Leadtek Research Inc.

4-3 BIOS Features Setup Menu

ROM PCI/ISA BIOS (2A6

ROM PCI/ISA BIOS (2A6 ROM PCI/ISA BIOS (2A6

ROM PCI/ISA BIOS (2A6KLLB9

KLLB9KLLB9

KLLB9))))

BIOS FEATURES

BIOS FEATURES BIOS FEATURES

BIOS FEATURES SETUP

SETUPSETUP

SETUP

AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC. AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC.

Video BIOS Shadow :

Video BIOS Shadow : Video BIOS Shadow :

Video BIOS Shadow : En

EnEn

Enabled

abledabled

abled

C8000

C8000C8000

C8000----CBFFF Shadow : Disabled

CBFFF Shadow : DisabledCBFFF Shadow : Disabled

CBFFF Shadow : Disabled

CC000

CC000CC000

CC000----CFFFF Shadow : Disabled

CFFFF Shadow : DisabledCFFFF Shadow : Disabled

CFFFF Shadow : Disabled

D0000

D0000D0000

D0000----D3FFF Shadow : Disabled

D3FFF Shadow : DisabledD3FFF Shadow : Disabled

D3FFF Shadow : Disabled

D4000

D4000D4000

D4000----D7FFF Shadow : Disabled

D7FFF Shadow : DisabledD7FFF Shadow : Disabled

D7FFF Shadow : Disabled

D8000

D8000D8000

D8000----DBFFF Shadow

DBFFF ShadowDBFFF Shadow

DBFFF Shadow : Disabled

: Disabled : Disabled

: Disabled

DC000

DC000DC000

DC000----DFFFF Shadow : Disabled

DFFFF Shadow : DisabledDFFFF Shadow : Disabled

DFFFF Shadow : Disabled

Anti

AntiAnti

Anti----Virus

Virus Virus

Virus Protection

ProtectionProtection

Protection :

: :

: Dis

DisDis

Disabled

abledabled

abled

CPU Internal Cache

CPU Internal Cache CPU Internal Cache

CPU Internal Cache

: :

: En

EnEn

Enabled

abledabled

abled

External Cache

External Cache External Cache

External Cache :

: :

: En

EnEn

Enabled

abledabled

abled

CPU L2 Cache ECC Checking : Enabled

CPU L2 Cache ECC Checking : EnabledCPU L2 Cache ECC Checking : Enabled

CPU L2 Cache ECC Checking : Enabled Quick Power On Self Test : Disabled

Quick Power On Self Test : DisabledQuick Power On Self Test : Disabled

Quick Power On Self Test : Disabled Boot Sequence : A,C,SCSI

Boot Sequence : A,C,SCSIBoot Sequence : A,C,SCSI

Boot Sequence : A,C,SCSI Swap Floppy Drive : Disabled

Swap Floppy Drive : DisabledSwap Floppy Drive : Disabled

Swap Floppy Drive : Disabled Boot Up Floppy See

Boot Up Floppy SeeBoot Up Floppy See

Boot Up Floppy Seek :

k : k :

k : Dis

DisDis

Disabled

abledabled

abled

Boot Up NumLock Status

Boot Up NumLock Status Boot Up NumLock Status

Boot Up NumLock Status :

: :

: Off

OffOff

Off

Memory Parity Check : Disabled

Memory Parity Check : DisabledMemory Parity Check : Disabled

Memory Parity Check : Disabled Typematic Rate Setting : Disabled

Typematic Rate Setting : DisabledTypematic Rate Setting : Disabled

Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec): 6

Typematic Rate (Chars/Sec): 6Typematic Rate (Chars/Sec): 6

Typematic Rate (Chars/Sec): 6 Typematic Delay (Msec)

Typematic Delay (Msec) Typematic Delay (Msec)

Typematic Delay (Msec) : 250

: 250: 250

: 250

Security Option

Security Option Security Option

Security Option : Setup

: Setup : Setup

: Setup

PCI/VGA Palette Snoop :

PCI/VGA Palette Snoop : PCI/VGA Palette Snoop :

PCI/VGA Palette Snoop : Disabled

DisabledDisabled

Disabled

OS Select For DRAM > 64MB : Non

OS Select For DRAM > 64MB : NonOS Select For DRAM > 64MB : Non

OS Select For DRAM > 64MB : Non----OS2

OS2OS2

OS2

Report No FDD For WIN 95

Report No FDD For WIN 95 Report No FDD For WIN 95

Report No FDD For WIN 95 :

: :

: No

NoNo

ESC : Quit

ESC : Quit ESC : Quit

ESC : Quit ↑↓←

↑↓←↑↓←

↑↓← →→→→

: Select Item

Select Item: Select Item

Select Item

F1 : Help PU/PD/+/

F1 : Help PU/PD/+/F1 : Help PU/PD/+/

F1 : Help PU/PD/+/---- : Modify

: Modify : Modify

: Modify

F5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : ColorF5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : Color F6 : Load

F6 : Load F6 : Load

F6 : Load Basic

BasicBasic

Basic Defaults

Defaults Defaults

Defaults

F7 : Load

F7 : Load F7 : Load

F7 : Load Best

BestBest

Best Defaults

Defaults Defaults

Defaults

Anti-Virus Protection

This item is enabled by default; the AwardBIOS will monitor the boot sector to see if there is virus. If virus is found the BIOS will halt on the system and the following warning message will appear.

! PBVA WARNING !

Paragon Boot Virus analyzer has detected

virus activity on hard disk.

We recommend you to press:

[Enter] Boot from clean disk

[C] Continue Boot

NOTE: When enabling this item, the monitoring boot sector

virus only happens at the booting period. After entering the system this function is disabled automatically. So you can run any kind of program such as many disk diagnostic programs, which attempts to access boot sectors or the partition table of hard disk drive when it is running.

WinFast® 6200MA User’s Manual

CPU Internal Cache/External Cache

Cache memory is additional memory that is much faster than con ventional DRAM (system memory). When t he CPU reques ts data, th e system tr ansfers th e request ed data from the m ain DRAM into cache memory, for even faster access by the CPU.

Enabled Enable cache Disabled Disable cache

CPU L2 Cache ECC Checking

Enables or Disables ECC (Error Checking and Correcting) for the CPU’s Level 2 built-in cache.

Quick Power On Self Test

Select Enabled to reduce the amount of time required to run the POST. A quick POST skips certain steps. We recommend that you normally disable quick POST. Better to find a problem during POST than lose data during your work.

Enabled Enable quick POST Disabled

ormal POST

Boot Sequence

This categor y determines which dr ive to be searched fir st for the disk operati ng system (i.e. DOS). You can use this setting to select your First Priority Boot Up drive for Floppy drive A, IDE Hard Disk Drive C, D, E, F, or SCSI. The choice:

A,C,SCSI C,A,SCSI C,CDROM,A CDROM,C,A D,A,SCSI E,A,SCSI F,A,SCSI SCSI,A,C SCSI,C,A C only LS/ZIP,C

Swap Floppy Dri ve

This field is effective only in system with two floppy drives. This item allows you to determine whether to enable the swap floppy drive or not. (i.e. physical floppy disk A assigned to logical drive B or physical drive B to logical drive A) The choices are Enabled/Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks. Because very few modern PCs have 40-track floppy drives, we recommend that you set this field to Disabled to save time.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80 tracks. Disabled BIOS will not search for the type of floppy disk drive by track number.

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad.

On Keypad is number keys after boot up. Off Keypad is arrow keys after boot up.

Memory Parity Check

Select Enabled if the DRAM chips in your system support parity.

Leadtek Research Inc.

Typematic Rate Setting

When disabled, continually holding down a key on your keyboard, system will use the default typematic rate delay of 250 msec and typematic rate of 6 chars/sec to repeatedly input. Wh en enabled you can adj ust both settings. For exam ple, you c ould use such a feature to acc elerate cursor movements with the arrow keys.

Enabled Enable typematic rate setting Disabled Disable typematic rate setting

Typematic Rate (Chars/Sec)

When “Typematic Rate Setting” is enabled, these selections allow you to select the rate at which character repeats when you hold down a key.

6 6 characters per second 8 8 characters per second 10 10 characters per second 12 12 characters per second 15 15 characters per second 20 20 characters per second 24 24 characters per second 30 30 characters per second

Typematic Delay (Msec)

When “Typematic Rate Setting” is enabled, these selections allow you to select the delay before key strokes begin to repeat.

250 (default) 250 msec 500 500 msec

750 750 msec 1000 1000 msec

Security Option

If you have set a pa ssword at USER PASSWORD option in main menu, select whether t he password is required every time the System boots, or only when you enter Setup. The choice: System, Setup.

PCI / VGA Palette Snoop

When MPEG ISA/VESA VGA Cards can not work smoothly with PCI/VGA card, select Enabled otherwise leave at Disabled.

OS Select for DRAM > 64MB

This item allows you to ac ces s memory t hat i s over 64MB in OS/2. Ch oose OS 2 when you a re using OS2 and SDRAM size greater than 64 MB. For other operating systems choose Non-OS2. The choice: Non-OS2, OS2.

Report No FDD for Win95

Select Yes to r elease IRQ6 when the system co ntains no flop py drive, for compatibi lity with Windows 95 logo certifi cation. In the Integrated Peripherals screen, select Disabled for the Onboard FDC Controller field. You should ch oose “Y es” i f your oper ati n g system i s Wind ows 95 and without a floppy disk equipped in your computer. The choice: Yes/No

Shadow

Software that resides in a read-only memory (ROM) chip on a device is called “firmware”. The

WinFast® 6200MA User’s Manual

AwardBIOS permits shadowing of firmware such as the system BIOS, video BIOS and similar operating instructions that come with some expansion peripherals, such as, for example, a SCSI adapter.

Shadowing copies fi rmware from ROM int o system RAM, where the CPU can read it through the 16-bit or 32-bi t DRAM bus. Firmware not shadowed mu st be read by system t hrough the 8-bit X-bus. Shadowing improves the performance of the system BIOS and similar ROM firmware for ex pansio n pe ri pher al s, b ut it al so re duce s the am ou nt of hig h me mo ry (640 K B to 1 MB) available for loading device drivers, etc.

Enable shadowi ng in to eac h s ectio n of memor y sep arat ely. Vi deo B IOS sha dows i nt o memory area C0000 -C7 FFF. Th e rema i n i n g a reas s h own on t h e B IOS Feat u res s c re en ma y be oc c up i ed by other expansion card firmware. If an expansion peripheral in your system contains ROM-based firmware, you need to know the address ranges the ROM occupies to shadow it into the correct area of RAM.

Video BIOS Shadow

Determines wheth er video B IOS stor ed in the ROM of th e vid eo card will be copi ed t o system RAM for speeding up the exec ution. Video BIOS Shadow will increase the vi deo performance.

Enabled Video BIOS shadow is enabled Disabled Video BIOS shadow is disabled

C8000 - CBFFF Shadow to DC000 - DFFFF Shadow

These categories determine whether BIOS of expansion interface cards located with these memory address ranges will be copied to system RAM for improving the performance. An example of such an option would be on-board SCSI.

Enabled Optional shadow is enabled Disabled Optional shadow is disabled

Leadtek Research Inc.

4-4 Chipset Features Setup Menu

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus. It must be stated that these items should never need to be altered. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered that data was being lost while using your system.

ROM PCI/ISA BIOS

ROM PCI/ISA BIOS ROM PCI/ISA BIOS

ROM PCI/ISA BIOS (2A6INLB9)

(2A6INLB9)(2A6INLB9)

(2A6INLB9)

C C

CHIPSET FEATURES

HIPSET FEATURES HIPSET FEATURES

HIPSET FEATURES SETUP

SETUPSETUP

SETUP

AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC. AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC.

SSSSpread Spectrum : Disabled

pread Spectrum : Disabledpread Spectrum : Disabled

pread Spectrum : Disabled

OnBoard ESS Solo1 Audio : Enabled

OnBoard ESS Solo1 Audio : Enabled OnBoard ESS Solo1 Audio : Enabled

OnBoard ESS Solo1 Audio : Enabled

CPU Host/SDRAM Clock : Default

CPU Host/SDRAM Clock : DefaultCPU Host/SDRAM Clock : Default

CPU Host/SDRAM Clock : Default

Auto Configuration : Disabled

Auto Configuration : DisabledAuto Configuration : Disabled

Auto Configuration : Disabled

RAS Pulse Width Refresh : 4T

RAS

Pulse Width Refresh : 4TRAS Pulse Width Refresh : 4T

RAS

Pulse Width Refresh : 4T

RAS Precharge Time

RAS

Precharge Time

2TRAS Precharge Time

RAS

Precharge Time

: 2T

RAS to CAS Delay

RAS

CAS Delay

2TRAS to CAS Delay

RAS

CAS Delay

: 2T

ISA Bus Clock Fr

ISA

Bus Clock FrISA Bus Clock Fr

ISA

Bus Clock Fr

equency : PCICLK/4

equency : PCICLK/4equency : PCICLK/4

equency : PCICLK/4

Starting Point of Paging: 1T

Starting

Point of Paging: 1TStarting Point of Paging: 1T

Starting

Point of Paging: 1T

SDRAM CAS Latency

SDRAM

CAS Latency

2TSDRAM CAS Latency

SDRAM

CAS Latency

: 2T

SDRAM WR Retire Rate

SDRAM

Retire Rate

XSDRAM WR Retire Rate

SDRAM

Retire Rate

: X----2222----2222----2222

CPU to PCI Burst Mem. WR: Disabled

CPU

PCI Burst Mem. WR: DisabledCPU to PCI Burst Mem. WR: Disabled

CPU

PCI Burst Mem. WR: Disabled

System BIOS Cacheable

Disabled

System

BIOS Cacheable

DisabledSystem BIOS Cacheable

Disabled

System

BIOS Cacheable

Disabled

Video RAM Cacheable

Disabled

Video

RAM Cacheable

DisabledVideo RAM Cacheable

Disabled

Video

RAM Cacheable

Disabled

Memory Hole at 15M

Memory

Hole at 15MMemory Hole at 15M

Memory

Hole at 15M

----16M : Disable

16M : Disable16M : Disable

16M : Disabledddd

AGP Aperture Size

4MB

AGP

Aperture Size

4MBAGP Aperture Size

4MB

AGP

Aperture Size

4MB

DRAM Controller 1 T WR : Enabled

DRAM

Controller 1 T WR : EnabledDRAM Controller 1 T WR : Enabled

DRAM

Controller 1 T WR : Enabled

DRAM Controller 1 T RD : Enabled

DRAM

Controller 1 T RD : EnabledDRAM Controller 1 T RD : Enabled

DRAM

Controller 1 T RD : Enabled

Concurrent function(MEM): Disabled

Concurrent

function(MEM): DisabledConcurrent function(MEM): Disabled

Concurrent

function(MEM): Disabled

Concurrent function(PCI):

Disabled

DisabledDisabled

Disabled

CPU Pipeline Control

Disabled

CPU

Pipeline Control

DisabledCPU Pipeline Control

Disabled

CPU

Pipeline Control

Disabled

PCI Delay Transaction

Disabled

PCI

Delay Transaction

DisabledPCI Delay Transaction

Disabled

PCI

Delay Transaction

Disabled

ESC : Quit

ESC : Quit ESC : Quit

ESC : Quit ↑↓←

↑↓←↑↓←

↑↓← →→→→

: Select Item

Select Item: Select Item

Select Item

F1 : Help PU/PD/+/

F1 : Help PU/PD/+/F1 : Help PU/PD/+/

F1 : Help PU/PD/+/---- : Modify

: Modify : Modify

: Modify

F5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : ColorF5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : Color F6 : Load

F6 : Load F6 : Load

F6 : Load Basic

BasicBasic

Basic Defaults

Defaults Defaults

Defaults

F7 : Load

F7 : Load F7 : Load

F7 : Load Best

BestBest

Best Defaults

Defaults Defaults

Defaults

Auto Configuration

Auto Configuration selects predetermined optimal values of chipset parameters. When Disabled, chipset parameters revert to setup information stored in CMOS. Many fields in this screen are not available when Auto Configuration is Enabled.

RAS Pulse Width Refresh

Select the number of CPU clock cycles allotted for the RAS pulse refresh, according to DRAM specifications.

RAS Precharge Time

The precharge time is the number of cycles it takes for the RAS to accumulate its charge before DRAM refreshes. If insufficient time is allowed, refresh may be incomplete and the DRAM may fail to retain data.

RAS to CAS Delay

When DRAM is refreshed, both rows and columns are addressed separately. This setup item allows you to determine the timing of the transition from RAS (row address strobe) to CAS (column address strobe).

WinFast® 6200MA User’s Manual

ISA Bus Clock Fre quency

The ISA bus clock speed is the speed at which the CPU communicates with the AT bus (expansion bus ). Th e speed is measu red a s a fract ion of PC ICLKI, t he ti ming si gna l of the PC I bus. Experiment with setting the bus timing to a lower speed (for example, from PCICLKI/3 to PCICLKI/4) if an installed expansion peripheral has performance problems.

Starting Point of Paging

This value controls the start timing of memory paging operations.

SDRAM CAS Latency

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.

SDRAM WR Retire Rate

The system desi gner must select the correct timin g for data transfers from the write bu ffer to memory, according to DRAM specifications.

CPU to PCI Burst Mem. WR

When this option is enabled, the chipset is allowed to assemble long PCI bursts from the data held in its buffers.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resultin g in better system performance. However, if any program writes to this memory area, a system error may result. The choice: Enabled, Disabled.

Video RAM Cacheable

Selecting Enabled allows caching of the video me mo ry (RAM) at A0000h to AFFFFh, resulting in better video performance. However, if any program writes to this memory area, a memory access error may result. The choice: Enabled, Disabled.

Memory Hole at 15M-16M

You can reserve this area of system memo ry for ISA adapter ROM. When this area is reserved, it cannot be cach ed. The user inform ation of peripher als that need to us e this area of system memory usually discusses their memory requirements. The choice: Enabled, Disabled.

AGP Aperture Size (MB)

Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory add ress ran ge dedicat ed for gra phics memor y addres s spac e. Host cycles t hat hi t the apertu re range a re forwa rded t o the A GP wit hout an y trans lation . See www.a gpforu m.org for APG information. The choice: 4, 8, 16, 32, 64, 128, and 256MB

DRAM Controller 1 T WR/RD

Enable or Disable DRAM controller one circle write/read for VUMA function.

Concurrent function (MEM)/(PCI)

Enable or Disable Memory/PCI bus utilization optimized.

Leadtek Research Inc.

CPU Pipeline Control

Enabled: Tw o or more pending cycl es ar e all owed at o ne time. D isabl ed: O nly one pe nding cycl e is allowed at one time.

PCI Delay Transaction

The Chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

Spread Spectrum

When the system c lock genera tor pu lses, th e extr eme valu es of t he p ulse gen erat e exces s EM I. Enabling puls e spectrum spread modulati on changes the extreme values from s pikes to flat curves, thus reducing EMI. This benefit may in some cases be outweighed by problems with timing-critical devices, such as a clock-sensitive SCSI device. You can reduce EMI by setting this item to turn on the clock signal with spread spectrum support. The choice: Enabled, Disabled.

OnBoard ESS Solo1 Audio

This item allows you to enable or disable on board audio function.

CPU Host/SDRAM Clock

Select Default or select a t iming combinat io n f o r the CPU and the PCI bus. When set to Def a ult, the BIOS uses the actual CPU and PCI bus clock values. The Choices: 133/1 33 , 124/1 24 , 112/1 12 , 100 /1 00, 105 /1 05 , 90 /90 , 95/9 5, 83/ 83 , 75/75 , 66/6 6, 83/55, 95/63, 66/100, 112/74, 124/82 and Default (66/66)

WinFast® 6200MA User’s Manual

4-5 Power Management Setup Menu

The Power Management Setup allows you to configure your system to the most effectively energy saving while in operating.

ROM PCI/ISA BIOS (2A6INLB9)

ROM PCI/ISA BIOS (2A6INLB9) ROM PCI/ISA BIOS (2A6INLB9)

ROM PCI/ISA BIOS (2A6INLB9)

POWER MANAGEMENT

POWER MANAGEMENT POWER MANAGEMENT

POWER MANAGEMENT SETUP

SETUPSETUP

SETUP

AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC. AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC.

VGA Activity : Disabled

VGA Activity : DisabledVGA Activity : Disabled

VGA Activity : Disabled

IRQ [3

IRQ [3 IRQ [3

IRQ [3----7,9

7,97,9

7,9----15],NMI : Disabled

15],NMI : Disabled15],NMI : Disabled

15],NMI : Disabled

IRQ 8 Break Suspend : Disabled

IRQ 8 Break Suspend : Disabled IRQ 8 Break Suspend : Disabled

IRQ 8 Break Suspend : Disabled Power Button Over Ride

Power Button Over Ride Power Button Over Ride

Power Button Over Ride

: Instant Off

: Instant Off : Instant Off

: Instant Off

Ring Power Up Control : Disabled

Ring Power Up Control : Disabled Ring Power Up Control : Disabled

Ring Power Up Control : Disabled KB Power ON Password : Enter

KB Power ON Password : Enter KB Power ON Password : Enter

KB Power ON Password : Enter Power Up by Alarm

Power Up by Alarm Power Up by Alarm

Power Up by Alarm : Disabled

: Disabled : Disabled

: Disabled

ACPI function : Ena

ACPI function : EnaACPI function : Ena

ACPI function : Enabled

bledbled

bled

Power Management

User Define

Power

Management

User DefinePower Management

User Define

Power

Management

User Define

PM Control by APM : No

Control by APM : NoPM Control by APM : No

Control by APM : No

Video Off Option

Always On

Video

Off Option

Always OnVideo Off Option

Always On

Video

Off Option

Always On

Video Off Method

Blank Screen

Video

Off Method

Blank ScreenVideo Off Method

Blank Screen

Video

Off Method

Blank Screen

Switch Function

Disabled

Switch

Function

DisabledSwitch Function

Disabled

Switch

Function

Disabled

Doze Speed (div by): 8/8

Doze

Speed (div by): 8/8Doze Speed (div by): 8/8

Doze

Speed (div by): 8/8

Stdby Speed(div by): 8/8

Stdby

Speed(div by): 8/8Stdby Speed(div by): 8/8

Stdby

Speed(div by): 8/8

MODEM Use IRQ

MODEM

Use IRQ

NAMODEM Use IRQ

MODEM

Use IRQ

: NA

Hot Key Function

Hot

Key FunctionHot Key Function

Hot

Key Function

As: Disable

As: Disable As: Disable

As: Disable

** PM Timers **

** PM

Timers **

** PM

Timers **

** PM

Timers **

HDD Off After

Disable

HDD

Off After

DisableHDD Off After

Disable

HDD

Off After

Disable

Doze Mode

Disable

Doze

Mode

DisableDoze Mode

Disable

Doze

Mode

Disable

Standby Mode

Disable

Standby

Mode

DisableStandby Mode

Disable

Standby

Mode

Disable

Suspend Mode

Disable

Suspend

Mode

DisableSuspend Mode

Disable

Suspend

Mode

Disable

** PM Events **

** PM

Events **

** PM

Events **

** PM

Events **

HDD Ports Activity : Disabled

HDD

Ports Activity : DisabledHDD Ports Activity : Disabled

HDD

Ports Activity : Disabled

COM Ports Activity : Disabled

COM

Ports Activity : DisabledCOM Ports Activity : Disabled

COM

Ports Activity : Disabled

LPT Ports A

LPT

Ports ALPT Ports A

LPT

Ports A

ctivity : Disabled

ctivity : Disabledctivity : Disabled

ctivity : Disabled

ESC : Quit

ESC : Quit ESC : Quit

ESC : Quit ↑↓←

↑↓←↑↓←

↑↓← →→→→

: Select Item

Select Item: Select Item

Select Item

F1 : Help PU/PD/+/

F1 : Help PU/PD/+/F1 : Help PU/PD/+/

F1 : Help PU/PD/+/---- : Modify

: Modify : Modify

: Modify

F5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : ColorF5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : Color F6 : Load

F6 : Load F6 : Load

F6 : Load Basic

BasicBasic

Basic Defaults

Defaults Defaults

Defaults

F7 : Load

F7 : Load F7 : Load

F7 : Load Best

BestBest

Best Defaults

Defaults Defaults

Defaults

ACPI Function

If you use an ACPI compliant OS like Windows 98 or Windows 2000, enable it. The choice: Enabled, Disabled.

Power Management

This option allows you to select the type (or degree) of power saving for Doze, Standby, and Suspend modes. This table describes each power management mode:

Min. Saving Minimum power management. Doze Mode = 1 hr. Standb

Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down = 15 min.

Max. Saving Maximum power management -- ONLY AVAILABLE

FOR SL CPUs. Doze Mode = 1 min., Standby Mode = 1 min., Suspend Mode = 1 min., and HDD Power Down = 1

min. Disabled Disable power saving functions User Defined Allow you to set each mode individually.

Leadtek Research Inc.

PM Control by APM

If Advanced Power Ma na gemen t (APM ) i s in sta lled on you r s yst em, sel ect in g Yes gi ves b et ter power savings. The choice: Yes, No.

Video Off Option

Selects the power-saving modes during which the monitor goes blank: Always On Monitor remains on during power-saving modes.

Suspend -- Off Monitor blanked when system enters Suspend mode. Susp, Stby -- Off Monitor blanked when system enters either Suspend or Standby mode. All Modes -- Off Monitor blanked when system enters any power saving mode.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will caus e the system t o turn off th e vertical

and horizontal sy nchr oniz atio n por ts and write blanks to the

video buffer. Blank Screen This option only writes blanks to the video buffer. DPMS Supported Select this option if your monitor supports the Display

Power Management Signaling (DPMS) standard of the

Video Electronics Standards.

Switch Function

You can choos e w he the r o r no t to pe rm it y our sy ste m to enter com ple te Suspe nd m ode . Sus pe nd mode offers greater power savings, with a correspondingly longer awakening period. Break/Wake. S ystem enters Suspend mo de; press the po w er button agai n to return to full power. The choice: Break/Wake, Disabled.

Doze Speed (div by)

Select a divisor to reduce the CPU sp eed durin g D oze mode to a fraction of the full CPU speed.

Stdby Speed (div by)

Select a divisor to reduce the CPU speed during Standby mode to a fraction of the full CPU speed.

MODEM Use IRQ

Name the interrup t requ es t (IRQ) li ne a s sign ed t o the m odem ( i f any) on yo u r syst em. Acti vit y of the selected IRQ always awakens the system.

The choice: 3, 4, 5, 7, 9, 10, 11, NA.

Hot Key Function As

Select Enabled if your system has a hot key for soft power off. The choice: Enabled, Disabled.

** PM Timer **

HDD Off After

After the select ed period of d rive inactivit y, the hard disk d rive powers down while all other devices remain ac ti ve.

By default, this item is Disabled, meaning that no matter what the mode

the rest of the system is the hard drive will remain ready. You also have a range of choices from

WinFast® 6200MA User’s Manual

1 to 15 minutes. This means that you can have your hard disk drive to be turned off after a selected number of minutes. The choice: Disabled,1 Min,2,Min,3 Min,4 Min,5 Min,6Min,7Min,8 Min,9 Min,10Min, 11Min,12 Min,13 Min,14 Min,15 Min

Doze Mode

After the selected period of system inactivity, the CPU clock runs at slower speed while all other devices sti ll operate at full speed. The choice: Disabled,1 Min,2,Min,4 Min,8 Min,12 Min,20 Min,30 Min,40 Min,1 Hour.

Standby Mode

After the se lected pe riod o f sy stem inactivity , the f ixed di sk driv e an d the v ideo shut off whil e all other devices still operate at full speed. The choice: Disabled,1 Min,2,Min,4 Min,8 Min,12 Min,20 Min,30 Min,40 Min,1 Hour.

Suspend Mode

After the selected period of system inactivity, all devices except the CPU shut off. The choice: Disabled,1 Min,2,Min,4 Min,8 Min,12 Min,20 Min,30 Min,40 Min,1 Hour.

** PM Events **

You may disable activity monitoring of some common I/O events and interrupt requests so they do not wake up t he sy ste m. The def ault wake -up ev ent is key board act ivity . Whe n On (o r name d, in the ca se of LPT & COM), any activity from one of the listed system periph er al devices or IRQs wakes up the system.

A power-management (PM) event awa kens the syst em from, or resets a ctivity timers for, Suspend mode. You can disable monitoring of common interrupt requests so they do not generate PM even ts.

HDD Ports Activity

COM Ports Activity

LPT Ports Activity

VGA Activity

IRQ [3-7, 9-15], NMI

IRQ 8 Break Suspend

You can Ena bl e or Disable monitoring of IRQ8 (the Real Time Clock) so it does no t awaken the system from Suspend mode.

Power Button Over Ride

When you se l ect Enabled, pressing the power button f o r m o r e than 4 seconds force s the system to enter the Soft-Off state when the system has "hung.

Ring Power Up Control

An input signal on serial Ring Indicator (RI) (in other words, an incoming call on the modem) will power up the system.

KB Power ON Password

Leadtek Research Inc.

Press “Enter” for setting password for keyboard power on function.

Power Up by Alarm

When you select Enabled, fields appear that let you set the alar m that r e tur ns the system to Full On state.

WinFast® 6200MA User’s Manual

4-6 PNP/PCI Configuration

The PCI Personal Component Interconnect Bus was developed primarily to address two important issues: a) How to allow peripheral devices to take the fullest advantage of the power of CPU technology, and b) Provide a simpler installation process for peripheral devices, such as Network cards, EIDE or SCSI controllers.

PCI accomplishes these goals with its 32-bit Data path Local Bus design, and support for Plug & Play. Unlike older expansion bus architectures, PCI provides peripherals with a direct connection to the CPU and memory. The PCI bus runs at 33Mhz and has a maximum transfer capability of 132MBps. With Plug & Play, the system BIOS automatically determines hardware resources for new peripherals, simplifying installation of multiple interface cards.

This Setup Menu provides configuration options for the PCI Bus and its assigned resources.

ROM PCI/ISA BIOS (2A6INLB9)

ROM PCI/ISA BIOS (2A6INLB9)ROM PCI/ISA BIOS (2A6INLB9)

ROM PCI/ISA BIOS (2A6INLB9) PNP/PCI CONFIGURATION

PNP/PCI CONFIGURATIONPNP/PCI CONFIGURATION

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC. AWARD SOFTWARE, INC.

AWARD SOFTWARE, INC.

Resources Controlled By : Manual

Resources Controlled By : ManualResources Controlled By : Manual

Resources Controlled By : Manual Reset Configuration Data : Disabled

Reset Configuration Data : DisabledReset Configuration Data : Disabled

Reset Configuration Data : Disabled

IRQ

IRQIRQ

IRQ----3 assigned to : PCI/ISA PnP

3 assigned to : PCI/ISA PnP3 assigned to : PCI/ISA PnP

3 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----4 assigned to : PCI/ISA PnP

4 assigned to : PCI/ISA PnP4 assigned to : PCI/ISA PnP

4 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----5 assigned to : PCI/ISA PnP

5 assigned to : PCI/ISA PnP5 assigned to : PCI/ISA PnP

5 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----7 assigned to : PCI/ISA PnP

7 assigned to : PCI/ISA PnP7 assigned to : PCI/ISA PnP

7 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----9 assigned to : PCI/ISA PnP

9 assigned to : PCI/ISA PnP9 assigned to : PCI/ISA PnP

9 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----10 assigned to : PCI/ISA PnP

10 assigned to : PCI/ISA PnP10 assigned to : PCI/ISA PnP

10 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----11 assigned to : PCI/ISA PnP

11 assigned to : PCI/ISA PnP11 assigned to : PCI/ISA PnP

11 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----12 assigned

12 assigned 12 assigned

12 assigned to : PCI/ISA PnP

to : PCI/ISA PnPto : PCI/ISA PnP

to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----14 assigned to : PCI/ISA PnP

14 assigned to : PCI/ISA PnP14 assigned to : PCI/ISA PnP

14 assigned to : PCI/ISA PnP

IRQ

IRQIRQ

IRQ----15 assigned to : PCI/ISA PnP

15 assigned to : PCI/ISA PnP15 assigned to : PCI/ISA PnP

15 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----0 assigned to : PCI/ISA PnP

0 assigned to : PCI/ISA PnP0 assigned to : PCI/ISA PnP

0 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----1 assigned to : PCI/ISA PnP

1 assigned to : PCI/ISA PnP1 assigned to : PCI/ISA PnP

1 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----3 assigned to : PCI/ISA PnP

3 assigned to : PCI/ISA PnP3 assigned to : PCI/ISA PnP

3 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----5 assigned to : PCI/ISA PnP

5 assigned to : PCI/ISA PnP5 assigned to : PCI/ISA PnP

5 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----6 assigned to : PCI/ISA PnP

6 assigned to : PCI/ISA PnP6 assigned to : PCI/ISA PnP

6 assigned to : PCI/ISA PnP

DMA

DMADMA

DMA----7 assigned to : PCI/ISA PnP

7 assigned to : PCI/ISA PnP7 assigned to : PCI/ISA PnP

7 assigned to : PCI/ISA PnP

ESC : Quit

ESC : Quit ESC : Quit

ESC : Quit ↑↓←

↑↓←↑↓←

↑↓← →→→→: Select Item

: Select Item: Select Item

: Select Item

F1 : Help PU/PD/+/

F1 : Help PU/PD/+/F1 : Help PU/PD/+/

F1 : Help PU/PD/+/---- : Modify

: Modify : Modify

: Modify

F5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : ColorF5 : Old Values (Shift)F2 : Color

F5 : Old Values (Shift)F2 : Color F6 : Load

F6 : Load F6 : Load

F6 : Load Basic

BasicBasic

Basic Defaults

Defaults Defaults

Defaults

F7 : Load

F7 : Load F7 : Load

F7 : Load Best

BestBest

Best Defaults

Defaults Defaults

Defaults

Resource Controlled by

Manual The field defines that the PNP Card's resource is controlled by manual. You

can setup whether IRQ-X or DMA-X is assigned to PCI/ISA PnP or Legac

ISA Ca rds.

Auto If your ISA card and PCI card are all PNP cards. Set this field to "Auto". The

BIOS will assign the interrupt resource automatically.

Reset Configuration Data

Disabled

ormal Setting

Enabled

ormally, you leave this field Disabled. Select Enabled to reset Extende

System Configuration Data (ESCD) when you exit Setup if you have installe

a new add-on and the system reconfiguration has caused such a serious conflict that the operating system cannot boot.

Leadtek Research Inc.

IRQ n Assigned to

When resources a re cont rolled man ually, a ssign ea ch system in terrupt as one of the f ollowing types, depending on the type of device using the interrupt:

Legacy ISA: Devices compliant with the original PC AT bus specification, requiring a

specific interrupt (such as IRQ4 for serial port 1)

PCI/I SA PnP: Devices compl iant w it h the P lug an d P lay s tandar d, w he the r de sig ned fo r P C I or

ISA bus architecture.

DMA n Assigned to

When resources are controlled manually, assign each system DMA channel as one of the following types:

Legacy ISA: Devices compliant with the original PC AT bus specification, requiring a

specific DMA channel

PCI/I SA PnP: Devices compl iant w it h the P lug an d P lay s tandar d, w he the r de sig ned fo r P C I or

ISA bus architecture.

4-7 Load BASIC Defaults

The BASIC Defaults have been set to provide the minimum requirements for your system to operate. Its performa nce is lower th an the Load BE ST Defaults. We su ggest you use “Load BEST Default”. If your system card has compatibility issues then use the “Load BASIC Defaults”.

4-8 Load BEST Defaults

The "LOAD BEST DEFAULTS" function loads the system manufacture default data. This is the def aul t se tt ing f ro m L e adte k. T his fu nctio n will be necessary when the sy ste m C MOS data is corrupted or you forget your settings.

WinFast® 6200MA User’s Manual

4-9 Integrated Peripherals

This Menu Setup allows you to configure your IDE, USB keyboard, Floppy Drive, Parallel Port, Serial Port and IR function.

ROM PCI/ISA BIOS (2A6INLB9)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

ECP Mode Use DMA : 1 PS/2 mouse function : Enabled USB Controller : Enabled USB Keyboard Support : Disabled Init Display First : PCI Slot VGA Shared Memory Size : 8 MB Current SYSFAN Speed : 4753 RPM Current CPUFAN Speed : 4753 RPM + 5V : 5.00 + 3.3V: 3.31 + 2.5V: 2.52 Vcore : 2.02

Internal PCI/IDE : Both

IDE Primary Master PIO : Auto

IDE Primary Slave PIO : Auto

IDE Secondary Master PIO: Auto

IDE Secondary Slave PIO:

Auto

Primary Master UltraDMA: Auto

Primary Slave

UltraDMA: Auto

Secondary MasterUltraDMA: Auto

Secondary Slave UltraDMA: Auto

IDE Burst Mode

Enabled

IDE HDD Block Mode

Enabled

Onboard FDC Controller : Enabled

Onboard Serial

Port 1 : 3F8/IRQ4

Onboard Serial Port 2

2F8/IRQ3

IR Address Select

2F8H

IR Mode

: HP

SIR

IR IRQ Select

IRQ3

Onboard Parallel Port 1 : 378/IRQ7

Parallel Port Mode

ECP+EPP

ESC : Quit ↑↓← →: Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load Basic Defaults F7 : Load Best Defaults

Internal PCI/IDE

The chipset contains a PCI IDE interface that supports two IDE channels: Primary (IRQ 14) and Secondary (IRQ 15). Each channel supports two IDE devices, so the system is capable of supporting a total of four IDE devices. Select Primary, Secondary, or Both to activate chipset IDE interface(s) installed on your system board.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

IDE Primary/Secondary Master/Slave UltraDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33, select Auto to enable BIOS support. The Choice: Auto, Mode 0, Mode 1, Mode 2

IDE Burst Mode

Selecting Enabled reduces latency between each drive read/write cycle, but may cause instability

Leadtek Research Inc.

in IDE subsystems that cannot support such fast performance. If you are getting disk drive errors, try setting thi s valu e to Dis abled . This f ield does n ot appea r when th e Inter na l PCI/ IDE field is Disabled.

IDE HDD Block Mode

Block mode is also ca lled block transfer, mult iple command s, or multip le sector read/ write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The Choice: Enabled, Disabled

Onboard FDC Controller

This should be enabled if your system has a floppy disk drive (FDD) installed. Even so equipped, when you add an additional higher performance controller this item should be set to Disabled. The choice: Enabled, Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and second serial ports. The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

IR Address Select

Select the Onboard IrDA port.. The choice: Disabled, 2E8H, 2F8H, 3E8H, 3F8H , 3E0H, 2E0H.

IR Mode

Select an operating mode for the second serial port. The choice: IrDA, Normal, ASK IR.

IR IRQ Select

You could select the IRQ for the IR. The choice: IR Q3, IRQ4, IRQ10, IRQ11.

Onboard Parallel Port

This item allows you to determine I/O address to access onboard parallel port controller. The choice: 378H/IRQ7, 278H/IRQ5, 3BCH/IRQ7, Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. SPP (Normal), EPP (Extended Parallel Port), ECP (Extended Capabilities Port), ECP+EPP four modes can be selected. Select Normal unless you are certain that both your hardware and software support EPP or ECP mode. The choice: SPP, EPP, ECP, ECP+EPP

ECP Mode Use DMA

This item is available while you set the Parallel Port Mode Item to ECP mode or ECP+EPP mode. You can choose DMA1 or DMA3 The choice: 1, 3

PS/2 Mo use function

Your system has a PS/2 mouse port and when you install a serial pointing device, select Disabled.

USB Controller

Select Enabled to enable the system Universal Serial Bus (USB) controller when you have USB peripherals.

WinFast® 6200MA User’s Manual

USB Keyboar d Support

Choose “Enabled” if you use USB Keyboard. The choice: Enabled, Disabled.

Init Display First

When select PCI Slot the system will initial the PCI VGA card first. If there are no PCI VGA cards then the system will initial onboard Super AGP VGA. When select AGP the system wi ll initial from on board Super AGP VGA. The choice: PCI slot, AGP

VGA Shared Memory Size

Specify the size of system memory to allocate for video memory, from 512 KB to 4 MB.

Current SYSFAN,CPUFAN Speed

These fields display th e current speed of system and CPU fans.

+5V, + 2.5V, +3.3 V, Vcore

These fields display the current voltage of +5.5V, +3.3V, +2.5V and Vcore.

4-10 Supervisor Password 4-11 User Password

Passwords can be set to provide protection for the BIOS configuration options, or to restrict access to the computer itself.

When enabled, User Password will require all users to enter a password in order to use the system, and/or enter the BIOS setup (but can’t change its contents). A Supervisor Passw ord is use d to prote ct the st ored C MOS optio ns f rom being cha nged by unauthorized users.

Keep in mind that when set, a password is required only when booting the system. It will not provide protection to a system that is already booted.

The password check option is set in BIOS FEATURES SETUP by choosing either System (the password prompt appears every time the system is powered on) or Setup (the password prompt appears only when the user enters the BIOS Setup). The password is stored in CMOS RAM, and ca n be c le a re d by removing the battery for a while and then re-installing it back.

To set a password:

1. You must first set the Supervisor password by choosing Supervisor Password and pressing [ENTER]. Setup prompts for a password.

2. Enter a 1-8 character password using letters , numbers, or a combina tion of both. The specific characters are not shown as you enter them. Press [ENTER].

3. A confirmation box appears as king y ou to re- enter the pas sw ord. Enter the password aga in. Pres s [ENTER ]. Follow the sam e proce dure t o se t t he User Password.

Changing a Password:

Leadtek Research Inc.

1. Select the appropriate password option ( Superv isor or Use r) f rom the m a in menu and press [ENTER]. Enter the current password and press [Enter]. The screen does not displ ay the characters entered. Enter in the new password, then the confirmation. You cannot change the current password unless you know it.

Erasing a Password:

1. If you know the current password, but want to disable password checking, follow the procedure for changing the password. When Setup prompts for the new password, simply press [ENTER]. You will see a message indicating that the password is disabled.

2. If you do not know the current password, the CMOS must be cleared by removing the battery for a while and then re-installing it back. *This will clear all user-defined BIOS.

4-12 IDE HDD Auto Detection

The "IDE HDD AUTO DETECTION" utility is a very useful tool especially when you do not know which kind of hard disk type you are using. You can use this utility to detect the correct disk type installed in the system automatically. But now you can set HARD DISK TYPE to Auto in the STANDARD CMOS SETUP. You do not need the "IDE HDD AUTO DETECTION" utility. The BIOS will Auto-detect the hard disk size and model during POST.

NOTE: HDD Modes The Award BI O S sup po r ts 3 H D D m odes : NORMAL, LBA and LARGE mode. Gene r ic ac ce ss mode that is neither the BIOS nor the IDE controller will make transformations during accessing.

NORMAL mode The maximum numbers of cylinders, head & sectors for NORMAL mode are 1024, 16 and 63. no. Cylinder ( 10 24) x no. Head ( 16) x no. Sector ( 63) x no . per sector( 512) = 5 2 8 Megabytes

If an user sets the HDD to NORM AL mode, the maxi mum accessible HD D size will be 52 8 Megabytes even though its physical size m ay be greater tha n that.

LBA (Logical Block Addressing) mode: This is a new HDD accessing method to overcome the 528 Megabyte bottleneck. The number of cyl inder s, heads and se ctors s how n in the setup m ay not be the num ber physical ly contained in the HDD. During the HDD accessing, the IDE controller will transform the logical address descr ibed by sector , hea d and cyl inder in to its ow n phy sical a ddre ss insi de t he HD D. The maximum HDD size supported by LBA mode can be larger than 8.4 GB for IDE hard drives. These BIOSes have built-in INT13 extension support. Full support of hard drives beyond the 8.4-GB capacity requires support in both the BIOS and the operating system. The table below shows the maximum hard drive partition size and total capacity supported by different operating systems:

Operating System Max. Partition Size Max. HDD Capacit y MS DOS 2.1 GB < = 8.4 GB Win95 OSR1 2.1 GB >8.4 GB Win95 OSR2

o limit >8.4 GB

WinFast® 6200MA User’s Manual

LARGE mode: This is an extended HDD access mode supported by Award Software. Some IDE HDDs co nta in mo re t han 102 4 cy l inde rs w it hout L BA s uppor t ( in s ome case s, us er doe s not want LBA). The Award BIOS provides another alternative t o support these kinds of LARGE mode:

CYLS HEADS SECTOR MODE 1120 16 59

NOR

MAL

560 32 59 LARGE

BIOS tricks D OS (o r o the r O S) that th e num ber of cy linde r s is le ss tha n 10 24 by div idi ng it by 2. At the same time, the number of heads is mu ltiplied by 2. A reverse transformation process will be made inside INT 13h in order to access the right HDD address Maximum HDD size: no. Cylinder (1024) x no. Head ( 32) x no. Sector ( 63) x bytes per sector ( 512) = 1 Gigabyte

NOTE: To support LBA or LARGE mode of HDDs, there must be some

software involved. All software is located in the Award HDD Service Routine (INT 13h). It may fail to access a HDD with LBA (LARGE) mode selected if you are running under an Operating System, which replaces the whole INT 13h. UNIX operating syst em do not suppor t ei ther L BA or L ARGE and must utilize the Standar d m ode . UN IX can support drives larger than 528MB.

4-13 Save & Exit Setup

The "SAVE & EXIT SETUP" option will bring you back to boot up procedure with all the changes you just recorded in the CMOS RAM

4-14 Exit Without Saving

The "EXIT WITHOUT SAVING" option will bring you back to normal boot up procedure without saving any data into CMOS RAM. All old data in the CMOS will not be destroyed

Leadtek Research Inc.

VGA and Audio Driver

nstallation

Chapter 5

5-1 Installing Display Driver for Windows 95/98

5-1-1 Installation

Step 1 Insert the “WinFast Mainboard & SCSI Software Pack CD” into the CD-ROM

drive.

Step 2 The “Autorun” will be automatically executed and “WinFast-6200 Setup”

window will appear on screen with selectable menus.

Step 3 Select and click “6200 Display Driver” menu then follow the on screen instruction

choosing “Typical” setup type to install the driver automatically.

Step 4 Restart Windows.

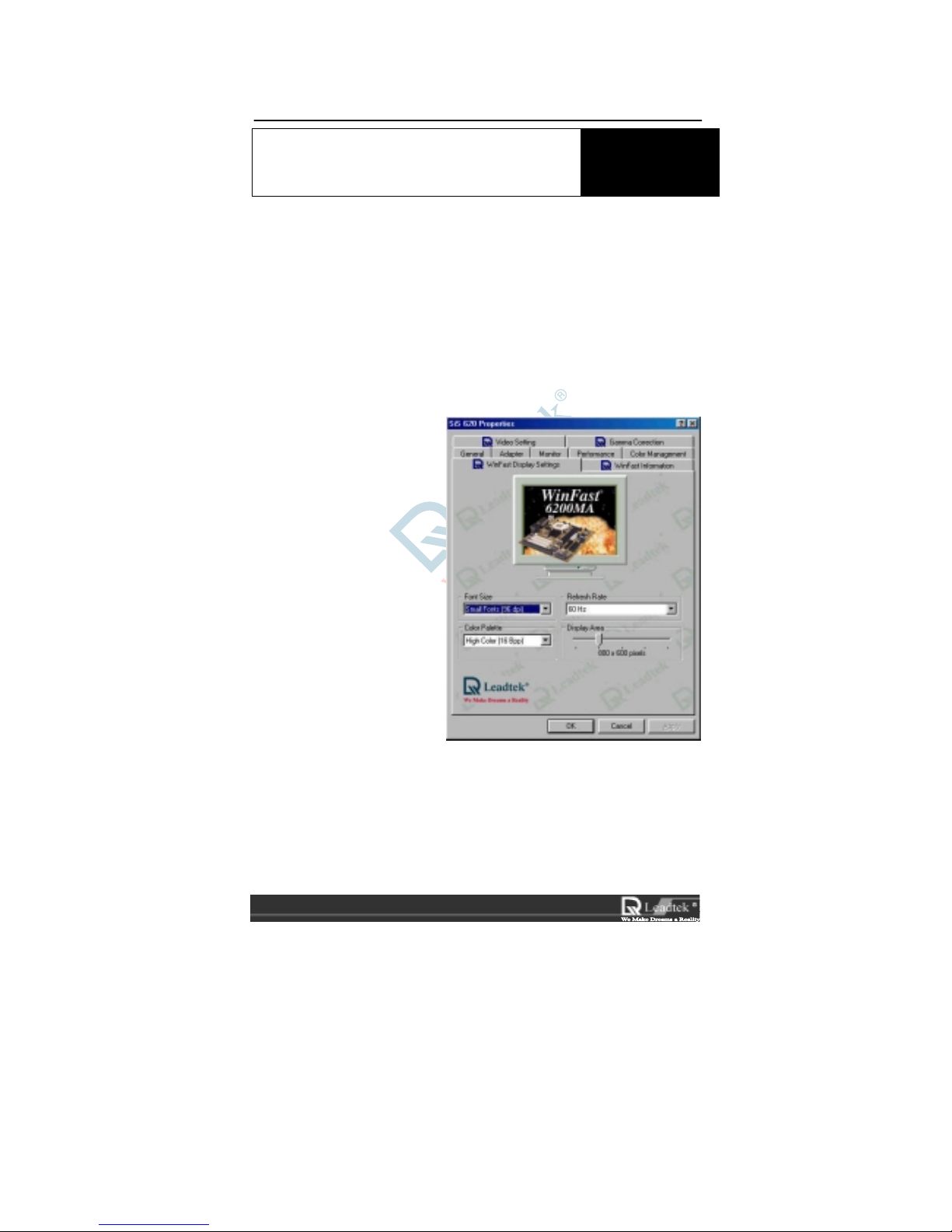

5-1-2 Display Modes

When drivers were installed properly, Click the mouse right button on Win95/98 desktop wallpaper area and select “properties” menu. A window with

title name “Display Properties” will appear on screen. Then click the “Setting” tab and click the “Advanced…” button. The “SiS 620 Properties” sheet will be shown as on the right. From “Display Mode” tab, you may select desired resolution by changing “Desktop area” pointer, desired color by changing “Color palette” value, desired font size by changing “Font Size”, and desired refresh rate by changing “Refresh Rate”.

Different brands of monitors support different types of refresh rates. Before you change the current refresh rate to another refresh rate, a message will be shown on your screen as below:

WinFast® 6200MA User’s Manual

ow, click on the “OK” button, you will see two configurations:

• If the monitor supports the

adjusted refresh rate, a message will be shown on your screen. Click “Yes” within 15 seconds to keep the new setting.

• If the monitor does not

support the adjusted refresh rate, the screen will go blank and Windows will restore your original refresh rate after 10 seconds.

5-1-3 Gamma Correction

• Use the “Change Bitmap” to

select your favorite bitmap images

• Use the “Sett ing Gamma” to

tune your color style

• Use the “Brightness” to turn

brighter or darker.

• Use the “Reset All” to return

to the original program default setting.

Leadtek Research Inc.

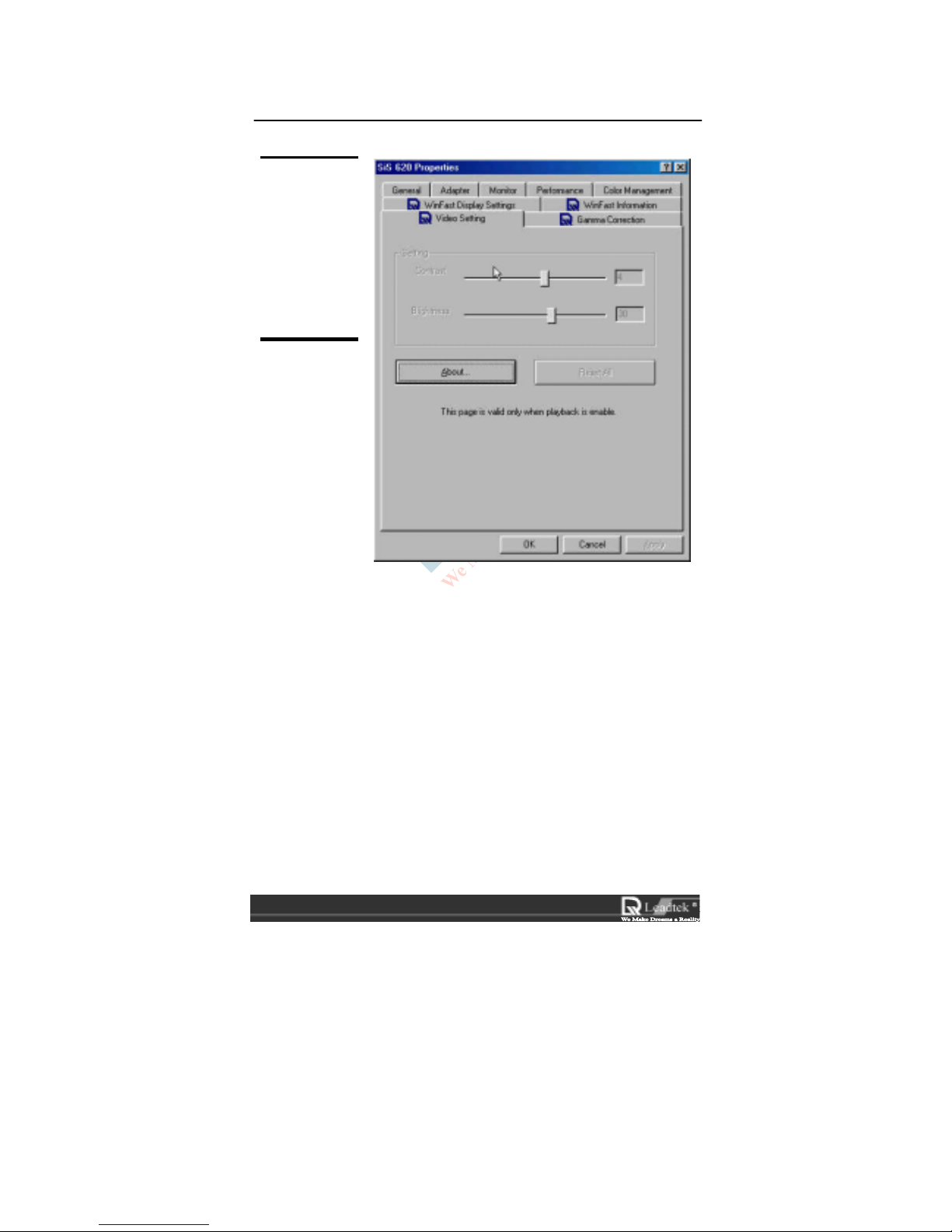

5-1-4 Video Setting

This application can

only be used if a

VCD/DVD playbac

is in operation.

Adjust the

“Contrast” and

“Brightness” by

moving the scroll ba

to its desirable

position to get the

most suitable

viewing pleasure.

WinFast® 6200MA User’s Manual

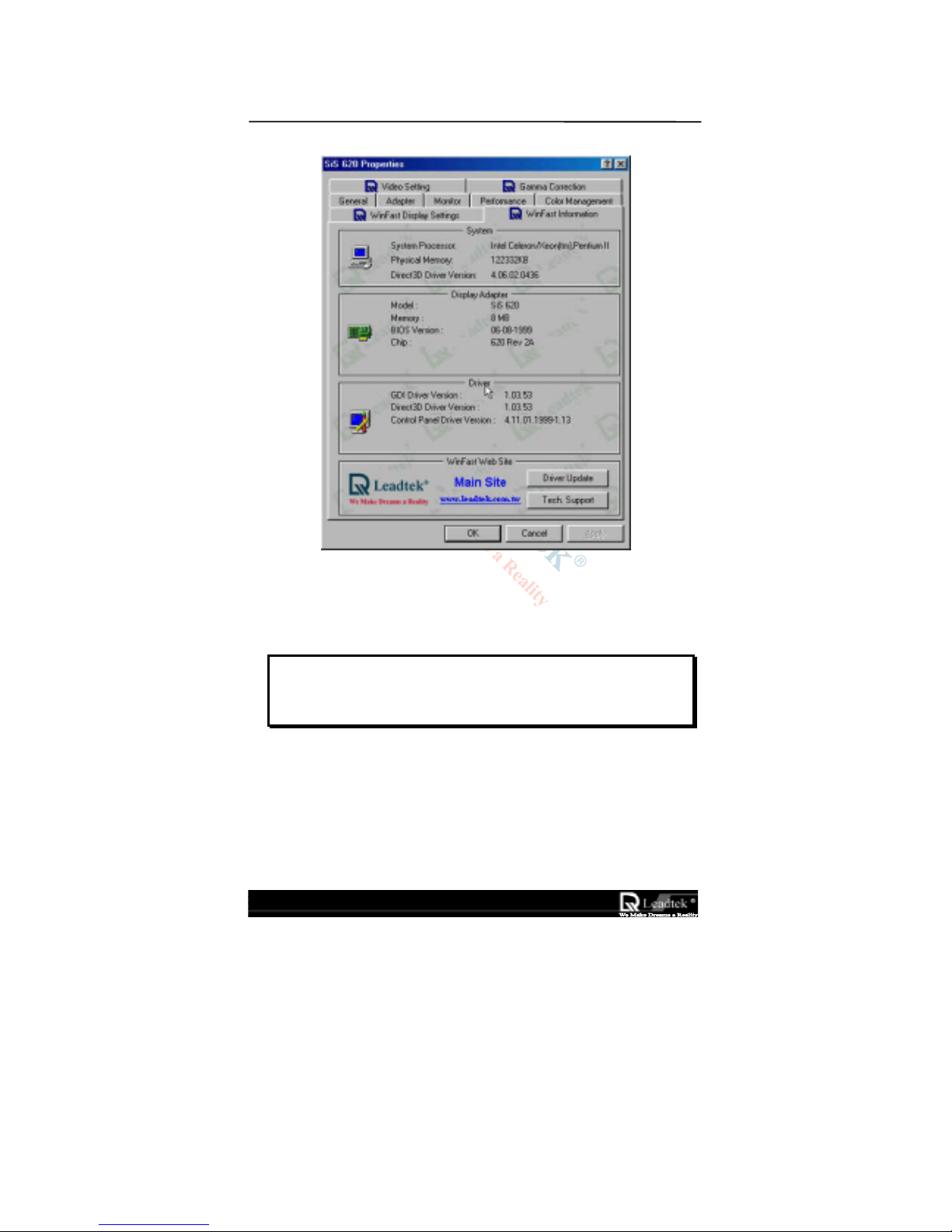

5-1-5 WinFast Information

5-2 Installing Display Driver for Windows NT 4.0

5-2-1 Install Windows NT 4.0 with the SiS620 onboard

Install Windows NT 4.0 in the usual way. When the installation is completed Windows NT 4.0 will be booted on the VGA mode as it did not recognize the SiS530 during installation.

NOTE: Before installing the Windows NT 4.0 driver, be sure the

Windows NT 4.0 version number is Windows NT 4.00.1381or later. If your system is an older version, we recommend you upgrade it to the latest version.

5-2-2 Install Display Driver for Windows NT 4.0

Step 1 Reboot the system and select “Windows NT 4.0 (VGA)” from the Boot Menu

List.

Step 2 Insert the “WinFast Mainboard & SCSI Software Pack CD” into the CD-ROM

drive. From your Windows NT 4.0 desktop wallpaper area, click mouse “right” button and select the “Properties” option. (or double click “display” icon in control panel)

Step 3 From the “Display Properties” window, select t he “Display Type” button where a

window of “Display Type” appears on your screen.

Leadtek Research Inc.

Step 4 Select the “Change” button in the “ Adap ter Type ” sectio n, a w indow w ith a titl e

name of “Change Display” will appear on your screen.

Step 5 Select the “Have Disk” butt o n where the “Install From Disk” window will then

appear on your screen.

Step 6 Specify the path X:\winnt40 (X means CD-ROM drive name) and select the “OK”

button in the “Install From Disk” windo w; a window wit h a title name of “Third Party Drivers” will then appear on your screen, select the “Yes” button.

Step 7 Click the “OK” button after the installation is complete and select the “Close”

button in the “Display Typ e” window. Select the “Close” button in the “Display Properties” window.

Step 8 Click the “Yes” button to restart the Windows NT 4.0. Step 9 When the system is rebooted, select “Windows NT 4.0” from the Boot Menu List.

After logon Windows NT, the “Invalid Display Setting” applet will appear on your screen.

(NOTE: This window will only appear when you are using the new display drivers for the first time).

Choose the resolution, color palette, refresh rate and font size you desire. You can use the “TEST” button to verify whether the monitor can support the specified resolution and refresh rate or not.

Press the “OK ” button to chang e display mode to the specified re s o l utio n, co lor palette, re f r esh rate and font size.

5-3 Installing Audio Driver for Windows 95/98,Windows

NT 4.0

Step 1 Insert the “WinFast Mainboard & SCSI Software Pack CD” into the CD-ROM

drive.

Step 2 The “Autorun” will be automatically executed and “WinFast-6200 Setup”

window will appear on screen with selectable menus.

Step 3 Select and clic k “W inFast 6200 ESS Solo1 Audio Driver”. You will see a popup

menu showing “For Windows 95/98” and “For Windows NT 4.0”. Select the desired operating system and click.

Step 4 Select “Upgrade” and desired language. Windows will automatically copy files

from CD to your hard drive. These are necessary files for installation of Audio drivers to your system. After finishing copying files, Click “Yes” to restart your computer.

Step 5 A dialog of “Found Hardware (ESS Solo1 PCI Audio Drive)” will be shown on

the screen. Just keep clicking the “Next” buttons that follows, Windows will automatically install the Audio Drivers to your system.

WinFast® 6200MA User’s Manual

Technical Information Chapter 6

6-1 POST Messages

During the Power On Self Test (POST), if the BIOS detects an error requiring you to fix something, it will either sound a beep code or display a message. If a message is displayed, it will be accompanied by: PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

6-2 POST Beep

Currently there are two kinds of beep codes in BIOS. This code indicates that a video error has occurred and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by three short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly.

6-3 Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST.

CMOS BATTERY HAS FAILED

CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not detected or the drive does not contain proper system boot files. Insert a system disk into Drive A: and press <Enter>. If you assumed the system would boot from the hard drive, make sure the controller is inserted correctly and all cables are properly attached. Also be sure the disk is formatted as a boot device. Then reboot the system.

DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP

Type of diskette drive installed in the system is different from the CMOS definition. Run Setup to reconfigure the drive type correctly.

DISPLAY SWITCH IS SET INCORRECTLY

Display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, and then either turn off the system and change the jumper, or enter Setup and change the VIDEO selection.

Leadtek Research Inc.

DISPLAY TYPE HAS CHANGED SINCE LAST BOOT

Since last powering off the system, the display adapter has been changed. You must configure the system for the new display type.

ERROR ENCOUNTERED INITIALIZING HARD DRIVE

Hard drive cann ot be initialized . Be sure the adapter is installed correc tly and all cables ar e correctly and firmly attached. Also be sure the correct hard drive type is selected in Setup.

ERROR INITIALIZING HARD DISK CONTROLLER

Cannot initiali ze c on troller. M a ke su re th e cord i s correc t ly and fi rmly in s talled in th e bu s. Be sure the correct hard drive type is selected in Setup. Also check to see if any jumper needs to be set correctly on the hard drive.

FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT

Cannot find or initialize the floppy drive controller. make sure the controller is installed correctly and firmly. If there are no floppy drives installed, be sure the Diskette Drive selection in Setup is set to NONE.

KEYBOARD ERROR OR NO KEYBOARD PRESENT

Cannot initi alize th e keyboard . Make su re the ke yboard i s attached correct ly and n o keys are being pressed during the boot. If you are purposely configuring the system without a keyboard, set the error halt condition in Setup to HALT ON ALL, B UT KEY BOAR D. Th is will c au se th e BIOS t o ign ore th e mi ssin g keyboard and continue the boot.

Memory Address Error at ...

Indicates a me mory addr e ss e rr or at a spe cifi c lo catio n. Yo u c an us e th is l ocatio n al ong w ith the memory map for your system to find and replace the bad memory chips.

Memory parity Error at ...

Indicates a memory parity error at a specific location. You can use this location along with the memory map for your system to find and replace the bad memory chips.

MEMORY SIZE HAS CHANGED SINCE LAST BOOT

Memory has be en a dded or rem ove d since t he l ast boo t. I n EISA mode use Co nfigur atio n Util ity to reconfigure the memory configuration. In ISA mode enter Setup and enter the new memory size in the memory fields.

Memory Verify Error at ...

Indicates an er ro r v er ifying a val ue alre ady w ritte n to me mo ry . U se the l ocat ion al ong w ith y our system's memory map to locate the bad chip.

OFFENDING ADDRESS NOT FOUND

This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR messages when the segment that has caused the problem cannot be isolated.

WinFast® 6200MA User’s Manual

OFFENDING SEGMENT:

This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR messages when the segment that has caused the problem has been isolated. PRESS A KEY TO REBOOT This will be displa yed at the bottom screen when an error occurs that requires you to reboot. Press any key and the system will reboot.

PRESS F1 TO DISABLE NMI, F2 TO REBOOT

When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you to disable the NMI and continue to boot, or you can reboot the system with the NMI enabled.

RAM PARITY ERROR - CHECKING FOR SEGMENT ...

Indicates a parity error in Random Access Memory.

SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ...

Indicates the present boot att empt has been aborted and the system must be rebooted. Press and hold down the CTRL and ALT keys and press DEL.

FLOPPY DISK(S) fail (80) →

→→

→ Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40) →→→→ Floppy Type dismatch.

Hard Disk(s) fail (80) →→→→ HDD reset failed

Hard Disk(s) fail (40) →→→→ HDD controller diagnostics failed.

Hard Disk(s) fail (20) →→→→ HDD initialization error.

Hard Disk(s) fail (10) →→→→ Unable to recalibrate fixed disk.

Hard Disk(s) fail (08) →→→→ Sector Verify failed.

Keyboard is locked out - Unlock the key.

BIOS detect the keyboard is locked. P17 of keyboard controller is pulled low.

Keyboard error or no keyboard present.

Cannot initi alize th e keyboard . Make su re the ke yboard i s attached correct ly and n o keys are being pressed during the boot.

Manufacturing POST loop.

System will repeat POST procedure infinitely while the P15 of keyboard controller is pull low. This is also used for M/B burn in test.

BIOS ROM checksum error - System halted.

The checksum of ROM address F0000H-FFFFFH is bad.

Leadtek Research Inc.

Memory test fail.

BIOS reports the memory test fail if the onboard memory was tested error.

6-4 TIME & DMA CHANNELS MAP

TIME MAP:

TIMER Channel 0 System timer interrupt. TIMER Channel 1 DRAM REFRESH request. TIMER Channel 2 SPEAKER tone generator.

DMA CHANNELS :

DMA Channel 0 Available. DMA Channel 1 Onboard ECP (Option). DMA Channel 2 FLOPPY DISK (SMC CHIP). DMA Channel 3 Onboard ECP (default). DMA Channel 4 Cascade for DMA controller 1. DMA Channel 5 Available. DMA Channel 6 Available. DMA Channel 7 Available.

6-5 INTERRUPT MAP

NMI: Parity check error. IRQ (H/W) :

0 System TIMER interrupt from TIMER 0. 1 KEYBOARD output buffer full. 2 Cascade for IRQ 8-15. 3 SERIAL port 2. 4 SERIAL port 1. 5 PARALLEL port 2. 6 FLOPPY DISK (SMC CHIP). 7 PARALLEL port 1. 8 RTC clock. 9 Available. 10 Available. 11 Available. 12 PS/2 Mouse. 13 MATH coprocessor. 14 Onboard HARD DISK(IDE1) channel. 15 Onboard HARD DISK(IDE2) channel.

WinFast® 6200MA User’s Manual

Appendix A Technical Support

Calling for Technical Support

In the event of not finding the solution for your problem after going through the Appendix B, please contact our Technical Support staff or E-Mail to service@leadtek.com.tw.

Product Name

It will be easier for our staff to answer your question if you know the name of the product. The name is displayed during system boot.

Software Driver Version

From time to time we update the Utilities and Drivers, which are place in our Web Site (www.leadtek.com.tw

) for your download.

CPU Type and Speed

We need to know the type of processor you are using and its speed.

Monitor Manufacturer and Model

Please determine the type of monitor you are using. List the mode your monitor supports described in your monitor manual.

Detailed Description of your Problem

Please answer in detail all the problems you encountered. What kind of software/hardware you are using and the contents of your system files?

Leadtek Research Inc.

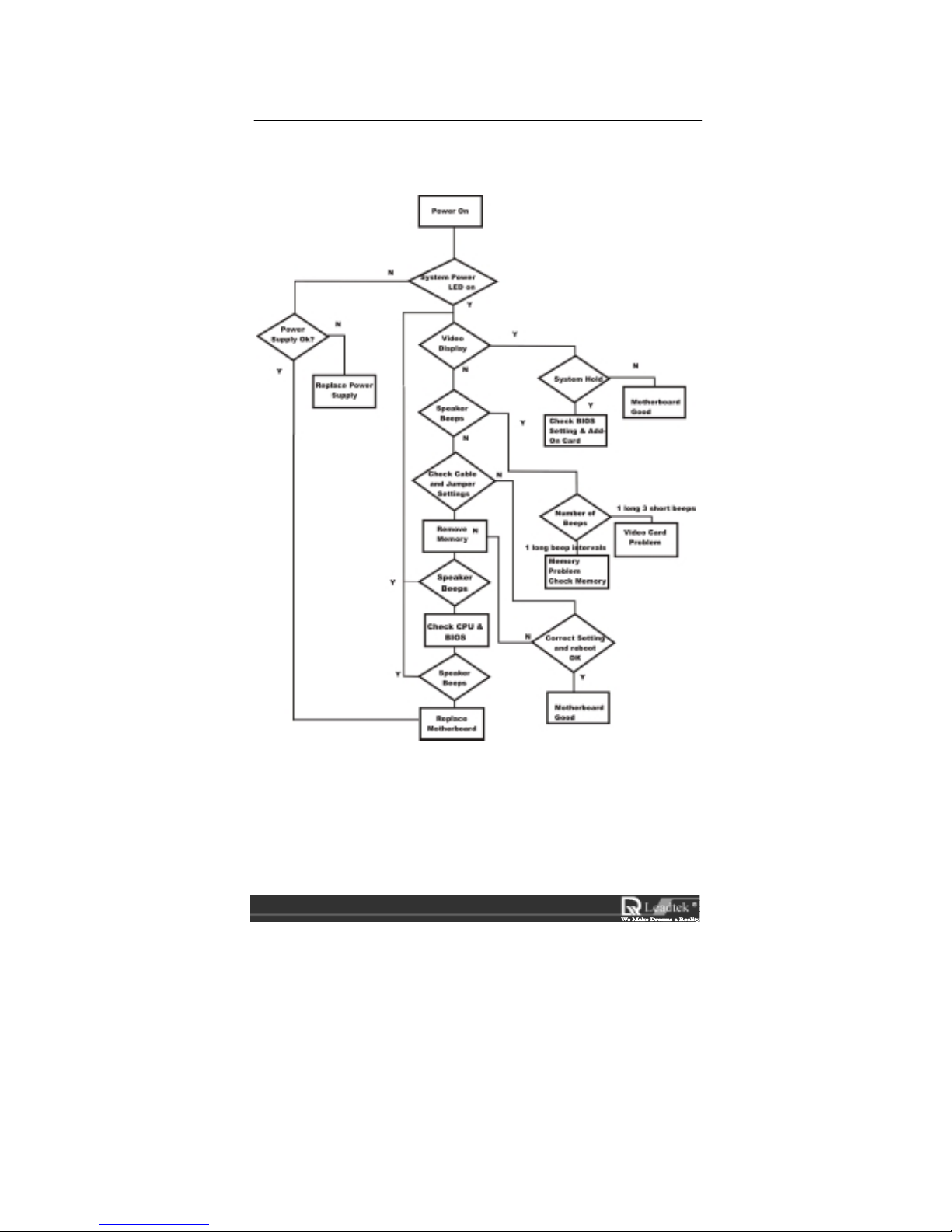

Appendix B Debug DIY

WinFast® 6200MA User’s Manual

Appendix C BIOS Flash Utility

If you get a new Floppy Diskette or CD_ROM from your local dealer that contains a new version of the BIOS binary file or you obtain the n ew BIOS binary file directly from our Web Site (www.leadtek.com.tw) Please follow the steps described below to update the BIOS.

Step 1 Reboot into DOS environment or "Command Prompt Only" of Windows95/98

Step 2 Insert the accompany CD into CD-ROM (or floppy disk to Drive A)

Step 3 Copy "AWDFLASH.EXE" to a new directory from X:\FLASH sub-directory. (X: means CD-ROM drive letter)

Step 4 Copy the new BIOS binary file to the above said new directory

Step 5 Change to the new directory and type the following command: AWDFLASH [Filename] ([Filename] means the file name of BIOS binary file.)

A message will be displayed on your screen and just follows the instruction to finish the BIOS updating.

You can also use "AWDFLASH /?" command to get help messages.

Warning: It is recommended that the application to be run under DOS prompt. In Windows 95/98, please do following: Start your system

when "Starting Windows 95 (or 98)...." message appear, press F8

immediately to enter the "Startup Menu" and then select the "Command Prompt Only" option.

Leadtek Research Inc.

Appendix D Copyright, Trademark, Disclaimer Notes

WinFast 6200MA is protected by copyrig ht. All ri ghts are res erved. No part of its software or manual may be reproduced or transmitted in any form, by any means or for any purpose without express written consent.

WinFast 6200MA is a product of advanced, sophisticated hardware and software that works by interacting with other advanced, fast-changing hardware and software from various vendors. Although carefully designed and tested, we do not guarantee that this product is or will be perfectly bug-free. Although also carefully prepared, we do not guarantee the accuracy of this manual.

In no event will we be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or its documentation, even if advised of the possibility of such damages. The information in this document is subject to change without notice.

This product incorporates copyright protection technology that is protected by method claims of certain U .S. patents and othe r intellectual property rights owned by other rights owners.

Printed in Taiwan

COMPANY PROFILE

As a leading Technology Research and Development oriented company, Leadtek works with VARs, Distributors, PC system integrators and many leading chip vendors to successfully provide powerful, high quality and value-added products for Personal Computers. In the past 10 years, Leadtek has developed expertise in several important technologies and won many awards from Magazine reviews and Exhibition fairs.

1986 -- Leadtek was founded by K.S.Lu. Designs PC motherboard with Intel 80286 CPU using discrete logic components and copyrighted system BIOS offering turbo speed and high compatibility. Develops EGA card with copyrighted EGA BIOS, user friendly screen control utilities and enhanced performance drivers.

1995 -- Debut of WinFast GD400 -a sound and 2D/3D VGA-compatible graphics-video accelerator card aimed at PC game applications.Wins Best Product Award at Computex Taipei. Also TVPlus3000 integrating TV tuner, video image grabber, teletext decoder, MPEG decoder and remote control. TVPlus 3000 is based on Leadtek's unique genlock technology offering 100% VGA compatibility without requiring a feature connector.

1987-1990 -- Expands into design house and offers customers reliable value added products such as motherboard, VGA graphics cards, EMS memory expansion cards, LAN cards and modem cards.

1996 -- Continues to expand and improve various product lines.Introduces ISDN TA products, 3D sound generator and extensive line of 2D/3D graphics-video accelerator cards. WinFast S280V2, 2D, WinFast 3D S600, 2D/3D, WinFast 3D L2200, 3D, WinFast 3D L2500 and 3D L3000 for Workstation Graphics.WinView505, new affordable video conferencing system for POST H.324, Internet and TCP/IP network launched.

October 2, 1996 Leadtek was successfully certified

under ISO 9001.

Innovative Research Top Quality

Profit Sharing Customer First

1991 -- Began making and marketing

computer graphics and video image grabber cards providing optimum display quality with high performance driver and user friendly utilities.

1993 -- Launched the world's first Dram-based PCI bus VGA graphics board using the S3 VL bus 86C805 VGA chip and Leadtek's unique PCI bridge logic technology. Won the Byte Magazine Award in Computex Taipei 1993.

1997 -- Set -Top Box TeleEye 324 TV Video conferencing (H.324 videophone standard compliant) system with built in CCD camera, simultaneous local and remote view and built-in high speed modem launched. Also WinView601 and 610 versions.WinFast 3D S600DX and WinFast 3D S600DX and WinFast 3D L2230 for professional 3D graphics and video introduced. Capital raised to $10 million.Revenue expected to reach $60 million,personnel increased to more than 150 in Taiwan and United States.

Introduction

http://www.leadtek.com.tw/Eaboutlead.htm (1 of 2) [6/11/1999 11:03:28 AM]

1994 -- Under OEM brand, Leadtek's 2182 PCI Graphics Accelerator Card, designed with Leadtek's PCI bridge ASIC chip, won CeBIT Best Product Award.Begins work on video conferencing product line (Leadphone) based on real-time image grabber and DSVD modem offering sharp video quality and excellent price/performance ratio on the POTS system.

1998 -- Best of Byte Award for frame sizzling WinFast 3D L2300."Five star technology" citation from Byte Magazine for its professional 3D Graphics Acellerator Card the WinFast 3D L2520. TeleEye Certificate of Small and Medium Enterprise Innovation Research Award

Leadtek is now positioned to generate superior products, service and solutions required by its customers in the coming years. We know that we can only be as successful as our customers are. We are an R&D oriented company committed to develop for mutual success with our customers.

Your Strategic Business Partner

Corporate Goal

We aim to be a global company leading in personal computer technology, offering premium quality products and services and creating a mutually successful business with our clients.

● Extensive and Innovative Research and

Development

Our R&D Department is the backbone and strength of our company. This together with our strategic connections to chip vendors allows us to develop innovative products. Leadtek is ready for the challenge and opportunity.

●

Market-oriented R&D A corporate Philosophy

R&D is our watchword and credo. We never lose sight of its importance. At the same time we know our success is linked to that of our customers. That's why our R&D not only takes account of user satisfaction but also of reseller's profitability. With our strong R&D capability we can efficiently design or modify products to take advantage of this dynamic market.

● Win-Win Strategy

We believe in a win-win strategy. We want long-term partners and have thus developd our company and technology to optimize our contribution to a long-term mutual success.

●

Great Growth Potential Mutual Success

We have developed and accumulated advanced expertise in graphics, video, multimedia, 3D graphics, 3D sound, ISDN and video conferencing. With more than 90% of sales under Leadtek's own brand name, there's a world of untapped market potential to exploit.

●

ADDRESS:5F,NO.4,ALLEY 11,LANE 327 SEC.2, CHUNG-SHAN RD.,CHUNG-HO,TAIPEI HSIEN, TAIWAN,R.O.C. TEL:886-2 -22484101 FAX:886-2-22484103

¡@

Introduction

http://www.leadtek.com.tw/Eaboutlead.htm (2 of 2) [6/11/1999 11:03:28 AM]

Leadtek WinFast 6200MA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
