Leadtek TeVue User Manual

Download

TeVue

User's Manual

TeVue User's Manual Version A May 2004 P/N: W0500869

TeleFone TV Network, LLC

Telephone number: 212 5019000 Address: TeleFone TV Network, LLC

750 Lexington Ave New York, NY 10022

Table of Contents

1 Getting Started ...................................................... 1

2 Getting to Know Your ............................... 3

3 Installation ............................................................ 8

Overview ........................................................................ 1

Feature highlights ........................................................... 1

What's in the package ..................................................... 2

Front view ....................................................................... 3

Rear view ........................................................................ 4

Using remote control ...................................................... 5

Installing the unit ............................................................ 8

Using external devices .................................................. 11

4 Making a Call ....................................................... 12

5 Making Adjustments .......................................... 14

Before making a video call ........................................... 12

Making a video call ...................................................... 13

Using OSD menus ........................................................ 14

Reviewing IPs ................................................................ 15

Configuration .................................................................. 16

Password Checking .......................................................... 16

Phone Setup ...................................................................... 17

Network Setup .................................................................. 18

Bandwidth Setup ............................................................... 19

Advanced Setup ................................................................ 20

Firmware Update .............................................................. 23

Configuration Changed ..................................................... 26

TeVue

Table of Contents

Error messages in bootup sequence .............................. 36

Other problems ............................................................. 39

Phonebook ....................................................................... 27

Change Password ............................................................ 33

Restore factory settings ................................................... 34

Add ................................................................................... 27

Search ............................................................................... 28

InBox ................................................................................ 31

OutBox ............................................................................. 32

6 OSD Menu Tree ................................................... 35

7 Trouble Shooting ................................................ 36

8 FCC Statement ................................................... 40

Error messages in dialing sequence .............................. 38

Overview

Feature highlights:

TeVue is designed to avoid complicated installation. And with the buttons on the remote control, you are able to access the user-friendly on screen display menu (OSD), easily control the functions and make adjustments.

has a built-in high quality CCD camera. Images are transmitted through the Internet at up to 24 frames per second (fps) . While making a video call, you can enjoy the brilliant real-time color images of yourself, your correspondents or both. If you do not want your image to display on the caller or receiver's screen, 's private mode can do just that.

is fully compliant with H.323 international standards for video communication. It can be used with any videophone that are compatible with this standard.

Broadband IP address videophone Connect the other videophone by simply entering the IP address/number*

Friendly and easy operation through remote control Phonebook dialing function 2 A/V inputs & 1 A/V output for additional video/audio input and

video/audio output Up to 24 frames per second video display (@ CIF resolution) Video selectable and picture image up to VHS quality Echo-cancellation and no delay high quality audio

TeVue

(@ CIF resolution)

TeVue

Built-in high quality CCD camera

1Getting Started

*Note: To dial numbers, TeVue must work in conjunction

with additional accessories, such as the H.323 Gatekeeper.

TeVue User's Manual 1

Audio/Video Cable

Power Adapter

Ethernet Cable

User's Manual

What's in the package?

Please unpack the product package with caution; inspect the Items closely. If you find any damaged item, please contact your local distributor immediately. Also, please keep the box and packing material for future use in the event of future shipments.

Power Cord

TeVue

TeVue x1

Remote Control x1 User's Manual x1 Microphone x1 Microphone Extension

Cable x 1 Power Adapter x1 Power Cord x1 Ethernet Cable (RJ-45) x1 Audio/Video Cable x1

789

VOL

S H A R P

F A S T

Y0400033

PQRS

TUV

STILL

ABC DEF

PRIVACY

GHI

JKL

MNO

VIEW

WXYZ

CAMERA

MUTE IN-BOX OUT-BOX

PHONEBOOKCLEAR

Remote Control

Microphone

MIC

VIDEO POWER

Microphone

Extension

Cable

2Getting to Know Your TeVue

Front view

CCD Camera:

The input source of local video image. This is a mini built-in CCD camera.

Power Indicator:

Lights green when the power is on.

Video Indicator:

Lights orange when the main unit is in video transmission.

When TeVue is in audio mute (see p. 6), the video indicator blinks.

Microphone Connector:

You need to connect the external microphone here in order to input voice.

Remote Control Signal Receiver:

Receives the infrared signal from the remote control. When using the remote control, please aim at this receiver.

Buzzer

MIC

VIDEO POWER

TeVue User's Manual 3

Rear view

COM

(reserved)

DC IN

Connect to the DC output of power adapter

A/V Input 1

Audio and Video input connector 1

WA N

Ethernet connector

Power Switch

For turning on/off the power

COM

OFF

POWER

WAN

AV OUT

AV IN2 AV IN1

Audio

Video

LINK

Network activity indicator

A/V Output

Audio and Video output connector

A/V Input 2

Audio and Video input connector 2

Using remote control

1. Number keys

3. Mute

4. Clear

5. IN-BOX

6. Left arrow

7. Vol -

8. On-hook / Off-hook

9. Still

10. Privacy

11. View

12. #

13. OUT-BOX

14. Camera

15. Phonebook

16. Vol +

17. Right arrow

18. OK

VOL

S H A R P

F A S T

Y0400033

789

PQRS

TUV

ABC DEF

GHI

JKL

MNO

WXYZ

CLEAR

MUTE IN-BOX OUT-BOX

PHONEBOOK

CAMERA

VIEW

PRIVACY

STILL

F A S T

S H A R P

The "FAST" and "SHARP" on and are not applicable in this product.

TeVue User's Manual 5

Used with OSD menus; to move the cursor left or to go back to the previous menu. During a video call, used to reduce the incoming video bit rate.

OK: Used with OSD menus; to pop up the OSD menu, to enter the sub menu, or to confirm the selection. During a video call, related to the "Allow Remote Control" option (see page 17).

Used with OSD menus; to move the cursor right or to enter the sub menu. During a video call, used to raise the incoming video bit rate.

Used with OSD menus; to move the cursor up. During a call, to turn the volume of the speakerphone up.

Used with OSD menus; to move the cursor down. During a call, to turn the volume of the speakerphone down.

VOL

S H A R P

F A S T

Still:

To freeze the video image of yourself so that the other party can have a clearer display.

STILL

Camera:

To switch between the built-in CCD camera and external cameras connected to TeVue.

CAMERA

MUTE

Mute:

During a video call, this button is used to mute the audio so that you will not be heard by the other party on the phone.

VIEW

View:

To select how local and remote video is displayed on the screen. The options are: Remote, PIP upper-left, PIP lower-left, PIP upper- right, PIP lower-right, Local. And it switches in that sequence.

CLEAR

Clear: To go back to the previous menu, or to function as Backspace when you input letters or numbers. During a video call, to refresh the screen should artifacts appear due to temporary network traffic congestion.

To dial phone numbers, must work in conjunction with additional accessories, such as the H.323 Gatekeeper.

TeVu e

Cursor Panel

Hot Keys

PHONEBOOK

Phonebook:

To bring out the phonebook menu. See page 27.

PRIVACY

Privacy:

Stop sending your image to the other side so that you will not be seen by the person you talk to.

IN-BOX

IN-BOX:

To bring out the menu that contains the numbers of the 10 last received calls.

OUT-BOX

OUT-BOX:

To bring out the menu that contains the numbers of the 10 last dialed calls.

Using remote control

(cont.'d)

Inputting numbers

Pressing any key on the numeric keypad can input the correspondent number.

For example, pressing will generate the number"8".

Numeric Keypad

Inputting letters

Every button on the numeric keypad has characters printed on it, in addition to the numbers. Number keys from"2"to"9" have English letters below them, so they can be used to input English letters. When inputting data, pressing a key consecutively will generate the letters on it.

For example, has the number"7"onitandtheletters " PQRS " below it.

Pressing this key once will generate the number"7". Pressing this key twice consecutively will generate the letter"P". Pressing this key three times will generate the letter"Q",four times the letter " R ", and five times the letter"S". And it will cycle in such order.

Inputting punctuation marks

The keypad provides four punctuation marks:

" " " " " " and " ".

.,! ;

" ": Press twice consecutively;

" ": Press three times consecutively.

" ": Press twice consecutively. " ": Press three times consecutively.

Press only once to generate"." when inputting IP addresses.

Inputting special characters

The keypad also provides six special characters: " " " " " " " " " " and " ".

@_- $

" ": Press twice consecutively; " ": Press once.

" ": Press three times consecutively. " ": Press 4 times.

" ": Press four times consecutively. " ": Press once.

PQRS

TUV

ABC DEF

GHI

JKL

MNO

WXYZ

Using remote control

(cont.'d)

Switching between upper case and lower case letters

Press once to switch between upper and lower case letters when inputting data.

TUV

PQRS

Speed Dial

When the button is pressed, pressing can enable speed dial.

TeVue User's Manual 7

Front view

Side view

3Installation

Installing the unit

Step 1 Installing the skid-proof base

The enclosed skid-proof base keeps the unit securely positioned anywhere on the flat surfaces.

1. Attach the base to the unit by sliding the security latch of the base into the corresponding area on the bottom of the unit.

2. Move the weight stabilizer from position A to position C to provide extra weight support and balance.

MIC

VIDEO POWER

Step 2 Pick a good spot

Prolonging the lifespan

Avoid storing or operating in abnormal conditions. High temperatures or excessive humidity could cause the unit to malfunction and shorten its useful lifespan.

TeVue

Stability

Place your on top of a counter, desk, or table with the CCD camera opening in front.

TeVue

Lighting condition

Make sure the lighting is sufficient and does not shine directly into camera lenses.

View of camera

Avoid using in a room with brightly painted walls or flamboyant wallpaper. Soft and evenly painted background provides the best results.

TeVue

Connect the microphone.

Step 3 Connect the microphone

Plug the included microphone into the MIC connector in the front of . If you find the cord a tad short, use the supplied Microphone Extension Cable to extend the length of the microphone and provide additional distance.

TeVue

Installing the unit

TeVue User's Manual 9

Step 4 Connect the Ethernet cable

Plug one end of the Ethernet cable in the jack marked "WAN" on TeVue. Plug the other end of the Ethernet cable in the RJ-45 jack of the Internet device (hub, router, or ATU-R).

Installing the unit

Step 5 Plug in for power

Connect the power cord between the wall outlet and the power adapter. Plug the free end of the power adapter into the power connector (DC IN) on TeVue.

Connect

the power

adapter.

Connect the power cord

and plug in.

COM

OFF

POWER

WAN

AV OU T

AV IN 2 AV IN1

Audio

Video

LINK

Connect the Ethernet cable to the Internet device.

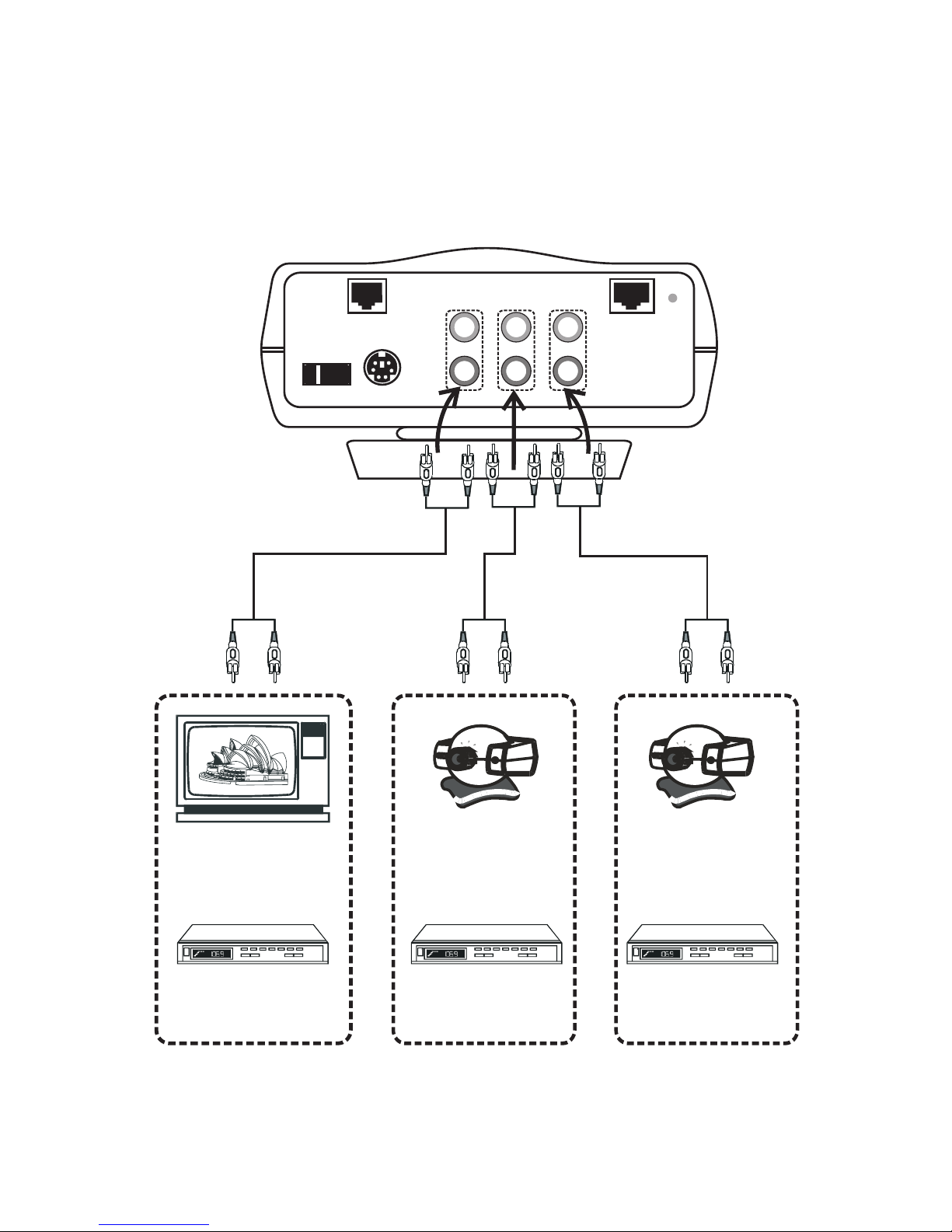

Using external devices

VCR

(for recording)

VCR

(for playing)

A/V Output

CCD Camera

Television

VCR

(for playing)

CCD Camera

COM

OFF

POWER

WAN

AV OUT

AV IN2 AV IN1

Audio

Video

LINK

A/V Input 1

A/V Input 2

TeVue User's Manual 11

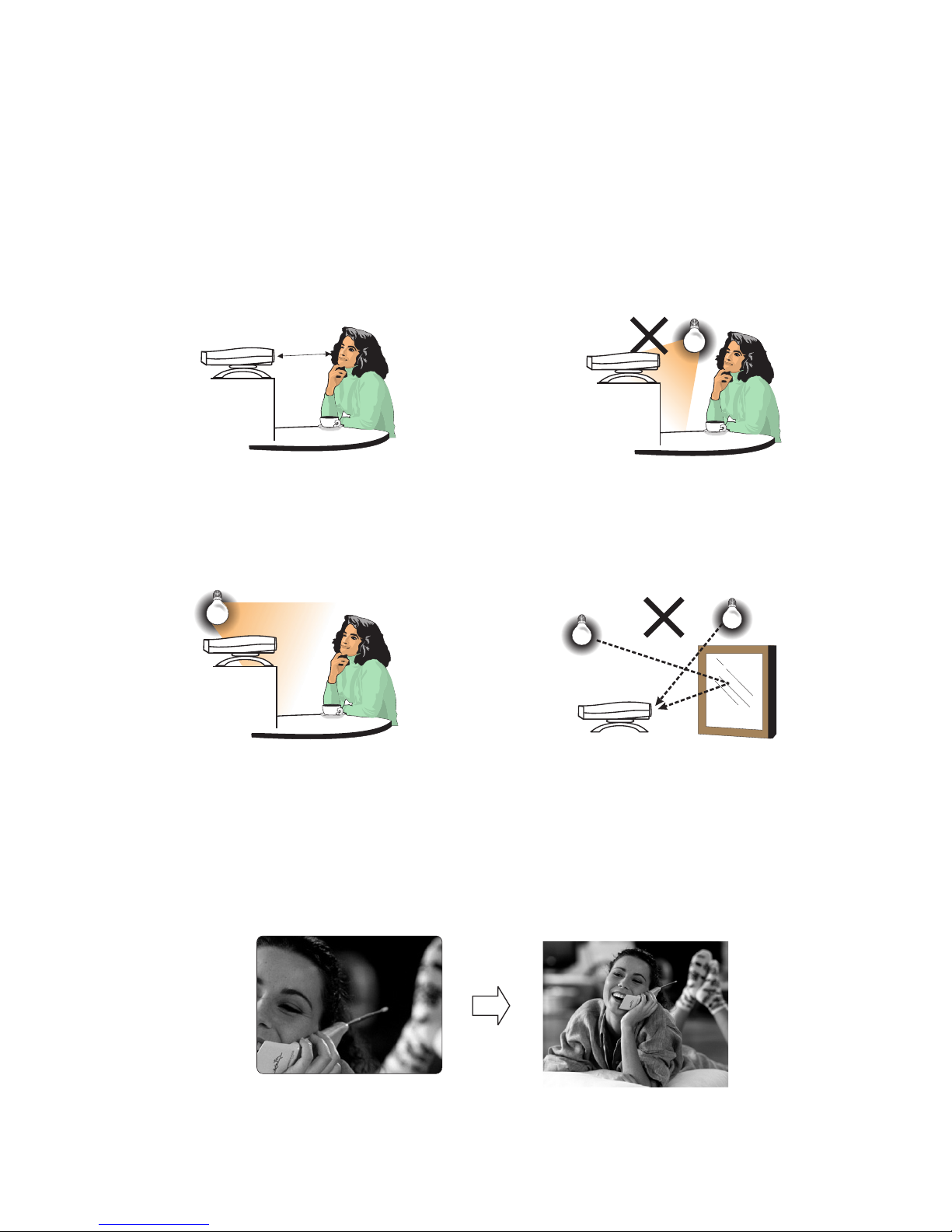

Avoid having lights behind you that might shine into the camera lens.

Do not point the at a mirror or bright light.

TeVue

Keep a distance of 0.5 meters away from .

Make sure of the most appropriate lighting source, preferably from the front with the beam on your face.

TeVue

4Making a Call

Here are a few things you need to consider before making a video call.

Use the self-view image to get the best shot of yourself.

Before making a video call

Avoid having a lot of movement in the background and try not to move around excessively. Too much movement tends to slow down the frame rate of the video image, resulting in a jerky picture.

0.5 m

Step 1 Turn on the power of the unit and

Step 2 Press the button.

Step 3 The other party answers the phone, and

Step 4

Step 5

make sure TeVue is connected with TV The external TV screen shows the local view, the image of the caller.

Enter the desired IP address/number * (See note). Use the key to input the dots between the numbers. When a key is pressed, the image on the TV screen disappears and the numbers you input are displayed.

the video connection is

established. You will be able to see the person you are talking to.

To end the connection, press the button.

If there is difficulty in making connection, please make sure that TeVue has been properly installed. Please also check if the network settings are correctly configured.

Making a video call

*Note: To dial numbers, TeVue must work in conjunction with additional accessories, such as the H.323 Gatekeeper.

If there are artifacts residuals on the screen due to network traffic congestion, press button to refresh the screen.

CLEAR

TeVue User's Manual 13

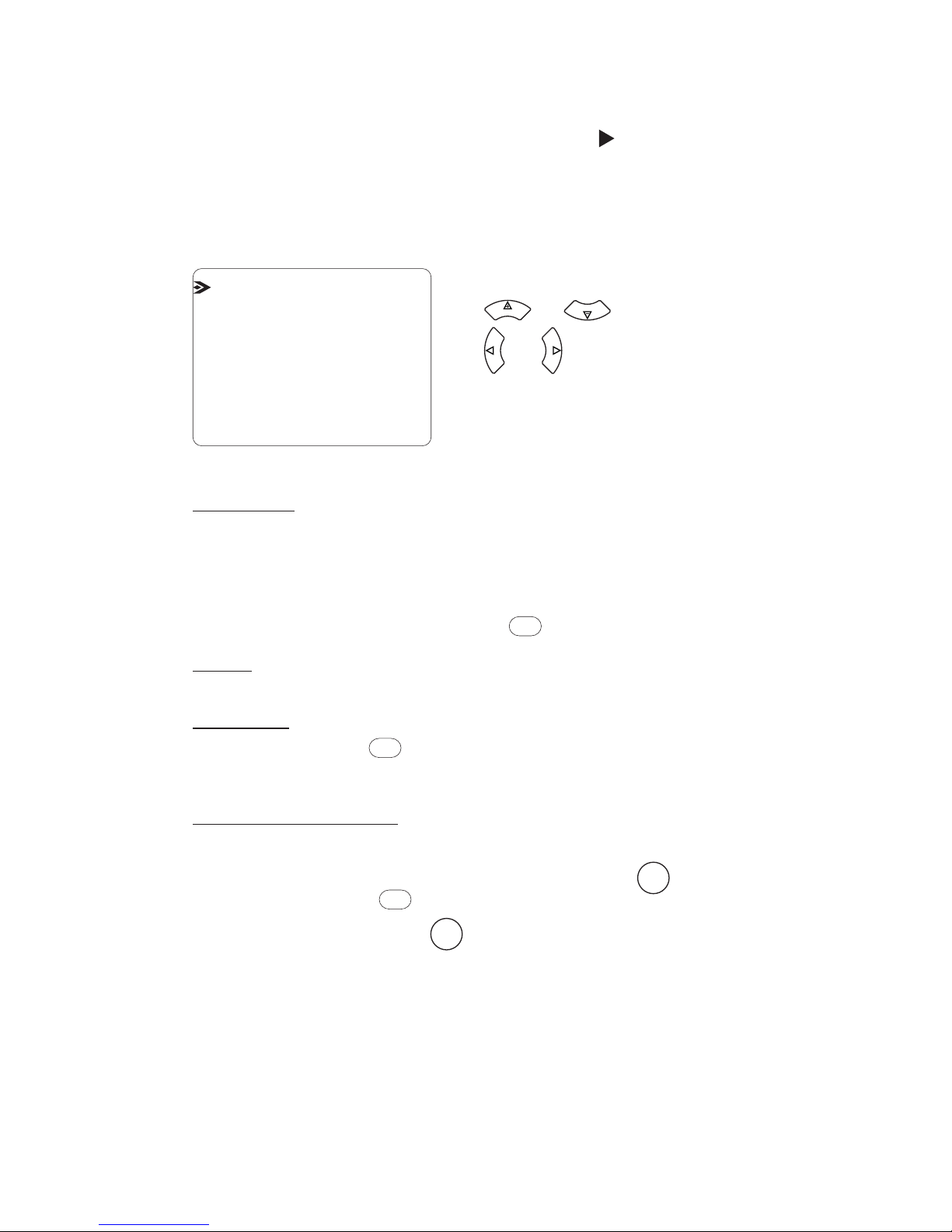

Using OSD menus

TeVue allows you to use the cursor panel on the remote control to operate

OSD (on-screen-display) menus. The OSD menu is brought out by pressing the button on the cursor panel of the remote control. The figure below shows you what an OSD menu looks like:

OSD menu

Screen

Cursor Panel

Operating OSD menus cursor panel explained

Highlighted item

5Making Adjustments

VOL

S H A R P

F A S T

Brings up on-screen menu, enter the submenu, or confirm the selection made.

F A S T

Moves the cursor right or enter the submenu.

VOL

Moves the highlighted option down.

VOL

Moves the highlighted option up.

S H A R P

Moves the cursor left or go back to the previous menu.

Configuration

Change Password

Phonebook

Change Password

Configuration

Phonebook

xxx.xxx.xxx.xxx

Firmware version:

Press "OK" to enter

IP addr of this phone:

Phone can be called by

xxx.xxx.xxx.xxx

the Configuration menu.

Main: 1.1.0 LAN: 2.2.2

Local view

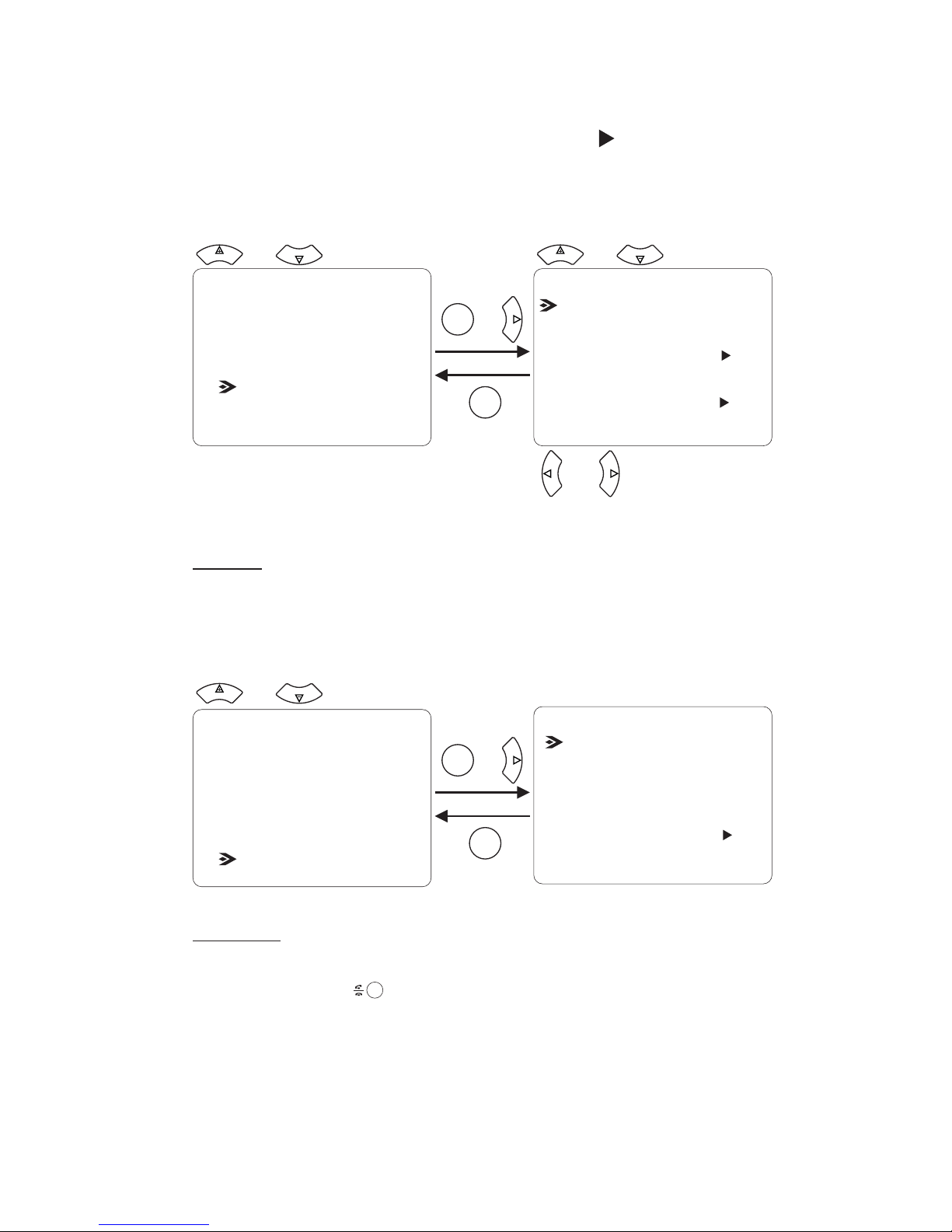

Using OSD menus Reviewing IPs

(Continued on page 16, 27, 33 respectively, for instructions on configuring different settings)

TeVue User's Manual 15

Bandwidth Setup

Firmware Update

Phone Setup

Password correct?

Ye s

Change Password

Configuration

Phonebook

Please enter password

Network Setup

Advanced Setup

Incorrect password

Any key

(Continued on page 17 to 25 respectively, for instructions on configuring different settings)

Numeric input, maximum 4 digits

Using OSD menus

Password Checking

Configuration

and : Item selection

VOL

F A S T

: backspace

CLEAR

Using OSD menus Configuration Phone Setup

Phone Setup

Auto Answer Rings (0~9): 4 Ring Volume: HI Start With: Both A&V

Flash Key: OFF

H.263: ON

Auto Answer: OFF

Allow Remote Control: NO

Start With:

Flash Key:

Allow Remote Control:

Both A&V:

Video:

Audio:

ON:

YES:

Starts a call with both audio and video.

Starts a call with video only. Audio is disabled.

Starts a call with audio only. Local view is on the TV. To bring

back video during the call, press the key.

Pressing the key during a call sends a Hook-Flash signal.

Flash is used to access features in a PBX phone system.

Allows the remote (far) site to change the video input sources on this phone during a call. The remote site first presses , then each subsequent press of changes the video source. The letters "Alt" is displayed on the TV after is pressed.

H.263: If two parties have a communication problem with the video protocol, setting H.263 to off may solve the problem.

Numeric keypad: input numbers

and : Item selection

VOL

: toggle options

(ON/OFF, HI/LO,

YES/NO)

and

S H A R P

F A S T

PRIVACY

PHONEBOOK

CAMERA

TeVue User's Manual 17

Network Setup

IP Address: 0.0.0.0 Netmask: 255.255.255.0 Gateway: 192.168.1.1

Press > to check: ( )

Being Called by Above IP? NO

Auto Get IP (DHCP)? YES

User Name: Videophone Use Phone #? NO

Phone #: 123456

Auto Get IP?

Being Called by Above IP?

User Name:

Use Phone #?

YES:

NO:

YES:

NO:

YES:

IP Address, Netmask and Gateway for the phone unit will be provided by a DHCP server. The typical case for this selection is when the phone is connected to a router which includes a DHCP server.

A user enters the IP Address, Netmask and Gateway. The typical case for this selection is when the user wants to assign a public and static IP to the phone unit.

The IP address to be used in receiving calls is specified in the IP Address field above. The typical case for this selection is when the IP address is public and static, therefore, reachable directly from the Internet.

The IP address to be used in receiving calls can be found in the Public IP Address menu (see page 21). The typical case for this selection is when a phone is connected to a router which performs a NAT function. Your ISP assigns a public IP address to your router. By using this public IP address, your phone is reachable directly from the Internet.

The user name is displayed when the phone rings.

Phone # is another way for someone to call your phone. To use the Phone # feature, your phone must be registered successfully to a Gatekeeper with your desired phone #. Gatekeeper is set up in the Gatekeeper menu .(see page 20)

Using OSD menus Configuration Network Setup

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

and : Item selection

VOL

: toggle options

(YES/NO)

and

S H A R P

F A S T

Bandwidth Setup

Outgoing Network Bandwidth:

Incoming Network Bandwidth:

Choices are 128, 256, 384, 512, 640 Kbps. The Outgoing Network Bandwidth refers to the total bandwidth speed for your broadband connection from your location to Internet. It is also known as the Upload or Upstream speed. You should select a speed to match your broadband network, For example, if you have a DSL with 128 Kbps upload speed, select 128 Kbps here. Note the Outgoing and Incoming speeds do not have to be the same.

Choices are 128, 256, 384, 512, 640 Kbps. The Incoming Network Bandwidth refers to the total bandwidth speed for your broadband connection from Internet to your location. It is also known as the Download or Downstream speed. You should select a speed to match your broadband network. For example, if you have a DSL with 1.5 Mbps download speed, select 640 Kbps here. Note the Outgoing and Incoming speeds do not have to be the same.

During a call, you can fine tune the incoming speed by pressing and

keys.

Using OSD menus Configuration Bandwidth Setup

Incoming Network Bandwidth:

Outgoing Network Bandwidth:

256 Kbps

Bandwidth Setup

Firmware Update

Phone Setup

Network Setup

Advanced Setup

and : Item selection

VOL

and : Item selection

VOL

and

: Set the bandwidth

S H A R P

F A S T

S H A R P

F A S T

TeVue User's Manual 19

Using OSD menus Configuration Advanced Setup

Advanced Setup

Alias: Videophone

GateKeeper: 192.168.128.110

Keep Alive: ON

GK Password ( )

Public IP Address

Update Server

PPPoE

GateKeeper

Hot Link

Gatekeeper:

You need to get the IP of the gatekeeper from your gatekeeper service provider.

Keep Alive:

Alias:

GK Password:

If your gatekeeper service provider periodically inquires for your

's online status, you can set Keep Alive to ; if it doesn't make such an inquiry and you want to stay online for a long period of time, it is better to set Keep Alive to . Consult your gatekeeper service provider if you don't know how to do Keep Alive setting.

The

GK Password is set according to your gatekeeper service provider's requirements.

OFF

TeVue

alias may be assigned by your gatekeeper service provider.

and : Item selection

VOL

and : Item selection

VOL

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

Clear

: backspace

and

: move cursor,

toggle options (ON/OFF)

S H A R P

F A S T

Public IP Address

Update Server

PPPoE

GateKeeper

Hot Link

Public IP: 192.168.128.179

IP Server: 210.202.38.143

Auto Detect Public IP? YES

Numeric keypad: input numbers

Advanced Setup

Using OSD menus Configuration Advanced Setup

IP Server:

Auto Detect Public IP?

YES:

NO:

The public IP address assigned to your router by your ISP will be detected automatically and shown after reboot. See the Network Setup menu (p.18) on how to use the public IP address.

You can assign your own public IP address.

IP Server is a server which your service provider places on the Internet. This server assists your videophone to automatically detect the public IP address assigned to it. Do not change this value unless instructed by your service provider.

Public IP Address

Update Server

PPPoE

GateKeeper

Hot Link

Update Server:

65.215.224.51

and : Item selection

VOL

and : Item selection

VOL

F A S T

Numeric keypad: input numbers.

and

: move cursor

S H A R P

F A S T

: backspace

CLEAR

and : Item selection

VOL

: toggle options

(YES/NO)

and

S H A R P

F A S T

and : Item selection

VOL

F A S T

TeVue User's Manual 21

Using OSD menus Configuration Advanced Setup

Advanced Setup

Public IP Address

Update Server

PPPoE

GateKeeper

Hot Link

PPPoE: OFF

PPPoE Username ( )

PPPoE Password ( )

Hot Link: OFF

Hot Link Number ( )

Hot Link:

ON: The Hot Link number will be used for dialing when the handset is

raised or when the key is pressed. This is useful when a certain number must be dialed whenever the phone is in use.

Public IP Address

Update Server

PPPoE

GateKeeper

Hot Link

PPPoE:

If you use timing ADSL to connect to Internet directly, please set PPPoE to . You can get PPPoE Username and Password from your ISP.ON

and : Item selection

VOL

and : Item selection

VOL

and : Item selection

VOL

F A S T

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

and

: toggle options

(ON/OFF)

S H A R P

F A S T

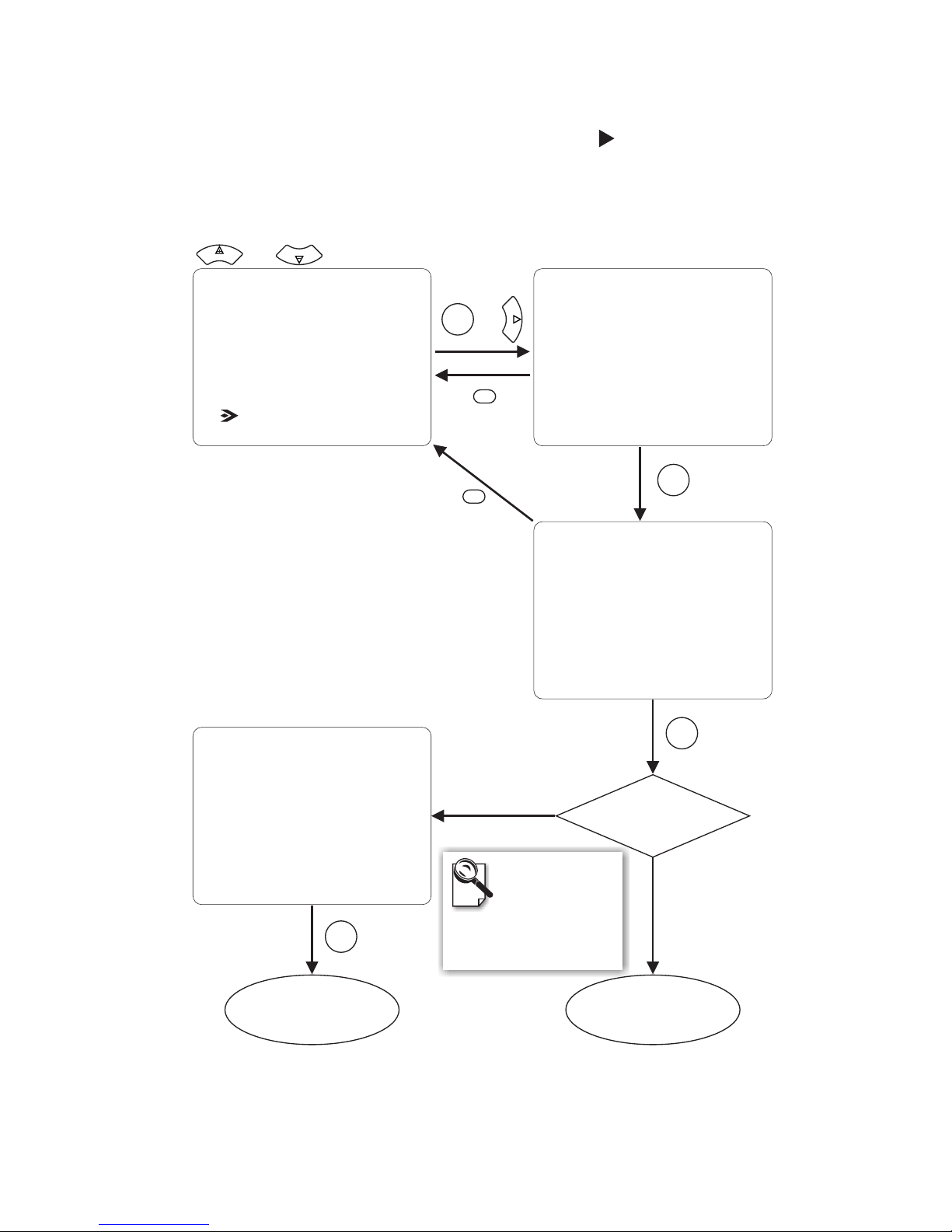

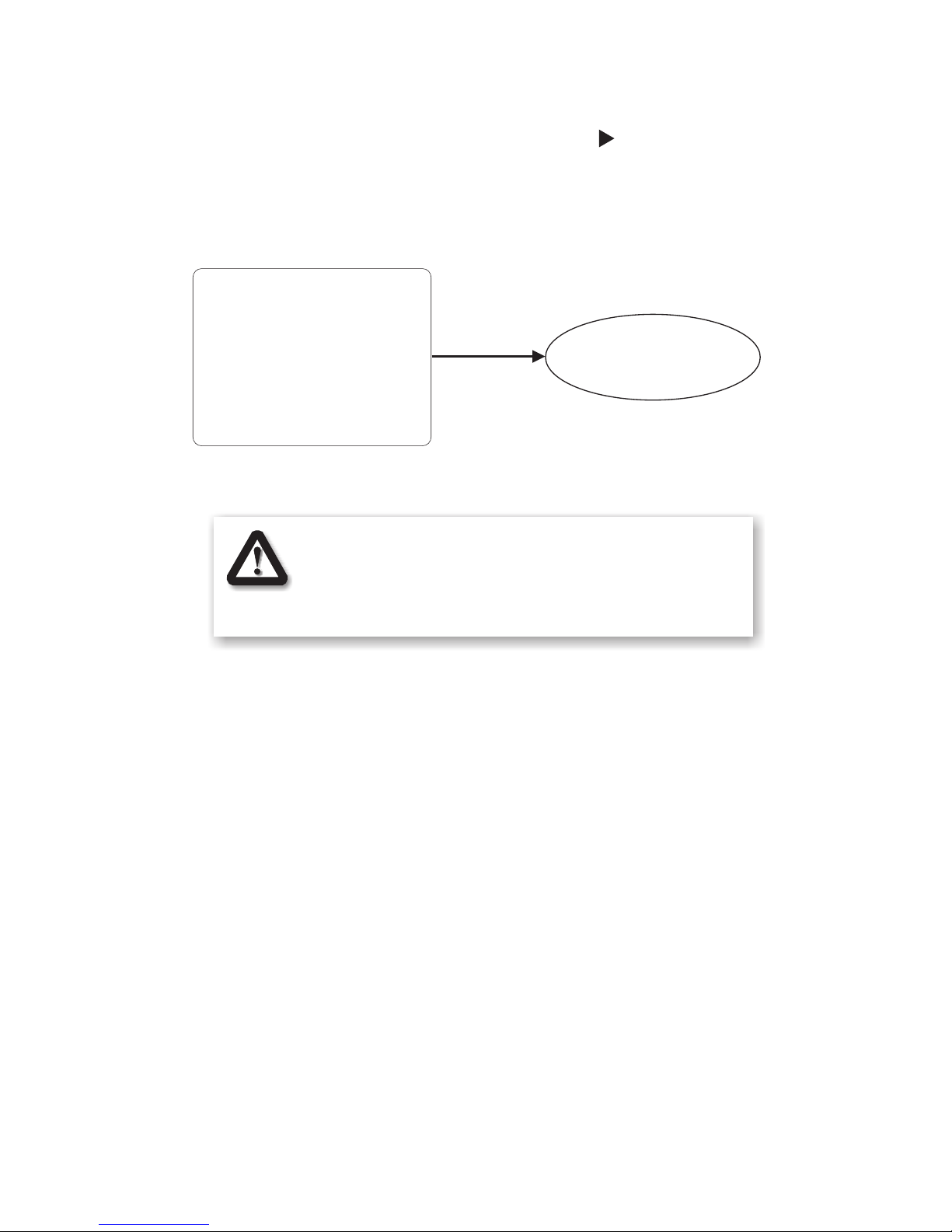

Using OSD menus Configuration Firmware Update

Firmware Update

Start Firmware Update?

Yes <OK>

No <CLEAR>

Are you sure?

Yes <OK>

No <CLEAR>

Bandwidth Setup

Firmware Update

Phone Setup

Network Setup

Advanced Setup

YES

Reboot.

and reboot.

Firmware Update.

Press "OK" to turn off

the "Use Phone #?" feature

After reboot, please retry

See next page.

Use Phone #?

You can check the "Use Phone #?" state in

under

menu.

Network Setup Configuration

CLEAR

and : Item selection

VOL

F A S T

TeVue User's Manual 23

Using OSD menus Configuration Firmware Update

successfully. Restarting.

Firmware Update completed

Main S/W

Update in progress.

Please wait...

Firmware Update

LAN S/W

Update in progress.

Please wait...

latest firmware.

You already have the

Connection time out.

Retry <OK>

Abort <CLEAR>

Firmware versions are the same

Wait 5 seconds

Unsuccessful connection

(Continued from previous page)

Bandwidth Setup

Firmware Update

Phone Setup

Network Setup

Advanced Setup

Wait 5 seconds, reboot.

LAN code changed

YES

See next page.

CLEAR

Using OSD menus Configuration Firmware Update

Firmware Update

Finalizing Firmware Update.

Please do not touch the phone. The phone will restart automatically.

Wait for firmware written into flash, reboot.

(Continued from previous page)

Do not touch the phone during firmware update. The phone will reboot itself after the update. Turning off the phone pre-maturely may cause a permanent failure and require a factory service.

TeVue User's Manual 25

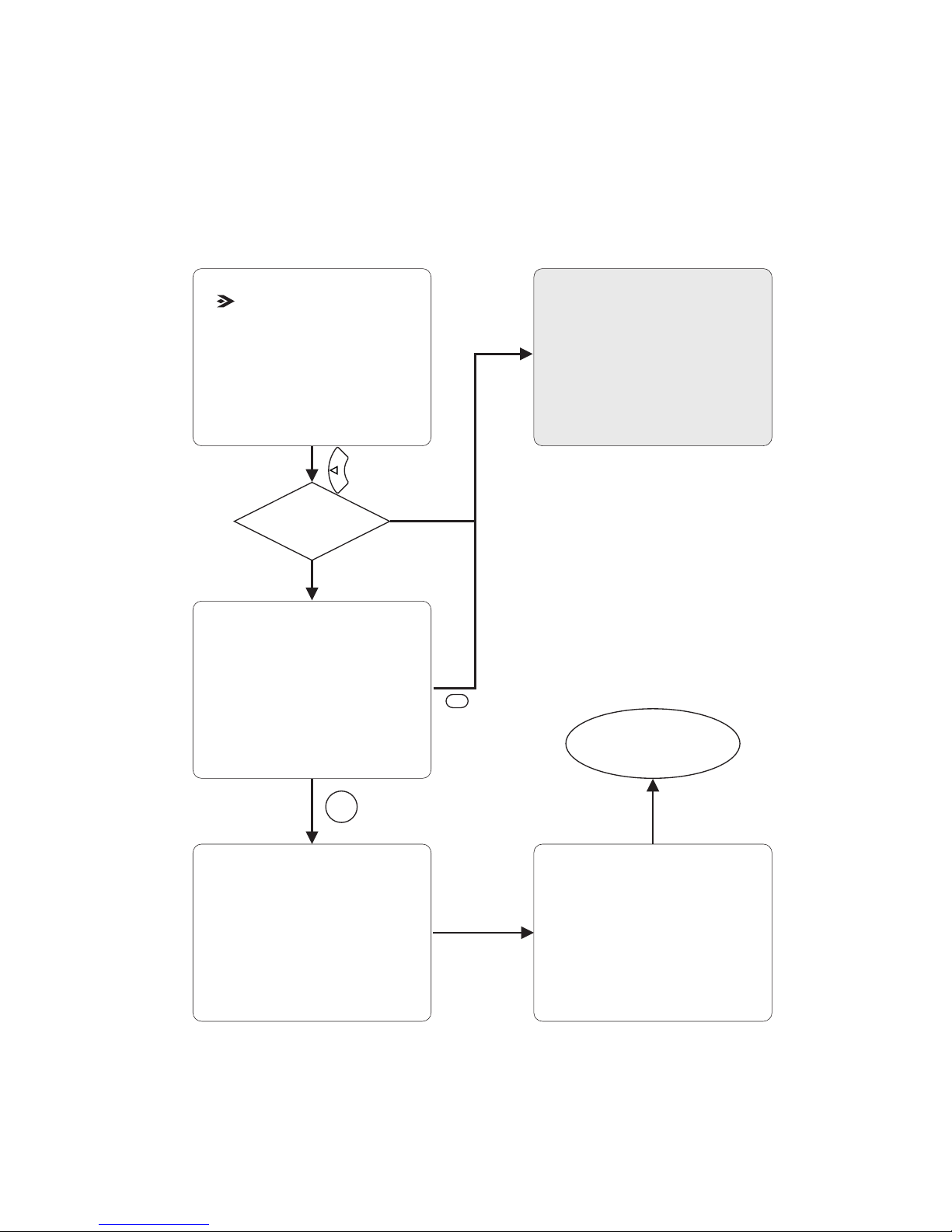

Using OSD menus

Save the settings?

Yes <OK>

No <CLEAR>

Configuration

Configuration has

been changed?

Ye s

Saving completed.

Restarting...

Configuration Changed

Local view

Change Password

Configuration

Phonebook

Saving in progress.

Please do not touch the phone.

Reboot.

S H A R P

CLEAR

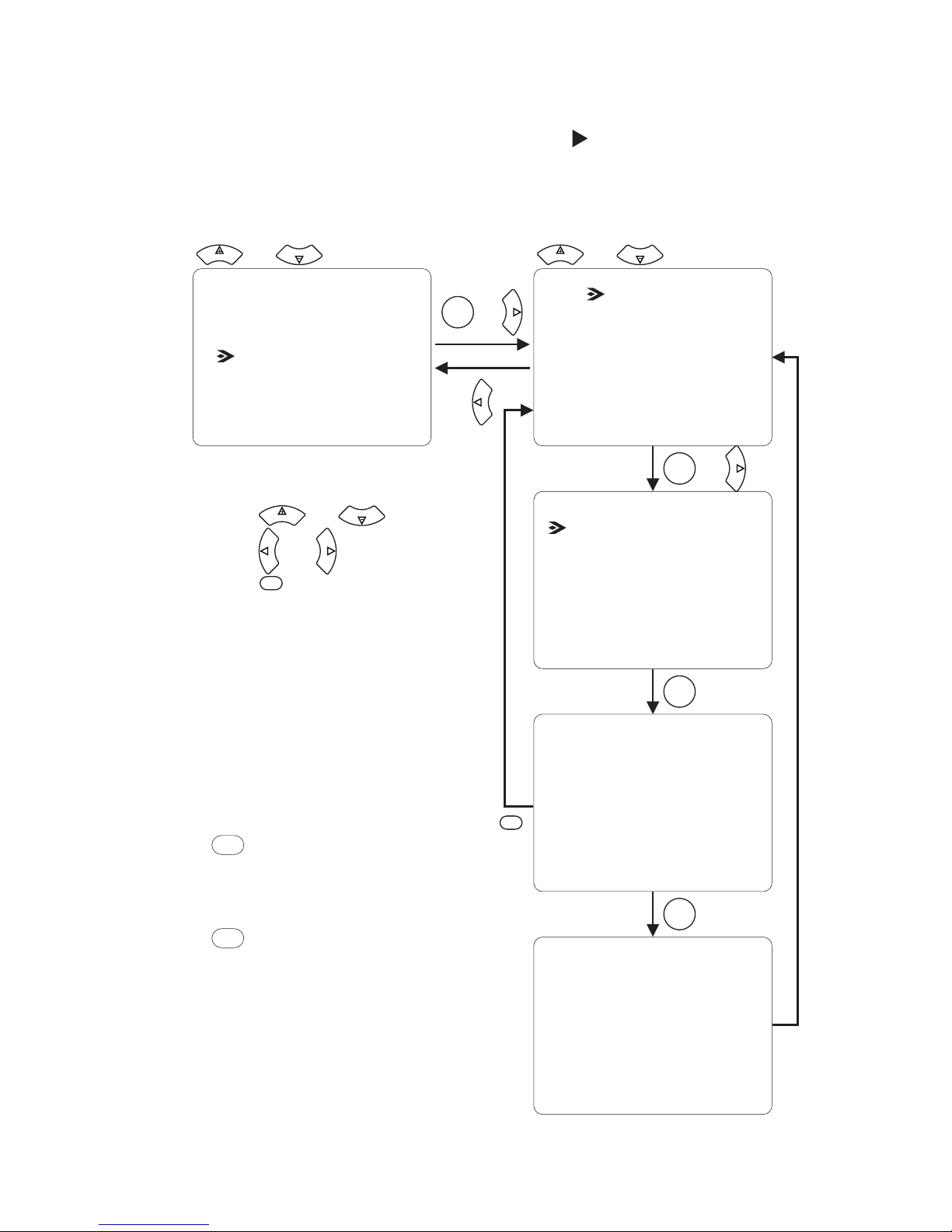

Using OSD menus Phonebook Add

Adding to the phonebook

and : Item selection

VOL

and : Item selection

VOL

S H A R P

F A S T

CLEAR

InBox

Add

OutBox

Speed Dial

Record Saved

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

and : Item selection

VOL

and

: move cursor

S H A R P

F A S T

: backspace

CLEAR

Change Password

Configuration

Phonebook

Add This Record?

Yes <OK>

No <CLEAR>

Name: |

Phone No:

IP:

H.323 Alias:

Note:

You can enter the phonebook

menu either through the OSD

menu or by pressing the

button

If you enter the phonebook

menu by pressing the

at any time.

button, will

return to local view when you

leave the phonebook menu.

TeVue

PHONEBOOK

F A S T

TeVue User's Manual 27

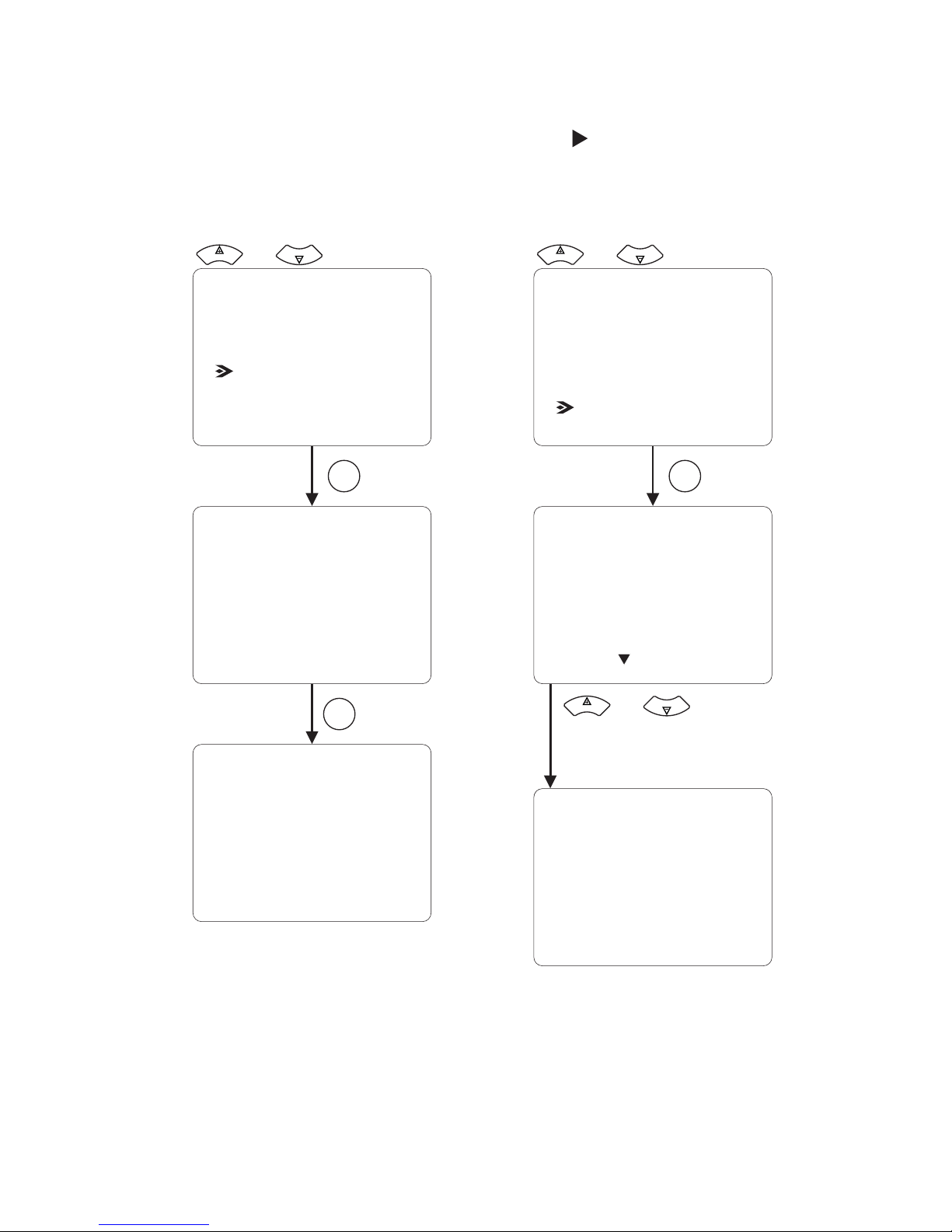

Using OSD menus Phonebook Search

Search for a number

and : Item selection

VOL

F A S T

Search for a number

Dial

Edit

Delete

(Continued on next page)

Searching by Name:

Joe

Name: Joe

Phone No. : 789

IP: 192.168.3.1

H.323 Alias: Joe

Add to Speed Dial

InBox

Add

OutBox

Speed Dial

Clear

: backspace

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

and

: move cursor

S H A R P

F A S T

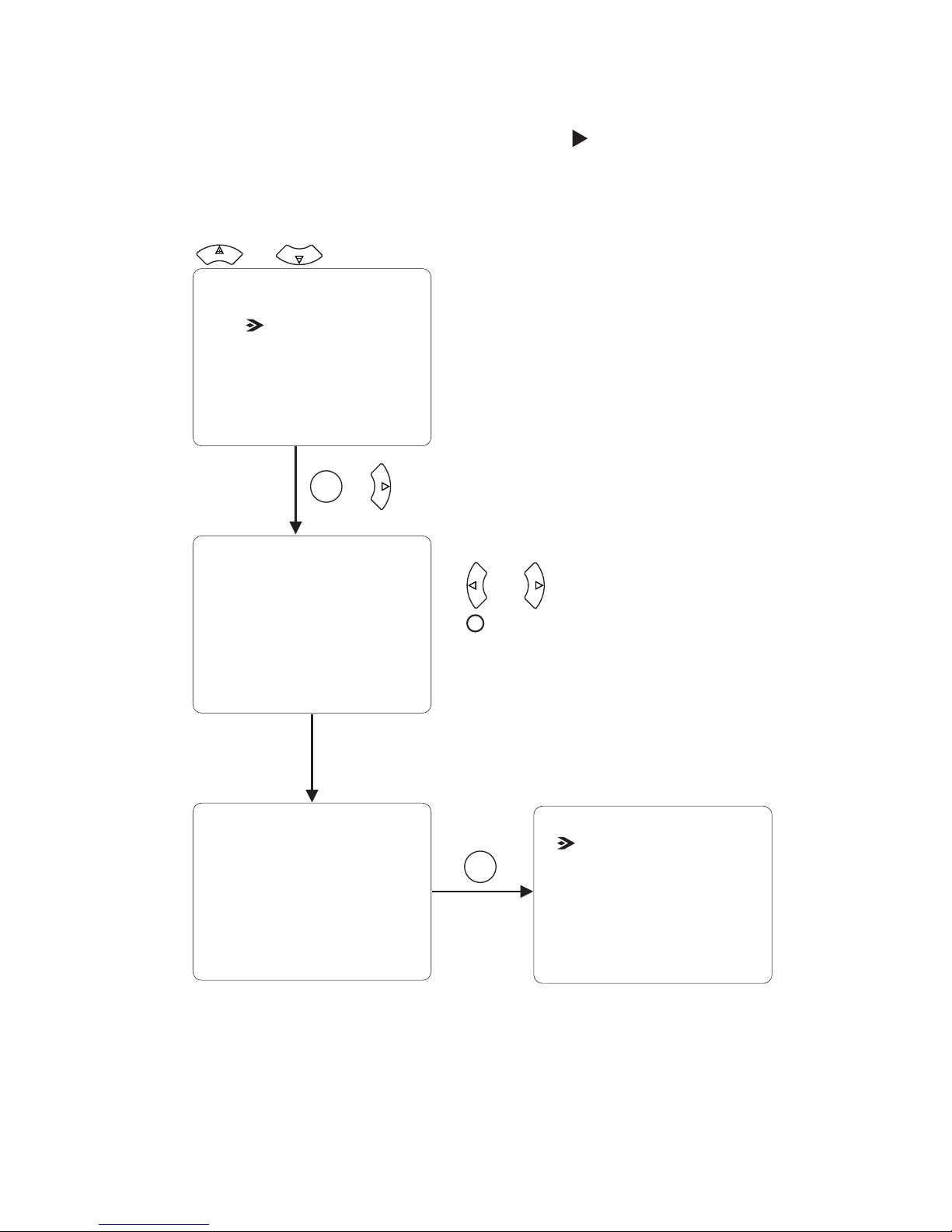

Using OSD menus

Search for a number (cont'd)

Dial the searched number

Phonebook Search

Call progressing

Updating ...

Edit the phonebook record

and

: move cursor

S H A R P

F A S T

: backspace

CLEAR

and : Item selection

VOL

and : Item selection

VOL

Dial

Edit

Delete

Add to Speed Dial

Dial

Edit

Delete

Add to Speed Dial

Dialing ...

192.168.3.1

Name: |Joe

Phone No. : 789

IP: 192.168.3.1

H.323 Alias: Joe

F A S T

Numeric keypad: input numbers, letters, punctuation marks, and special characters.

and : Item selection

VOL

If you can not dial out with

, please hang up or press the button to return to local view, and try to dial again.

TeVue

TeVue User's Manual 29

Using OSD menus

Search for a number (cont'd)

Phonebook Search

Delete This Record?

YES <OK>

NO <CLEAR>

Record deleted

Delete the phonebook record

Dial

Edit

Delete

Add to Speed Dial

Record saved

Dial

Edit

Delete

Add to Speed Dial

0. (None)

1. (None)

2. (None)

3. (None)

4. (None)

Add the record to Speed Dial

and : Item selection

VOL

and : Item selection

VOL

Press the item number (0-9) to assign the record to the number.

and : Item selection

VOL

Using OSD menus Phonebook InBox

InBox contains the numbers of the 10 last received calls.

Dial out

By (IP / Phone no. / Alias)

Dialing to (Name) ...

Dial out

and : Item selection

VOL

and : Item selection

VOL

S H A R P

F A S T

S H A R P

VOL

Select a desired item and then press , or press a number directly, to dial out.

5. 25478654 (00:03:21)

6. Mary (00:01:16)

7. 12547869 (00:02:37)

8. Tom (00:08:18)

9. 52458745 (00:07:24)

0. 24586547 (00:02:15)

1. 35648755 (00:01:20)

2. Amy (00:32:47)

3. Tom (00:51:30)

4. 25478654 (00:01:38)

InBox

OutBox

Add

Press to clear In/Out Box

****

Speed Dial

Change Password

Configuration

Phonebook

If you can not dial out with , please hang up or press the button to return to local view, and try to dial again.

TeVue

TeVue User's Manual 31

Using OSD menus

OutBox contains the numbers of the 10 last dialed calls.

Phonebook OutBox

Dial out

By (IP / Phone no. / Alias)

Dialing to (Name) ...

Dial out

and : Item selection

VOL

and : Item selection

VOL

S H A R P

F A S T

S H A R P

VOL

Select a desired item and then press , or press a number directly, to dial out.

5. 25478654 (00:03:21)

6. Mary (00:01:16)

7. 12547869 (00:02:37)

8. Tom (00:08:18)

9. 52458745 (00:07:24)

0. 24586547 (00:02:15)

1. 35648755 (00:01:20)

2. Amy (00:32:47)

3. Tom (00:51:30)

4. 25478654 (00:01:38)

InBox

OutBox

Add

Press to clear In/Out Box

****

Speed Dial

Change Password

Configuration

Phonebook

If you can not dial out with , please hang up or press the button to return to local view, and try to dial again.

TeVue

Password changed

Using OSD menus

change failed

Check inputs

Change Password

Old password: |

Confirm:

Any key

Change Password?

Yes <OK>

No <CLEAR>

New password:

Invalid

Valid

Invalid input, Password

Change Password

Configuration

Phonebook

and : Item selection

VOL

F A S T

CLEAR

Numeric input: maximum

4 digits

and

: move cursor

S H A R P

F A S T

: backspace

CLEAR

TeVue User's Manual 33

Local view

********

In local view screen, pressing "********" (eight asterisks) will bring out a dialog window, asking if you want to restore all settings to factory default (see below). Press to begin the process. Press to cancel.

Restore all settings

to factory default?

Yes <OK>

No <CLEAR>

Using OSD menus Restore factory settings

Restoring all settings.

Please wait...

Settings restored.

Restarting.

Reboot.

CLEAR

6OSD Menu Tree

Change Password

Firmware Update

InBox

OutBox

Add

Phonebook

Speed Dial

Network Setup

Advanced Setup

GateKeeper

Public IP Address

Update Server

Hot Link

PPPoE

Configuration

Local view

Phone Setup

Bandwidth Setup

TeVue User's Manual 35

7Trouble Shooting

Error messages in bootup sequence

Please enter a phone #,

press "OK" to continue.

To skip, press "CLEAR"

Public IP server address is

invalid, please assign.

Press "OK" to continue.

If the screen to the left is displayed after bootup, it means that you have set "Use Phone #?" to Yes but the phone # is not given. Please enter the phone # and press to register with the gatekeeper.

If the screen to the left is displayed after bootup, it means that Public IP Server address is invalid. It is recommended to restore the factory default setting.

Public IP address is

invalid, please assign.

Press "OK" to continue.

If the screen to the left is displayed after bootup, it means that needs an IP address, but the current setting is invalid. Please assign a Public IP address.

TeVue

PPPoE is on, please

assign a user name

Press "OK" to continue.

and password.

If the screen to the left is displayed after bootup, it means that you are using PPPoE but you did not enter the PPPoE user name and password. Please assign the PPPoE user name and password.

Duplicated IP address

for this phone.

Please reassign.

If the screen to the left is displayed after bootup, it means that the IP address of the is duplicated with that of another device in the same local area network. Please assign a new IP address for .

TeVue

Error messages in bootup sequence

TeVue User's Manual 37

xxx

is an invalid IP address.

Please try again.

Error messages in dialing sequence

If the screen to the left is displayed after you dial an IP address, it means the IP address is invalid. Please retry with a correct one.

Plug power cord in the power outlet in the wall.

Plug the power adapter in the unit.

Turn on the power switch.

Power Indicator OFF

Make sure the power indicator is ON, and select the appropriate video input for TV.

No image is displayed on TV screen

Plug RJ-45 cable from the Internet device into "WAN" jack on the unit.

Can not dial an IP address

Increase light on the image and reduce back lighting.

Video of local view is dark

Aim at a strong white light source momentarily.

Increase the room light level.

TeVue

Video in local view has a red cast

Hang up and call again.

Make sure the remote video phone is compatible with H.323 standard.

Ask the other party call you.

Video connection is not established correctly

Probable cause is bad connection (noisy line). Hang up and try again. This time, ask the other party to call you.

Green or yellow blocks appear in the remote picture

Your is reliable and easy to use. If you encounter any problem while using this product, please refer to the table below for possible solutions.

TeVue

Leadtek TeVue User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
