LR 8882 H323
VIDEOPHONE
USER'S MANUAL
LR 8882 H323 User's Manual
Version A
July 2005 P/N: W0501005
International Headquarters
18th Fl., 166, Chien-Yi Rd., Chung Ho, Taipei Hsien, Taiwan (235)
Phone: +886 (0)2 8226 5800 Fax: +886 (0)2 8226 5801
http://www.leadtek.com.tw E-Mail: service@leadtek.com.tw
United States Headquarters
46732 Lakeview Blvd., Fremont, CA 94538, U.S.A.
Phone: +1 510 490 8076 Fax: +1 510 490 7759
http://www.leadtek.com
Europe Headquarters
Phone: + Fax: +
http://www.leadtek.nl
Antennestraat 16 1322 AB, Almere, The Netherlands
31 (0)36 536 5578 31 (0)36 536 2215
Copyright 2005 Leadtek Research Inc. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of Leadtek Research Inc.
Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of
merchantability, quality, or fitness for any particular purpose. The information in this document is subject to
change without notice. Leatek reserves the right to make revisions to this publication without obligation to notify
any person or entity of any such changes.
Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.
Table of Contents
1 Getting Started ............................................................. 1
Overview ........................................................................ 1
Feature highlights ........................................................... 1
Hardware specifications ................................................. 2
LED status ........................................................................ 2
Network connection(modem)............................................ 3
Video input........................................................................ 3
Video output...................................................................... 3
Audio input ...................................................................... 3
Audio output..................................................................... 3
VideoPhone LR 8882 H323 packaging description ....... 4
2 What's In The Package ............................................... 5
3 Getting to Know Your LR 8882 H323 ....................... 6
Front view ...................................................................... 6
LEDs................................................................................ 9
Rear view ..................................................................... 11
Side view ...................................................................... 11
4 Installation ................................................................. 12
Installing the unit .......................................................... 12

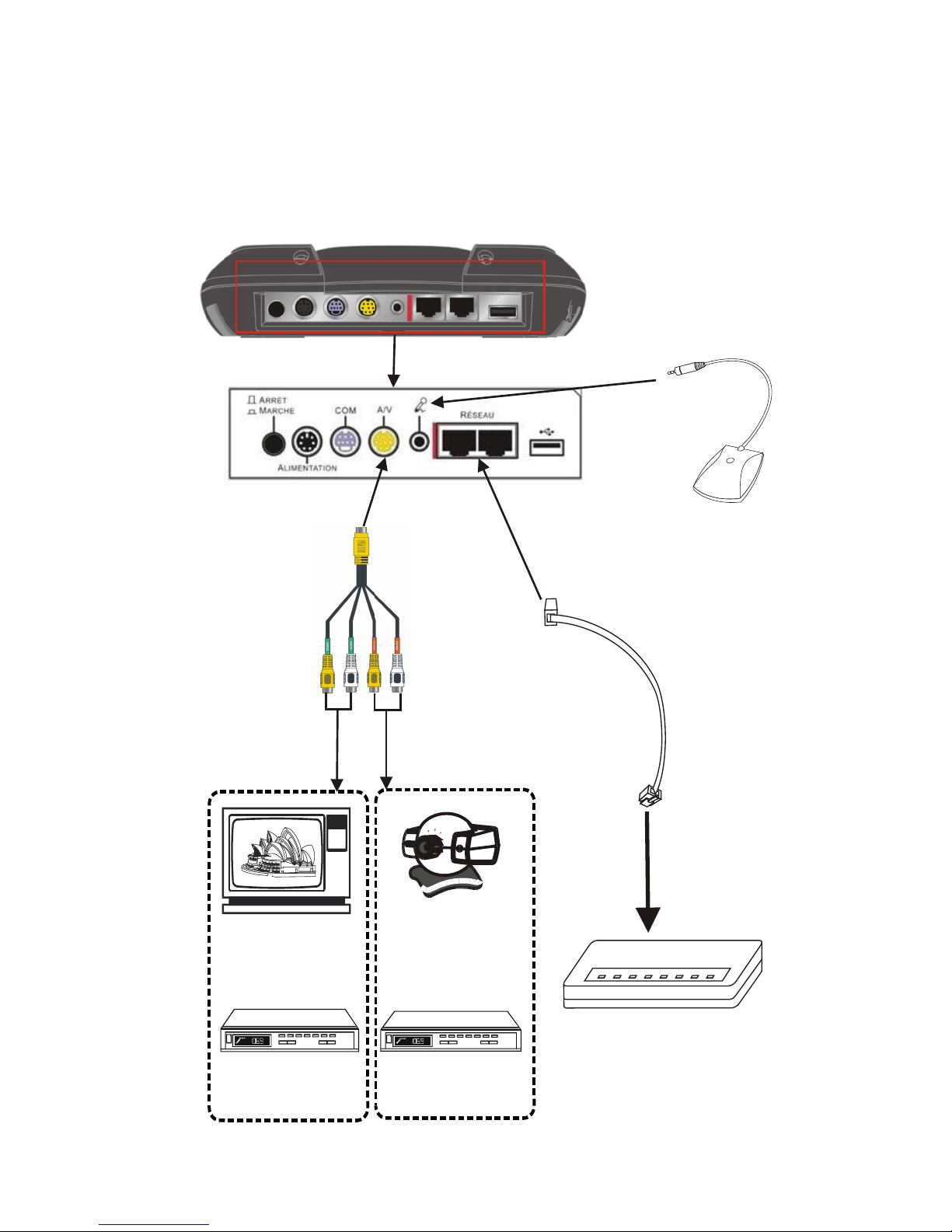

Using external devices (Optional) ................................ 14
Table of Contents

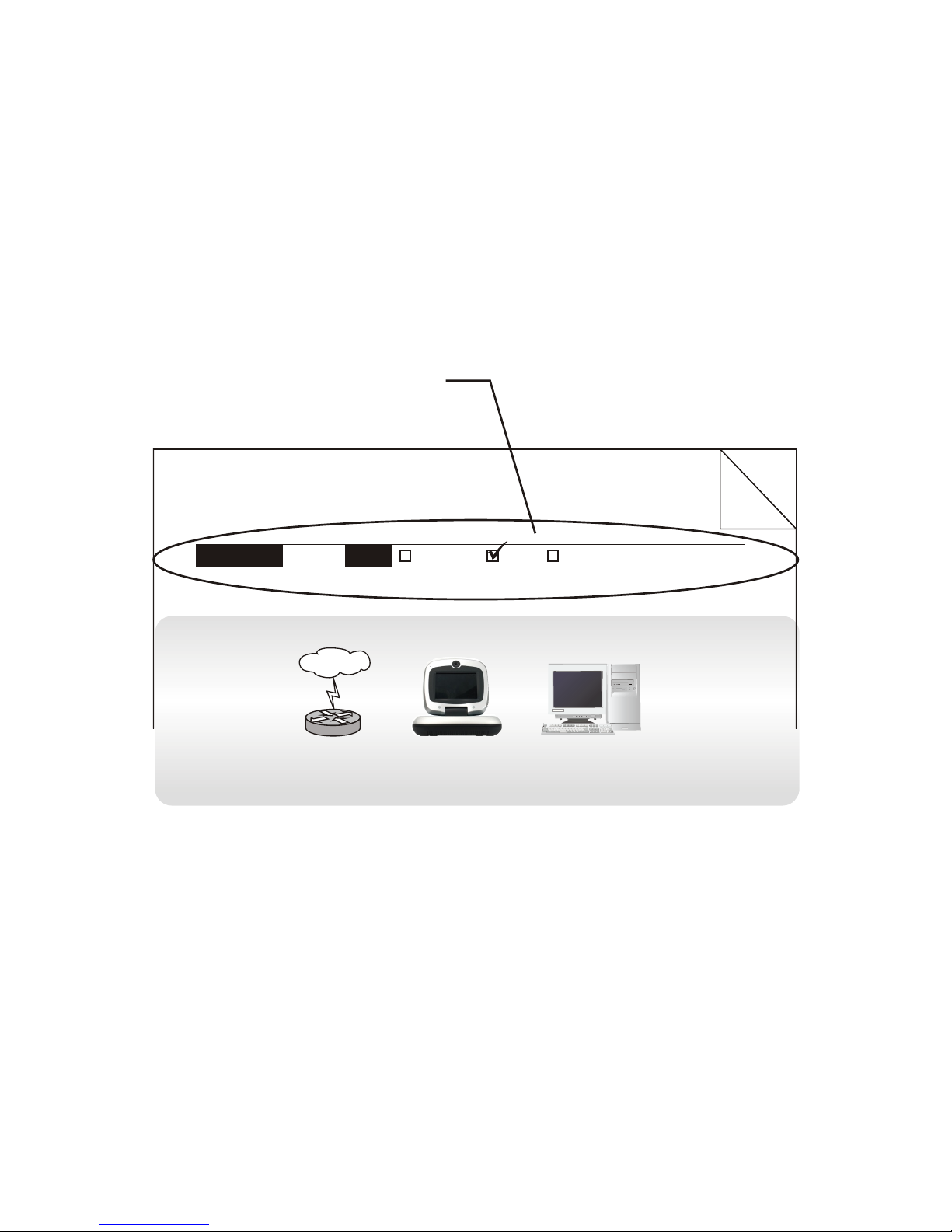

5 System Setup ................................................................ 15
ADSL/Constant ADSL/Single, Public, & Fixed IP ...... 16

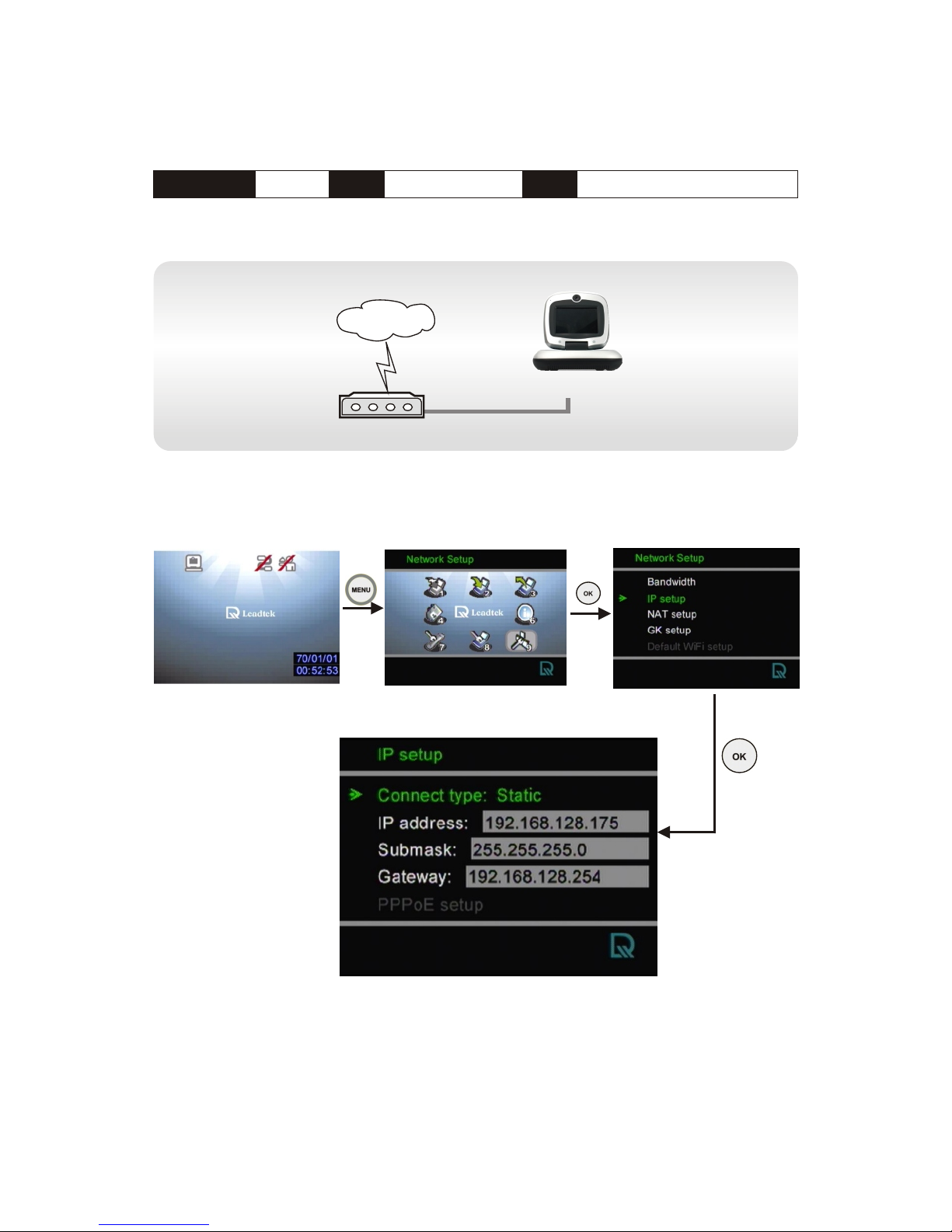

When the IP is used exclusively by LR 8882 H323 ................... 16
ADSL/Constant ADSL/Multiple, Public, & Fixed IP ... 17
When LR 8882 H323 uses one of the IPs
(without a DHCP server connected) ........................................ 17

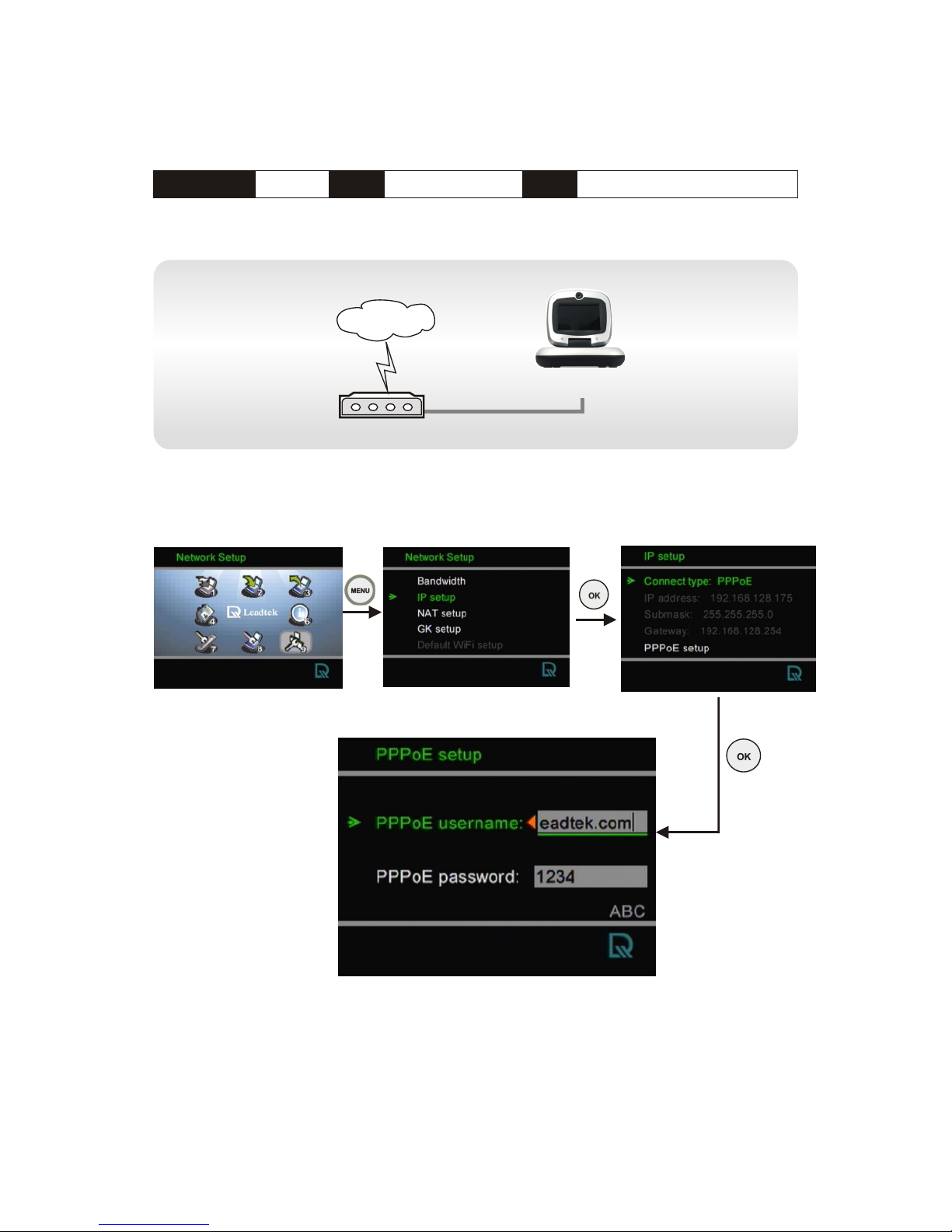

ADSL/Timing ADSL/Single, Public, & Dynamic IP.... 18
When the ADSL is used exclusively by LR 8882 H323 ........... 18

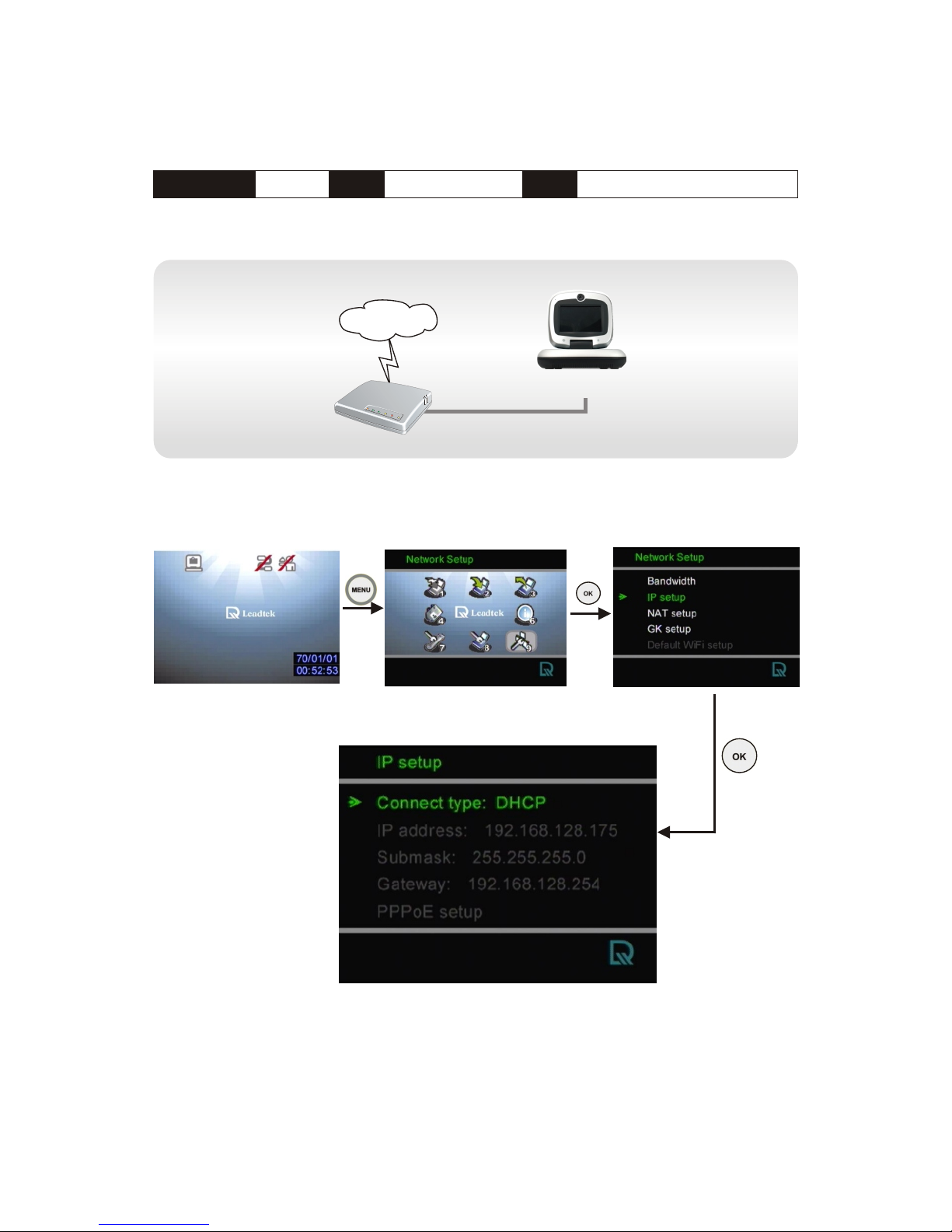

Cable/Single, Public, & Dynamic IP............................. 19
When the IP is used exclusively by LR 8882 H323 .................. 19

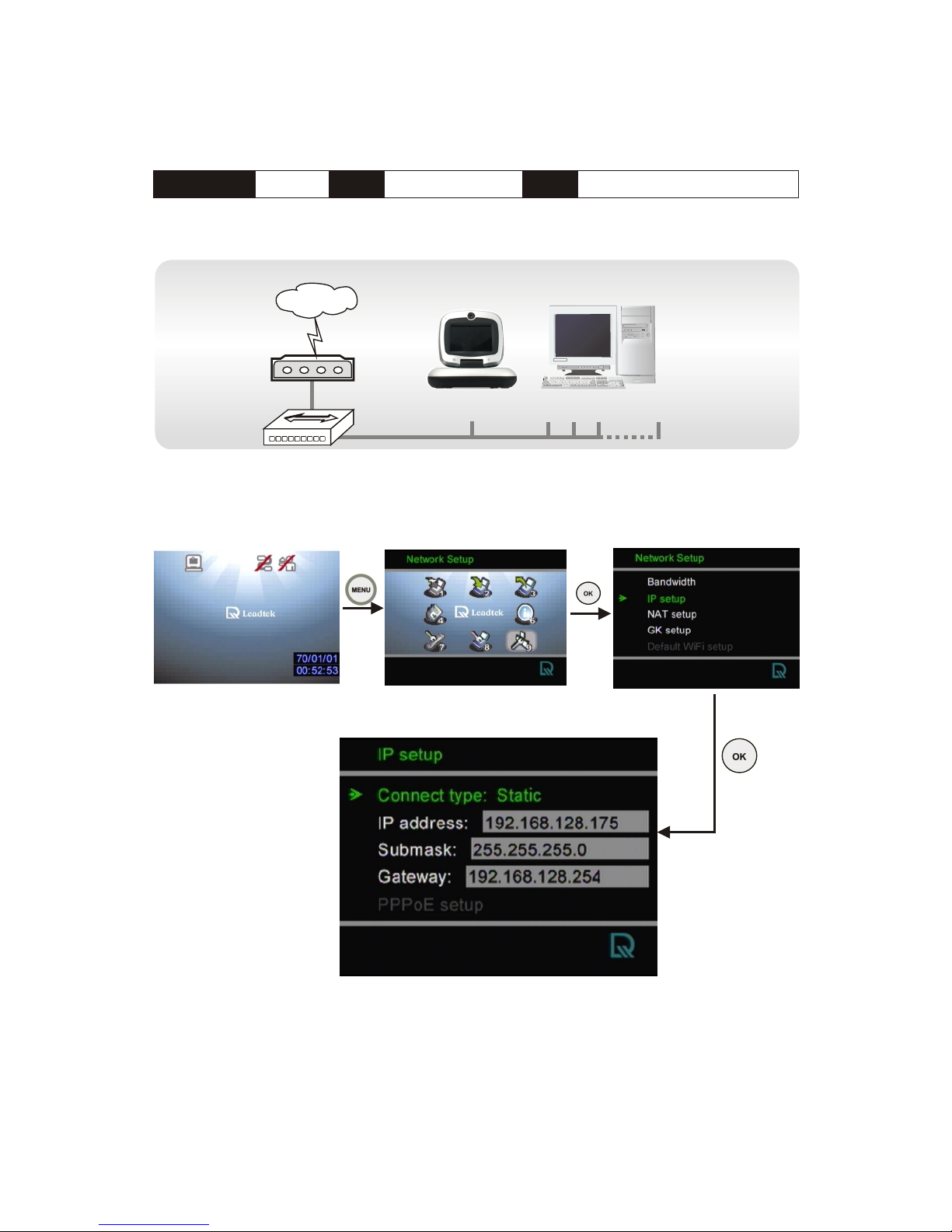

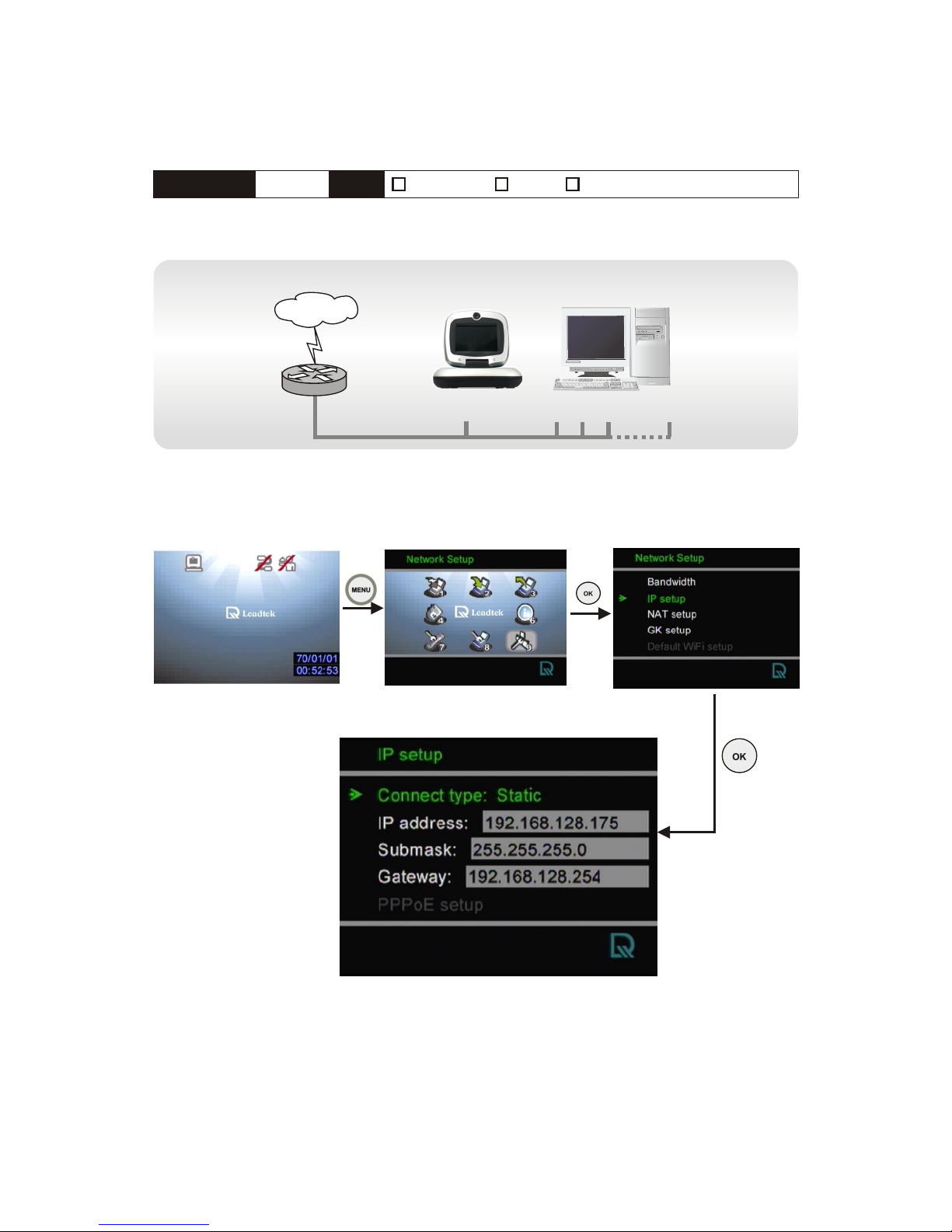

LAN/No Firewall or NAT ............................................ 20

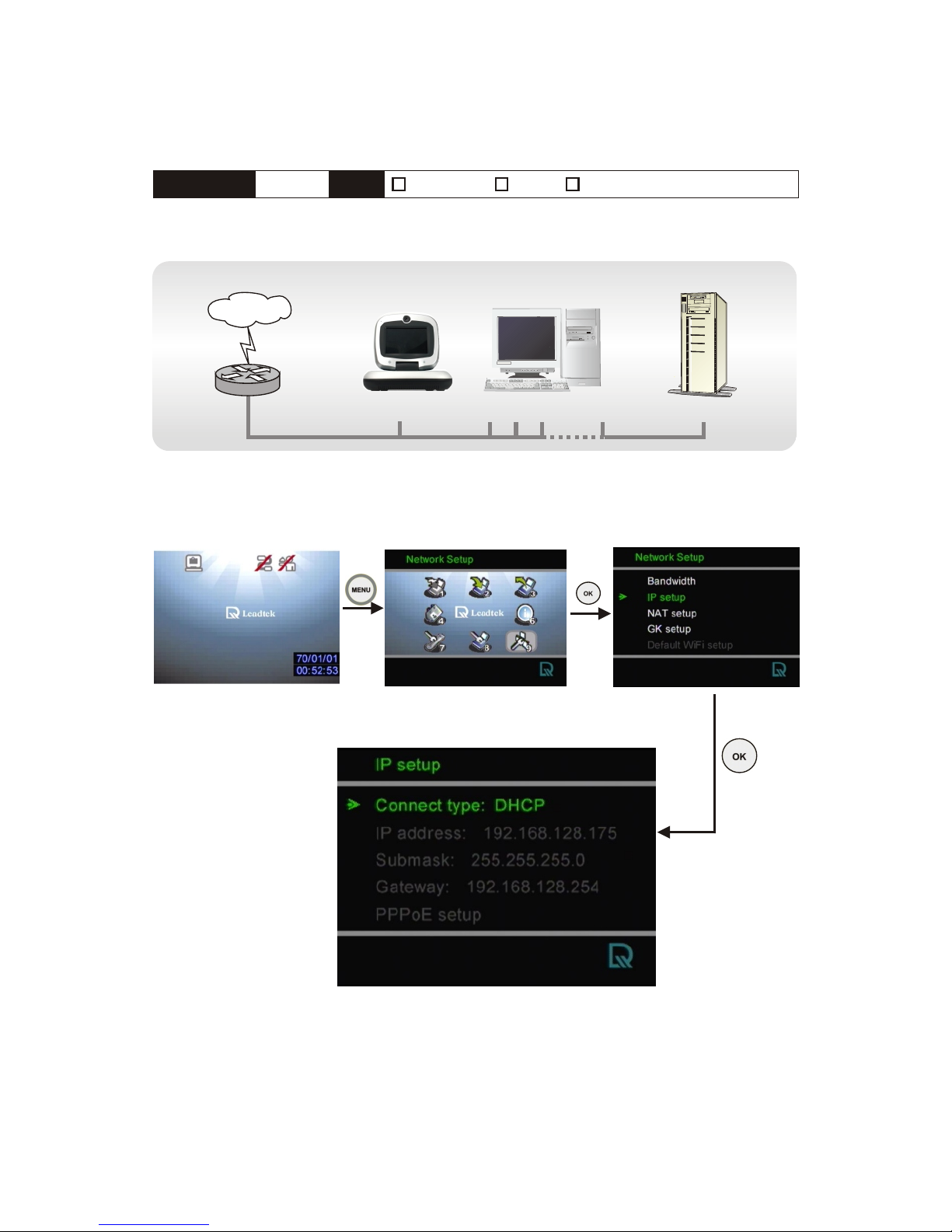

With a DHCP server connected ............................................... 20
Without a DHCP server connected .......................................... 21
LAN/Firewall with Packet Filter .................................. 22
With a DHCP server connected ................................................ 22
Without a DHCP server connected ........................................... 23

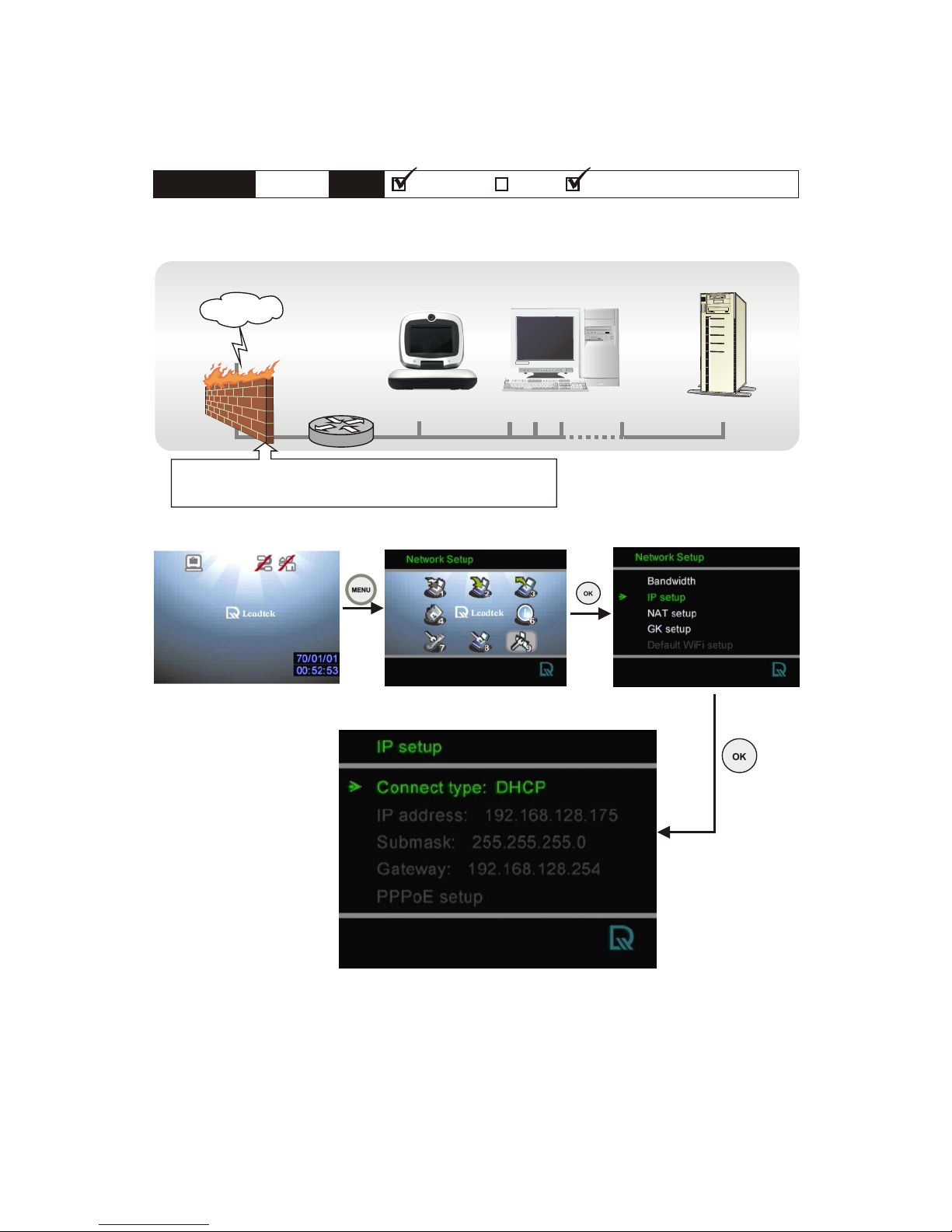

LAN/Firewall with NAT & Packet Filter ...................... 24
With a DHCP server connected ................................................ 24
Without a DHCP server connected ........................................... 25
6 Making a Call ............................................................. 26

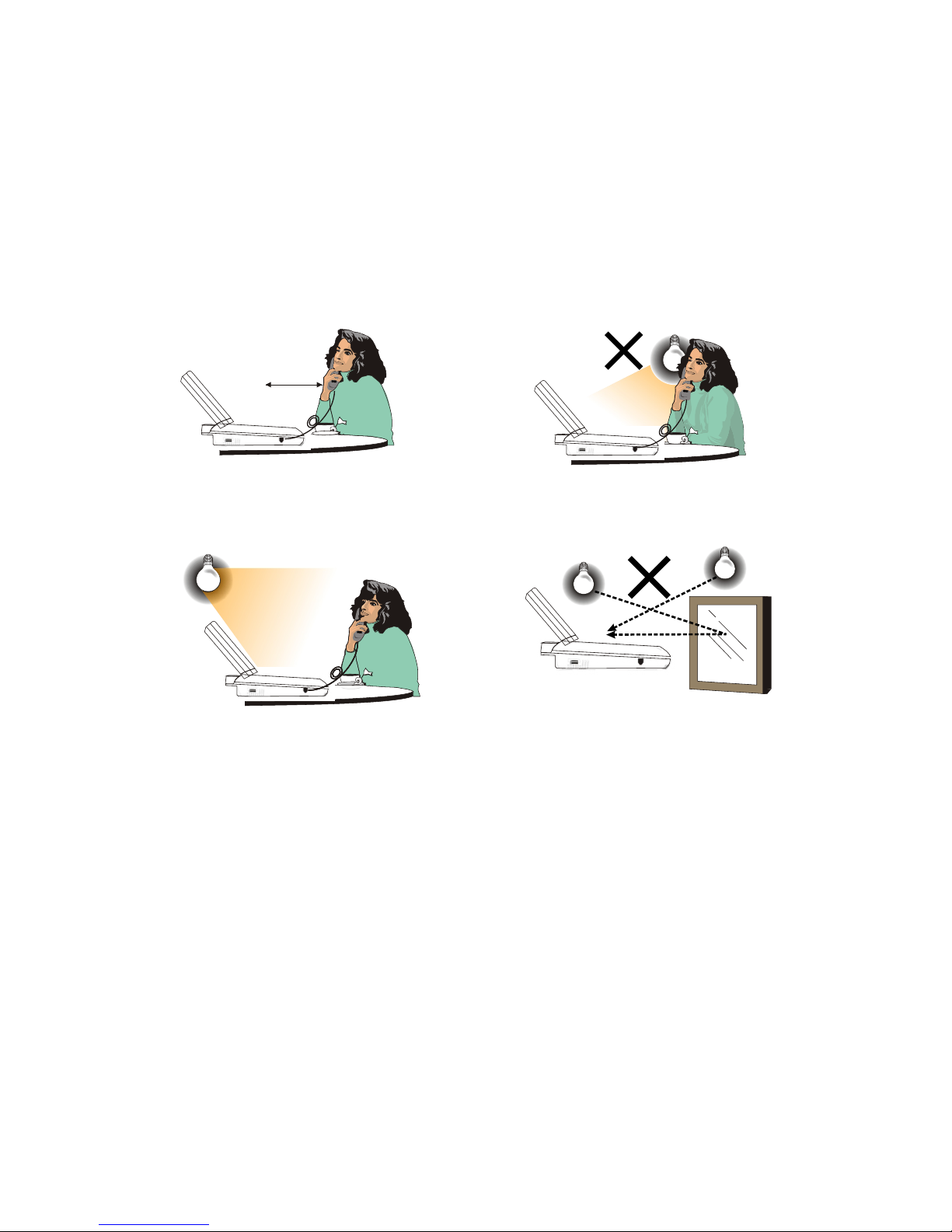

Before making a video call ........................................... 26

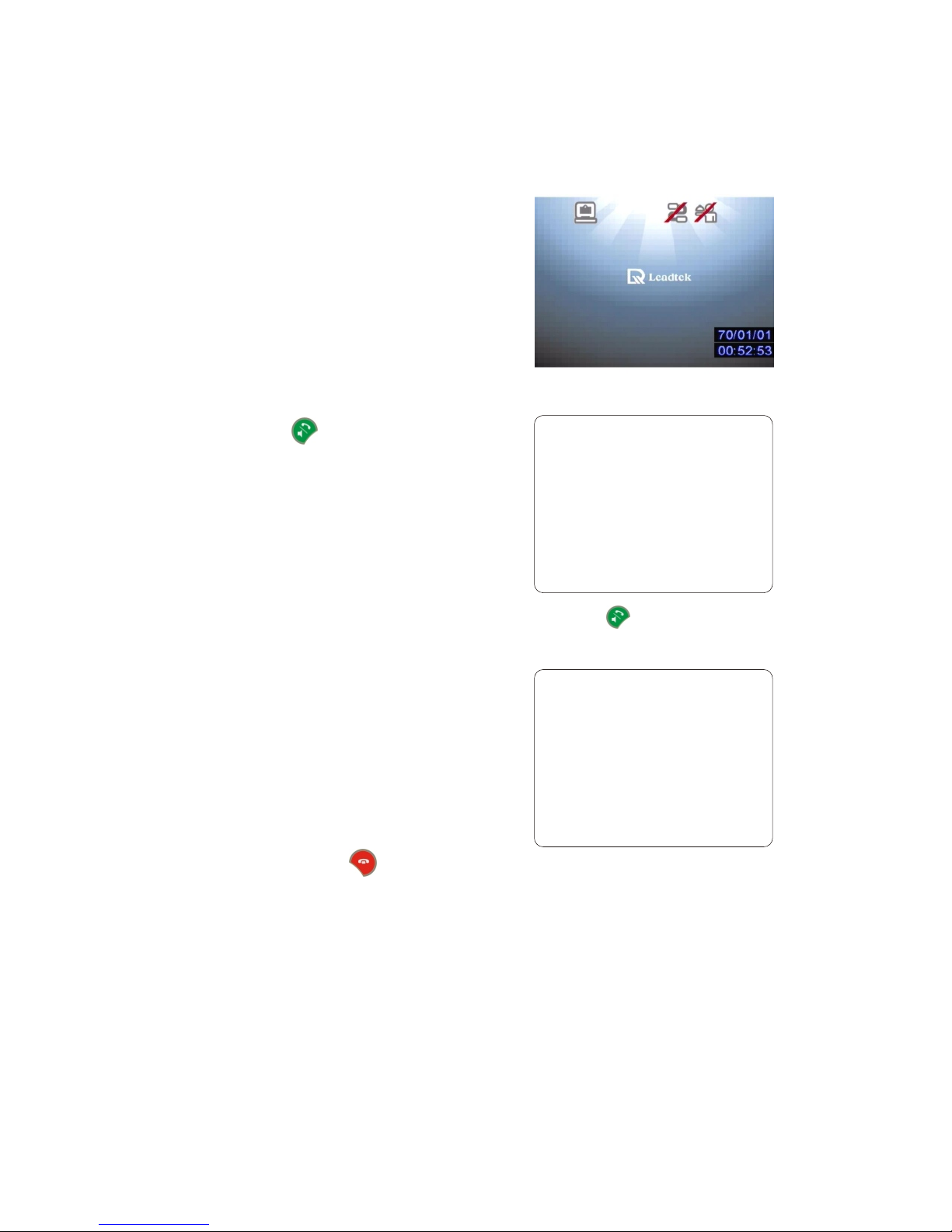

Making a video call ...................................................... 27
7 Using OSD Menus ...................................................... 28

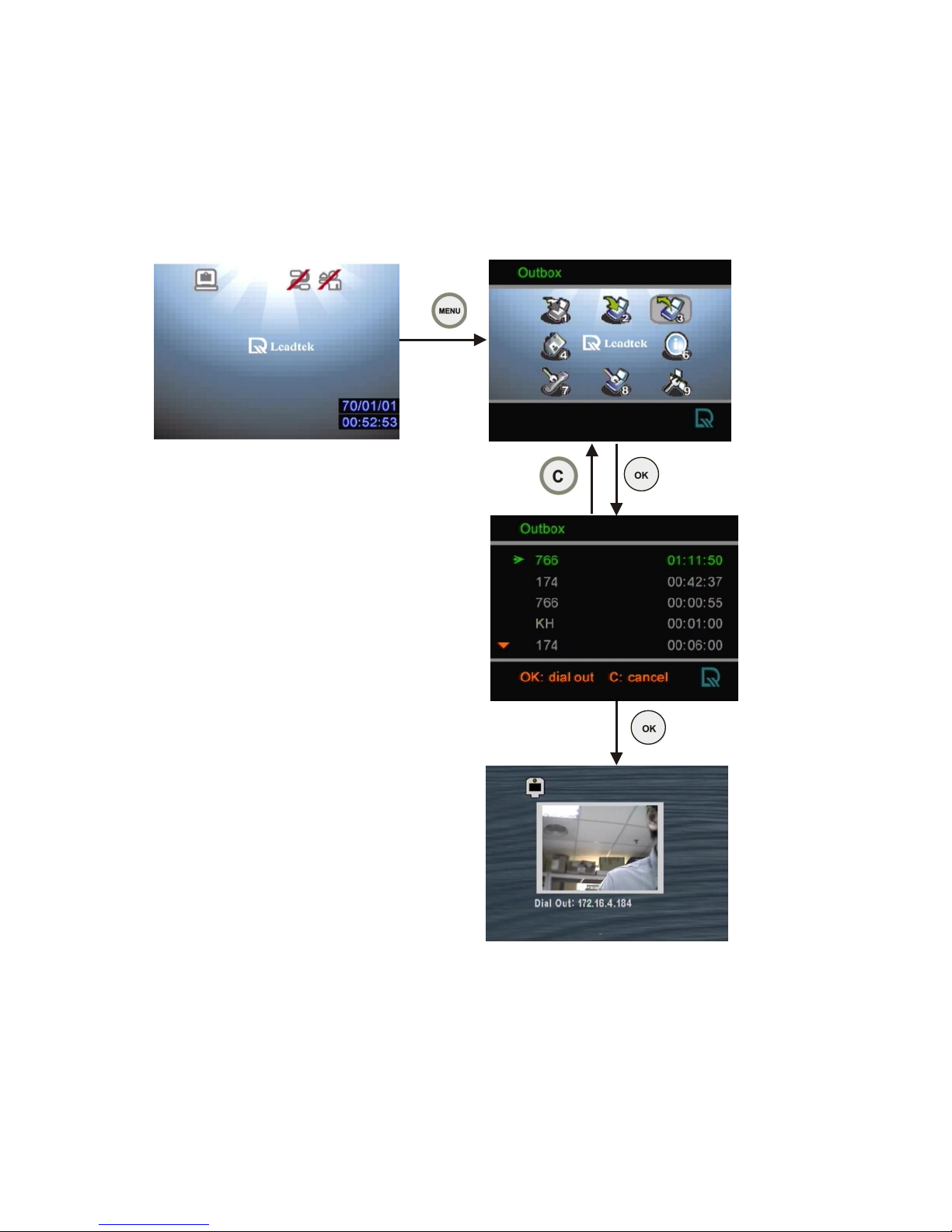

Outbox ......................................................................... 28

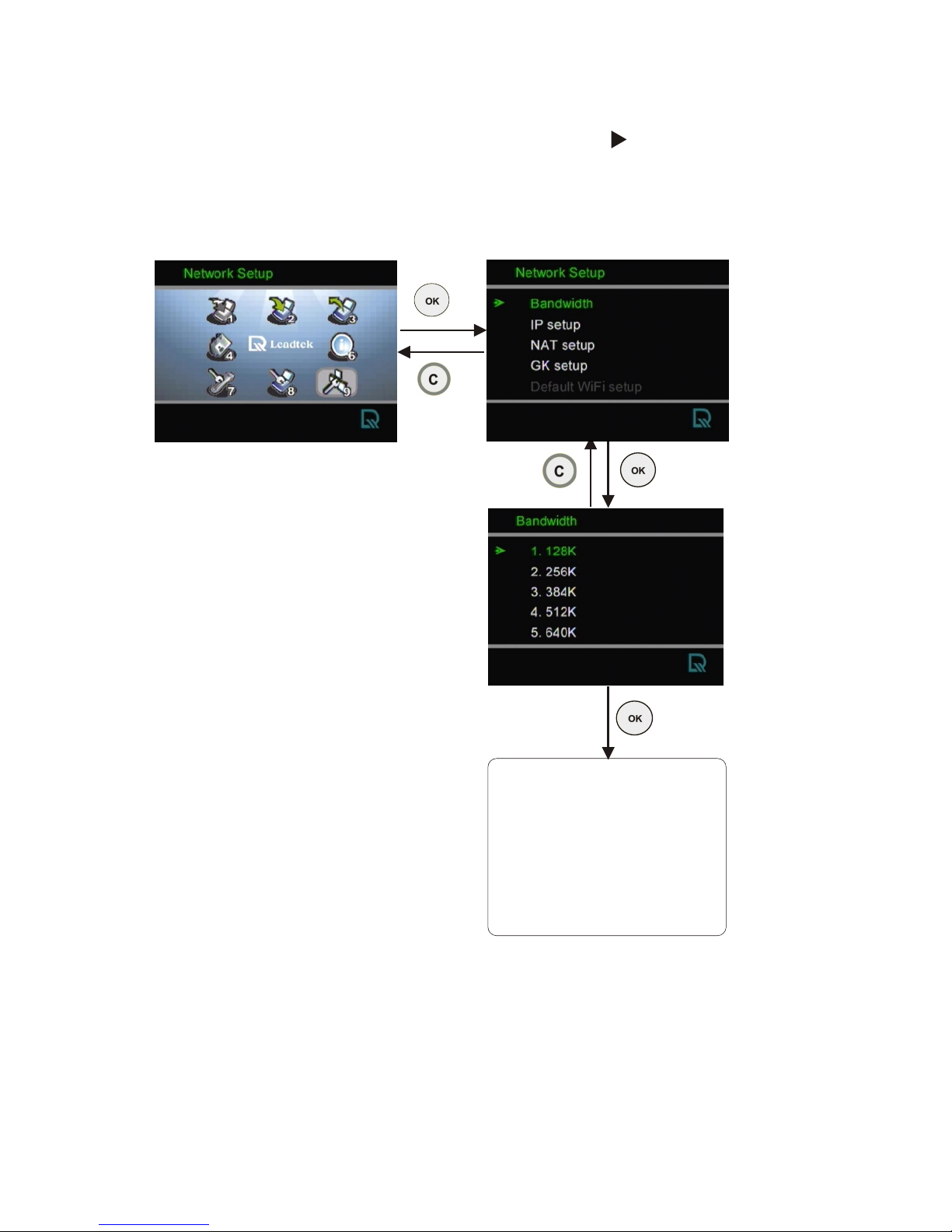

Network Setup ............................................................. 29
Bandwidth ..................................................................... 29

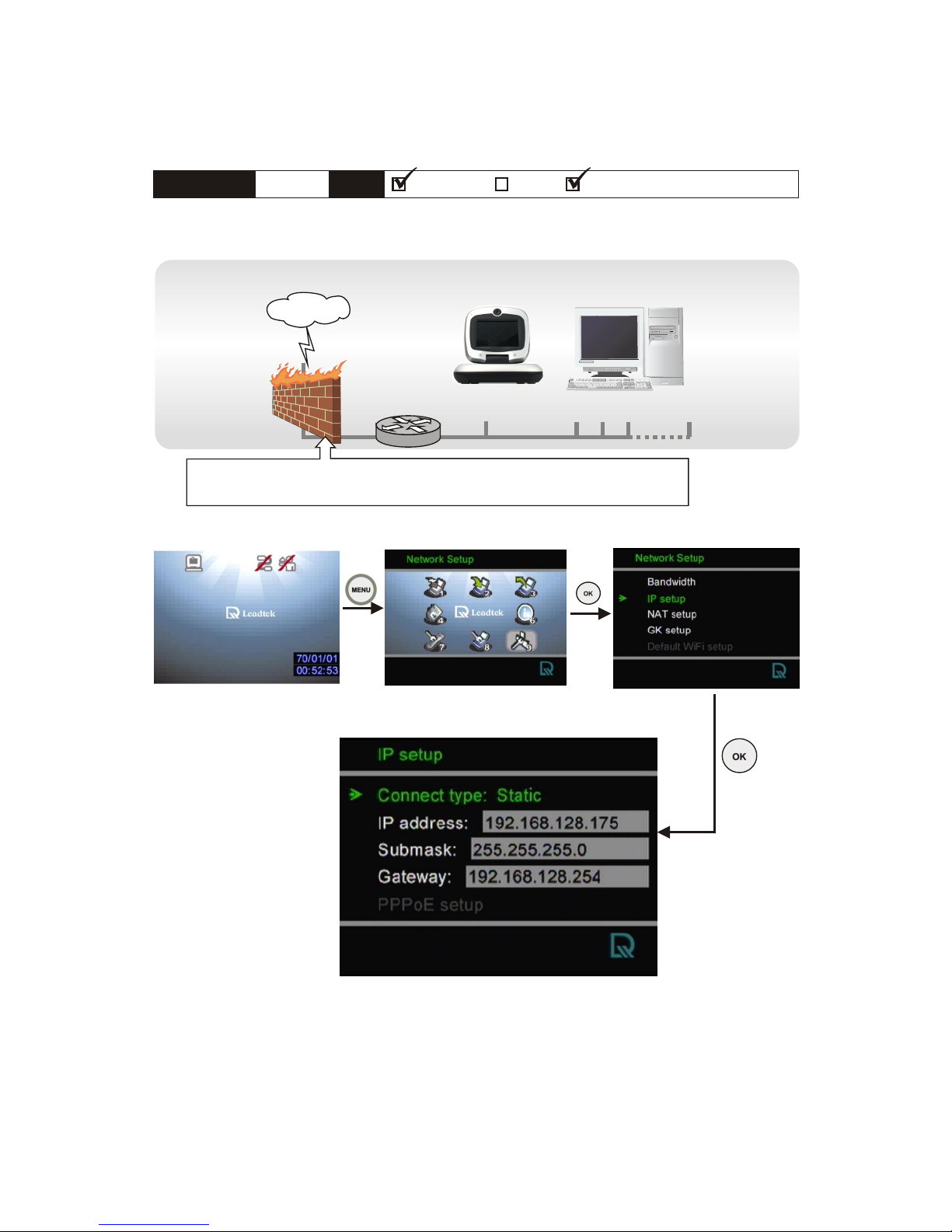

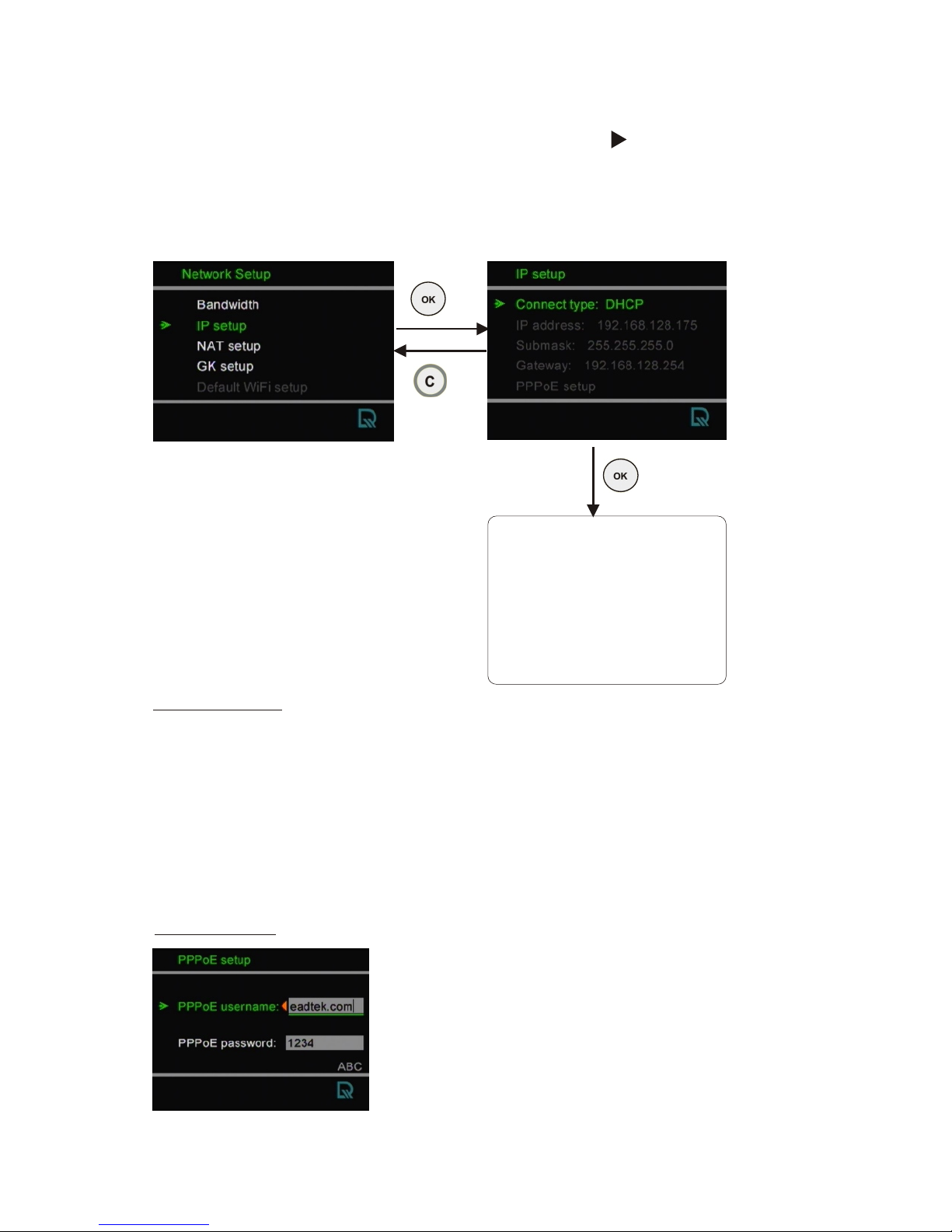

IP Setup ........................................................................... 30
NAT Setup ....................................................................... 31

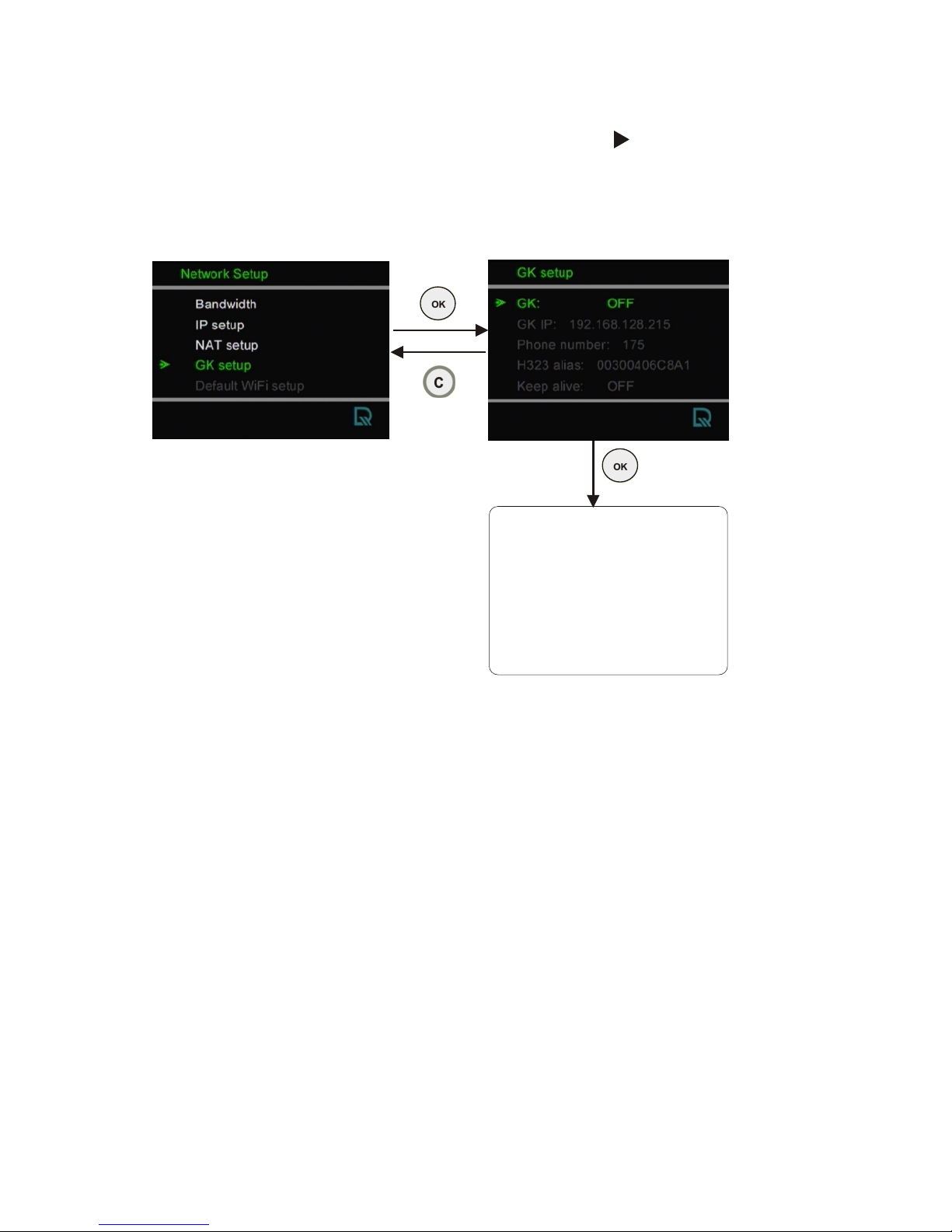

GK Setup ......................................................................... 32

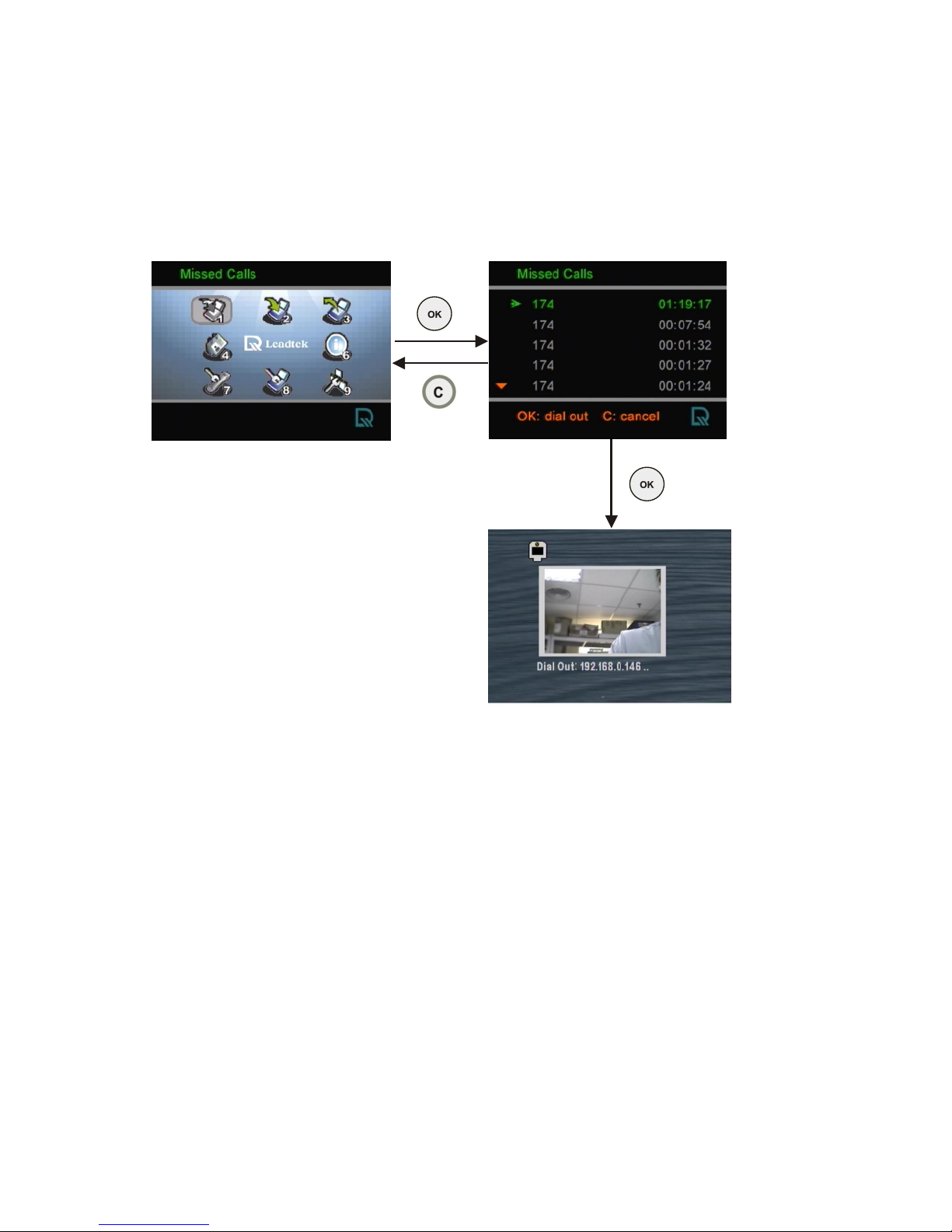

Missed Calls ................................................................. 33
Table of Contents

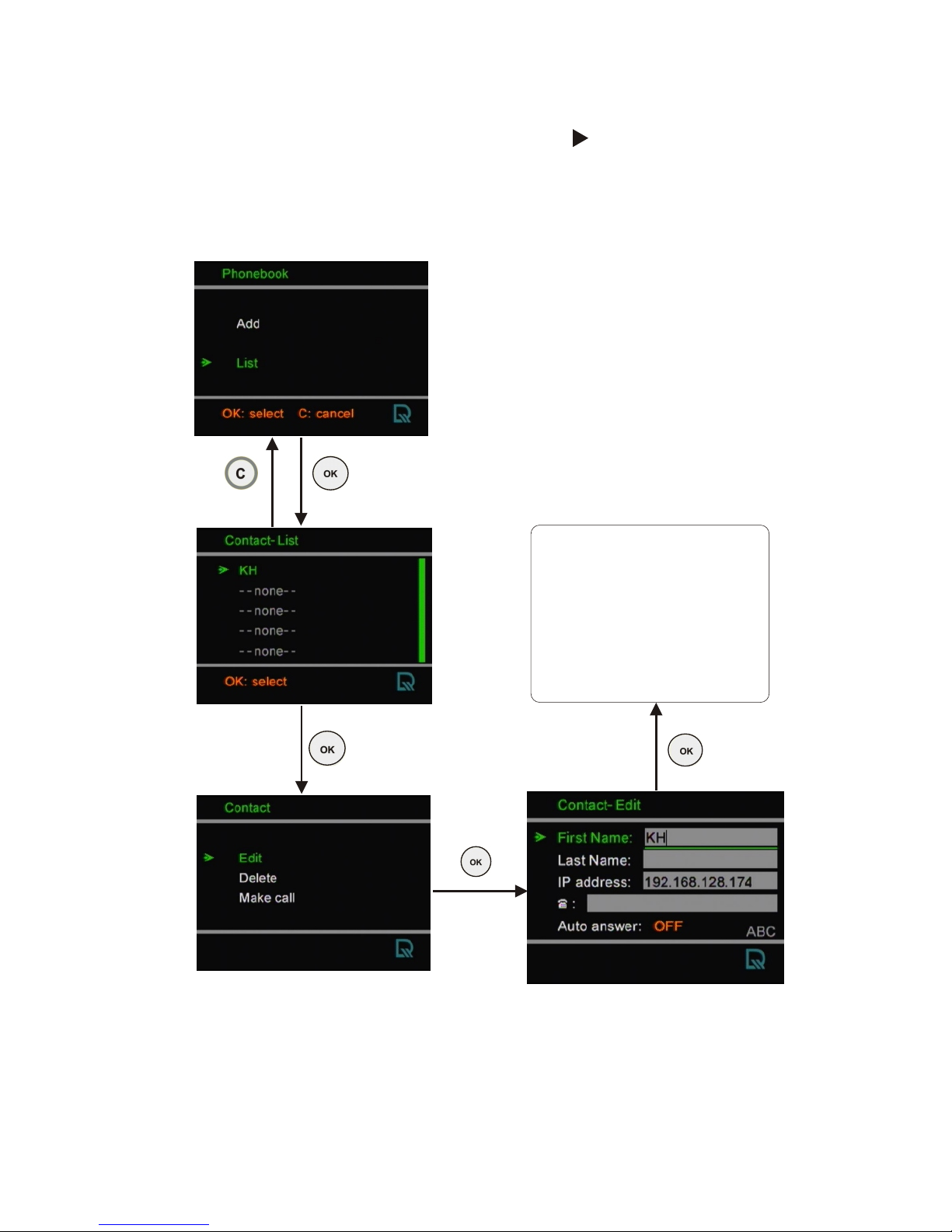

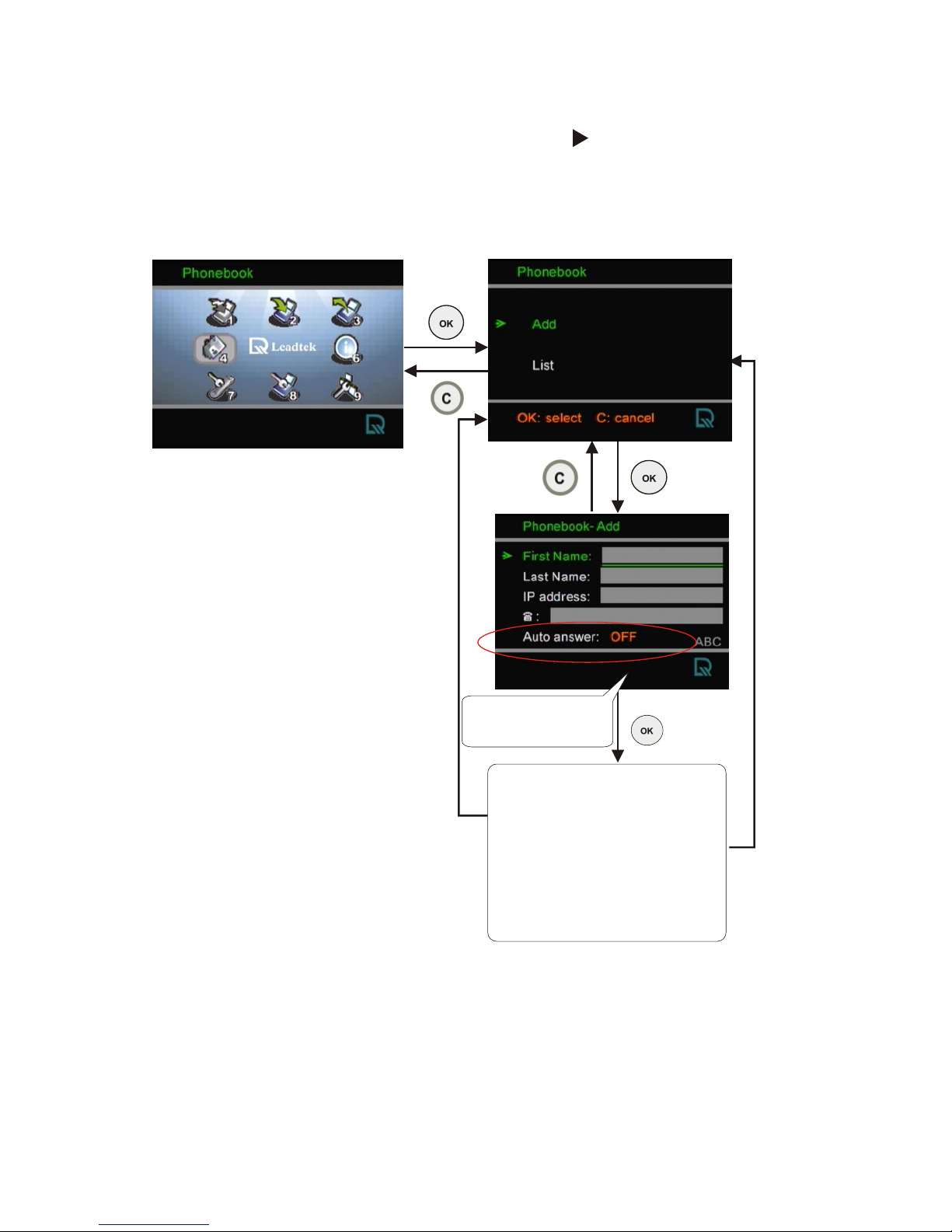

Phonebook .................................................................... 34
Add ................................................................................. 34
List ................................................................................. 35
Edit contact .......................................................................... 35

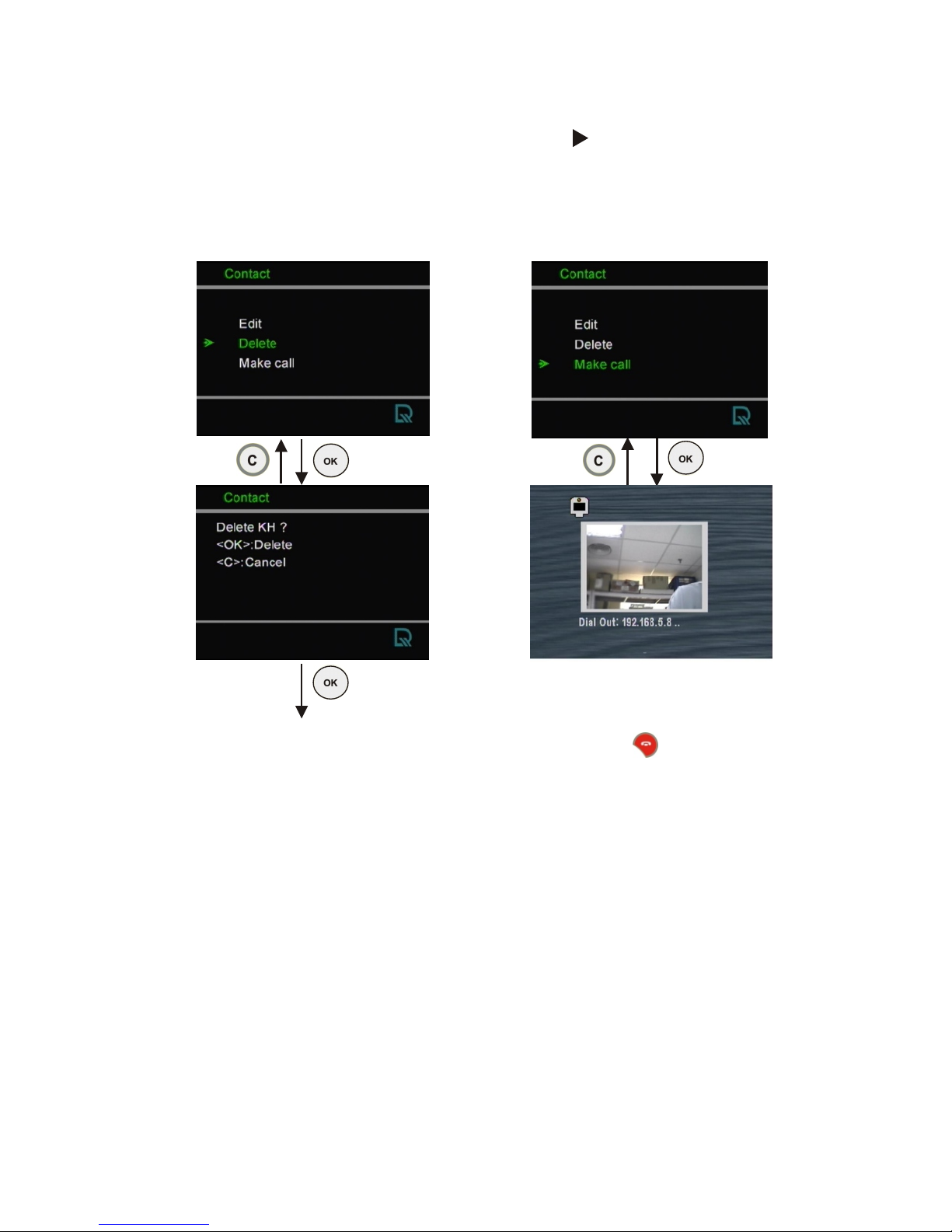

Delete contact ...................................................................... 36
Make call ............................................................................ 36

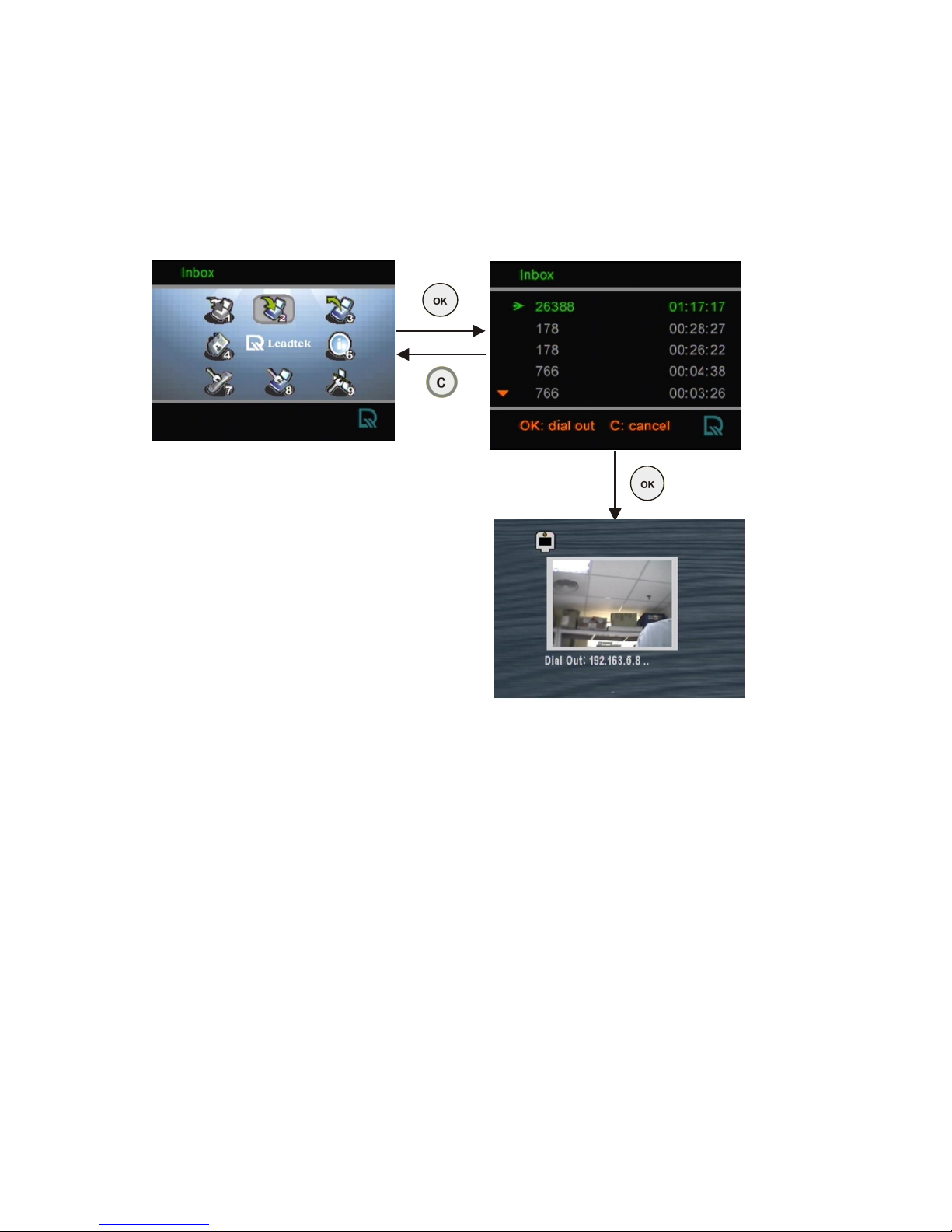

InBox ............................................................................ 37
Phone Setup .................................................................. 38

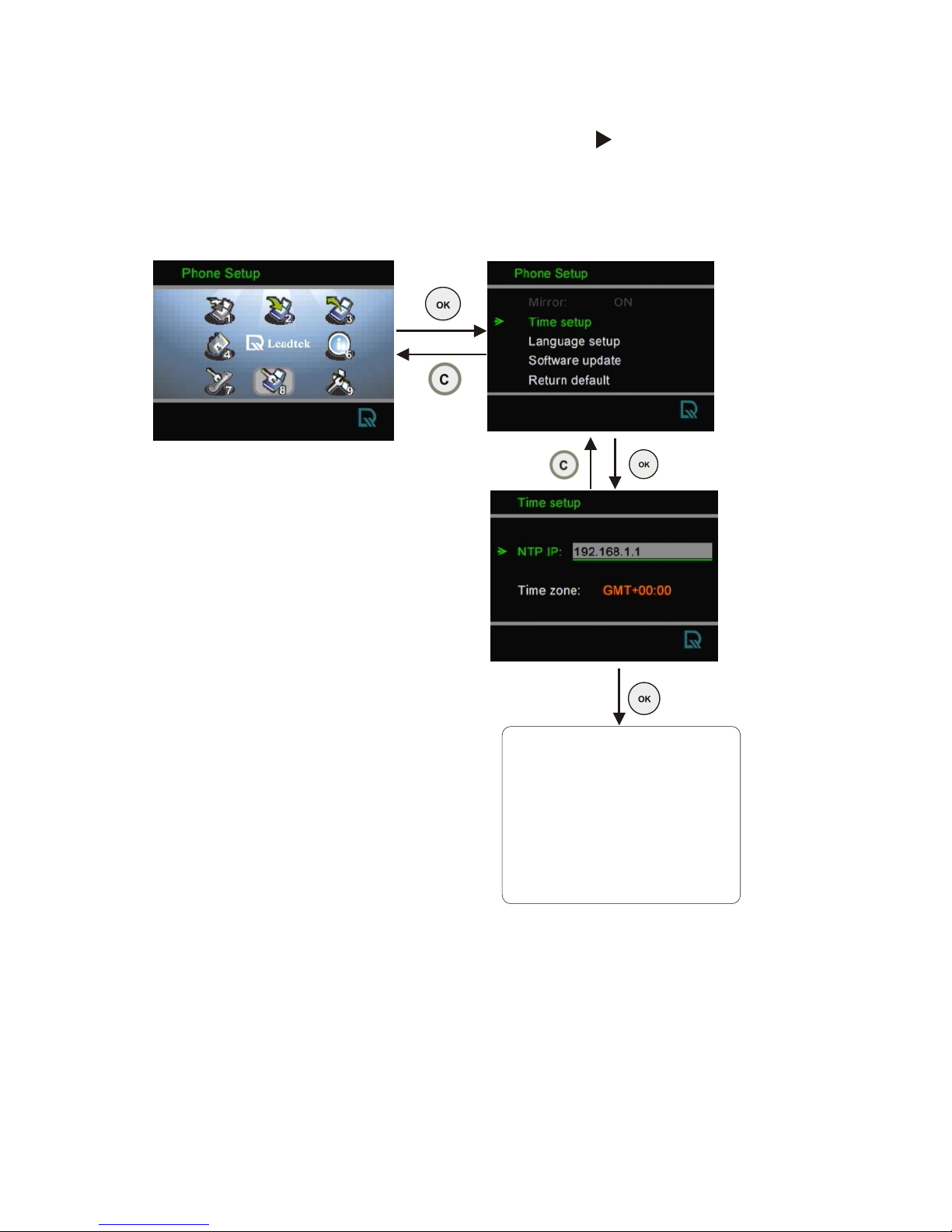

Time Setup ...................................................................... 38
Language Setup ............................................................... 39
Software update .............................................................. 40

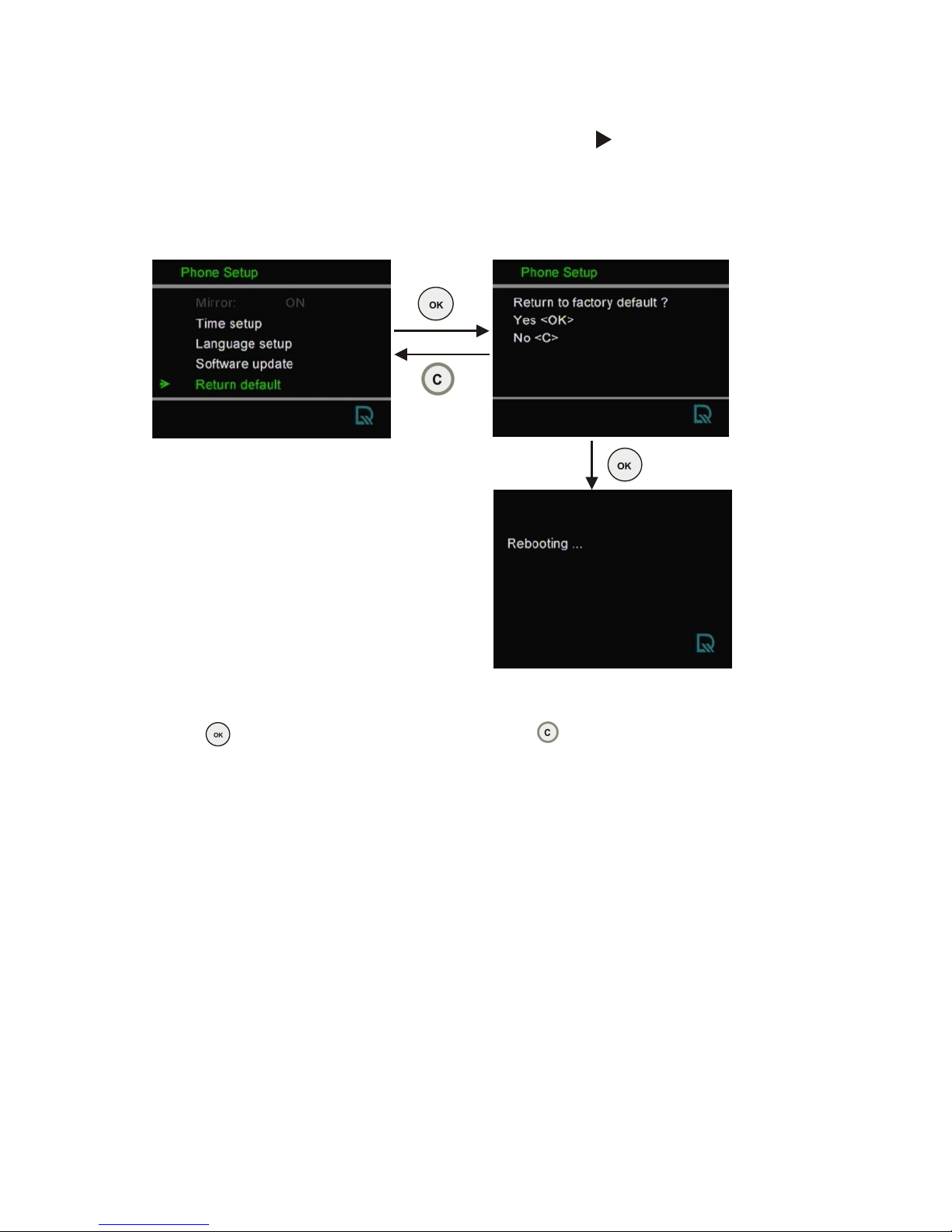

Return default ................................................................ 41

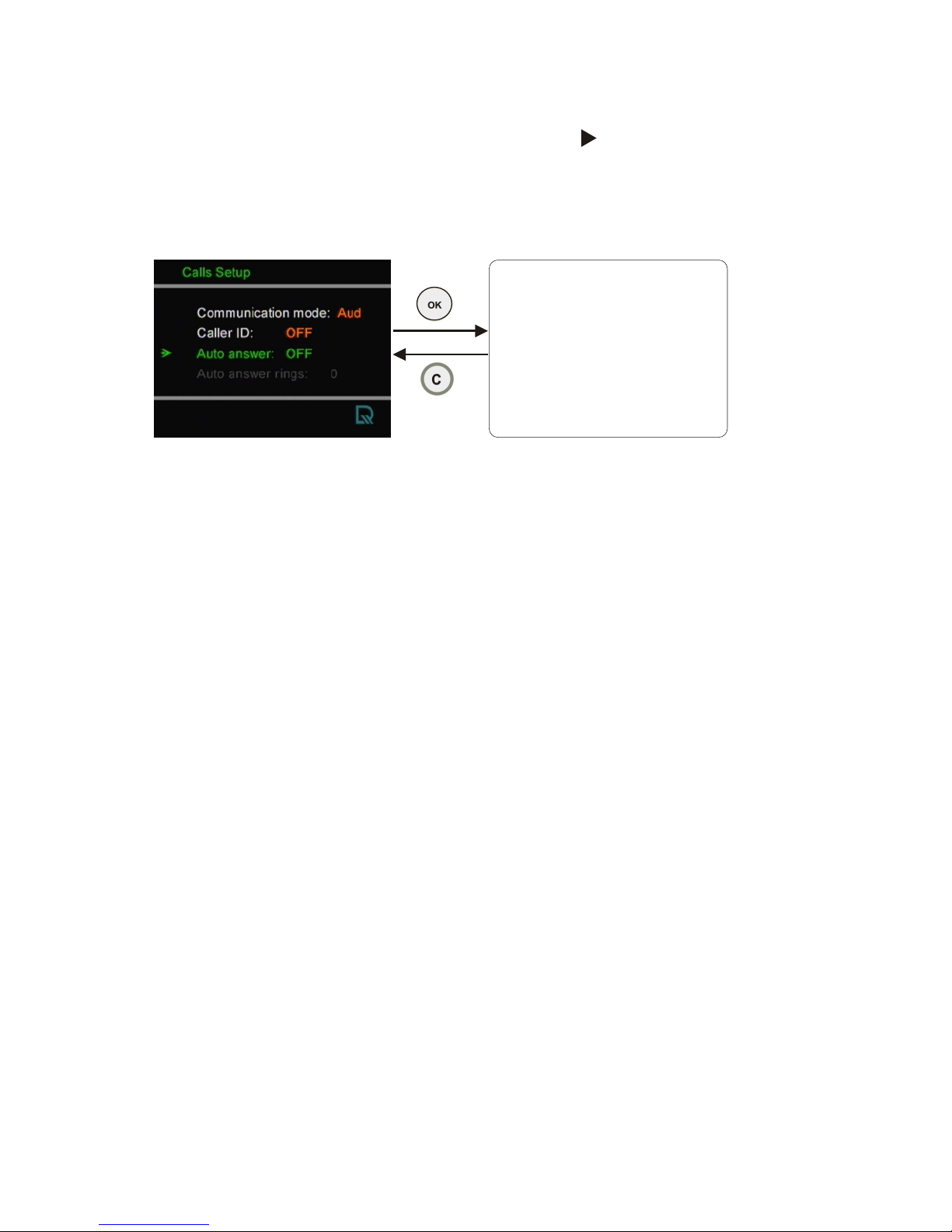

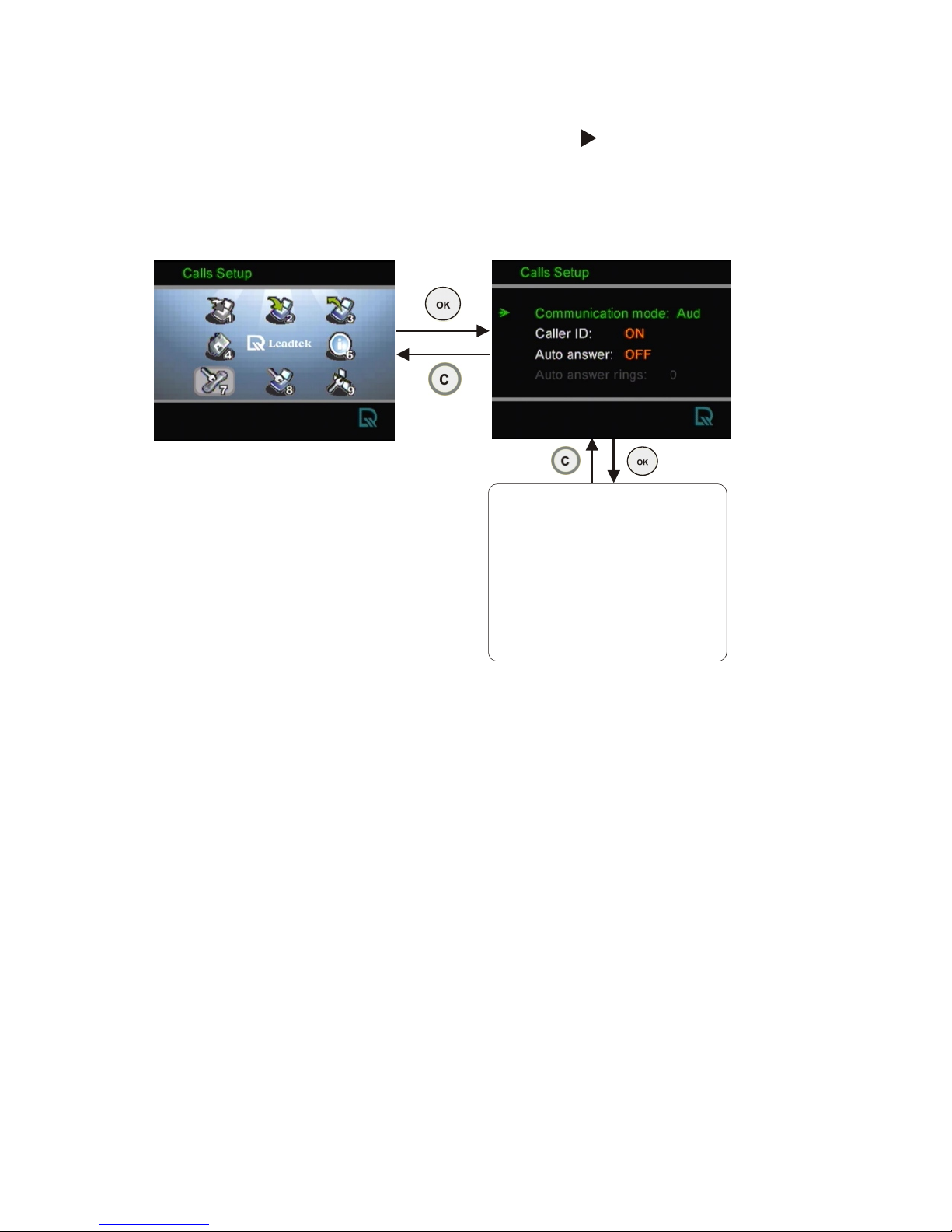

Calls Setup .................................................................... 42
Communication mode ..................................................... 42
Caller ID ......................................................................... 43
T.140 .............................................................................. 44
Auto answer .................................................................... 45
Auto answer rings ........................................................... 46

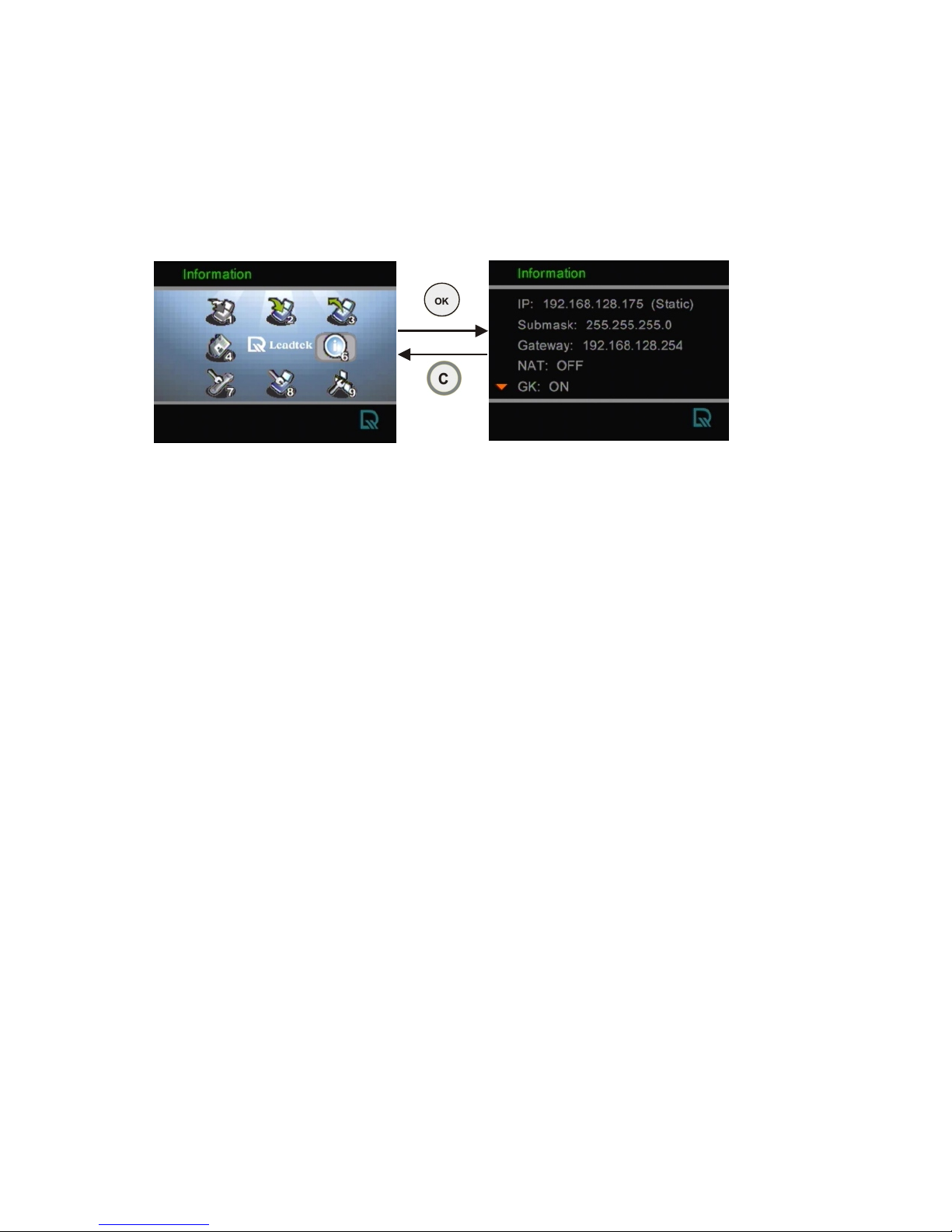

Information .................................................................. 47
8 OSD Menu Tree ........................................................... 48
9 Trouble Shooting ......................................................... 49
10 Tech Support ............................................................... 50
11 Limited Warranty ....................................................... 51
12 FCC Statement ............................................................ 52
Overview
The LR 8882 H323 is designed to avoid complicated installation. And with
the buttons on the keypad, you are able to access the user-friendly on screen
display menu (OSD), easily control the functions and make adjustments.
The LR 8882 H323 has a built-in high quality CCD camera and an active
matrix liquid crystal display. Images are transmitted through the Internet at
up to 24 frames per second (fps) (@ CIF resolution). While making a video
call, you can enjoy the brilliant real-time color images of yourself, your
correspondents or both. If you do not want your image to display on the
caller or receiver's screen. The LR 8882 H323's private mode can do just that.
The LR 8882 H323 is fully compliant with H323 V4 SIP (Session Initiation
Protocol) international standards for video communication. It can be used
with any video phone that are compatible with this standard.
Feature highlights:
Broadband IP address videophone
Connect the other videophone by simply entering the phone number
Built-in high quality CCD camera with cover protection
High quality 5" TFT LCD display
Friendly and easy operation through keypads
Phonebook dialing function
1 set of A/V input/output for large display of additional video/audio input
& output
Up to 24 frames per second video display (@ CIF resolution)
Video selectable and picture image up to VHS quality
Echo-cancellation and no delay high quality audio
Built-in 2-port switch to connect two LANs (The default port is the one
with red line marking)
1 Getting Started
1
LED Status
VideoPhone LR 8882 H323 is ON and in standby mode
The " " LED is on permanently.
Video connection indication
If the video connection is establish, the Video LED turns on.
When the video connection terminates, this Video LED turns off.
En Service
Hardware Specifications
LR 8882 H323 User's Manual 2
Network connections(modem)
The system is connected to an external ADSL modem. The characteristics
are:
·
Video Input
The video input features are:
· Internal CCD camera
· Focal length is adjustable to cover 2.5 meters wide at a distance of 3
meters
· Focus(rotation of lens) is manually controlled by the end user
· Capability to adjust brightness and contrast. These parameters
are controlled via the roller
· Support for 1 Audio/Video input
Video Output
· Support for 1 Audio/Video
Audio Input
·
·
Audio Output
IP: 2 Ethernet ports (RJ-45) of 10/100 Mb/s, one of them with the red
line marking indicates that the Ethernet cable connector (in red color)
should be plugged into it.
output
The audio input features are:
The handset microphone
The built-in hands-free internal microphone
The user can adjust the sound volume with " " and " " keys on his
VideoPhone LR 8882 H323.
The audio is output to the VideoPhone LR 8882 H323 speaker (or handset
depends if the user is using the hands-free function).
3
VideoPhone LR 8882 H323 packaging description
The VideoPhone LR 8882 H323 package includes:
! LR 8882 H323 Videophone.
! VideoPhone LR 8882 H323 user manual.
!
!
!
!
A wired handset & cable.
Each set of power cord / power adaptor comes with a secure lock
mechanical design that is capable of connecting VideoPhone LR
8882 H323 tightly.
An ethernet cable is used to connect VideoPhone LR 8882 H323 to
an ADSL modem either directly or through a PLT (optional).
An A/V Convertible Cable which provides one pair of Audio/Video
input (with green ring near the connector) of RCA female
connectors and one pair of Audio/Video output (with red ring near
the connector) of RCA female connectors.
LR 8882 H323 User's Manual 4
2 What's In The Package
The following is a summary of VideoPhone LR 8882 H323 accessories:
Handset x 1
Color: Dark Grey
Handset Cable x 1
Color: Black
Power Cord x1
Power Adapter x1
Color: Black
Length: 1600mm
Color: Black
Length: 1830mm
Audio/Video Convert Cable x 1 set
Color: Black
Length: 230+ -10mm
Connectors:
Mini-DIN 8(Male) x 1:
Color: Yellow
RCA(Female) x 2:
Color: Yellow
RCA(Female) x 2:
Color: White
Ethernet Cable x1
Connectors:
Color: Beige
Color: Red
RJ-45 x 1
5
(Brown tags- A/V Input, Green tags- A/V Output)
3 Getting to Know Your LR 8882 H323
Front view
Alphanumeric keypad:
To enter the IP address or
to input data required for
accessing the OSD menu.
Video indicator:
It lights in yellow color when the
phone is in Video mode
Handset
Menu (Black):
The menu key is accessible when
the VideoPhone is offline.
Cursor Panel:
See next page.
Hot Keys:
See next page.
Annuler key (Black):
In off-line status, press Annuler
key to return to the previous
screen without having to start
from the beginning.
Handset Cable
LCD Screen:
Shows the video images of callers.
CCD Camera:
The input source of local video
image, a miniature built-in CCD
camera.
Power indicator:
The green LED light is on when
the VideoPhone is powered on.
Hang up key (Red):
Press to hang up the call.
Take line/Hands-free key
(Green):
It is used for taking the lines and
activates the hands-free function.
LR 8882 H323 User's Manual 6
Mic:
Microphone can be used
instead of handset.
Message indicator:
When "Video Privacy" is on,
the Message LED is off.
Front view (cont.'d)
Hot Keys
Used with OSD menus; it is used
to move the cursor left or to go
back to the previous menu.
During a video call, it is used for
reducing the incoming video bit
rate.
OK:
Used with OSD menus; to pop up
the OSD menu, to enter the sub
menu, or to confirm the selection.
Used with OSD menus; it is
used to move the cursor right
or to enter the sub menu.
During a video call, it is used
for raising the incoming
video bit rate.
When used with OSD menus; it is
used to move the cursor up.
During a call, it is used for
turning the volume of the speaker
phone up.
In OSD menus; it is used to
move the cursor down.
During a call, it is used for
turning the speaker phone
volume down.
Cursor Panel
Take Line/Hands-free key (Green):
The "Take line / Hands-free (green color)" key allows the user:
taking the line by microphone or handset for incoming calls
taking the line / launching a call after having dialed the numbers
or picked up the phone number from the directory
(inbox/outbox lists)
6
6
Hang up key (Red):
The Hang up (red color) key allows the user:
6 hanging up the line during a communication
6 refuses an incoming call
6 going back to the stand-by screen directly(offline panic key)
Annuler key (Black):
In offline status, press Annuler key to return to the previous screen
without having to start from the beginning of the menu.
OK
7
Phonebook (Blue):
The Phonebook key allows the user calling a contact directly from his
Phone Book (online or offline).
"Son" sound privacy key (Blue):
The caller can mute the sound to the other party when pressing the
"Son" key.
Bis key(Shortcut to the outbox list-blue):
If users press his key (offline) , the outbox lists is displayed. Then
calls can be launched from the lists by pressing "OK"or "Take line"
key.
Menu key(Black):
6 The "Menu" key is accessible only during offline state (even if
the terminal is not connected - it is possible to enter the
configuration menu without having any network connection).
6 The screen displays entries such as phone book management,
Inbox/Outbox menu, and adjustments menu.
6 From the "Menu" function: sub-menu such as phone book,
adjustments, Inbox/Outbox...etc are displayed.
"Miroir" key (Orange):
6 When the call is in video mode, presses the "Miroir" key will
display user's local image (PIP). The user can also use this key to
move up his local image.
6 In offline state, the mirror images of the users can also be
displayed (before calling a distant party) even if the service is not
active. The images are usually reversed.
LR 8882 H323 User's Manual 8
"Still/Privacy" key(Orange) :
Press once to freeze the video image of callers so that the other party
can have a clearer display. Press twice to hide the display image to
the other side.
"Source" key (Orange):
6 The user can change the video source during the call or enter a
standby state by pressing this key.
6 In offline state, this off/on external video source function is
applicable for one call only (by default, the external video source
is off: it is the local video which is sent to the distant party). The
user can activate the external video source before launching a call.
In that case, when the call party is going to activate the video
source, the caller will not send his local video but rather the
external video source instead. To switch from this external video
source to the local one, he just needs to press the Source key
again.
6 At the end of this call, the external video source function is no
longer activated by default.
9
LEDs
"Video" :
!
!
!
!
The "Video" LED is in yellow:
If the user is on line and the video mode is off, the LED is off.
When the user switches in Video mode, the LED lights up
permanently.
As soon as user freezes his local image or when the 'Privacy"
mode is on, the LED flickers/blinks.
"Power"
"Message"
When VideoPhone LR 8882 H323 is well-connected, the LED is
in permanent red color.
Numeric Keypad
Front view (cont.'d)
Inputting numbers
Pressing any key on the numeric keypad can input the
corresponding number.
For example, pressing will generate the number " 8 ".
Inputting letters
Every button on the numeric keypad has characters printed on it, in addition to
the numbers. Number keys from " 2 " to " 9 " have English letters on them, so
they can be used to input English letters. When inputting data, pressing a key
consecutively will generate the letters on it.
For example, "7" key has the number " 7 " and the alphabets " PQRS " on it.
Press this key once will generate the number " P ".
Press this key twice consecutively will generate the letter " Q ".
Press this key three times consecutively will generate the letter " R ".
Press this key four times consecutively will generate the letter " S ".
Press this key five times consecutively will generate the letter " 7 ".
"1" key
In numeric filed, "1" is shown.
In alphanumeric field, press once to display "1", twice to display " ".
Press "1" for 1.5 seconds to launch the message systems.
"*" key
In numeric field: use "." for IP addresses and "*" for phone numbers.
In alphanumeric field: press "*" once to display "*", twice to display "." , and
three times to display ",".
"0" key
In numeric field: "0" is shown.
In alphanumeric field: Refer to pictures at
right.
10
Rear view
Side view
LCD Panel
Users can easily
adjust the viewing
angle of the LCD
panel. It can be
rotated 180 degrees
(To the left) and 90
degrees (To the right)
and tilted forwards
and backwards
Ethernet
(RJ-45) x 2
(Red line)
The left port
with the red
line marking
is the default
Ethernet
connector
Serial Port
(Purple)
A Mini-Din 7
(Female) serial
port connector
which can be used
as data control
A/V Input/
Output
(Yellow)
A Mini-Din 8
(Female)
Audio/Video
input/output
connector
Microphone
Extension to
an external
microphone
Input (Metal)
Handset Jack
Handset cable
connector
Power Switch
(Black)
A push button style
power switch
Power Input (Black)
A Mini-Din 6(Female)
Power input connector
USB x 2(Metal)
The USB
interface that
provides
extension for
USB WiFi
Ethernet dongle
USB port(Metal)
The USB interface that
provides extension for USB
WiFi Ethernet dongle
LR 8882 H323 User's Manual 11
4 Installation
Step 1 Pick a good spot
Prolonging the lifespan
Avoid storing or operating LR 8882 H323 in abnormal conditions.
High temperatures or excessive humidity could cause the unit to
malfunction and shorten its useful lifespan.
Stability
Place your LR 8882 H323 on top of a counter, desk, or table with
the CCD camera opening in front.
Lighting condition
Make sure the lighting is sufficient and does not shine directly
into camera lenses.
View of camera
Avoid using LR 8882 H323 in a room with brightly painted walls
or flamboyant wallpaper. Soft and evenly painted background
provides the best results.
Installing the unit
Step 2 Handset connection
When handset is connected to the phone users can answer the call
via Mic or handset.
Connect the handset cable with the handset
12
Installing the unit (cont'd)
Step 4 Plug in for power
Connect the power cord between
the wall outlet and the power
adapter. Plug the free end of the
power adapter into the
power connector
(DC IN) on
Videophone.
Connect
the power
adapter.
Connect the power cord
and plug in.
Step 3 Connect the Ethernet cable
Plug one end of the Ethernet cable in one port of the jacks marked
" " on LR 8882 H323. Plug the other end of the Ethernet cable
in the RJ-45 jack of the Ethernet device (hub, router, or ATU-R).
Connect Ethernet cable
to the Ethernet device
LR 8882 H323 User's Manual 13
Loading...
