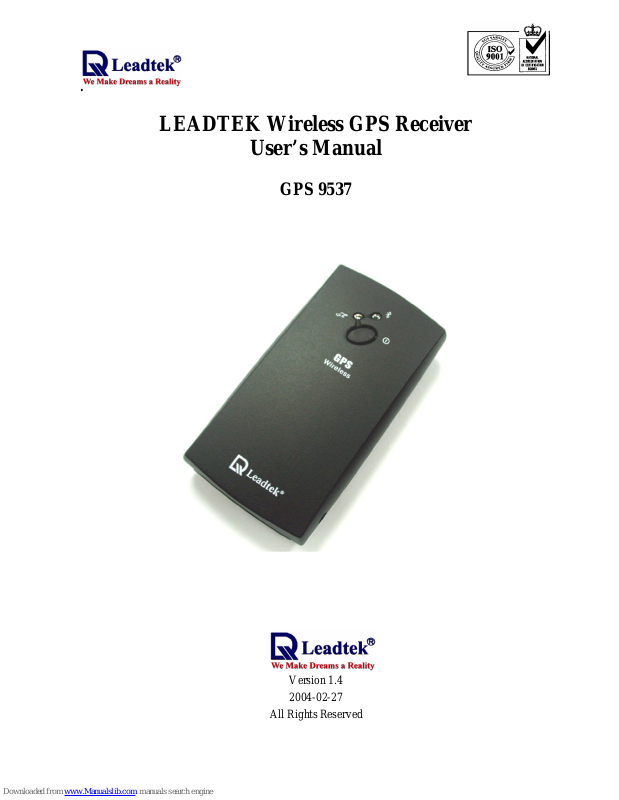

LEADTEK Wireless GPS Receiver
User’s Manual
GPS 9537
Version 1.4
2004-02-27
All Rights Reserved
.
i
Contents
1. INTRODUCTION...........................................................................................................................1
1.1. OVERVIEW................................................................................................................................1
1.2. MAIN FEATURES.......................................................................................................................1
2. TECHNICAL SPECIFICATIONS ...............................................................................................2
2.1. ELECTRICAL CHARACTERISTICS .............................................................................................2
2.2. OTHER CHARACTERISTICS ......................................................................................................3
2.3. FIRMWARE CHARACTERISTICS................................................................................................4
3. OPERATION ..................................................................................................................................4
3.1. HARDWARE DESCRIPTION........................................................................................................4
3.2. TURN ON/OFF............................................................................................................................5
3.3. CHARGING ................................................................................................................................5
3.4. BLUETOOTH COMMUNICATION ...............................................................................................5
3.5. GPS...........................................................................................................................................6
3.6. PIN CODE ...............................................................................................................................6
4. NOTICES.........................................................................................................................................6
4.1. GLOBAL POSITIONING SYSTEM................................................................................................6
4.2. AIRCRAFT AND HOSPITALS ......................................................................................................6
4.3. HEAT REFLECTIVE SHIELDS ....................................................................................................6
4.4. IMPORTANT...............................................................................................................................6
5.5 BATTERY ...................................................................................................................................7
5.6 FCC...........................................................................................................................................7
APPENDIX A SOFTWARE INSTALL................................................................................................8

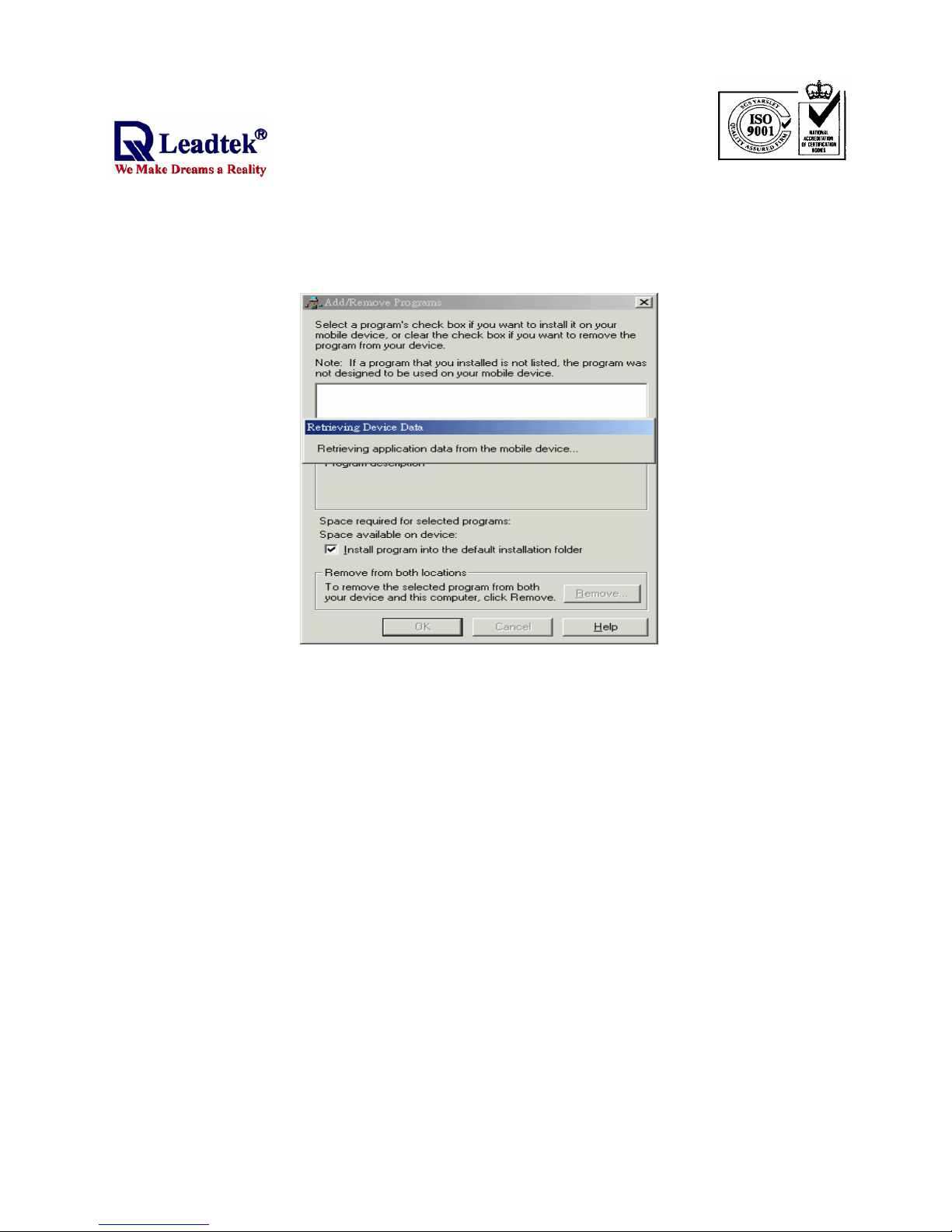

APPENDIX C INSTALLING WINFAST NAVIGATOR FOR POCKET PC...............................18
APPENDIX C TEST REFERENCE FOR ONLY .............................................................................22
.
- -
1
1. Introduction
1.1. Overview
The Leadtek 9537 Wireless GPS receiver is a Global Positioning System Receiver with
Bluetooth wireless technology. This wireless GPS receiver allows you to receive GPS data on
mobile handheld wirelessly. By sending GPS position data over Bluetooth, you can position the
receiver for the best possible reception all without wires. The advent of wireless GPS receiver will
become the next level of GPS receivers.
The Leadtek Wireless GPS receiver integrates Bluetooth module into GPS device. It shows
the high performance, low power consumption, easily portable, rechargeable & removable battery
function and wireless data transmission. If you have a Pocket PC or other portable devices enabled
with Bluetooth function, for example iPAQ 3870/3970 and SONY Ericsson T68 mobile phone, you
can take advantage of your device’s Bluetooth capability to wirelessly add GPS positioning
technology. When you choose suitable navigation software, you can apply to personal, vehicle
tracking, and marine navigation.
If you use this wireless GPS receiver, you will ignore the messy cords and antenna and add
the portability of your Pocket PC. In addition, This wireless GPS receiver can change the exhausted
battery to full battery like battery of mobile phone.
1.2. Main Features
12 Channels “All-In-View” Tracking
Position accuracy of 10 meters 2D RMS
Cold/Warm/Hot Start Time: 45/38/8 Seconds
Reacquisition Time: 0.1 seconds
RF connector for external GPS antenna
Support Standard NMEA-0183
Support Trickle Power mode Power Saving
Compatible with Bluetooth devices with Serial Port Profile (SPP)
Superior Sensitivity for Urban Canyon and Foliage Environment
Small, sleek, and lightweight design easily fits in your hand
Two LEDs indicating Bluetooth and GPS activity.
Lithium-ion battery lasting full working day typical use
On/off push button
Dimension: 1.77” x 3.27” x 0.71” ( 45mm x 83mm x 18mm )
.
- -
2
2. Technical Specifications
2.1. Electrical Characteristics
Items Description
Chipset
GSP2e/LP SiRF starII LP technology
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
General
Channels 12
10 meters, 2D RMS
7 meters 2D RMS, WAAS corrected
Position
<5 meters(50%), DGPS corrected
Velocity 0.1 meters/second
Accuracy
Time 1 microsecond synchronized to GPS time
Default WGS-84
Datum
Other selectable for other Datum
Reacquisition 0.1 sec., average
Snap start 2 sec., average
Hot start 8 sec., average typical TTFF
Warm start 38 sec., average typical TTFF
Acquisition
Rate(Open Sky
& Stationary
Requirements)
Cold start 45 sec., average typical TTFF
Hot 23 dB-Hz
Warm 28 dB-Hz
Cold 32 dB-Hz
Tracking Sensitivity 16 dB-Hz
Acquisition
Sensitivity
<Note>32dB Hz is equivalent to -172 dBW
Altitude 18,000 meters (60,000 feet) max.
Velocity 515 meters/second (1000 knots) max.
Acceleration 4g, max.
Dynamic
Conditions
Jerk 20 meters/second3, max.
Operational Power
3.3VDC±10% (from internal Lithium-Ion
battery pack)
Input Power 5VDC±10%
Battery Source Rechargeable and removable 900mAh
Lithium-Ion battery with 5V DC input
charging circuit.
Battery Charging Full charge 3 hours
Backup Power 3.3V ( internal on board rechargeable
backup battery)
Power
Operational Current
& Power
Consumption
Please refer to the following table
Connection: Communication via Bluetooth Serial Port
Profile(SPP)
Interface
Protocol messages NMEA-0183 Version 2.20 output protocol
.
- -
3
Output message Default output format: GGA(1sec),
GSA(5sec), GSV(5sec),
RMC(1sec),VTG(1sec)
Operational Current & Power Consumption
Measure of Power Consumption
Status Current (mA) Power Consumption(mW)
Power On 75 300
GPS connect BT 70 280
LR-9537 Fix without connecting BT
Device.
20 80
LR-9537 Fix with connecting BT
Device
100 400
2.2. Other Characteristics
Items Description
Humidity range 5% to 95% No condensing
Operating temperature range
-20ºC to +60ºC (-4ºF to 140ºF)
Battery discharge
-20ºC to +60ºC (-4ºF to 140ºF)
Battery charge
0ºC to +40ºC (32ºF to 104ºF)
Short period storage
temperature (< 1 month)
-20ºC to +50ºC (-4ºF to 112ºF)
Environmental
Characteristics
Long time storage
temperature(>1 month)
-20ºC to +35ºC (-4ºF to 95ºF)
Length 3.27” (83 mm)
Width 1.77” (45mm)
Height 0.71” (18 mm)
Weight
1.82 oz / 52g (without chargeable
battery)
2.73 oz / 78g (with chargeable
battery)
Antenna connector
MC plug -Note: The internal
antenna will be disables when an
external antenna is connected.
Physical
Characteristics
Power connector
ψ2.1*5.5*9.5 ( The connector
look the same as the DC jack of
iPAQ 36/38 series PDA. )
Antenna
Antenna type Built-in Ceramic patch antenna
(External antenna optional)
.
- -
4
2.3. Firmware Characteristics
Items Description
Core of firmware
SiRF version 2.3
Baud rate
4800
Code type
NMEA-0183 ASCII
Datum
WGS-84
Protocol message
Output frequency
1 Hz
3. Operation
3.1. Hardware Description
The Bluetooth GPS has two LED light which each has two colors. One is GPS & Charge
status LED, that is named LED 2, and the other is Bluetooth & low power status LED, that is named
LED 1. The status table of LED shows as follows:
<State Table of LED>
LED1
BT & Low Power LED Description
LED1 Color and Action Bluetooth Active Low Power
Blue Flash Yes No
Purple–Red Flash Yes Yes
.
- -
5
LED2
GPS & Charge LED Description
LED2 Color and Action Battery Charged Position Fixed
Dark No No
Green Flash No Yes
Red Yes No
Orange-Red Flash Yes Yes
<Note1>When the Bluetooth is active and LED 1 lights, it shows Bluetooth RF function. As long as
the Bluetooth RF is transmitting the LED light will flash. When Bluetooth doesn’t connect the other
Bluetooth device, the LED 1 will be flash periodically. Therefore, it means that it broadcasts message
to connect the other device with Bluetooth function. If it connects the other Bluetooth device and
transmits data, LED 1 will flash very quickly and look like bright.
<Note 2>When the battery is charging, LED 1 will show purple-red color and flash. The reason that
Bluetooth is working cause LED 1 purple-red color. If the GPS receiver go to the end of charge, LED
1 will show blue color and flash.
3.2. Turn on/off
Turn on To turn on the receiver, press the power button on the topside briefly (0.5
seconds). The left LED(LED 2) indicator will flash briefly. The right LED
(LED 1) indicator will start flashing.
Turn off To turn off the receiver, press the power button on the topside for 3 seconds.
The LED indicator will flash briefly before switching off the receiver.
3.3. Charging
Low Power The right LED(LED 1) indicator will turn RED (normally BLUE) when battery
power becomes low. Connect the receiver to a powers source to continue
operation and to recharge the battery.
Charging The left LED(LED 2) indicator will turn RED (or ORANGE) when the battery
is being charged. When fully charged, the RED indicator will switch off.

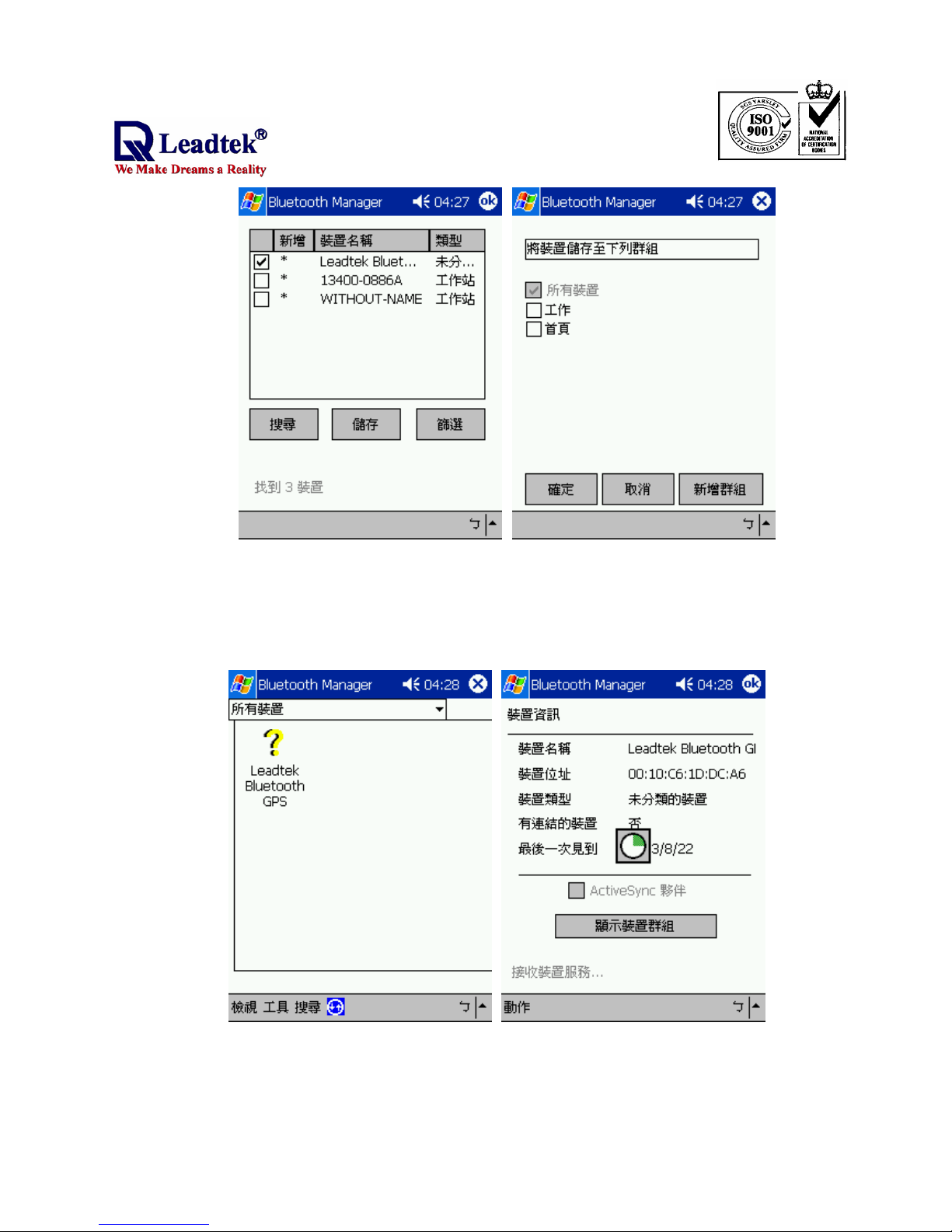

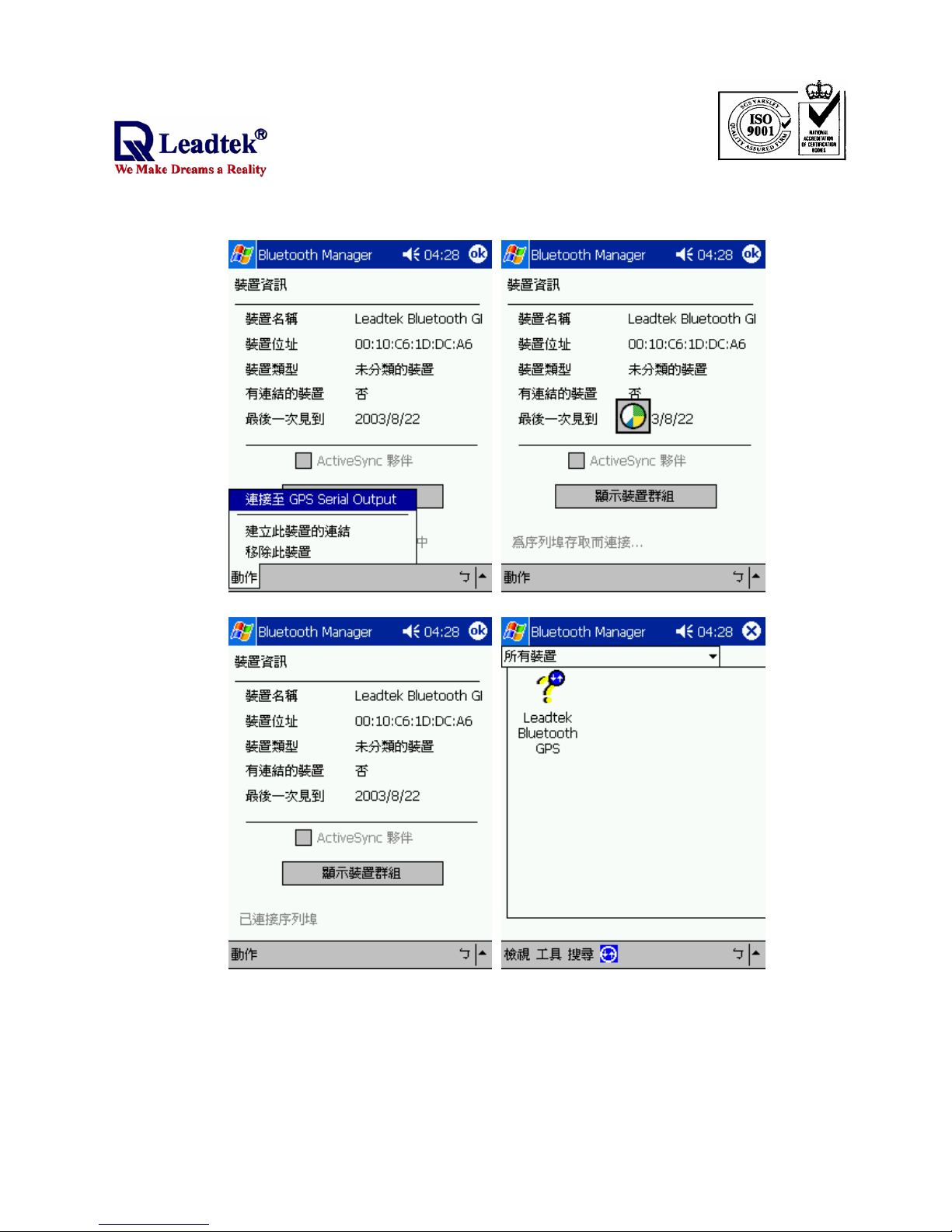

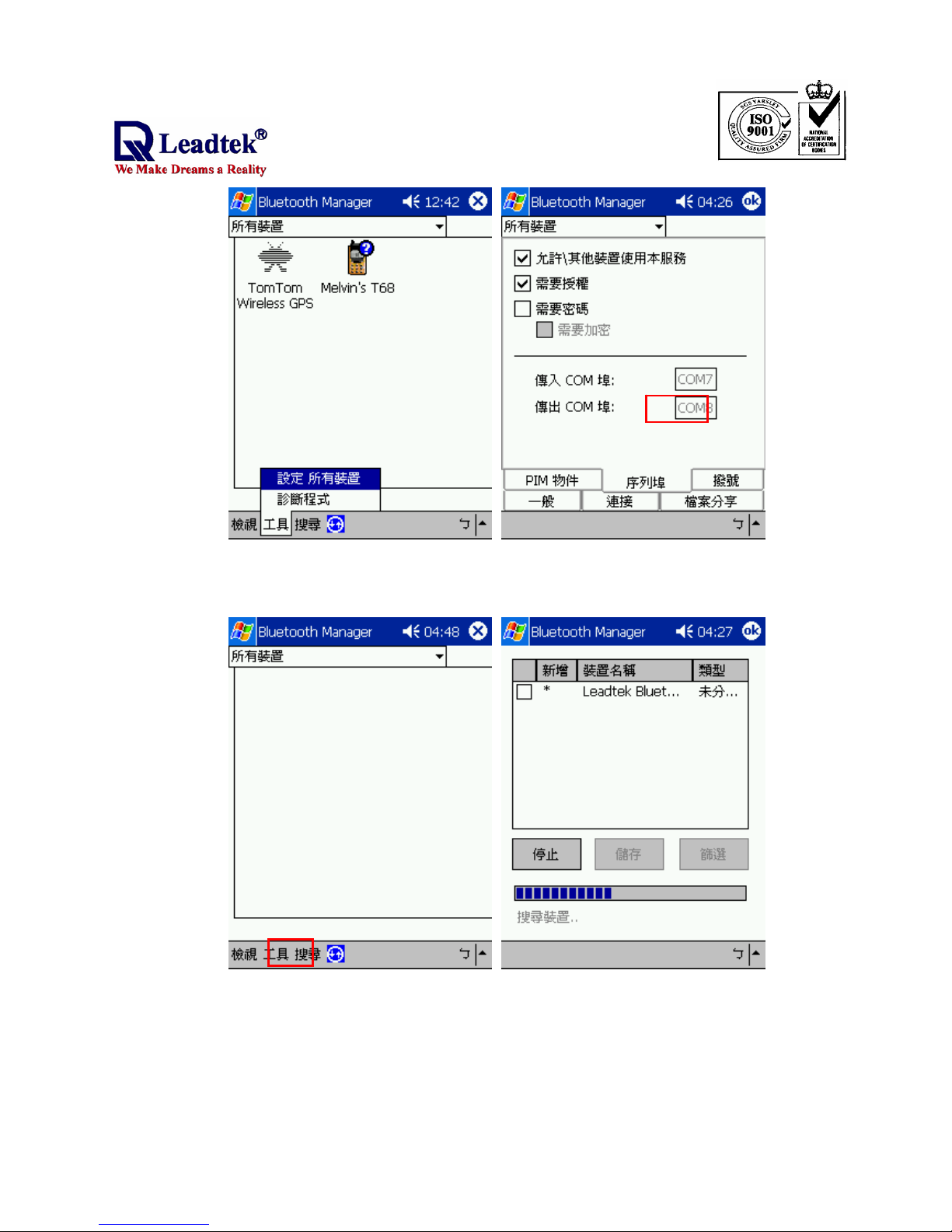

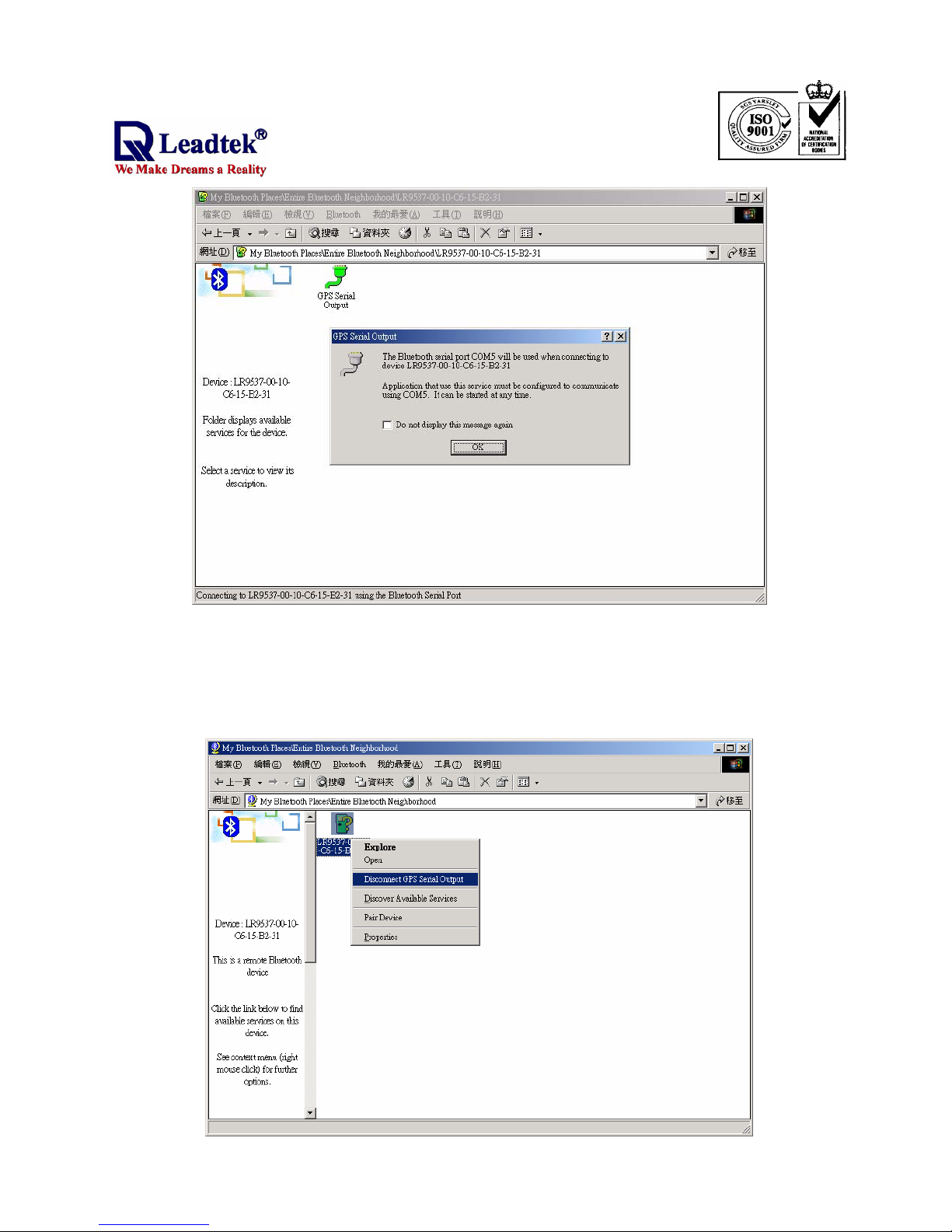

3.4. Bluetooth Communication
Waiting to connect The right LED(LED 1) indicator will flash if there is no communication
between the receiver and another device.
Connected The right LED(LED 1) indicator will turn to continuous lighting when the
receiver is connected through the wireless link with another device.
.
- -
6
3.5. GPS
Navigating The left LED(LED 2) will flash GREEN (or ORANGE when charging) if the
receiver is able to determine the current position.
3.6. PIN CODE
The PIN code means Personal Identification Number for Bluetooth device and it is also
called as Pass Key. The Bluetooth GPS receiver has the default PIN Code, and is “0000”. Generally
speaking, there are two steps in Bluetooth connecting. One is pairing process, the other is link process.
If you need PIN code to pairing and connect, you can use the default pin code, “0000” to connect
Bluetooth device. Our GPS receiver belongs to non-safety connecting, you can use in general
application to finish connecting.
4. Notices
4.1. Global Positioning System
The Global Positioning System (GPS) is operated and maintained by the Government of
the United States of America who are responsible for the availability and the accuracy of the system.
Changes in the operation, availability and accuracy may affect the operation of your GPS receiver.
4.2. Aircraft and Hospitals
Use of devices with an antenna is prohibited on most aircraft and in many hospitals. The
TomTom Wireless GPS receiver is a receiving and transmitting device with two antenna’s and should
not be used in these environments.
4.3. Heat Reflective Shields
Modern vehicles may have a heat reflective shield in the windshield, preventing proper
GPS signal reception if the receiver is placed under the windshield. To get proper reception:
(a) Use an external antenna, or
(b) Place the receiver in a different position, or
(c) Attach the cradle to the windshield behind the rearview mirror, where many vehicles have an
opening in the heat reflective shield, indicated by a black outline.
4.4. Important
The information in this document is subject to change without notice. No liability shall be
assumed for technical or editorial errors or omissions contained herein; nor for incidental or
consequential damages resulting from the performance or use of this material. This document
contains information protected by copyright.
.
- -
7
5.5 Battery
This product uses a Lithium-Ion battery. Please charge fully before first use. Operation in low (below 0º
C/32ºF or high (over 40ºC/110ºF) temperatures will affect power supply efficiency and the ability to
charge the battery. All Lithium-Ion batteries will experience power supply efficiency deterioration over
time even if not used and have a limited life expectancy. Permanently powering the battery will reduce
life expectancy. Do not use your product in a humid, wet and/or corrosive environment. Do not put,
store or leave your product in or near a heat source or in a high temperature location and do not expose
it to temperature over 60ºC(140ºF). Failure to follow these guidelines may cause the Lithium-Ion
battery to become hot, explode or ignite and cause injury and/or damage. THE LITHIUM-ION
BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED OR DISPOSED OF
PROPERLY. USE ONLY WITH SUPPLIED CHARGER(s) AND SUPPLIED AC ADAPTOR FOR
BATTERY CHARGING.
5.6 FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
Loading...
