Leadtek BVP 8882 SIP User Manual

BVP 8882 SIP SIP

VIDEOPHONE

USER'S MANUAL

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Leadtek Research Inc.

Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. Leatek reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.

Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.

International Headquarters

18th Fl., 166, Chien-Yi Rd., Chung Ho, Taipei Hsien, Taiwan (235) Phone: +886 (0)2 8226 5800 Fax: +886 (0)2 8226 5801 http://www.leadtek.com.tw E-Mail: service@leadtek.com.tw

United States Headquarters

46732 Lakeview Blvd., Fremont, CA 94538, U.S.A. Phone: +1 510 490 8076 Fax: +1 510 490 7759 http://www.leadtek.com

Europe Headquarters

Antennestraat 16 1322 AB, Almere, The Netherlands

31 (0)36 536 5578 31 (0)36 536 2215

Phone: + Fax: + http://www.leadtek.nl

BVP 8882 SIP User's Manual Version A March 2006 P/N: W0500964

Table of Contents

1 Getting Started .............................................................. 1

Overview ........................................................................... 1

Feature highlights ............................................................. 1

Hardware specifications ................................................... 2

LED Status ..................................................................................... 2

Network connection (modem)......................................................... 3

Video input ..................................................................................... 3

Video output .................................................................................... 3

Audio input ..................................................................................... 3

Audio output .................................................................................... 3

VideoPhone BVP 8882 SIP packaging description .............. 4

2 What's In The Package ................................................ 5

3 Getting to Know Your BVP 8882 SIP .......................... 6

Front view ....................................................................... 6

LEDs ............................................................................................... 9

Rear view ......................................................................... 12

Side view .......................................................................... 12

4 Installation ..................................................................... 13

Installing the unit ............................................................. 13

Using external devices (Optional) ..................................... 15

Table of Contents

5 System Setup ............................................................... 16

ADSL/Constant ADSL/Single, Public, & Fixed IP ....... 17

When the IP is used exclusively by BVP 8882 SIP ..................... 17

ADSL/Constant ADSL/Multiple, Public, & Fixed IP .... 18

When BVP 8882 SIP uses one of the IPs

(without a DHCP server connected) ........................................... 18

ADSL/Timing ADSL/Single, Public, & Dynamic IP ... 19

When the ADSL is used exclusively by BVP 8882 SIP .............. 19

Cable/Single, Public, & Dynamic IP ............................ 20

When the IP is used exclusively by BVP 8882 SIP ................... 20

LAN/No Firewall or NAT ............................................. 21

With a DHCP server connected ................................................ 21

Without a DHCP server connected ........................................... 22

LAN/Firewall with Packet Filter .................................. 23

With a DHCP server connected ................................................ 23

Without a DHCP server connected ........................................... 24

LAN/Firewall with NAT & Packet Filter ..................... 25

With a DHCP server connected ................................................ 25

Without a DHCP server connected ........................................... 26

6 Making a Call ............................................................ 27

Before making a video call .......................................... 27

Making a video call ..................................................... 28

Icon explanations ........................................................ 29

Table of Contents

7 Using OSD Menus ..................................................... 31

Password Checking ....................................................... 31

Configuration ................................................................ 32

System Setup .................................................................. 32

Network Setup ................................................................ 32

SIP Server Setup ............................................................. 33

NTP Server Setup............................................................ 34

Update Server Setup ....................................................... 35

STUN Server Setup.......................................................... 36

Service Setup ................................................................... 37

Call Service Setup ......................................................... 37

Auto Answer Setup ........................................................ 38

Advanced Setup ............................................................. 39

Ringer Setup ................................................................... 40

Option ............................................................................ 41

Bandwidth Setup ............................................................ 42

Remote Update .............................................................. 43

Password ..................................................................... 44

Phonebook .................................................................. 45

Add ................................................................................ 45

Search ............................................................................ 46

In Box ............................................................................ 49

Out Box ......................................................................... 50

Miss Box ......................................................................... 51

Speed Dial ....................................................................... 52

Restore Factory Settings ............................................ 55

8 OSD Menu Tree ............................................................ 56

9 Trouble Shooting .......................................................... 57

10 Tech Support ................................................................. 58

11 Limited Warranty ......................................................... 59

1 Getting Started

Overview

The BVP 8882 SIP is designed to avoid complicated installation. And with the buttons on the keypad, you are able to access the userfriendly on screen display menu (OSD), easily control the functions and make adjustments.

The BVP 8882 SIP has a built-in high quality CCD camera and an active matrix liquid crystal display. Images are transmitted through the Internet at up to 24 frames per second (fps) (@ CIF resolution). While making a video call, you can enjoy the brilliant real-time color images of yourself, your correspondents or both. If you do not want your image to display on the caller or receiver's screen. The BVP 8882 SIP's private mode can do just that.

The BVP 8882 SIP is fully compliant with SIP (Session Initiation Protocol) international standards for video communication. It can be used with any video phone that are compatible with this standard.

Feature highlights:

Broadband IP address videophone Connect the other videophone by simply entering the phone

number Built-in high quality CCD camera with cover protection High quality TFT LCD display Friendly and easy operation through keypads Phonebook dialing function 1 A/V input & 1 A/V output for additional video/audio input and

video/audio output for large display Up to 24 frames per second video display (@ CIF resolution) Video selectable and picture image up to VHS quality Echo-cancellation and no delay high quality audio Built-in 2-port switch to connect two LANs

Hardware Specifications

LED Status

VideoPhone BVP 8882 SIP is ON and in standby mode

En Service

The " " LED is on permanently.

Network unavailability

If VideoPhone BVP 8882 SIP of end users is not connected to the network, the LED ervice" (in use) (until the user receives his DHCP address).

Video connection indication

If the video connection is establish, the Video LED turns on. When the video connection terminates, this Video LED turns off.

"En S blinks

BVP 8882 SIP User's Manual 2

Network connections(modem)

The system is connected to an external ADSL modem. The characteristics are:

IP : 2 Ethernet ports (RJ-45) of 10/100 Mb/s, one of them with

the red line marking indicates that the Ethernet cable connector (in red color) should be plugged into it.

Video Input

The video input features are:

· Internal CCD camera

· Focal length is adjustable to cover 2.5 meters wide at a

distance of 3 meters

· Focus(rotation of lens) is manually controlled by the end user

· Capability to adjust brightness and contrast. These

parameters are controlled via the roller

· Support for 1 Audio/Video input

Video Output

· Support for 1 Audio/Video

output

Audio Input

The audio input features are:

The handset microphone

The built-in hands-free internal microphone

Audio Output

The user can adjust the sound volume with " " and " " keys on his VideoPhone BVP 8882 SIP.

The audio is output to the VideoPhone BVP 8882 SIP speaker

(or handset depends if the user is using the hands-free function...)

VideoPhone BVP 8882 SIP packaging description

The VideoPhone BVP 8882 SIP package includes:

! VideoPhone BVP 8882 SIP user manual.

A BVP 8882 SIP videophone.

A wired handset.

A power cord & power adaptor.

An ethernet cable.

An A/V Convertible Cable.

BVP 8882 SIP User's Manual 4

2 What's In The Package

The following is a summary of VideoPhone BVP 8882 SIP accessories:

Color: Dark Grey

Handset x 1

Color: Black

Handset Cable x 1

Audio/Video Convert Cable x 1 set (4 lines)

Connectors:

Mini-DIN 8(Male) x 1:

RCA(Female) x 2:

Power Adapter x1

Power Cord x1

Color: Black

(Brown tags- A/V Input, Green tags- A/V Output)

Length: 230+ -10mm

Color: Yellow

Color: White

Color: Black

Length: 1600mm

Color: Black

Length: 1830mm

Ethernet Cable x1

Connectors:

RJ-45:x 1

Color: Beige

Color: Red

3 Getting to Know Your BVP 8882 SIP

Front view

CCD Camera:

The input source of local video image, a miniature built-in CCD camera.

Mic:

Microphone can be used instead of handset.

Handset

LCD Screen:

Shows the video images of callers.

En Service indicator:

The green LED light is on when the VideoPhone is well-connected to the network.

Video indicator:

It lights in yellow color when the phone is in Video mode. When "Video Privacy" is on, the LED is off.

Take line/Hands-free key (Green):

It is used for taking the lines and activates the hands-free function.

Handset Cable

Alphanumeric keypad:

To enter the IP address or to input data required for accessing the OSD menu.

Hot Keys:

See next page.

Hang up key (Red):

Press to hang up the call.

Cursor Panel:

See next page.

Annuler key (Black):

In off-line status, press Annuler key to return to the previous screen without having to start from the beginning.

Menu (Black):

The menu key is accessible when the VideoPhone is offline.

BVP 8882 SIP User's Manual 6

Front view (cont.'d)

Cursor Panel

OK:

Used with OSD menus; to pop up the OSD menu, to enter the sub menu, or to confirm the selection.

Used with OSD menus; it is used to move the cursor left or to go back to the previous menu. During a video call, it is used for reducing the incoming video bit rate.

Hot Keys

Take Line/Hands-free key (Green):

The "Take line / Hands-free (green color)" key allows the user:

- taking the line by microphone or handset for incoming calls

- taking the line / launching a call after having dialed the numbers or picked up the phone number from the directory

(inbox/outbox lists)

When used with OSD menus; it is used to move the cursor up. During a call, it is used for turning the volume of the speaker phone up.

Used with OSD menus; it is used to move the cursor right or to enter the sub menu. During a video call, it is used for raising the incoming video bit rate.

In OSD menus; it is used to move the cursor down. During a call, it is used for turning the speaker phone volume down.

Hang up key (Red): The Hang up (red color) key allows the user:

- hanging up the line during a communication

- refuses an incoming call

- going back to the stand-by screen directly(offline panic key)

Annuler key (Black):

In offline status, press Annuler key to return to the previous screen without having to start from the beginning of the menu. It functions as the Backspace key when the user is in editing mode.

Menu key(Black):

The "Menu" key is accessible only during offline state (even if the terminal is not connected - it is possible to enter the configuration menu without having any network connection).

The screen displays entries such as phone book management, Inbox/Outbox menu, and adjustments menu.

From the "Menu" function: sub-menu such as phone book, adjustments, Inbox/Outbox...etc are displayed.

Phonebook (Blue):

The PhoneBook key allows the user calling a contact directly from his Phone Book (online or offline).

Bis key(Shortcut to the outbox list-blue):

If users press his key (offline) , the outbox lists is displayed. Then calls can be launched from the lists by pressing "OK" key.

Press to cancel the call.

"Son" sound privacy key (Blue):

The caller can mute the sound to the other party when pressing the "Son" key.

"Miroir" key (Orange): When the call is in video mode, presses the "Miroir" key will display

user's local image (PIP). The user can also use this key to move up his local image.

In offline state, the mirror images of the users can also be displayed (before calling a distant party) even if the service is not active. The images are usually reversed.

"Transfer/Redial" key : In online state, press this key to transfer calls to the third party.

In offline state, press and then for redial purpose.

"Still" key (Orange) :

To freeze the video image of callers so that the other party can have a clearer display.

"Privacy" key (blue):

Stop sending caller's image to the other side so the caller will not be seen by the person you talk to.

BVP 8882 SIP User's Manual 8

LEDs

"Source" key (Orange):

The user can change the video source during the call or enter a standby state by pressing this key. In offline state, this off/on external video source function is applicable for one call only (by default, the external video source is off: it is the local video which is sent to the distant party). The user can activate the external video source before launching a call. In that case, when the call party is going to activate the video source, the caller will not send his local video but rather the external video source instead. To switch from this external video source to the local one, he just needs to press the Source key again.

At the end of this call, the external video source function is no longer activated by default.

The Video LED is in yellow:

- If the user is on line and the video mode is off, the LED is off

- When the user switches in Video mode, the LED lights up permanently

- As soon as "Video privacy" is on, the yellow LED goes out and warn the user that his image is no more displayed

- As soon as user freezes his local image, the LED flickers/blinks

- As soon as user picks up a call, the LED blinks

The En Service LED is in green:

- When VideoPhone BVP 8882 SIP is well-connected, the LED is in permanent green color

- As soon as "Sound privacy" (mute) is on, the LED flickers quickly

- When VideoPhone BVP 8882 SIP is off or the ethernet cable is not connected, the LED switches off

- When VideoPhone BVP 8882 SIP is not connected to the network (ie. the Ethernet cable is well- connected but the service is not yet ready), the "En Service" LED blinks (until the user receives his IP address and registers to Gatekeeper)

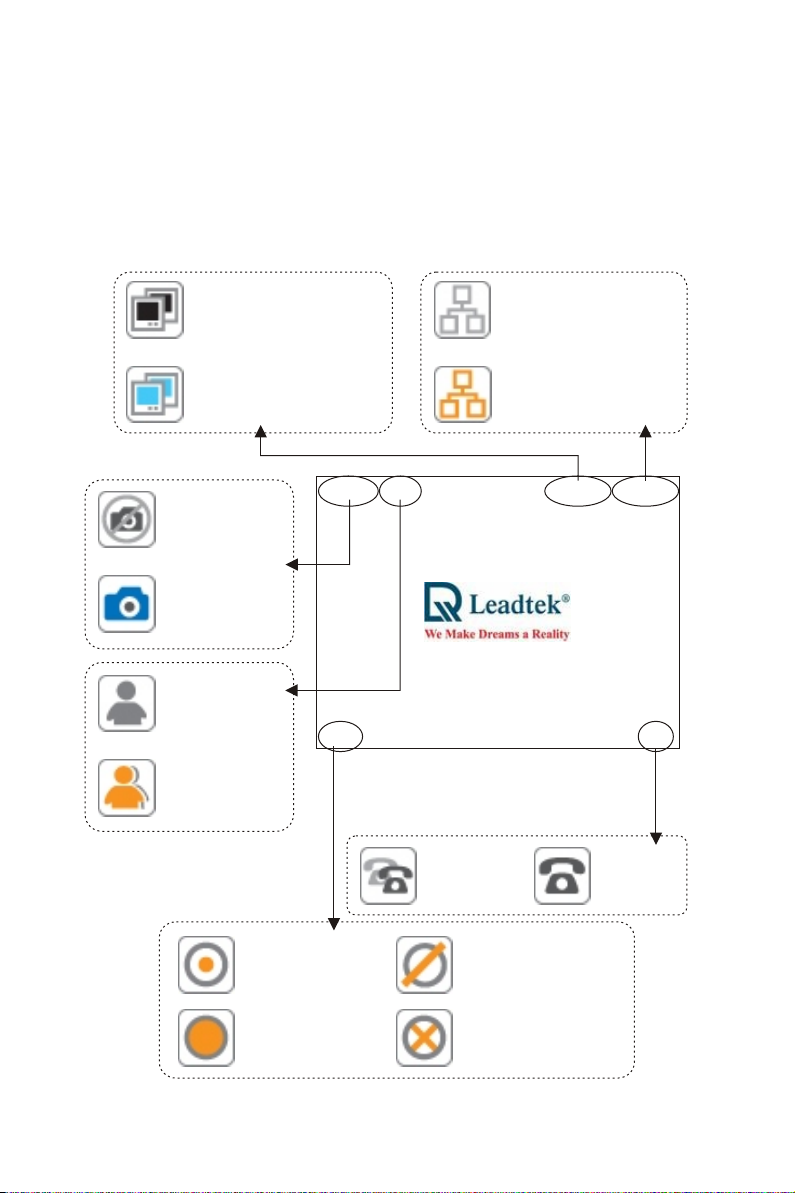

The LED on the cover of LCD Panel gives an indication of incoming calls /new messages when the LCD panel is closed and lights in red color:

- The LED flashes as at the same time as soon as an

incoming call is received

- The LED flashes at the same time as "Message" LED

as soon as a new message is received by the messaging service

- The LED flashes at the same time as incoming calls

when incoming calls and new messages are received simultaneously

The LED flashes in the following sequences:

- Video privacy (Video LED): permanently off.

- Fixed image (Video LED): 500ms on, 500ms off

and so on

- Audio mute (En Service LED): 125ms on, 125ms

off, 125ms on, 125ms off, and so on

- Message (Message LED): 125ms on, 125ms off,

125ms on, and 750ms off, and so on

- Incoming call (Video LED): 125ms on, 125ms off,

125ms on, 125ms off and so on

- Service unavailability: 1000ms on, 1000ms off, 1000ms on, 1000ms off and so on

BVP 8882 SIP User's Manual 10

Front view (cont.'d)

Numeric Keypad

1 to 9 keys

In numeric field : only numbers are shown. In alphanumeric field: 1: display 1 and blank space. 2: display A, B, C, 2 . Push "#" to switch to lower case letters.

3: display D, E, F, 3. Push "#" to switch to lower case letters.

4: display G, H, I, 4 . Push "#" to switch to lower case letters.

5: display J, K and L then 5. Push "#" to switch to lower case letters.

The tactile identifier on this key enables easier key identification on the keypad for the blind people.

6: display M, N, O, 6. Push "#" to switch to lower case letters.

7: display P, Q, R and S then 7. Push "#" to switch to lower case letters.

8: display T, U, V, 8. Push "#" to switch to lower case letters.

9: display W, X, Y and Z then 9. Push "#" to switch to lower case letters.

"# " key

In numeric field:"#" is shown. In alphanumeric field: Press "#" to switch between upper and lower case. letters and secondly between lower case and numbers, and vice versa. "Maj" indicates the upper case state and "Min" indicates the lower case state.

"*" key

In numeric field: use "." for IP addresses and "*" for phone numbers.

In alphanumeric field: press "*" once to display "*", twice to display "." , and three times to display ",".

"0" key

In numeric field: "0" is shown. In alphanumeric field: press "0" once to display "0", twice to display ":", three times to display ";" and four times to display all available punctuation marks. Keep pressing "0" and wait for 1.5 seconds for confirmation of desired selection. The characters are displayed in the following sequence:

"0",":",";","-","+","(",")","!","'",""","@","#","/","_","&","$","~".

Rear view

Power Switch (Black)

A push button style power switch

Power Input (Black)

A Mini-Din 6(Female) Power input connector

Serial Port (Purple)

A Mini-Din 7 (Female) serial port connector which can be used as data control channel

Side view

LCD Panel

Users can easily adjust the viewing angle of the LCD panel. It can be rotated 360 degrees (To the left) and 90 degrees (To the right) and tilted forwards and backwards

A/V Input/ Output (Yellow)

A Mini-Din 8 (Female) Audio/Video input/output connector

Microphone

Input (Metal)

Extension to an external microphone

USB port(Metal)

The USB interface that provides extension for USB WiFi Ethernet dongle

Ethernet (RJ-45) x 2 (Red line)

The left port with the red line marking is the default Ethernet connector

USB x 2(Metal)

The USB interface that provides extension for USB WiFi Ethernet dongle

Handset Jack

Handset cable connector

BVP 8882 SIP User's Manual 12

4 Installation

Installing the unit

Step 1 Pick a good spot

Stability

Place your BVP 8882 SIP on top of a counter, desk, or table with the CCD camera opening in front.

Lighting condition

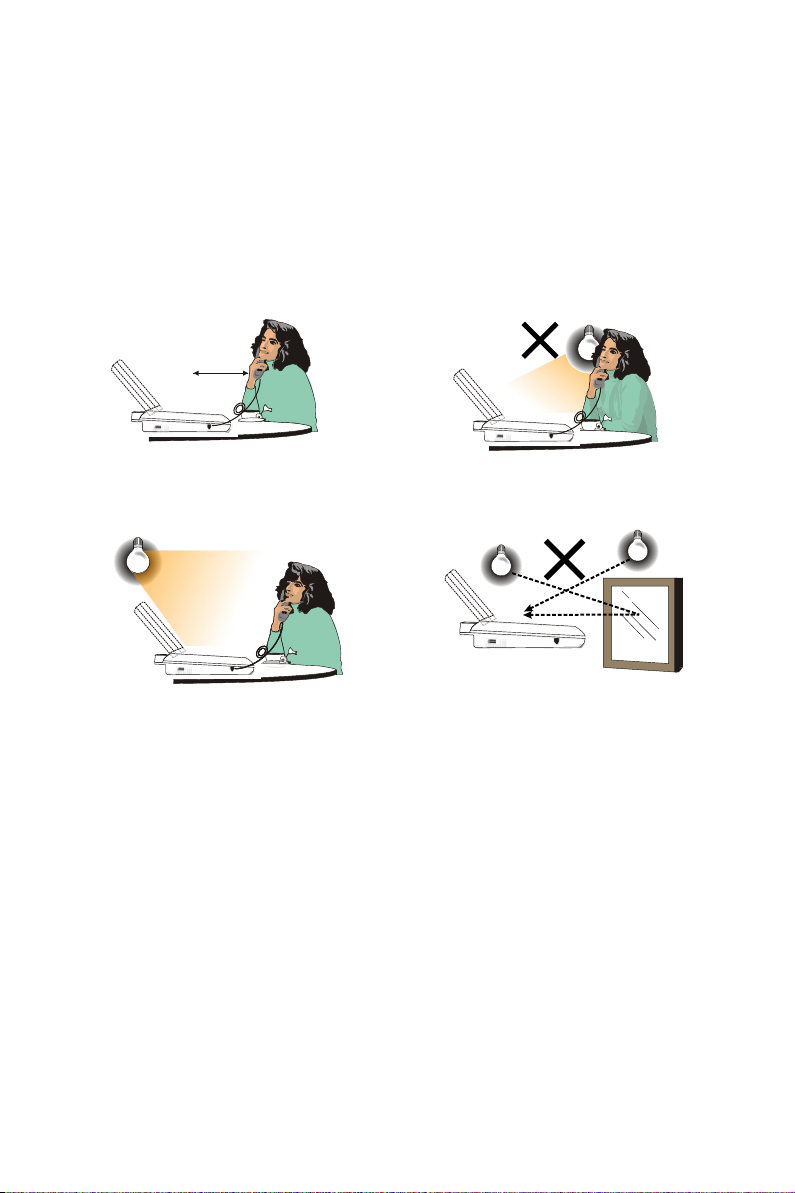

Make sure the lighting is sufficient and does not shine directly into camera lenses.

View of camera

Avoid using BVP 8882 SIP in a room with brightly painted walls or flamboyant wallpaper. Soft and evenly painted background provides the best results.

Prolonging the lifespan

Avoid storing or operating BVP 8882 SIP in abnormal conditions. High temperatures or excessive humidity could cause the unit to malfunction and shorten its useful lifespan.

Step 2 Handset connection

When handset is connected to the phone users can answer the call via Mic or handset.

Connect the handset cable with the handset

Installing the unit (cont'd)

Step 3 Connect the Ethernet cable

Plug one end of the Ethernet cable in one port of the jacks marked " " on BVP 8882 SIP. Plug the other end of the Ethernet cable in the RJ-45 jack of the Ethernet device (hub, router, or ATU-R).

Connect Ethernet cable to the Ethernet device

Step 4 Plug in for power

Connect the power cord between the wall outlet and the power adapter. Plug the free end of the power adapter into the power connector (DC IN) on Videophone.

Connect the power adapter.

Connect the power cord and plug in.

BVP 8882 SIP User's Manual 14

Using external devices (Optional)

Ethernet connection

A/V Output (Green tags)

A/V Input (Brown tags)

External Microphone

Television

DVD/VCD

(for recording)

CCD Camera

DVD/VCD

(for playing)

5 System Setup

The System Setup section gives instructions on how to set up your BVP 8882 SIP system under some mostly used interconnection types. There is a condition bar on each page (as shown in the figure), indicating what type of connection the setup guide on that page is for. Look for the type of connection you use with your BVP 8882 SIP to find the setup instructions you need.

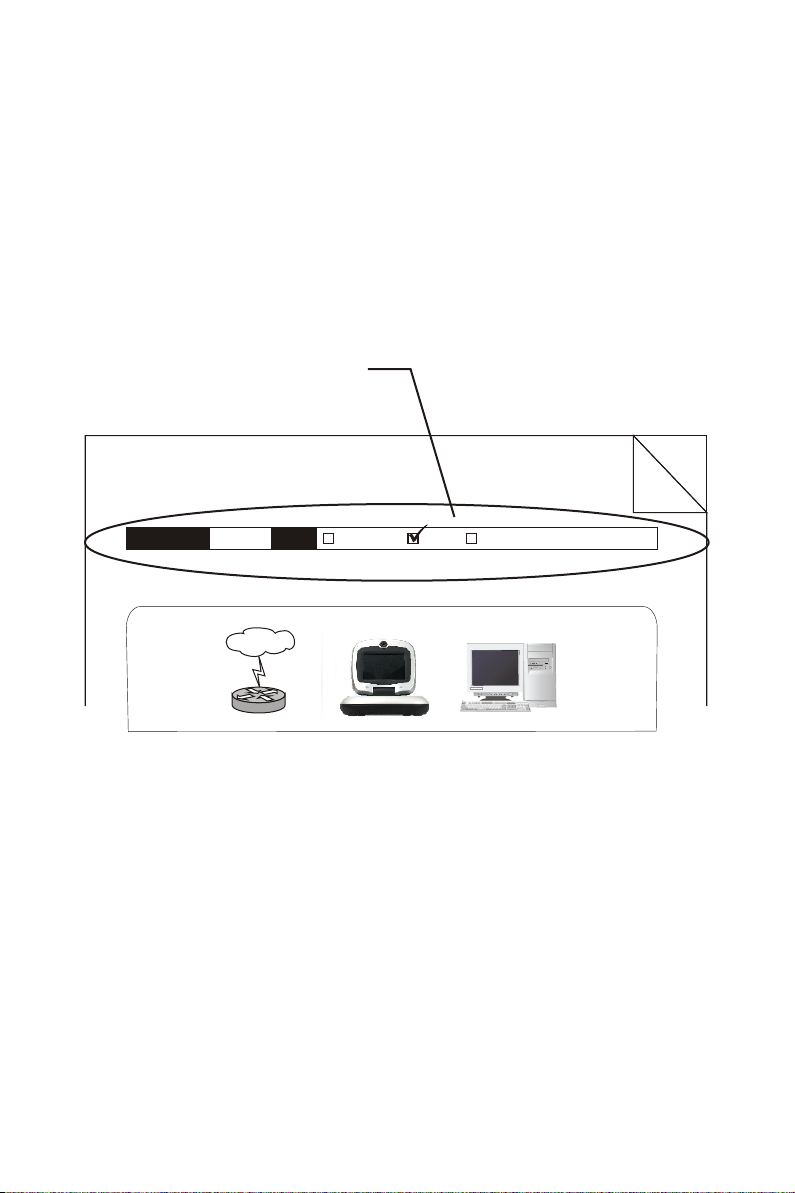

Condition Bar

System Setup (Cont'd)

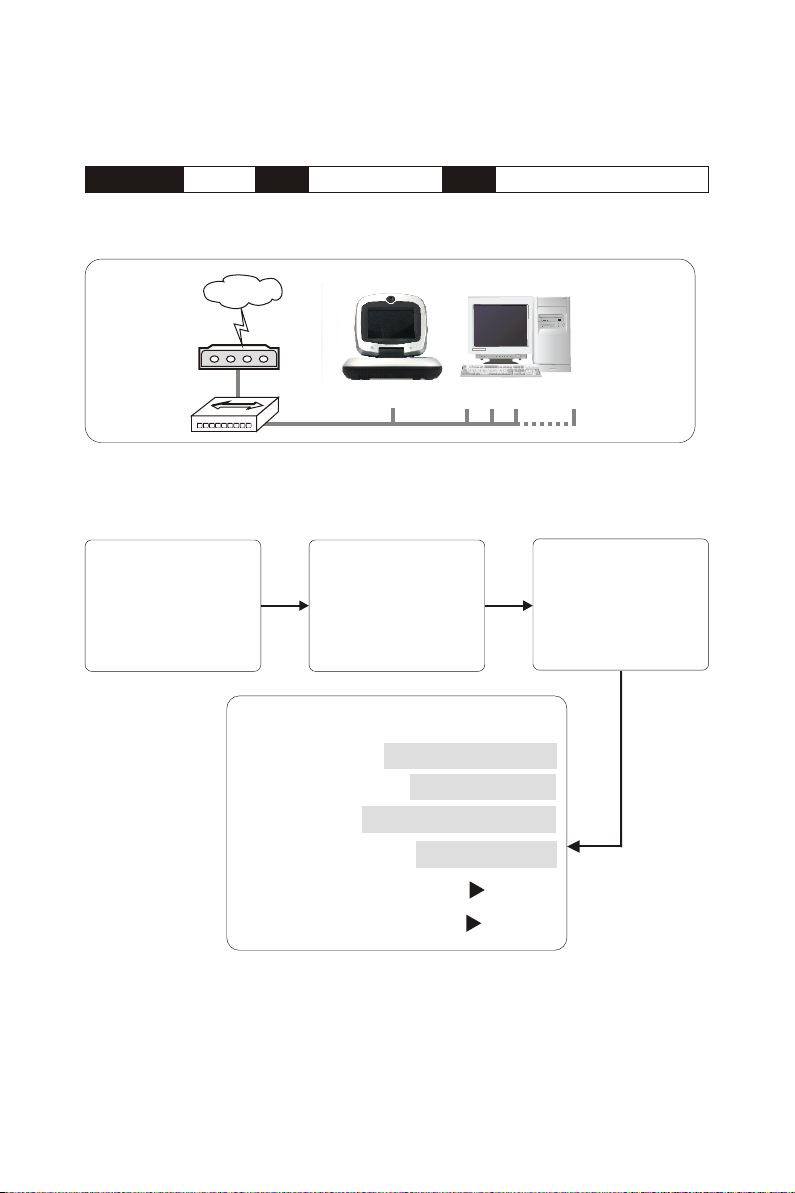

Connection LAN Type Firewall NAT Packet Filter

Without DHCP server connected

Internet

BVP 8882 SIP User's Manual 16

Internet

System Setup (Cont'd)

Connection ADSL Type Constant ADSL IP Single, Public, & Fixed

When the IP is used exclusively by BVP 8882 SIP

BVP 8882 SIP

ATU-R

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

System Setup

Service Setup

Bandwidth Setup

Remote Update

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Connect Type: STATIC IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Note : IP address, Subnet Mask and Gateway are assigned by your ISP, each consisted of 4 sets

of numbers with dots in between them. Check with your ISP for the information.

System Setup (Cont'd)

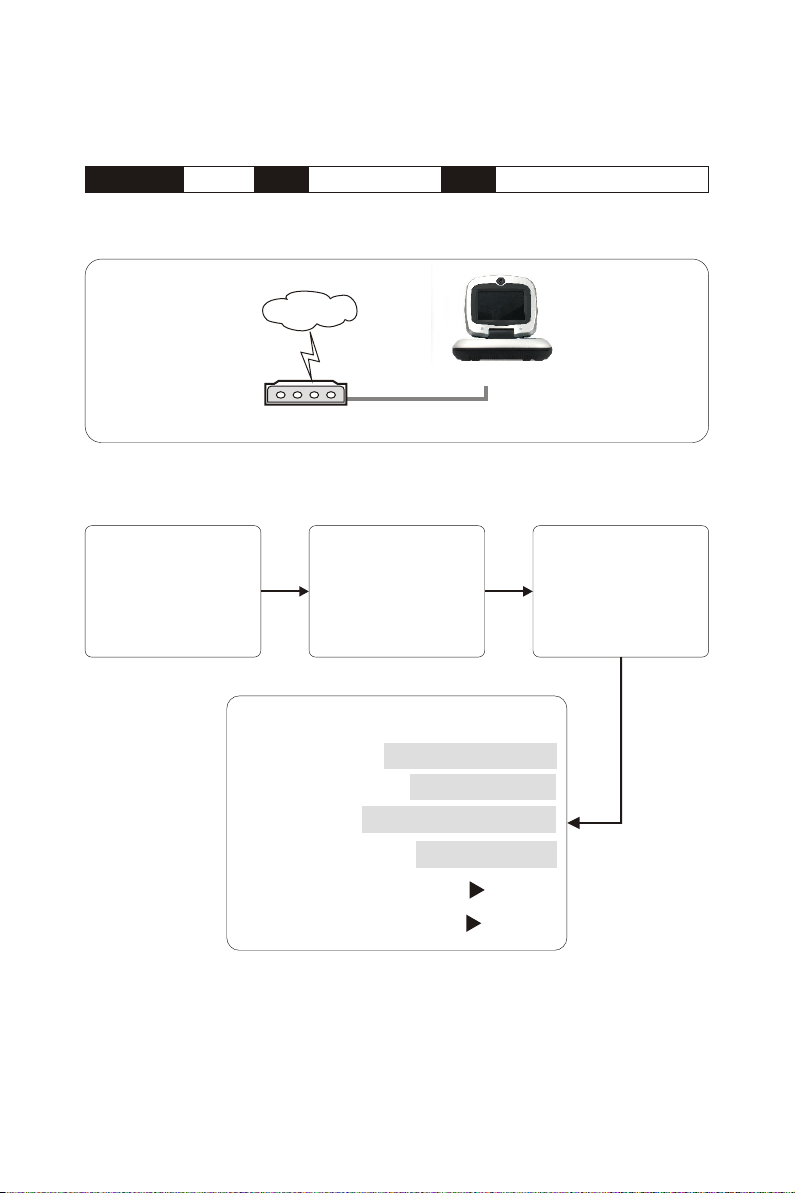

Connection ADSL Type Constant ADSL IP Multiple, Public, & Fixed

When BVP 8882 SIP uses one of the IPs (without a DHCP server connected)

Internet

ATU-R

Hub

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

Connect Type: STATIC IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

General PC 1, 2, ...n

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP address, Subnet Mask and Gateway are assigned by your ISP, each consisted of 4 sets

of numbers with dots in between them. Check with your ISP for the information.

BVP 8882 SIP User's Manual 18

Internet

System Setup (Cont'd)

Connection ADSL Type Timing ADSL IP

Sin gle , Pu blic , & Dyn am ic

When the ADSL is used exclusively by BVP 8882 SIP

BVP 8882 SIP

ATU -R

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

System Setup

Service Setup

Bandwidth Setup

Remote Update

Connect Type: PPPoE IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP, Subnet Mask and Gateway are assigned by PPPoE.

PPPoE Username and Password are assigned by your ISP.

Internet

System Setup (Cont'd)

Connection Cable Type IP

Single, Public, & Dynamic

When the IP is used exclusively by BVP 8882 SIP

BVP 8882 SIP

Cable modem

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

System Setup

Service Setup

Bandwidth Setup

Remote Update

Connect Type: DHCP IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP, Subnet Mask and Gateway are assigned by the DHCP server of your ISP.

BVP 8882 SIP User's Manual 20

System Setup (Cont'd)

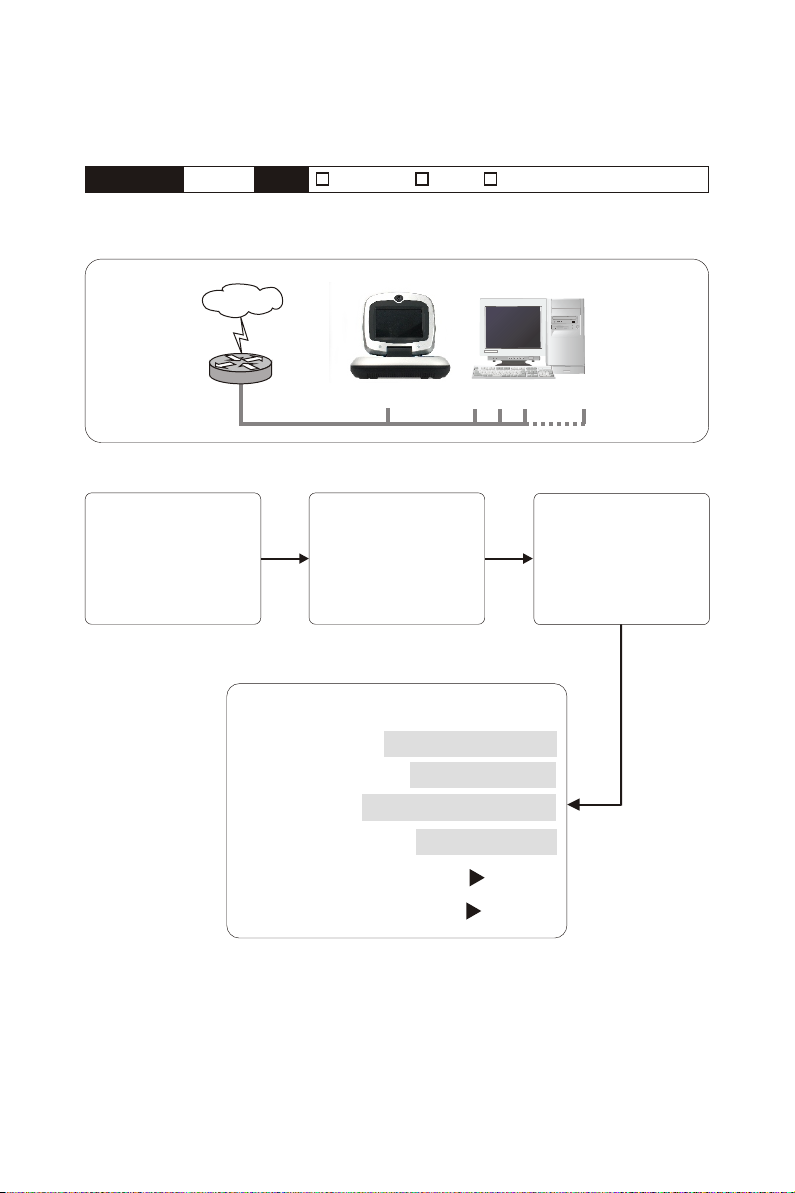

Connection LAN Type

Firewall NAT Packet Filter

With a DHCP server connected

Internet

Router

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

Connect Type: DHCP IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

General PC 1, 2, ...n

DHCP Server

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP, Subnet Mask and Gateway are assigned by your DHCP server.

Remember that Public IP is required.

System Setup (Cont'd)

Connection LAN Type Firewall NAT Packet Filter

Without a DHCP server connected

Internet

Router

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

General PC 1, 2, ...n

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Connect Type: STATIC IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Note : IP address, Subnet Mask and Gateway are assigned by your ISP. If you are using an IP

segment, which is x.x.x.0-x.x.x.255, your settings should be:

IP : one chosen from the range between x.x.x.1 to x.x.x.254 Subnet mask : 255.255.255.0 Gateway : one chosen from the range between x.x.x.1 to x.x.x.254, usually

Remember that Public IP is required.

x.x.x.254, and can't be the same as your IP address.

BVP 8882 SIP User's Manual 22

System Setup (Cont'd)

Connection LAN Type Firewall NAT Packet Filter

With a DHCP server connected

Internet

Router

Firewall

You can put BVP 8882 SIP into DMZ, or open all ports of BVP 8882 SIP if your router supports this function.

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

Connect Type: DHCP IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

General PC 1, 2, ...n

DHCP Server

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP, Subnet Mask and Gateway are assigned by your DHCP server.

Remember that Public IP is required.

System Setup (Cont'd)

Connection LAN Type Firewall NAT Packet Filter

Without a DHCP server connected

Internet

Router

Firewall

You can put BVP 8882 SIP into DMZ, or open all ports of BVP 8882 SIP if your router supports this function.

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

General PC 1, 2, ...n

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Connect Type: STATIC IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Note : IP address, Subnet Mask and Gateway are assigned by your ISP. If you are using an IP

segment, which is x.x.x.0-x.x.x.255, your settings should be:

IP : one chosen from the range between x.x.x.1 to x.x.x.254 Subnet mask : 255.255.255.0 Gateway : one chosen from the range between x.x.x.1 to x.x.x.254, usually

Remember that Public IP is required.

x.x.x.254, and can't be the same as your IP address.

BVP 8882 SIP User's Manual 24

System Setup (Cont'd)

Connection LAN Type Firewall NAT Packet Filter

With a DHCP server connected

Internet

Router

Firewall

You can put BVP 8882 SIP into DMZ, or open all ports of BVP 8882 SIP if your router supports this function.

BVP 8882 SIP

General PC 1, 2, ...n

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

System Setup

Service Setup

Bandwidth Setup

Remote Update

Connect Type: DHCP IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

DHCP Server

The DHCP Server must be able to support dynamic-fixed IP allocation.

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Note : IP, Subnet Mask and Gateway are assigned by your DHCP server.

Remember that Public IP is required.

System Setup (Cont'd)

Connection LAN Type Firewall NAT Packet Filter

Without a DHCP server connected

Internet

Router

Firewall

You can put BVP 8882 SIP into DMZ, or open all ports of BVP 8882 SIP if your router supports this function.

BVP 8882 SIP System Setup

Configuration

Password

Phonebook

BVP 8882 SIP

System Setup

Service Setup

Bandwidth Setup

Remote Update

General PC 1, 2, ...n

Network Setup

SIP Server Setup NTP Server Setup Update Server Setup STUN Server Setup

Connect Type: STATIC IP address: see note Subnet Mask: see note Gateway: see note DNS Address: see note PPPoE Username( ) PPPoE Password( )

Note : You can assign your own IP, Subnet Mask and Gateway within your private segment. If

the segment is 172.16.0.0-172.16.0.255, your settings should be:

IP : one chosen from the range between 172.16.0.1 to 172.16.0.254 Subnet mask : 255.255.255.0 Gateway : one chosen from the range between 172.16.0.1 to 172.16.0.254, usually

Remember that Public IP is required.

172.16.0.254, and can't be the same as your IP address.

BVP 8882 SIP User's Manual 26

6 Making a Call

Before making a video call

Here are a few things you need to consider before making a video call.

Keep a distance of 0.5 meters away

from BVP 8882 SIP.

0.5 m0.5 m

Make sure of the most appropriate

lighting source, preferably from the front with the beam on your face.

Avoid having a lot of movement in

the background and try not to move around excessively. Too much movement tends to slow down the frame rate of the video image, resulting in a jerky picture.

Avoid having lights behind you that

might shine into the camera lens.

Do not point the BVP 8882 SIP at a

mirror or bright light.

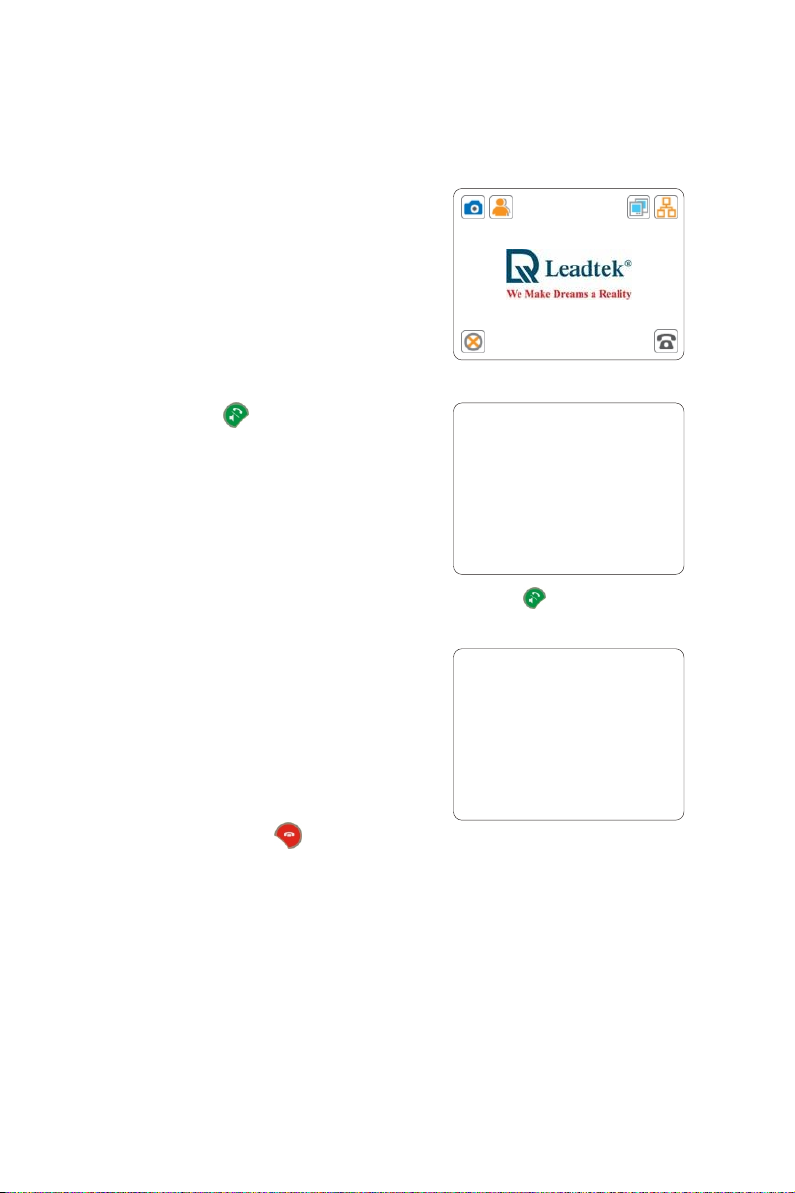

Making a video call

Step 1 Turn on the power of the

unit. The LCD screen shows the bootup screen.

Step 2 Press before entering

the specific phone numbers. When a key is pressed, the bootup screen disappears and the input numbers are displayed.

Step 3 The other party answers

the phone, and the video connection is established. You will be able to see the person you are talking to.

Bootup screen

Please input phone number |

Press button before dialling.

Bjiot2

Interop.com

Dialing...

Step 4 To end the connection,

simply press .

Dialing (local view)

Step 5 If there is difficulty in

making connection, please make sure that the BVP 8882 SIP has been properly installed. Please also check if the network settings are configured properly.

BVP 8882 SIP User's Manual 28

Icon explanations

When BVP 8882 SIP is powered on, a bootup screen will be displayed, as the figure shown below. There are icons around the screen indicating various statuses of the unit, as explained below.

SIP Registration Fail

SIP Registration OK

Privacy On

Privacy Off

Still On

Still Off

LAN Disconnected

LAN Connected

(Privacy) (Still) (Register) (Network)

(CFW) (CW)MM/DD/YYYY HH:MM

Note: Date and time will not be available until BVP 8882 SIP gets the information from NTP server.

CW On CW Off

CFW Always

CFW Busy

CFW No Answer

CFW Off

Icon explanations

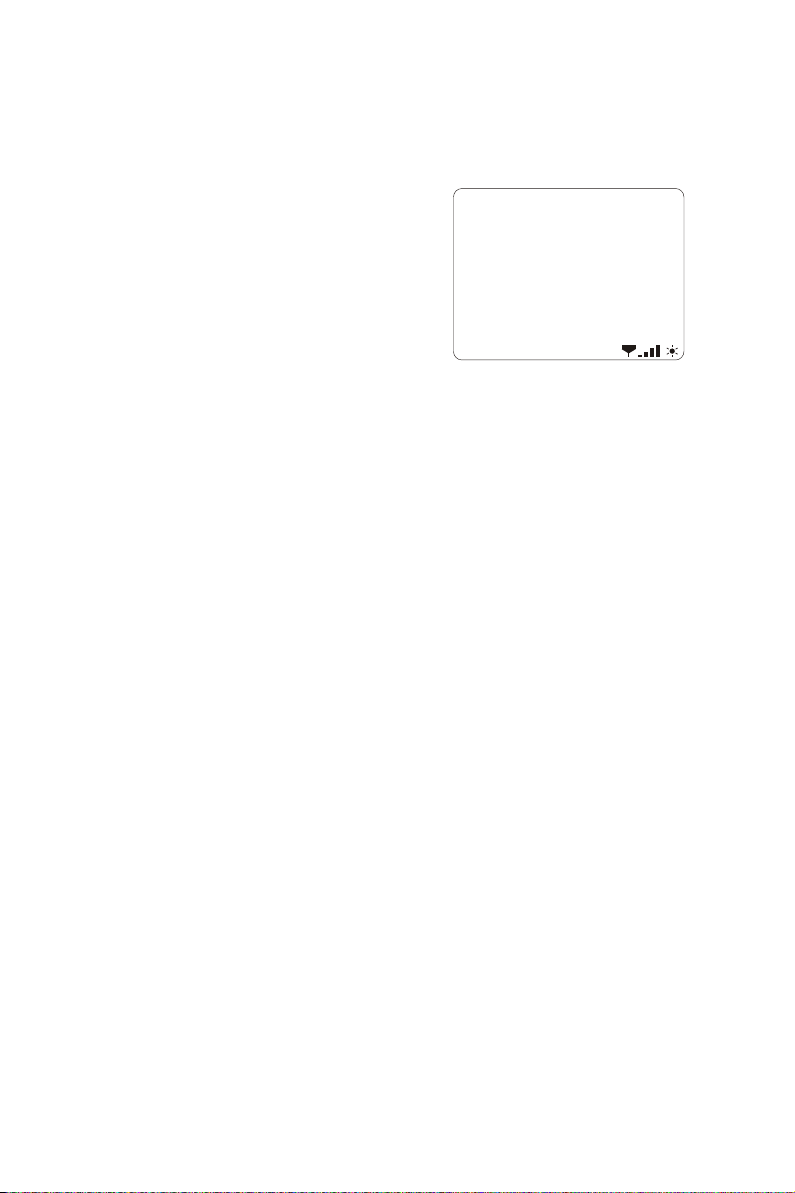

After the connection is established, the Up/Down information is displayed on the upper left corner of the screen, and it will disappear in a few seconds.

The antenna icon on the lower right corner indicates the connection status. The sun icon means the Ethernet cable is connected to the unit.

If the sun icon disappears, it means the Ethernet cable is not connected.

Up: 192kbps Down: 192kbps

BVP 8882 SIP User's Manual 30

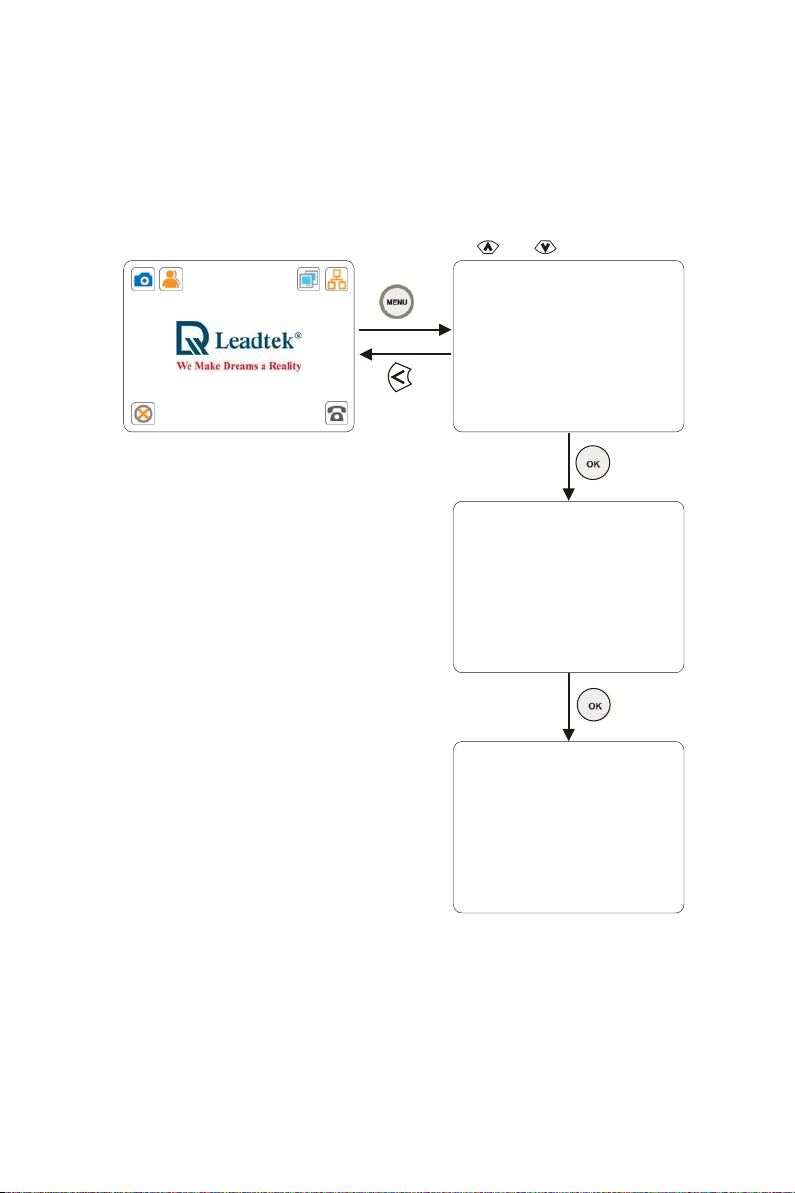

7 Using OSD Menus

Password Checking

You can enter a combination of up to 64 letters (upper case or lower case) and numbers as the password.

and : Item selection

Configuration

Password

Phonebook

Please input password:

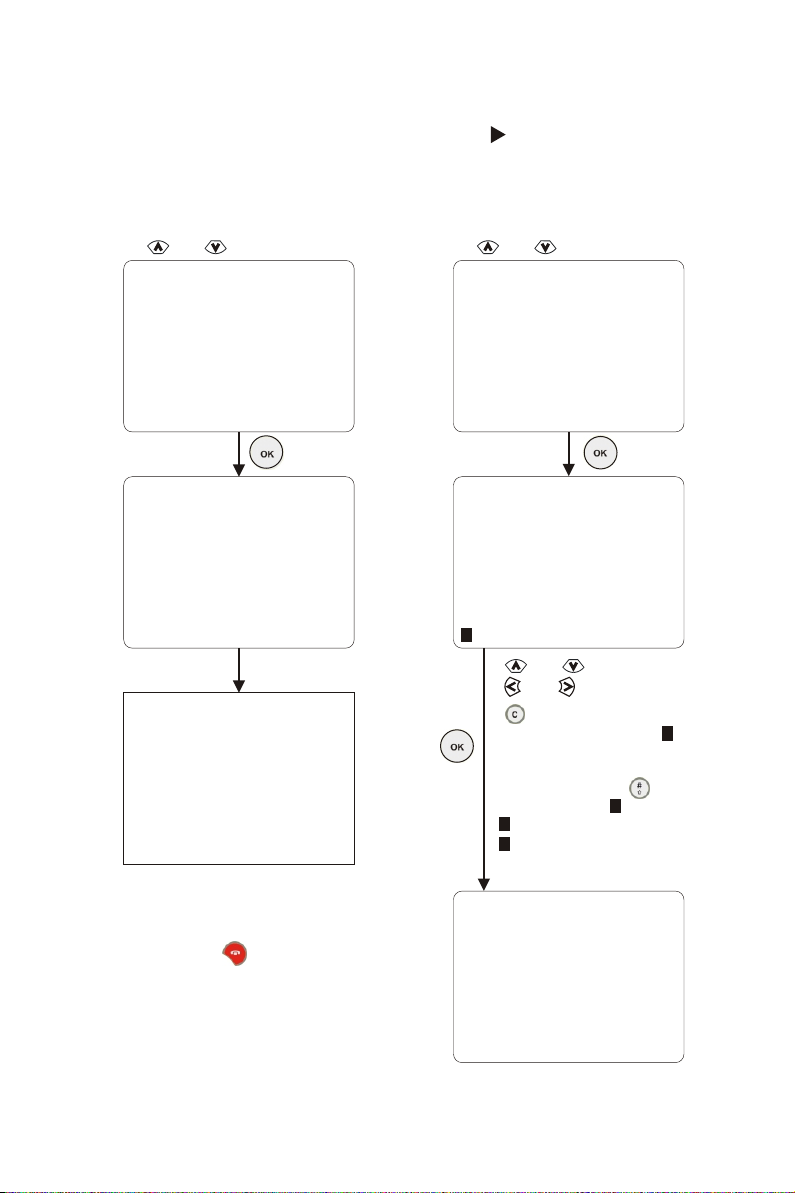

System Setup

Service Setup Bandwidth Setup Remote Update

Note:

Only after you enter the correct password can you change the settings in the OSD menu.

Using OSD menus Configuration System Setup

Network Setup

Connect Type: STATIC

IP address: 1.0.0.1

Subnet Mask: 255.0.0.0

Gateway: 1.0.0.254 DNS Address: 192.168.128.120

PPPoE Username ( ) PPPoE Password ( )

Connect Type:

STATIC: IP address/Subnet Mask/Gateway have to be assigned

(Consult your ISP).

DHCP: server

PPPoE: PPPoE Username/PPPoE Password have to be assigned (Consult your ISP).

IP address/Subnet Mask/Gateway will be assigned by DHCP

PPPoE User Name:

|Leadtek

There will be a number on the bottom left corner of the screen,

indicating the current input mode. Press button to cycle through (numbers), (upper case letters), and (lower case letters) for your

PPPoE Password:

|48513793

desired input mode.

BVP 8882 SIP User's Manual 32

Using OSD menus Configuration System Setup

SIP Server Setup

Active Account : Account1

SIP Account 1

SIP Account 2

SIP Account 3

SIP Server:

Port: 5060 SIP Domain: leadtek.no-ip.

CallerID: 117 ReReg.: 60 Username ( )

Active Account: This shows the current active account.

SIP Server:

Please contact your SIP service provider for the appropriate

settings.

Please contact your SIP service provider (the default port number

Port:

is 5060).

SIP Domain:

Please contact your SIP service provider to get the domain

name.

CallerID:

ReReg.

Username:

Select a Caller ID.

(1~24h): Please contact your SIP service provider.

The user number (i.e. Phone number) should be the same as

the PSTN number. Consult your SIP Service Provider for user number.

Consult your SIP Service Provider.

Using OSD menus Configuration System Setup

NTP Server Setup

NTP Server: 192.168.128.120

Timer Zone: GMT -01:00

Daylight savings: OFF

NTP Server: Please contact your SIP service provider to get the IP of the NTP Server. You can also set it to the IP of the Network Time Protocol (NTP) public time servers.

Timer Zone: Please set the time zone according to the place you are using the phone.

Daylight savings: If there is daylight saving in your area, please set Daylight savings to ON.

BVP 8882 SIP User's Manual 34

Using OSD menus Configuration System Setup

Update Server Setup

Update Server: 61.228.211.13|

Protocol: TFTP

Port No: 69

Update Server: Please contact your SIP service provider for the

appropriate settings.

Protocol: For specific protocol of type TFTP/FTP/HTTP, the corresponding port no is 69/21/80.

Using OSD menus Configuration System Setup

STUN Server Setup

STUN Service : OFF

STUN Discover: OFF

STUN Server: 0.0.0.0

Port: 3478

STUN (Enabled/Disabled)/Server/Port : Please contact your SIP service provider for the appropriate settings.

BVP 8882 SIP User's Manual 36

Using OSD menus Configuration Service Setup

Call Service Setup

Call Forward: OFF

Forward No.( )

Call Waiting: OFF

Audio Priority: G.711UA,G.723, G.729

Video: ON

Call Forward:

OFF: Forward No. does not have to be assigned.

No Answer: A call will be forwarded after a number of rings (the same

as "Num. Of Rings" in Option menu).

Busy: When you are in a call and another call comes in, it will be forwarded. Please assign Forward No.

Always: Every call will be forwarded. Please assign Forward No.

Call Waiting:

ON: When you are in a call and another call comes in, you will hear a

reminding tone. Press to answer the call and switch between both.

Audio Priority:

There are twelve options available. We recommend the default setting to be: G.711UA,G.723, G.729.

Please assign Forward No.

Video:

ON: BVP 8882 SIP can be used to make a video call.

OFF: BVP 8882 SIP can only be used to make a voice call.

Using OSD menus Configuration Service Setup

Auto Answer Setup

Auto Answer: OFF

Password:

Num. Of Rings: 4

Auto Answer (ON/OFF):

ON: BVP 8882 SIP will automatically pick up the phone.

Password: If you set Auto Answer to ON but would like to have some

security set up, then please enter a Password. The other party has to enter the password in order to establish the connection.

The password is limited to a maximum of eight characters.

Num. Of Rings: (0~9):

When Auto Answer is ON, you can set the number of rings before BVP 8882 SIP automatically picks up the phone.

BVP 8882 SIP User's Manual 38

Using OSD menus Configuration Service Setup

Advanced Setup

QoS Mode( )

Country Tone: Taiwan

QoS Mode:

QoS Type (DSCP/TOS/OFF): Please contact your ISP (Internet Service Provider) to determine which QoS to use.

Country Tone:

Taiwan/HK/China: Please set according to where you are using BVP 8882 SIP.

Using OSD menus Configuration Service Setup

Ringer Setup

Ringer: High

Ringer Type: 0

Ringer (High/Low):

You can set the volume of the ringer to High or Low.

BVP 8882 SIP User's Manual 40

Using OSD menus Configuration

Service Setup

Option

Video TX/RX Info: ON

Language: English

Media Detection: ON

Video TX/RX Info:

ON: In a video call, you can monitor the bandwidth of incoming and

outgoing video.

Language:

English/Traditional Chinese/Simplified Chinese/Japanese: Choose the language for the OSD Menu.

Media Detection (ON/OFF):

If you plan to keep BVP 8882 SIP connected for a long period of time, please set to OFF.

Using OSD menus Configuration Bandwidth Setup

Bandwidth Setup

Video Bandwidth:

1. 40 Kbps

2. 64 Kbps

3. 90 Kbps

4. 128 Kbps

5. 192 Kbps

6. 256 Kbps

7. 384 Kbps

8. 512 Kbps

Please set the bandwidth according to the bandwidth your ISP provides.

Note: Do not set the bandwidth to higher than what your ISP provides to avoid the instability of video quality.

BVP 8882 SIP User's Manual 42

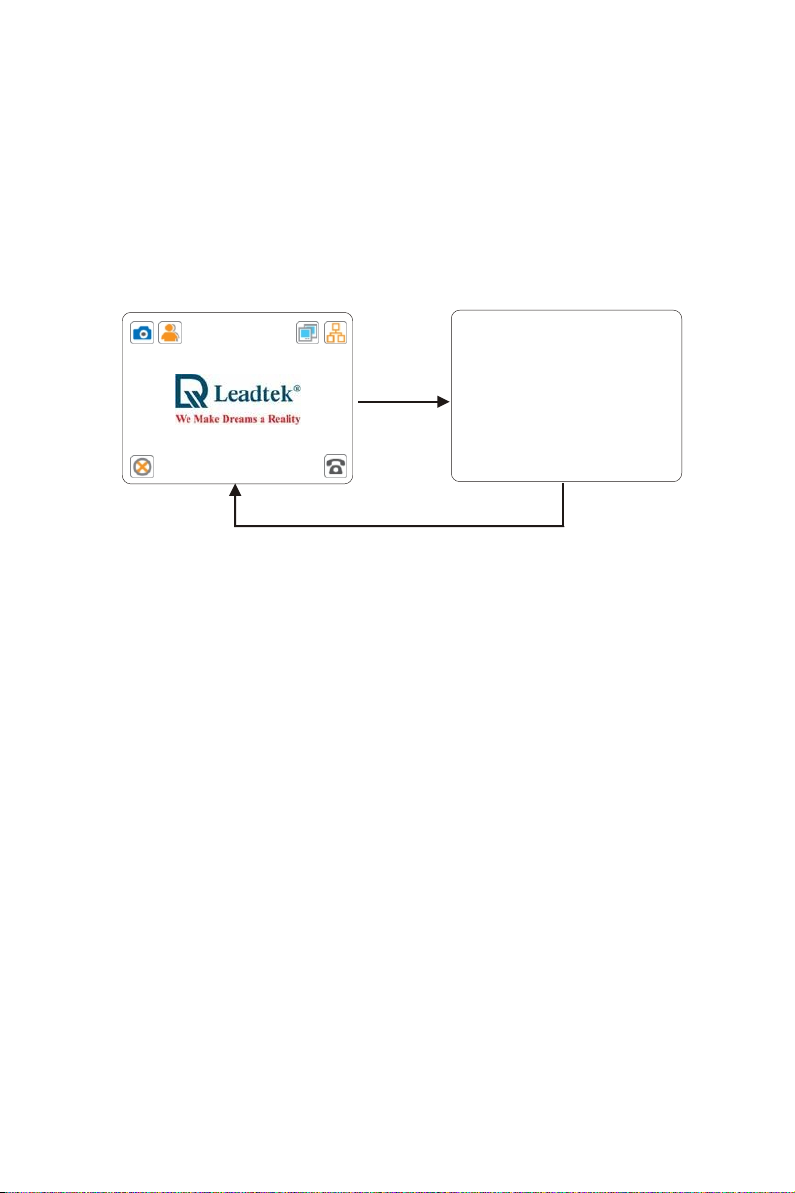

Using OSD menus Configuration Remote Update

Remote Update

System Setup

Bandwidth Setup

Remote Update

Start the Remote Update

Yes <OK>

No <CLEAR>

Network software

Update proceeding.

Please wait.

Note: If BVP 8882 SIP has the same software version as the Update Server, the software will not be updated, and BVP 8882 SIP will return to the standby screen.After the update is completed, BVP 8882 SIP will automatically reboot.

Using OSD menus

and : Item selection

Password

Configuration

Password

Phonebook

Incorrect Password

There will be a

number on the bottom left corner of the screen, indicating the current input mode. Press button to cycle

through (numbers), (upper case letters), and (lower case letters) for your desired input mode.

Invalid

Old Password:

New Password:

New Password Confirm:

and

: move cursor

: backspace

Change Password?

Yes <OK>

No <CLEAR>

Check inputs

Valid

New Password

Saving.

BVP 8882 SIP User's Manual 44

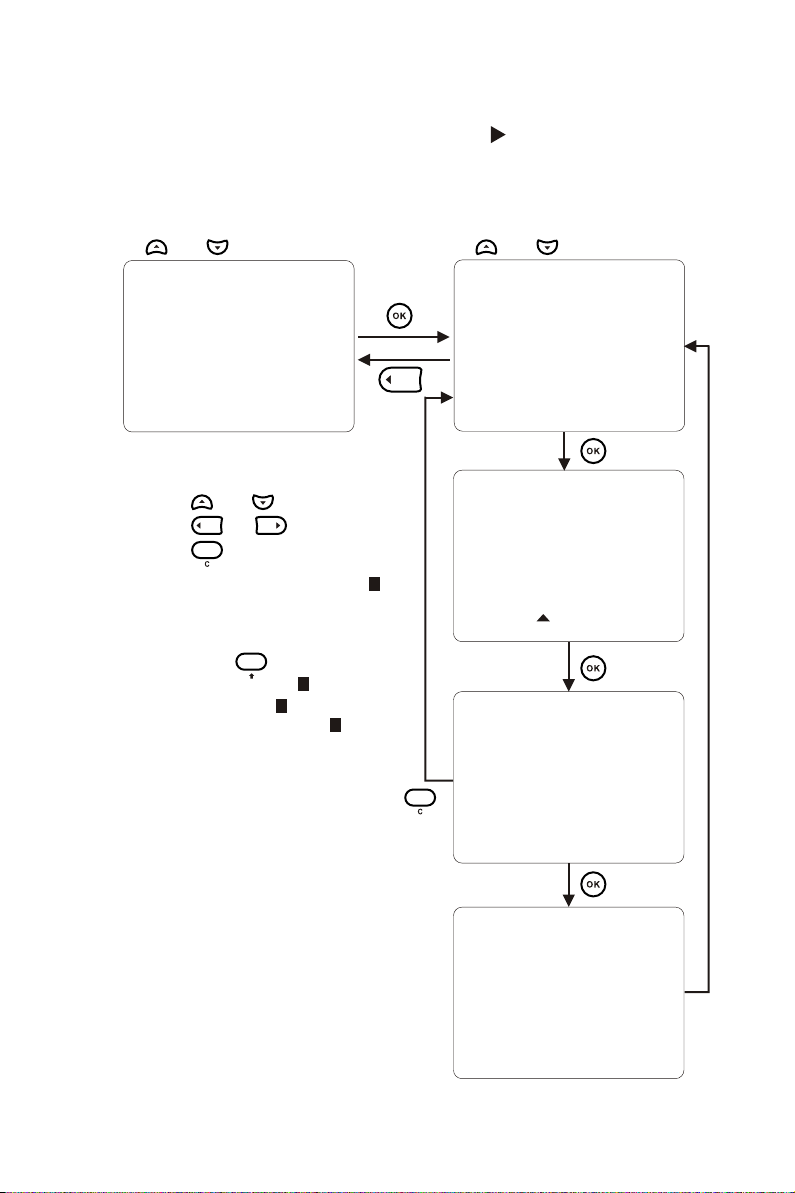

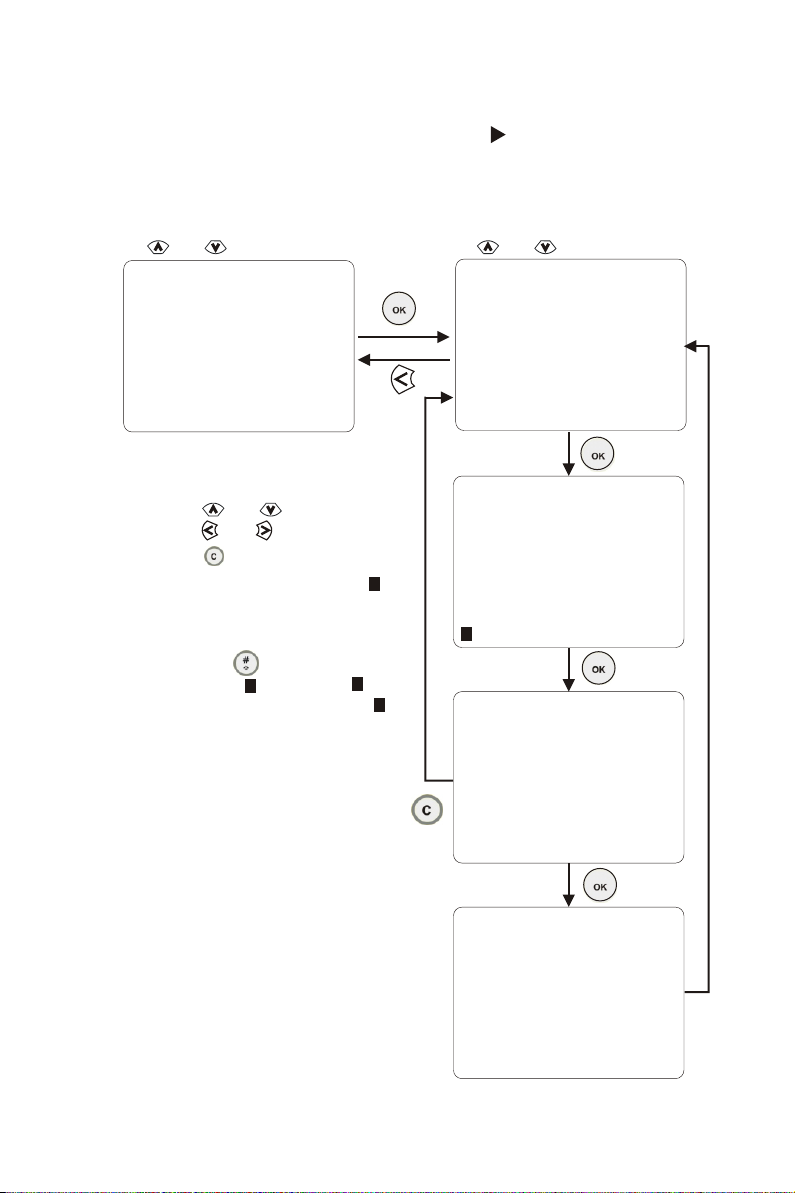

Using OSD menus Phonebook Add

Adding to the phonebook

and : Item selection and : Item selection

Add

Configuration

Password

Phonebook

and : Item selection

and

: move cursor

: backspace

There will be a number

on the bottom left corner of the screen, indicating the current input mode. Press button to cycle through (numbers),

(upper case letters),and

(lower case letters) for your desired input mode.

press **** to clear phonebook

Search In Box Out Box Miss Box Speed Dial

Name:

Phone:

Add This Record?

Yes <OK>

No <CLEAR>

Record Saved

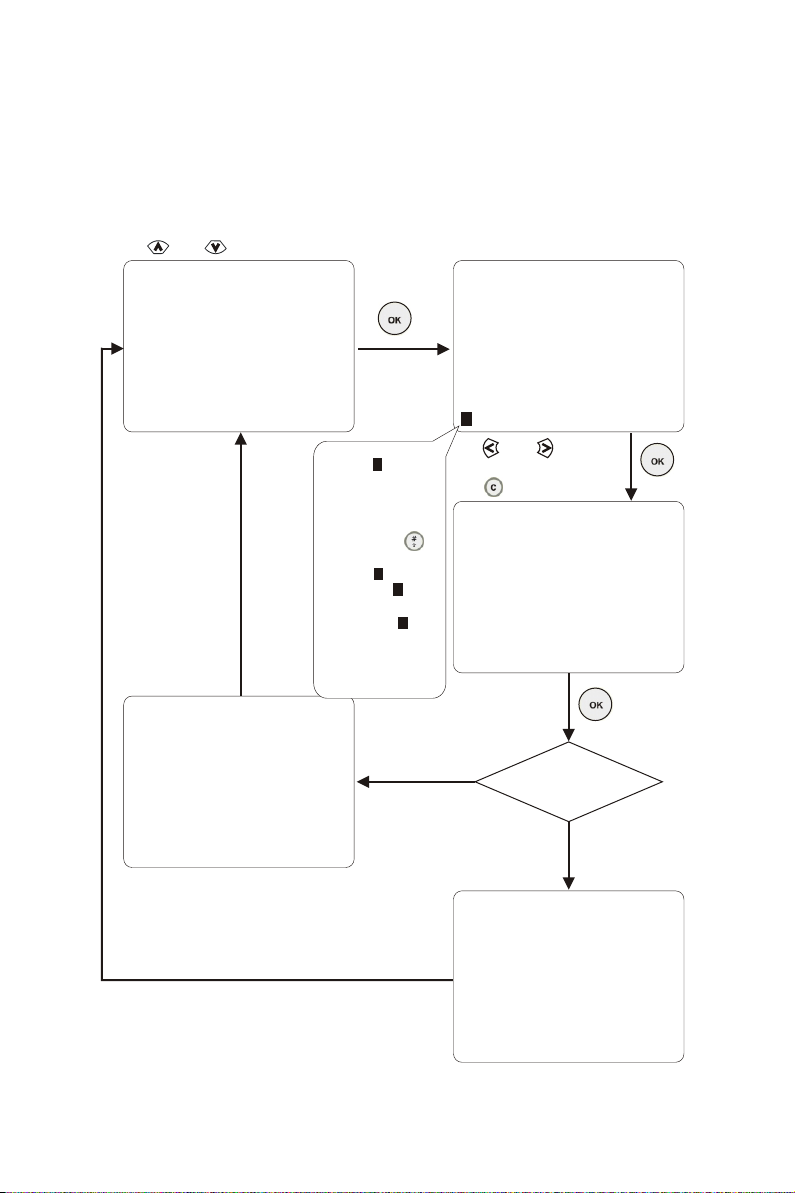

Using OSD menus Phonebook Search

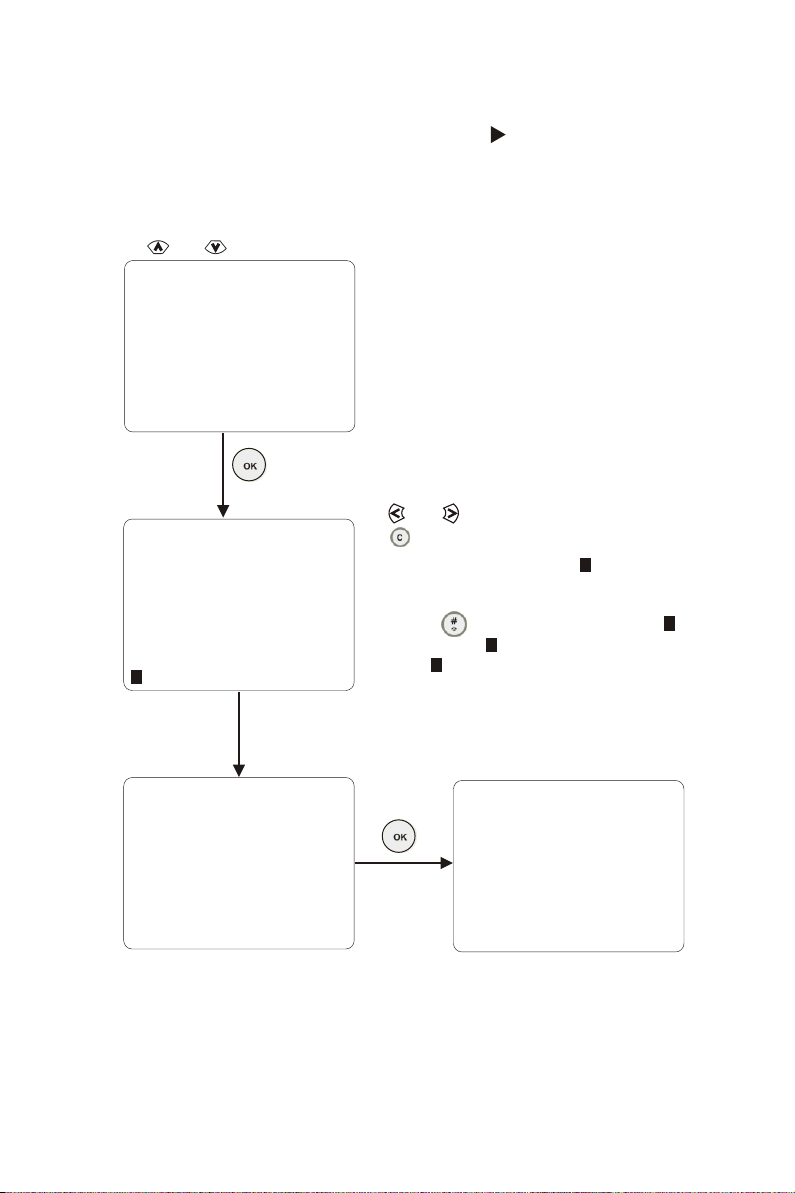

Search for a number

and : Item selection

Add

In Box Out Box Miss Box Speed Dial

press **** to clear phonebook

and

: move cursor

: backspace

Searching by Name:

Joe

There will be a number on the bottom left corner of the screen, indicating the current input mode. Press button to cycle through (numbers), (upper case letters), and (lower case letters) for your

desired input mode.

Name:

Joe

Phone:

123456

Dial

Edit

Delete

Add to Speed Dial

(Continued)

BVP 8882 SIP User's Manual 46

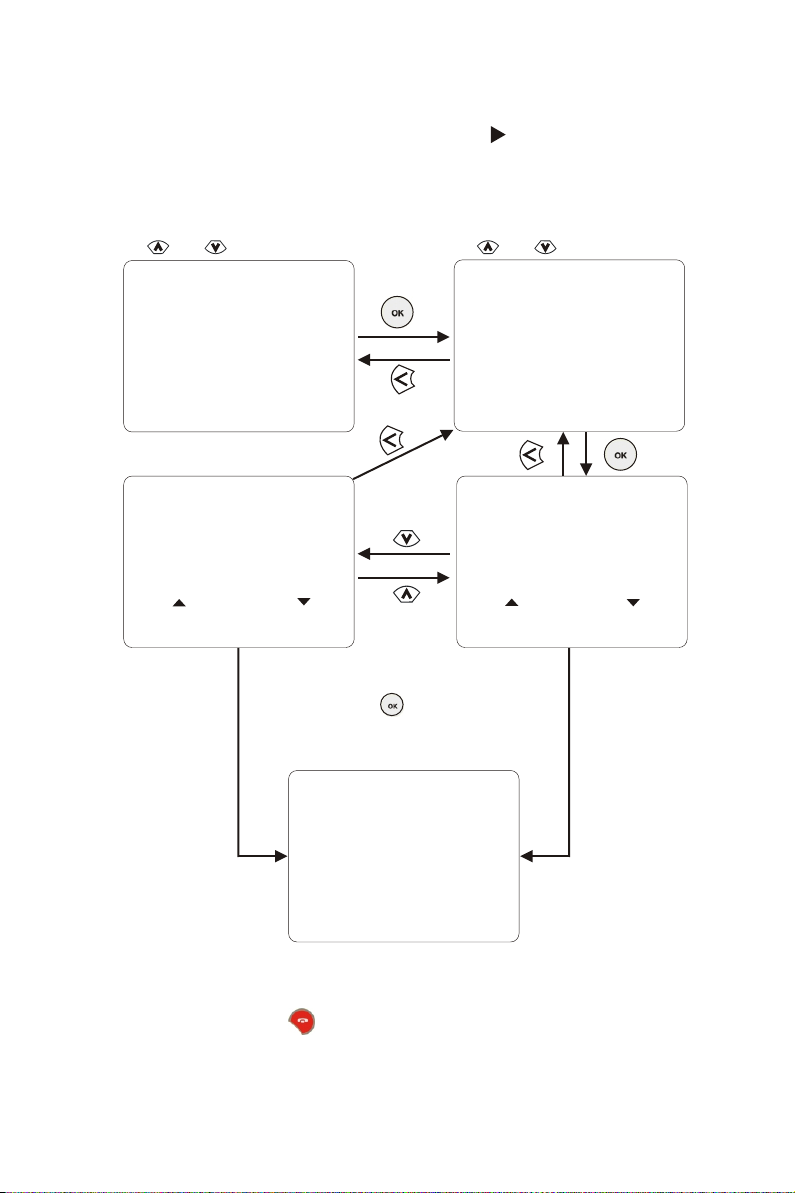

Using OSD menus

Phonebook Search

Search for a number (cont'd)

Dial the searched number

and : Item selection

Edit the phonebook record

and : Item selection

Dial

Edit

Delete

Add to Speed Dial

123456

Dialing ...

Call progressing

Dial

Edit

Delete

Add to Speed Dial

Name:

Joe

Phone:

123456

and : Item selection

and

: move cursor

: backspace

There will be a number on the bottom left corner of the screen, indicating the current input mode. Press button to cycle through (numbers),

(upper case letters), and (Lower case letters) for

your desired input mode.

If you cannot dial out with BVP 8882 SIP, please hang up or press button to

Record updated

return to local view, and try to dial again.

Using OSD menus

Phonebook Search

Search for a number (cont'd)

Delete the phonebook record

and : Item selection

Add the record to Speed Dial

and : Item selection

Dial

Edit

Delete

Add to Speed Dial

Delete This Record?

Yes <OK>

No <CLEAR>

Record deleted

Dial

Edit

Delete

Add to Speed Dial

0. (None)

1. (None)

2. (None)

3. (None)

4. (None)

and : Item selection

Press the item number (0-9) to assign the record to the number.

Record saved

BVP 8882 SIP User's Manual 48

Using OSD menus Phonebook In Box

In Box contains the numbers of the last 30 received calls.

and : Item selection and : Item selection

Add

Configuration

Password

Phonebook

press **** to clear phonebook

In Box

Out Box Miss Box Speed Dial

From:

None 117 None 117 None 117 None 117 None 117

<OK> Dial <Clear> Delete

press **** to clear in/out/miss box

Dial out

Phone:

No.2 of 6

Time:

01/05/04:33 01/05/04:31 01/01/07:09 01/01/04:41 01/01/00:02

Select a desired item and then press to dial out.

Phone No.

Domain

Dialing...

If you can not dial out with BVP 8882 SIP, please hang up or press the button to return to local view, and try to dial again.

From:

None 117 None 117 None 117 None 117 None 117

press **** to clear in/out/miss box

Phone:

No.1 of 6

<OK> Dial <Clear> Delete

Time:

01/05/04:38 01/05/04:33 01/01/04:31 01/01/07:09 01/01/04:41

Dial out

Using OSD menus

Out Box contains the numbers of the last 30 dialed calls.

and : Item selection and : Item selection

Configuration

Password

Phonebook

Phonebook Out Box

Add Search In Box

Out Box

Miss Box Speed Dial

press **** to clear phonebook

To:

None 117 None 117

press **** to clear in/out/miss box

Phone:

No.2 of 6

<OK> Dial <Clear> Delete

Dial out Dial out

Time:

01/01/04:56 01/01/04:51

To:

None 117 None 117

press **** to clear in/out/miss box

Phone:

No.1 of 6

<OK> Dial <Clear> Delete

Select a desired item and then press to dial out.

Phone No.

Domain

Dialing...

If you can not dial out with BVP 8882 SIP, please hang up or press Button to return to local view, and try to dial again.

Time:

01/01/04:56 01/01/04:51

BVP 8882 SIP User's Manual 50

Using OSD menus Miss BoxPhonebook

Miss Box contains the numbers of the last 30 missed calls.

Configuration

Password

Phonebook

press **** to clear phonebook

and : Item selectionand : Item selection

Add Search In Box Out Box

Miss Box

Speed Dial

From:

116 116 116 116 116 116 116 116

116

<OK> Dial <Clear> Delete

press **** to clear in/out/miss box

116

Dial out

Phone:

01/01/08:05 01/01/08:05 01/01/08:05 01/01/08:05 01/01/08:05

No.10 of 10

Time:

Select a desired item and then press to dial out.

Phone No.

Domain

Dialing...

If you can not dial out with BVP 8882, please press the button to return to local view, and try to dial again.

From:

116 116 116 116 116 116 116 116 116 116

press **** to clear in/out/miss box

Phone:

No.1 of 10

<OK> Dial <Clear> Delete

Time:

01/01/08:05 01/01/08:05 01/01/08:05 01/01/08:05 01/01/08:05

Dial out

Using OSD menus Speed DialPhonebook

Configuration

Password

Phonebook

press **** to clear phonebook

and : Item selectionand : Item selection

Add Search In Box Out Box Miss Box

Speed Dial

and : Item selection

and

: move cursor

: backspace

There will be a number

on the bottom left corner of the screen, indicating the current input mode. Press button to cycle through (numbers), (upper case letters), and

(lower case letters) for your desired input mode.

0. 0

1. 1

2. 2

3. 3

4. 4

press **** to clear Speed Dial

Name:

Joe

Phone:

123456

Edit

Erase

(Continued)

BVP 8882 SIP User's Manual 52

Using OSD menus Phonebook Speed Dial

Speed Dial (cont'd)

Edit record Erase record

and : Item selection and : Item selection

Edit

Erase

Name:

Phone:

Modify This Record?

Yes <OK>

No < >CLEAR

Edit

Erase

Delete This Record?

Yes <OK>

No < >Clear

Record erased

Saving this Record

Please Wait...

Using OSD menus Copyright Information

In local view screen, pressing "0000" will bring out a status screen with some information displayed, including the company name, copyright statement, and software version, including main s/w and LAN s/w.

0000

Any key

NET V2.5.00-51 MAC ID 00-30-04-08-93-94 LOC 8882_LR

BVP 8882 SIP User's Manual 54

Using OSD menus Restore Factory Settings

In local view screen, pressing "********" (eight asterisks) will bring out a dialog window, asking if you want to restore all settings to factory default (see below). Press to begin the process. Press to cancel.

Restore all settings

********

to factory default?

Yes <OK>

No <CLEAR>

Restoring all settings.

Please wait...

Settings restored.

Restarting.

Reboot.

8 OSD Menu Tree

Configuration

Password

Phonebook

System Setup

Service Setup

Bandwidth Setup

Remote Update

Add

Network Setup

SIP Server Setup

NTP Server Setup

Update Server Setup

STUN Server Setup

Call Service Setup

Auto Answer Setup

Advanced Setup

Ringer Setup

Option

In Box

Out Box

Miss Box

Speed Dial

BVP 8882 SIP User's Manual 56

9 Trouble Shooting

Your BVP 8882 SIP is reliable and easy to use. If you encounter any problem while using this product, please refer to the table below for possible solutions.

Power Indicator OFF

Plug power adapter in the unit.

Plug the power cord in the power outlet in the wall.

Turn on the power switch.

No image is displayed on LCD screen

Make sure the power indicator is ON.

If auxiliary video input is used on LCD, select the appropriate video input for LCD.

The unit is not responding when the button is pressed

Be sure the RJ-45 wire is plugged into one of the two " " ports directly on the s5000.

Video of local view is dark

Increase light on the image and reduce back lighting.

Video in local view has a red cast

Aim the BVP 8882 SIP at a strong white light source momentarily.

Increase the room light level.

Video connection is not established correctly

Hang up and call again.

Ask the other party call you.

Can not dial a phone number

Plug RJ-45 cable from the Ethernet device into one of the two " " ports on the unit.

Green or yellow blocks appear in the remote picture

Probable cause is bad connection (noisy line). Hang up and try again. This time, ask the other party to call you.

10 Tech Support

In the event of not finding the solution to your problem, please contact your local distributor. You may also contact our technical support staff; E-mail to <service@leadtek.com.tw> with the following information:

Product name:

It will be easier for our staff to answer your question if you know the name of the product.

Detailed description of your problem:

Please describe in detail all the problems you encountered, including the kind of software and hardware you are using, and the contents of your system files.

BVP 8882 SIP User's Manual 58

11 Limited Warranty

Leadtek warrants to the original purchaser of this product that it shall be free of defects resulting from workmanship or components for a period of one (1) year from the date of sale. Defects covered by this Limited Warranty shall be corrected either by repair or, at Leadtek's discretion by replacement. In the event of replacement, the replacement unit will be warranted for the remainder of the original one (1) year period or thirty (30) days, whichever is longer. THERE ARE NO OTHER ORAL OR WRITTEN WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

This Limited Warranty is nontransferable and does not apply if the product has been damaged by negligence, accident, abuse, misuse, modification, misapplication, shipment to the Manufacturer or service by someone other than the Leadtek Transportation charges to Leadtek are not covered by this Limited Warranty. To be eligible for warranty service, a defective product must be sent to and received by Leadtek within fourteen (14) months of the date of sale and be accompanied with proof of purchase. Leadtek does not warrant that this product will meet your requirements; it is your sole responsibility to determine the suitability of this product for your purposes. Leadtek does not warrant the compatibility of this product with your computer or related peripherals, software.

LEADTEK'S SOLE OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT. THE MANUFACTURER SHALL NOT, IN ANY EVENT, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIABILITY IN TORT RELATING TO THIS PRODUCT OR RESULTING FROM ITS USE OR POSSESSION.

This limited warranty is governed by the laws of Taiwan.

Leadtek BVP 8882 SIP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
