Leadtek BVP 8759 User Manual

BVP 8759
User's Manual
BVP 8759 User's Manual Version A October 2005 P/N: W0501016
International Headquarters
United States Headquarters
46732 Lakeview Blvd., Fremont, CA 94538, U.S.A. Phone: +1 510 490 8076 Fax: +1 510 490 7759 http://www.leadtek.com
Europe Headquarters
Phone: + Fax: + http://www.leadtek.nl
Antennestraat 16 1322 AB, Almere, The Netherlands
31 (0)36 536 5578 31 (0)36 536 2215
Copyright 2005 Leadtek Research Inc. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Leadtek Research Inc.
Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. Leatek reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.
Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.
Table of Contents
1 Getting Started ..................................................... 1
2 What's In The Package ........................................ 2
3 Getting to Know Your BVP 8759 ......................... 3
Front view ....................................................................... 3
Rear view ........................................................................ 4
Using remote control ...................................................... 5
4 Installation ............................................................ 8
Installing the unit ............................................................ 8
5 System Setup ...................................................... 11
ADSL/Constant ADSL/Single, Public, & Fixed IP ...... 12
When the IP is used exclusively by BVP 8759 ........................... 12
When the IP is shared with other devices (with a DHCP
server connected) ....................................................................... 13
When the IP is shared with other devices (without a DHCP
server connected) ....................................................................... 14
ADSL/Constant ADSL/Multiple, Public, & Fixed IP ... 15
When BVP 8759 uses one of the IPs (with a DHCP server
connected) .................................................................................. 15
When BVP 8759 uses one of the IPs (without a DHCP
server connected) ....................................................................... 16
When one of the IPs is shared with other devices (with
a DHCP server connected) ........................................................ 17
When one of the IPs is shared with other devices (without
a DHCP server connected) ........................................................ 18
Table of Contents
ADSL/Timing ADSL .................................................... 19
When the ADSL is used exclusively by BVP 8759 ..................... 19
When the ADSL is shared with other devices (with a DHCP
server connected) ....................................................................... 20
When the ADSL is shared with other devices (without a
DHCP server connected) ........................................................... 21
Cable ............................................................................. 22
When the IP is used exclusively by BVP 8759 ........................... 22
When the IP is shared with other devices (with a DHCP
server connected) ....................................................................... 23
When the IP is shared with other devices (without a DHCP
server connected) ....................................................................... 24
LAN/No Firewall or NAT ............................................. 25
With a DHCP server connected ................................................. 25
Without a DHCP server connected ............................................ 26
LAN/NAT ..................................................................... 27
With a DHCP server connected ................................................. 27
Without a DHCP server connected ............................................ 28
LAN/Firewall with Packet Filter .................................. 29
With a DHCP server connected ................................................. 29
Without a DHCP server connected ............................................ 30
LAN/Firewall with NAT & Packet Filter ...................... 31
With a DHCP server connected ................................................. 31
Without a DHCP server connected ............................................ 32
6 Making a Call ...................................................... 33
Before making a video call ........................................... 33
Making a voice call ...................................................... 34
Making a video call ...................................................... 35
Icon explanations ......................................................... 36
Table of Contents
7 Using OSD Menus ............................................. 37
Missed Calls ................................................................. 37

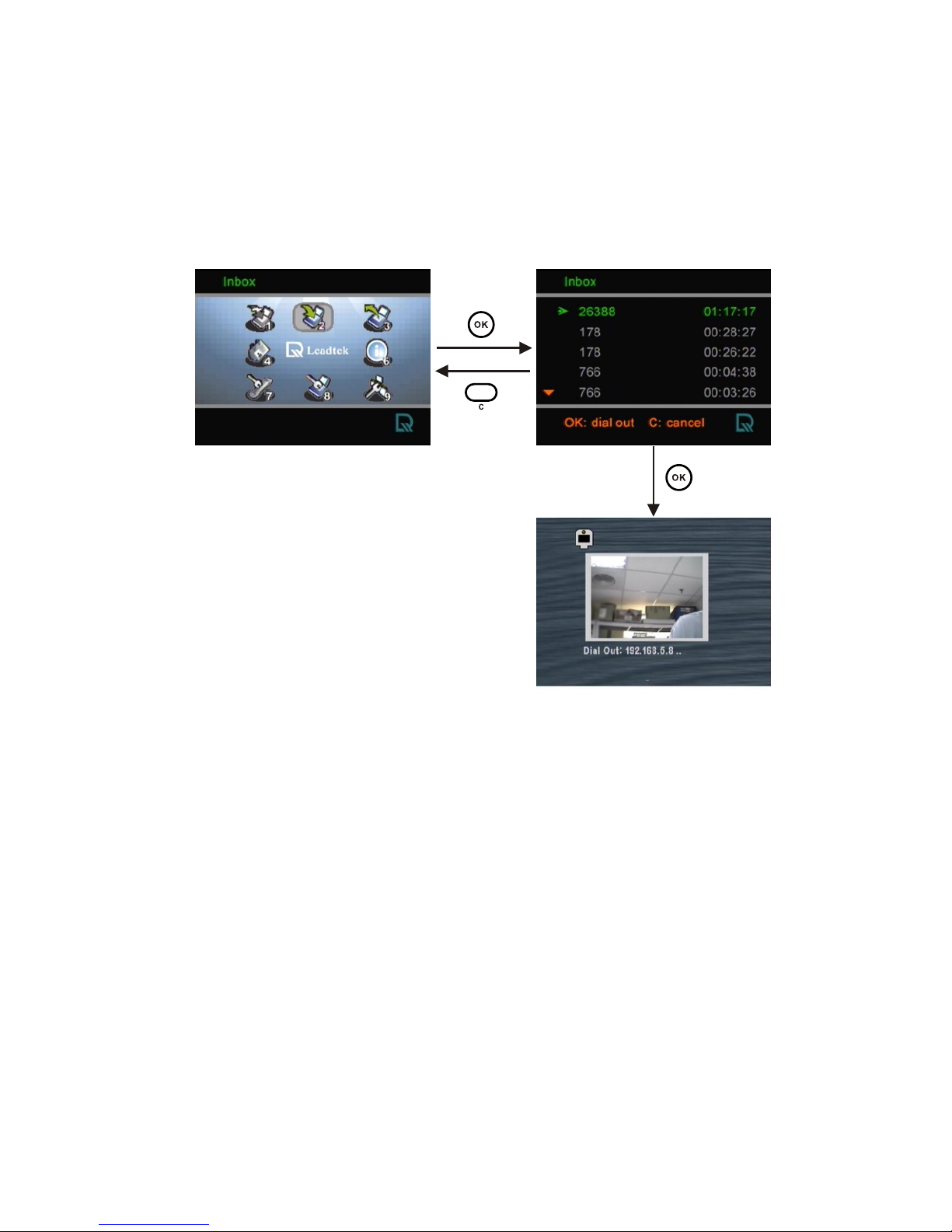

Inbox ............................................................................ 38
Outbox ......................................................................... 39
Phonebook .................................................................... 40
Add ................................................................................. 40

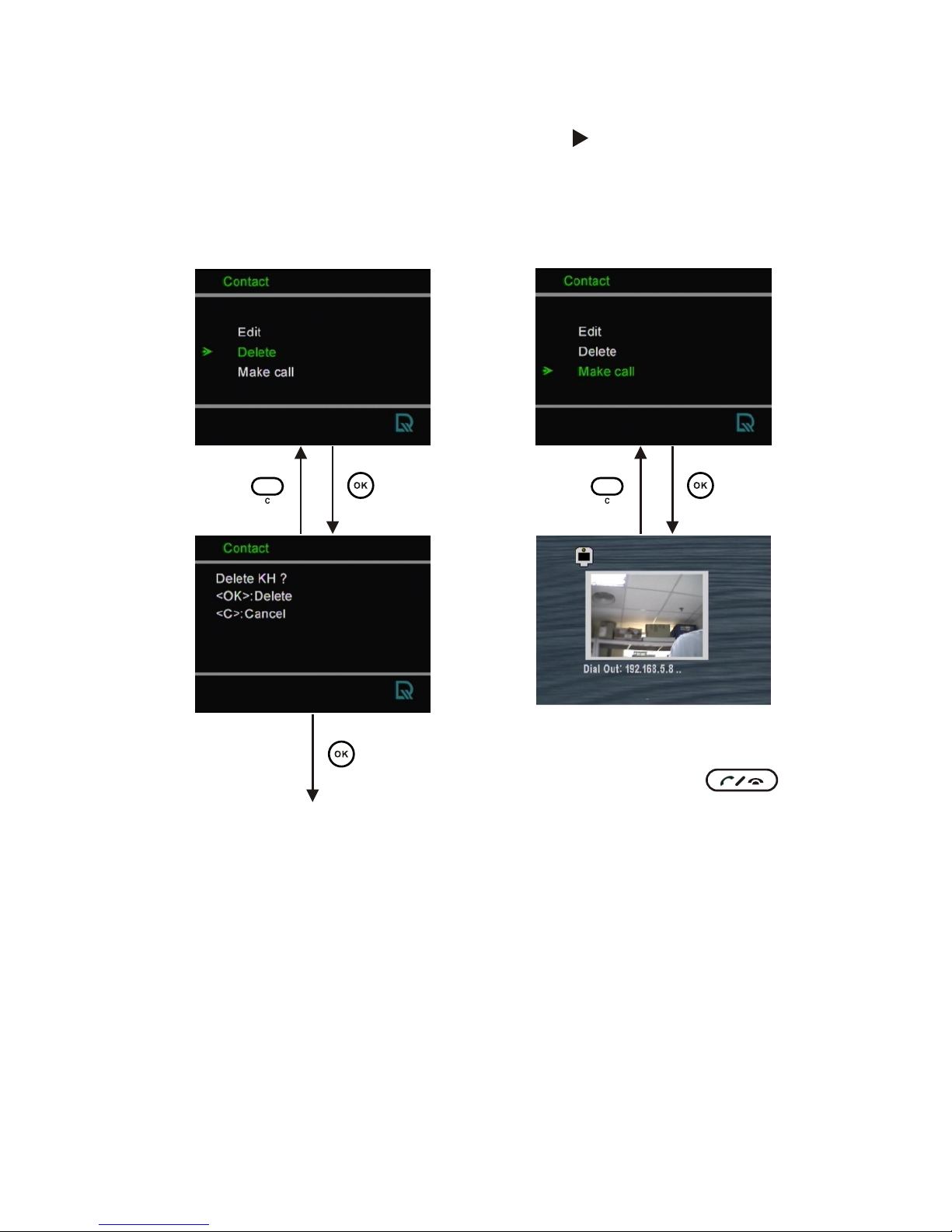

List .................................................................................. 41

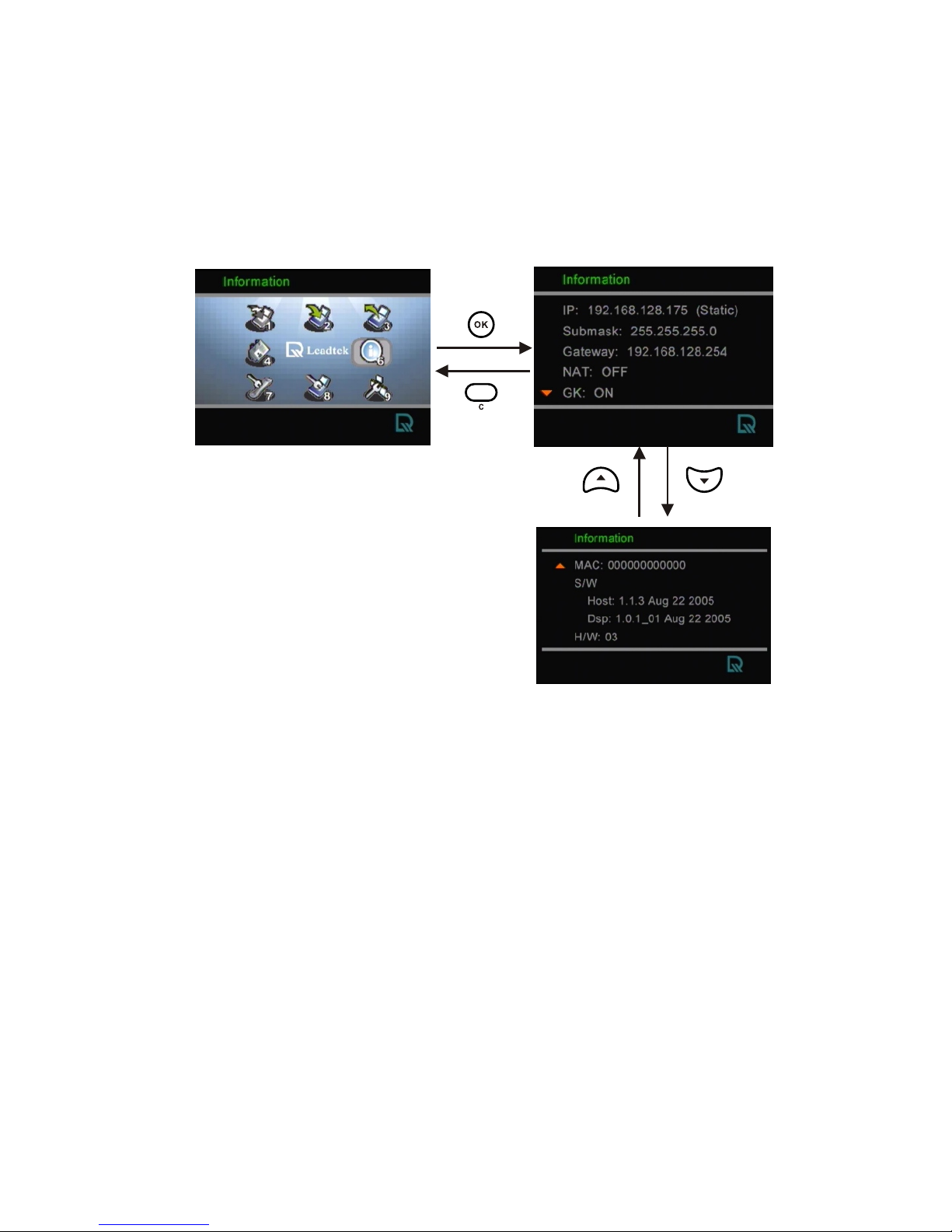

Information ................................................................... 43
Calls Setup ..................................................................... 44
Communication mode .................................................... 44
Caller ID ......................................................................... 45
Auto answer .................................................................... 46
Auto answer rings ........................................................... 47
Phone Setup .................................................................. 48
Time setup ...................................................................... 48
Language setup .............................................................. 49

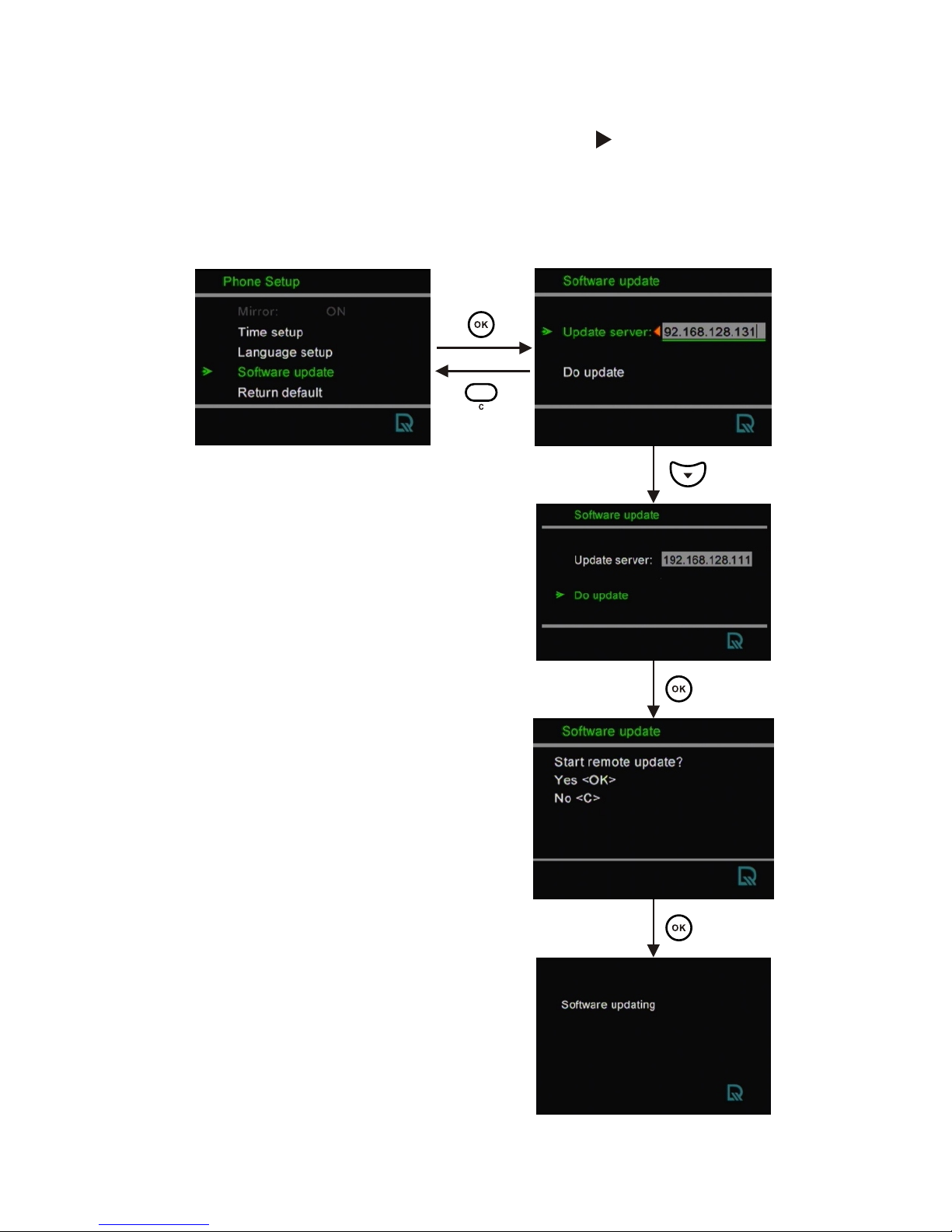

Software update .............................................................. 50

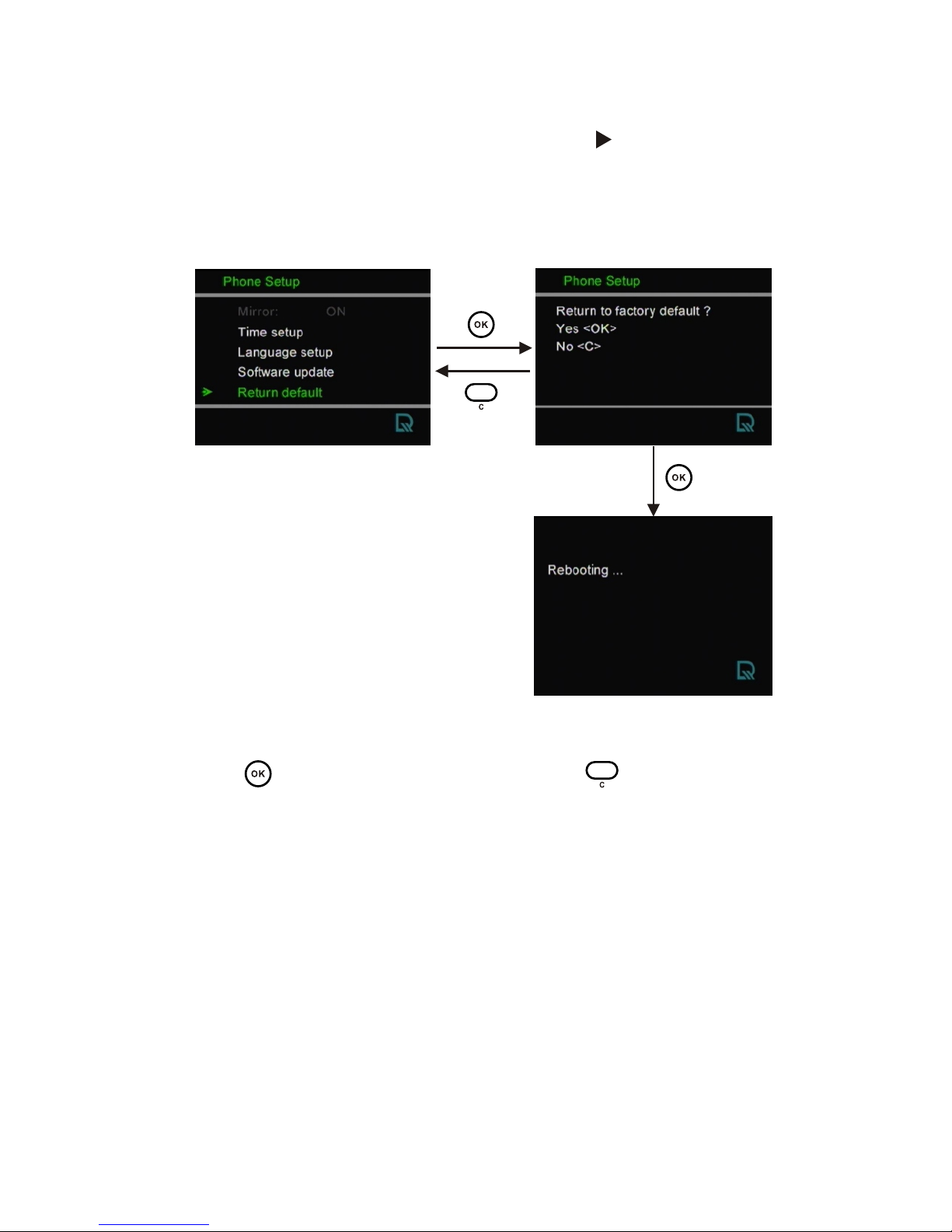

Return default ................................................................. 51
Network Setup .............................................................. 52
Bandwidth ...................................................................... 52
IP Setup .......................................................................... 53
NAT Setup ...................................................................... 54
GK Setup ........................................................................ 55
8 OSD Menu Tree .................................................. 56
9 Trouble Shooting ............................................... 57
10 Tech Support ..................................................... 58
11 Limited Warranty ............................................... 59
12 FCC Statement ................................................... 60
Overview
The BVP 8759 is designed to avoid complicated installation. And with the buttons on the remote control, you are able to access the user-friendly on screen display menu (OSD), easily control the functions and make adjustments.
The BVP 8759 has a built-in high quality CCD camera. While making a video call, you can enjoy the brilliant real-time color images of yourself, your correspondents or both. If you do not want your image to display on the caller or receiver's screen. The BVP 8759's private mode can do just that.
The BVP 8759 is fully compliant with H.323 international standards for video communication. It can be used with any video phone that are compatible with this standard.
Feature highlights:
Friendly graphic user interface Built-in rotatable CCD camera Friendly and easy operation through remote control Phonebook dialing function 1 A/V input for additional video/audio input Wall mounting Incoming call indicator display Support FXS port Echo-cancellation and no delay high quality audio 1 serial port for PTZ camera control* 2 USB 1.1 connectors provide USB application extension*
*Check for availability
1 Getting Started
1
Audio/Video Cable
Power Adapter
Ethernet Cable
Power Cord
User's Manual
BVP 8759
Please unpack the product package with caution; inspect the items closely. If you find any damaged item, please contact your local distributor immediately. Also, please keep the box and packing material for future use in the event of future shipments.
BVP 8759 x1 Remote Control with Batteries x 1 User's Manual x 1 DSub26-SCART Cable x 1 or
DSub26-RCA Cable x 1 Microphone x 1 Microphone Extension Cable x 1 Power Adapter x 1 Power Cord x 1 Ethernet Cable (RJ-45) x 1 Audio/Video Cable x 1 MiniDIN-RCA Cable x 1 Mounting Plate & Screws x 1
Remote Control
with Batteries
2 What's In The Package
BVP 8759 User's Manual 2
4
1
7
GHI
PQRS
2
5
8
0
JKL
TUV
ABC
3
6
9
#
MNO
WXYZ
DEF
MENU C
MIRRORSOURCE
MiniDIN-RCA
Cable
Microphone Microphone
Extension
Cable
Mounting Plate
& Screws
DSub26-SCART
Cable
DSub26-RCA
Cable
or
3 Getting to Know Your BVP 8759
3
Front view
CCD Camera:
The input source of local video image. This is a mini built-in CCD camera.
Turning Knob:
BVP 8759 features a turning knob that you can use to adjust the angle and position the camera faces.
Remote Control Signal Receiver:
Receives the infrared signal from the remote control. When using the remote control, please aim at this receiver.
Power Indicator:
The LED lights green when the unit is powered on.
Message Indicator:
The LED lights red when a message comes. (Reserved function)
Built-in Microphone:
This is the built-in microphone to which you can input sound.
Ringer Indicator:
When there is an incoming call, the ring will light up.
Video Indicator:
The LED lights yellow when the unit is in a video call.
BVP 8759 User's Manual 4
Rear view
WAN
Ethernet connector
Power Switch
For turning on/off the power
A/V AUX
Audio and Video for TV and VCR
DC IN
Connect to the DC output of power adapter
Microphone Connector
Connect to an external microphone
Phone
Connect to a telephone
USB Connectors
Connect to other USB devices (optional)
COM
Connect to an external PTZ camera (optional)
A/V
Audio and Video input/output connector
4
1
7
GHI
PQRS
2
5
8
0
JKL
TUV
ABC
3
6
9
#
MNO
WXYZ
DEF
5
Using remote control
1. Camera
2. Number keys
3. PTZ Camera zoom in
4. Navigation key
5. Navigation key
6. Navigation key
7. Menu
8. Source
9. Phonebook
10. Video key
11. Mute
12. Soft key 1 (reserved)
13. On-hook / Off-hook
14. PTZ Camera zoom out
15. Navigation key
16. Ok
17. Cancel
18. Outbox
19. Inbox
20. View
21. Contrast / Luminance
BVP 8759 User's Manual 6
Used with OSD menus; to move the cursor left or to go back to the previous menu. During a video call, used to reduce the incoming video bit rate.
Used with OSD menus; to move the cursor right or to enter the sub menu. During a video call, used to raise the incoming video bit rate.
Used with OSD menus; to move the cursor up. During a call, to turn the volume of the speakerphone up.
Used with OSD menus; to move the cursor down. During a call, to turn the volume of the speakerphone down.
Cursor Panel
Hot Keys
Using remote control (cont.'d)
Mute: During a video call, this button is used to mute the audio so that you will not be heard by the other party on the phone.
Video Key:
Press once to freeze the video image of callers so that the other party can have a clearer display. Press twice to hide the display image to the other side.
OK: Used with OSD menus; to enter the sub menu, or to confirm the selection.
OUT-BOX:
To bring out the menu that
contains the numbers of the 10 last dialed calls.
Phonebook:
To bring out the phonebook menu. See page 40.
MENU:
To bring out the OSD menu.
Source:
Select between the built-in and the external A/V source.
View:
To select how local and remote video is displayed on the screen. The options are: Remote, PIP upper-left, PIP lower-left, PIP upper- right, PIP lower-right, Local. And it switches in that sequence.
Camera:
To switch between BVP 8759 and external PTZ camera.
Contrast / Luminance:
To adjust the brightness and contrast of BVP 8795's video output.
IN-BOX:
To bring out the menu that
contains the numbers of the 10 last received calls.
Cancel:
To cancel a selection, or to
function as Backspace when you input letters or numbers.
7
Inputting numbers
Pressing any key on the numeric keypad can input the correspondent number. For example, pressing will generate the number " 8 ".
Numeric Keypad
Inputting letters, punctuation marks, and special characters
Every button on the numeric keypad has characters printed under it. When inputting data, pressing a key will pop up a list of corresponding characters to choose from. Use and to choose the desired character and press to confirm the selection.
For example, has the number " 2 " on it
and the letters " ABC " below it. Press
and a list of 4 characters "a b c 2" will appear.
Move the cursor to the character you wish to
input and press .
Using remote control (cont.'d)
Numeric Keypad
4
1
7
GHI
PQRS
2
5
8
0
JKL
TUV
ABC
3
6
9
#
MNO
WXYZ
DEF
8
TUV
Switching between upper case and lower case letters
Press once to switch between upper and lower case
letters when inputting data.
#
2
ABC
2
ABC
4 Installation

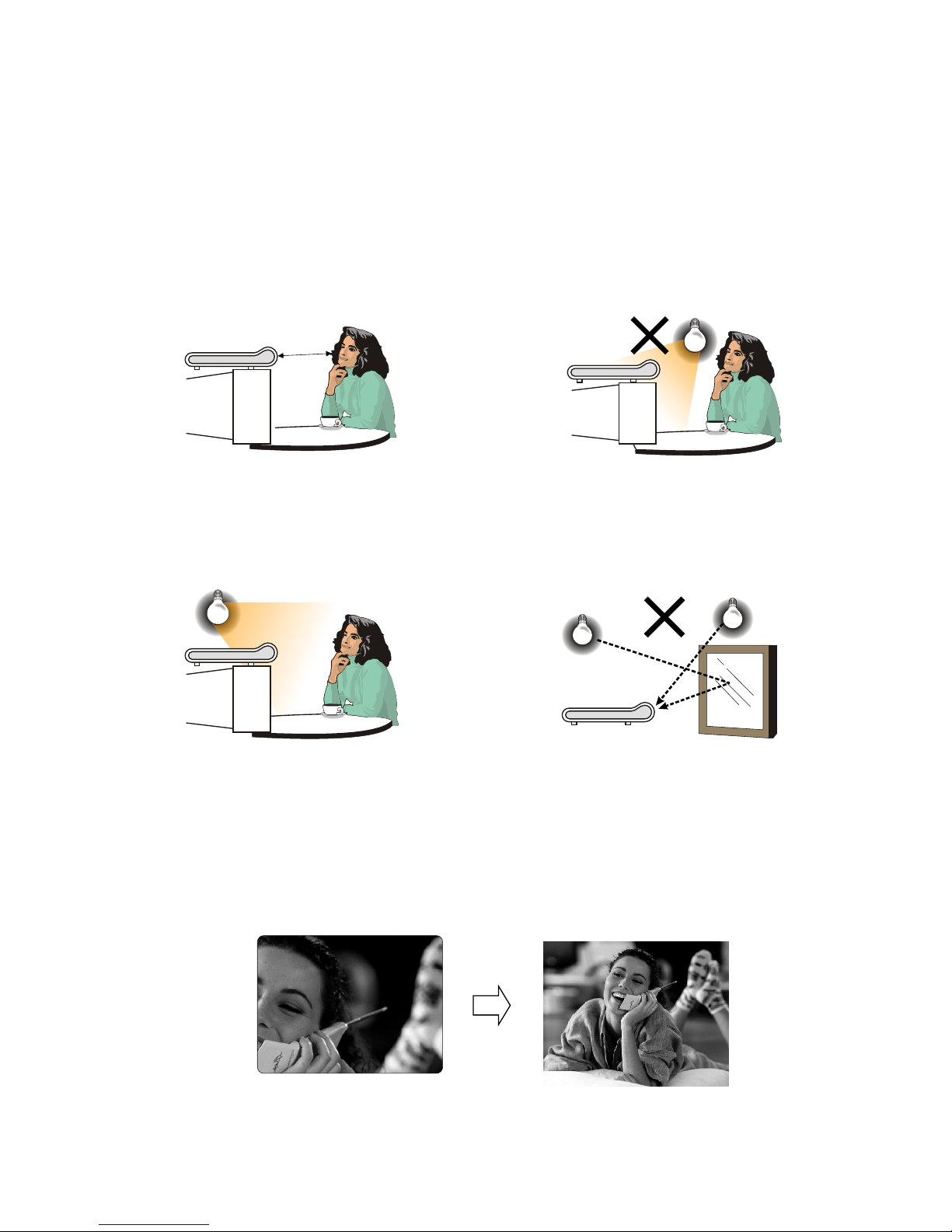

Step 1 Pick a good spot
Prolonging the lifespan
Avoid storing or operating BVP 8759 in abnormal conditions. High temperatures or excessive humidity could cause the unit to malfunction and shorten its useful lifespan.
Stability
Place your BVP 8759 on top of a counter, desk, or table with the CCD camera opening in front. Or you can install BVP 8759 on the wall by fixing the included mounting plate to the wall with screws and sliding the slot on the back of BVP 8759 onto the mounting plate.
Lighting condition
Make sure the lighting is sufficient and does not shine directly into camera lenses.
View of camera
Avoid using BVP 8759 in a room with brightly painted walls or flamboyant wallpaper. Soft and evenly painted background provides the best results.
Installing the unit
BVP 8759 User's Manual 8
Step 2 Connect the Ethernet cable
Plug one end of the Ethernet cable in the jack marked " " on BVP 8759. Plug the other end of the Ethernet cable in the RJ-45 jack of the Internet device (hub, router, or ATU-R).
Connect the Ethernet cable to the Internet device.
Installing the unit (cont'd)
Step 3 Plug in for power
Connect the power cord between the wall outlet and the power adapter. Plug the free end of the power adapter into the power connector (DC IN) on BVP 8759.
Connect the power adapter.
Connect the power cord and plug in.
9
Notes for removing the power cord
The connector on the power adapter has a mechanism which, when connected to the videophone, will be locked to the power connector. To remove the power cord from the videophone, follow the steps below:
1. Grab the connector and slide it outward to loosen the lock.
2. Gently pull the connector until the cord is fully disconnected.
Note: Do not force the connector or pull the cord abruptly,
or the power adapter may be damaged.
VCRCCD Camera
Television
BVP 8759 User's Manual 10
Installing the unit (cont'd)
External Microphone (Optional)
Video/Audio
Output
Video/Audio
Input
(Optional)
Television
VCR TV
or
(Optional)
5 System Setup
The System Setup section gives instructions on how to set up your BVP 8759 system under some mostly used interconnection types. There is a condition bar on each page (as shown in the figure), indicating what type of connection the setup guide on that page is for. Look for the type of connection you use with your BVP 8759 to find the setup instructions you need.
Connection LAN Type Firewall NAT Packet Filter
Without DHCP server connected
Internet
System Setup (Cont'd)
Condition Bar
11
Connection ADSL Type Constant ADSL IP Single, Public, & Fixed
When the IP is used exclusively by BVP 8759
Internet
ATU-R
BVP 8759
Note : IP address, Subnet Mask and Gateway are assigned by your ISP, each consisted of 4 sets
of numbers with dots in between them. Check with your ISP for the information.
System Setup (Cont'd)
BVP 8759 System Setup
(see p. 53)
BVP 8759 User's Manual 12
Connection ADSL Type Constant ADSL IP Single, Public, & Fixed
When the IP is shared with other devices (with a DHCP server connected)
Internet
ATU-R
Router
General PC 1, 2, ...n
DHCP Server
Note : IP, Subnet Mask and Gateway are assigned by your DHCP server.
This router has to be able to provide the NAT service. Or you can put BVP 8759 into DMZ if your router supports this function.
The DHCP Server must be able to support dynamic­fixed IP allocation.
System Setup (Cont'd)
BVP 8759
BVP 8759 System Setup
(see p. 53)
13
Connection ADSL Type Constant ADSL IP Single, Public, & Fixed
When the IP is shared with other devices (without a DHCP server connected)
Note : You can assign your own IP, Subnet Mask and Gateway within your private segment. If
the segment is 172.16.0.0-172.16.0.255, your settings should be:
IP : one chosen from the range between 172.16.0.1 to 172.16.0.254 Subnet mask : 255.255.255.0 Gateway : one chosen from the range between 172.16.0.1 to 172.16.0.254, usually
172.16.0.254, and can't be the same as your IP address.
Internet
ATU-R
Router
General PC 1, 2, ...n
This router has to be able to provide the NAT service. Or you can put BVP 8759 into DMZ if your router supports this function.
System Setup (Cont'd)
BVP 8759
BVP 8759 System Setup
(see p. 53)
BVP 8759 User's Manual 14
Connection ADSL Type Constant ADSL IP Multiple, Public, & Fixed
When BVP 8759 uses one of the IPs (with a DHCP server connected)
Note : IP, Subnet Mask and Gateway are assigned by your DHCP server.
Internet
ATU-R
General PC 1, 2, ...n
DHCP Server
Hub
System Setup (Cont'd)
BVP 8759
BVP 8759 System Setup
(see p. 53)
15
Loading...
+ 45 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
