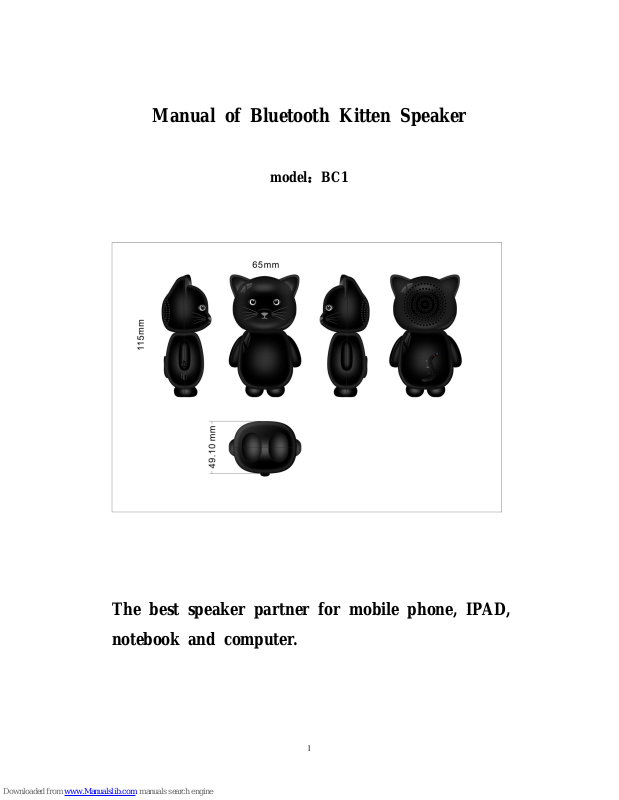

Manual of Bluetooth Kitten Speaker
model：BC1
The best speaker partner for mobile phone, IPAD,
notebook and computer.
2
operation
●Key functions of the touch panel and and buttons
ON/OFF Power Switch
play/pause
long press for 3 seconds to volume +/short press to
exit music
long press 3 seconds to volume-/short press to PREV
MICRO USB charge couple The USB port only use for charging,
Not tranfer data via PC)
3
●charging for the speaker
NO.1 Connected to the computer USB charging.
NO.2 Use the standard USB interface of mobile phone cha
rger
NO.3 While charging, the red light is on, and it would be
off when charging is completed.
●Turn on the speaker
Push the switch to ON to turn on the power, the blue lig
ht is on, then flashing with prompt tone, means turning on
is successful.
●Turn off the speaker
4
Push the switch to OFF to turn off the power,then the indi
cator light is off, means turning off is completed.
● Bluetooth Wireless broadcast of the speaker(Internal batt
ery power supply or the external power supply)
NO.1 After turning on the power, the blue light is on, the
n flashing with prompt tone of enter Bluetooth,Indicates th
at the Bluetooth speaker could be found in the wireless sta
te, then you could use mobile or IPAD to search it,find th
e bluetooth named BC1 to pair, the bluetooth indicator ligh
t flashes 2 times continuously with the prompt tone of pair
ing is successful after connection.
NO.2 Automatic connection of bluetooth speaker
After the successful connection between the Mobile or othe
r devices and the speaker and automatic connection allowe
d,they would connect automatically next time if the connec
tion has not been relieved, after that you could press the
to play music.
NO.3 Relieve the bluetooth speaker matching
5
In bluetooth mode,the speaker and the mobile or IPAD are
matching or in use,you could relieve the matching on the
mobile or IPAD.
NO.4 Disconnect bluetooth speaker service connection
In bluetooth mode,the speaker and the mobile or IPAD are
matching or in use,you could disconnect the bluetooth con
nection on the mobile or IPAD.
NO.5 When paying bluetooth music,a light touch
to
suspend, lightly touch
again to resume playing.
Note: Some media player of mobile or IPAD might not su
pport it.
NO.6 Volume of the bluetooth speaker
When paying bluetooth music, long press +, the volume w
ould be increased.There would be Ding-dong sound prompt
when the the volume is max.long press -, the volume wo
uld be decreased, and it would be silent when the volume
is minimum.
6
Musical selection
Press + button to next song.
Press - button to PREV
Note：Some media player of mobile or IPAD might not su
pport it.
Specification
model：BC1
input interface：USB MICRO 5PIN
voltage：DC2.8V-4.2V
output power：3W DC5V
working current：≤45mA
standby current：<500uA
audio performance ：SBC decode
dB ：≥75dB
charging time：about 2-3 hours
play time：about 4hours（50% volume）
Built-in battery：polymer lithium battery/150mAh
Bluetooth Core ：V2.1+EDR
Bluetooth model：F-6188 V4.0
7
Support bluetooth protocol: HFPV1.5,A2DPV1.2,AVRCPV1.
4,HSP1.2,GAVDP1.2,IOP
working range：<10 Meters
transmission power：Class2，4dbm
sensitivity：-80dBm<0.1%BER
frequency domain：2.4GHz~2.480GHz
temperature range：-40°C to +85°C
boundary dimension：115mmx65mmx49.10mm
net weight：60.9g
Packing and Accessories
Bluetooth speaker：1set
connecting line：1 USB line
Remark
Please read this manual and check the product accessories
before use.
Do not remove or squeeze the product personally to void
damaging.It can not be beside or use near by the high tem
perature heat source such as fire, heater etc.Never put this
product into water or other liquid, when not in use for a
8
long time, should be placed in a cool and dry environme
nt, suggested that charge once every other month.
Note：Product specification change due to technical improve
ments without prior notice.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: Modifications to this product will void the user’s authority to operate this equipment.
